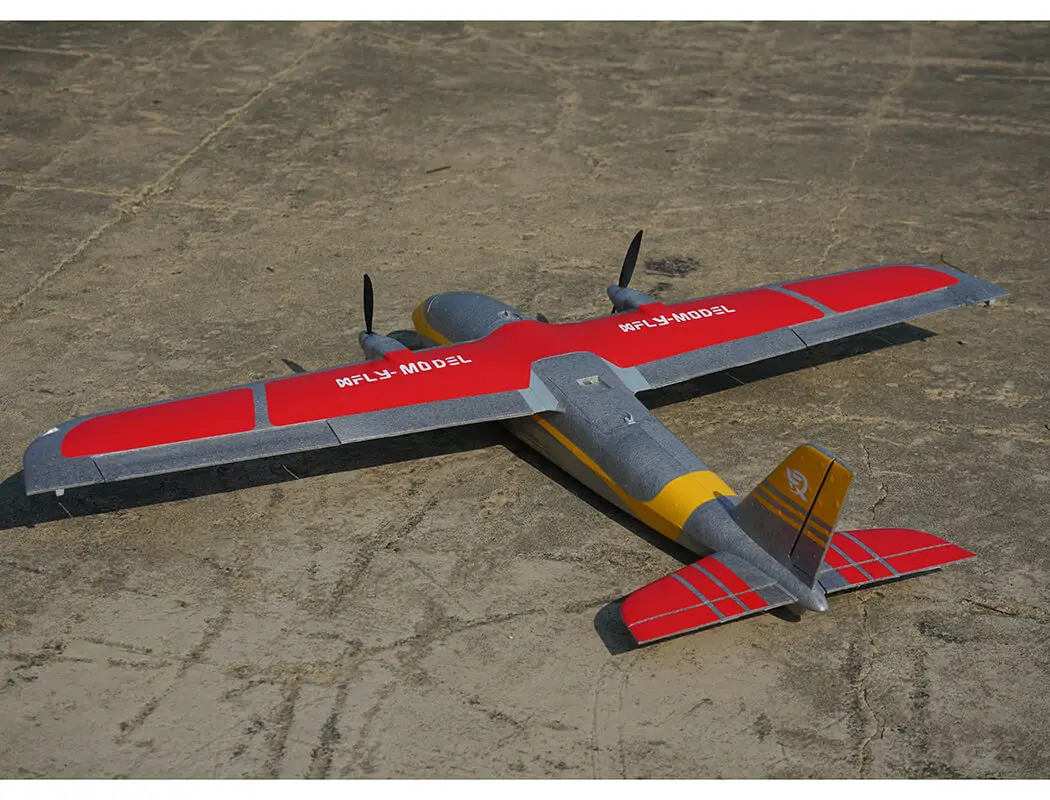

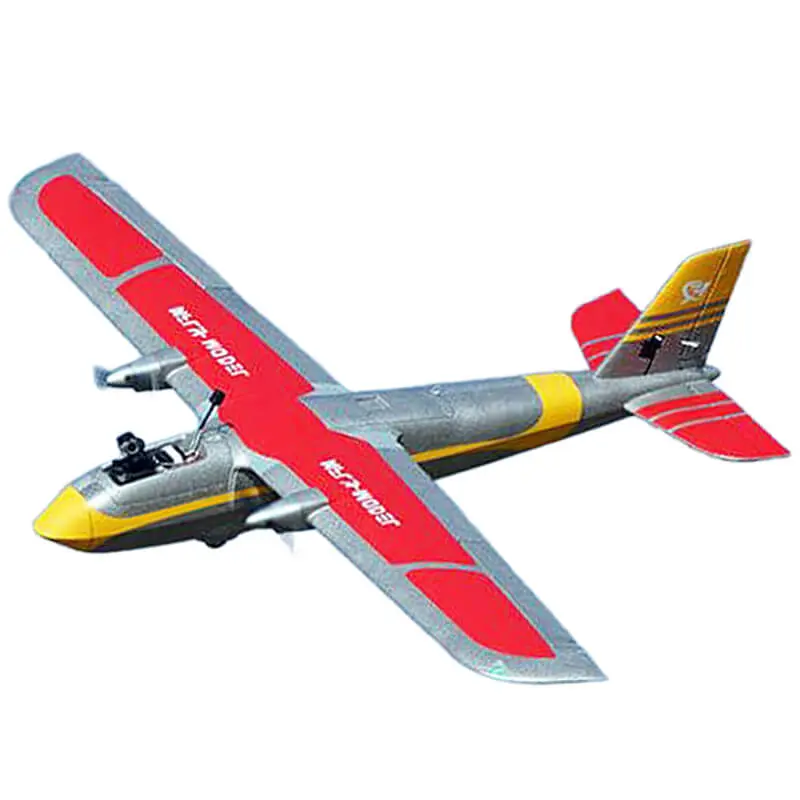

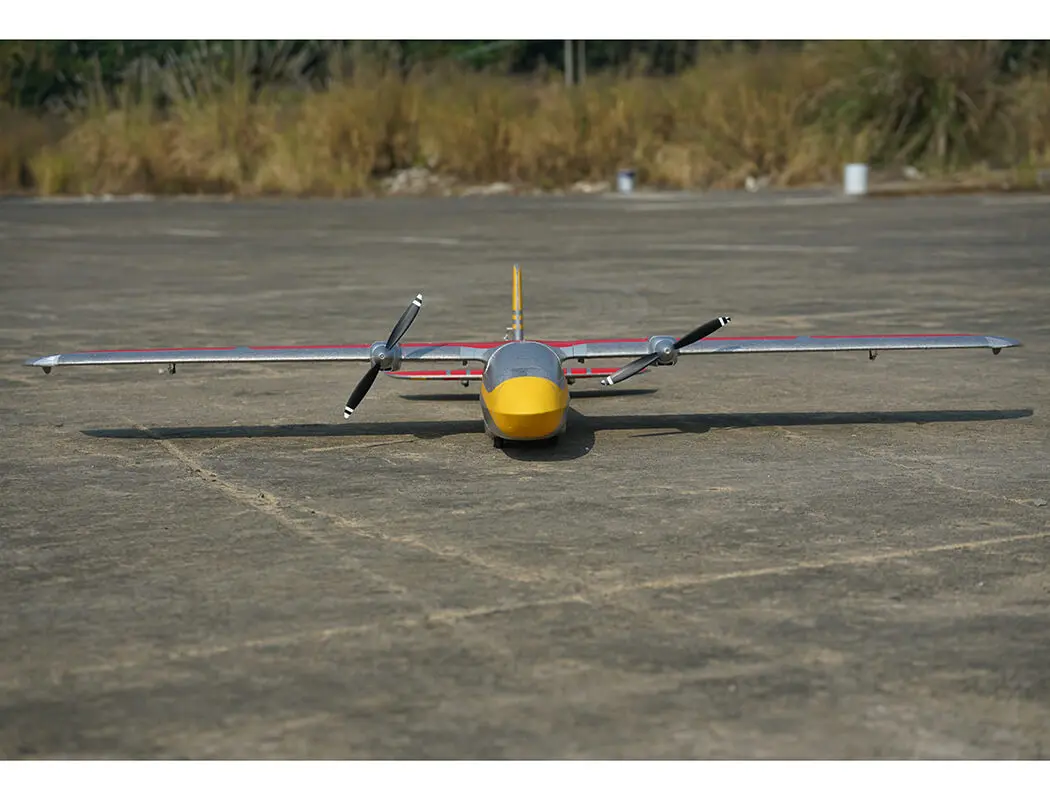

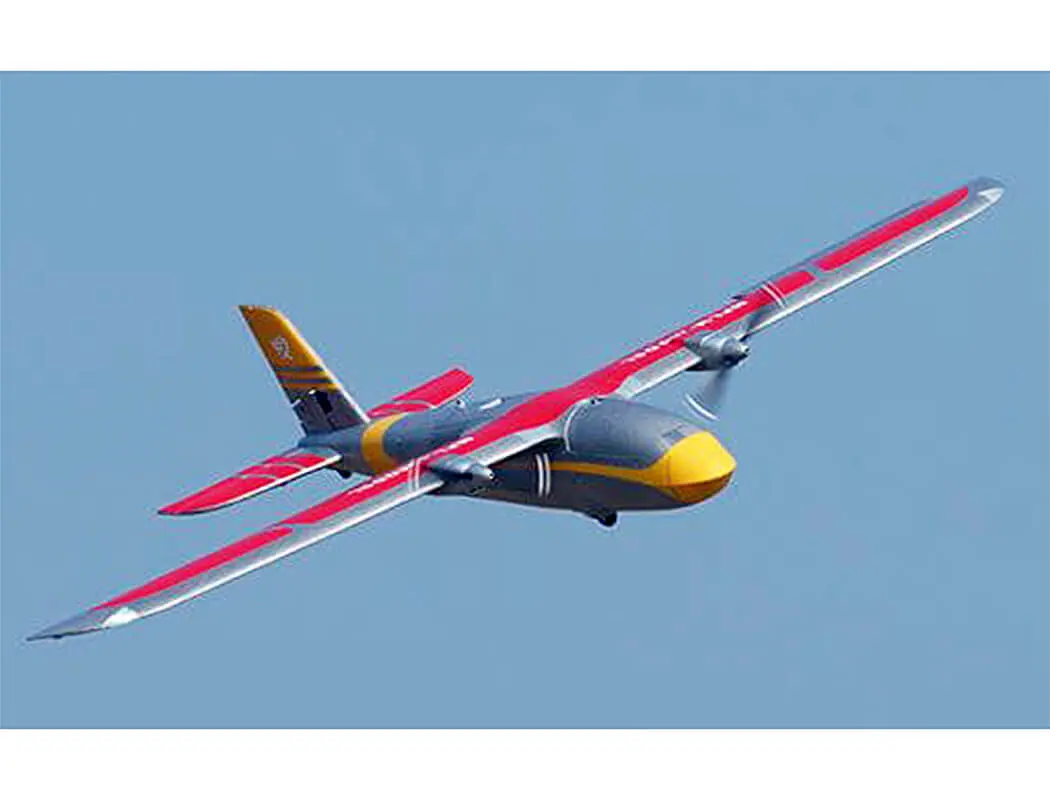

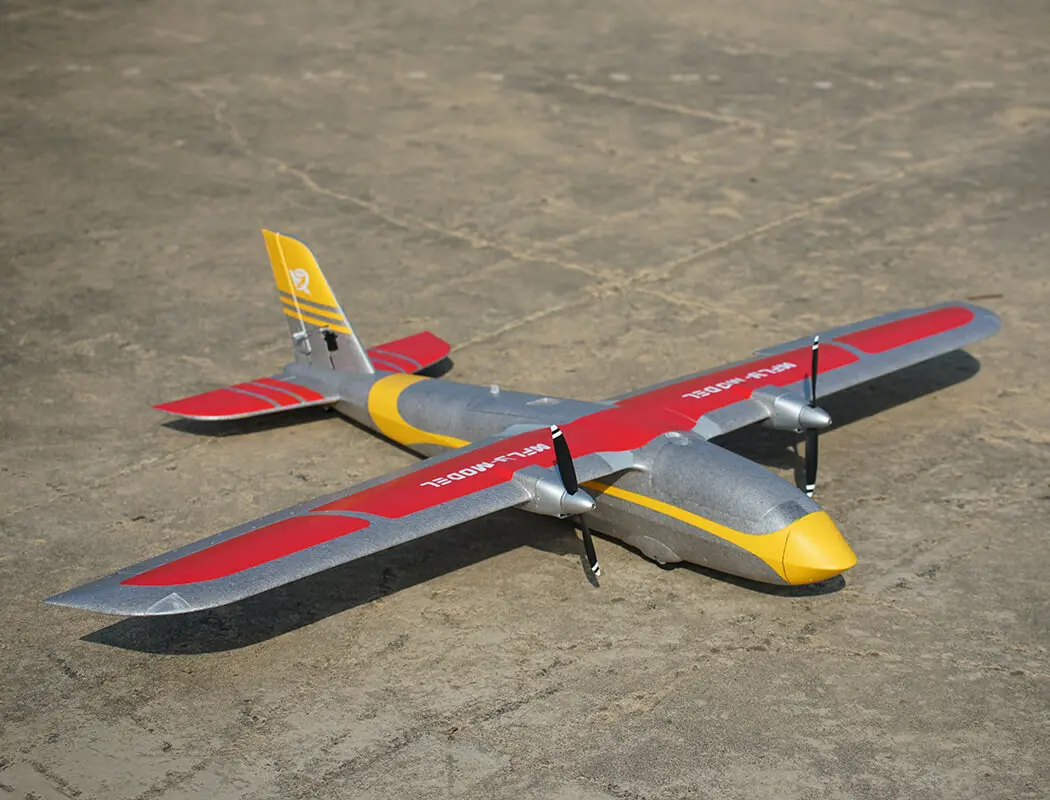

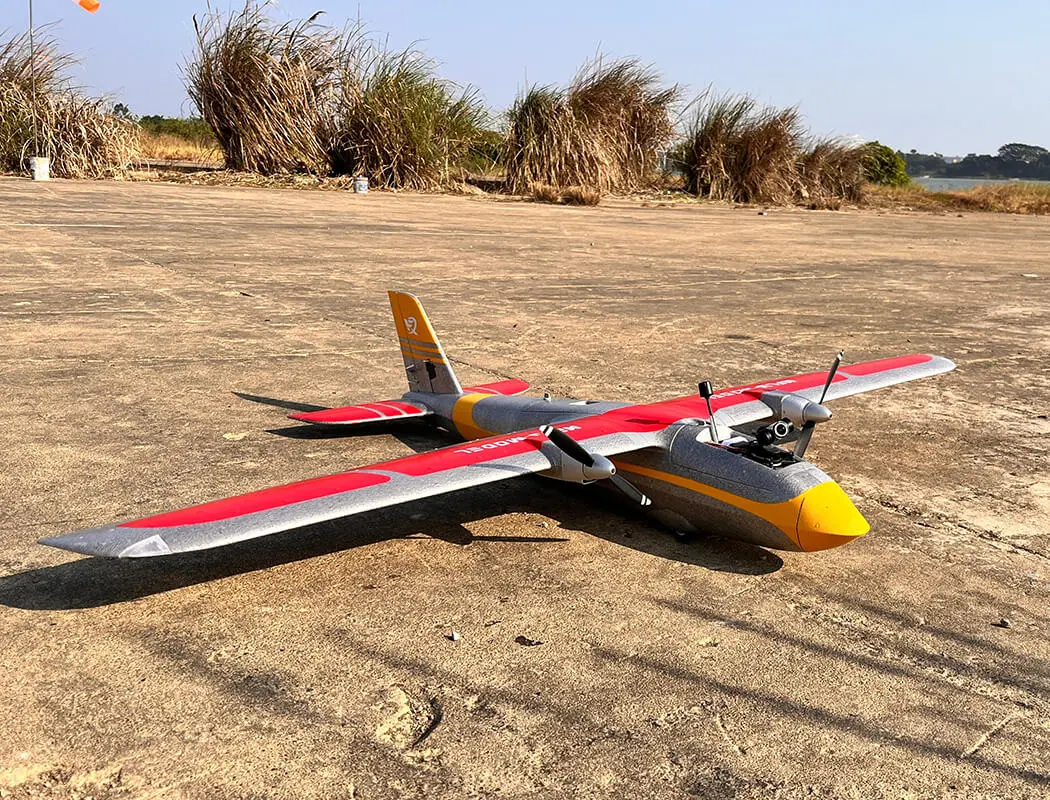

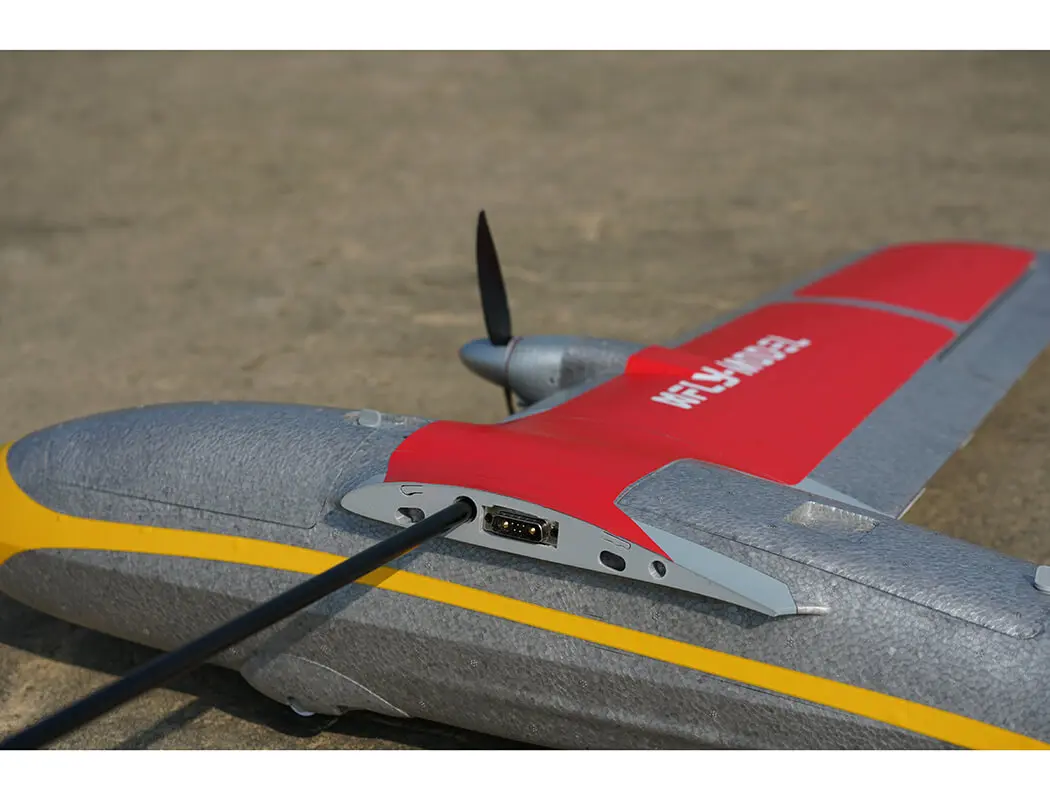

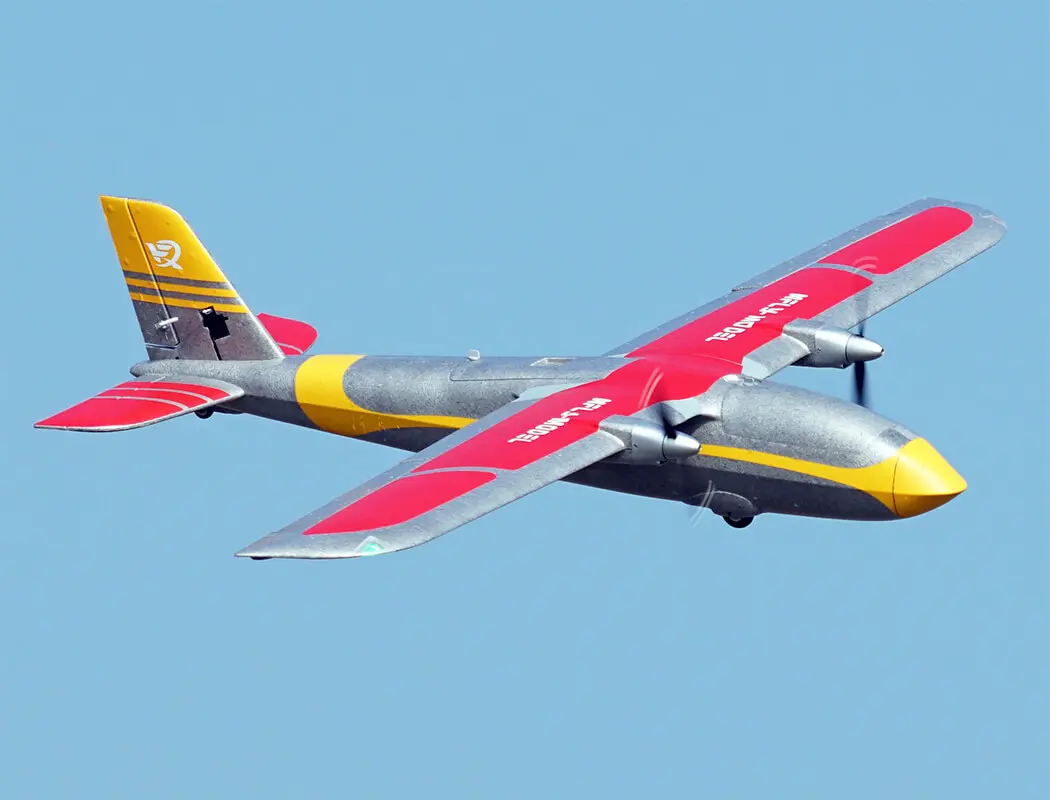

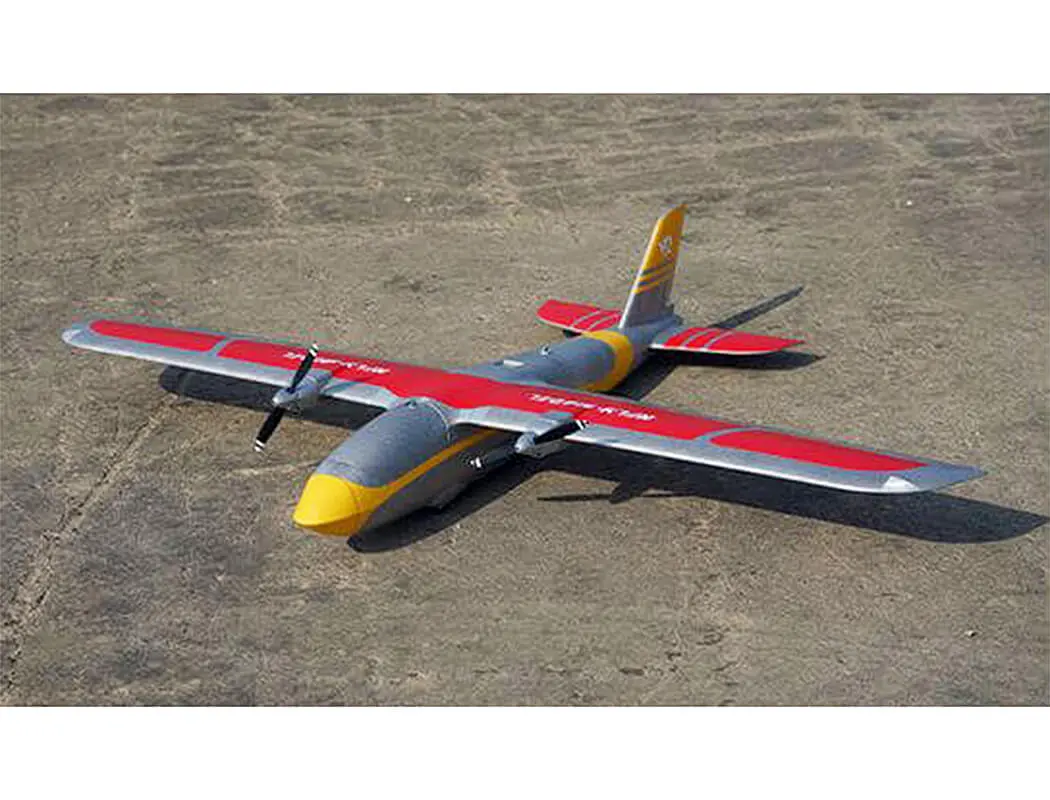

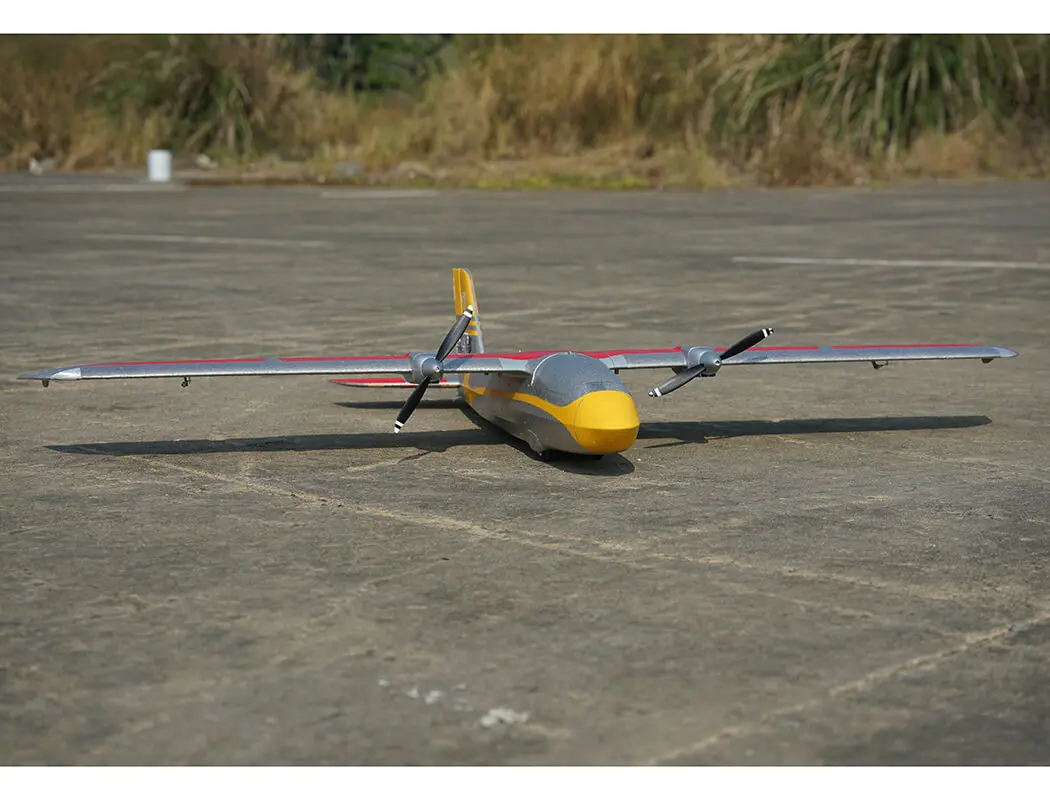

XFLY X1500 LONG ENDURANCE FPV KIT ONLY – RED
XFly X1500 is a long-endurance FPV platform designed for extended flight operations. Constructed from wear-resistant EPP foam and reinforced with high-strength 3D-printed plastic parts, it features a glue-free quick-assembly design that allows deployment within two minutes.

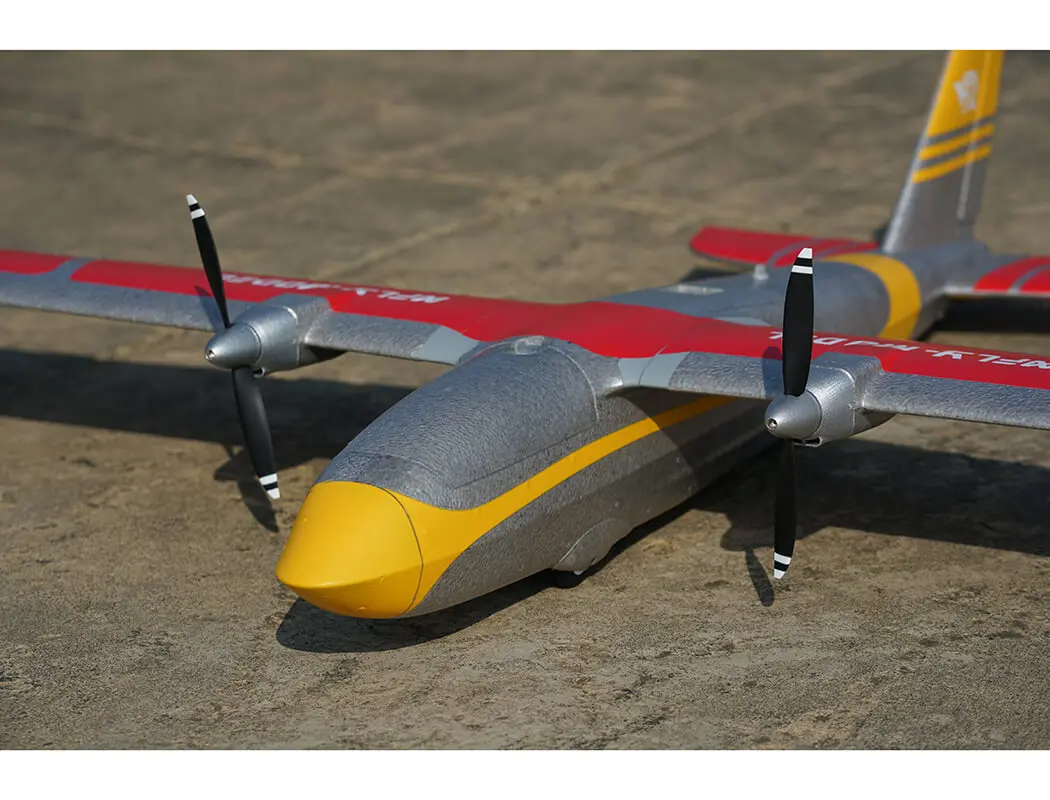

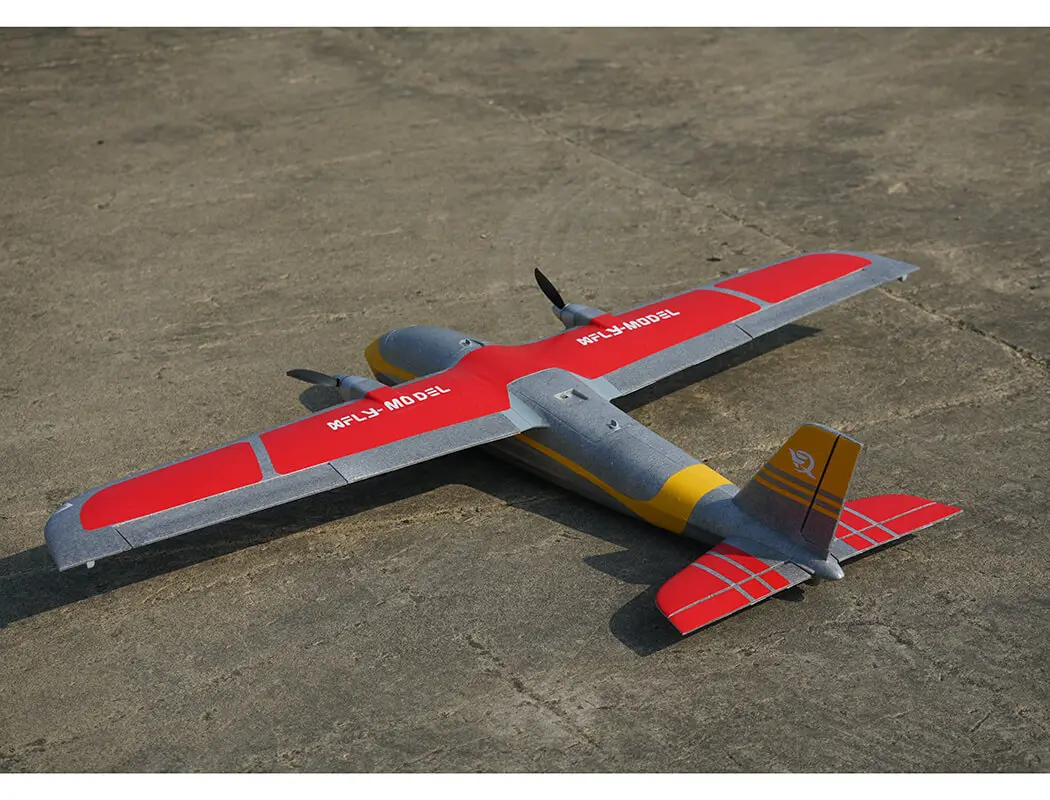

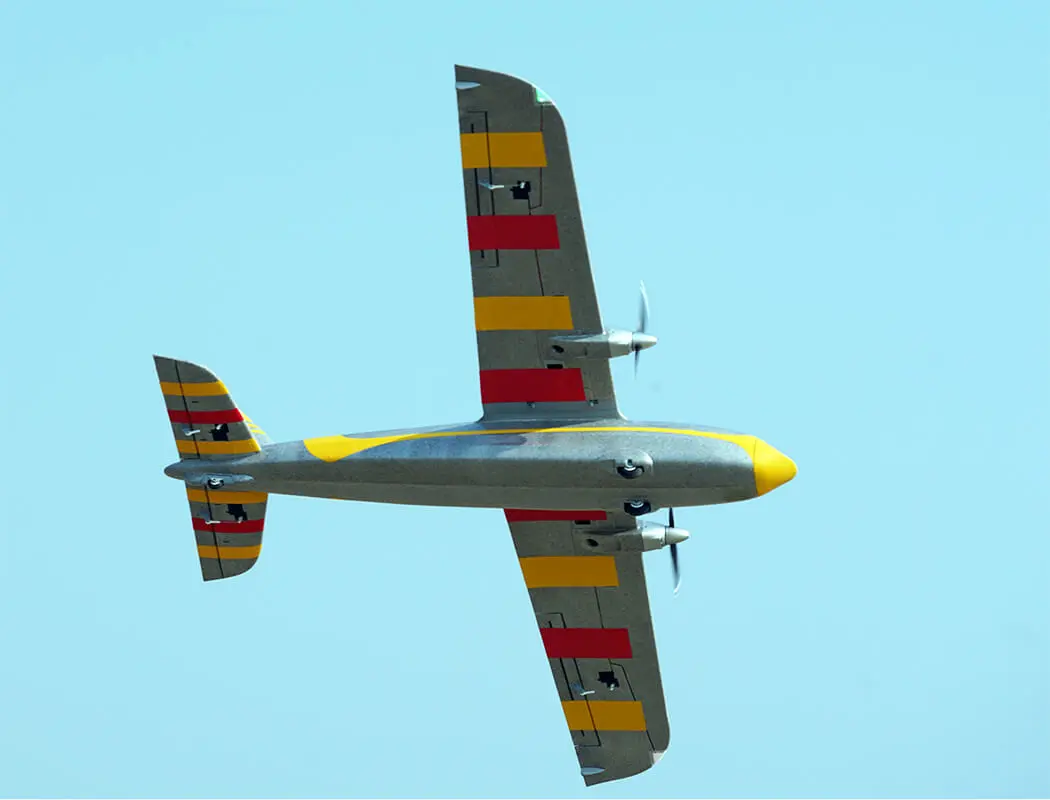

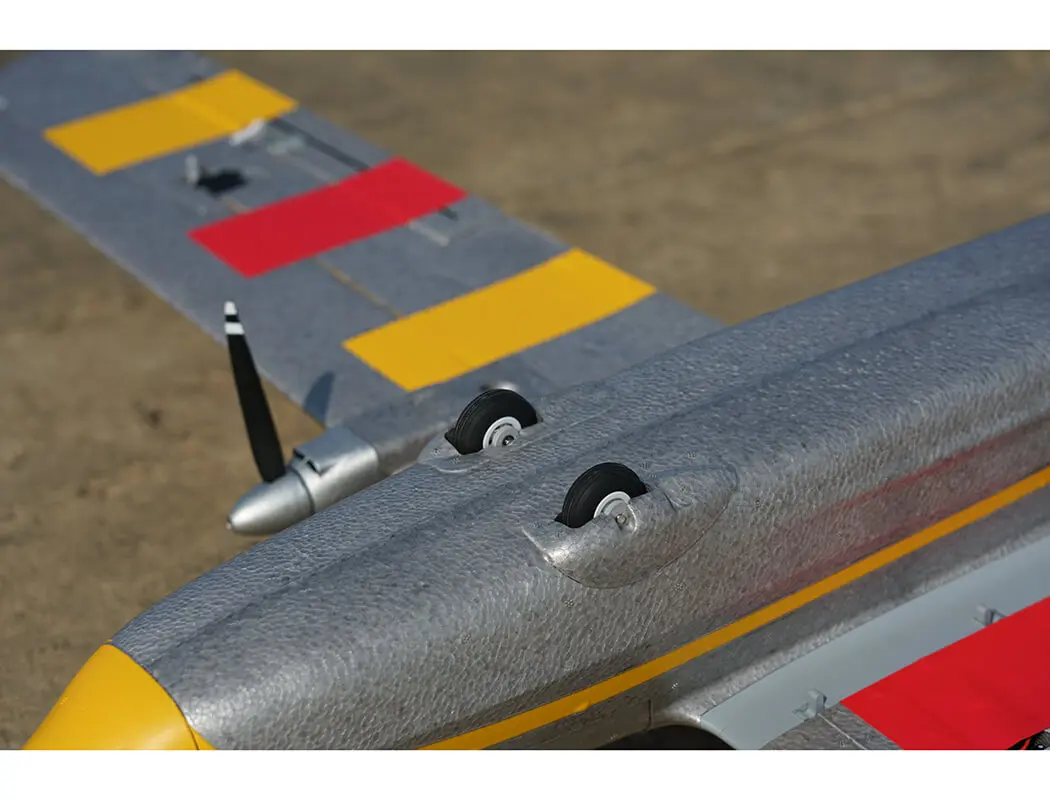

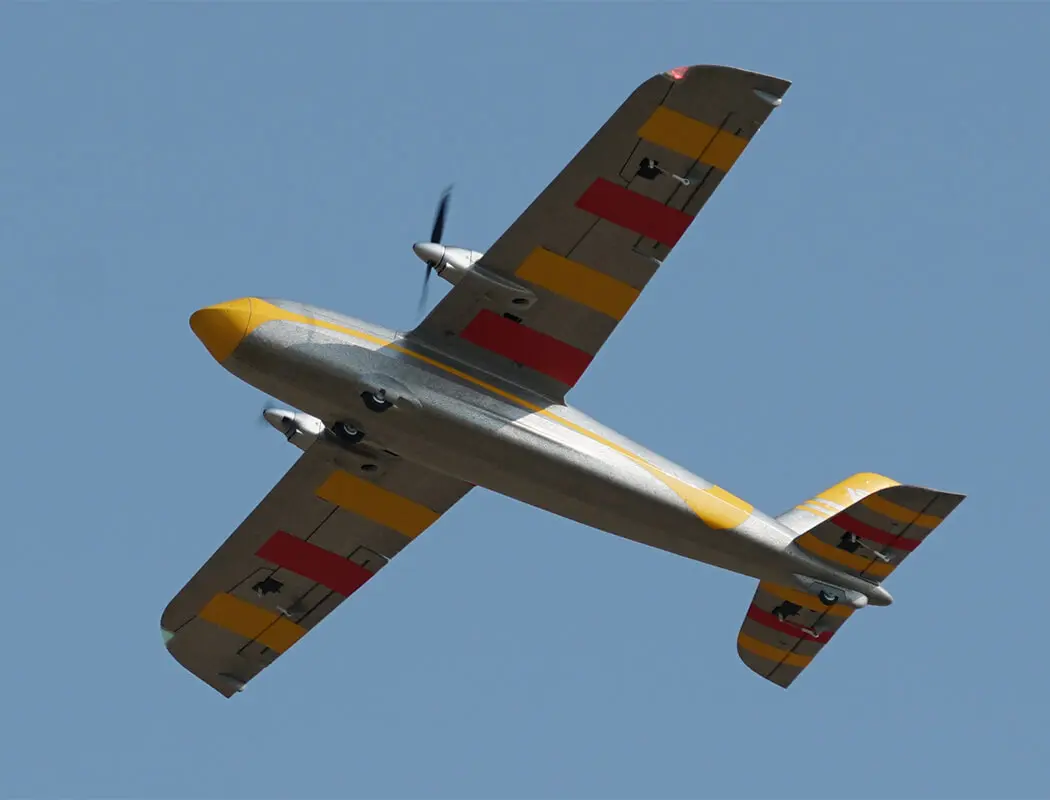

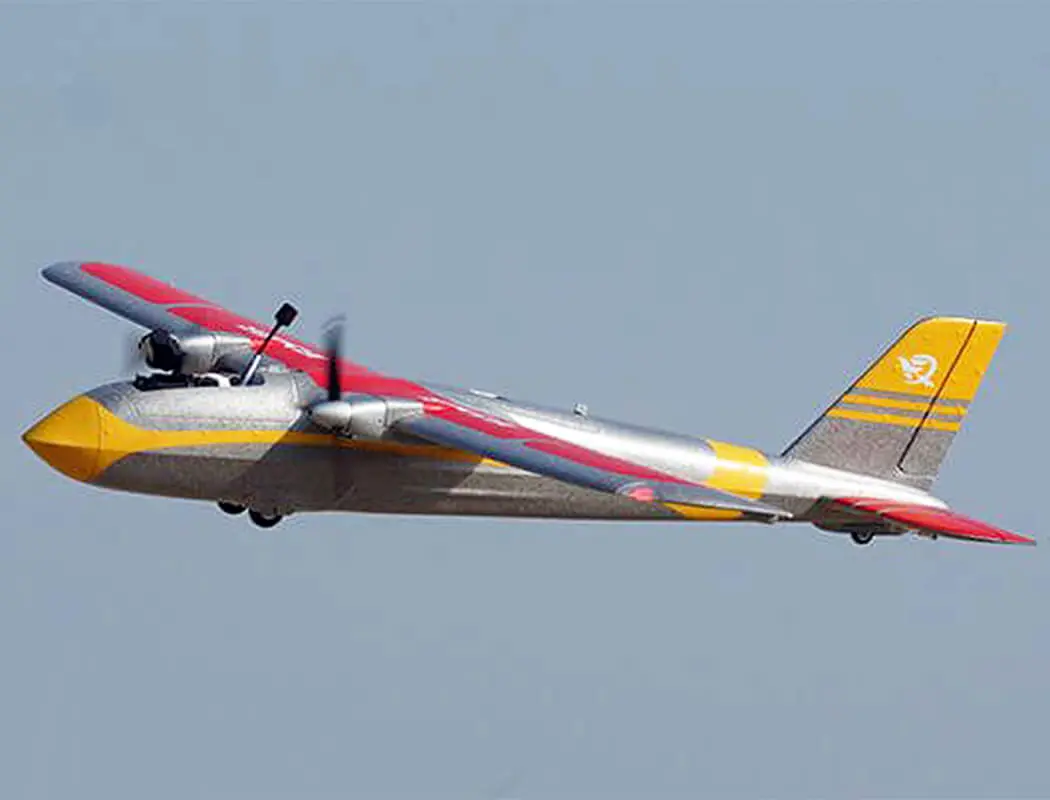

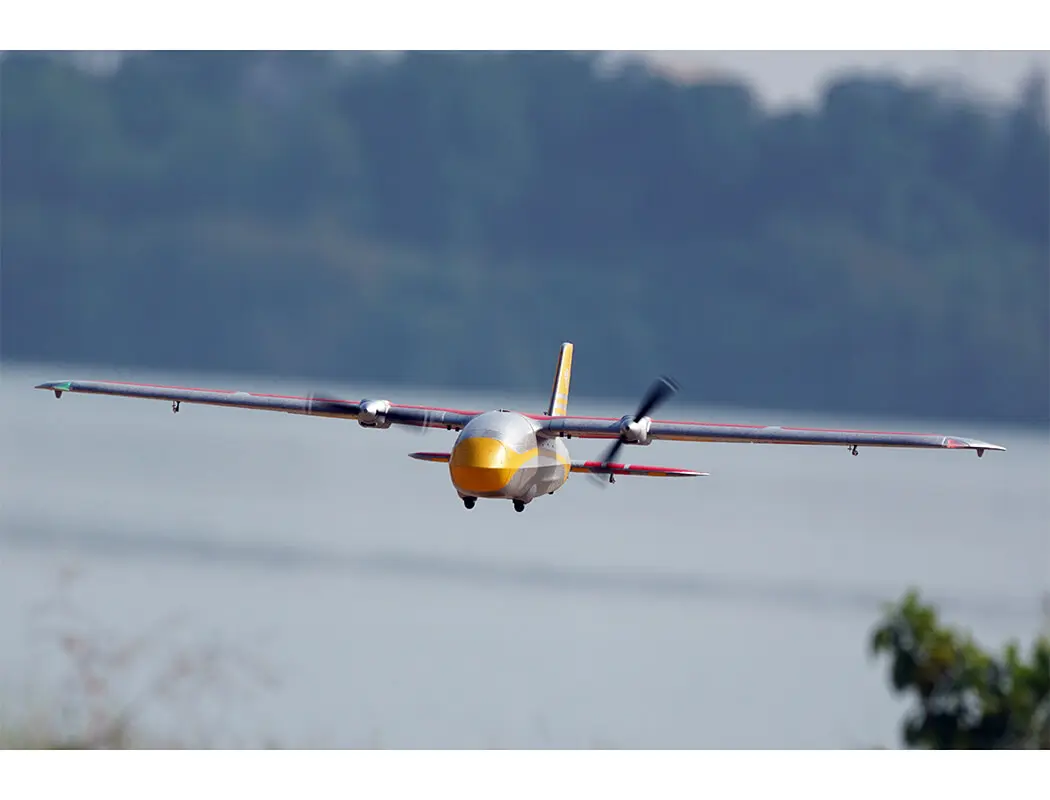

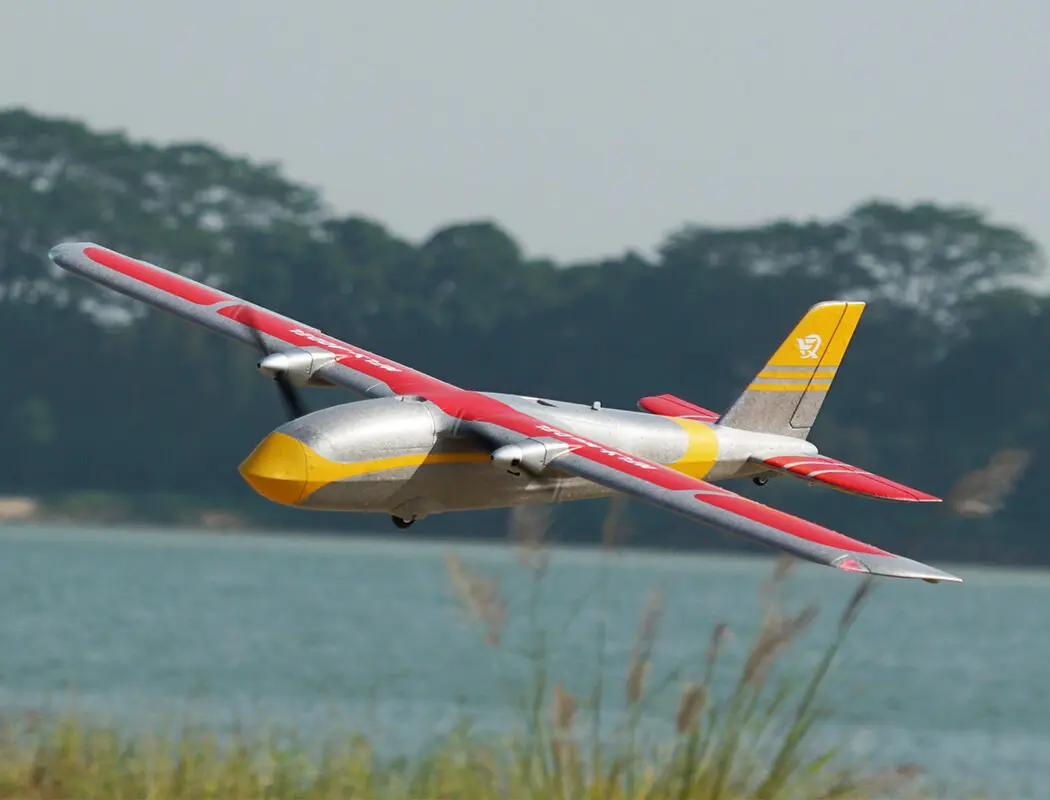

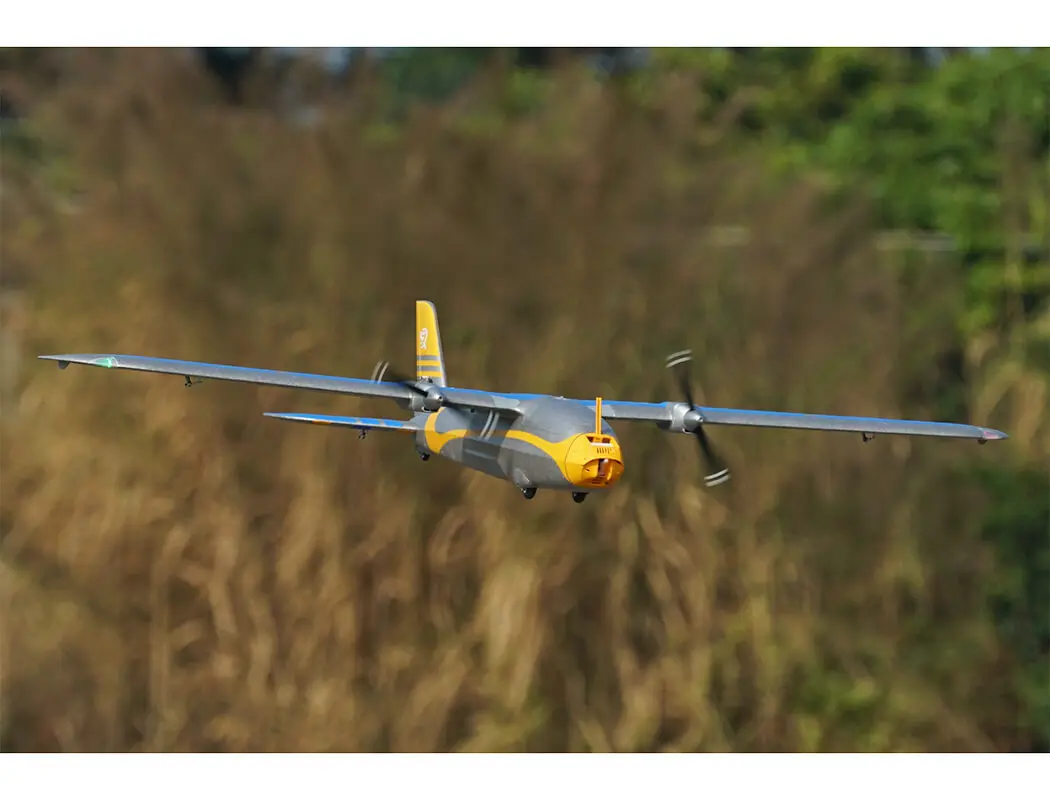

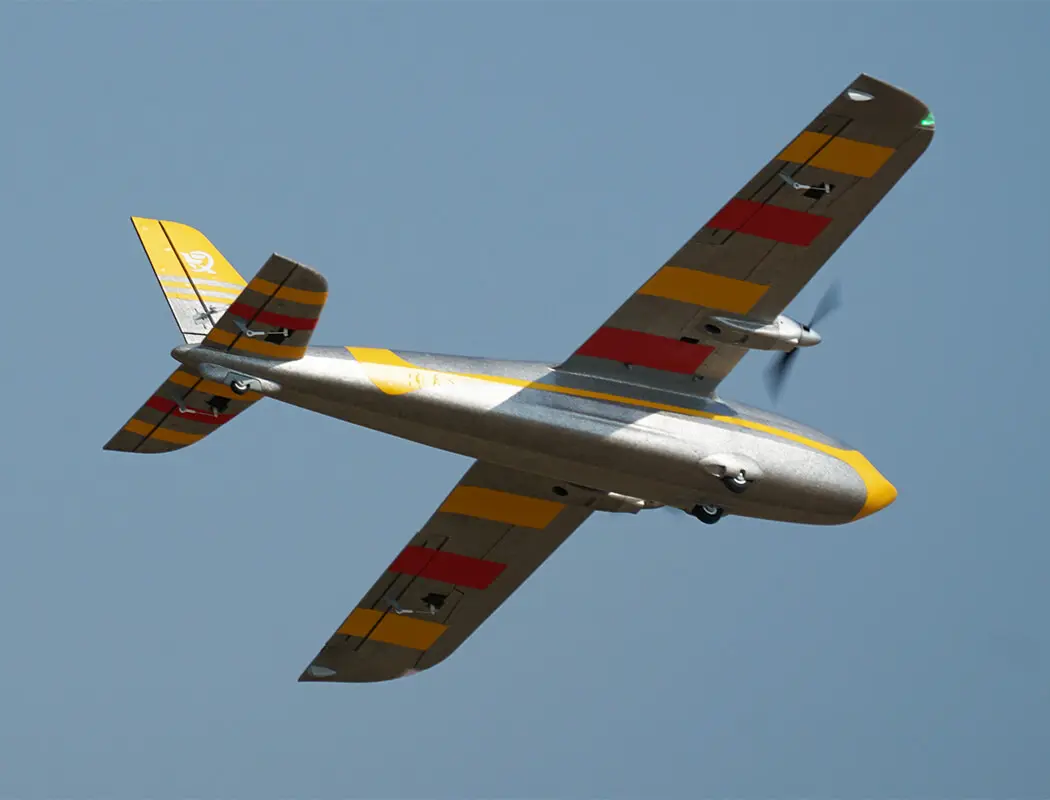

The aircraft adopts a conventional fixed-wing layout, delivering smooth and predictable flight characteristics. Its high-lift airfoil ensures efficient cruise performance, ideal for long-duration missions. Equipped with a twin power system, the X1500 achieves a thrust-to-weight ratio greater than 1 in unloaded conditions, while supporting payloads of 1KG. With its optimised aerodynamics, carefully aligned thrust line and balanced center of gravity, the X1500 can take off effortlessly either by hand launch or via ground roll. Reinforced rubber tyres on the underside enable durable repeated takeoffs and landings.

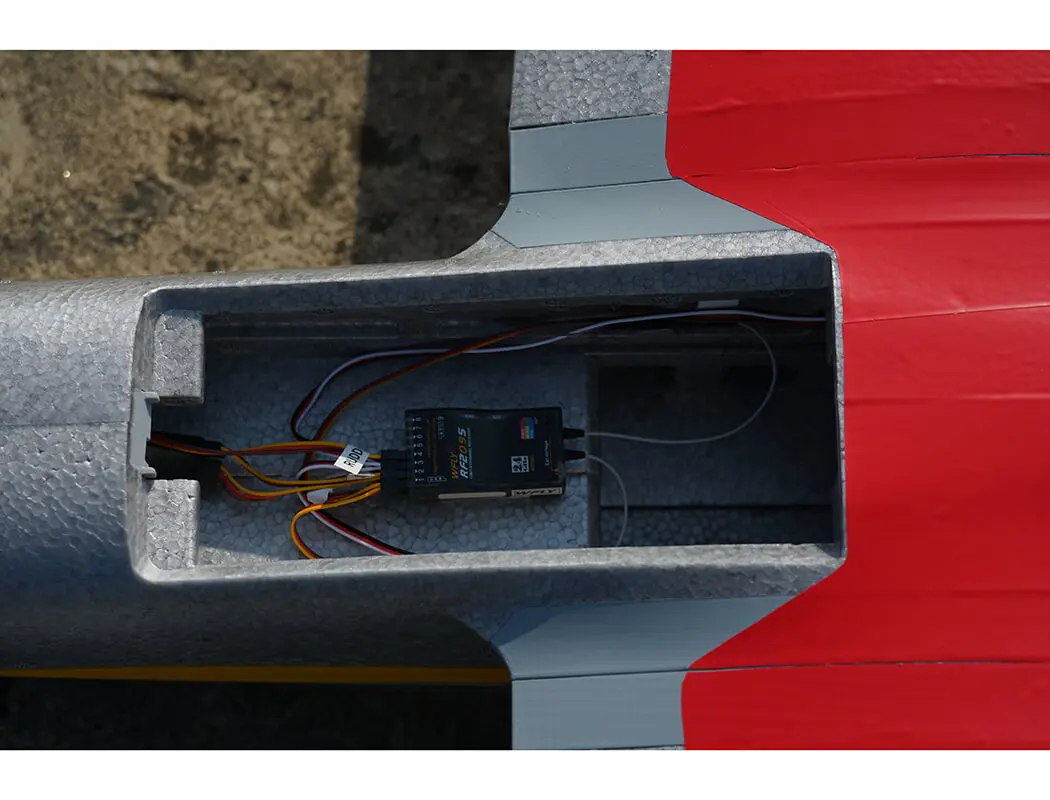

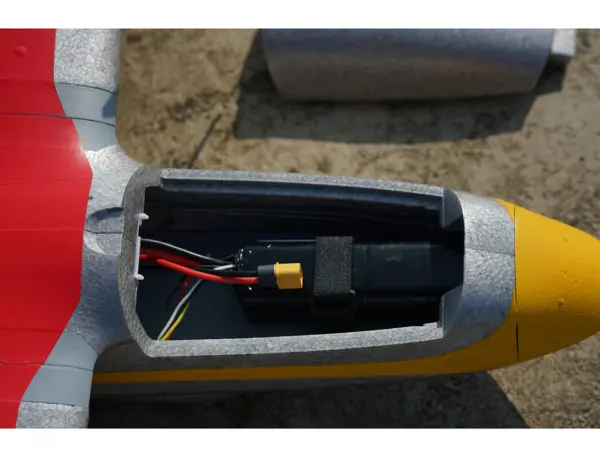

The spacious battery bay accommodates a standard 21700-4S2P-10000mAh battery (not included) with additional room for extra payloads. A dedicated equipment compartment in the mid-fuselage provides ample space for installing flight controllers, GPS modules, and other avionics. Pre-configured mounting points on the FPV nose cone and battery hatch are compatible with DJI and Walksnail FPV systems, allowing quick integration of video transmission setups. The X1500 is offered in both PNP and KIT versions, giving pilots the flexibility to customise their power and battery configuration according to specific mission requirements.
Features

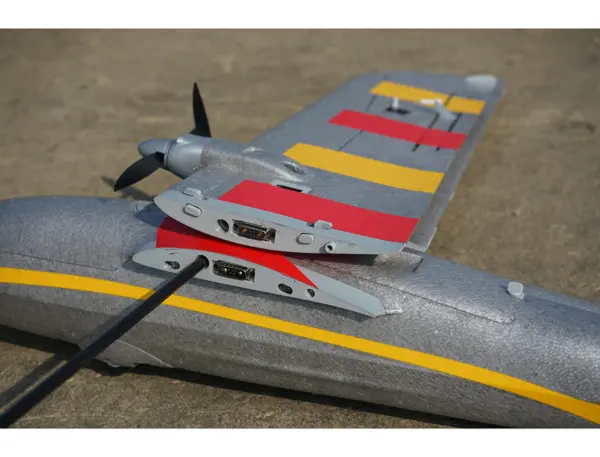

- Glue-free quick-assembly design.

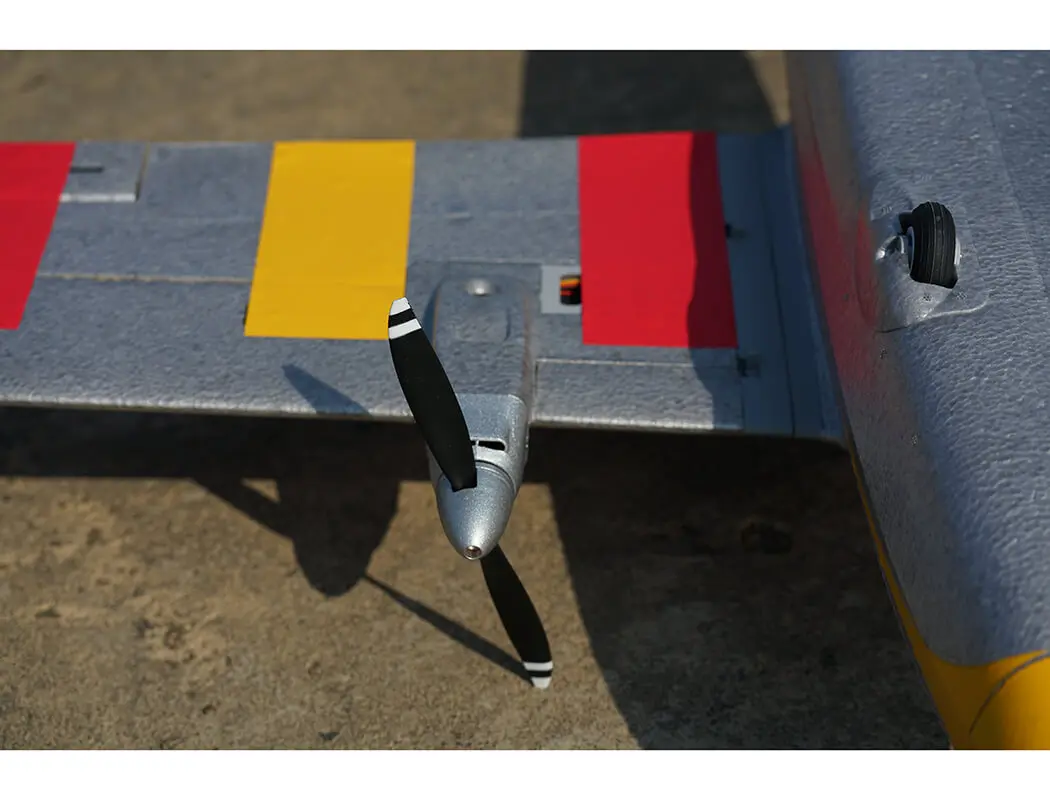

- Twin efficient power system for a powerful and long-endurance flight experience.
- Wear-resistant EPP foam and rubber tires for improved durability.
- Effortlessly hand-launch or wheeled takeoff/landing.
- Spacious compartments allowing easy integration of multiple avionics.
- Compatible with mainstream FPV systems like DJI and Walksnail.
Specifications
Material: Durable EPP Foam
Wing Span: 1500mm (59.0in)
Length: 1050mm (41.3in)
Flying Weight: Around 1900g
Servo: 9g Metal Gear Servo x 5 (Installed)
Motor: 2212 1400Kv Outrunner Brushless Motor x 2 (Installed)
ESC: 40A Brushless ESC x 2 (Installed)
Propeller: 8 x 5 2 Blade Propeller CW & CCW x 1 Set (Included)
Battery: 21700 4S2P 10000mAh (Not Included)
Radio: 6 Ch Radio Control (Not Included)
Frequently Asked Questions
The X1500 is a kit requiring assembly and is designed as an FPV platform, so prior experience with RC planes and FPV systems is recommended. However, the glue-free quick assembly (two minutes) makes building straightforward; you'll need to source a compatible flight controller, FPV system, and 4S 10000mAh battery separately.
The X1500 accommodates a standard 4S 10000mAh (21700-4S2P) battery, which is not included in this kit-only version. You'll need to purchase a compatible 4S LiPo or LiPo equivalent battery separately.
This is a kit-only version, so you receive the airframe components (EPP foam fuselage, wings, and tail), 3D-printed reinforced parts, undercarriage with rubber tyres, and the airframe structure. You will need to source and install the motors, flight controller, FPV system, battery, and other electronics yourself.
The X1500 has a 150cm (1500mm) wing span, making it a medium-sized fixed-wing aircraft. With glue-free assembly, it can be disassembled for transport, though you should verify exact packed dimensions against your storage space.
The X1500 features high-lift aerodynamic design for efficient cruising, twin motors delivering over 1:1 thrust-to-weight ratio, and a large battery bay for extended-capacity packs. It also supports up to 1kg of payload, making it adaptable for various FPV and sensing missions whilst maintaining flight duration.
