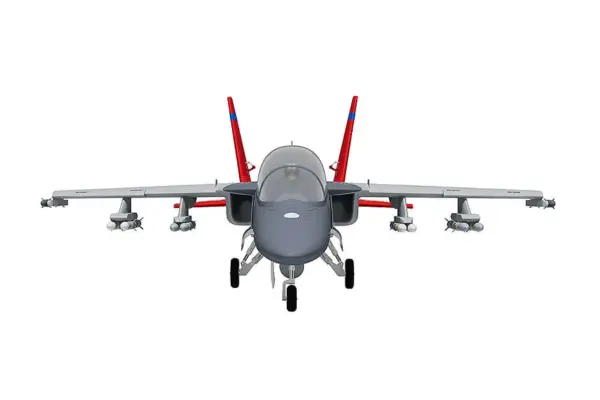

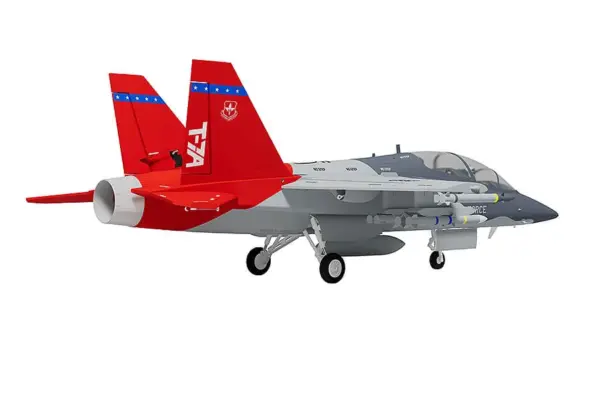

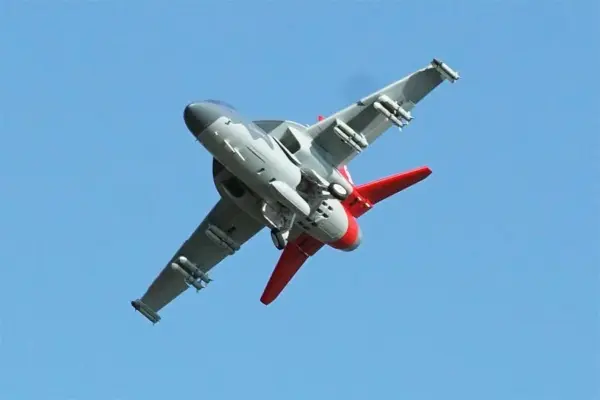

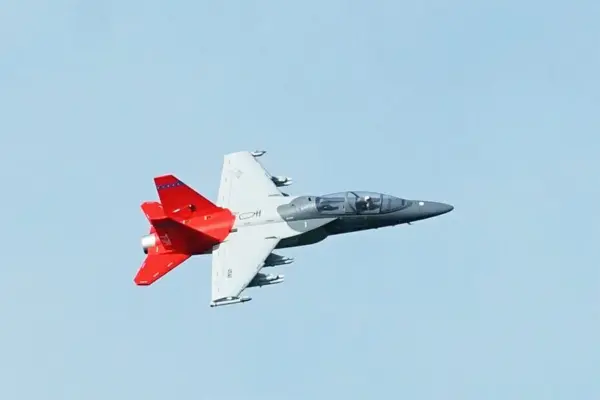

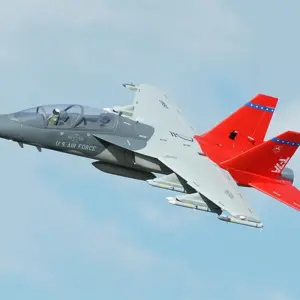

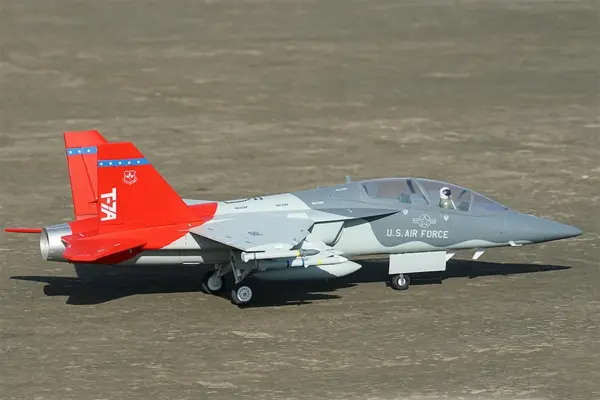

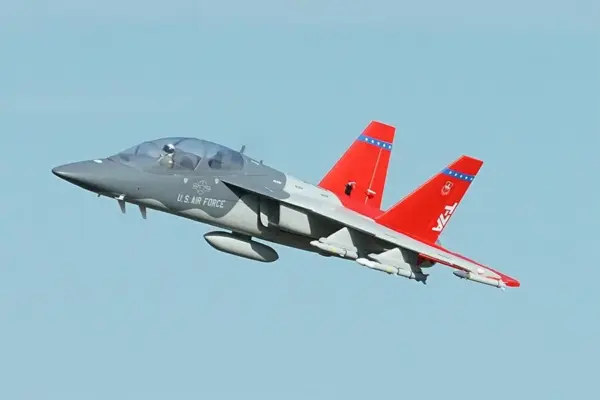

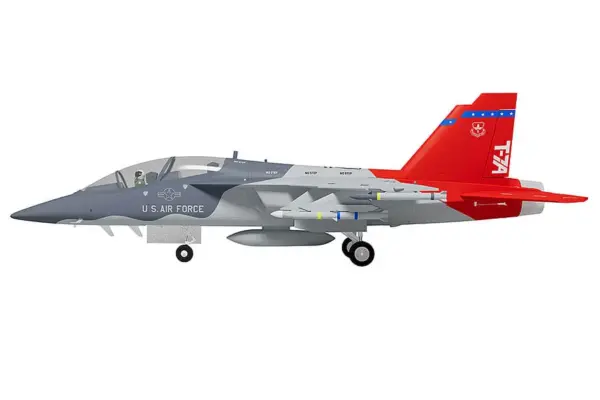

Xfly Edf 80mm T-7a Red Hawk W/O Tx/Rx/Batt

XFLY EDF 80MM T-7A RED HAWK w/o TX/RX/BATT

The Boeing-Saab T-7 RedHawk, originally known as the Boeing T-X, is an American/Swedish advanced jet trainer produced by Boeing in partnership with Saab. It was selected on 27 September 2018 by the United States Air Force (USAF) as the winner of the T-X program to replace the Northrop T-38 Talon.

The shape of the T-7A is similar to the reduced version of the F/A-18 because they are designed with a large leading edge root extension surface and a V-shaped double vertical tail design. Not only does this design provide dexterous control at low speeds but it also has a better flying capabilities at high angles of attack, so that its flight performance can be closer to the fighters in active service.

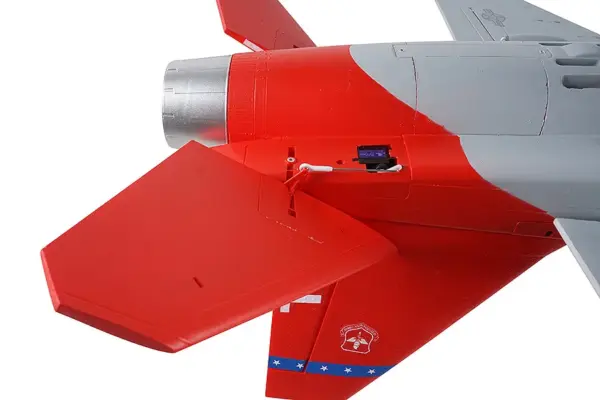

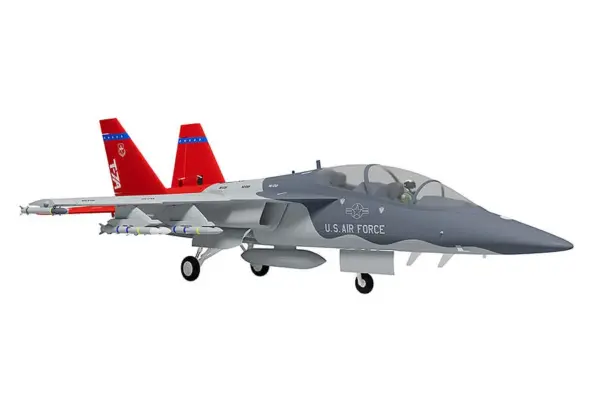

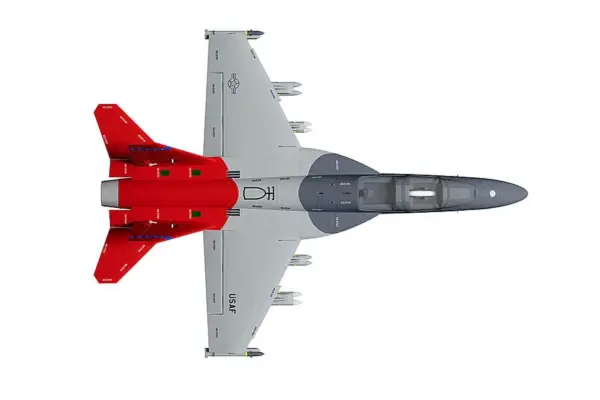

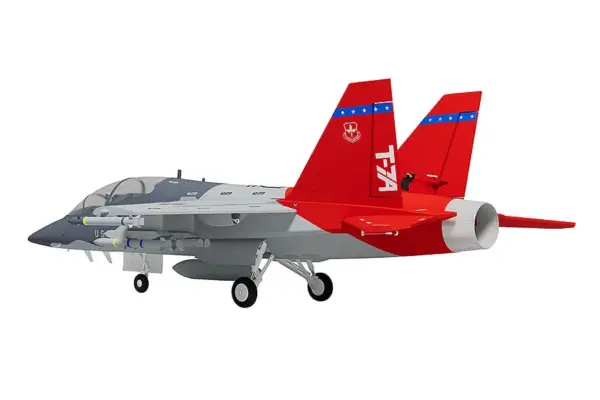

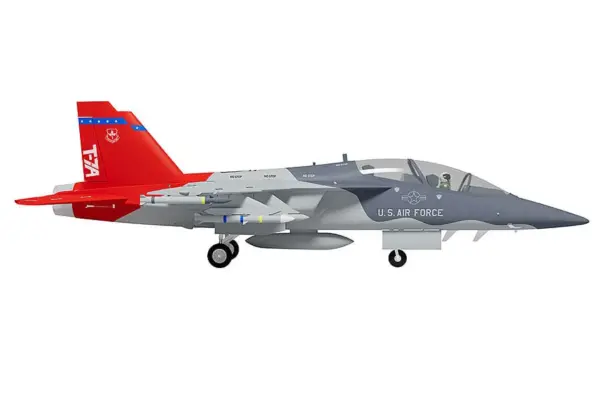

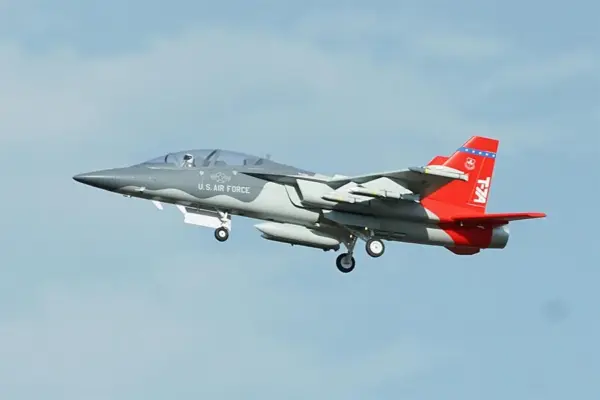

To meet the needs of a wider variety of experienced pilots, XFly Model scaled up the T-7A 64mm EDF jet to make an 80mm version with the same care and attention to appearance and performance. The T-7A 80mm EDF jet is packed full of scale details including molded-in panel lines, simulated antenna, pitot tube, clear canopy, removable missiles plus drop tank and more. Featuring the functional LED navigation and landing lights, full-flying horizontal stabs, sequenced gear doors, scale retractable CNC metal landing gears and operational flaperon setting,this larger version can bring you unexpected scale-like flying experience!

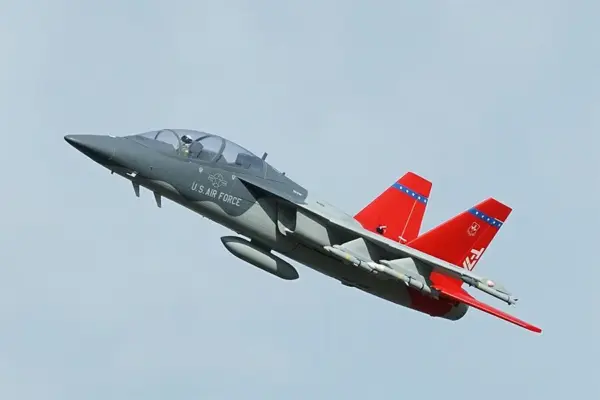

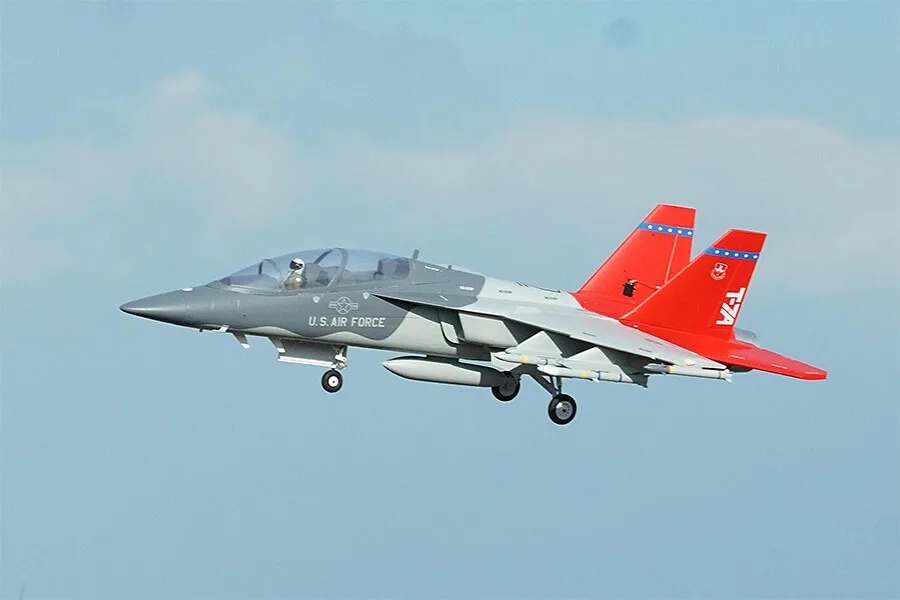

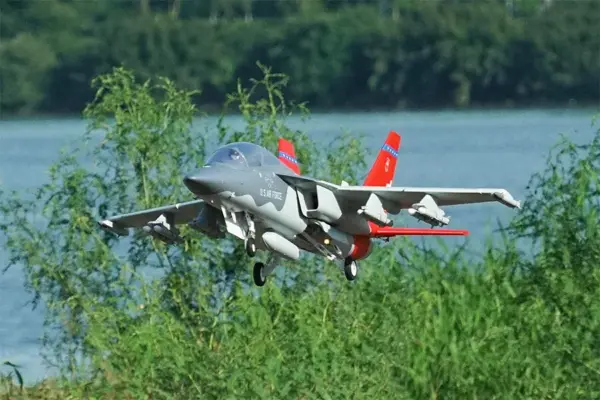

With a 6S Lipo battery, the high-pow- er 80mm EDF with 12-blade fan, 6S-compatible brush- less inrunner motor and 100A ESC deliver fan- tastic top speed and vertical performamce plus amazing turbine-like sound. With stability it’s a scale jet that flies smooth and handles like a sport jet. Integrated wing connectors and glueless design facilitate fast and easy assembly, so you can get the 80mm T-7A airborne in less than one hour.

Features

• Scale replica of the iconic aircraft flown by the U.S. Air Force for training and other missions
• High-power 80mm EDF with 12-blade fan, 6S compatible brushless inrunner motor & 100A ESC

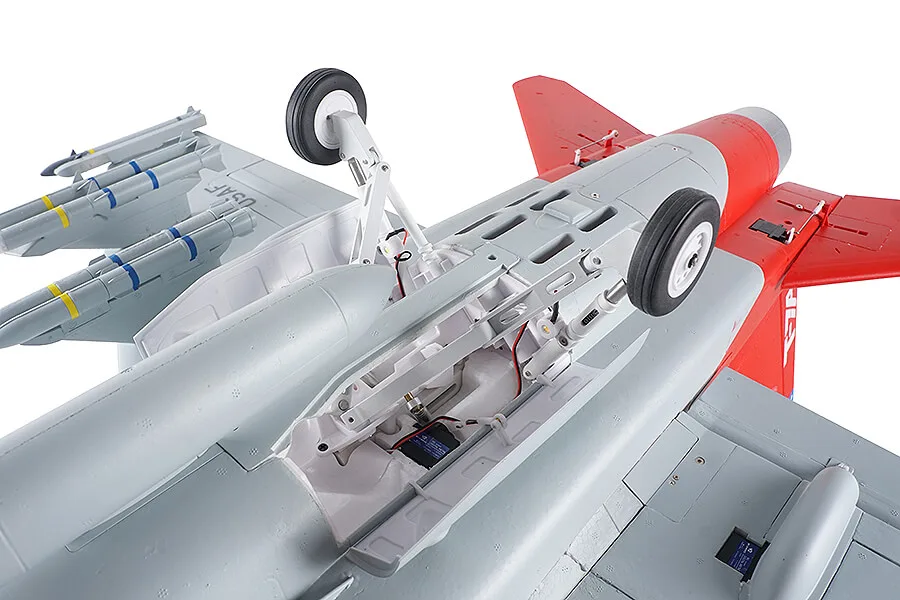

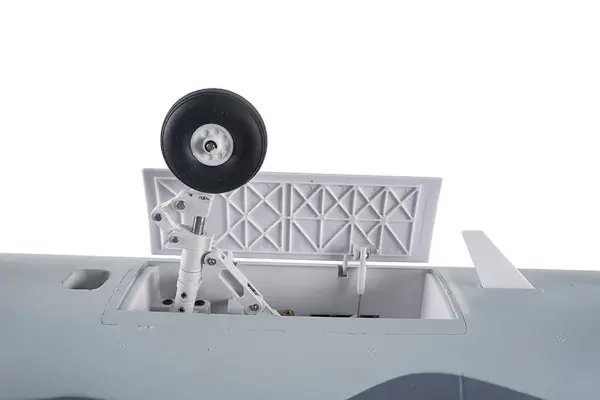

• Scale retractable shock-absorbing metal landing gears with sequenced gear doors
• Factory-installed 4 bright LED navigation and landing lights, full-flying horizontal stabs plus operational flaperon setting

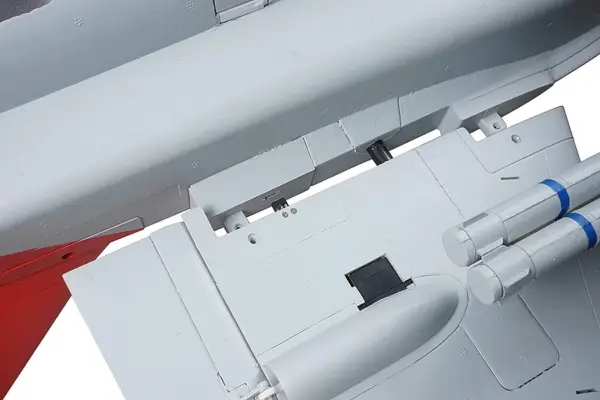

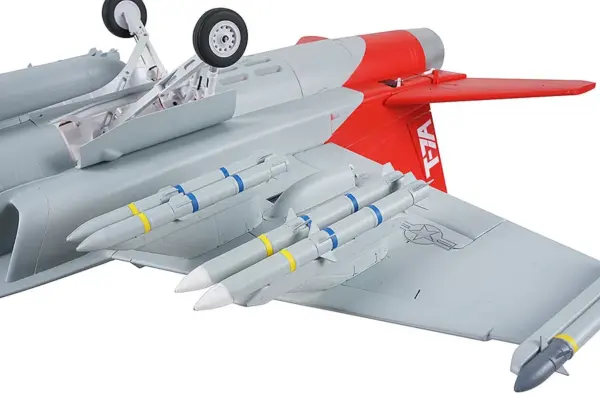

• Removable missiles & drop tank for optional use
• Integrated wing connectors for easy installation or removal of main wings
• Latch-type top hatch with clear canopy, cockpit detail and pilot figure

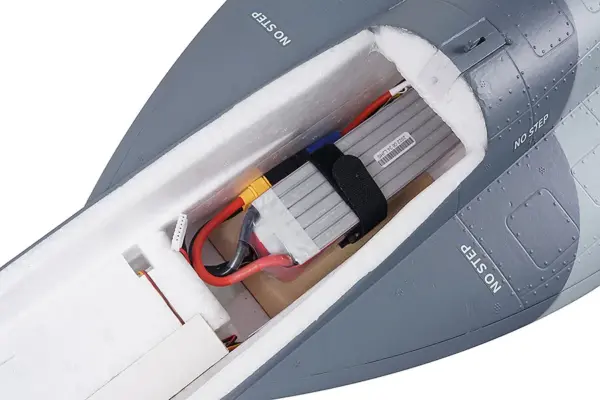

• Large battery tray allows for 6S 4000-7000mAh
• 5 x 9g, 5 x 13g servos
• Fast and easy assembly – no glue required

Specifications

Wingspan: 975mm/38.4in
Overall length: 1360mm/53.5in
Flying weight: 3150g
Motor size: 3280-KV2200
ESC: 100A
Servo: 9g Servo*5, 13g Servo*5
Radio: 5/6 CH- Flaperon(Aileron & Flap), Elevator, Throttle, Rudder and Retracts
CG: 60mm from the leading edge
Wing load: 146g/dm²
Wing area: 21.5dm²
Recommended battery: 22.2V 4000-5000mAh
Battery Connector: XT90
Approx flying duration: 5 mins
Assembly time: 20 mins
Skill level: Intermediate/Advanced
Age level: 14 years +
Flap: Yes
LED: Yes
Retract: Yes
Landing gear: Scale-like retractable metal landing gears
EDF size: 80mm 12-blade EDF

Required To Complete

• Transmitter
• Receiver
• Battery and Charger

For further information: on flying your RC plane in a safe and responsible manner please check out www.bmfa.org
