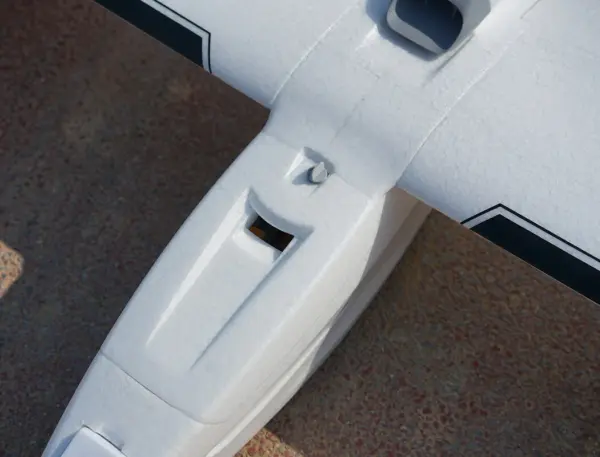

XFLY X1300 FPV MONOPLANE PNP WITHOUT TX/RX/BATTERY
XFly Model X1300 is an FPV aircraft which uses 3D printing technology on most components. 3D files are accessible for customers to download and print plastic parts for replacement or modification, making it possible to explore more fun.

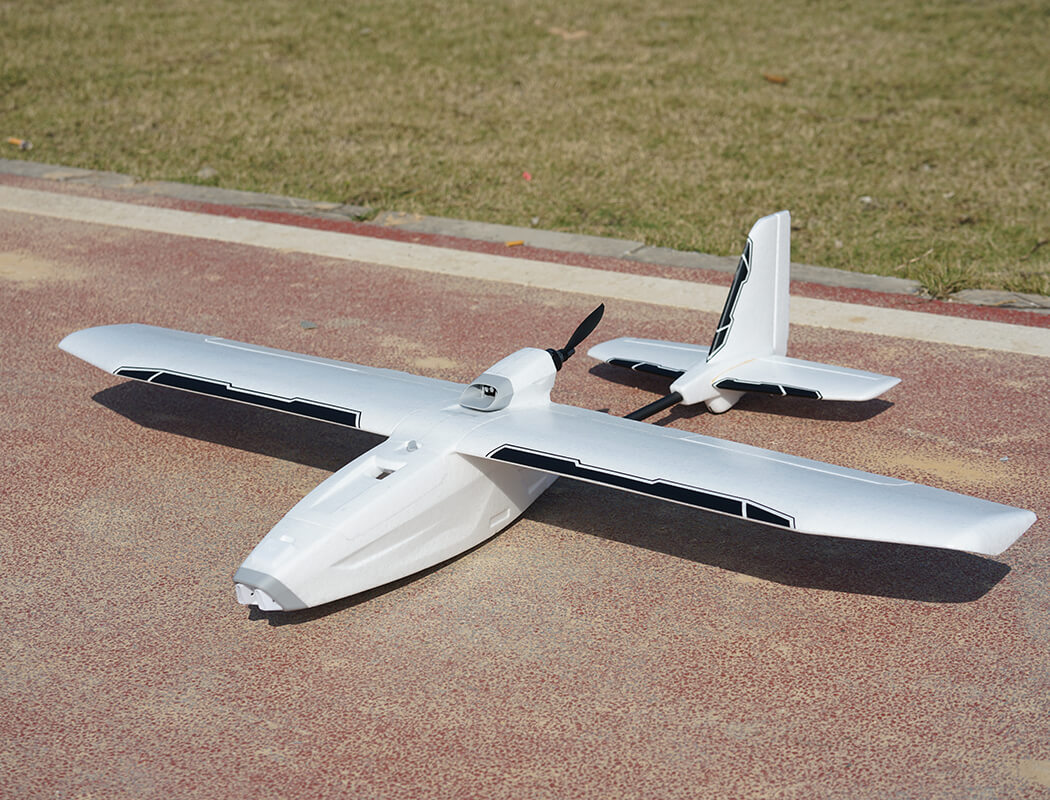

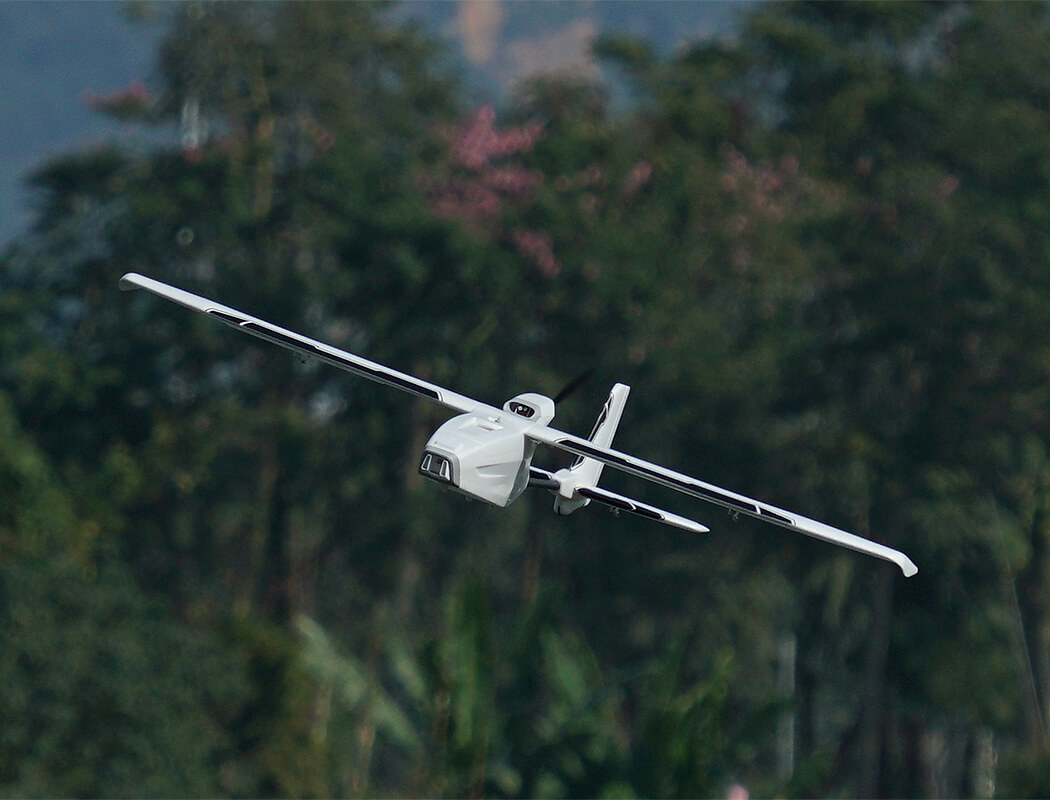

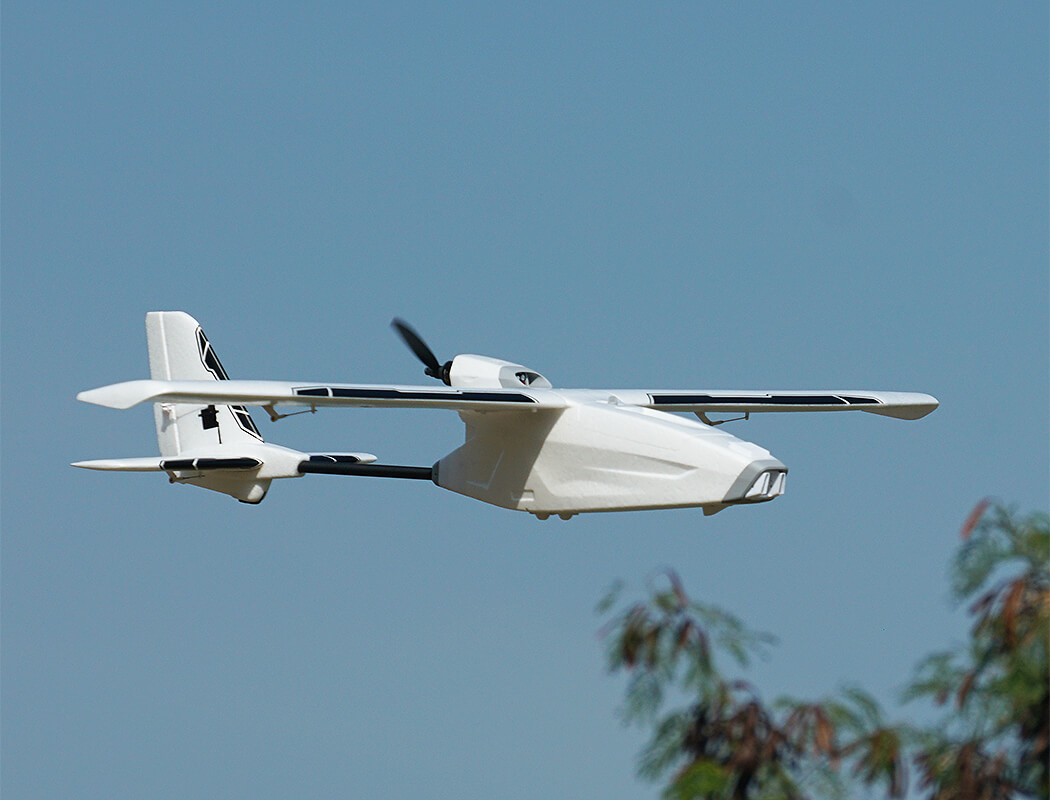

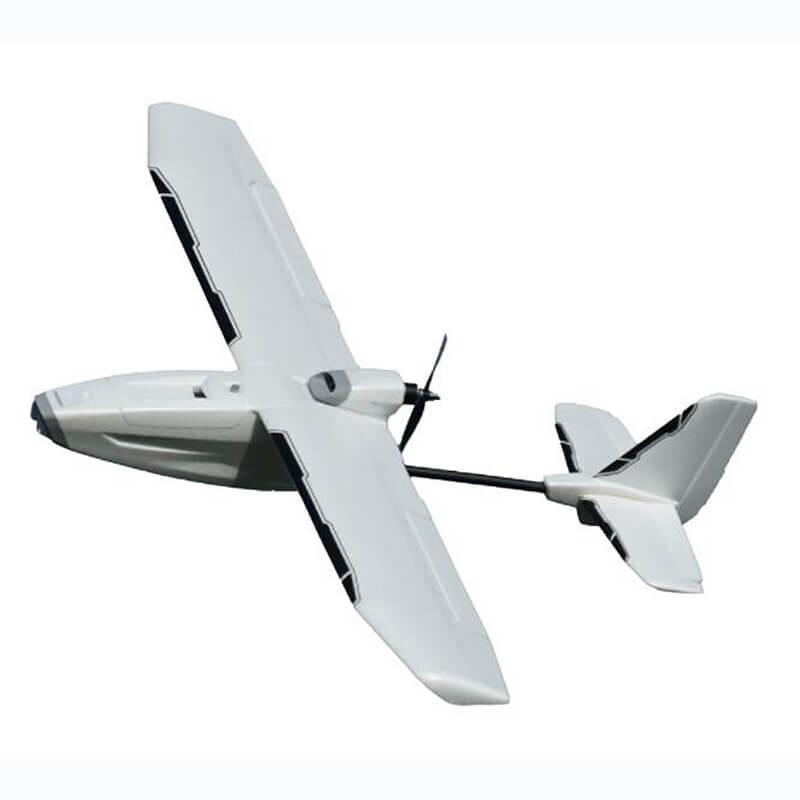

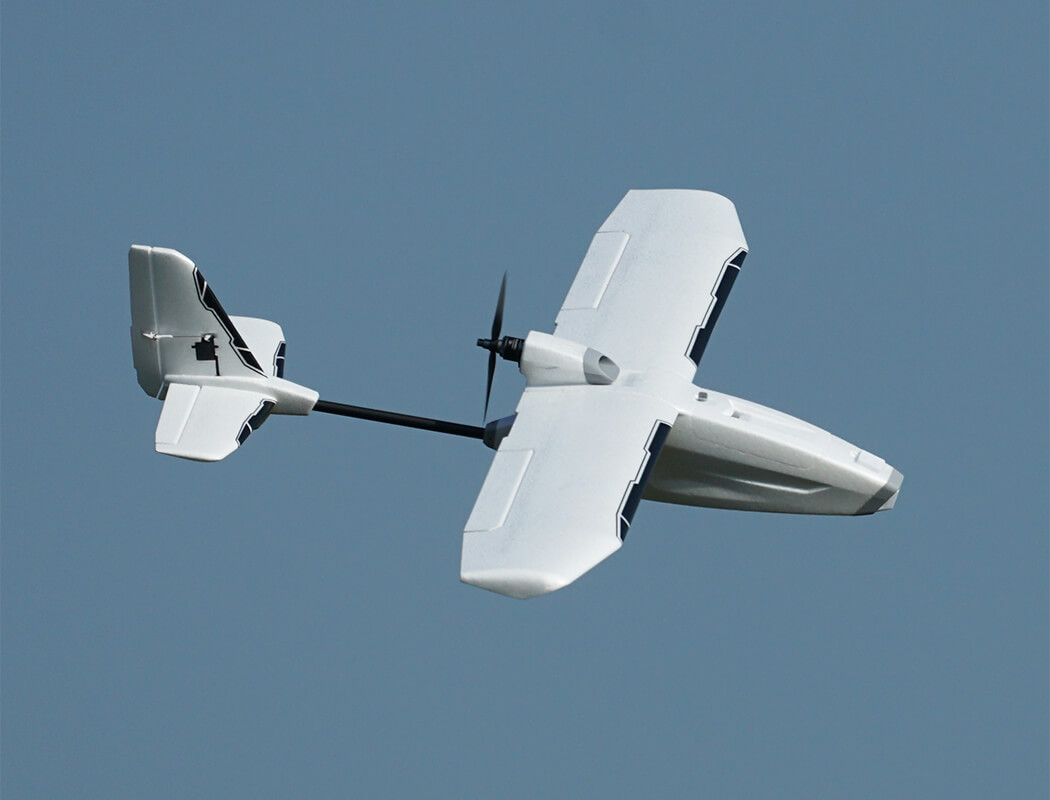

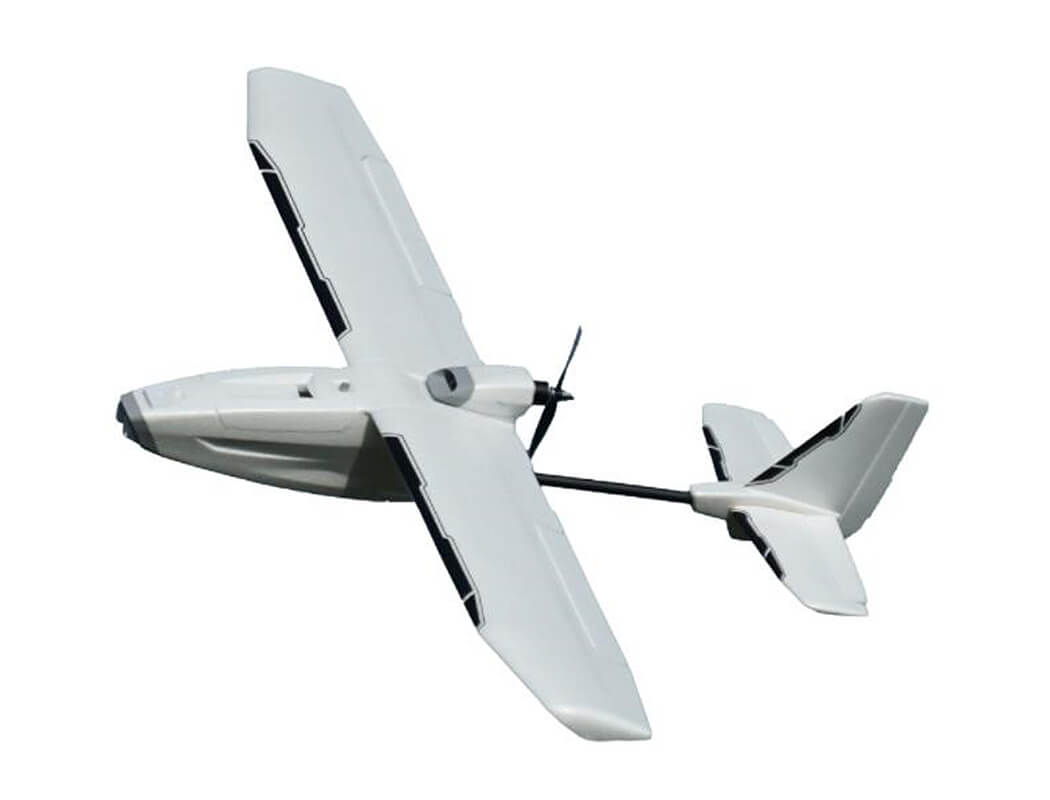

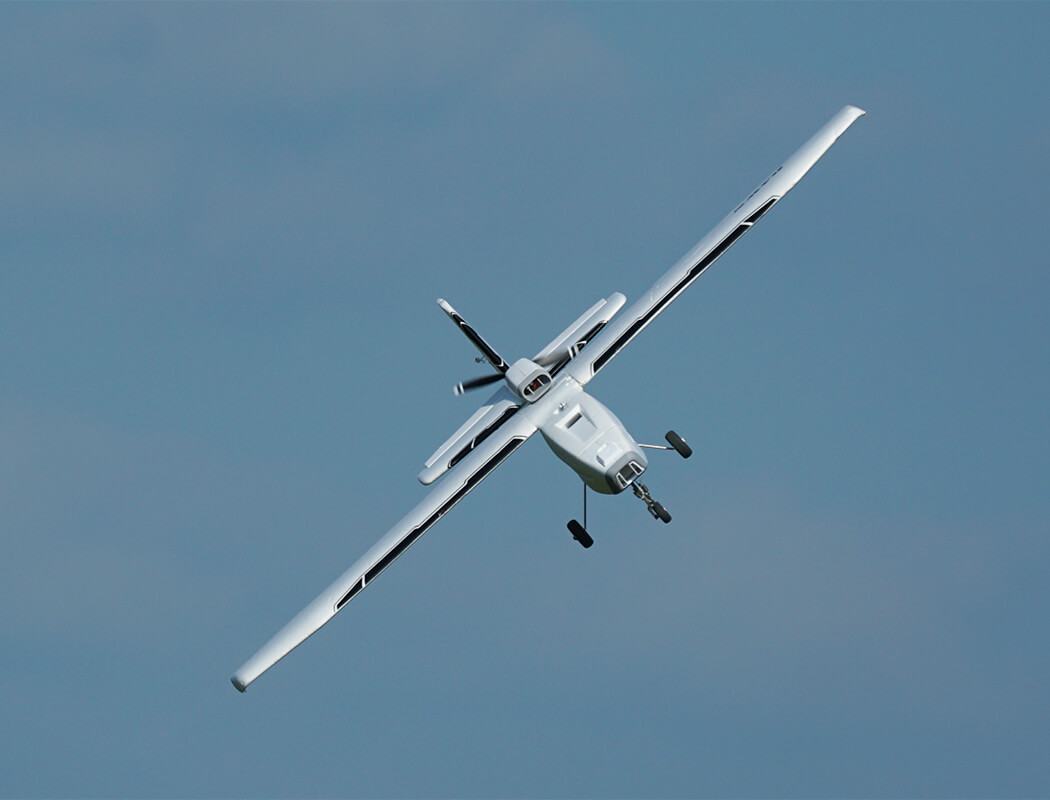

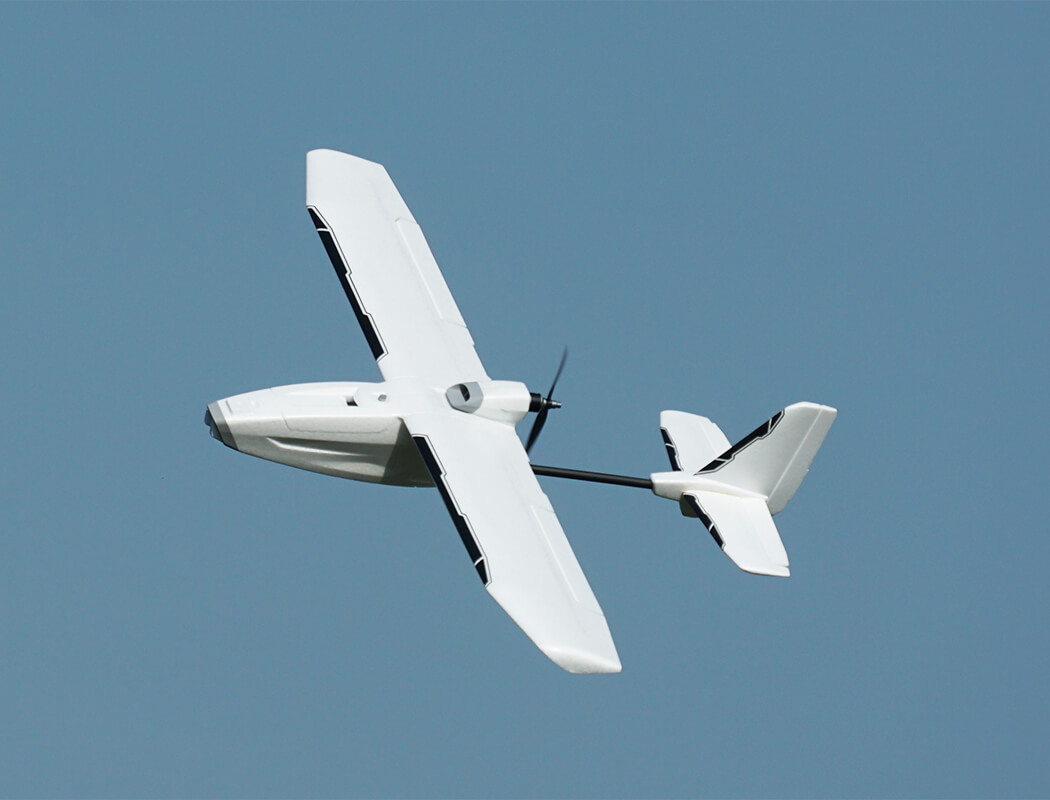

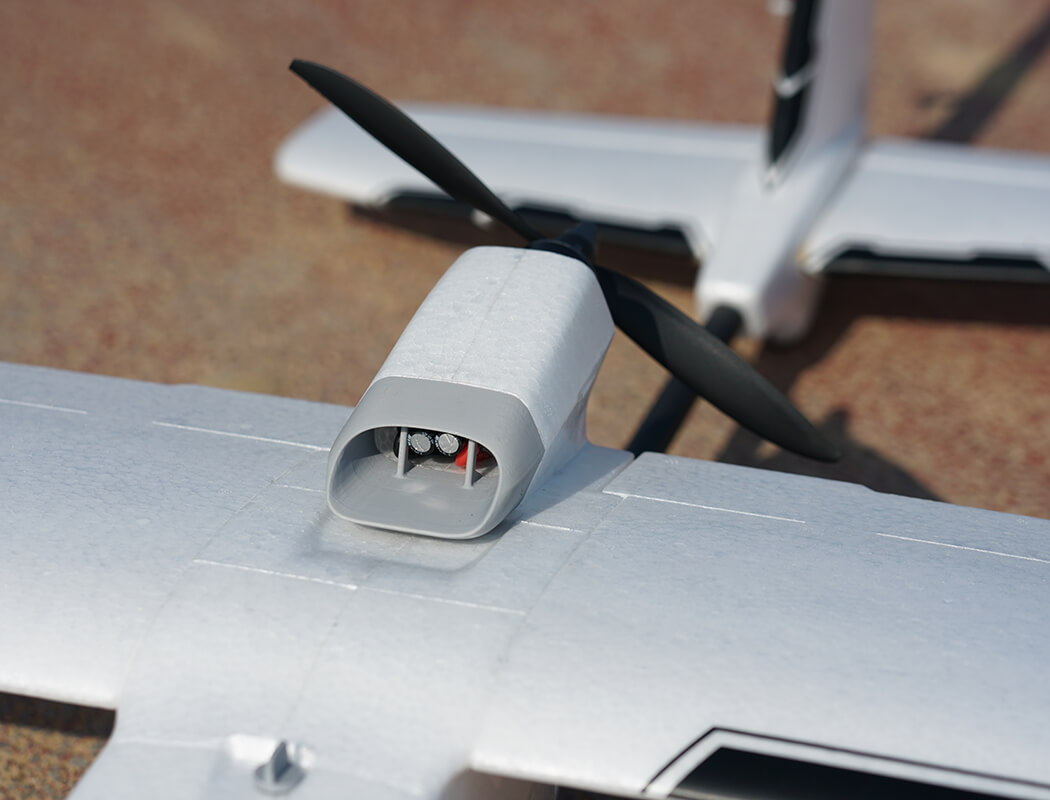

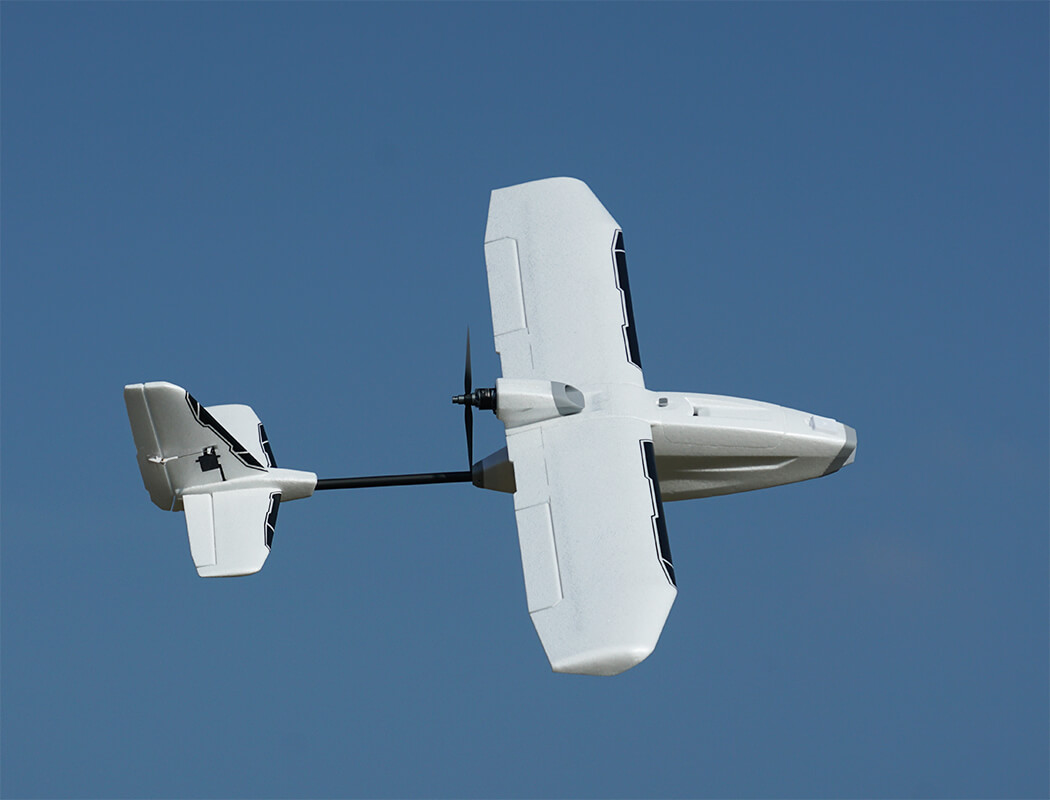

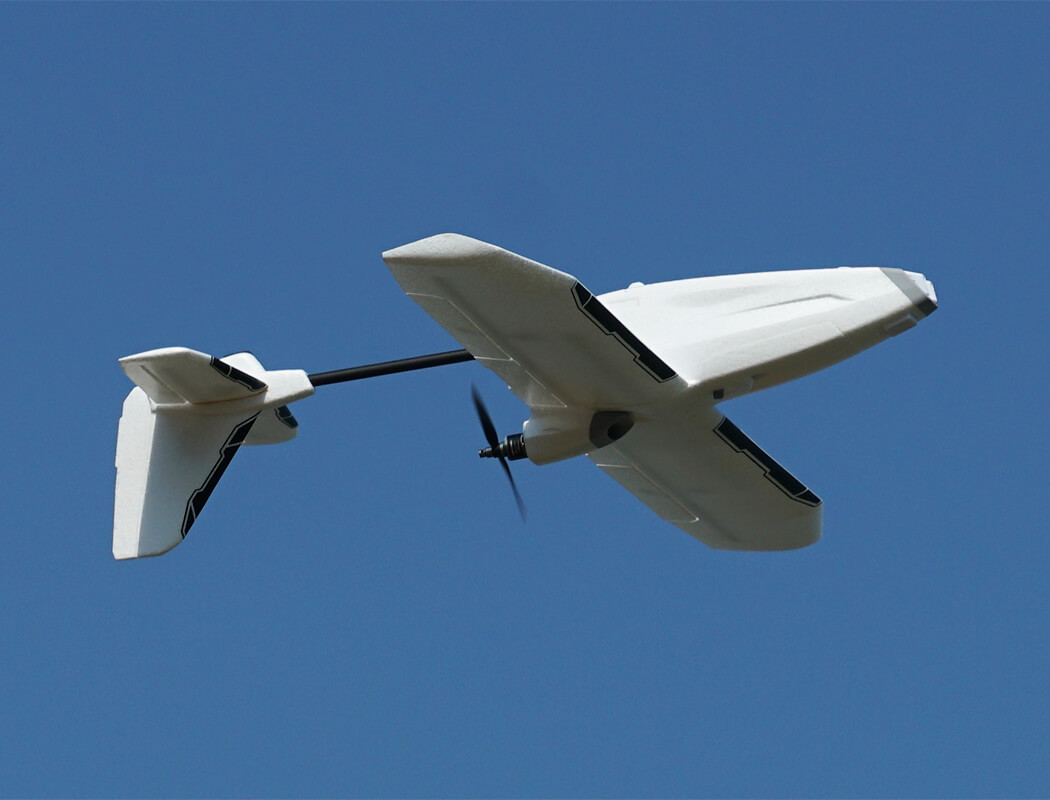

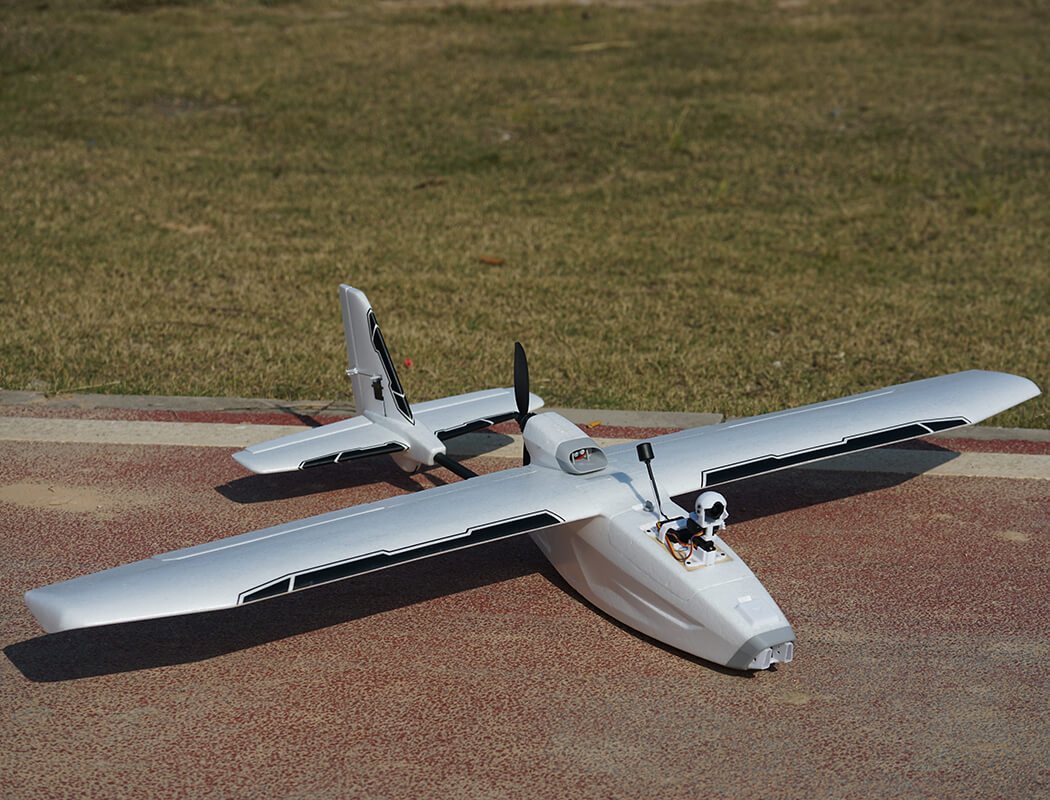

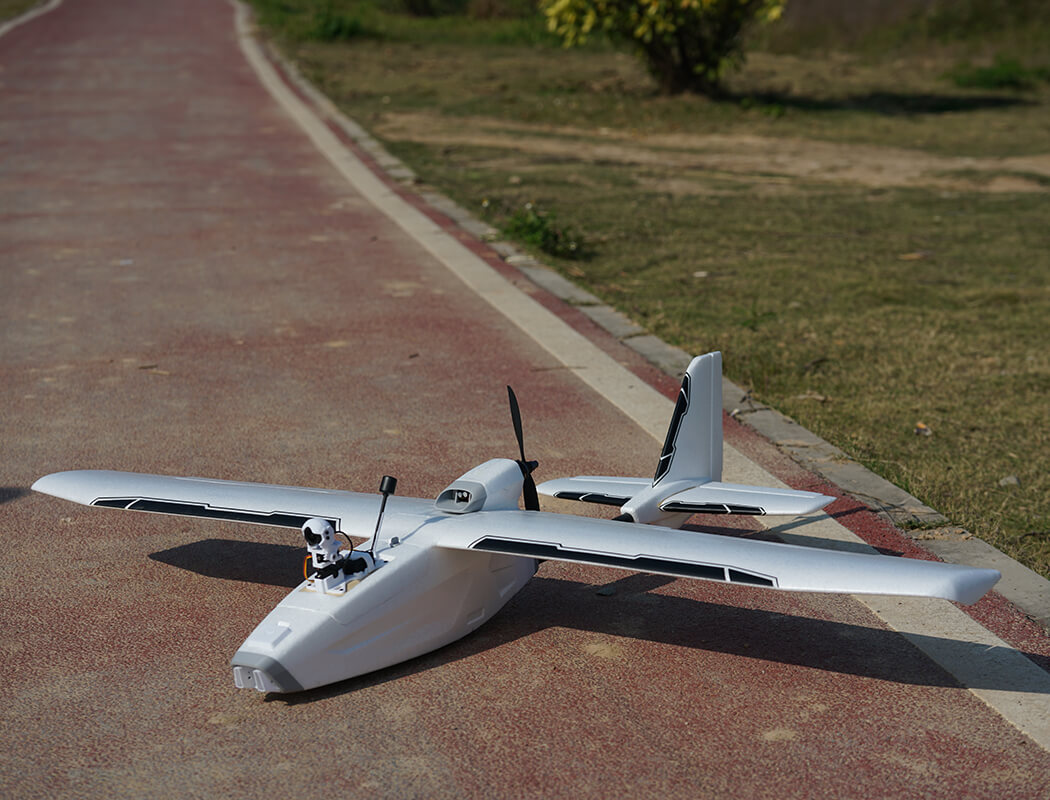

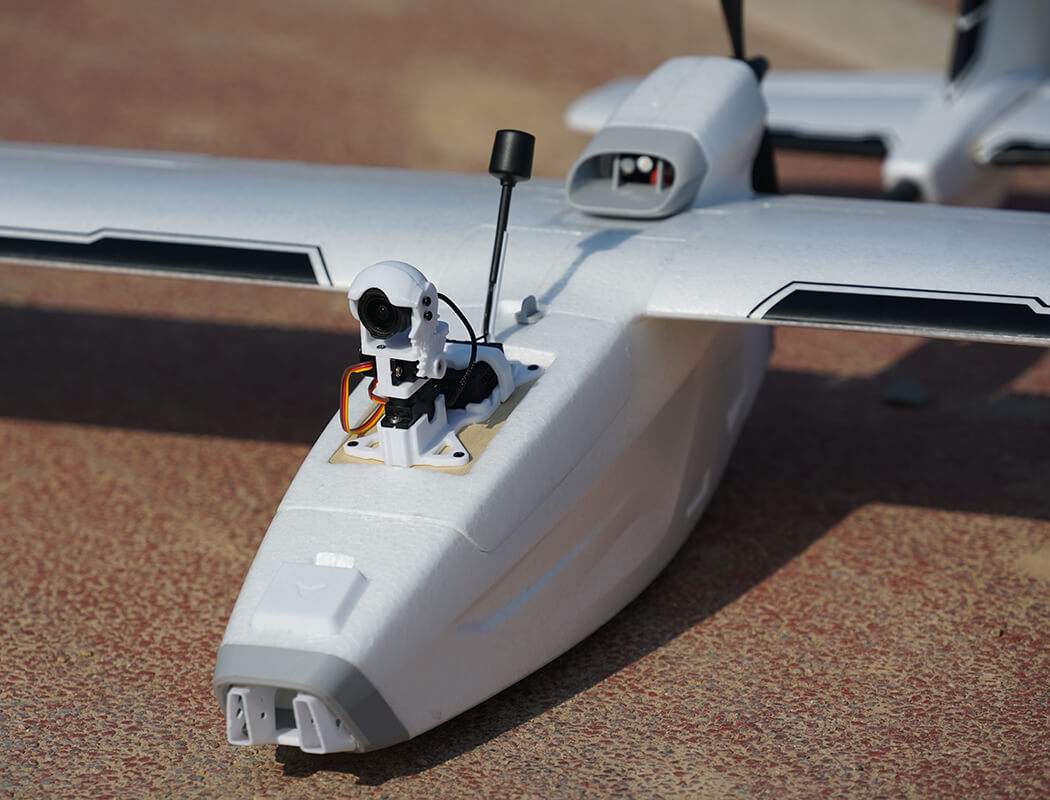

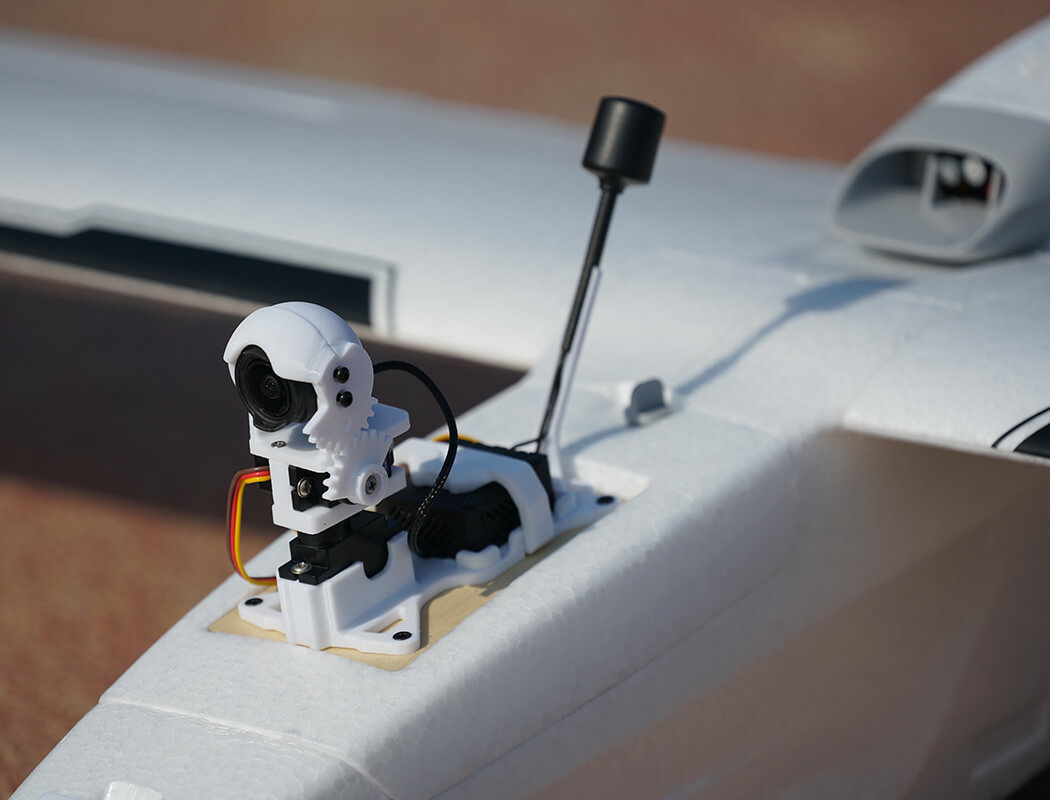

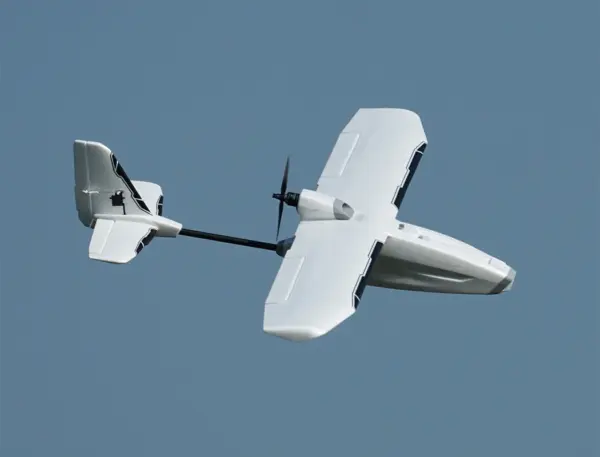

X1300 is a high wing monoplane with 1300mm wingspan and a rear-mounted pusher propeller, delivering FPV flying experience with stability and forward visibility. Hand launch is a breeze while taking off from the ground with landing gears (sold separately) is also an option. Assembly is simple and quick with no screws or glue needed and you can get the aircraft assembled in just a few minutes. Battery compartment is spacious enough to accommodate common 4S LiPo batteries or 21700 batteries for optimised flight times. With a place reserved on the battery hatch, DJI O3 or Walksnail Moonlight Kit FPV transmission system can be installed. X1300 also supports simultaneous installation of fix view and multi-axis gimbals. Moreover, customers can modify the aircraft and add flaps in the reserved position.
Features

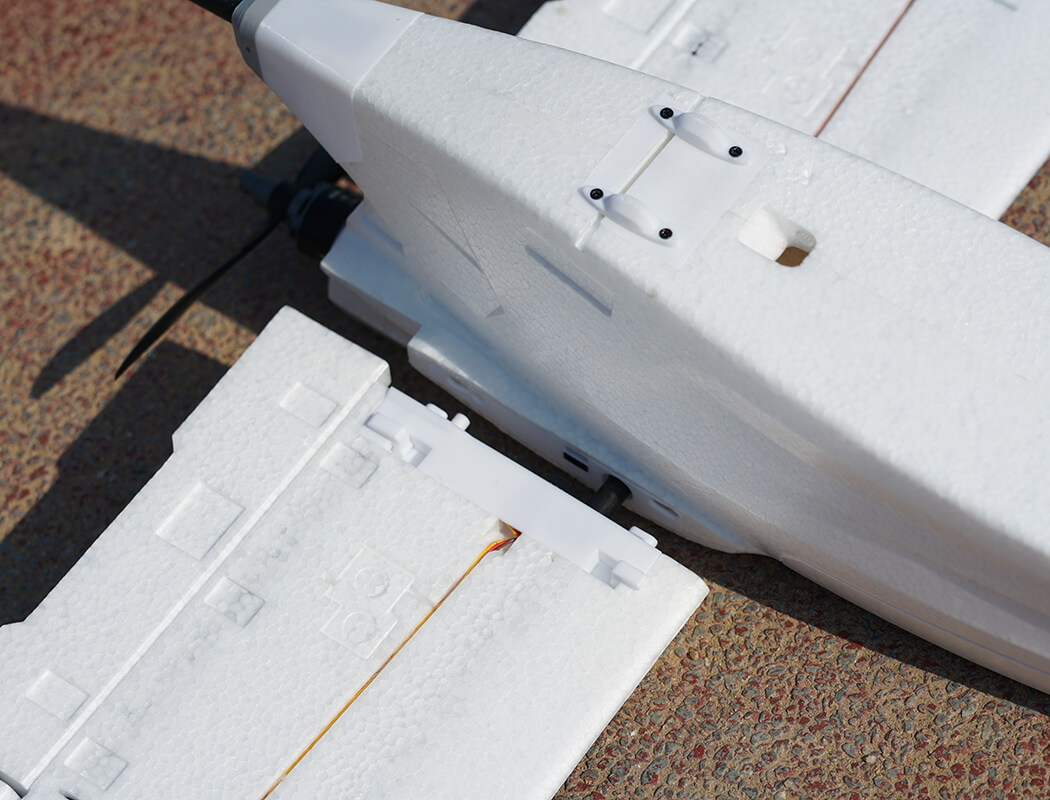

- Quick assembly with no screws or glue required.

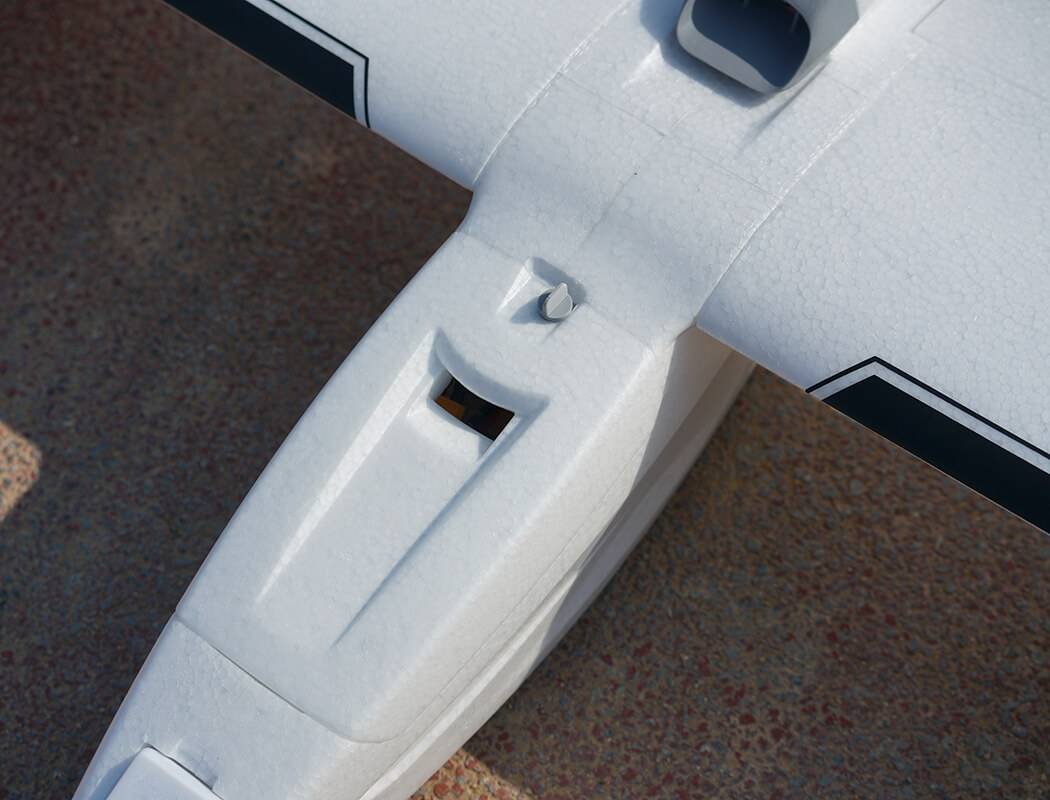

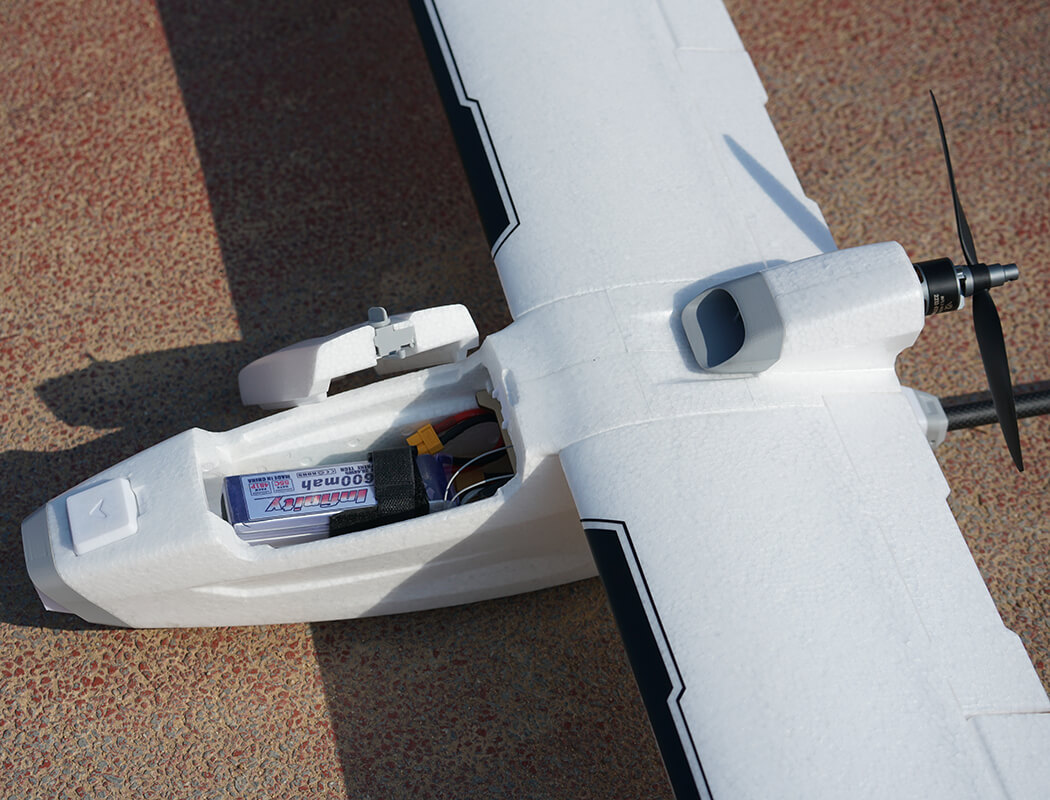

- Spacious battery compartment allowing for 4S LiPo batteries or 21700 batteries for optimised flight times.
- 3D files accessible to download, making it easy to acquire plastic parts needed.

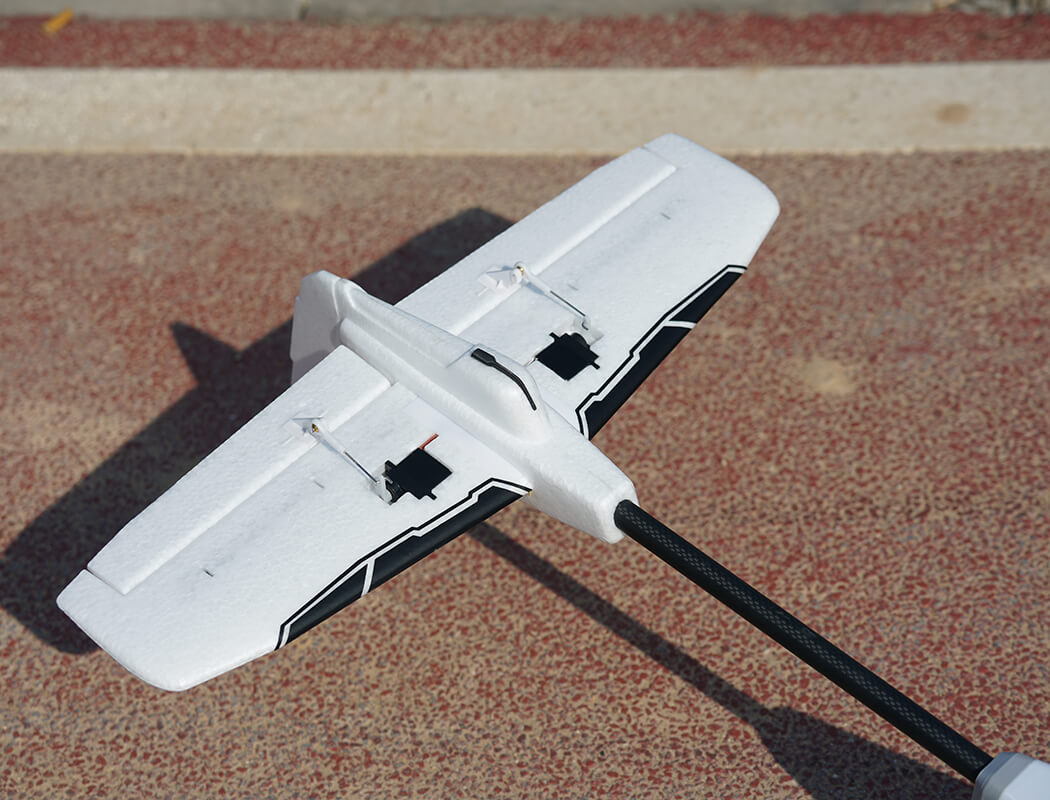

- Digital metal gear servos with ball-link equipped linkages for precise and stable movement.

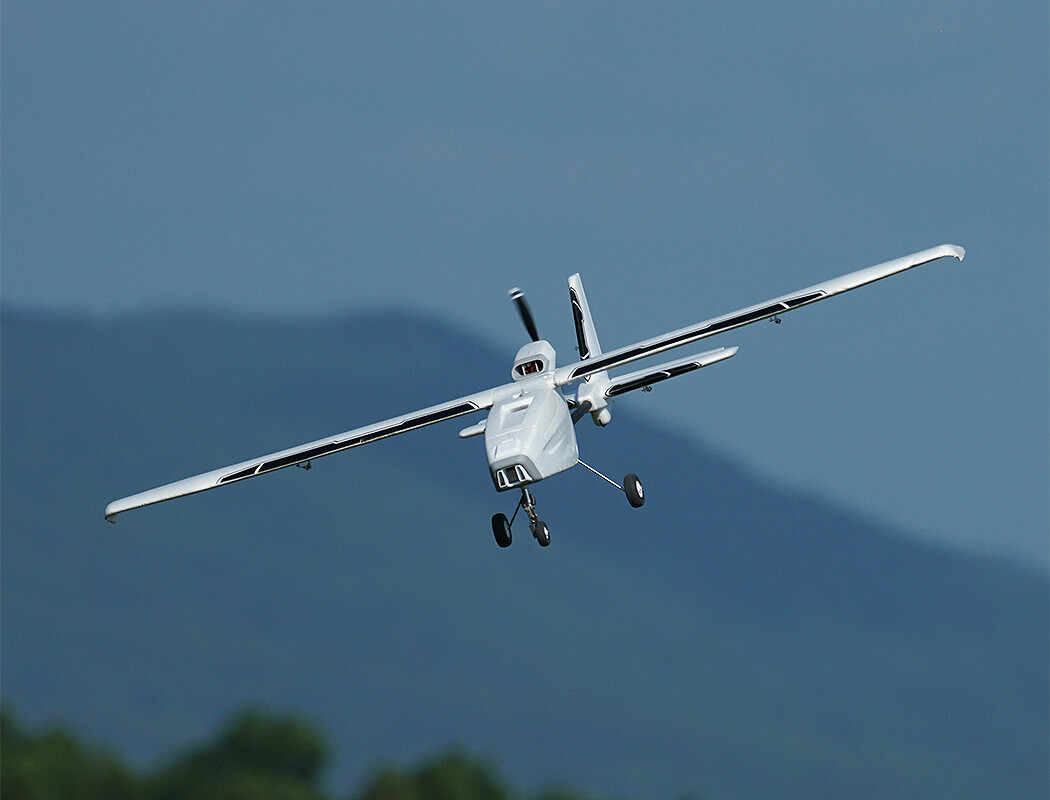

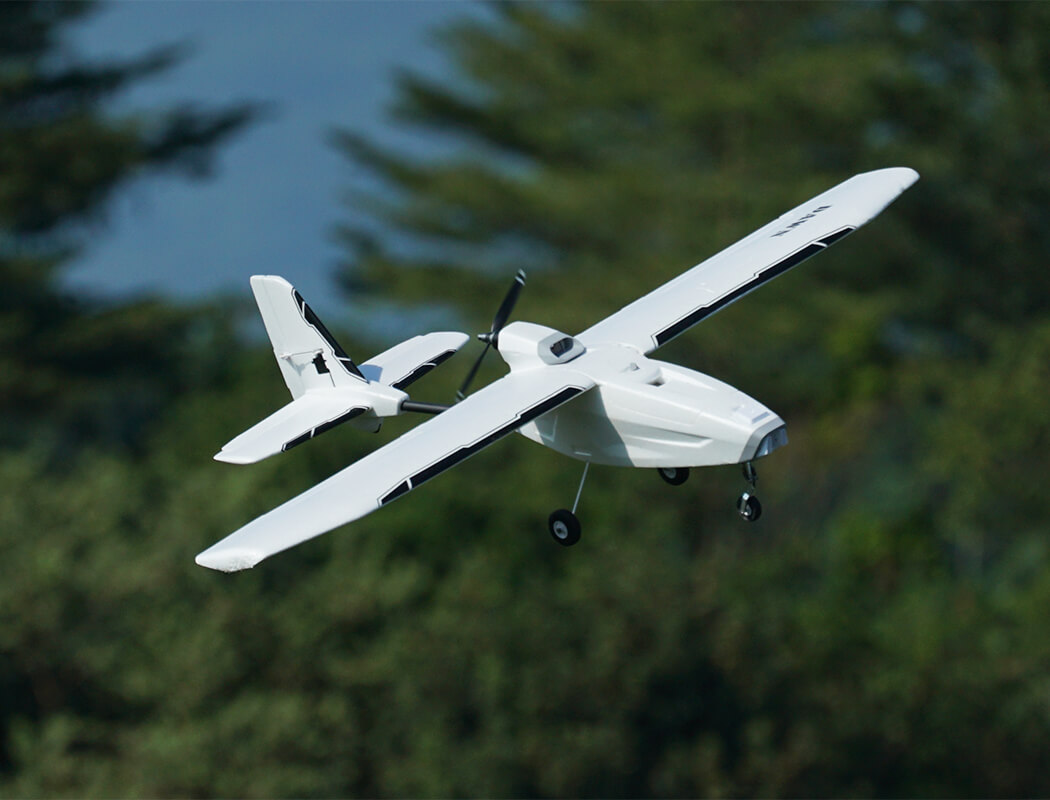

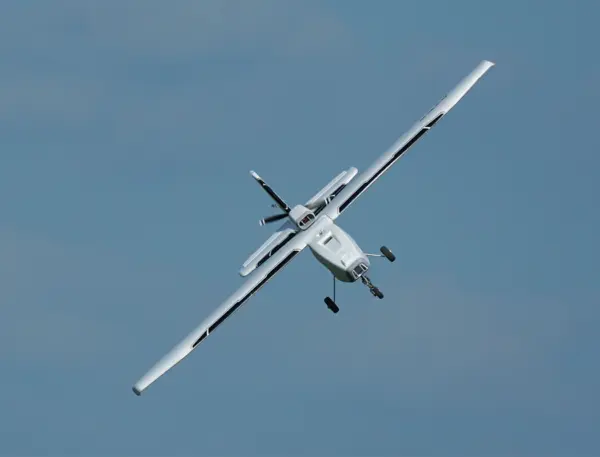

- Easy to hand launch, or install the optional landing gears to take off from the ground.

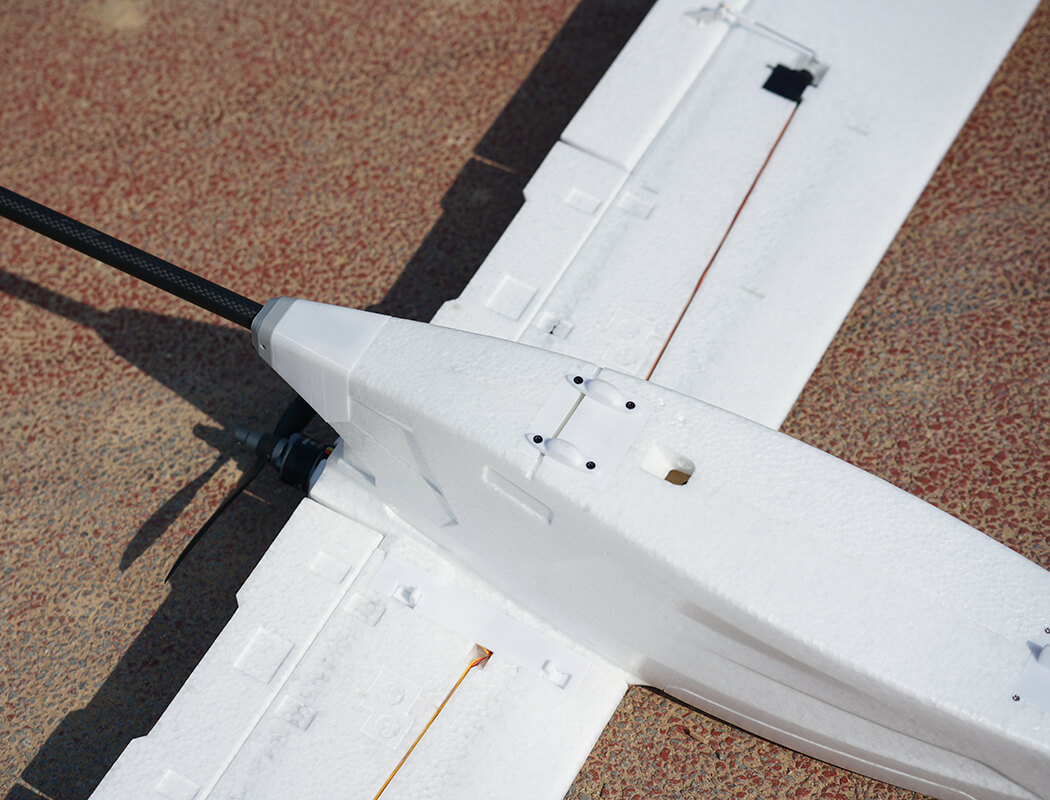

- Flaps can be added in the ‘reserved position’.
Specifications
Material: Light Weight Strong EPO & PLA
Wing Span: 1300mm (51.2in)
Wing Load: 58g/dm²
Wing Area: 22.5dm²
Length: 972mm (38.3in)
Flying Weight: Around 1300g
Servo: 9g Metal Gear Servo x 5 (Installed)
Motor: 2212 1400Kv Outrunner Brushless Motor (Installed)
ESC: 40A Brushless ESC (Installed)
Propeller: 8 x 5 2 Blade Propeller x 1 Set (Included)
Battery: Li-Po 4s 14.8v 2600mAh – 3300mAh / 21700-4S1P-5000mAh (21700-4S2P-10000mAh) (Not Included)
Radio: 4 – 6 Ch Radio Control (Not Included)
Approximate Flying Time: 10-30 mins
Assembley Time: 15 mins
Skill Level: Beginner
Age Level: 14+ Years
Flap: No
Retract: No
Landing Gear: Optional
Prop Size: 8×5”
Needed To Complete
- Transmitter and Receiver
- Battery
Frequently Asked Questions
You'll need to purchase a 4S LiPo battery (2600–3300mAh recommended) or 21700 battery pack, a compatible transmitter and receiver, and an FPV camera system. Landing gear is optional if you want ground takeoff instead of hand launching.
The X1300 is designed for stable, hands-off FPV flight and requires no glue or screws to assemble, making it accessible for newcomers to FPV flying. However, you should have experience with RC aircraft fundamentals and FPV systems before attempting to fly it.
Assembly is quick and tool-free—you can have the aircraft ready to fly in just a few minutes with no screws or glue required. Simply slot the components together.
The X1300 has a 1300mm wingspan, measures 972mm in length, and weighs approximately 1300g when fully assembled. It's a substantial monoplane designed for stable FPV flight.
Yes—3D printing files are available to download, so you can print replacement plastic parts or modify the airframe. You can also add flaps in the reserved position if desired.
