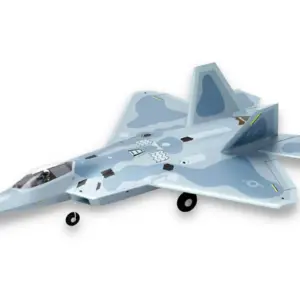

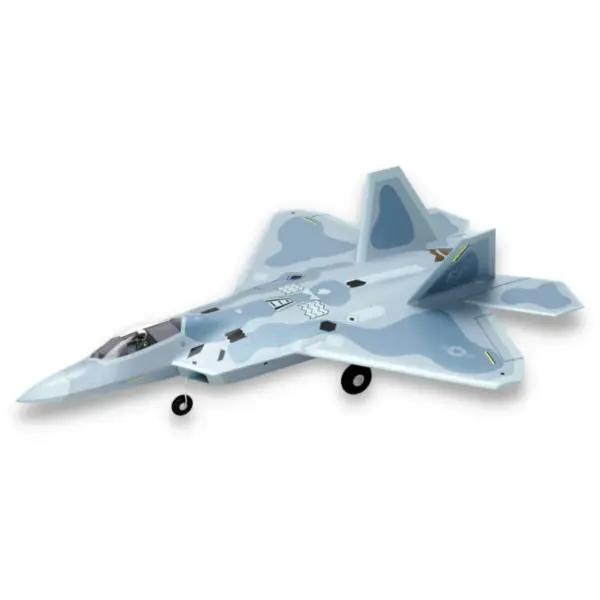

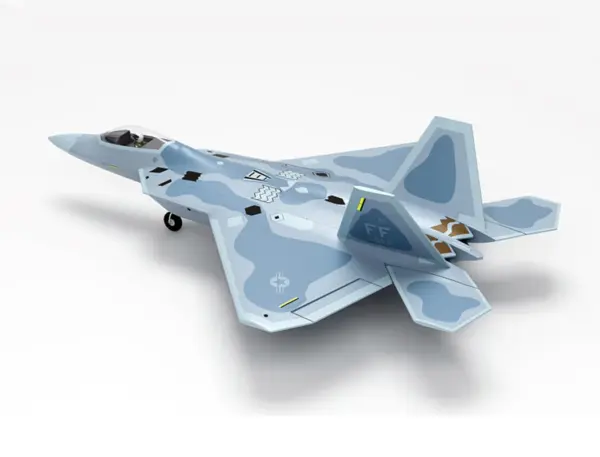

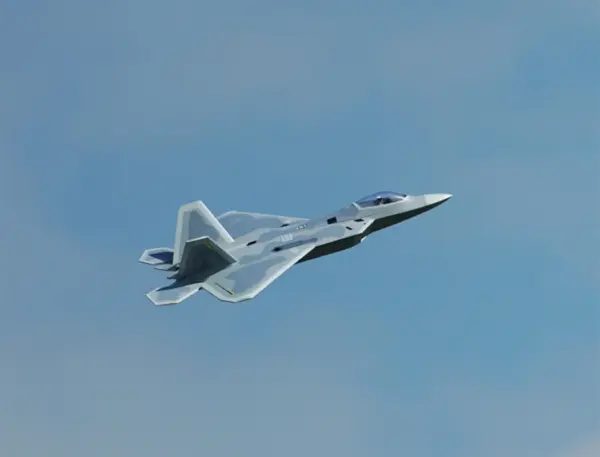

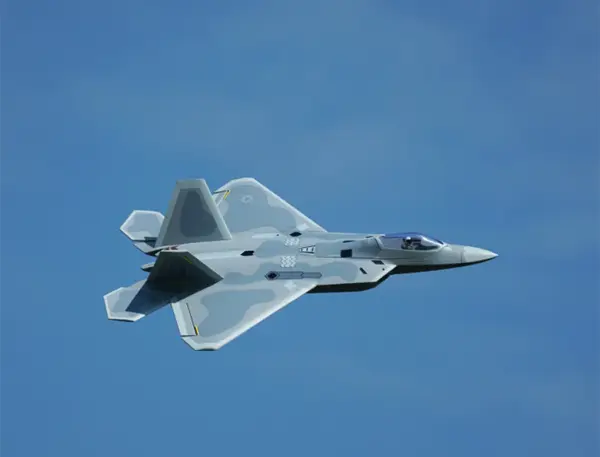

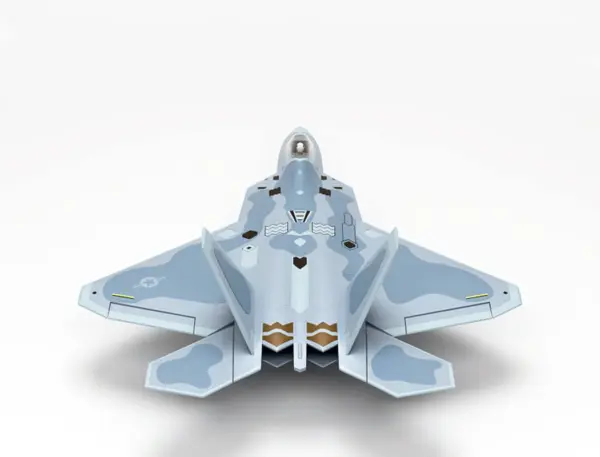

XFLY TWIN 40MM F-22 EDF 702MM JET WITHOUT TX/RX/BATT

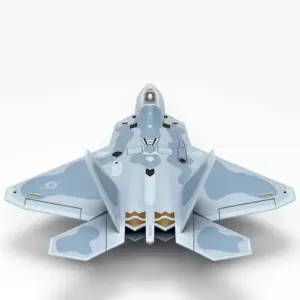

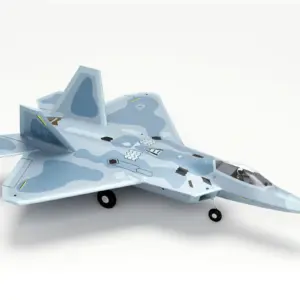

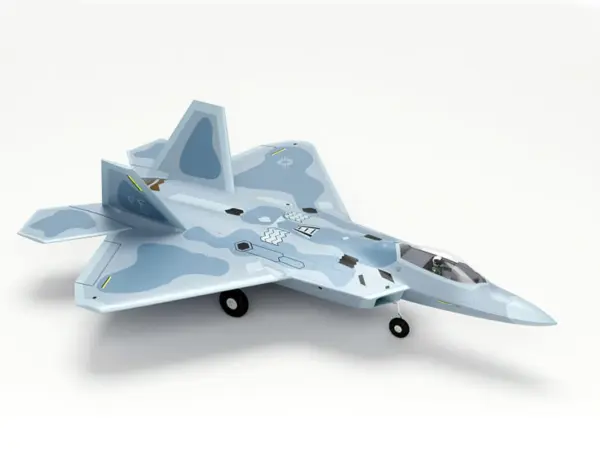

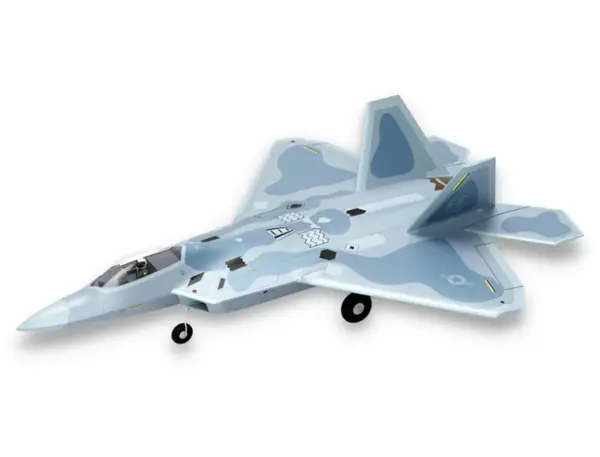

XFly Model is proud to announce its first scale jet F-22 Raptor in the twin 40mm EDF lineup. For the purpose of making it as most streamlined and true-to-scale as possible, XFly team equips the F-22 with twin power system setup and reserves scale details including air inlet, cockpit, nozzle and full-flying horizontal stabs.

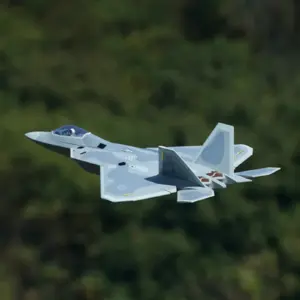

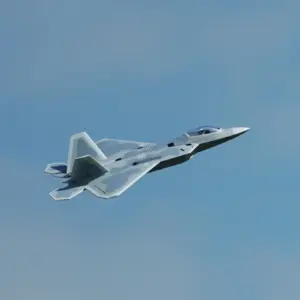

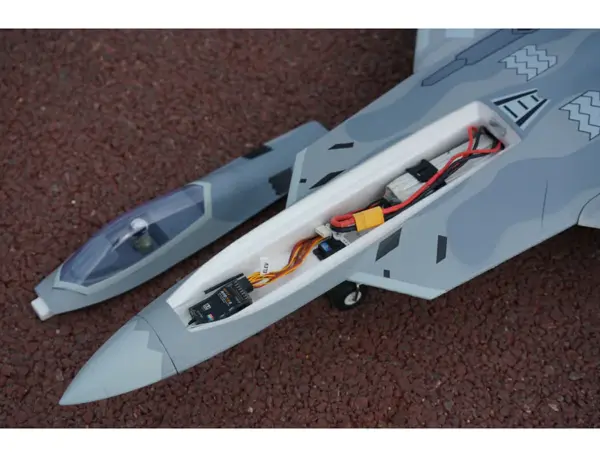

The factory-installed power system, including twin efficient 1413-KV5000 brushless motors and twin 20A brushless ESCs, paired with a 4S LiPo battery, delivers an abundance of thrust for fast climbs, rolls, loops and endless fun for high alpha flying due to the F-22’s low wing load and full flying stabs. A flight time of around 3-8 mins can be achieved with proper throttle management.

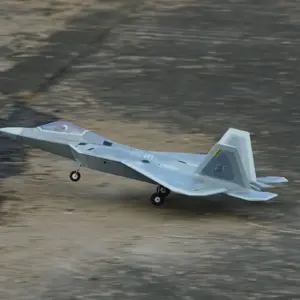

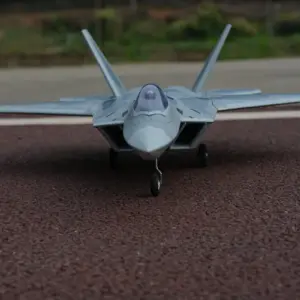

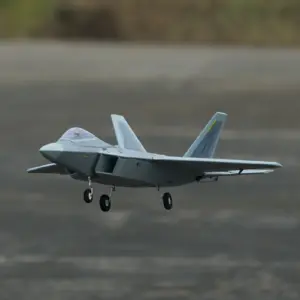

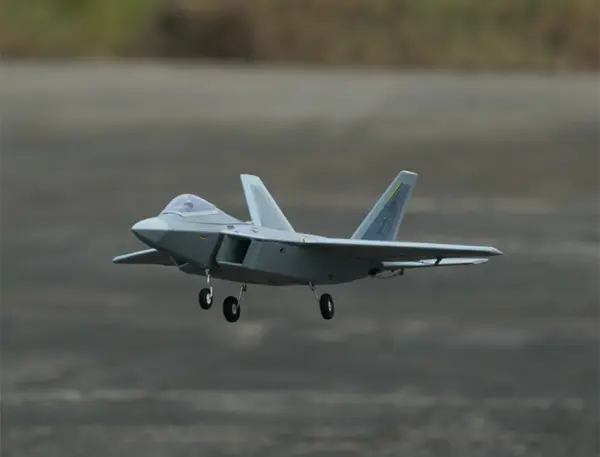

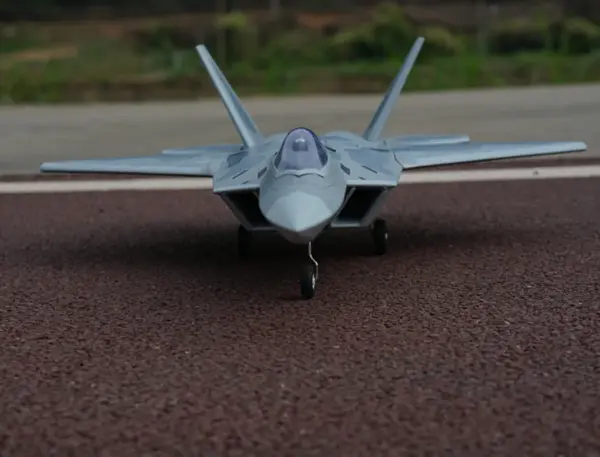

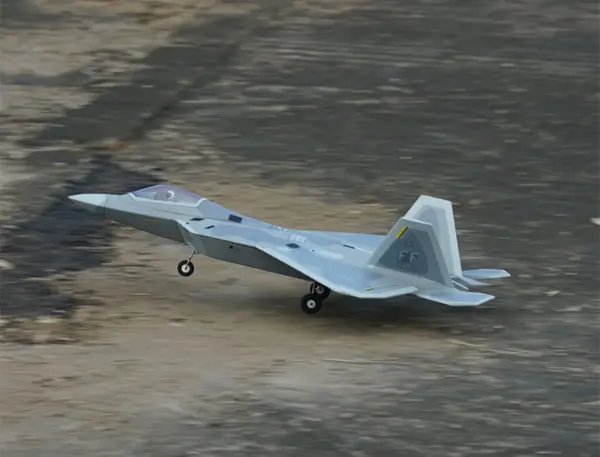

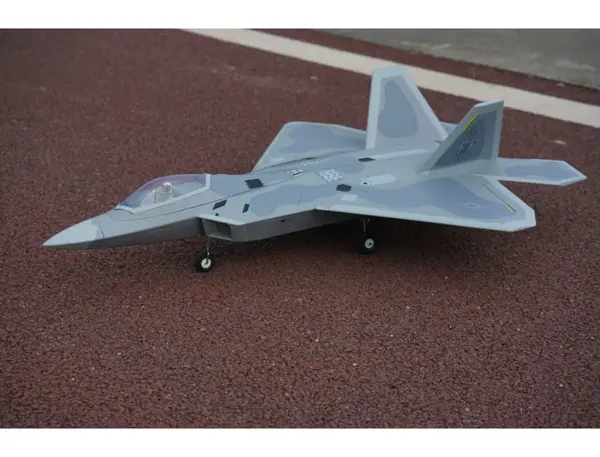

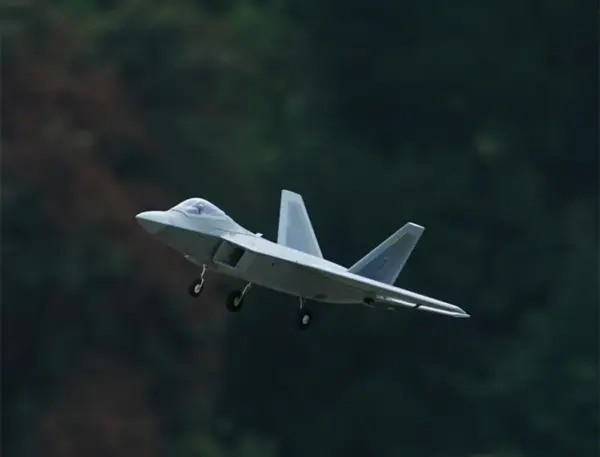

Perfectly fitted landing gear design helps keep the plane lightweight and make take off & landing smooth. Landing gears can be easily removed for more speed and vertical performance while utilizing the molded-in finger grips. Thanks to the F-22’s high alpha capability, you can even get hold of the plane by hand with an ease when landing.
Features
- Streamlined and true-to-scale design
- Efficient twin power system setup delivering an abundance of thrust for fast climbs, rolls, loops
- Low wing load and full flying stabs design for excellent high alpha capability
- Perfectly fitted landing gear design for smooth takeoff and landing
- Extended flight time of 3-8 mins when using recommended 4S 1300-2600mAh LiPo battery
- 5 x 9g Servos
- 2 x 20A Brushless ESC
- 2 x 1413-KV5000 Brushless Motors
- 2 x 40mm EDF Fan Units
- All components can be assembled quickly without glue needed
- Molded-in finger grips for easy hand launch
Specifications
Wingspan: 702mm/27.6in
Overall Length: 955mm/37.6in
Wing Load: 89g/dm²
Wing Area: 10.6dm²
Flying Weight: 950g
Motor: 2 x 1413-KV5000
ESC: 2 x 20A
Servos: 5 x 9g servos
CG: 80mm from the leading edge
EDF Size: 2 x 40MM EDF 12-Blade
Retract: No
Flap: No

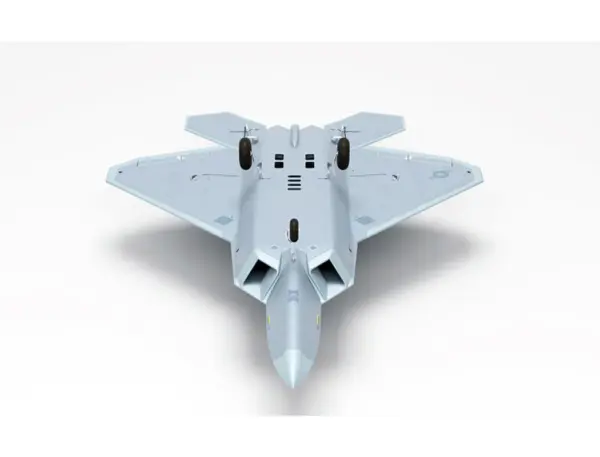

Landing Gear: Fixed main landing gear, steerable nose gear
Recommended Radio: Minimum 5 channels
Recommended Environment: Outdoor
Battery Capacity: 4S 1300-2600mAh
Battery Connector: XT60
Flying Time: 3-8 mins
Mounting Duration: Around 10 minutes
Skill Level: Intermediate
Age Level: 14 years +
Required To Complete
- Minimum 5 channels Radio
- 5 channels Receiver
- 4S 1300-2600mAh Battery
- 4S Battery Charger
Frequently Asked Questions
This model is sold without a transmitter, receiver, or battery (ARR format), so you'll need to purchase these separately. You'll need a radio system capable of controlling at least 7 channels to operate the 5 servos, 2 ESCs, and landing gear steering.
You must use a 4S LiPo battery; the recommended capacity is 1300–2600mAh for a flight time of around 3–8 minutes depending on throttle management. Check your battery charger manual for specific charge times, as these vary by capacity and charger type.
No. This is an advanced aerobatic jet with high alpha capability and fast performance. It requires experience with RC planes, 4S battery handling, and ideally an open flying field. Beginners should start with trainer-class models.

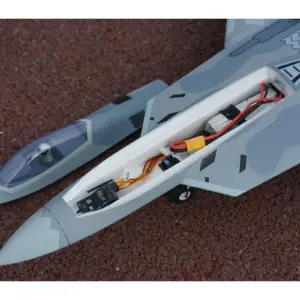

The kit includes the airframe, twin brushless motors, twin ESCs, 5 servos, landing gear, and EDF fan units—all pre-assembled and requiring no glue. You must separately purchase a 4S LiPo battery, charger, radio transmitter, and receiver.
The F-22 has a wingspan of 702mm and weighs around 950g, making it a mid-size jet suitable for medium to large flying fields. The twin 40mm EDF motors provide abundant thrust for fast climbs, rolls, loops, and aggressive aerobatics, with excellent high-alpha flying capability thanks to its low wing load and full-flying stabilisers.
