Description
The kit includes a clutch suitable for the OS-12TG engine with clutch springs optimal for rubber tires designated for the KYOSHO CUP as well as clutch springs for sponge tires to compete in open races.

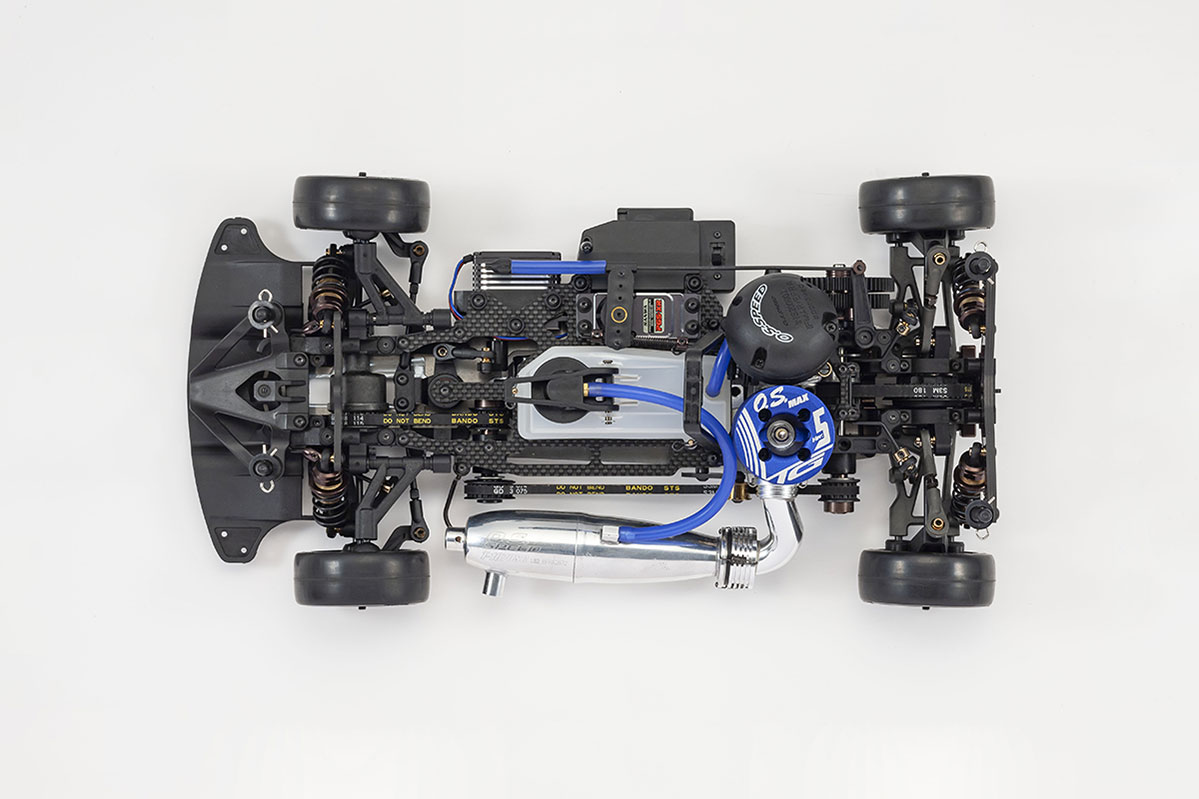

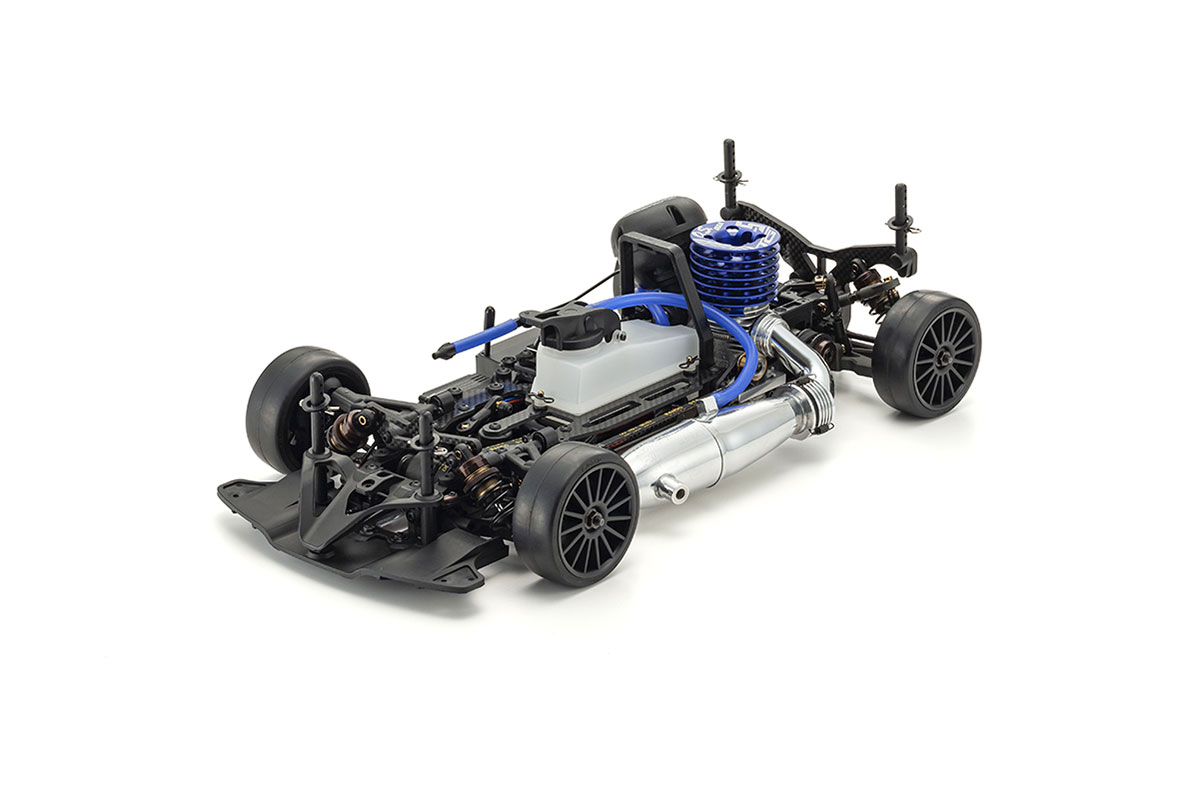

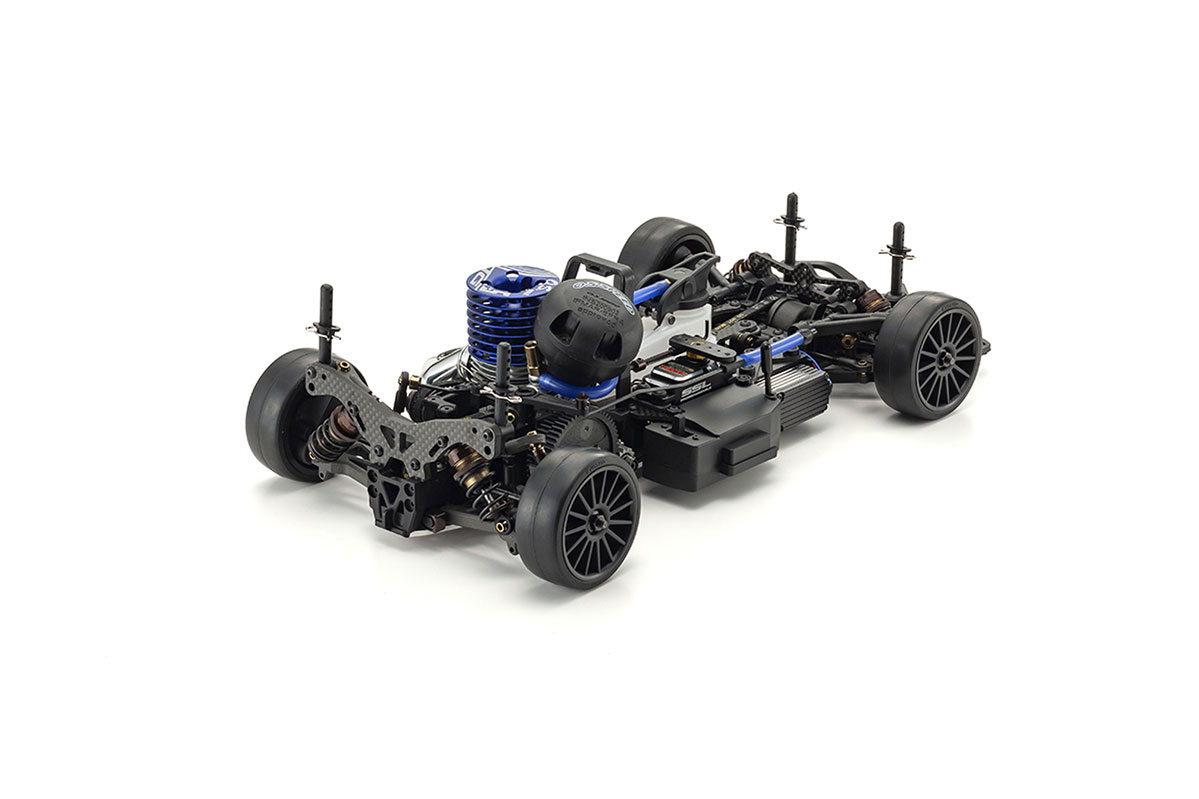

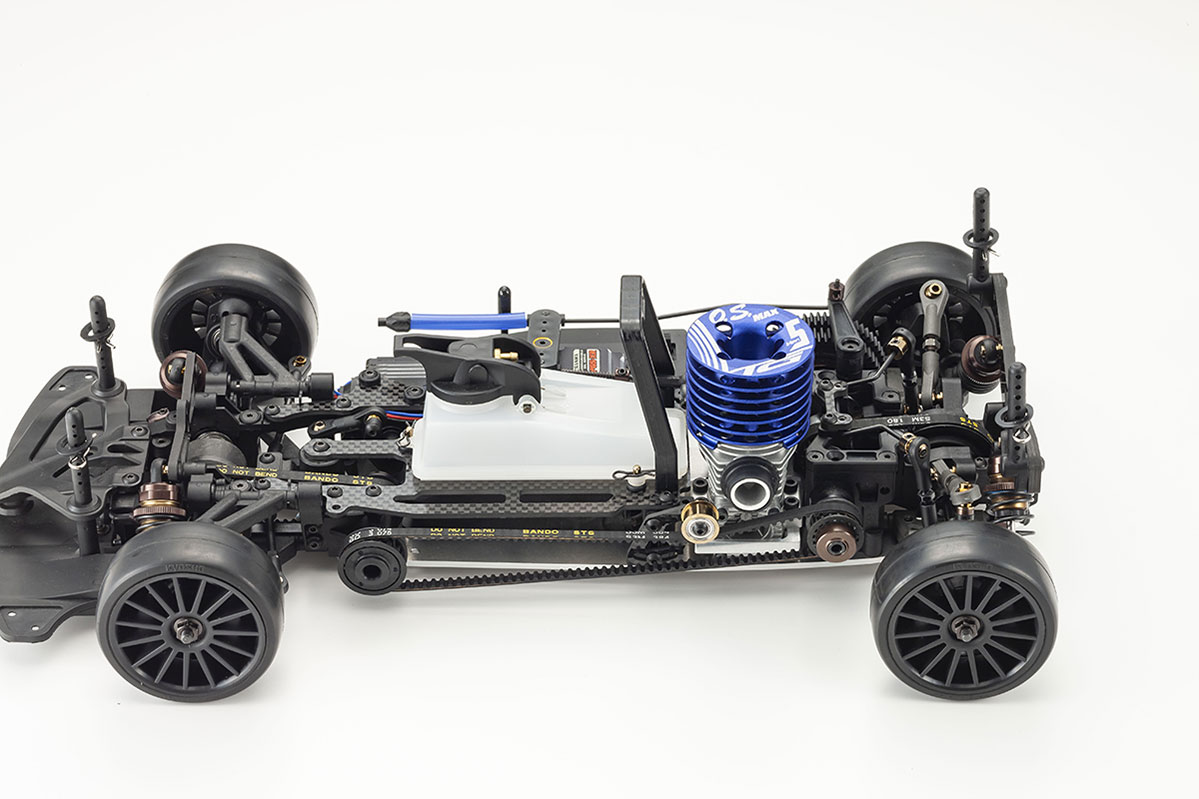

Newly designed aluminum main chassis, one-piece engine mount and stabilizers elevate the racing performance of this /10 scale GP touring car to the next level.

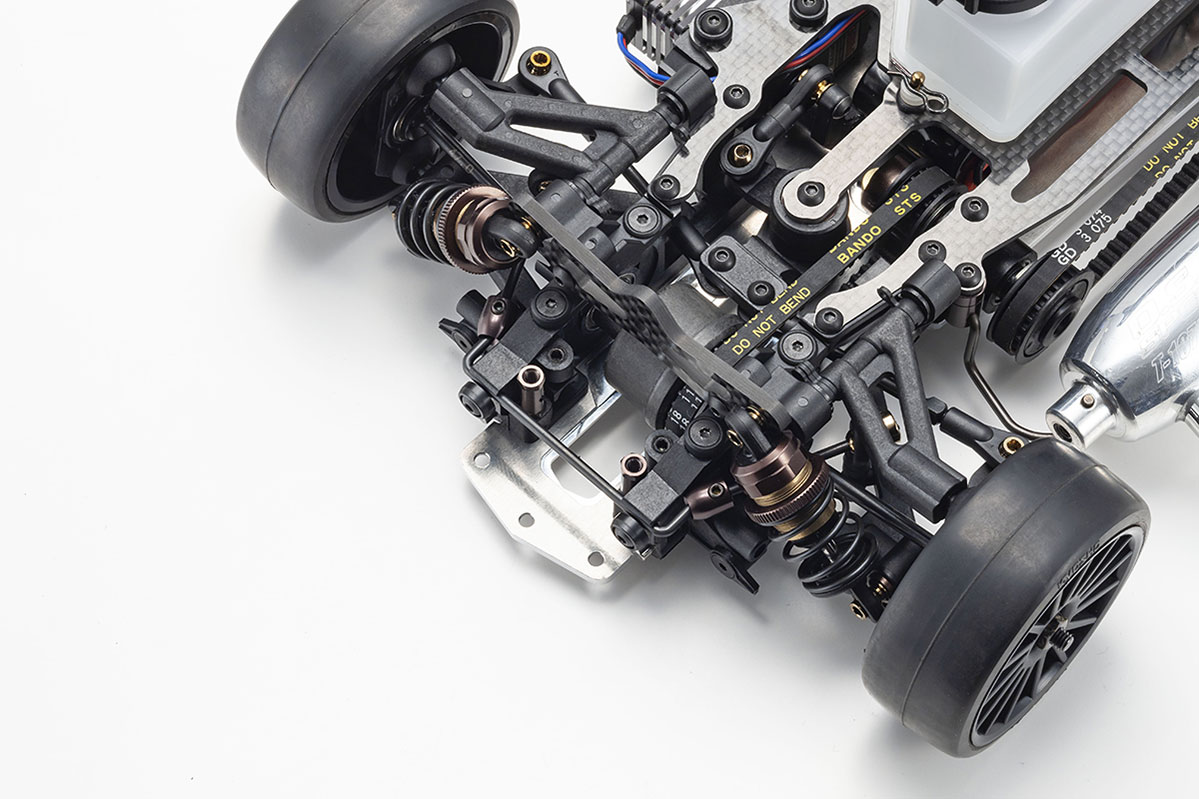

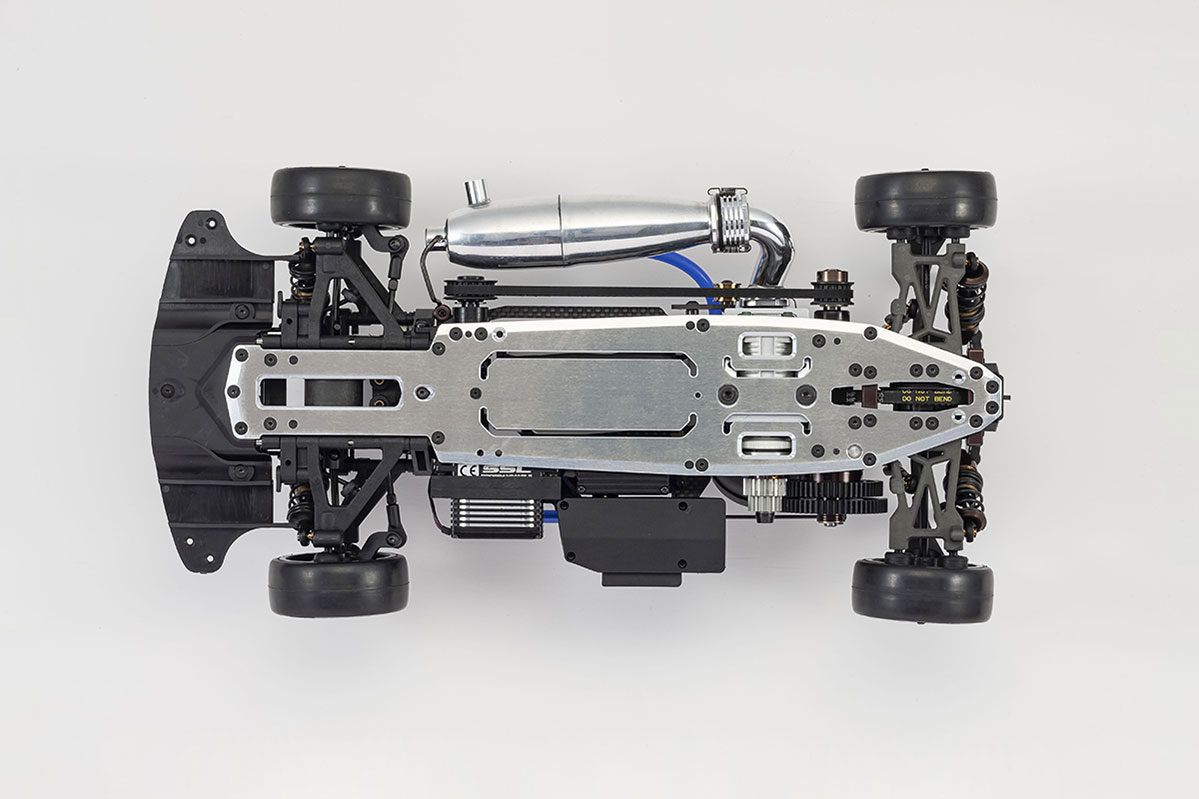

Evo.3 main chassis hits the sweet spot with optimal rigidity and moderate flex characteristics. Centering of the engine mounting screws equalizes left-right flex to achieve smooth and balanced cornering.Redesigned front bulkhead enables change to bar-type front stabilizers. Cornering characteristics can be fine-tuned by changing the wire diameter.

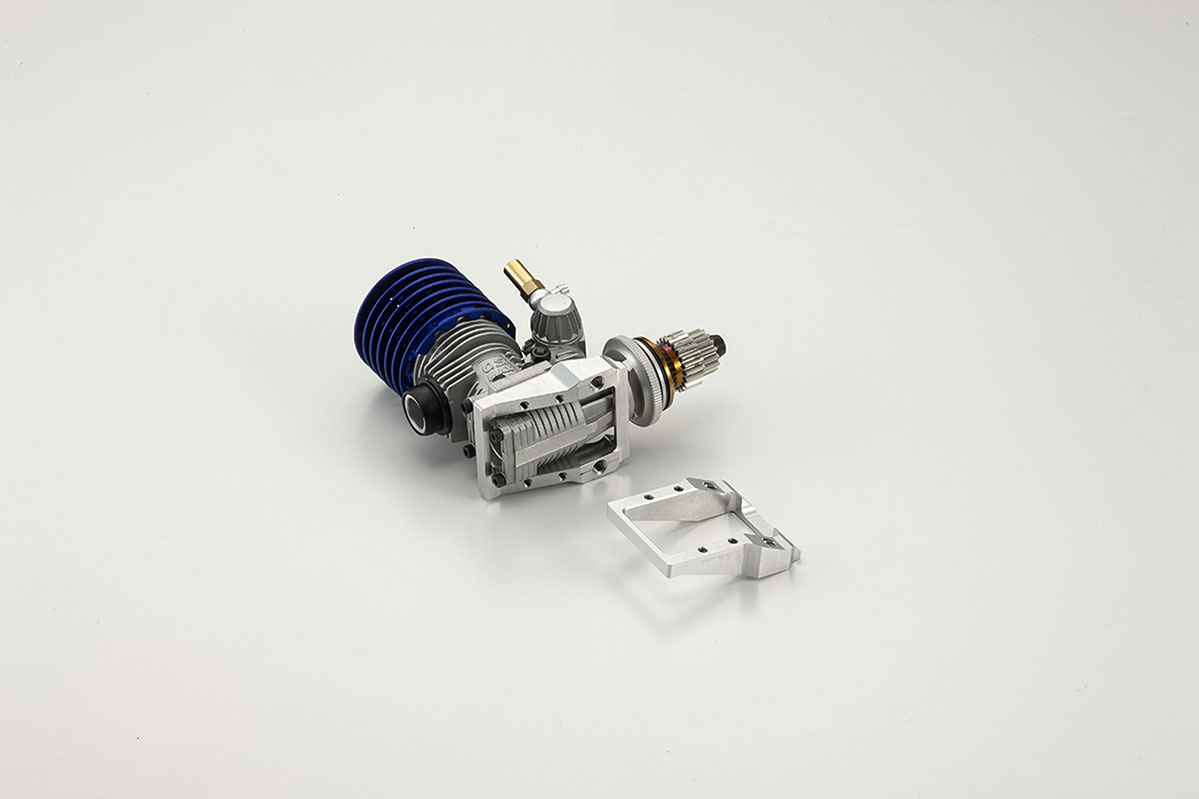

Newly designed Evo.3 one-piece engine mount uses two centered mounting screws that equalizes left-right flex for improved control.

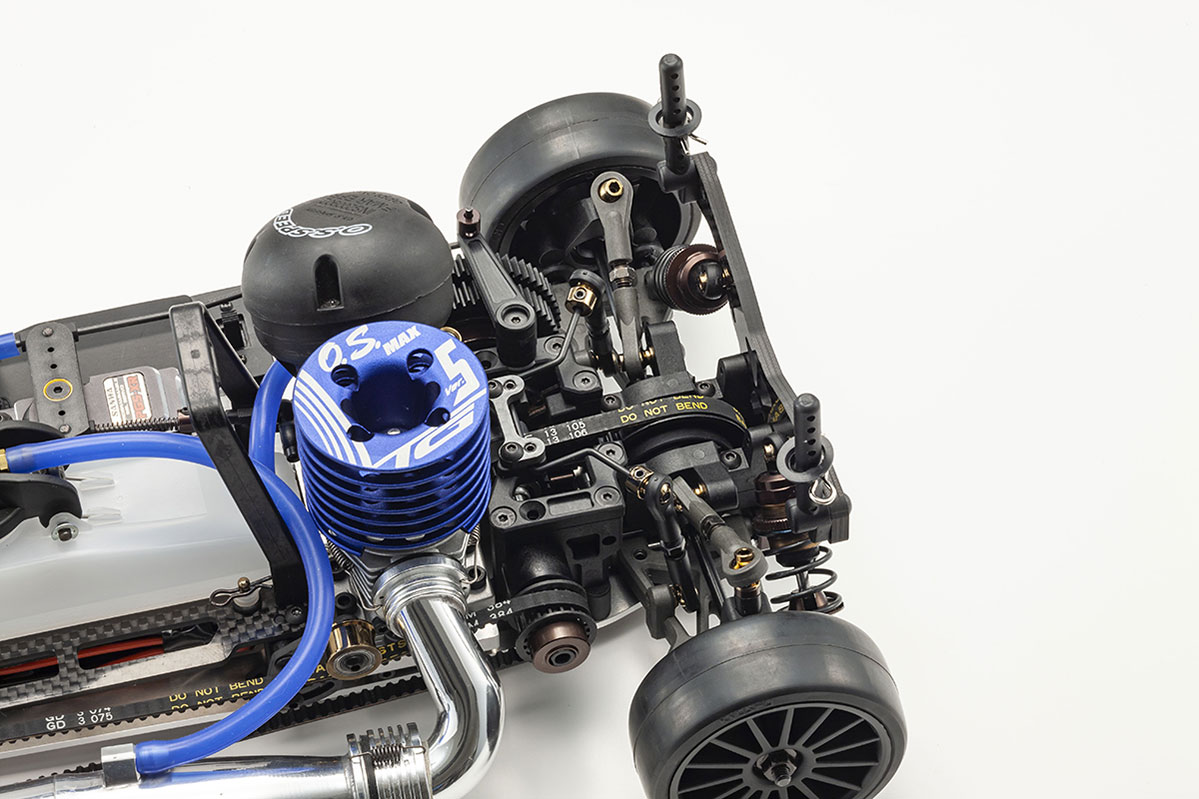

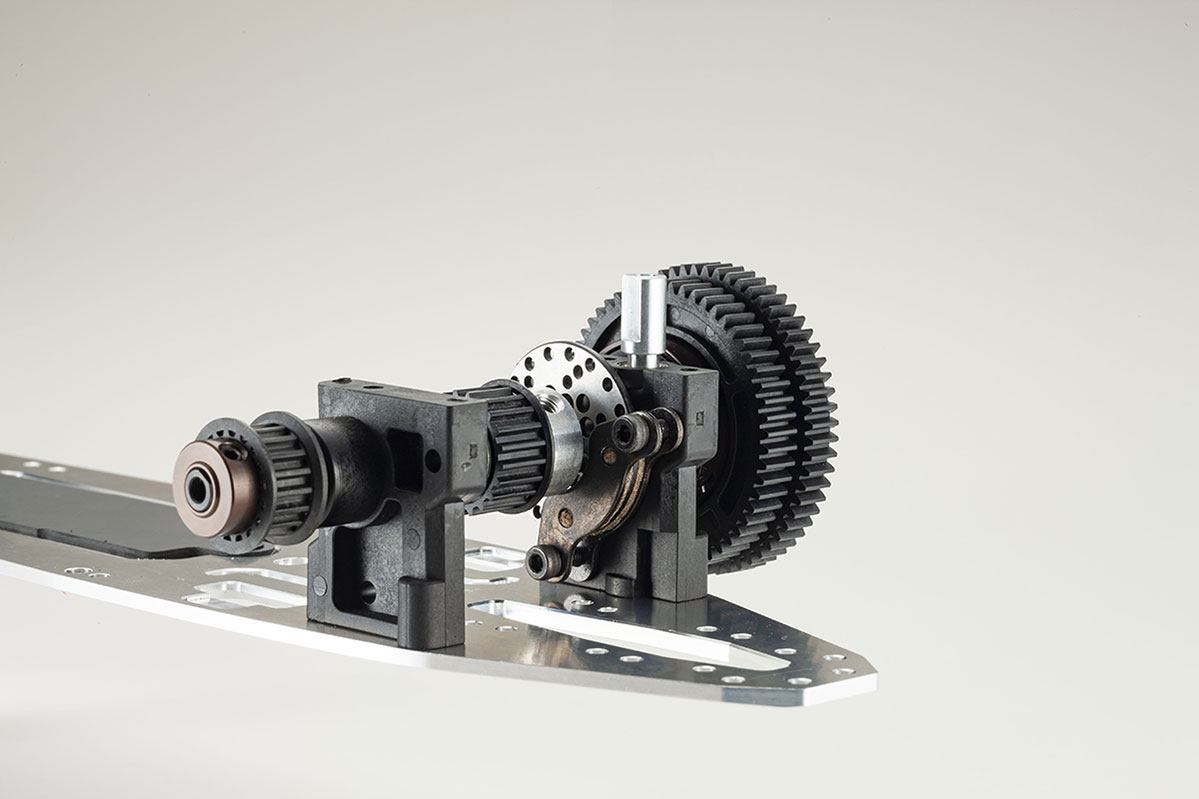

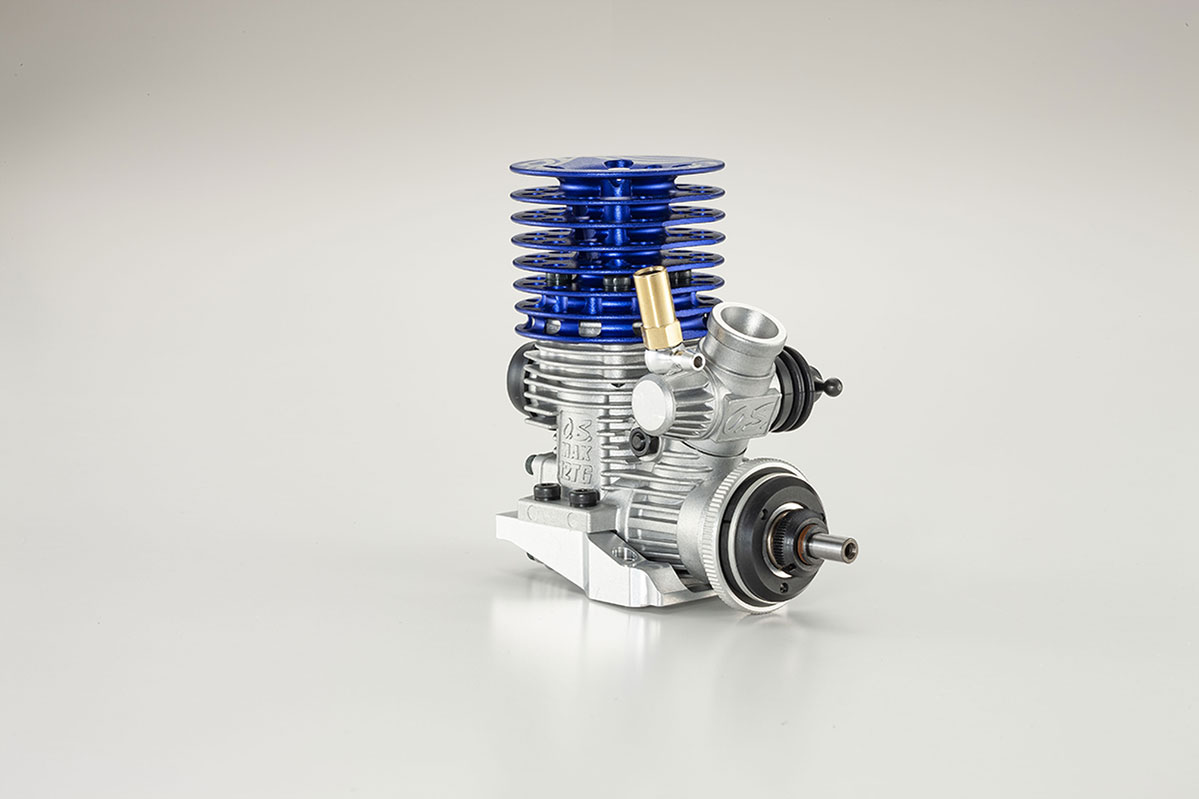

Clutch unit is optimal for OS (Ogawa Seiki) 12TG engines. Includes separate clutch springs for rubber tires and sponge tires respectively.

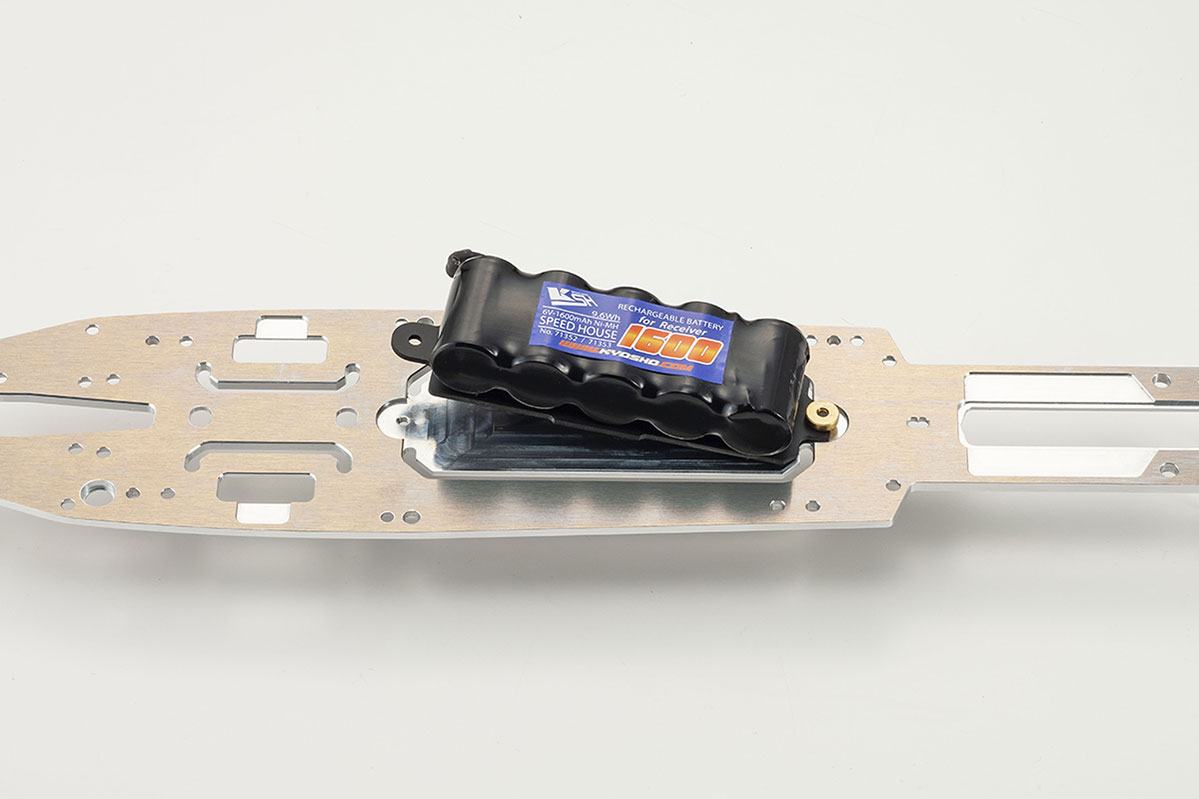

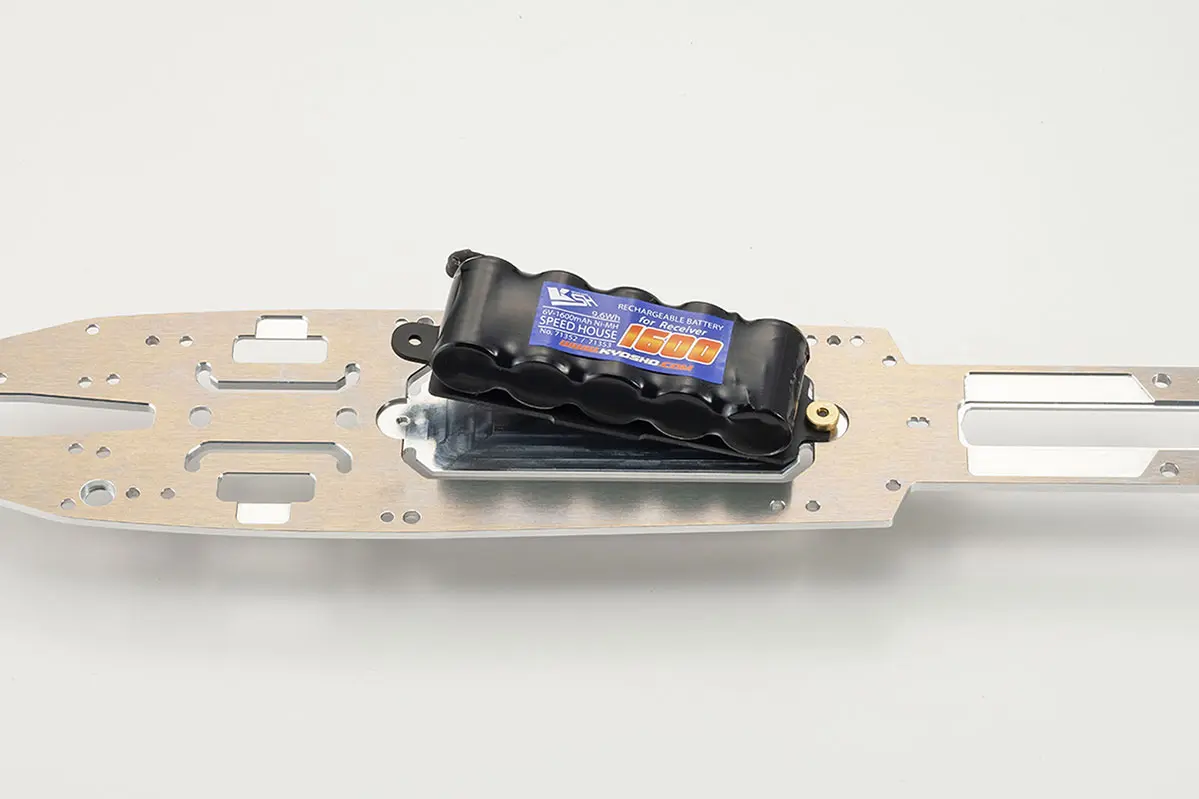

New battery tray is made of lightweight and highly rigid black FRP. Receiver and servo batteries are fixed on the tray with tape and the tray is removed/detached for easy maintenance.

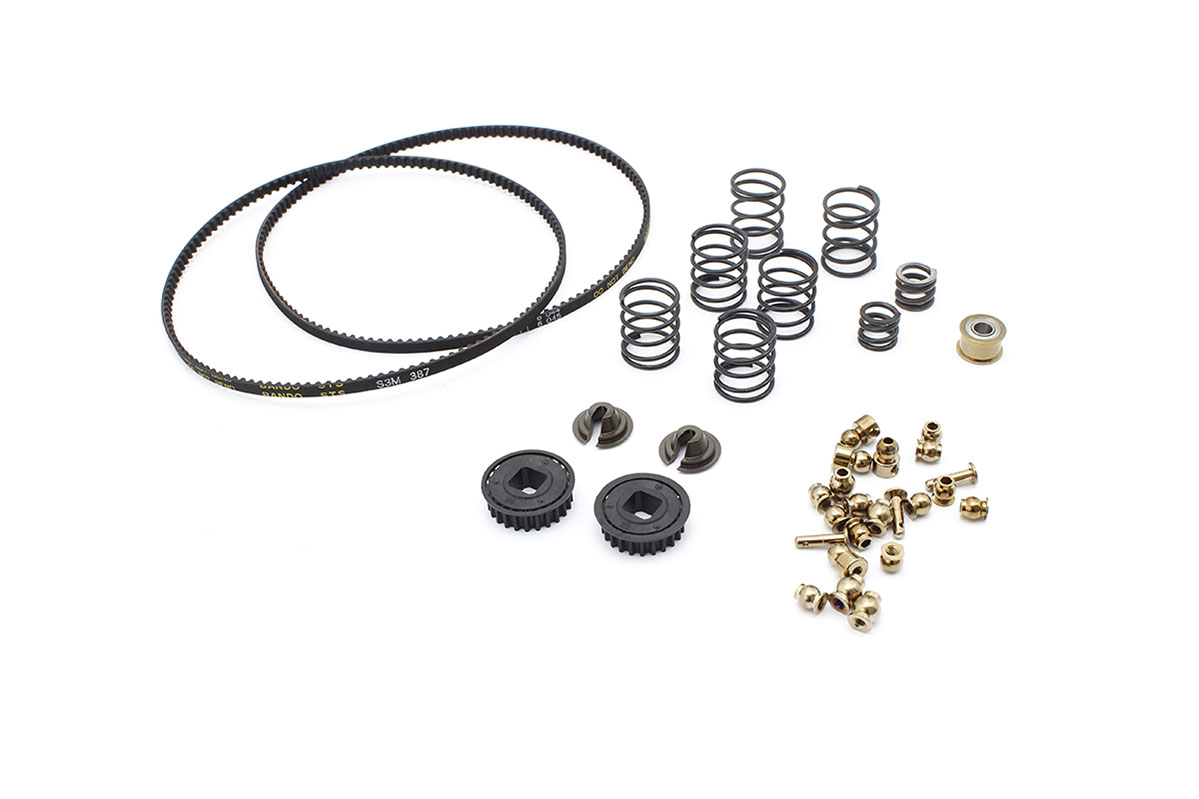

To accommodate the different front and rear drive ratios of rubber tires and sponge tires, front side pulleys with different module belts are included, allowing the drive ratio to be changed according to the type of tires.
Includes SP brake pads are now included as standard (optional upgrade on the previous model). Delivers reliable braking power even with high-power engines.
Technical Data
■Length 368mm
■Width 200mm
■Height 105mm
■Wheelbase 258mm
■Tread (F/R) 174mm/170mm
■Tires (F/R) (sold separately)
■Gear Ratio 7.18／5.09：1
■Weight 1,700g (approx.)
■Engine 12-15 Class (sold separately)
Kit Contents
●Unassembled chassis kit
●Grease
●1.5mm・2.0mm・2..5mm・5.0mm L-shape hex wrench
●Cross wrench (small)
Required For Operation
＜Required for Operation＞
●2ch-3ch R/C car transmitter
●Servos x 2
●Batteries for transmitter
●Batteries for receiver (flat pack)
●12-15 class engine with rear exiting exhaust
●Starter box,
●Plug heater
●Glow fuel
●fuel bottle
●200mm width touring car body
●Paint for car body
●Rubber tire
●Tire inner
●Silicon oil for diff
●Silicon oil for Shock
●Tools
Frequently Asked Questions
This is a chassis kit designed for competitive racing, so you'll need basic to intermediate RC building and driving skills. You'll need to assemble the chassis yourself and have experience with nitro engines, as the motor is sold separately.
You'll need to purchase a 12–15 class nitro engine, tyres (front and rear), 2–3 channel transmitter, 2 servos, and batteries for the transmitter and receiver. The chassis kit itself does not include these components.
The kit includes an unassembled chassis, clutch springs for both rubber and sponge tyres, pulleys for different drive ratios, SP brake pads, hex wrenches, a cross wrench, and grease. Tyres, engine, servos, transmitter and batteries are sold separately.
At 1:10 scale, the car measures 368mm long, 200mm wide, and 105mm tall with a 258mm wheelbase. It's a standard touring car size suitable for typical RC tracks and club venues.
Yes. The kit includes separate clutch springs optimised for rubber tyres (KYOSHO CUP racing) and sponge tyres (open races), plus front pulleys with different module belts to adjust the drive ratio for each tyre type.
