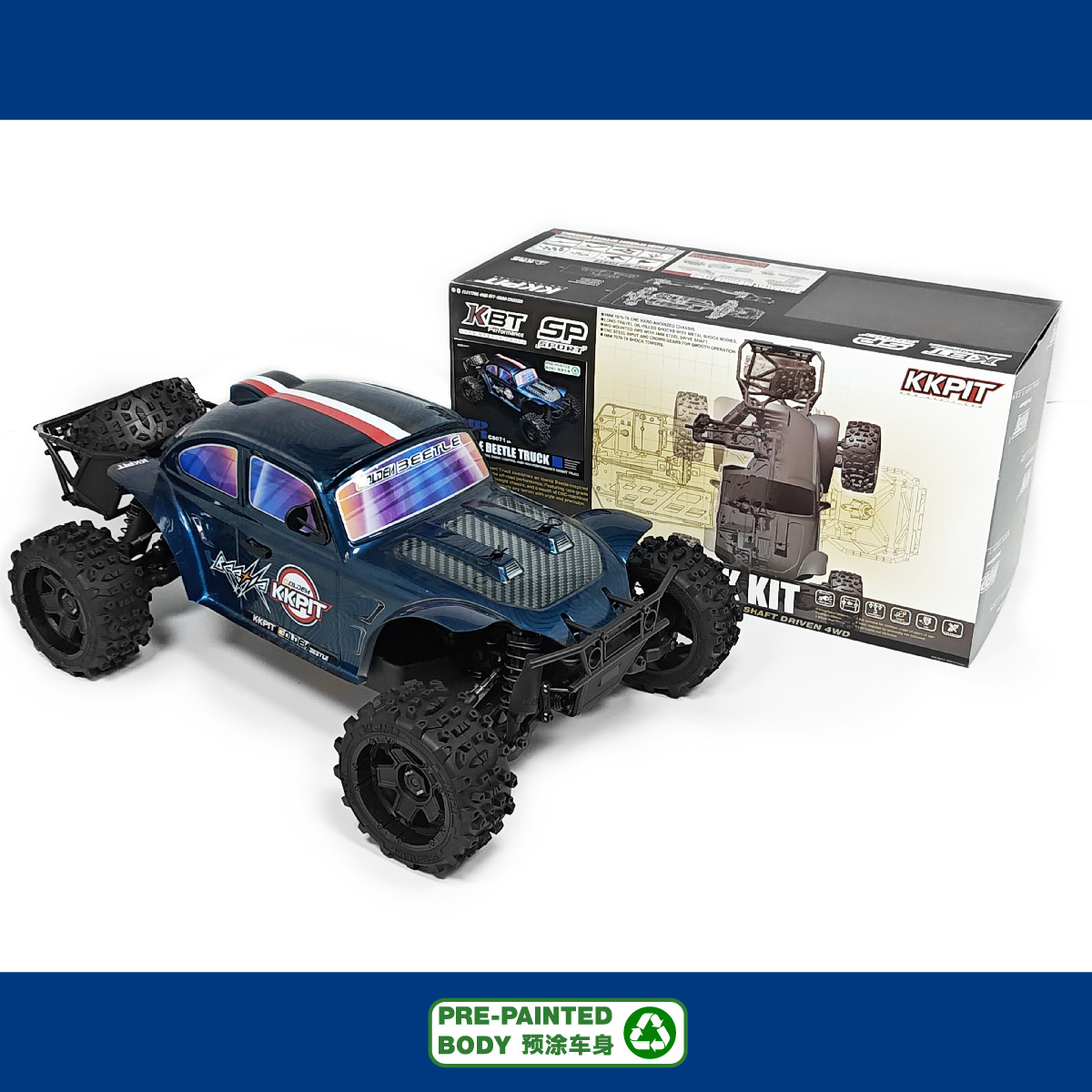

KKPIT KBT SP 1/8 Desert Truck – Kit only
Overview
Meet the KKPIT KBT SP, a robust and sophisticated 1/8 scale desert truck that brings together cutting-edge engineering and bold, refined styling. Built on a modified KONE platform, its signature Deep Blue Remastered Edition finish demands attention wherever it drives. Designed for serious off-road performance, this truck embodies precision, strength, and dynamic control.
Dimensions & Build
-
Scale / Model Type: 1/8 Desert Truck
-

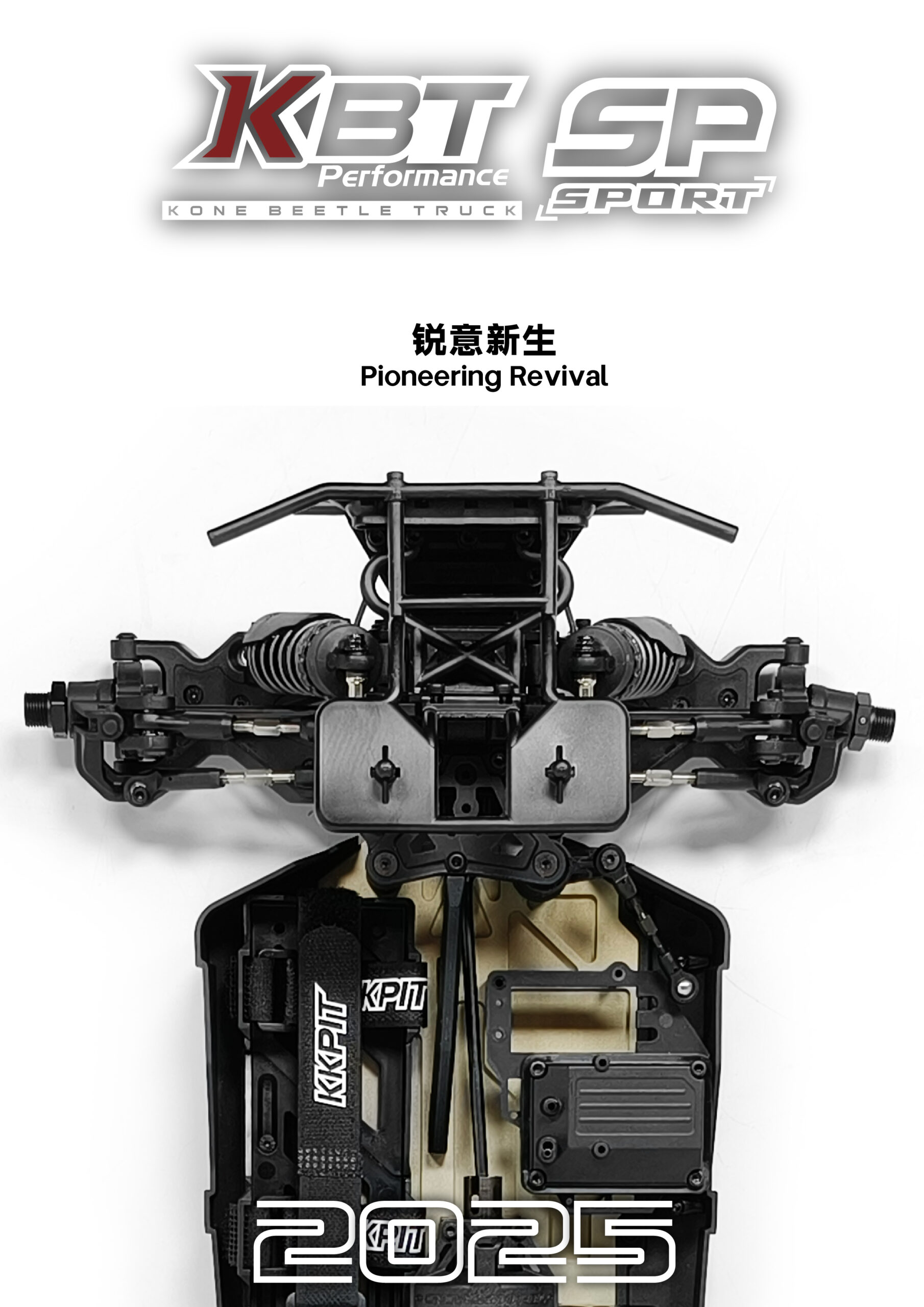

Chassis Type: KBT SP (distinct from KONE, with tailored engineering enhancements)
-
Physical Specs:
-
Length × Width × Height: 590 × 280 × 210 mm
-
Adjustable Wheelbase: 356–360 mm
-
Ground Clearance: 40 mm
-
-
Battery Fitment: Compatible with packs sized 144–165 mm (L) × 51 mm (W) × 65 mm (H)

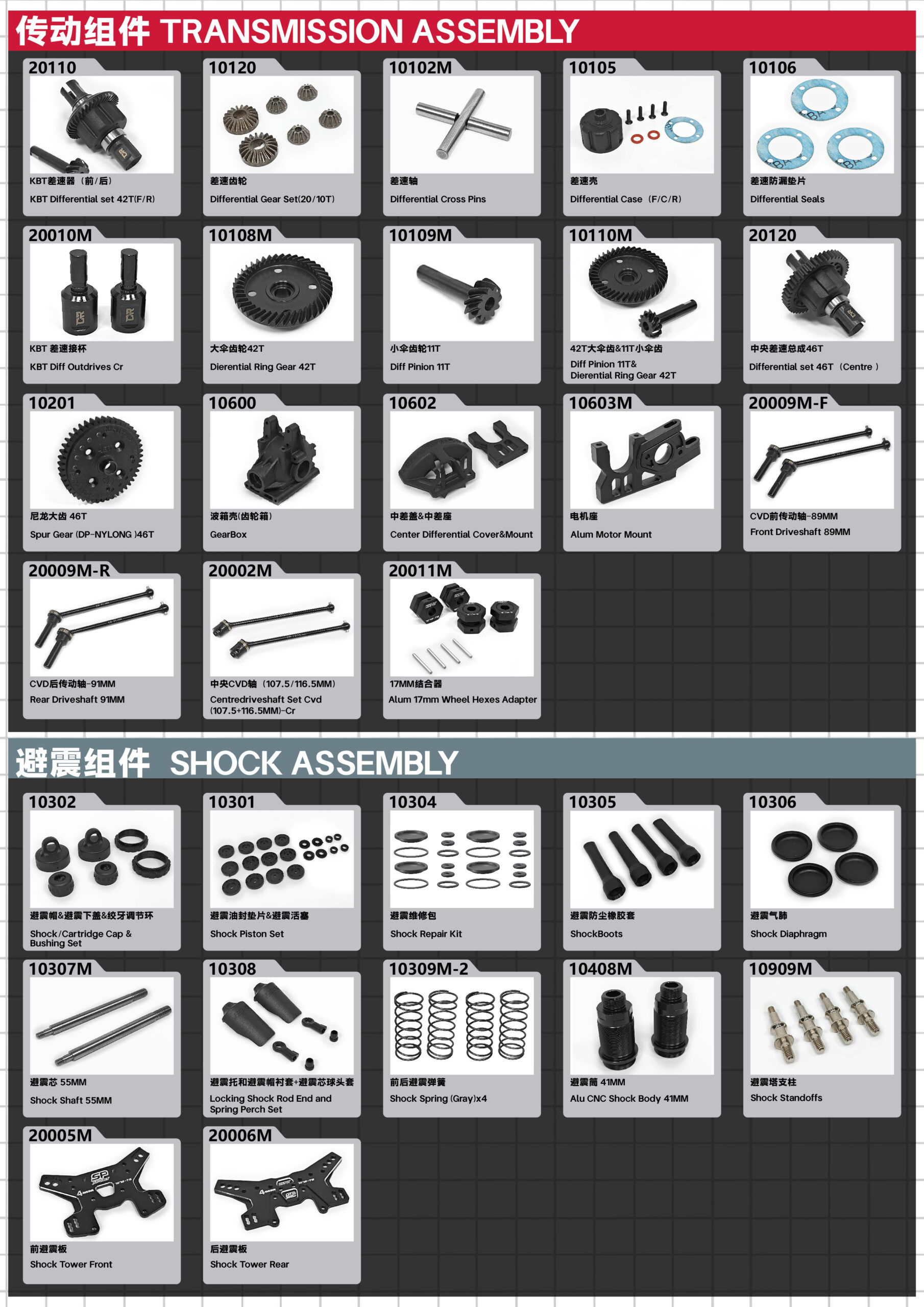

Drivetrain & Mechanical Precision
-
Drive System: Full-time 4WD with three differentials ensures balanced power distribution.
-
Transmission Elements:
-

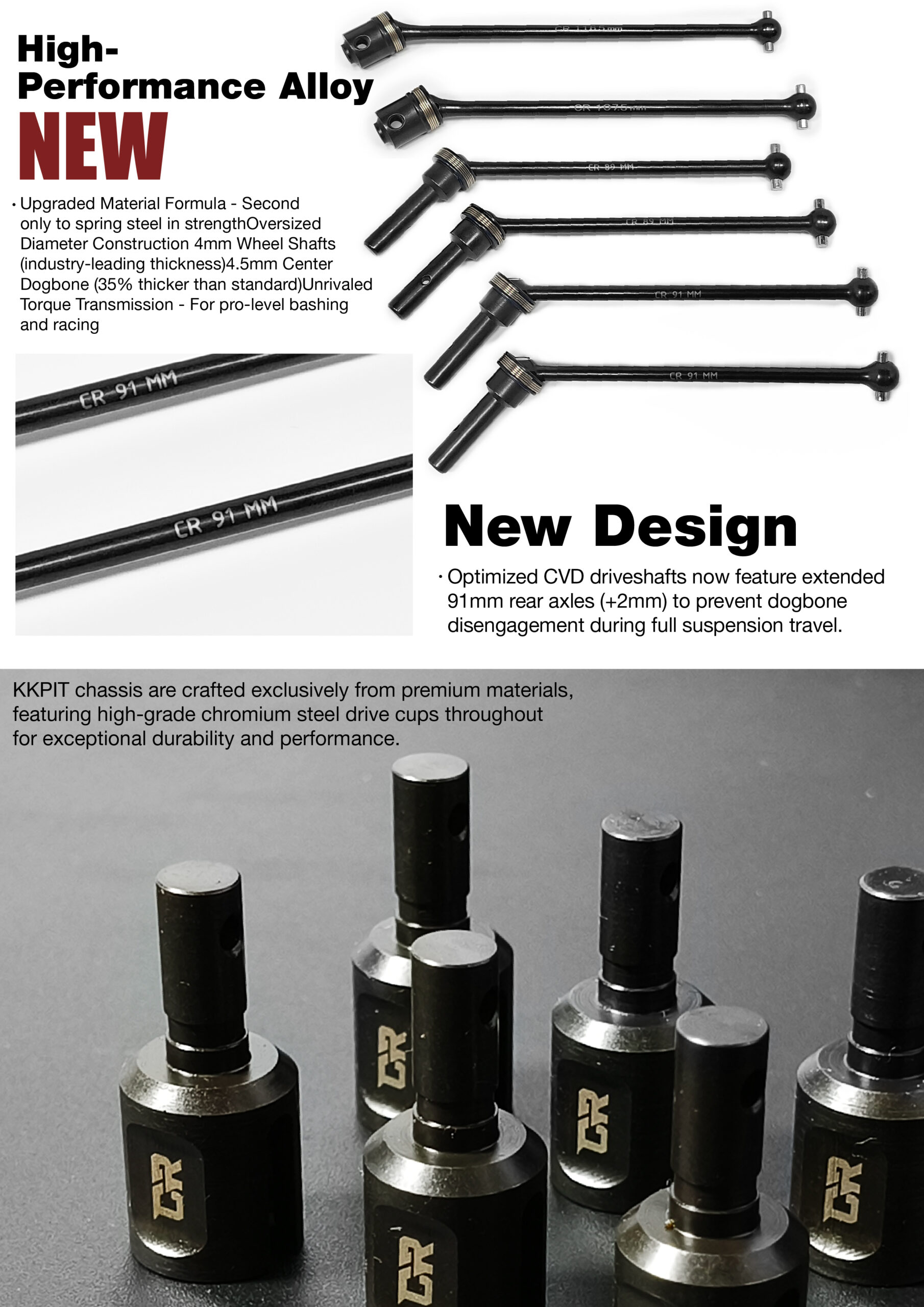

Dog bone intermediate shaft (Ø 4.5 mm)
-
CVD four-wheel drive shafts (Ø 4 mm)
-
-
Motor Set-Up: Adjustable 6061-T6 aluminum motor mount accommodating 36×42 up to 78-sized motors
-

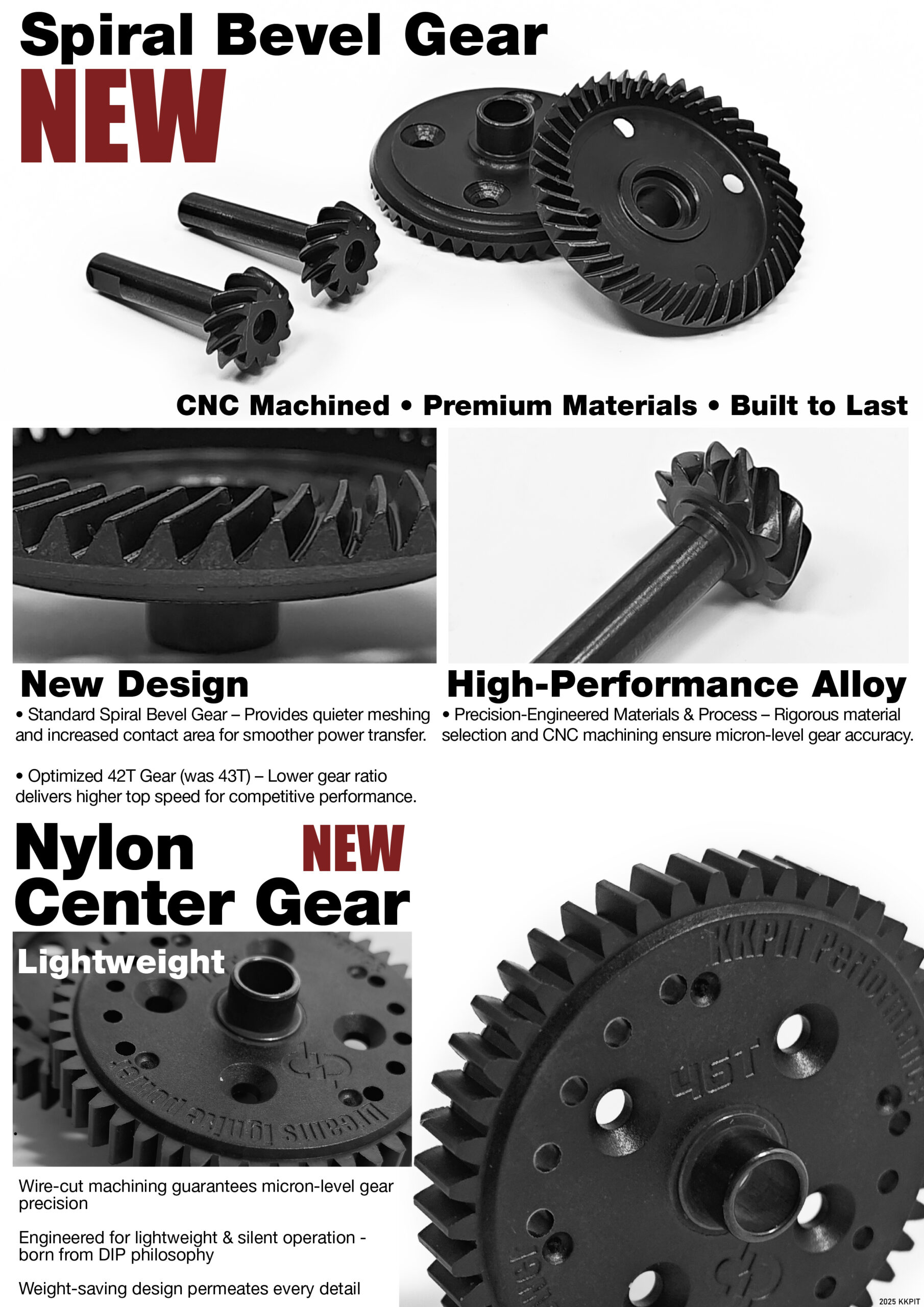

Gear Components: Hardened KKPIT14T steel pinions for reliability

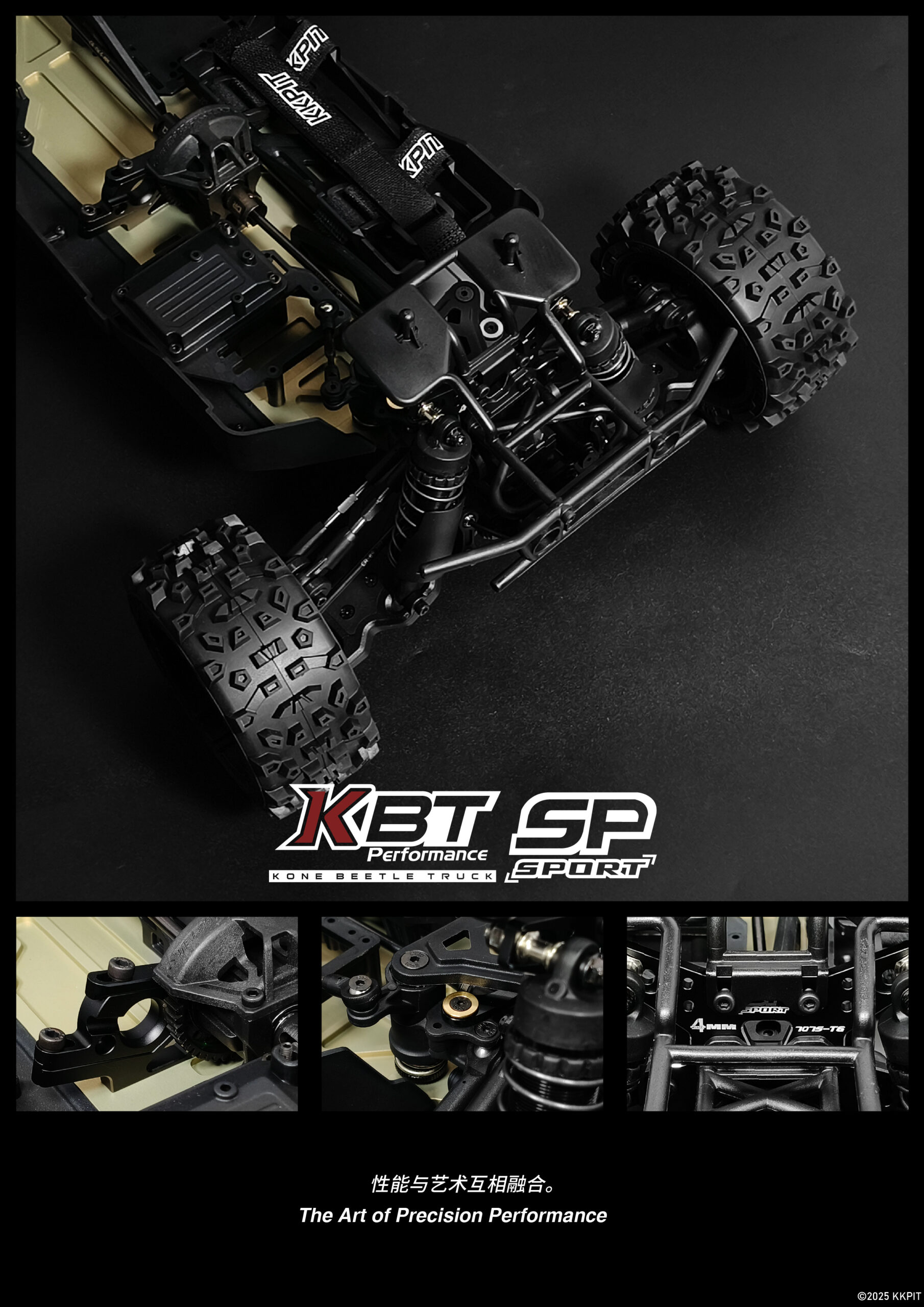

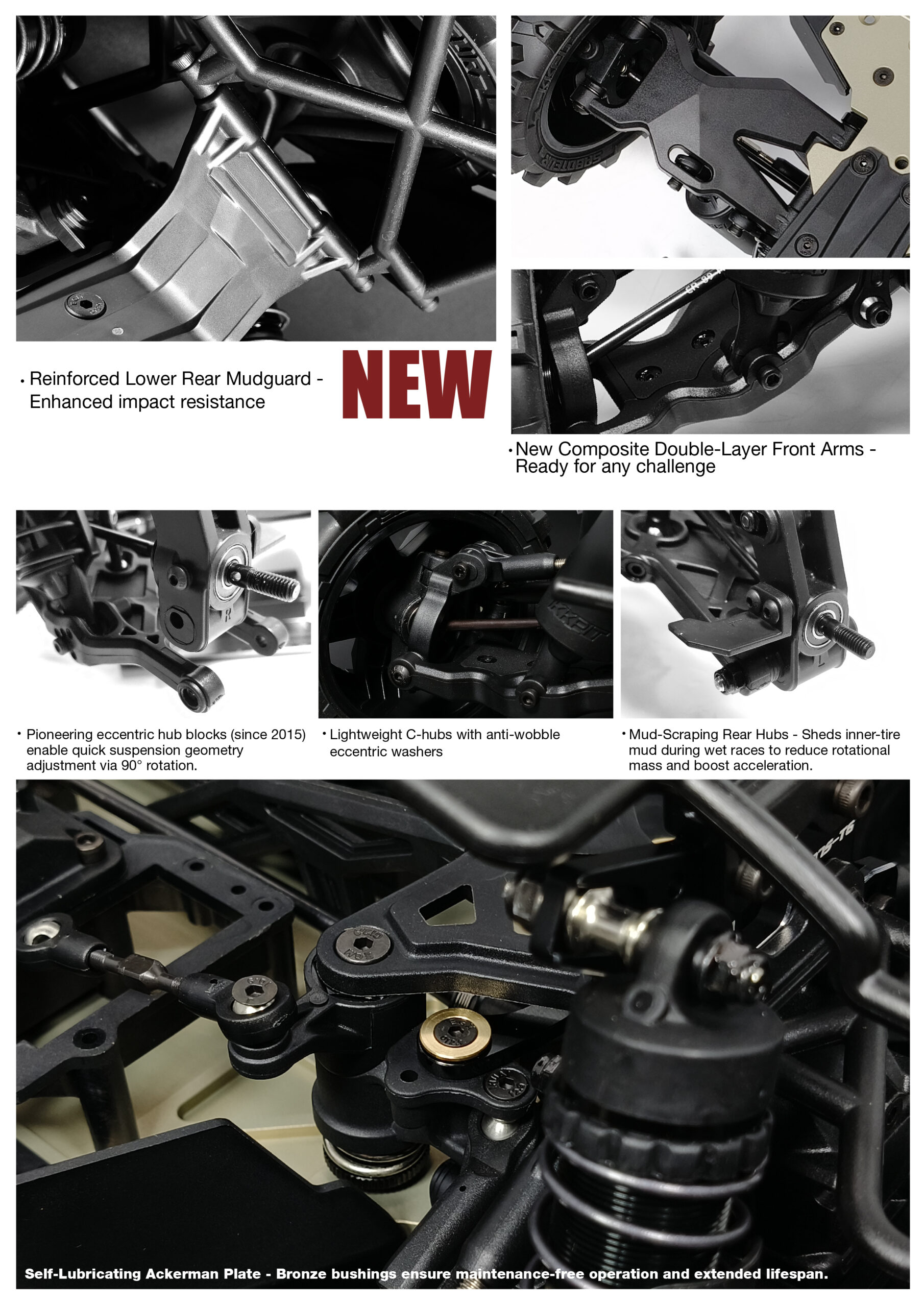

Suspension & Handling
-
Suspension: Four-wheel independent layout
-

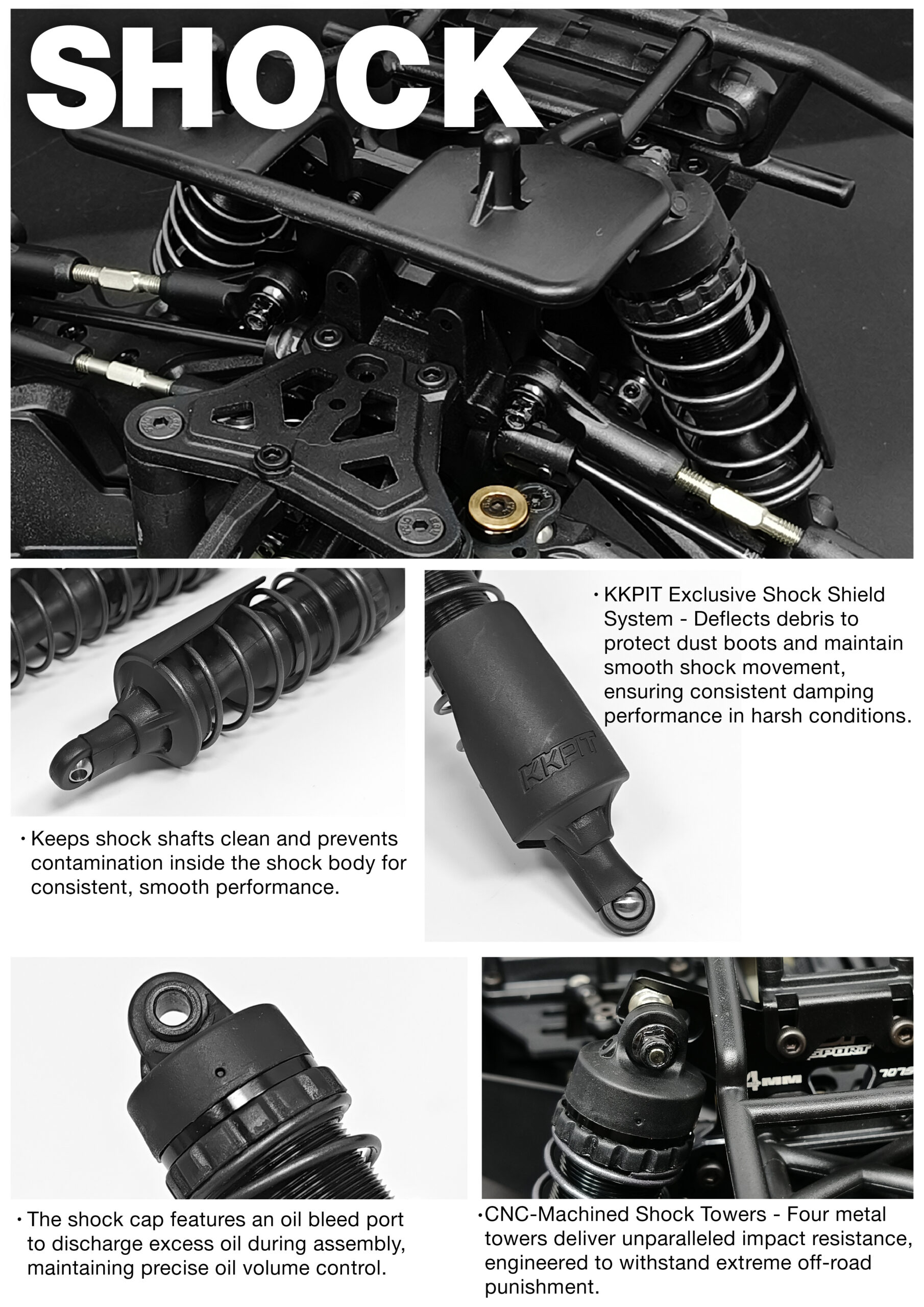

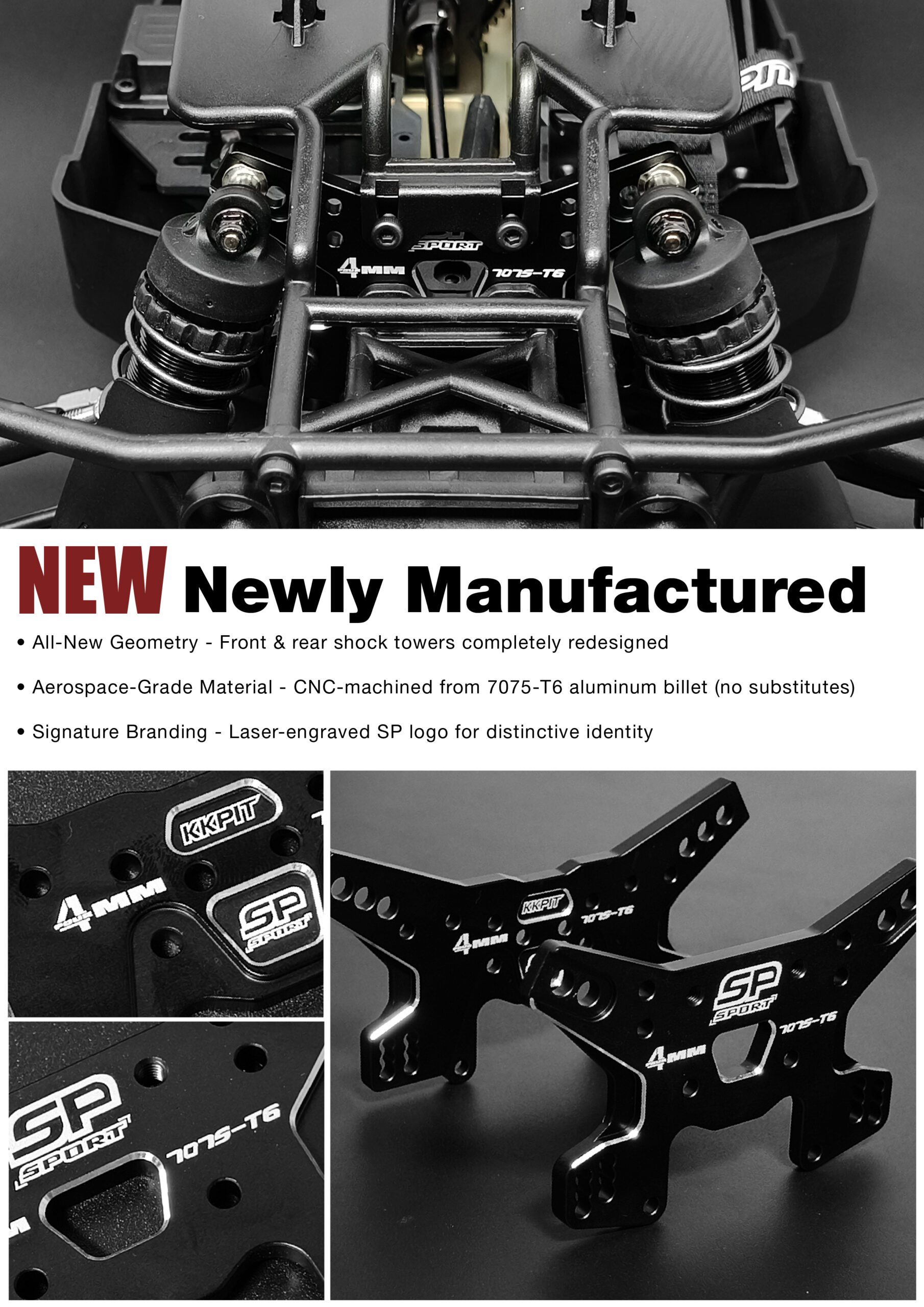

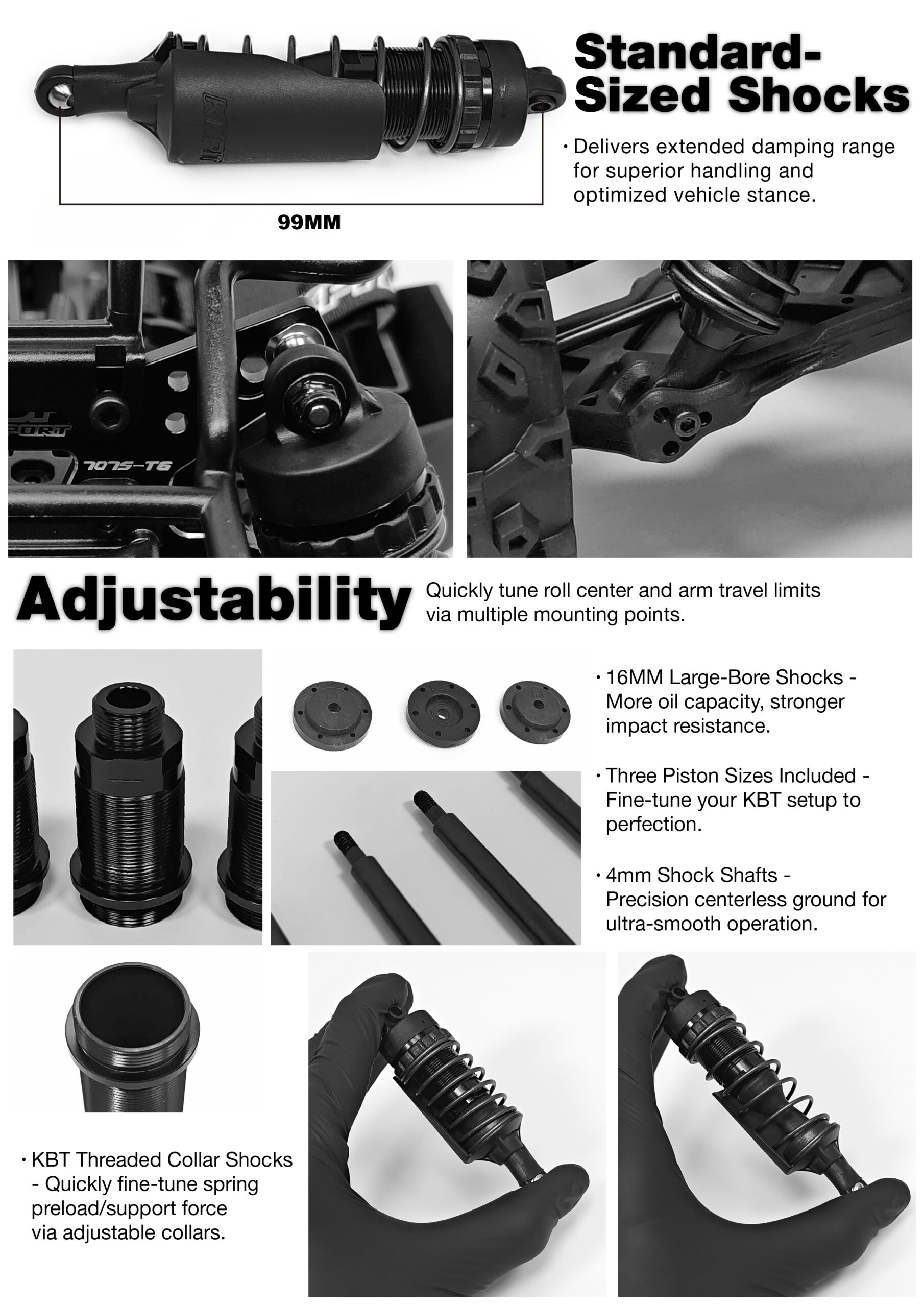

Shocks: Durable metal shock absorber buckets on both front and rear
-
Geometry: Precision Ackermann steering configuration
Material Excellence

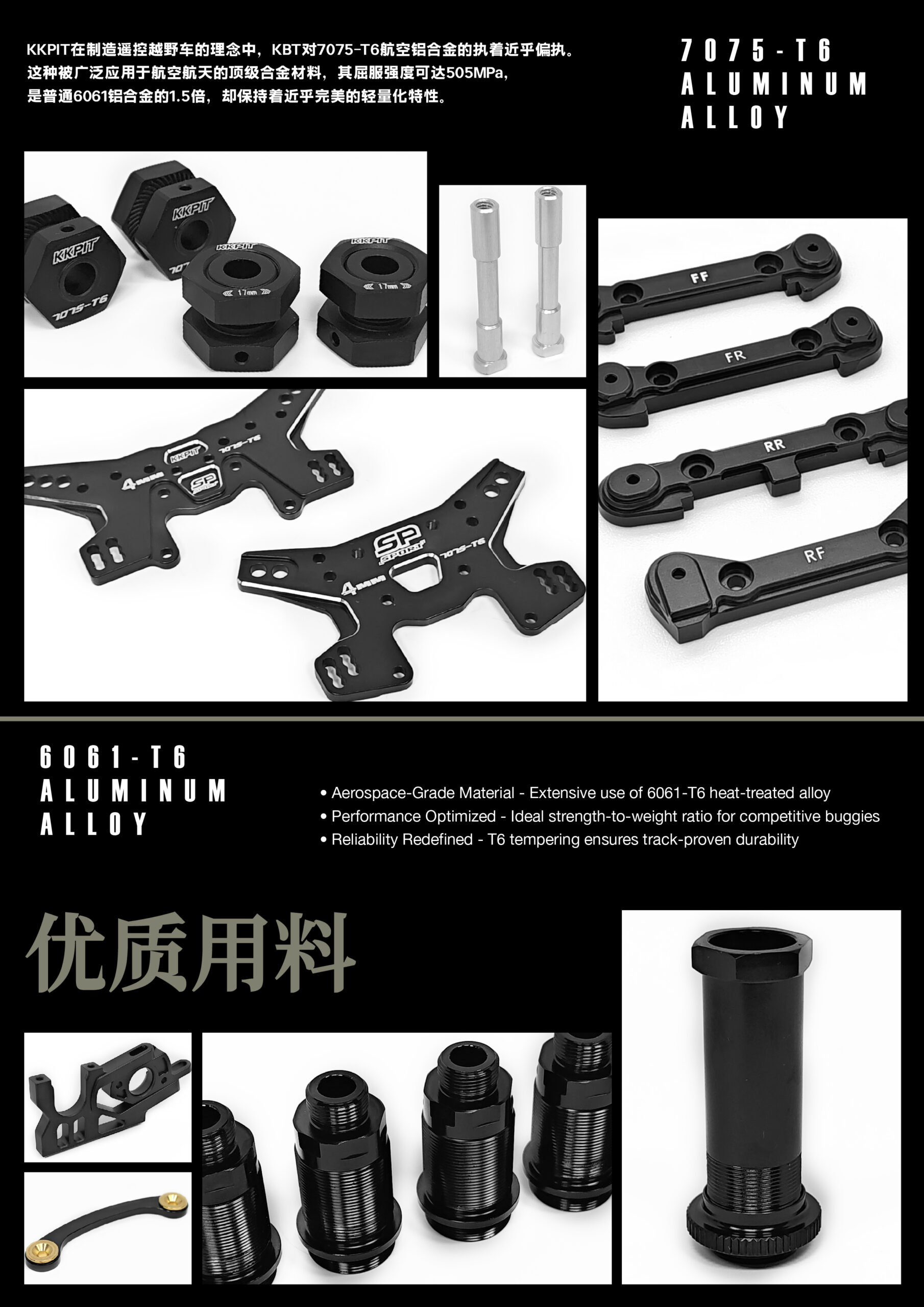

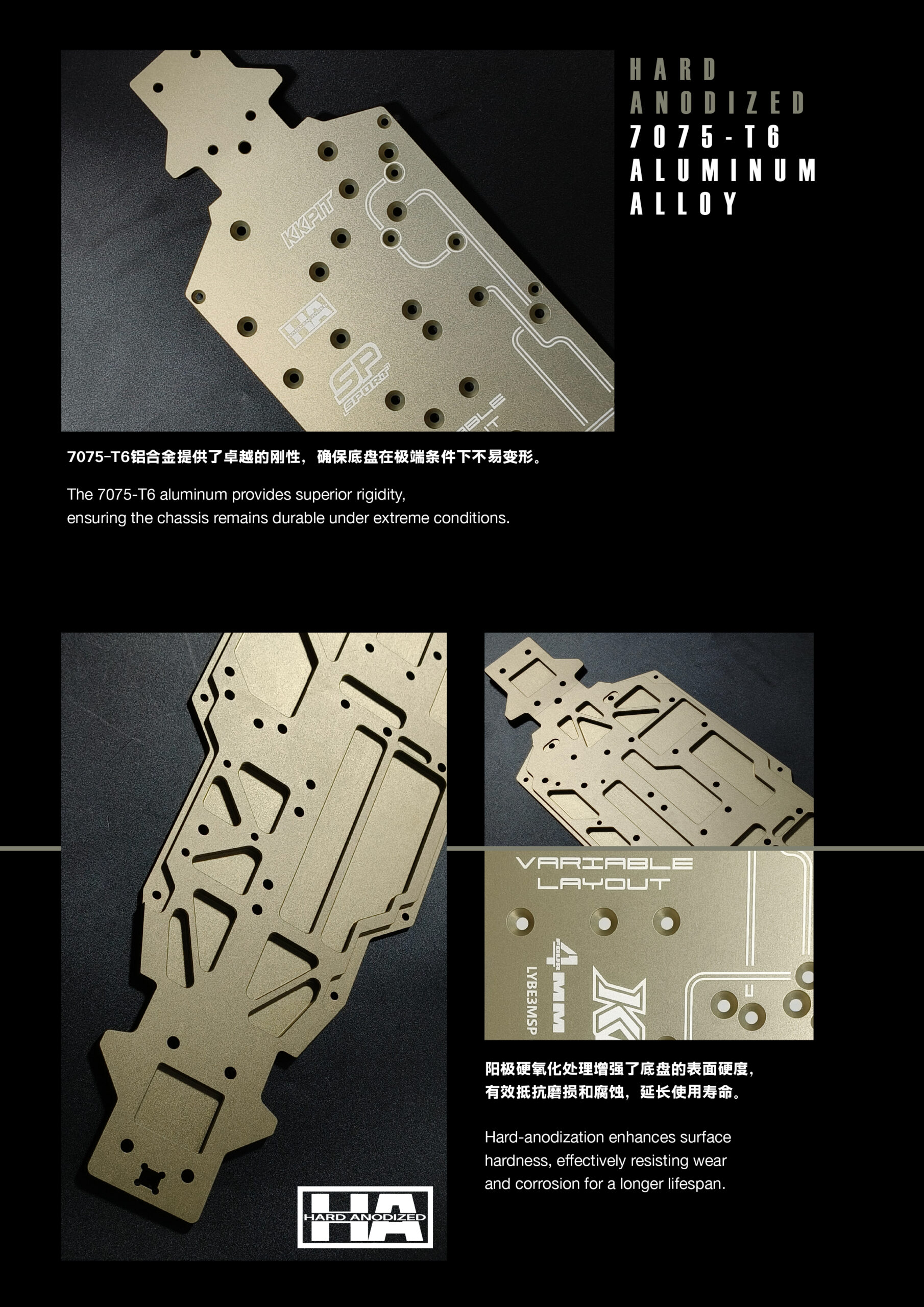

Every structural part—from chassis base to arms, steering column, and connectors—is machined from premium 7075-T6 aluminum, ensuring rigidity and responsiveness under harsh conditions.
Why It Stands Out
-
Built Tough: CNC-machined aerospace-grade aluminum offers uncompromised durability and precision.
-
Optimized for Desert Running: With a wide stance, balanced wheelbase, and high ground clearance, performance across dunes and rough terrain is outstanding.
-
Engineered Performance: The 4WD system, robust drivetrain, and hardened gears offer both reliability and power delivery.
-

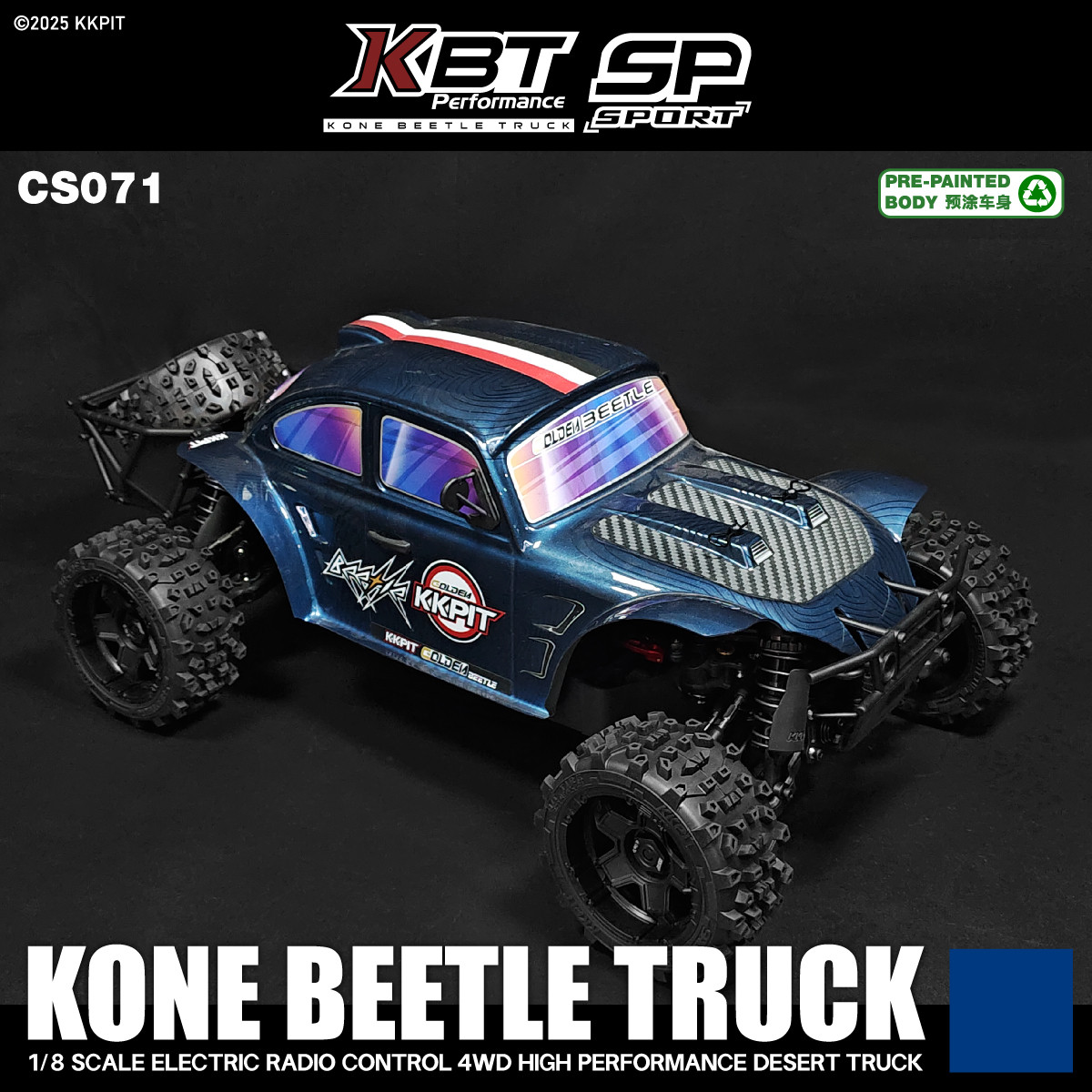

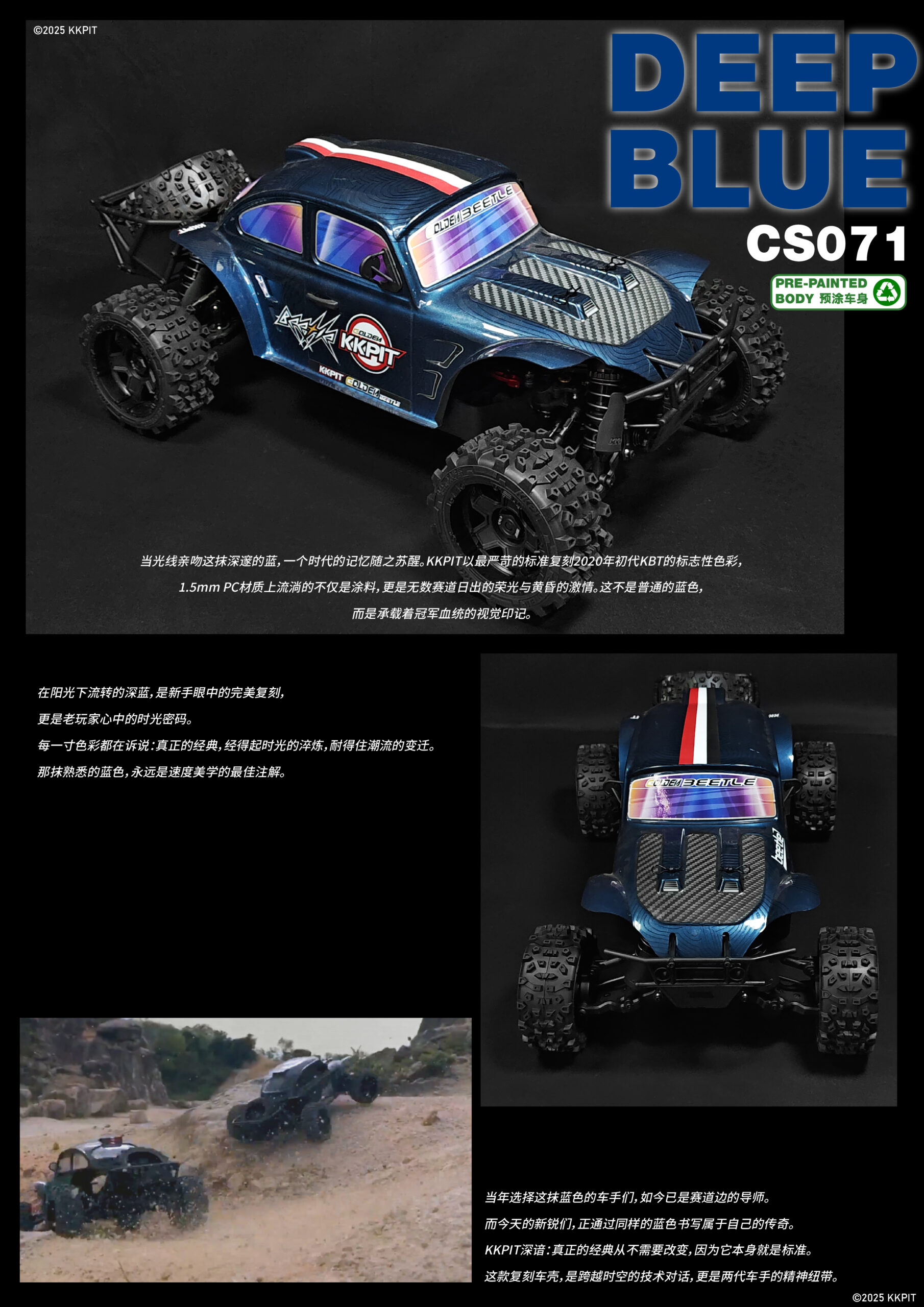

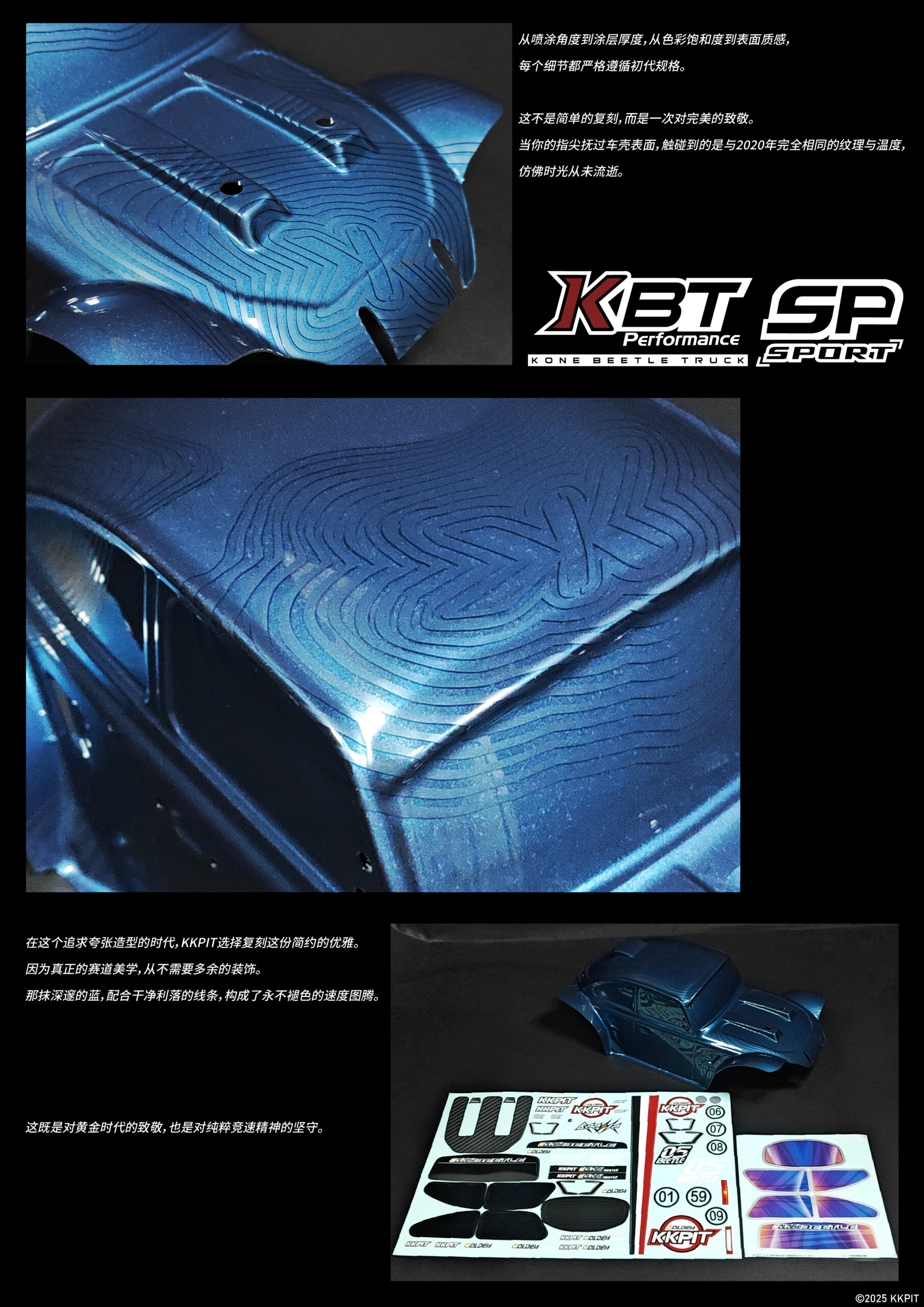

Visual Impact: The Deep Blue Remastered Edition gives it a head-turning aesthetic, while the transparent shell option is available for custom painting or decals.
Full Specification Table
| Specification | Details |
|---|---|
| Scale / Type | 1/8 Desert Truck – KBT SP Chassis |
| Dimensions (L × W × H) | 590 × 280 × 210 mm |
| Wheelbase | Adjustable 356–360 mm |
| Ground Clearance | 40 mm |
| Battery Space | 144–165 × 51 × 65 mm |
| Drive System | Full-time 4WD with 3 differentials |
| Transmission | 4.5 mm dog bone shaft; 4 mm CVD shafts |
| Motor Mount | 6061-T6 aluminum, fits 36–78-sized motors |
| Gear Material | KKPIT14T hardened steel |
| Suspension | Independent 4-wheel with metal shocks |
| Steering | Ackermann geometry |
| Materials | 7075-T6 CNC aluminum throughout |
| Body Options | Deep Blue Remastered; Transparent |
Closing Thoughts
The KKPIT KBT SP Desert Truck is a performance powerhouse designed for off-road enthusiasts who demand strength, precision, and style. Its premium build quality and dynamic geometry make it ideal for dune running and desert racing—or customizing into a competitive rig. The dramatic Deep Blue finish delivers both flair and function.

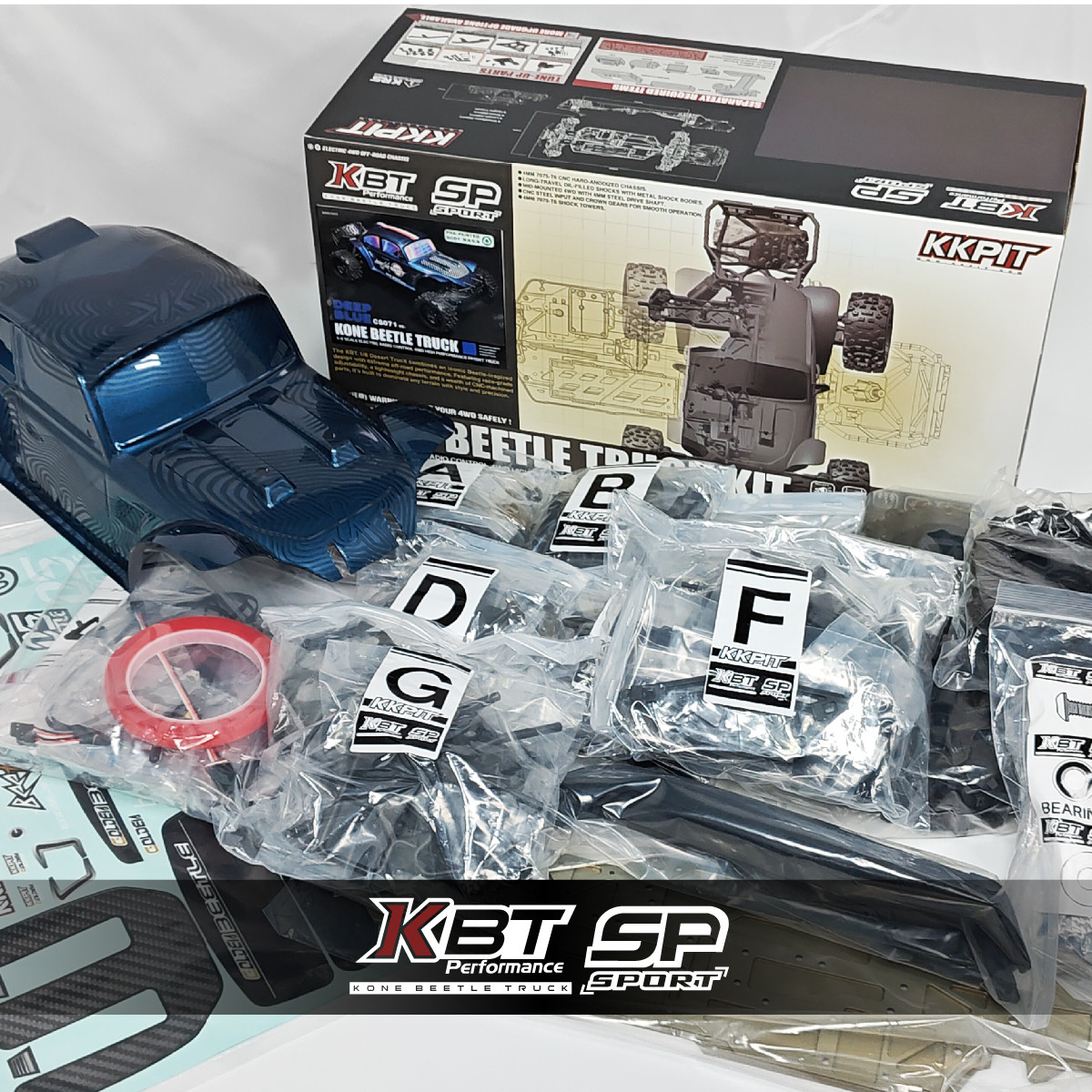

Included:
Frequently Asked Questions
This kit is designed for experienced and expert builders only. It requires assembly skills and mechanical knowledge to build properly, so it's not recommended for beginners or those new to RC car kits.

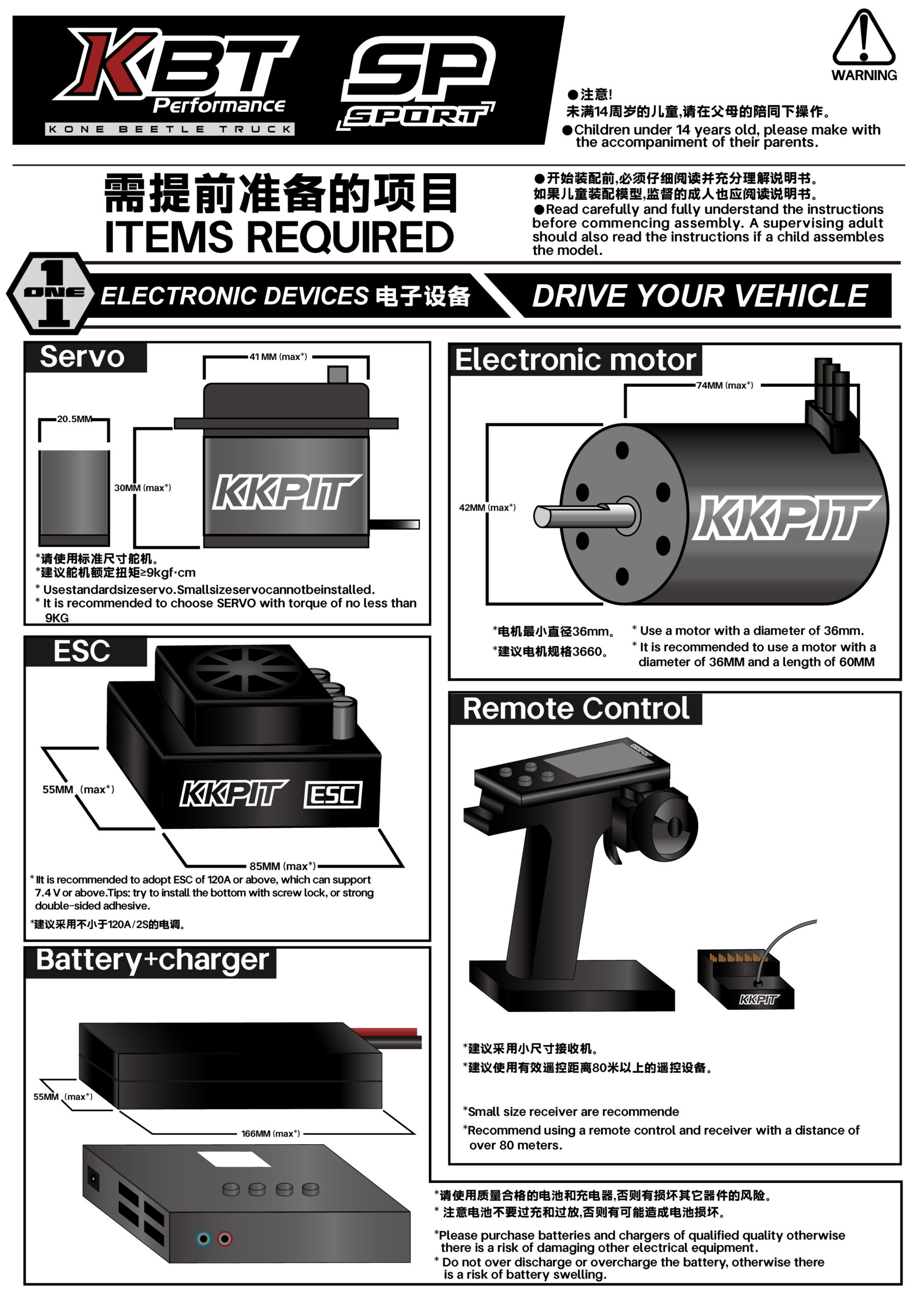

The KBT SP is compatible with battery packs measuring 144–165 mm (L) × 51 mm (W) × 65 mm (H). This is a kit-only purchase, so no battery, charger, or motor is included—you'll need to source these separately.
The adjustable 6061-T6 aluminium motor mount accommodates 36×42 up to 78-sized motors, giving you flexibility to choose a motor that matches your performance needs and budget.
At 1/8 scale, it measures 590 × 280 × 210 mm with 40 mm ground clearance and a wide, balanced wheelbase. It's specifically engineered for desert running and rough off-road terrain with its 4WD system, independent suspension, and CNC-machined 7075-T6 aluminium chassis.
The KBT SP features full-time 4WD with three differentials for balanced power distribution, CVD four-wheel drive shafts, hardened steel pinions, and precision Ackermann steering geometry for dynamic control and reliability.
