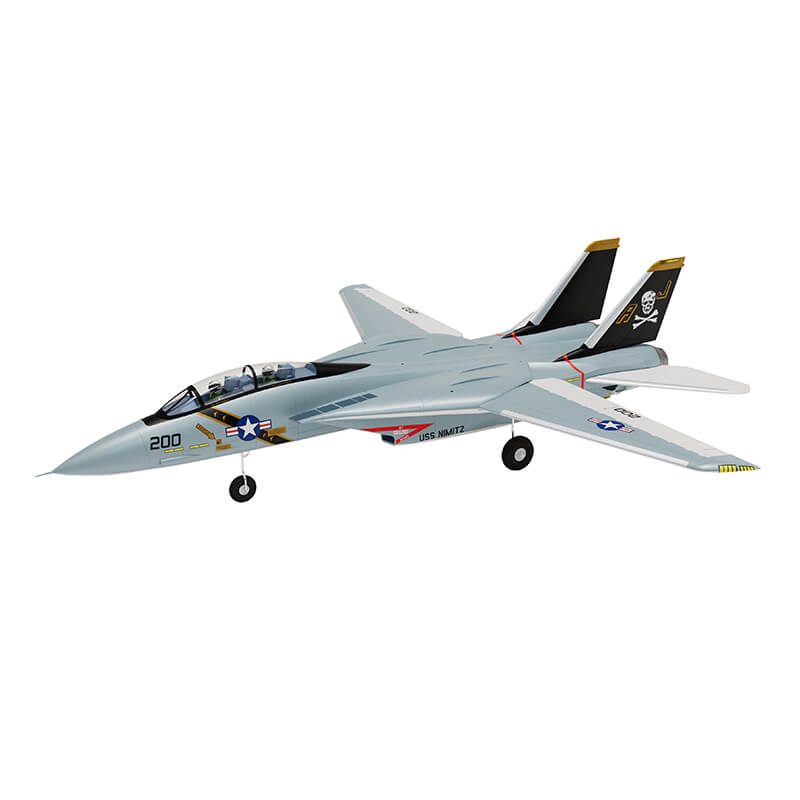

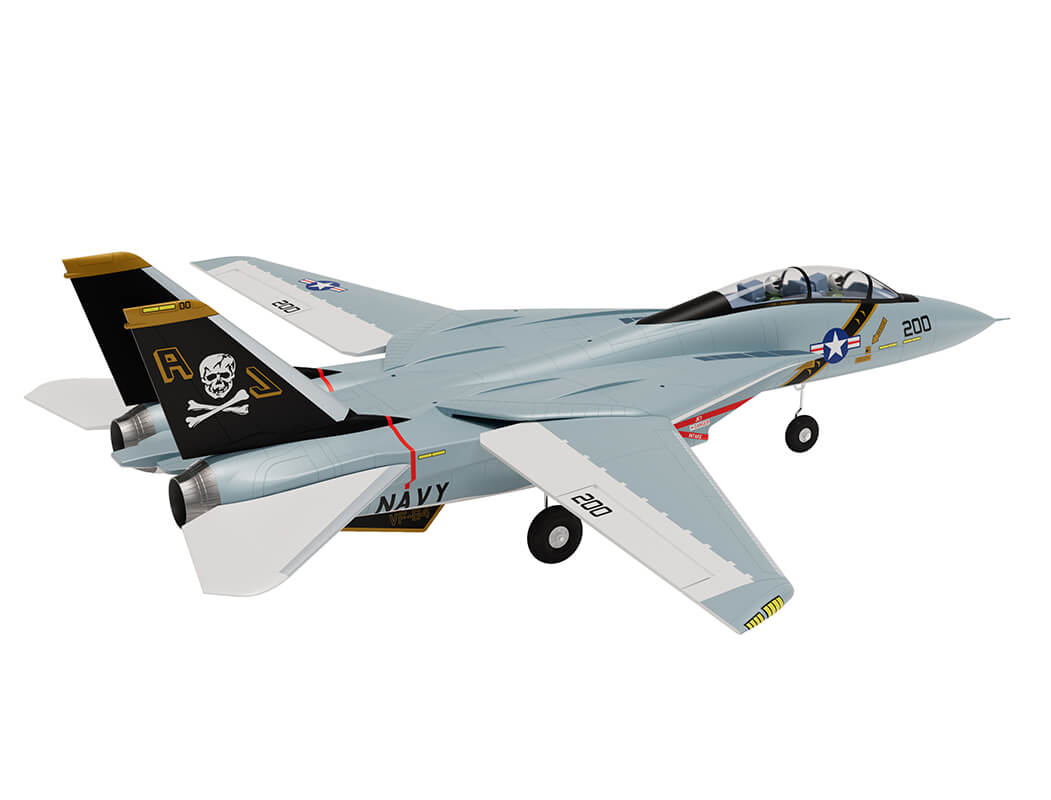

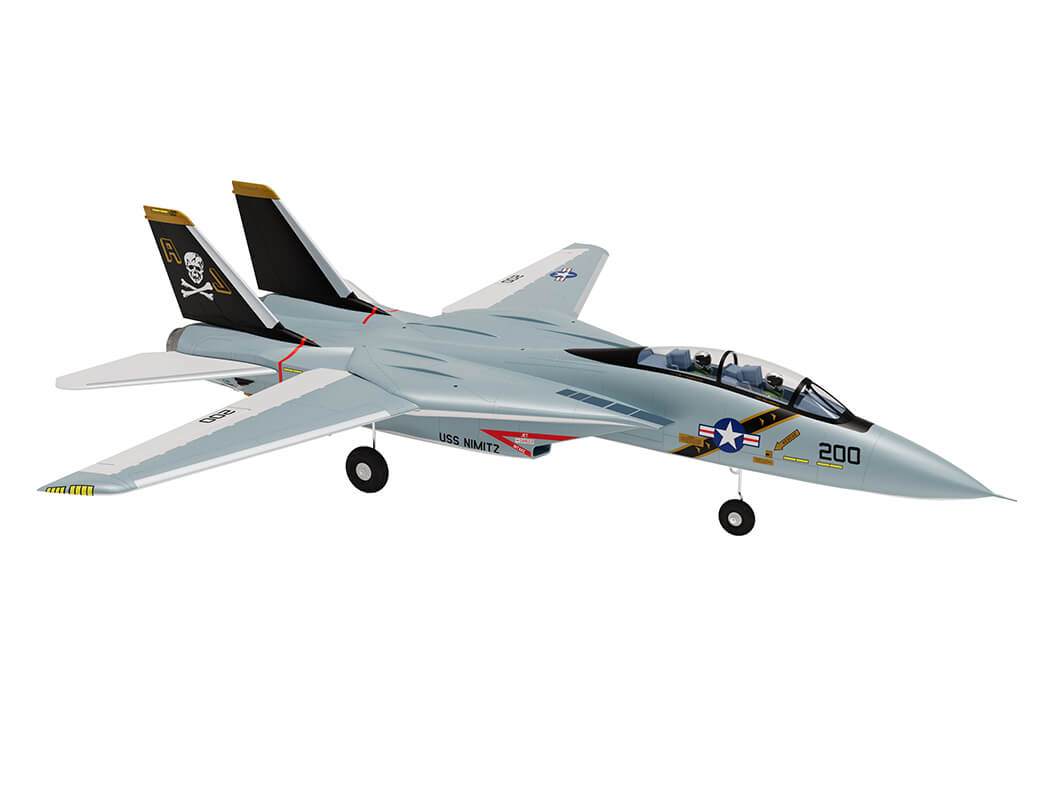

XFLY TWIN 40MM F-14 TOMCAT EDF 700MM JET WITHOUT TX/RX/BATTERY

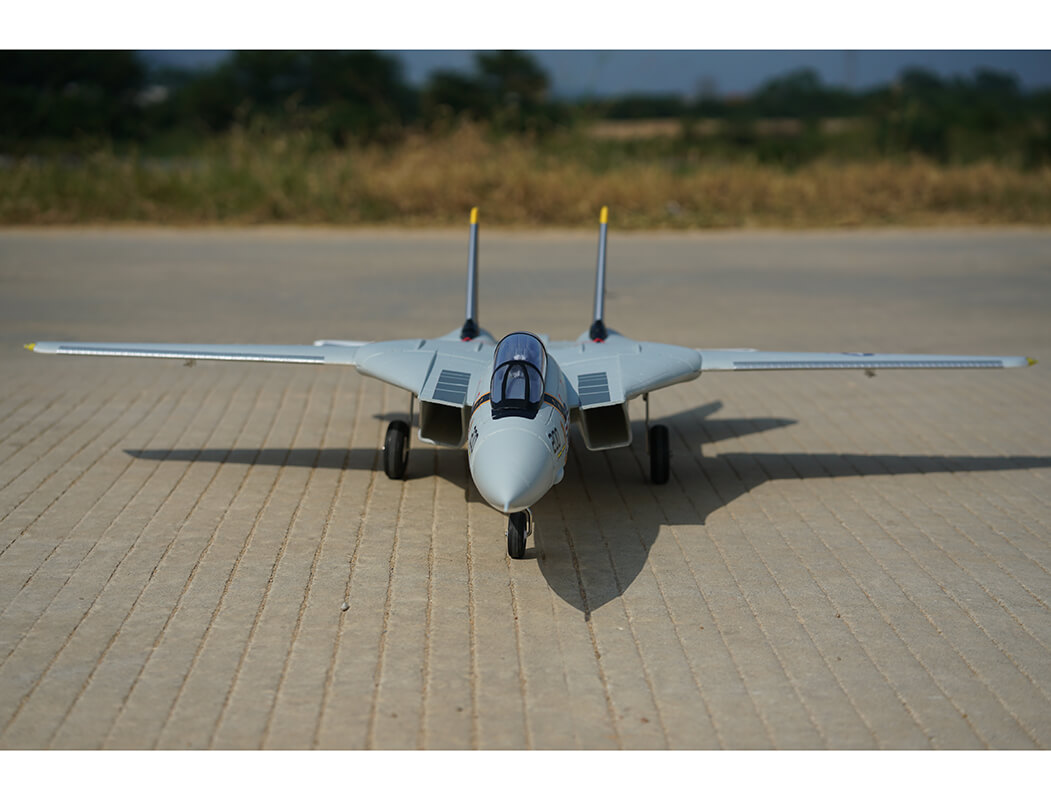

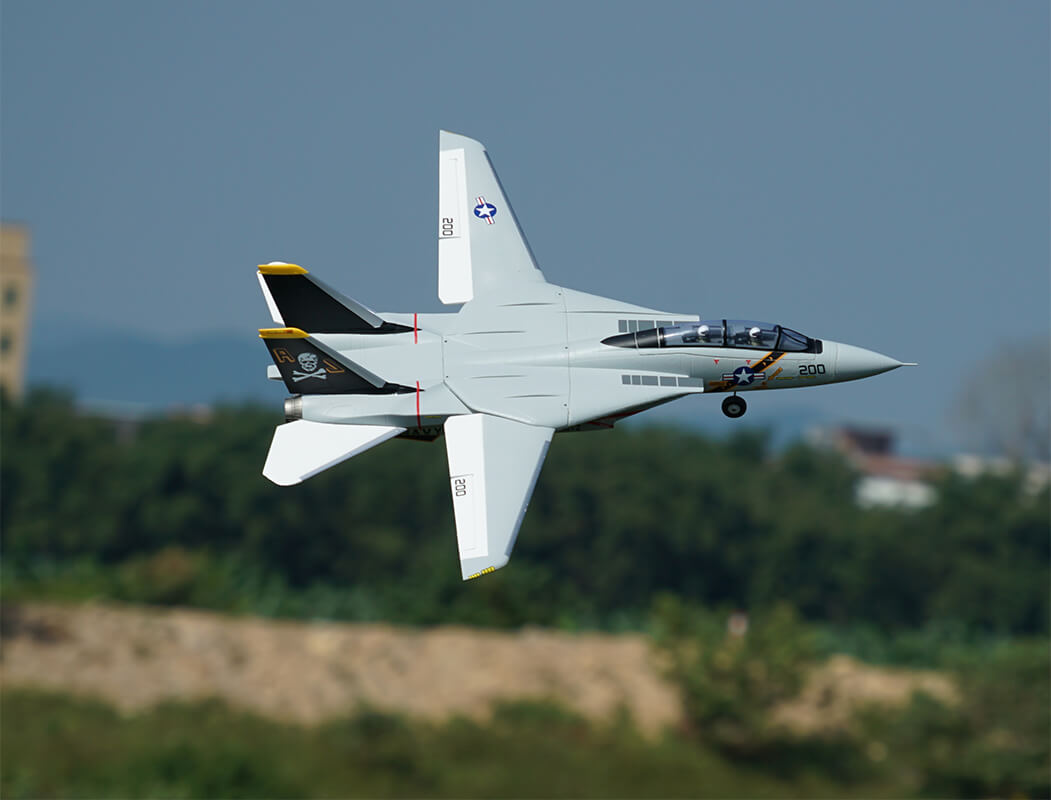

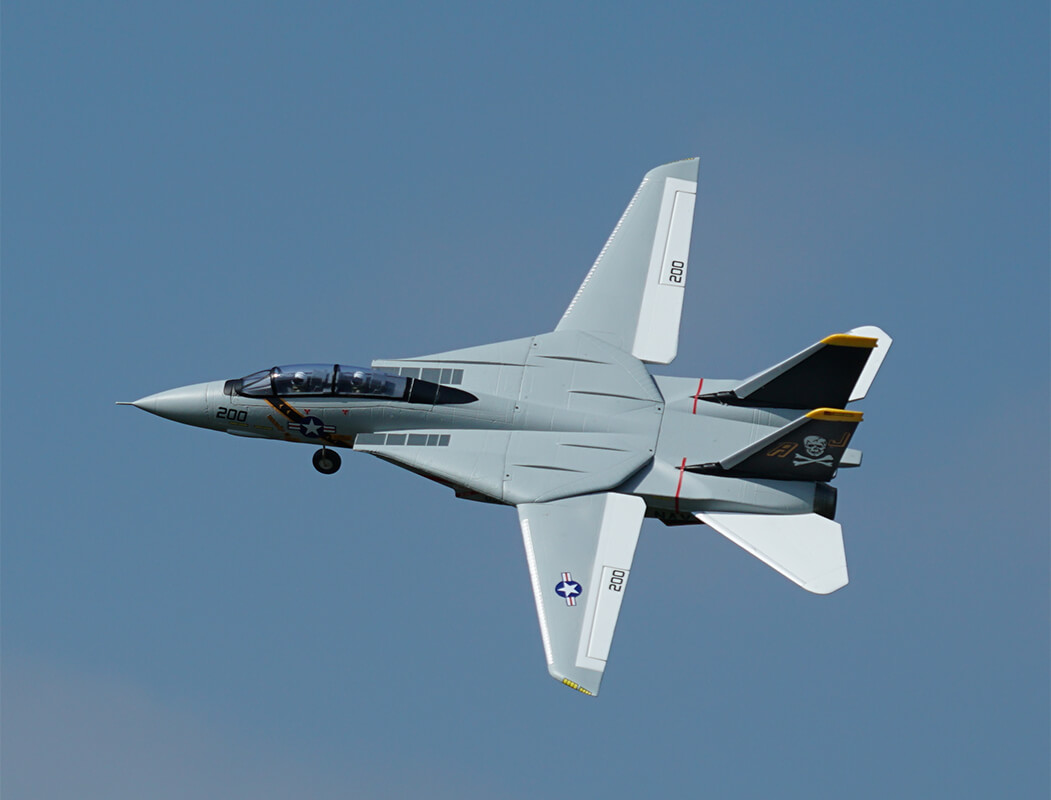

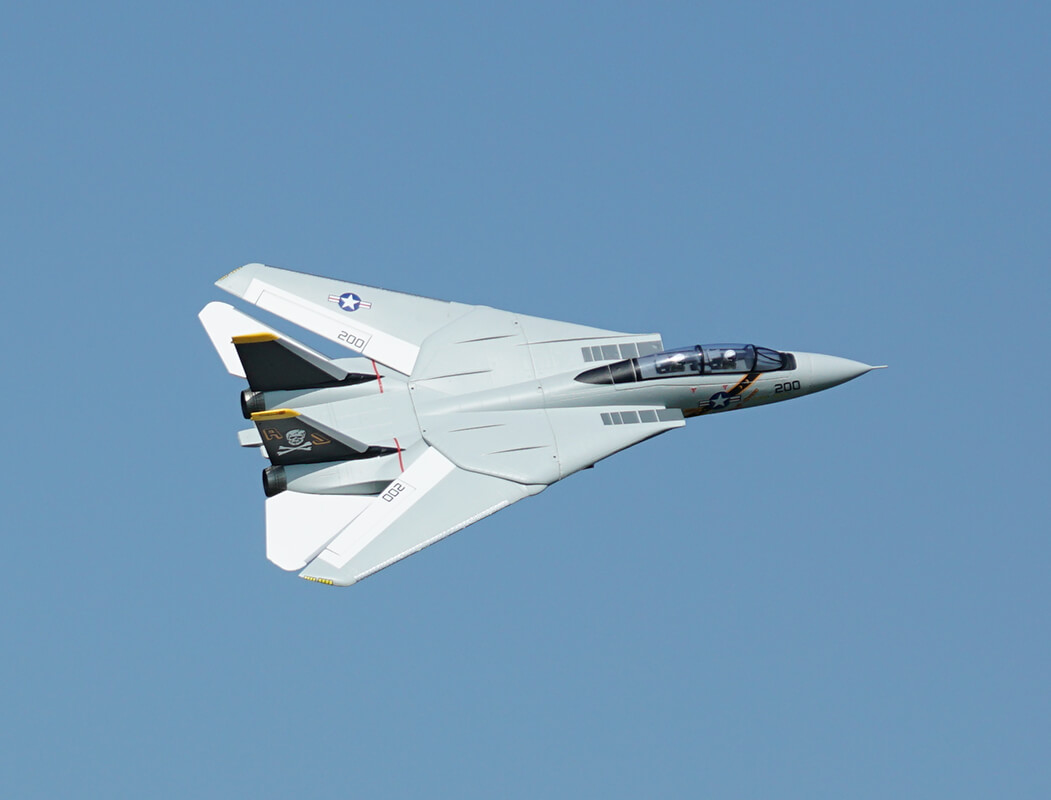

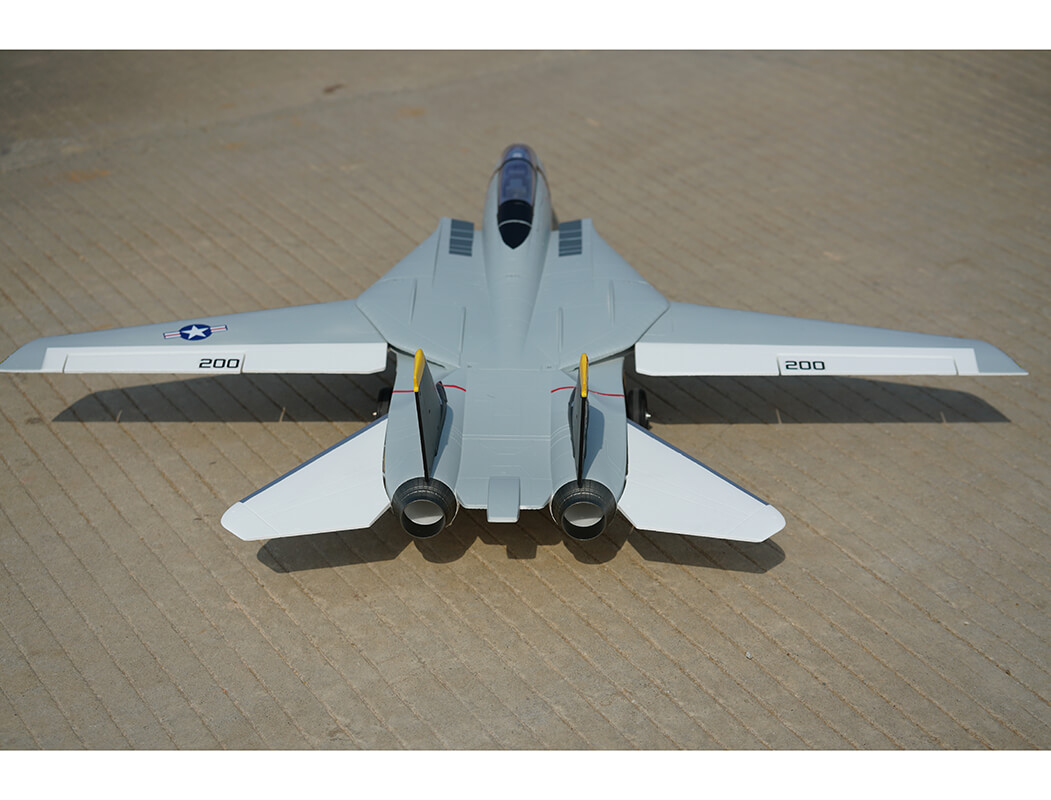

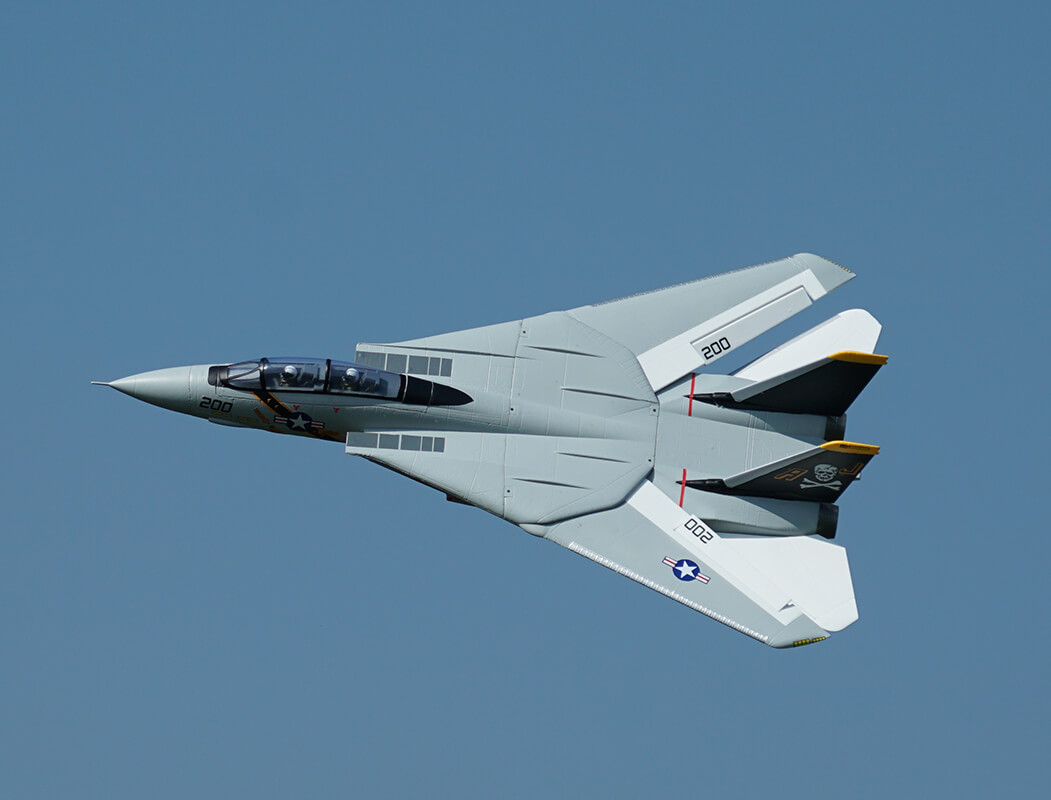

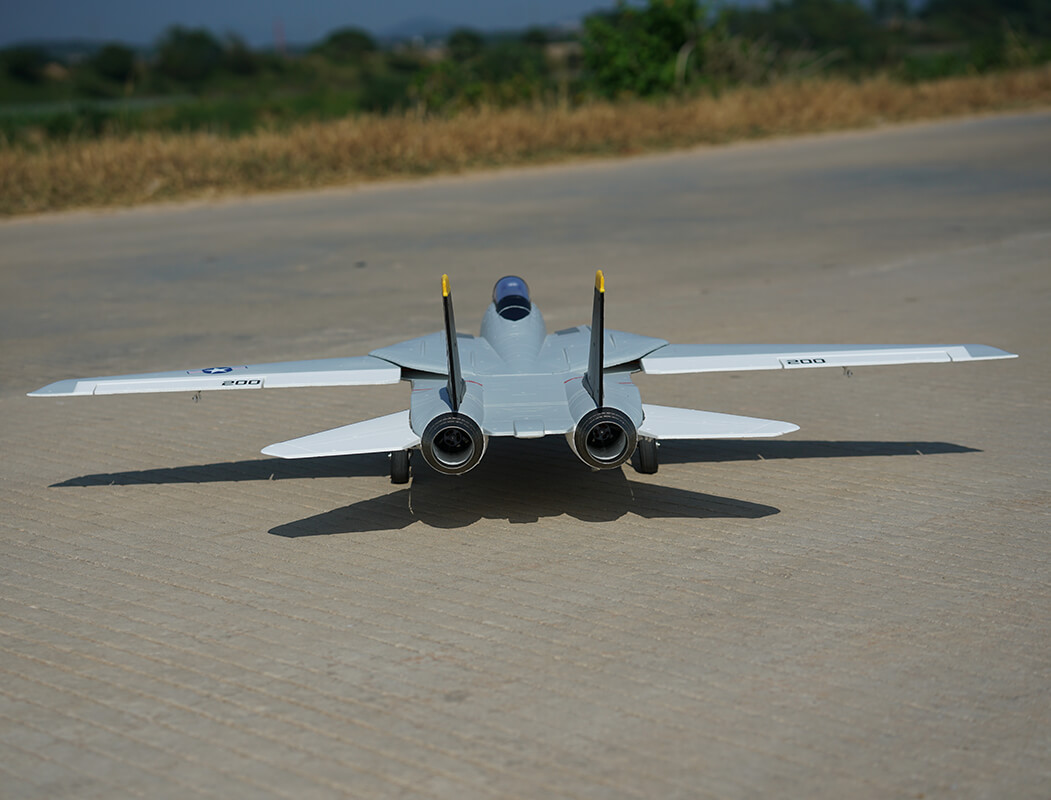

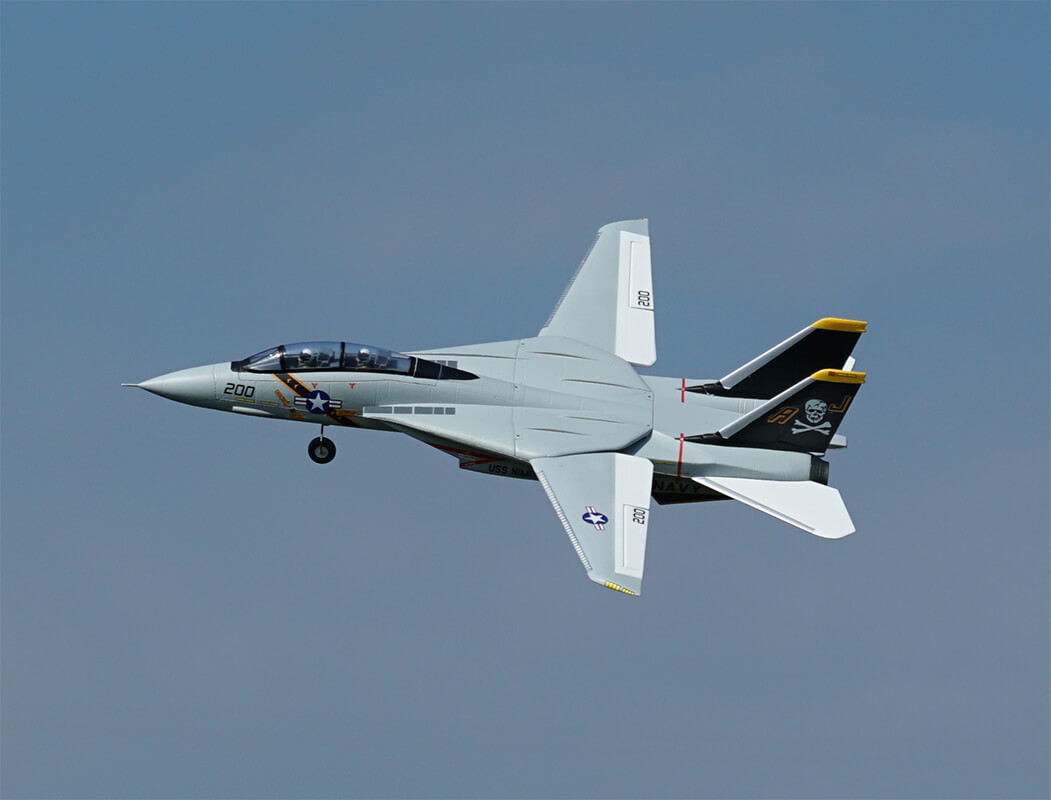

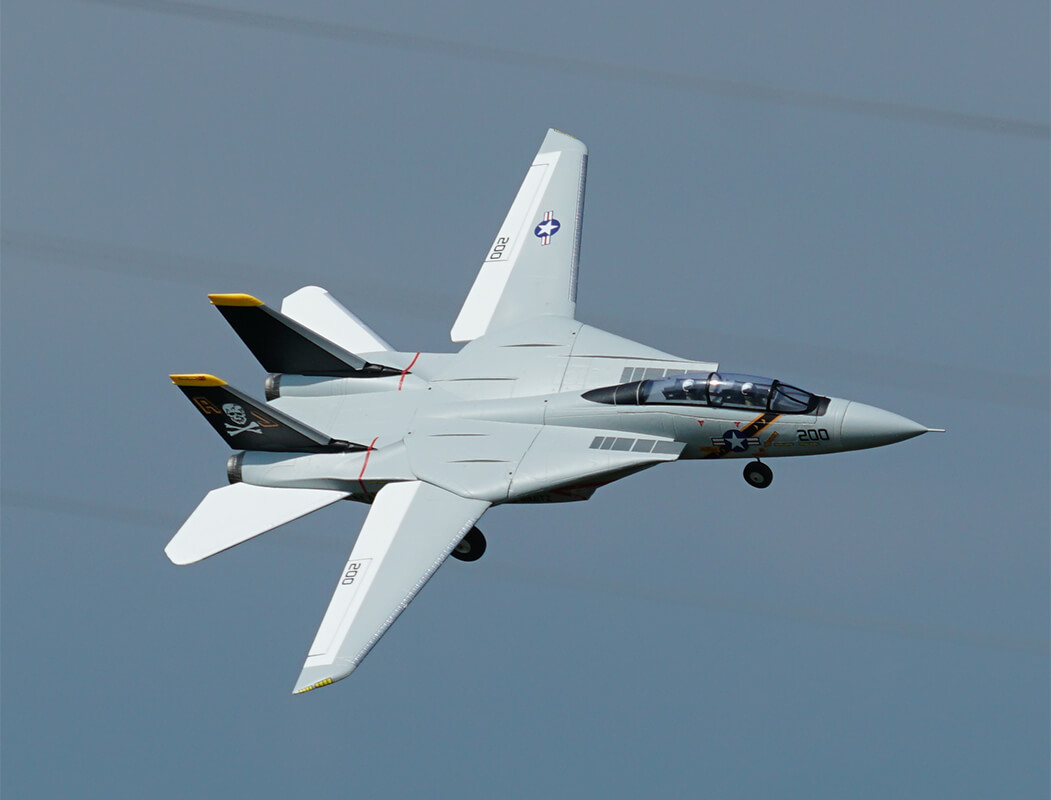

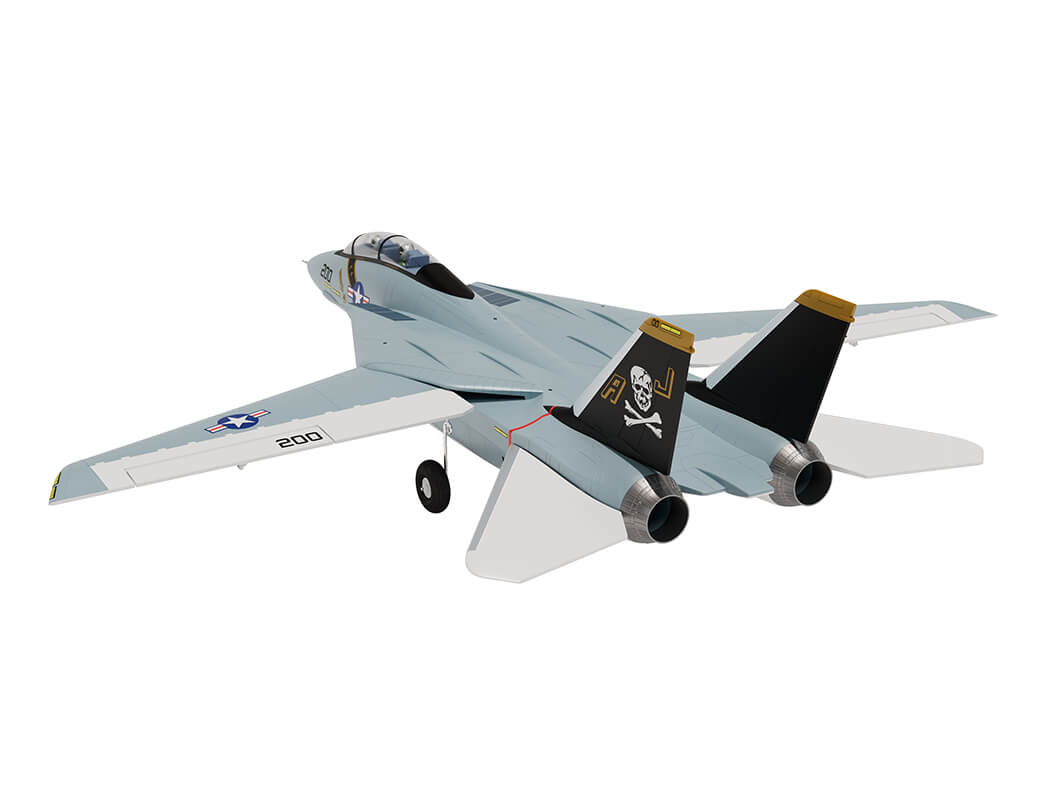

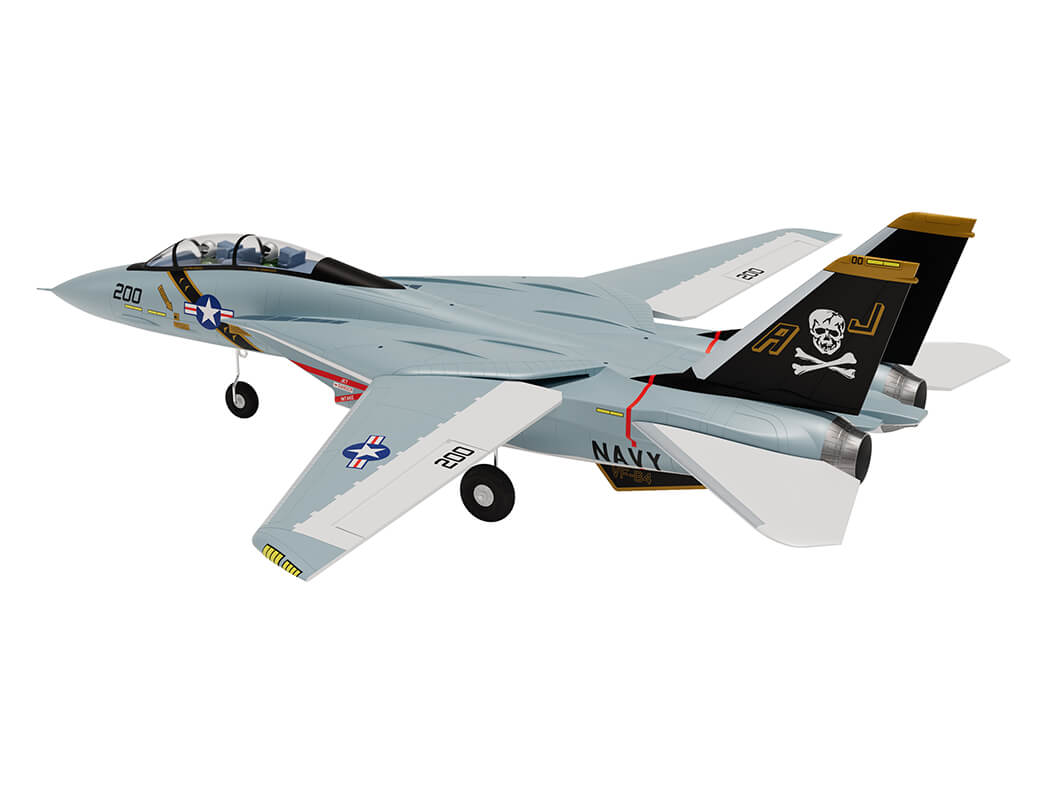

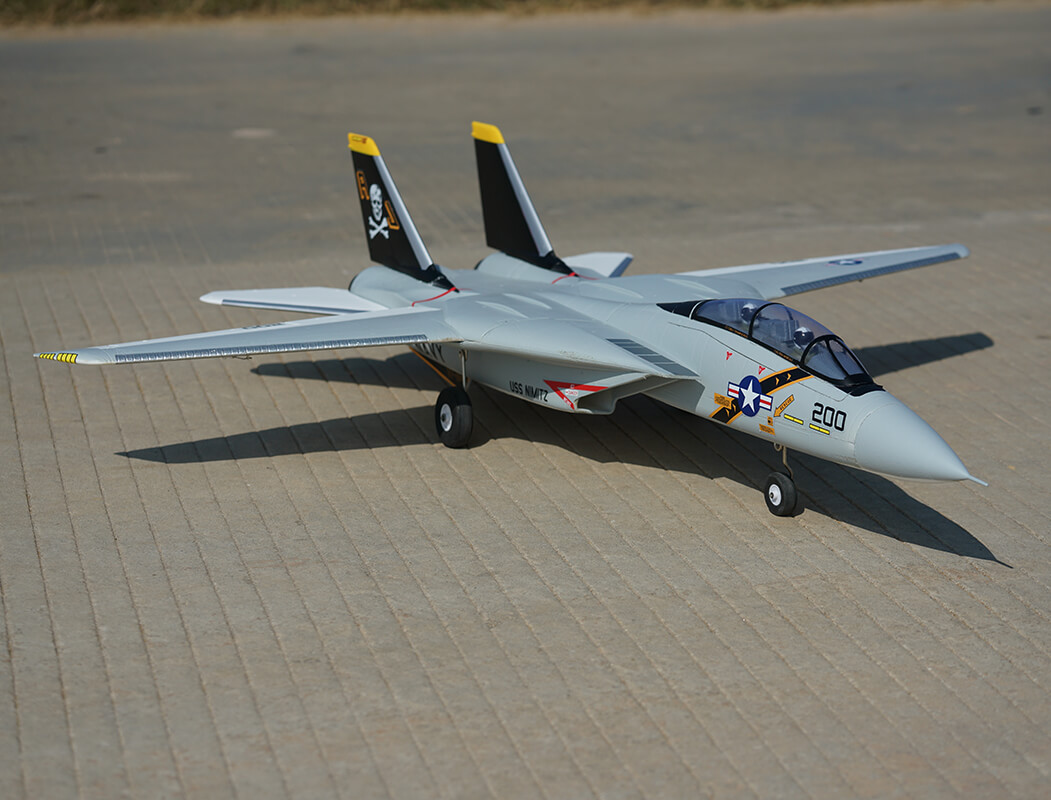

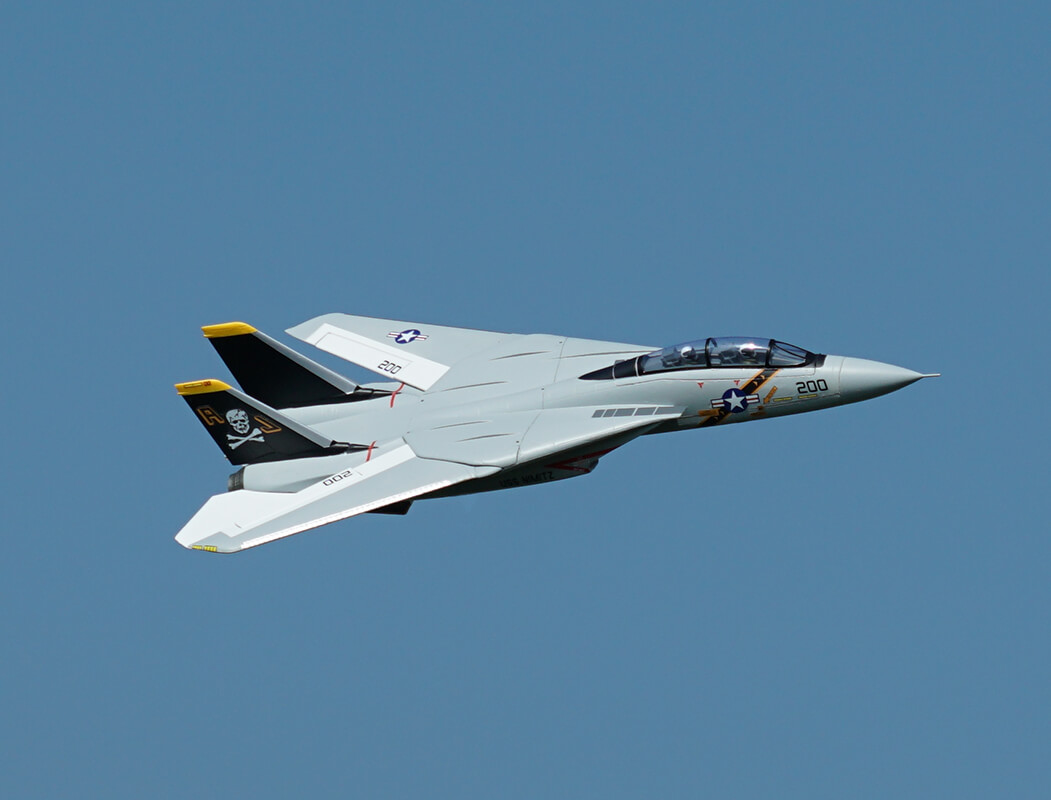

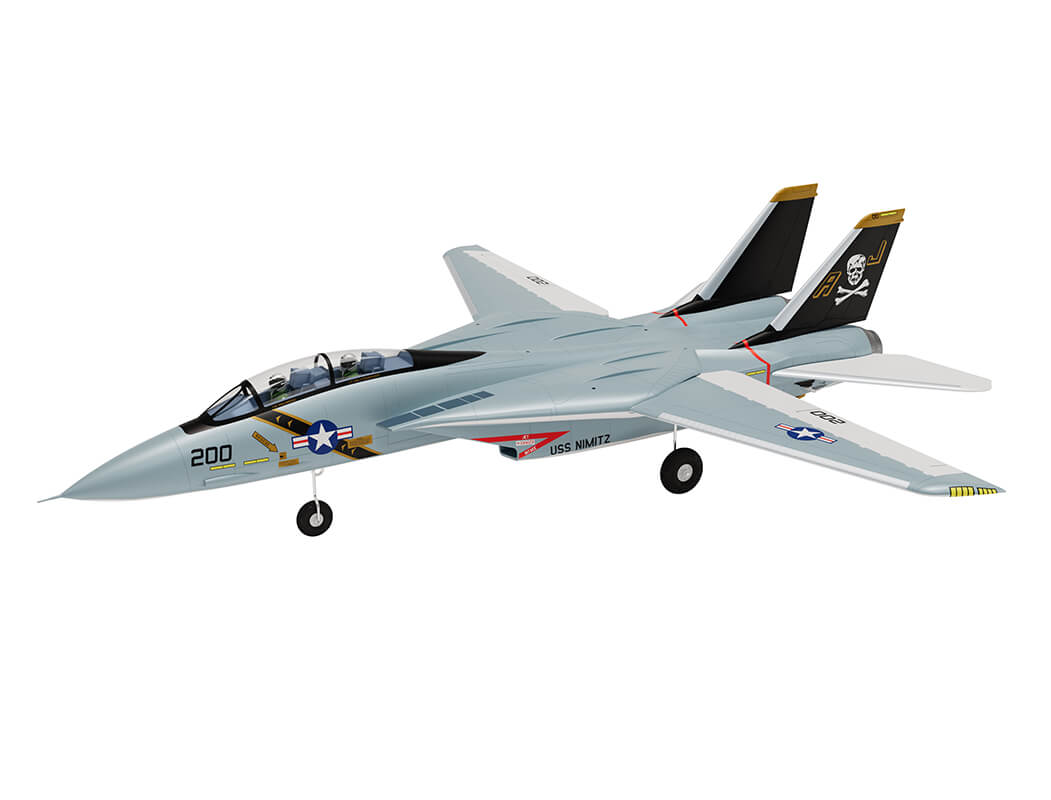

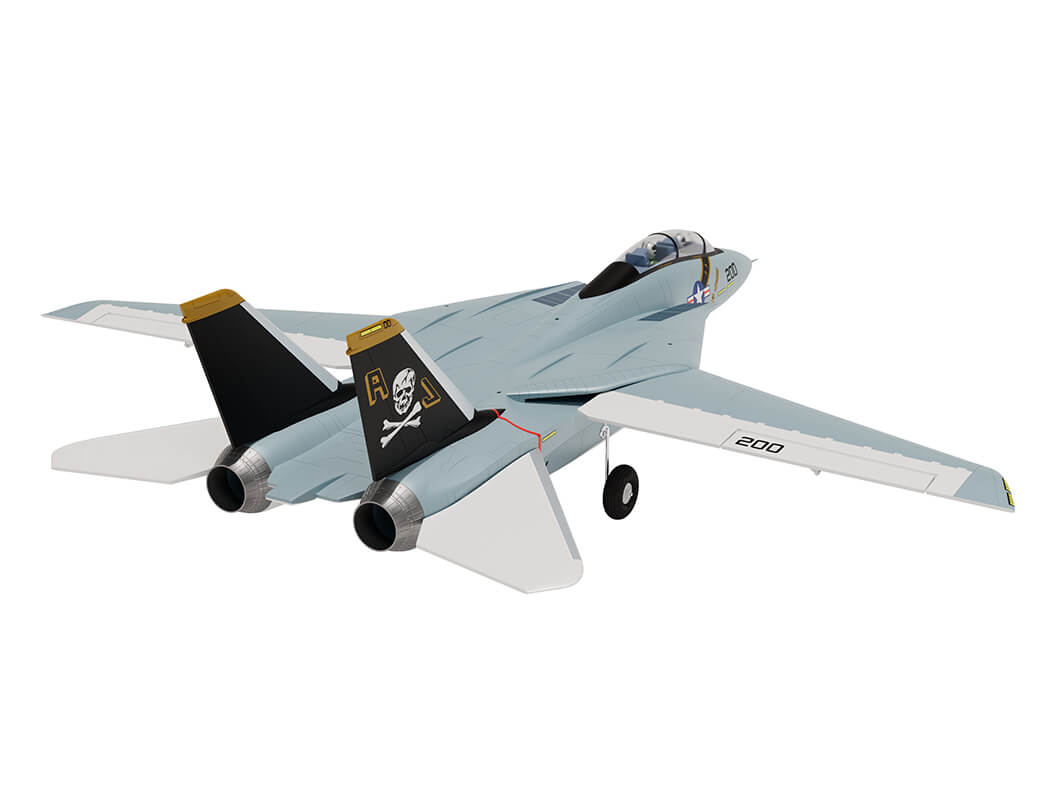

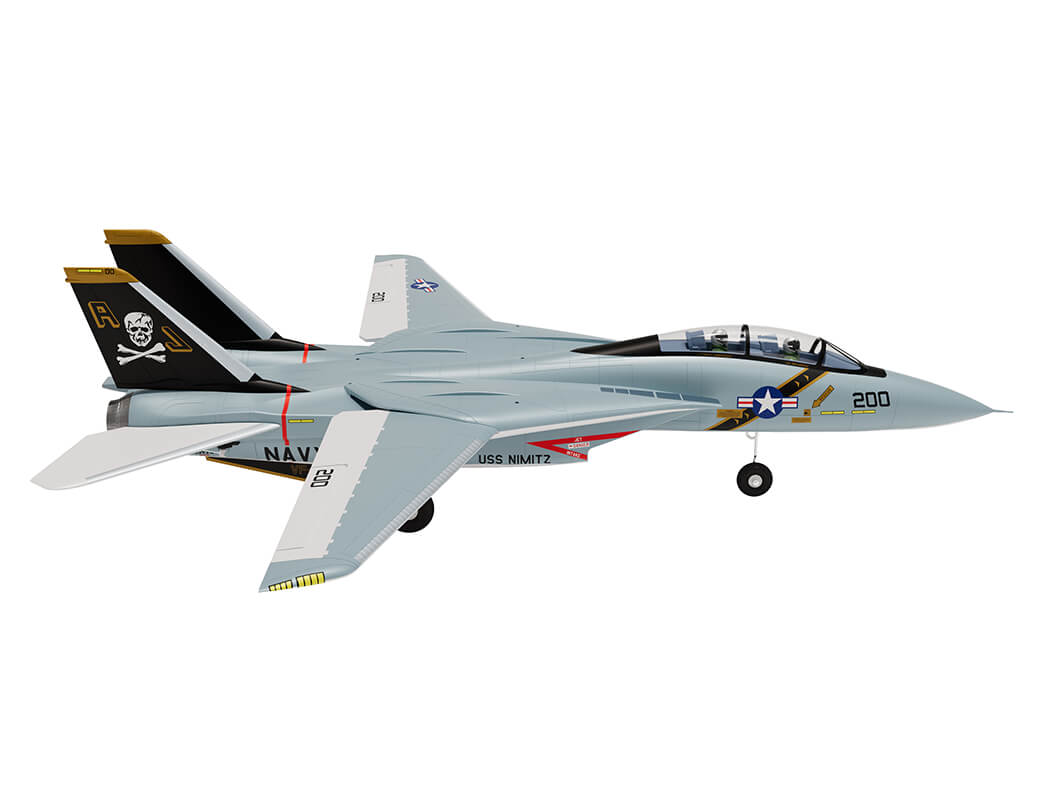

XFly Model is excited to bring the F-14 Tomcat, one of the most iconic jets in history, to market in a twin 40mm EDF size. Featuring functional variable-sweep wings, full-flying stabilizers and a livery based on the Jolly Rogers F-14’s, the XFly F-14 is designed for RC enthusiasts seeking an
authentic and engaging flying experience.

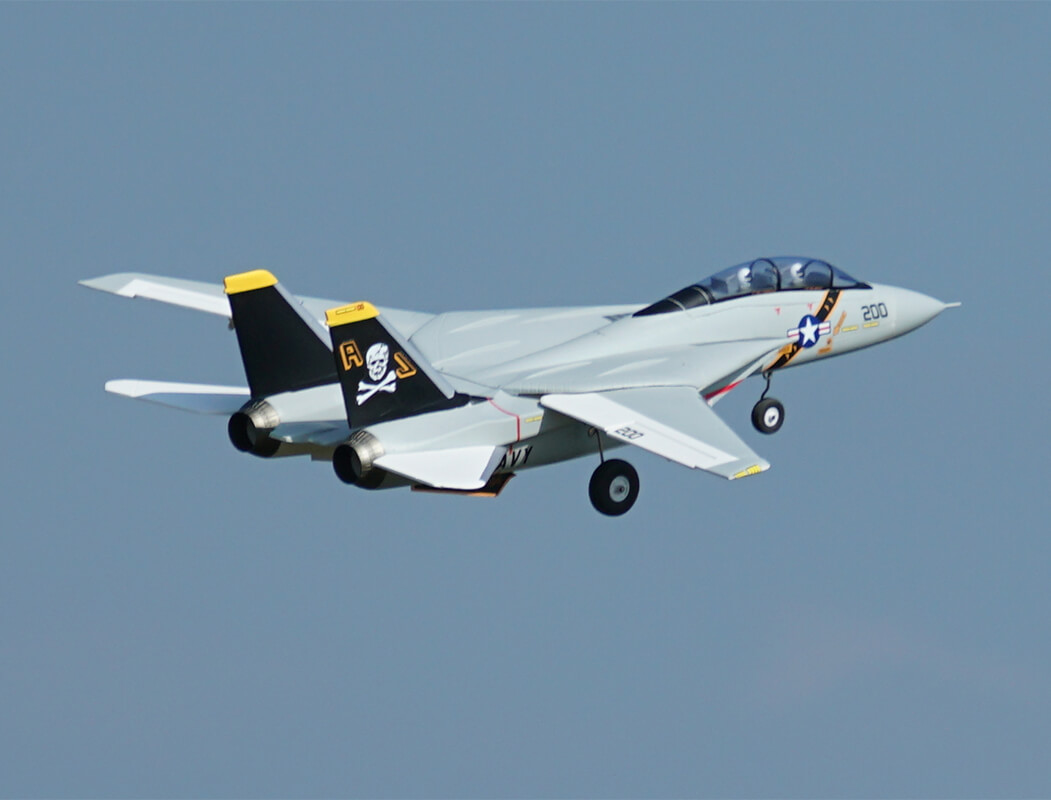

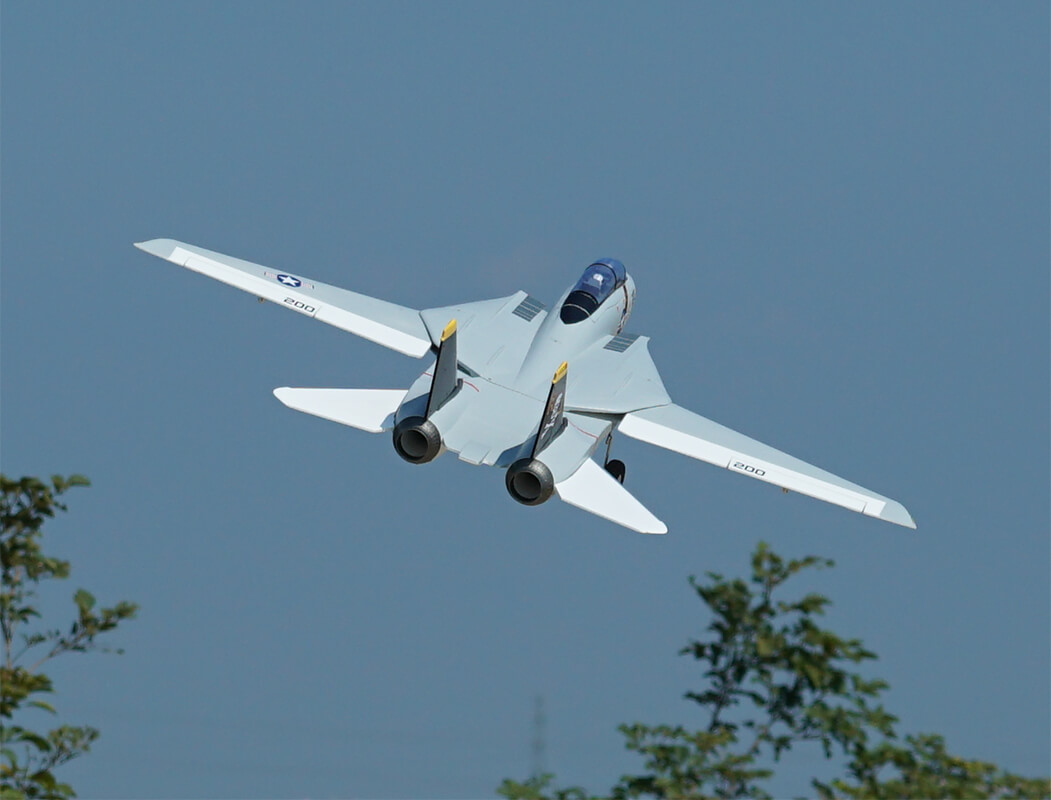

With the combination of low wing loading and full-flying stabs, powered by two 1413-KV5500 motors, two 12-blade 40mm fans and two 20A ESCs, the F-14 has plenty of power to perform fast climbs and loops whether the wings are extended or retracted. With popular 4S 1300-2200mAh batteries, this factory-installed twin power system setup is capable of providing a wide range in performance and flight times of around 3-6 mins. High-torque efficient servos deliver crisp and precise control to the variable-sweep wings, making the sweep wing transition accurate and smooth.

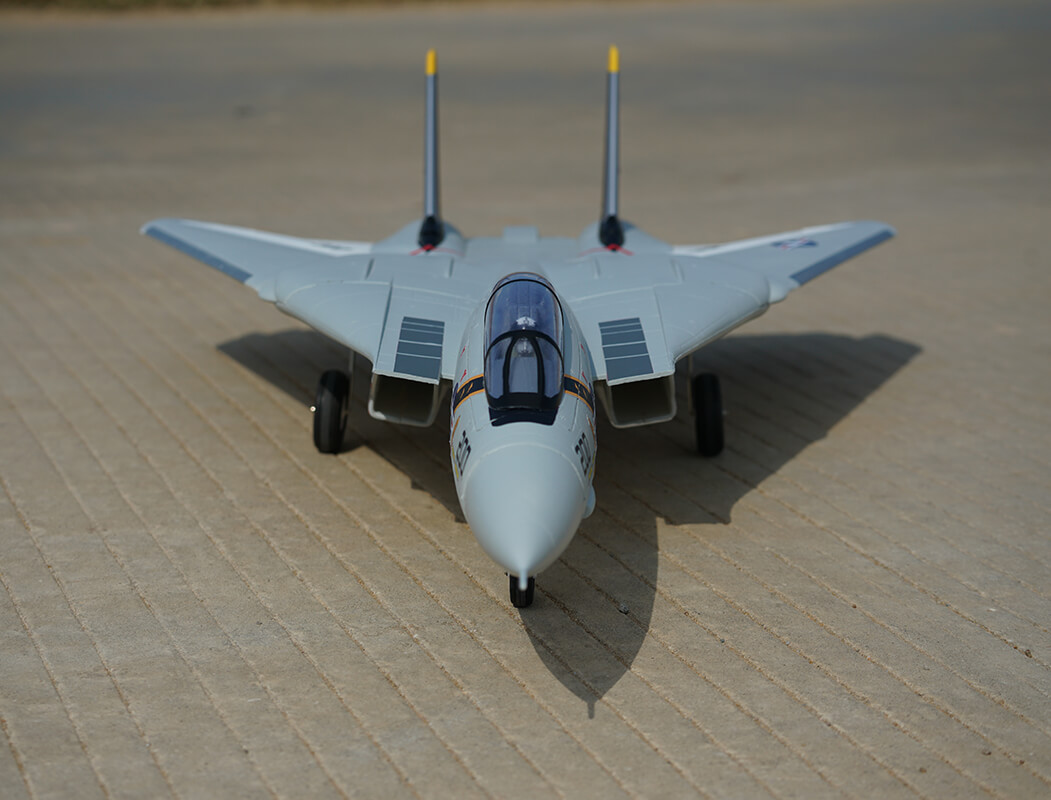

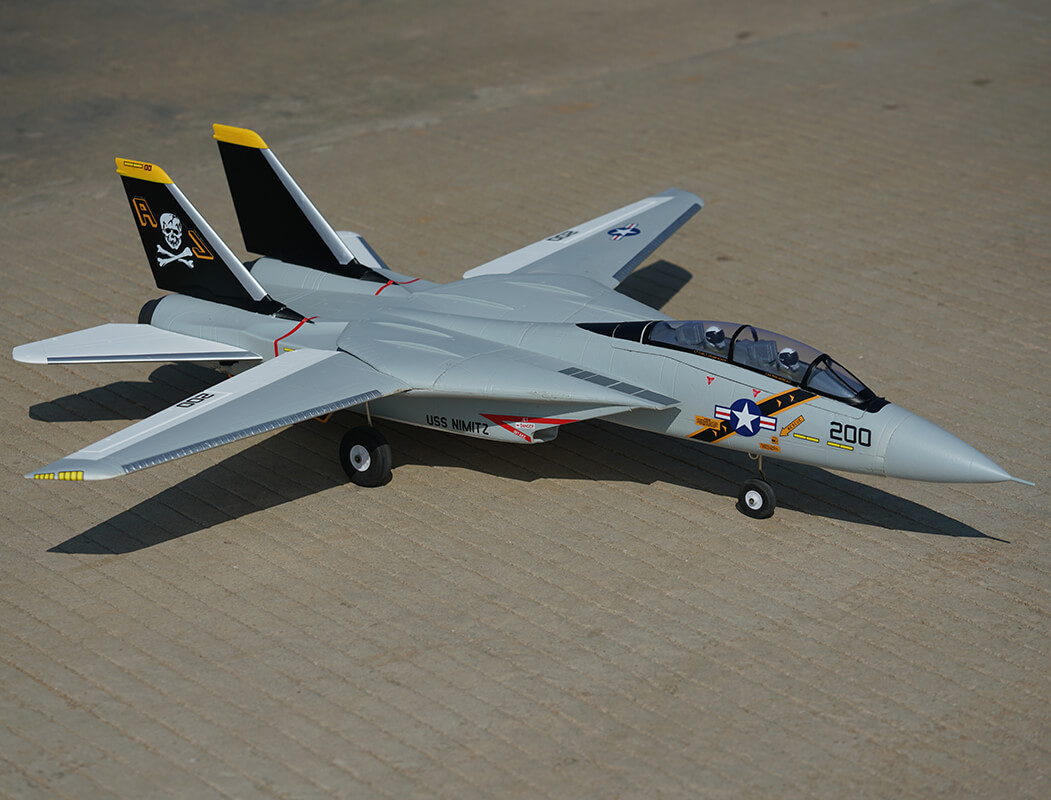

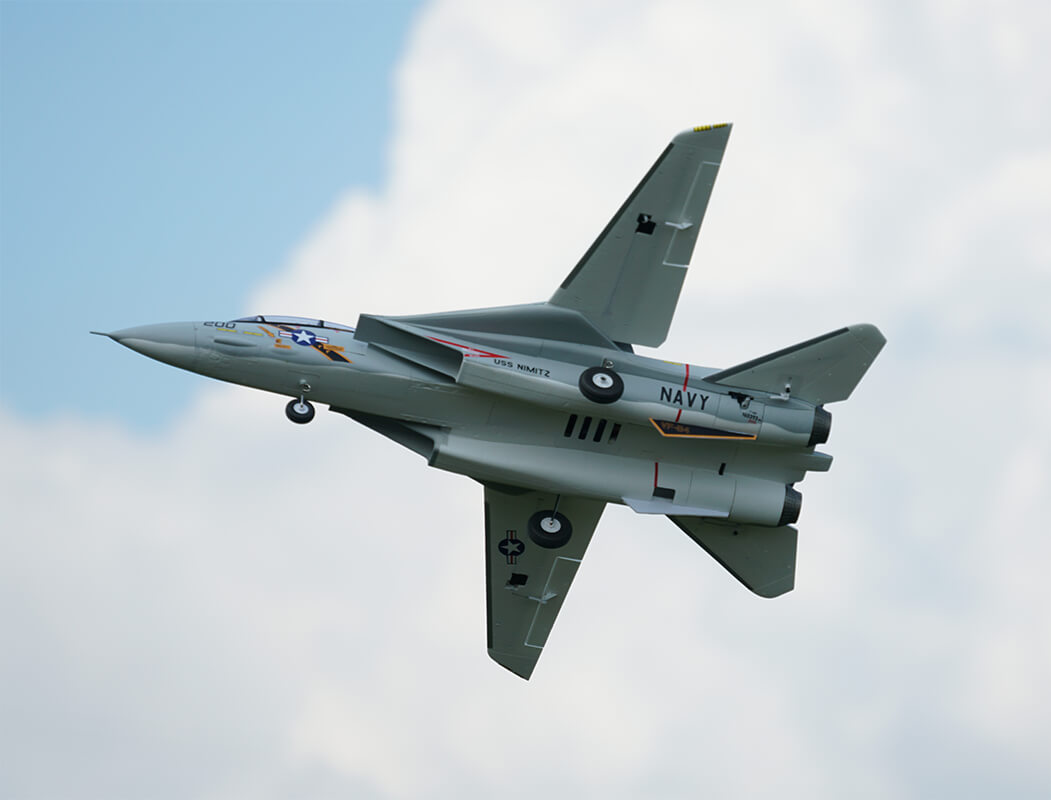

The XFly F-14 comes with fixed landing gear with steerable nose wheel to taxi, take off and land on smooth surfaces. Assembly is a breeze with no glue required, making this jet a hassle-free addition to your collection.
Features
- Functional variable-sweep wings and full-flying stabilizers.
- A classic livery based on the Jolly Rogers F-14’s.
- Efficient twin power system setup delivers plenty of power to perform fast climbs and loops.
- High-torque efficient servos deliver crisp and precise control to the variable-sweep wings.
- Fixed landing gear with steerable nose wheel.
- Extended flight time of 3-6 mins when using recommended 4S 1300-2200mAh LiPo battery.
- Quick assembly with no glue required.
Specifications
Wingspan: 970mm/38.2in(extended)
Overall Length: 950mm/37.4in
Flying Weight: 1150g
Motor Size: 1413-KV5500 *2
ESC: 20A *2
Servo: 4.3g servo*2, 9g servo*3, 13g servo*2
Channels: 5CH- aileron, elevator, throttle, steering, sweep wing
CG: 15-20mm from the leading edge
Wing Load: 115g/dm²
Wing Area: 10dm²
Recommended Battery: 4S 1300-2200mAh
Approx Flying Duration: 3-6 mins
Assembly Time: 15 mins
Skill Level: Intermediate
Age Level: 14 years +
Flap: No
Retract: No
Landing Gear: Fixed main landing gear, steerable nose gear
EDF Size: 40MM EDF 12-Blade *2
Needed To Complete
- Trasmitter and Receiver
- Battery (Recommeneded 4S 1300-2200mAh) and Charger
Frequently Asked Questions
This is an experienced pilot's aircraft. The twin EDFs, variable-sweep wings, and 5-channel control system require solid RC flying skills and familiarity with high-performance jets. We'd recommend prior experience with similar-sized electric jets before attempting this model.
You'll need a 4S LiPo battery in the 1300–2200mAh range. Flight time is approximately 3–6 minutes depending on your flying style and battery capacity used. Check your charger's manual for exact charging times, as this varies by charger and battery size.
The F-14 comes as an Almost Ready to Fly (ARR) model without transmitter, receiver, or battery. It includes the airframe with factory-installed twin motor and ESC system, landing gear, servos, and all necessary components. Assembly requires no glue and is straightforward.
With a wingspan of 970mm (38.2 inches) when wings are extended and a length of 950mm (37.4 inches), this is a substantial model. It should fit in most cars, though the extended wing span means you may want to retract the wings for transport.
The F-14 features twin 1413-KV5500 motors driving 12-blade 40mm fans, delivering plenty of power for fast climbs and aerobatic loops. The low wing loading (115g/dm²) and full-flying stabilizers provide crisp control and responsive handling across a range of flight conditions.
