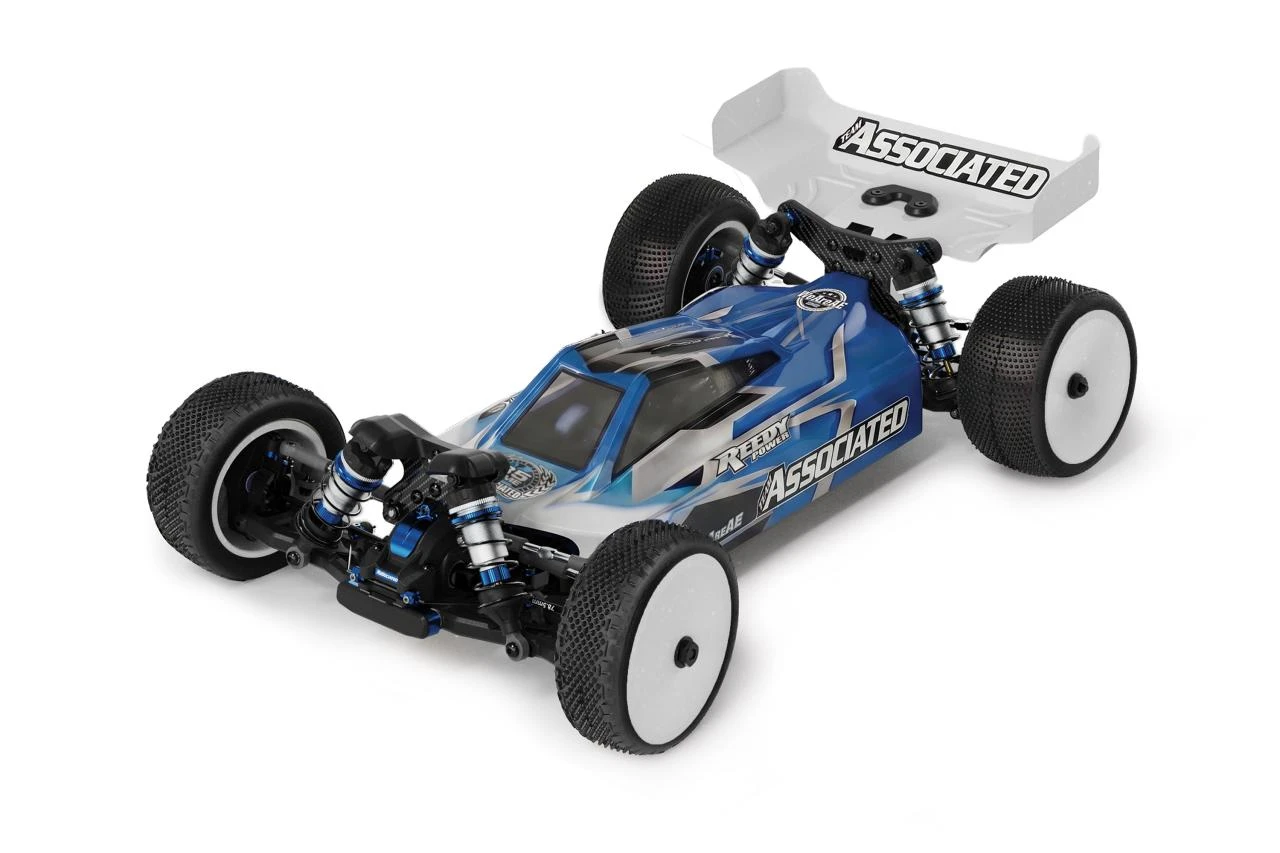

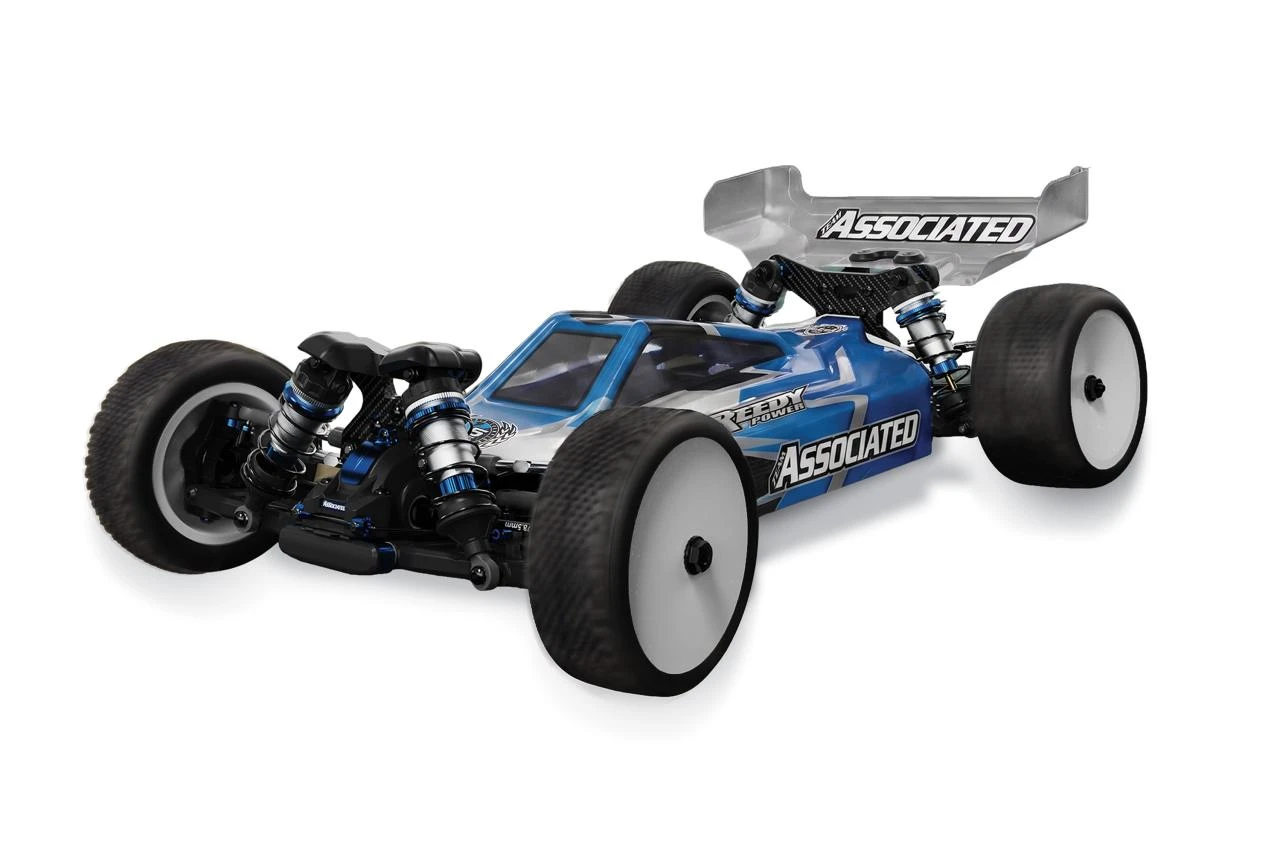

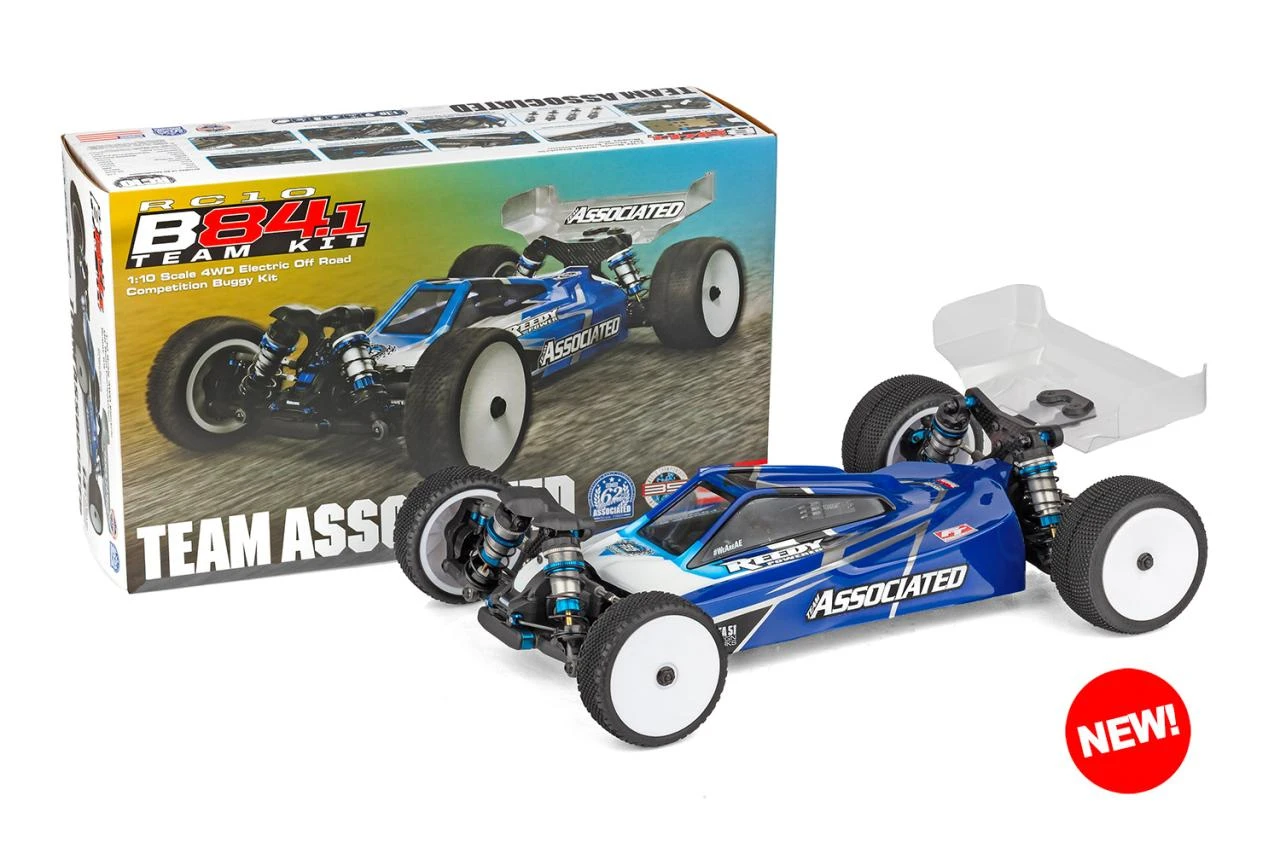

Team Associated RC10B84.1 Team Kit

The Team Associated RC10B84.1 Team Kit is a 1/10 scale 4WD electric off-road buggy kit built for competition. It arrives as a box of parts, so you assemble the chassis and drivetrain, fit your own electronics and paint the polycarbonate body before the first run.

This is the standard B84.1, set up for high-grip surfaces such as carpet and astro. It runs a decoupled slipper clutch in the centre of the car rather than a centre differential, which gives the direct, predictable drive that suits consistent grip.

The B84.1 platform moves to a wide-tongue chassis, 73mm gull-wing front arms and V2 steering parts, and keeps the height-adjustable gearboxes and chassis bracing that let you change the car’s balance between tracks without swapping major parts.

Key features

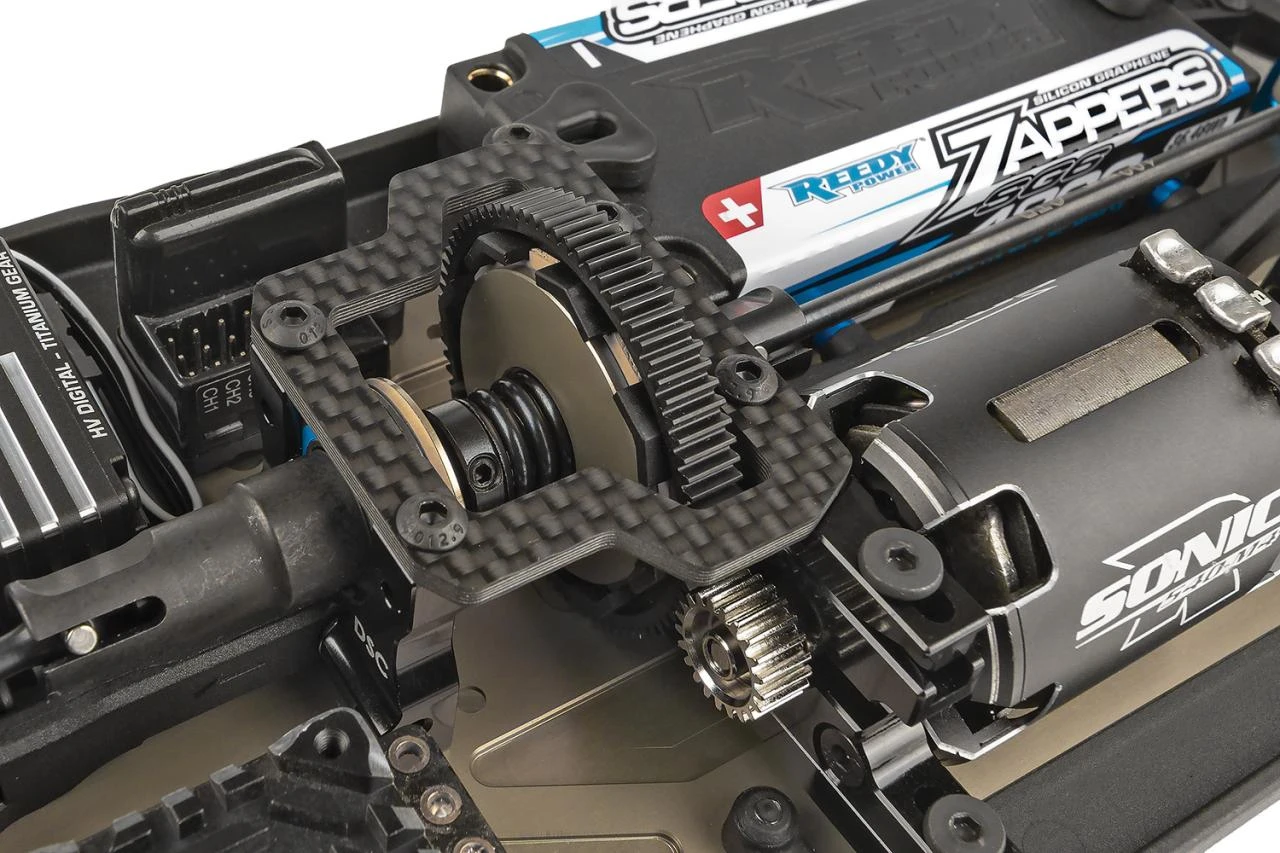

• Decoupled slipper clutch included for high-grip surfaces

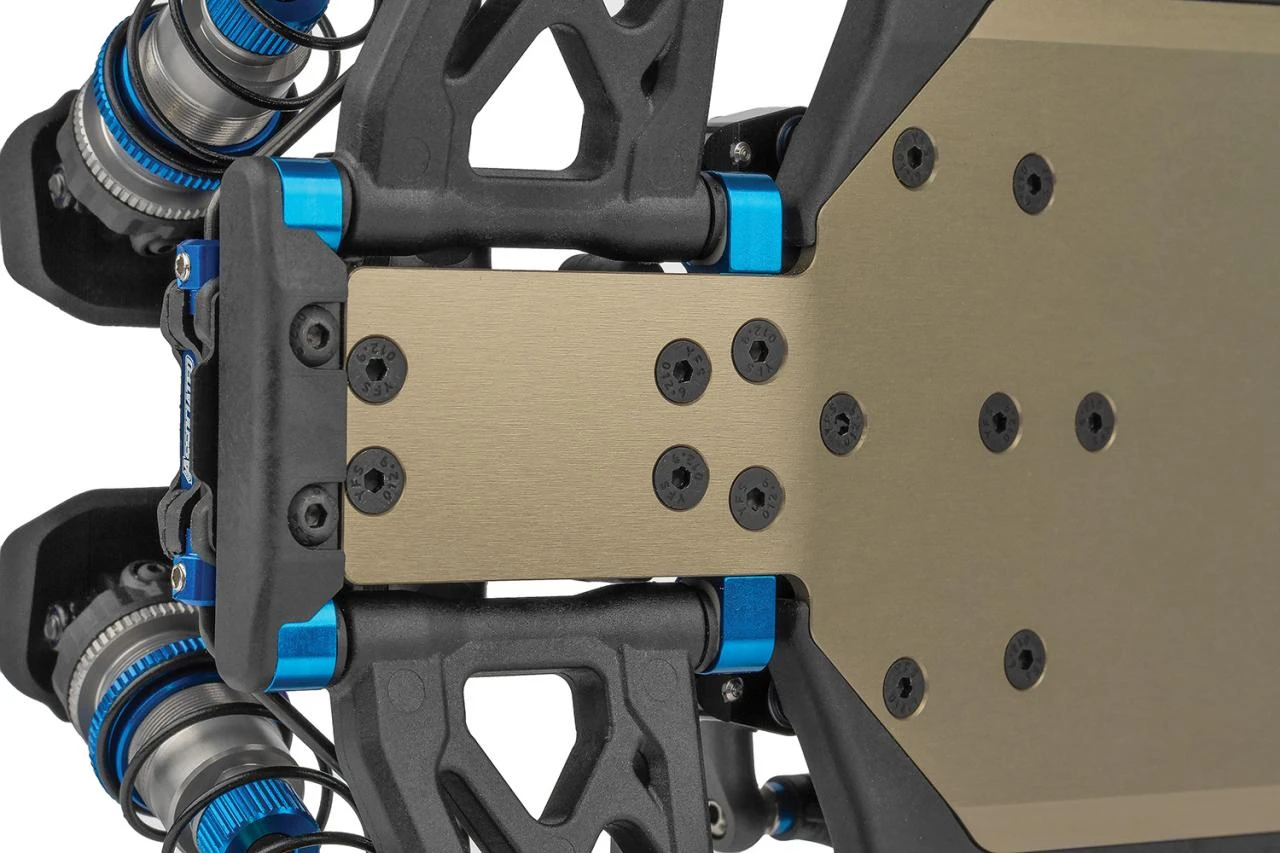

• 2.5mm tapered 7075-T6 aluminium chassis with 10 degrees of kick-up and a wide front tongue for durability
• V2 side rails matched to the wide-tongue chassis, with wide A and B mounts

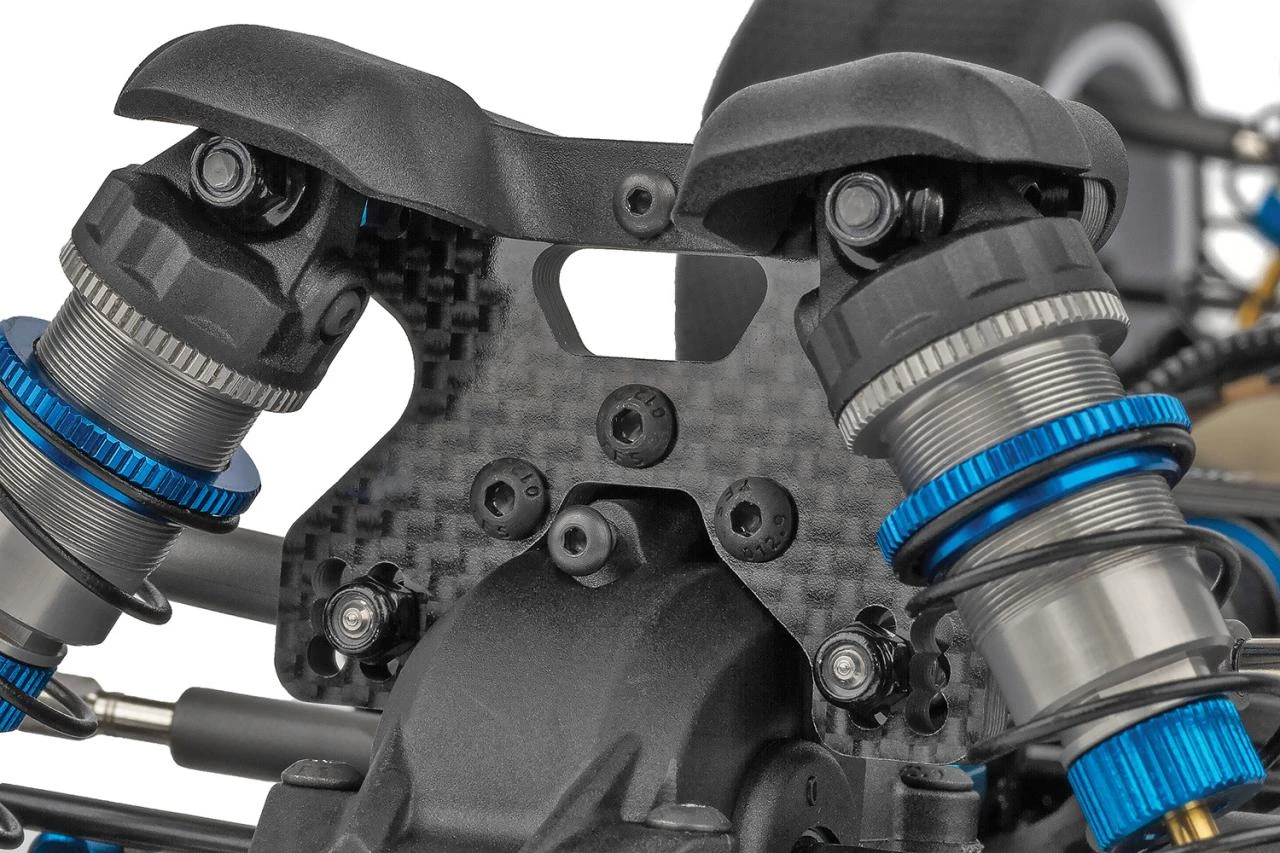

• 73mm gull-wing front suspension arms with a carbon fibre front shock tower and moulded tower cover
• V2 steering posts and bellcranks that cut vertical play in the steering rack
• Moulded height-adjustable gearboxes front and rear, plus an extra +2 rear gearbox for high-grip tracks
• Upper and lower chassis bracing front and rear to tune flex
• Standard and high roll centre (HRC) rear hubs in the box
• Insert-adjustable caster blocks with 0, +/-1 and +/-2 degree inserts

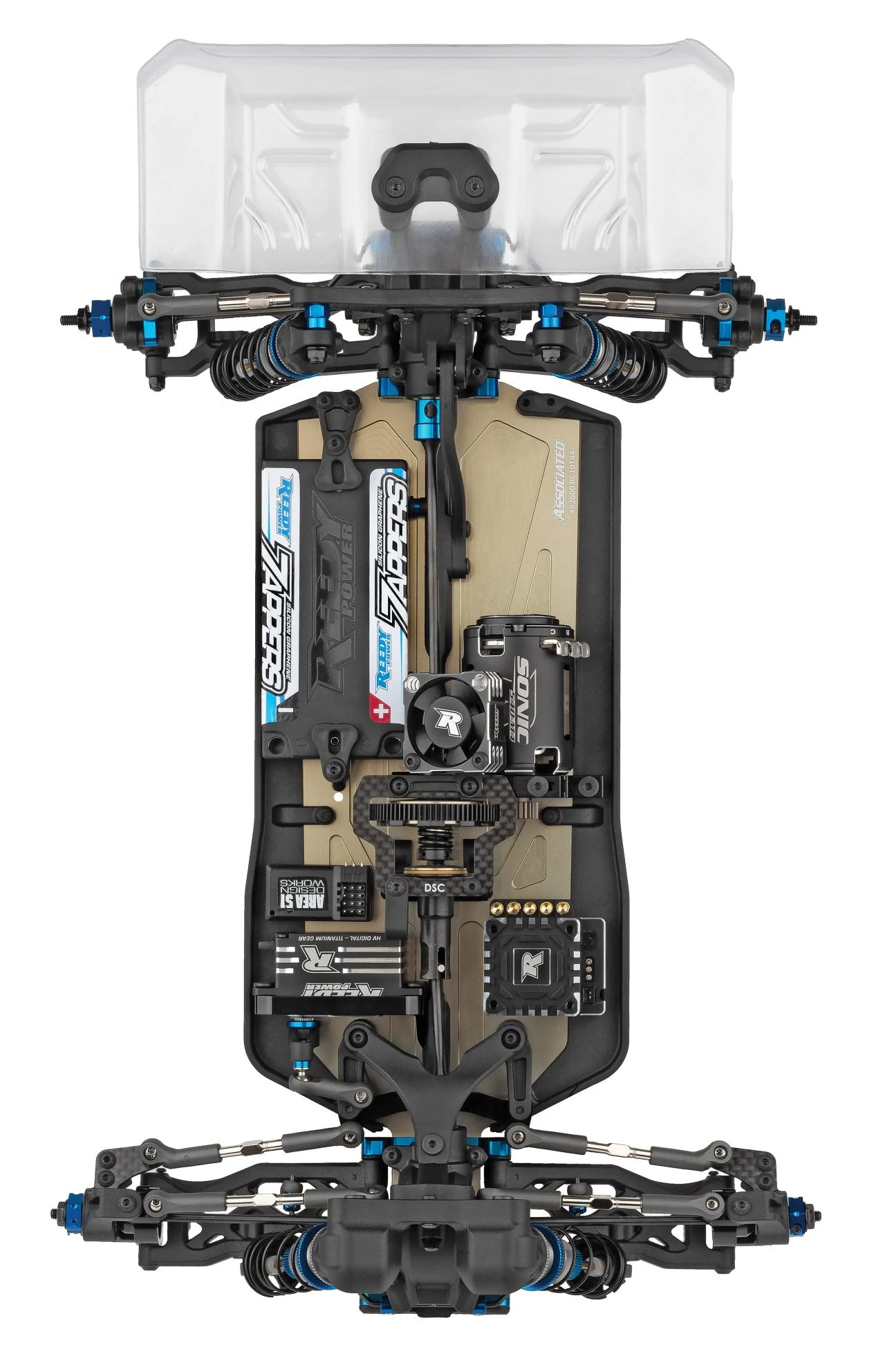

• Forward and rearward motor positions and a thumb-tab battery holder for weight-bias tuning
• Aluminium centre-mounted servo mount

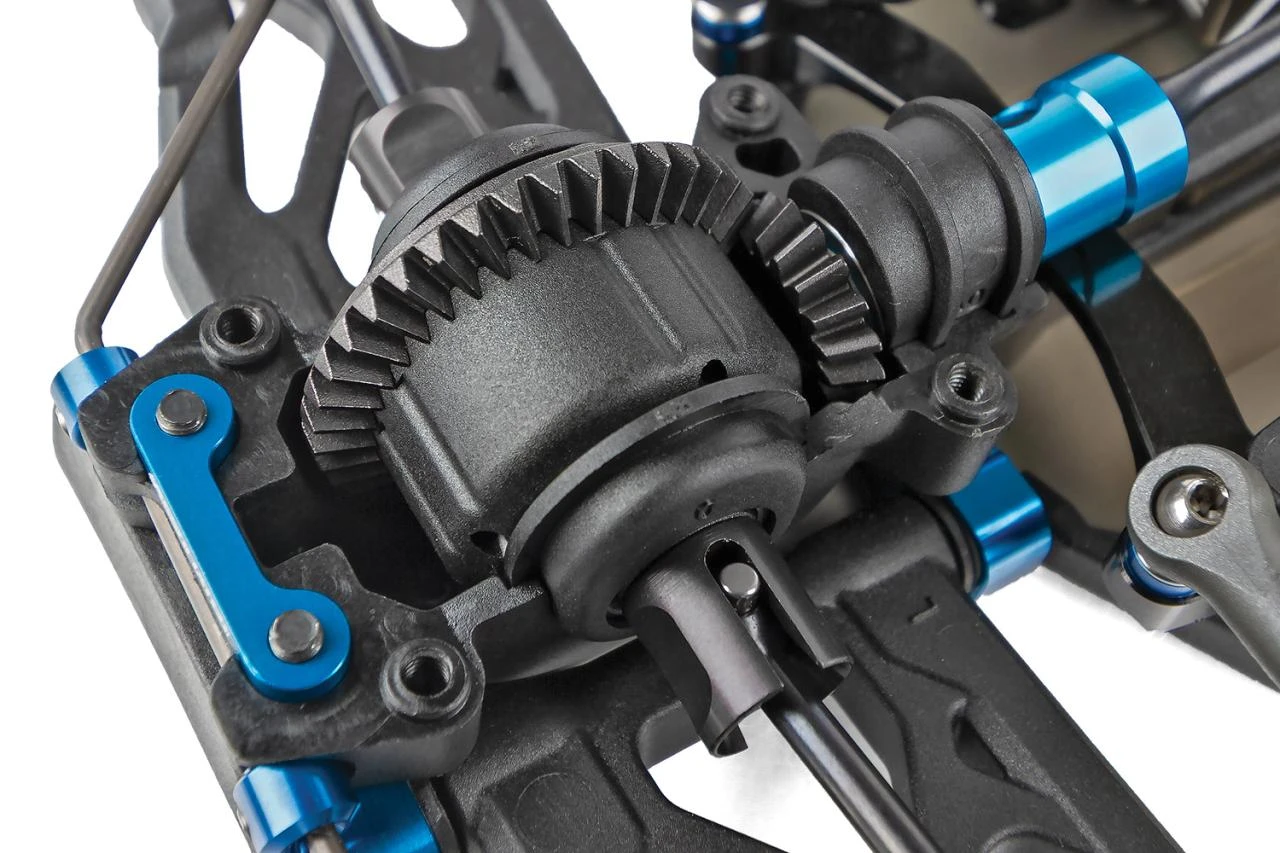

• Long HD rear differential outdrives with 66mm rear CVA bones
• 13mm big-bore shocks, 3.5mm turnbuckles and ball cups
• Low-profile body, 7-inch rear wing and two rear wing mount heights
• Moulded front bumper with an optional bumper that covers the anti-roll bar mounts

Required to complete

• Brushless motor and pinion gear
• Electronic speed controller
• Steering servo
• Transmitter and receiver
• Wheels and tyres
• Battery and charger
• Polycarbonate paint for the body

Team Associated suggest a Reedy RT3507A servo, a Blackbox 610R speed controller, a Sonic 540-SP5 13.5T motor and a 5000mAh LCG shorty LiPo.

Product details

• Manufacturer part number: AS90058
• Brand: Team Associated
• Barcode: 784695900585
• Scale: 1/10
• Drive: 4WD
• Build state: kit, electronics not included
