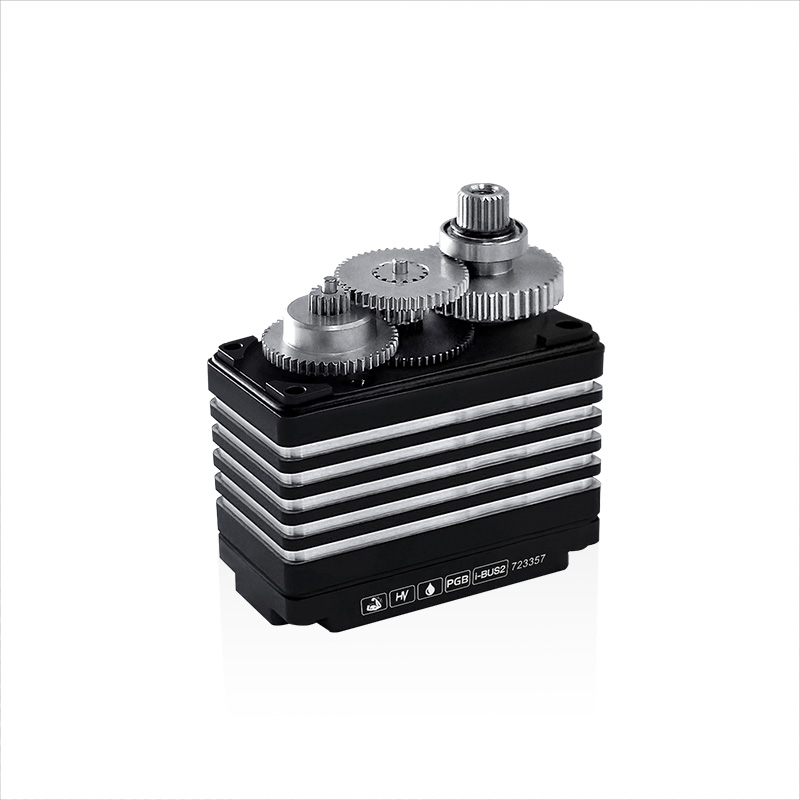

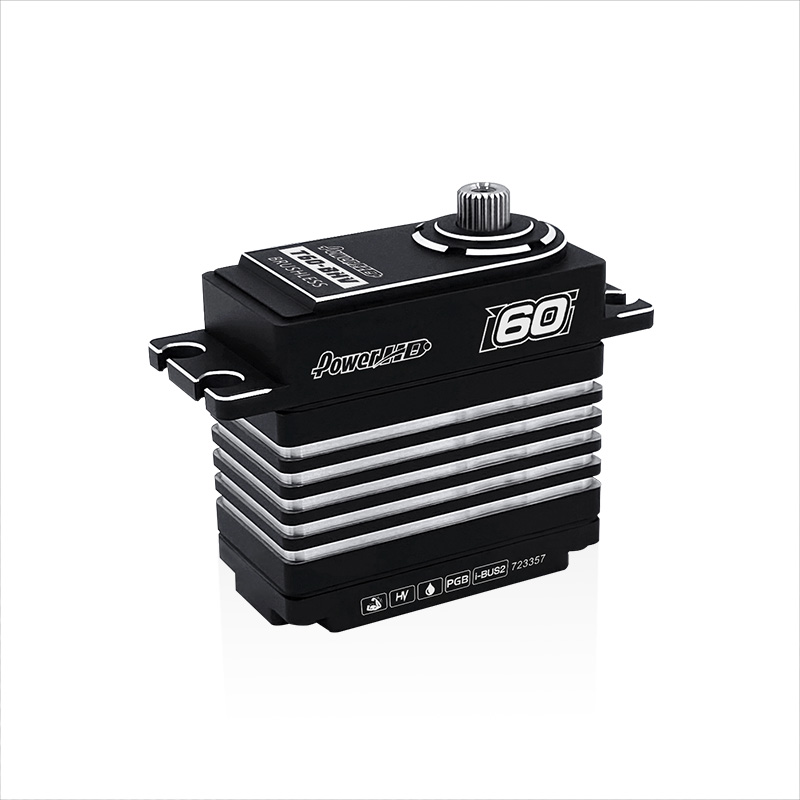

Power Hd Servo T60 Brushless Alu Case Hv (60kg/0.080s)

Description

Torque(6.0V): 45.0 kg-cm / (624.9 oz/in)
Torque(7.4V): 50.0 kg-cm / (694.4 oz/in)
Torque(8.4V): 60.0 kg-cm / (833.2 oz/in)
Speed: 0.098 sec (6.0V) │ 0.089 sec (7.4V)
Speed: 0.080 sec (8.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 83 g (2.93 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Brushless Motor
Gear Type：Steel
Operating Temperature：-10℃~60℃
Working frequency：1520μs / 50 ~1500hz
Size：40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
Compatible with ibus2 and program box
