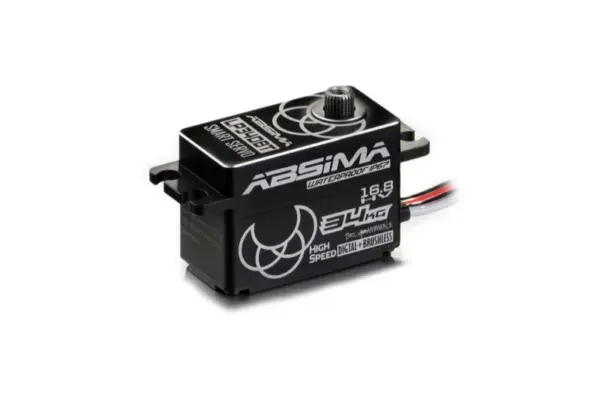

HV 3S/4S Digital Alu Servo LP34DBT Crawler-Spec. Waterproof

Servos are part of the “RC system” and thus the basis of a remote-controlled model. Connected to the steering linkage, they convert stick or rotary movements on the transmitter into steering movements on the vehicle. In combustion vehicles, they also act as throttle servos, operating both the throttle valve of the carburetor and the brake. A servo that is too weakly dimensioned has a longer actuating time and a shorter service life when loaded. Therefore never save on the servo! A good servo does not have to cost a lot, but it makes the model more reliable and lasts for years. This version has an enormous actuating power, which is up to 34 kg by direct connection of a 3S or 4S LiPo battery and all this at a speed of 0.080 seconds! In addition, the servo is dust and waterproof (IP67) and can therefore be used in all weather conditions.

Our “Crawler Spec. Servos” are mainly used in 1:8 and 1:10 crawlers or other heavy vehicles which need a lot of power on the steering axle.

TECHNICAL DATA HIGHLIGHTS:

Servo Category: High-Torque & High Speed

Operating Voltage: 7.4 – 16.8V HV

Torque / Speed @ 12V: 26.0kg / 0.100sec/60°

Torque / Speed @ 14.4V: 30.0kg / 0.090sec/60°

Torque / Speed @ 16V: 33.0kg / 0.082sec/60°

Torque / Speed @ 16.8V: 34.0kg / 0.078sec/60°

Technology: Digital

Motor Type: Brushless

Gear Material: Reinforced steel

Housing Material: AL6061 T6

Waterproof Rating: IP67 water-proof

Bearing: Metal ball bearings (2)

Servo Arms: 1* Aluminum, 2* Plastic

Size: 40.8*20.2*30.2 mm (Standard)

Weight: 66,2 g

Programmable: Yes with USB Interface Adapter # 2030110 (sold separately)

ATTENTION: Separate power supply (2S,3S or 4S LiPo with BEC / JST connector) necessary!

Not sure if these specifications are right for you? Here is an overview with even more information on all CRAWLER SPEC. SERVOS to compare:
