Savox Low Profile Brushless Hi-Torque Digi Servo 18kg/[email protected] - Black
About this product

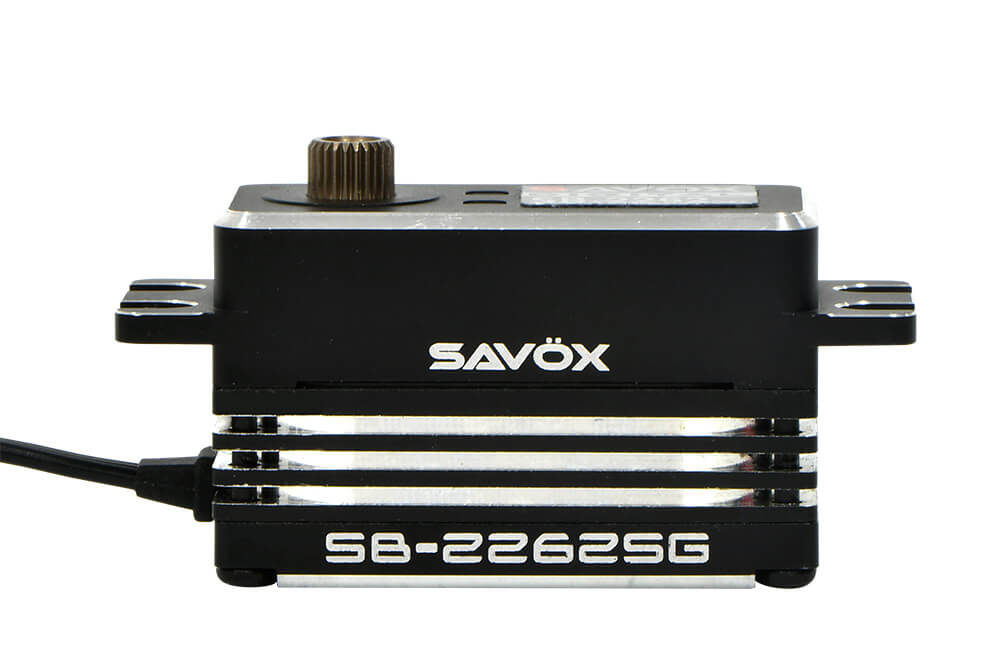

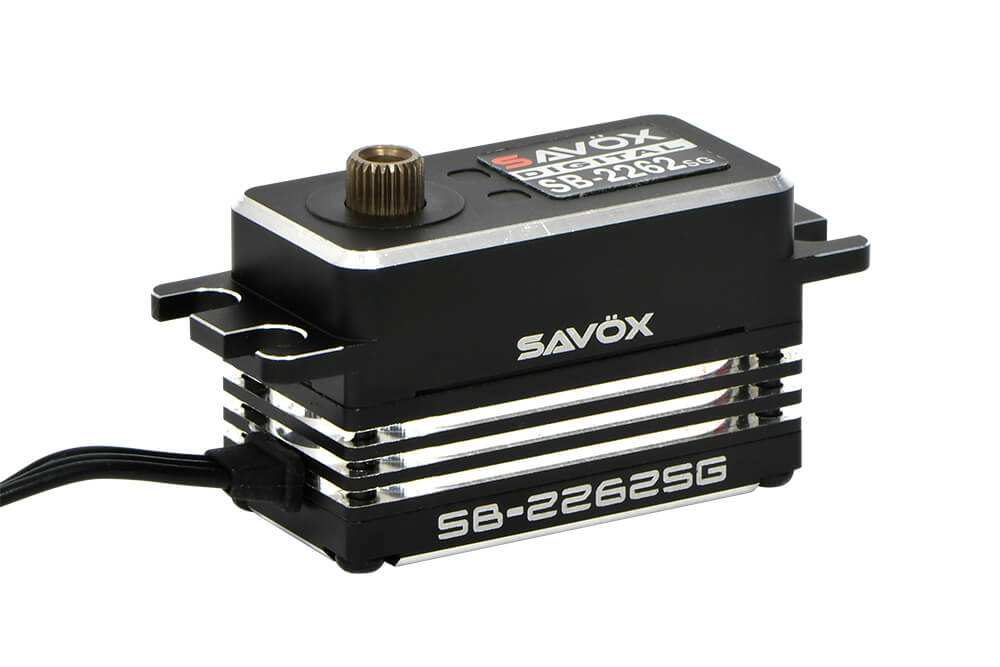

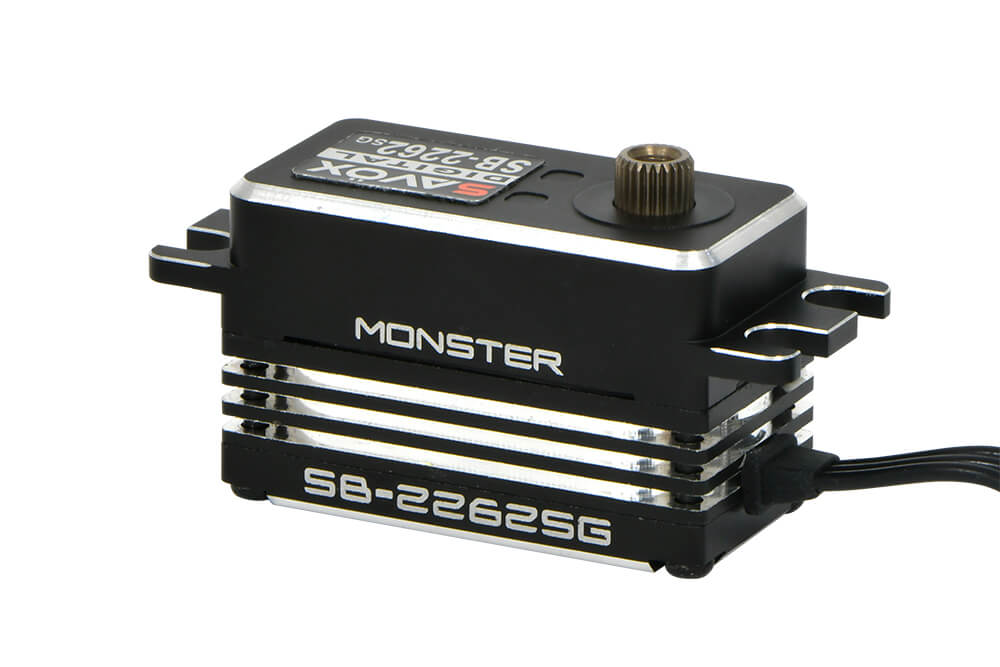

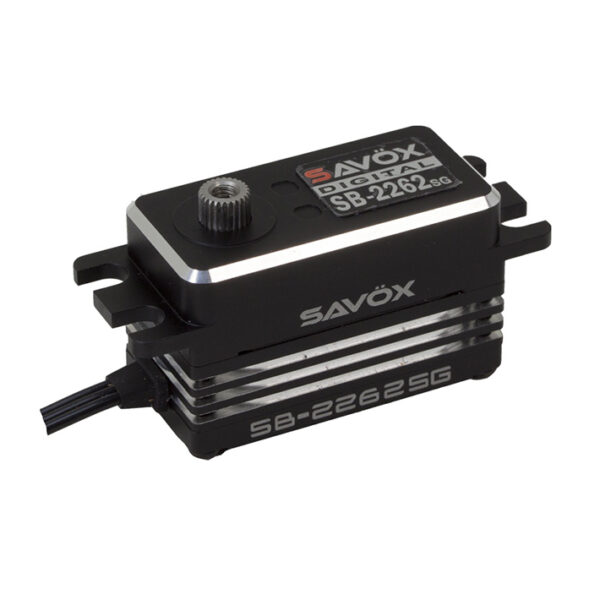

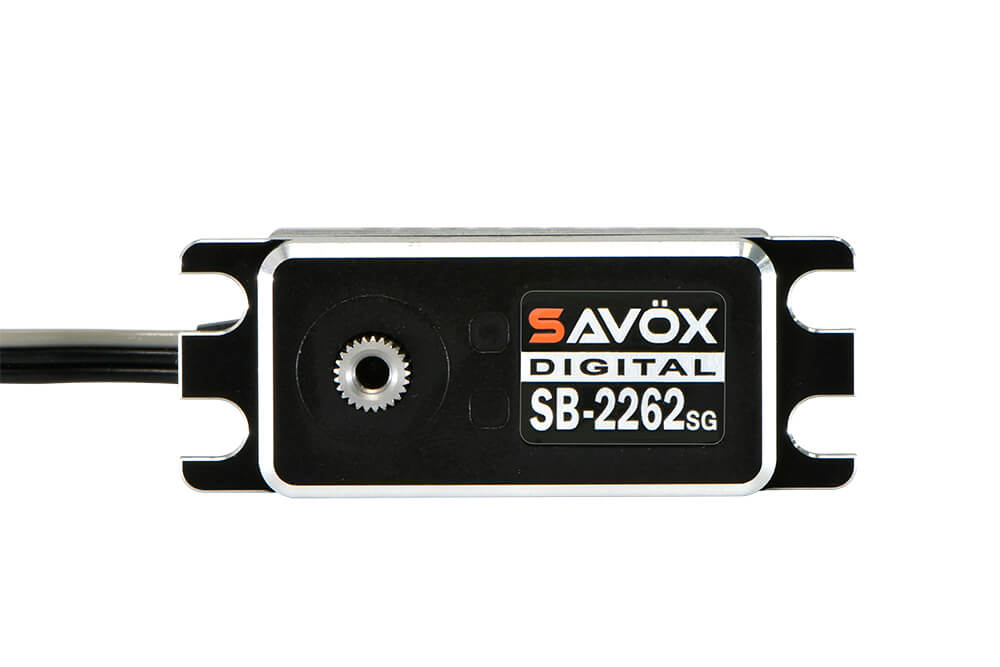

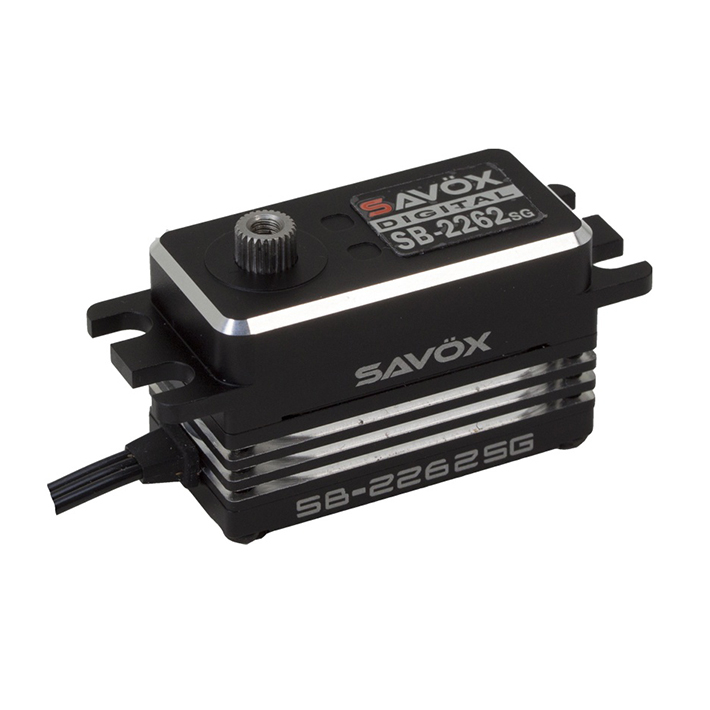

SAVOX LOW PROFILE BRUSHLESS HI-TORQUE DIGI SERVO 18KG/[email protected] – BLACK
When talking about the SB2262SG “It’s not the size of the dog in the fight, it’s the size of fight in the dog.” Combining full steel gears and amazing speed, the low-profile dimensions of this servo makes it perfect for any vehicle that is cramped for space or those looking to save additional weight.
Ideal as a steering servo for 1/10 surface applications and in gliders and airplanes that have thin wing profiles.
Specifications
- Dimension: 40.8 x 20.2 x 25.4mm
- Weight: 62g
- Speed (sec/60°): @6.0v 0.10, @7.4v 0.08, @8.4v 0.07
- Torque (kg/cm): @6.0v 18, @7.4v 25, @8.4v 32

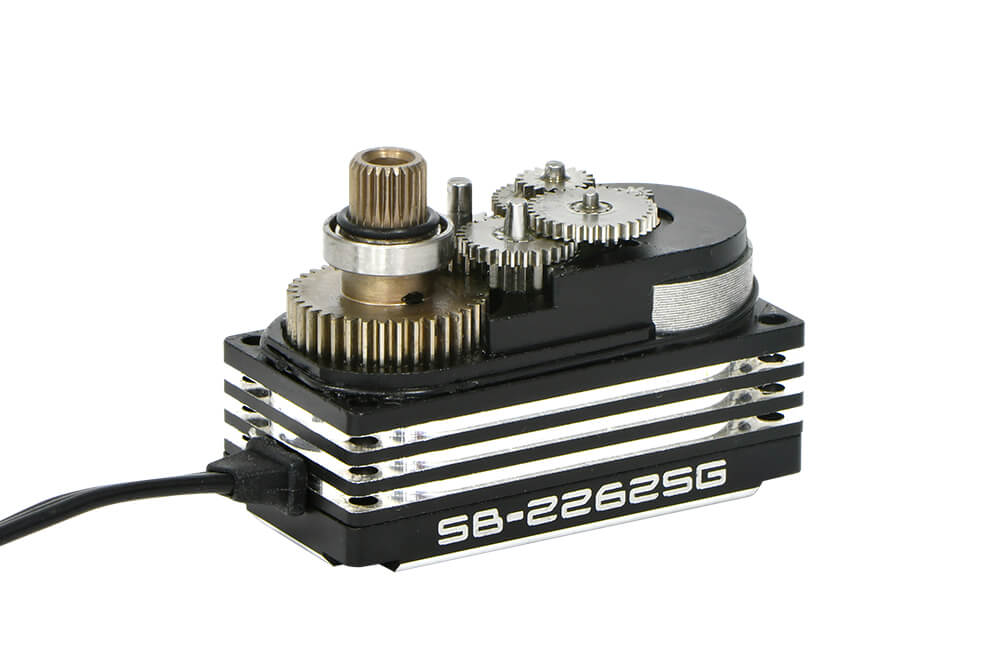

- Gears: Unique Steel
- Bearing: 2BB
- Case: Aluminium
- Servo Horn: Spline: 25T
Performance Radar
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.
Dimensions
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
