SAVOX HV DIGITAL BRUSHLESS SERVO 25KG/[email protected] – PLUS

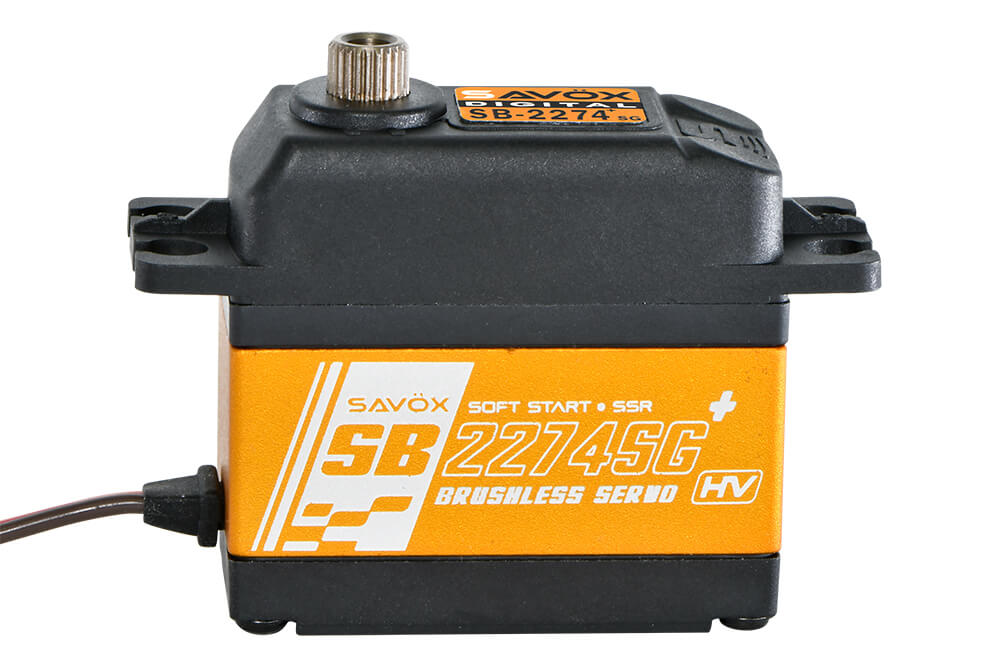

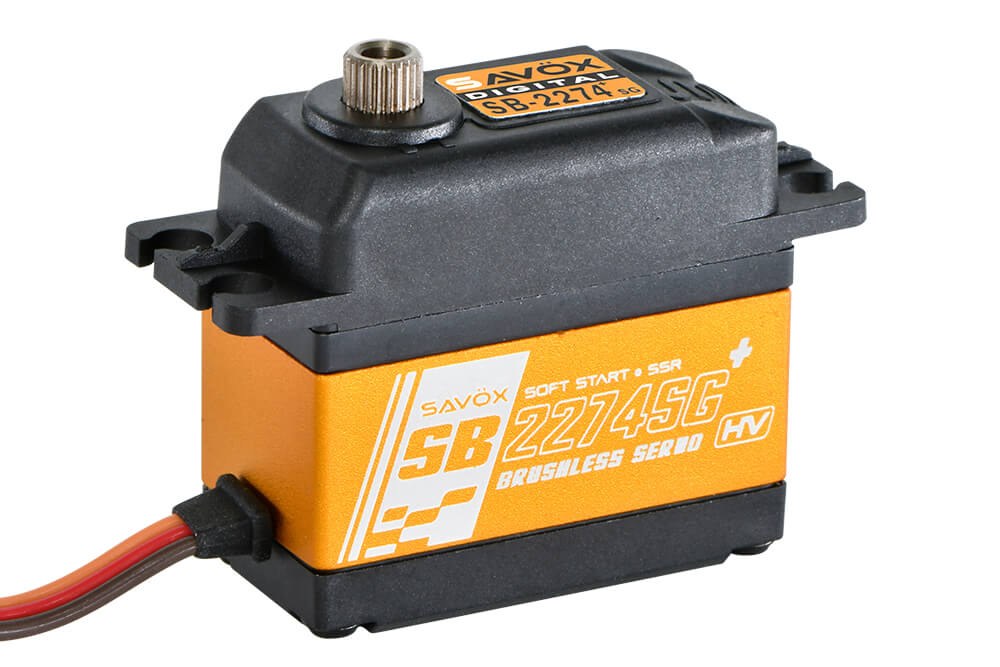

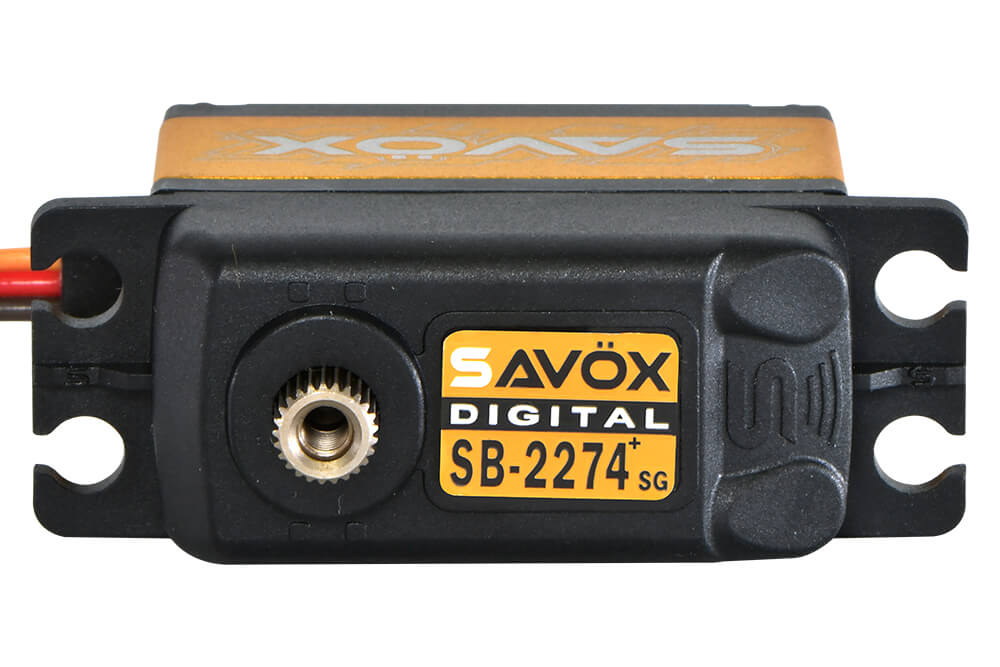

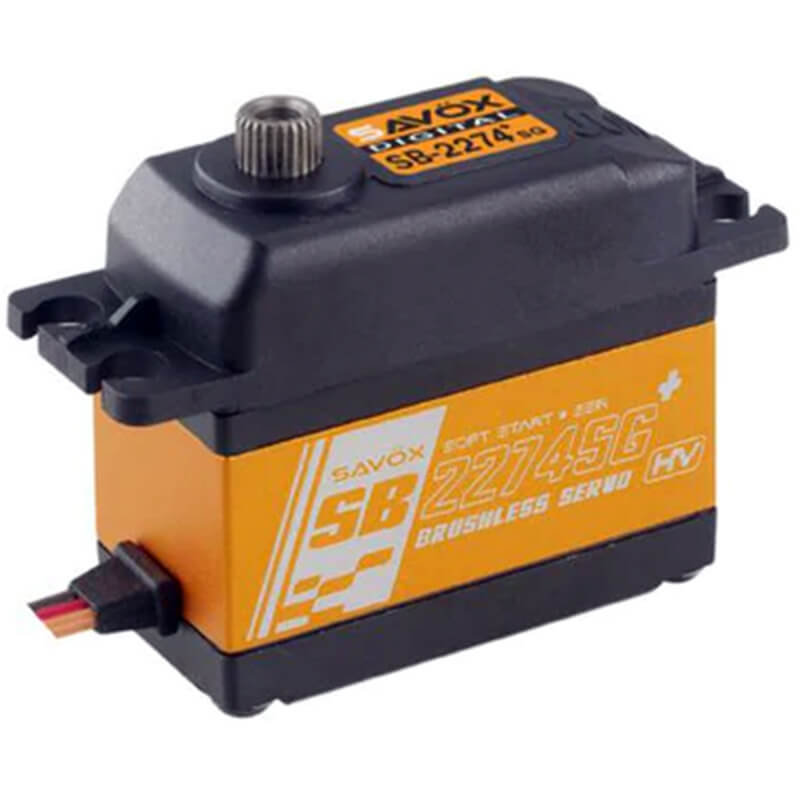

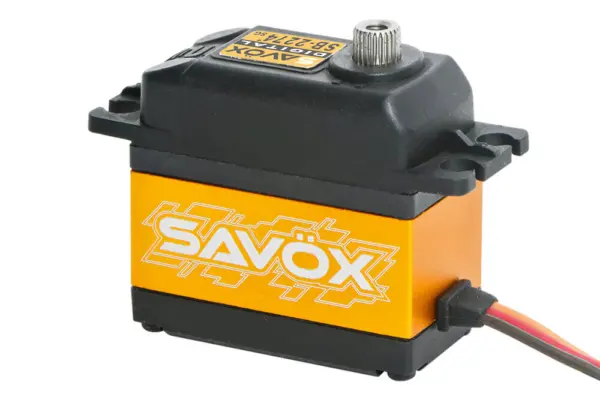

This is the Savox SB2274SG PLUS High Speed Brushless Unique Steel Gear Digital Servo.

Features

• Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
• Super light-weight.
• Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
• Savox servos are totally green – from materials to production, these servos are environmentally friendly.
• Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.

Specifications

• Dimensions(mm): 40.3 x 20.2 x 38.5
• Weight(g): 69.0
• Speed(@6.0V sec/60): .105
• Torque(@6.0V kg-cm): 20.0
• Speed(@7.4V sec/60): .08
• Torque(@7.4V kg-cm): 25.0
• Speed(@8.4V sec/60): .07
• Torque(@8.4V kg-cm): 30.0

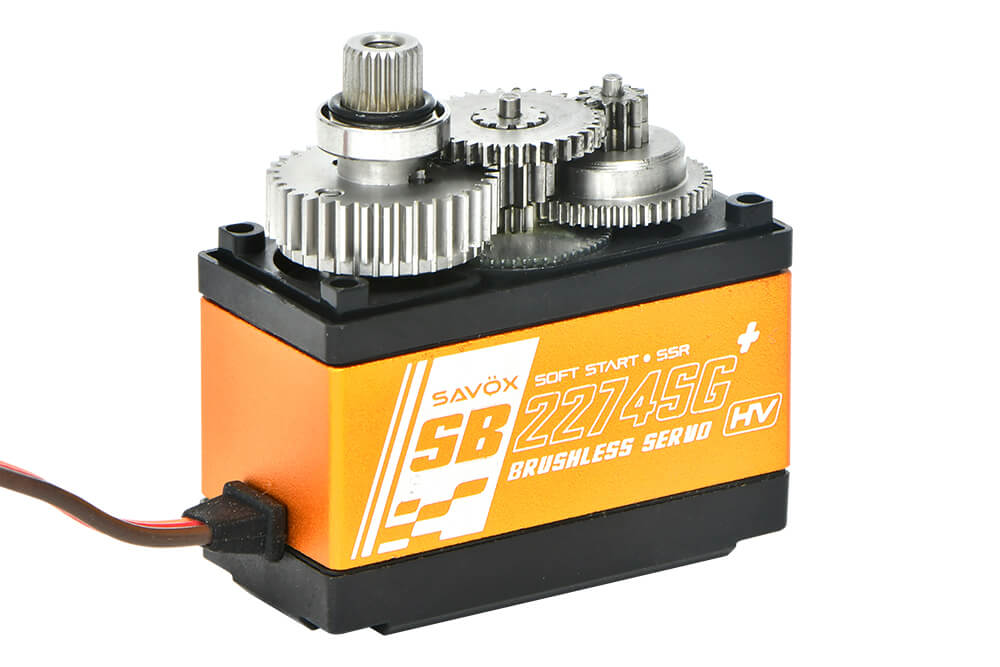

• Gear: Unique Steel
• Bearing: 2BB
• Case: Part Aluminium
• Servo Horn: 25 Tooth Spline

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

Dimensions

Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
