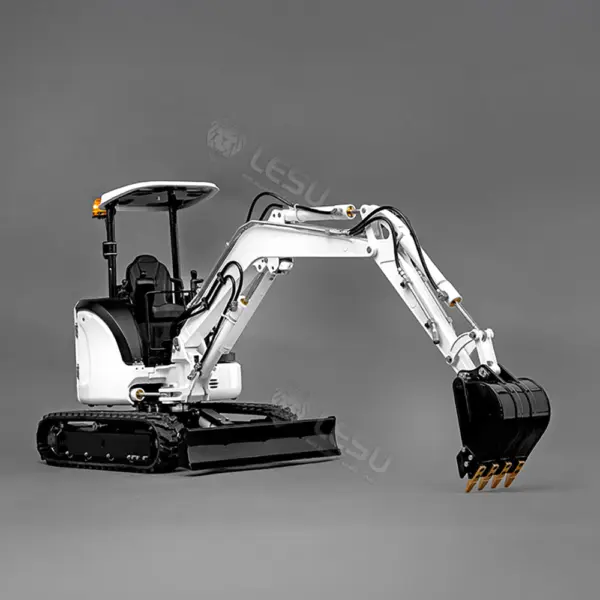

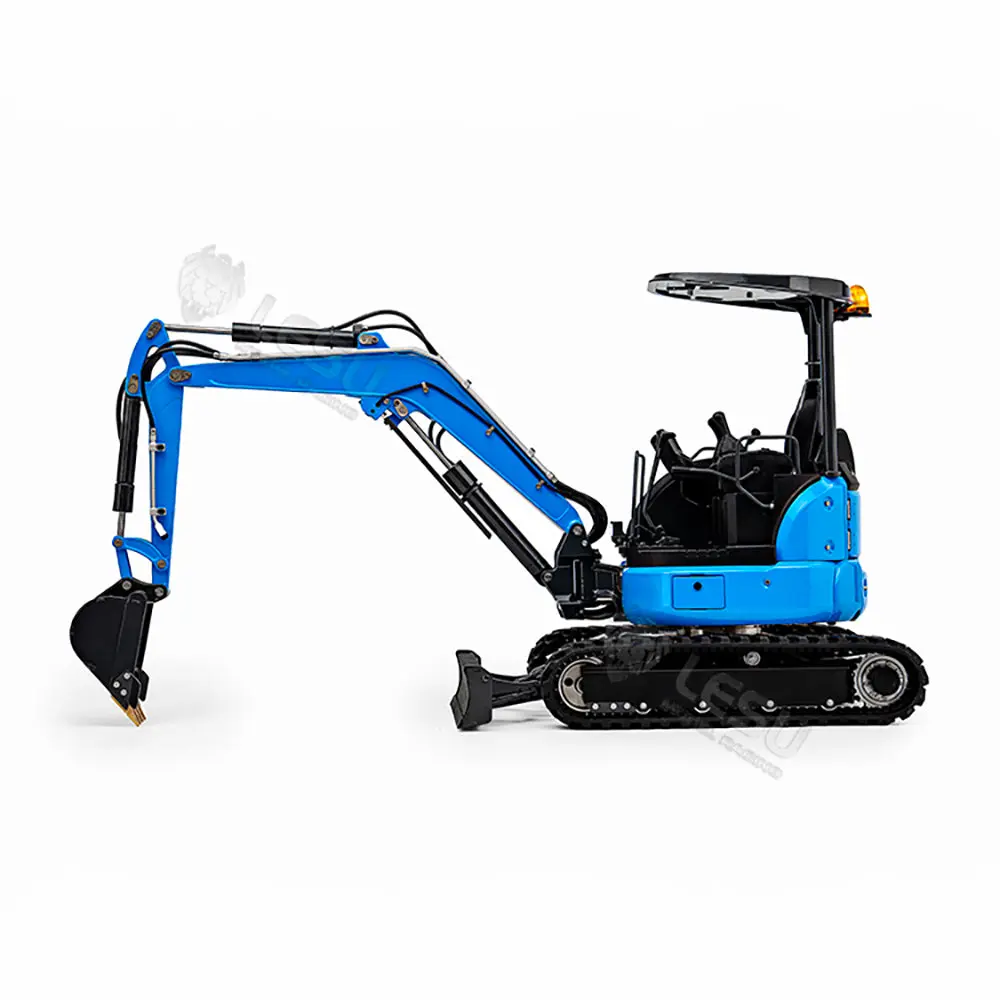

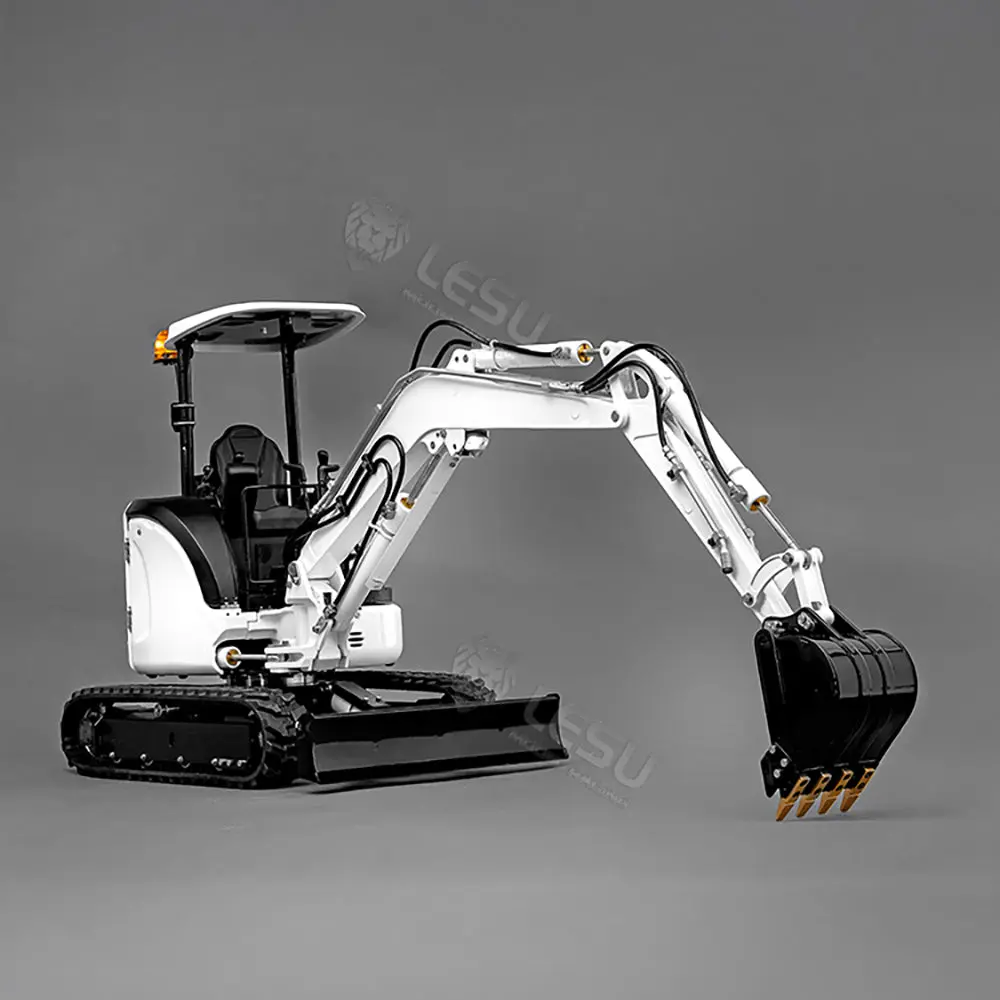

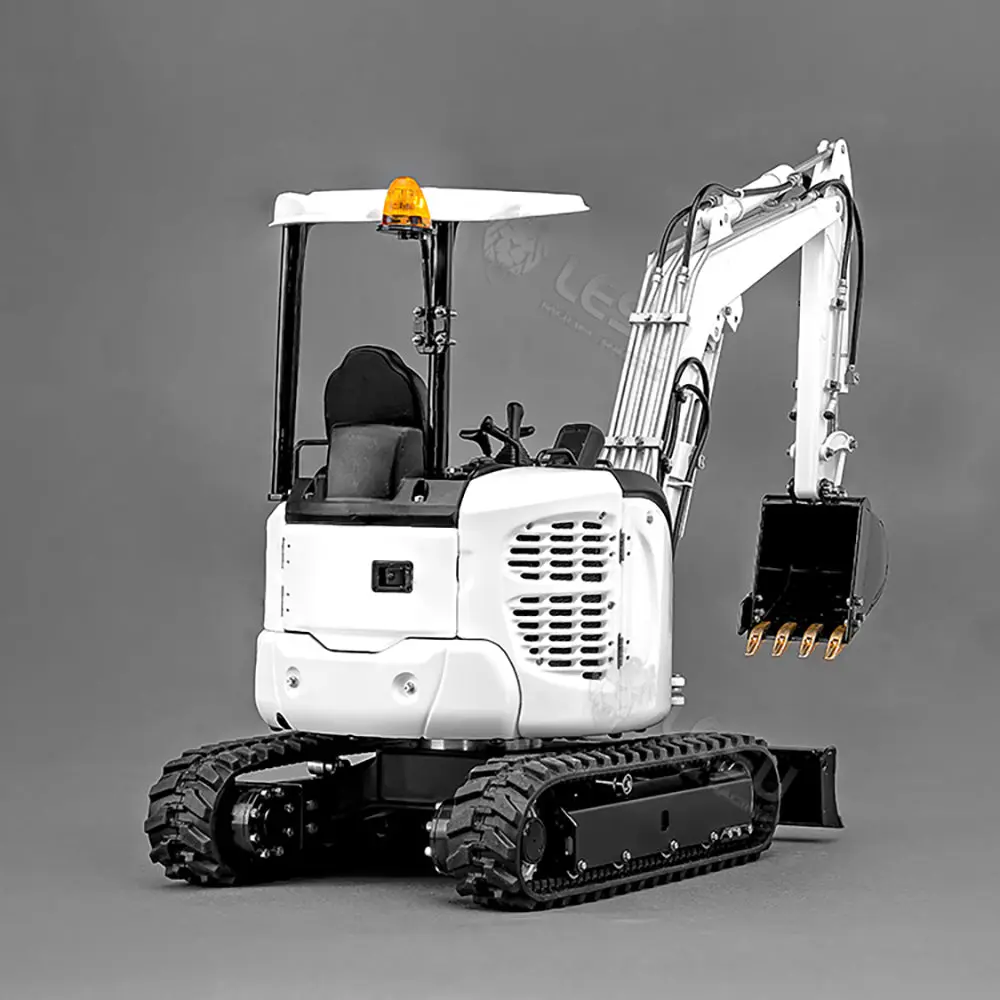

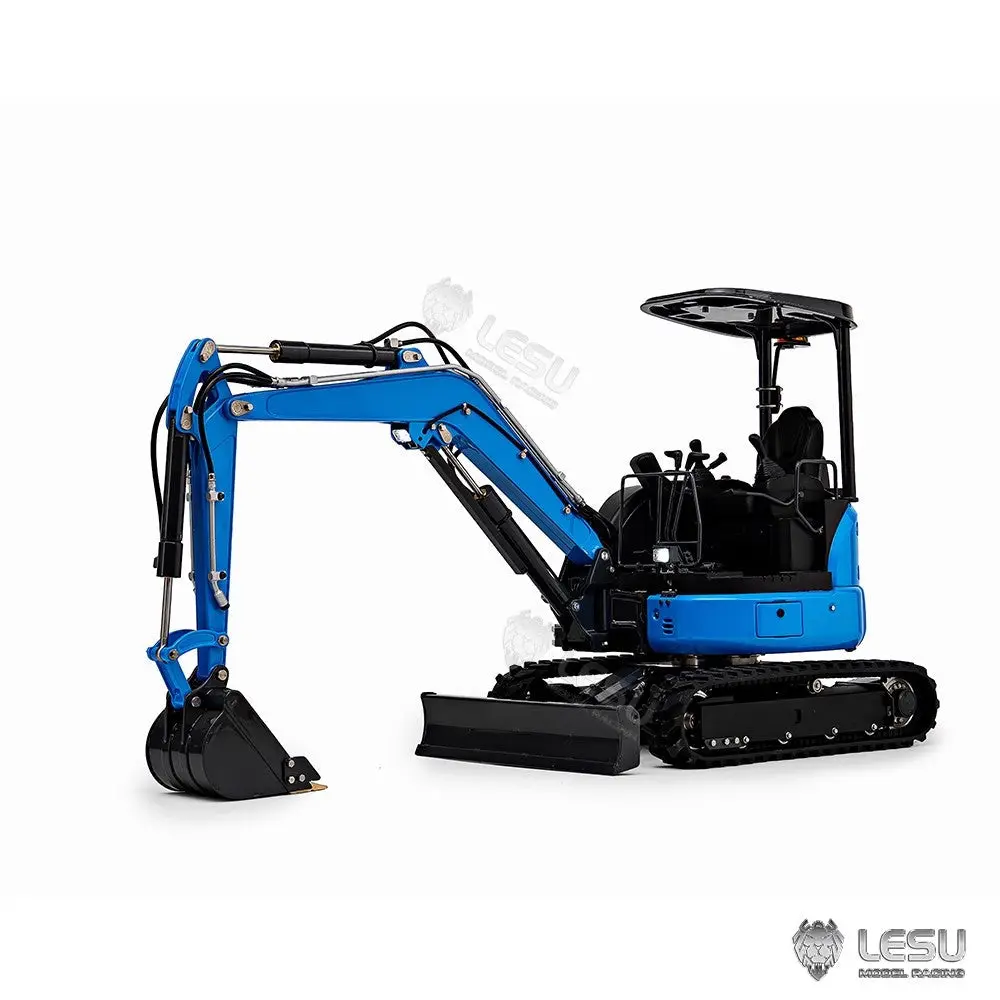

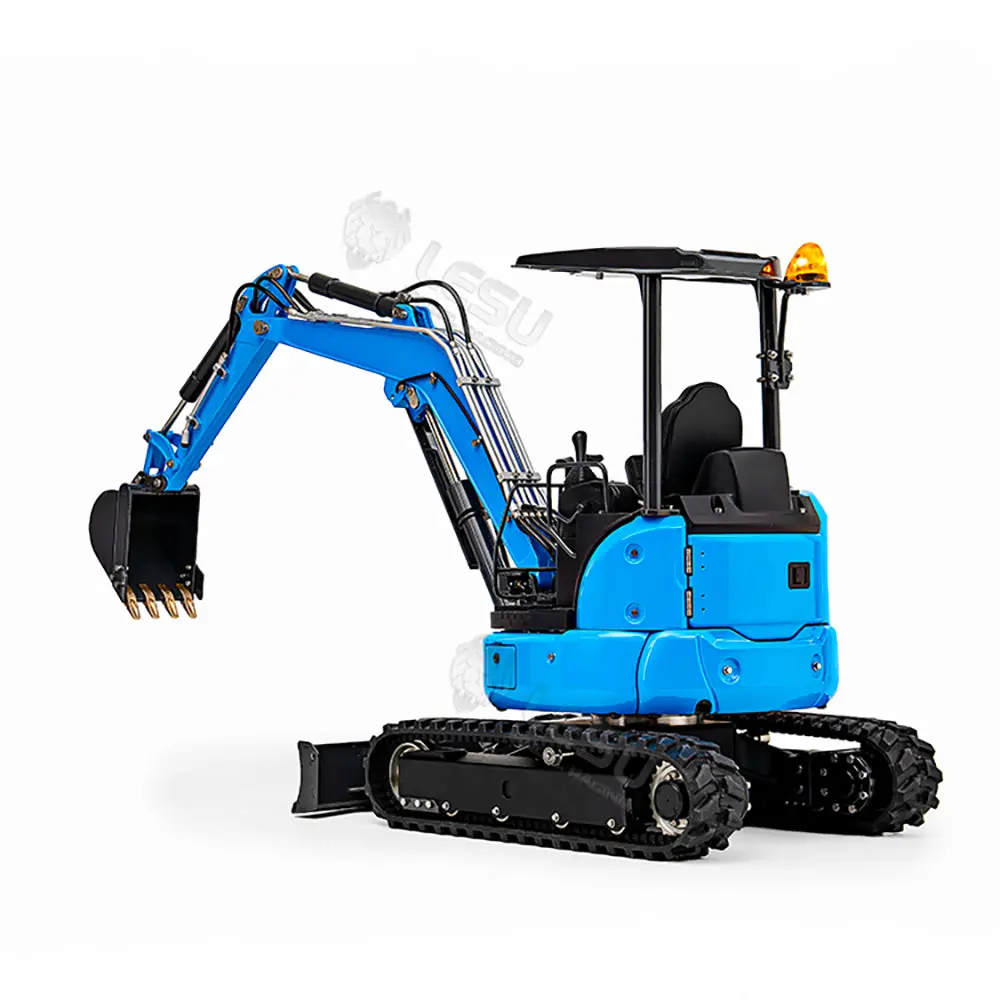

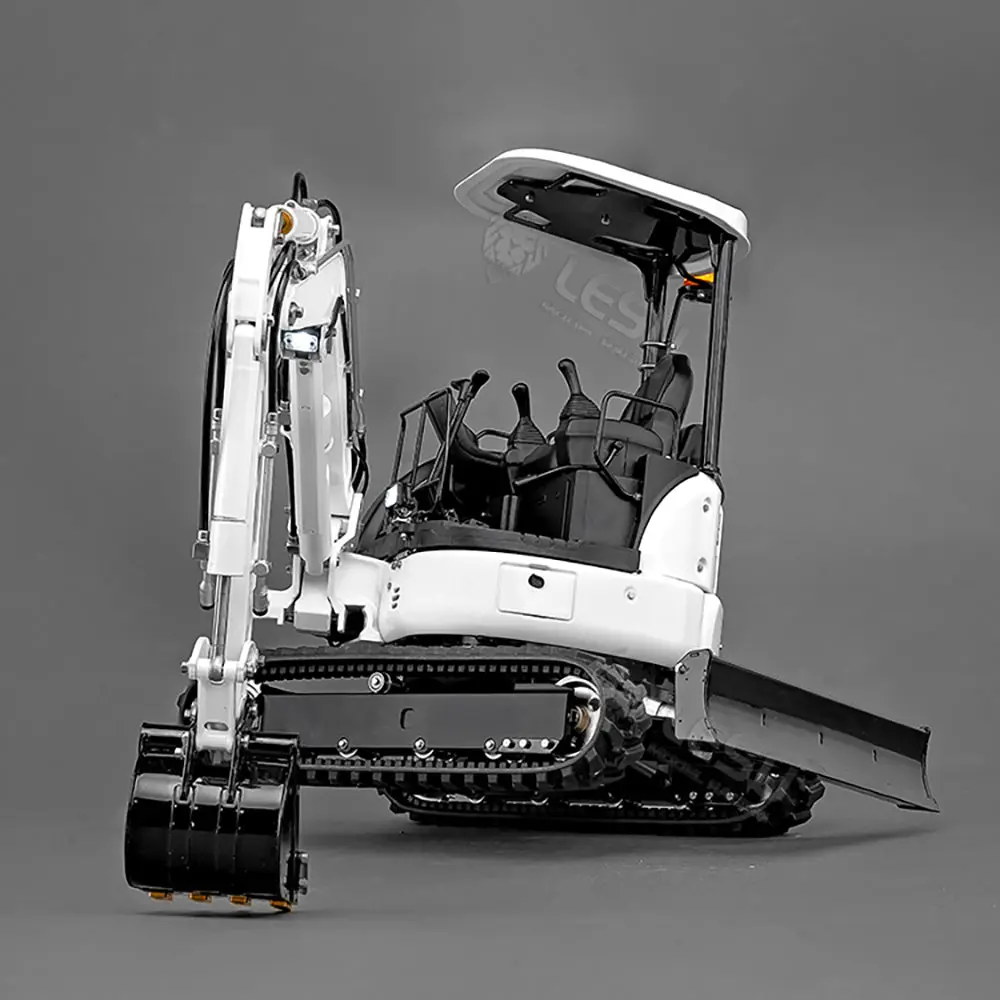

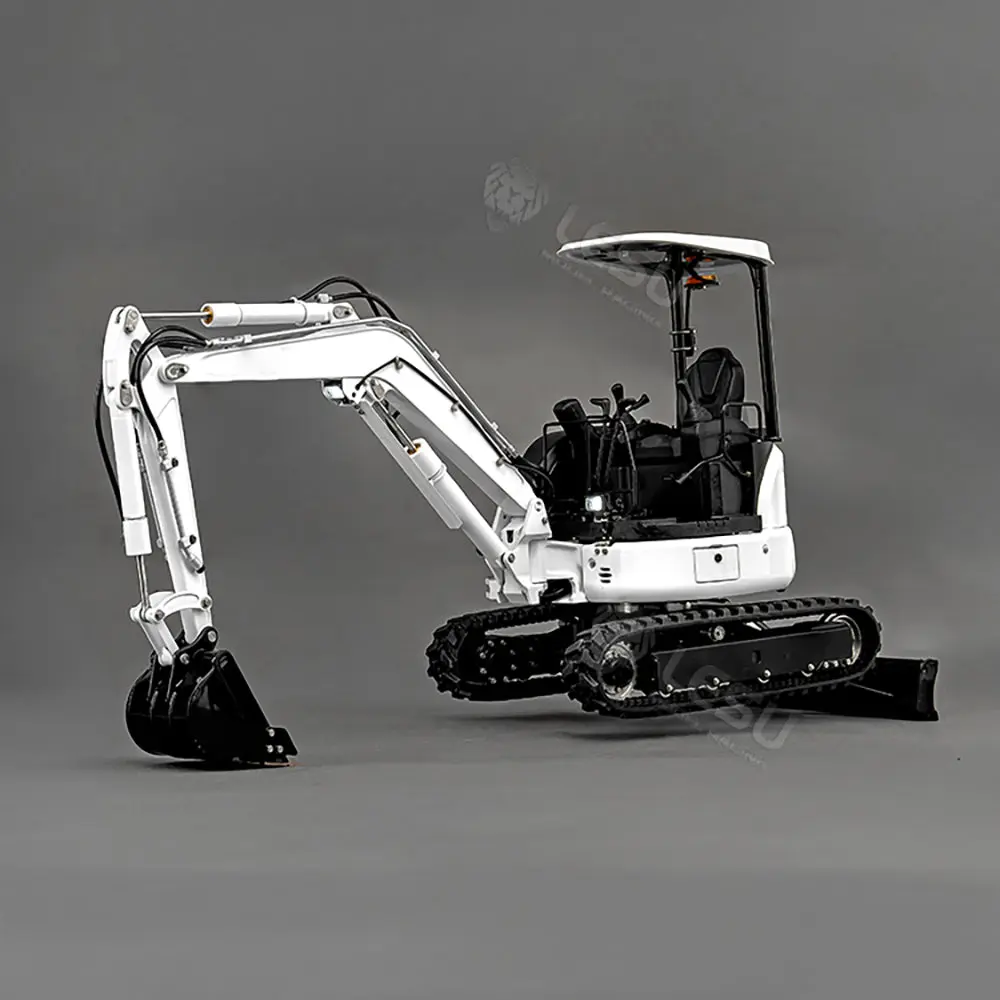

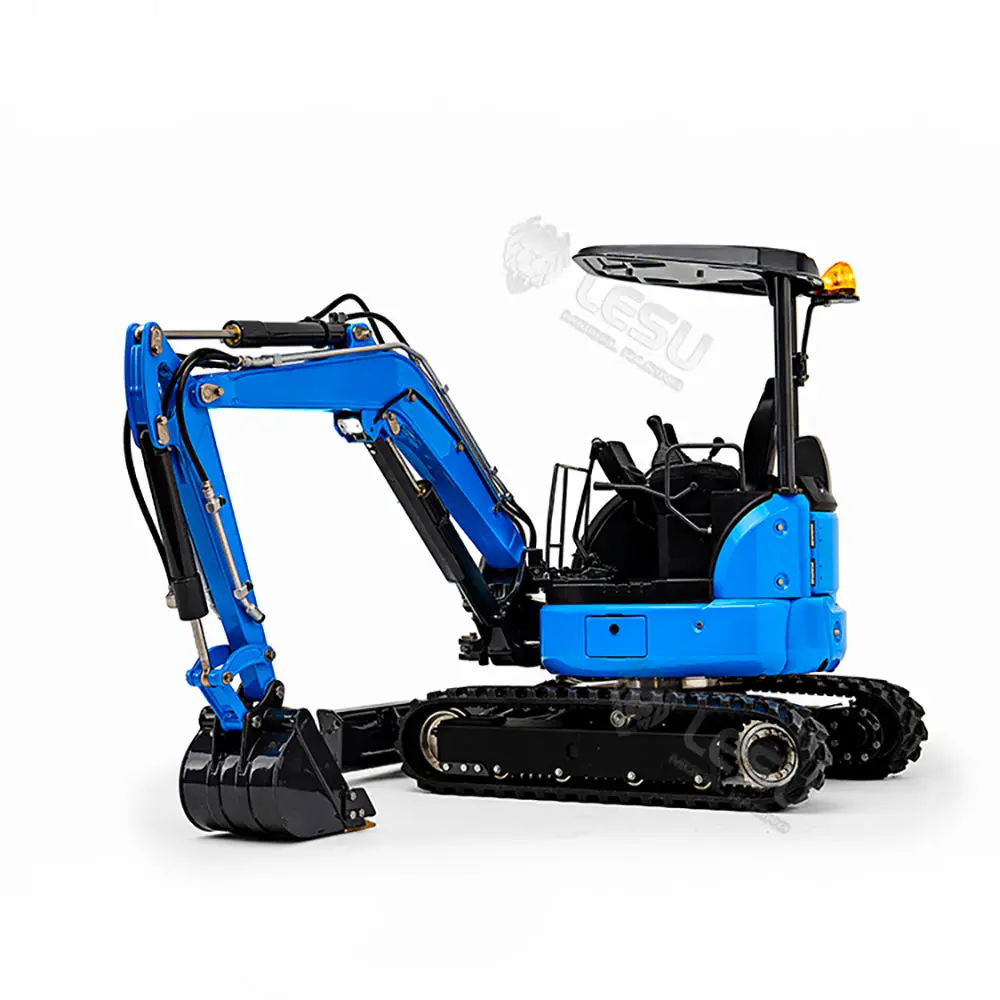

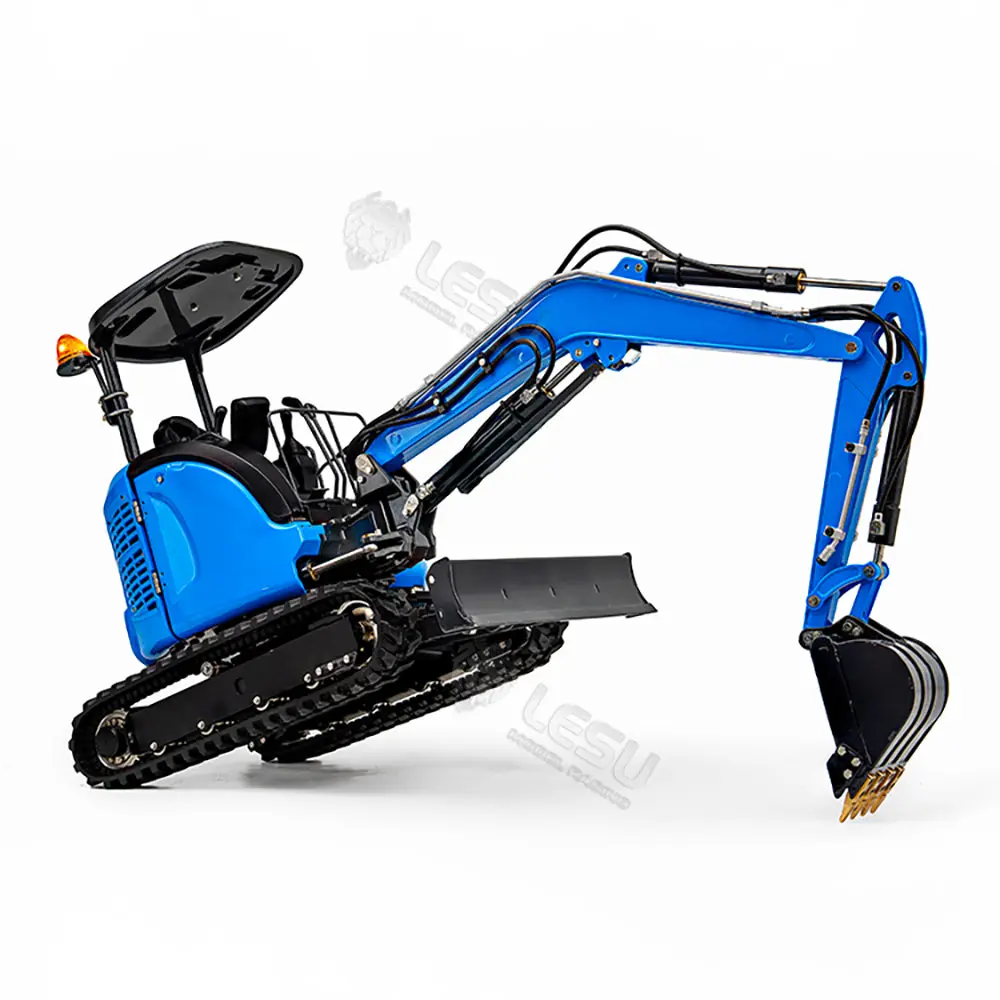

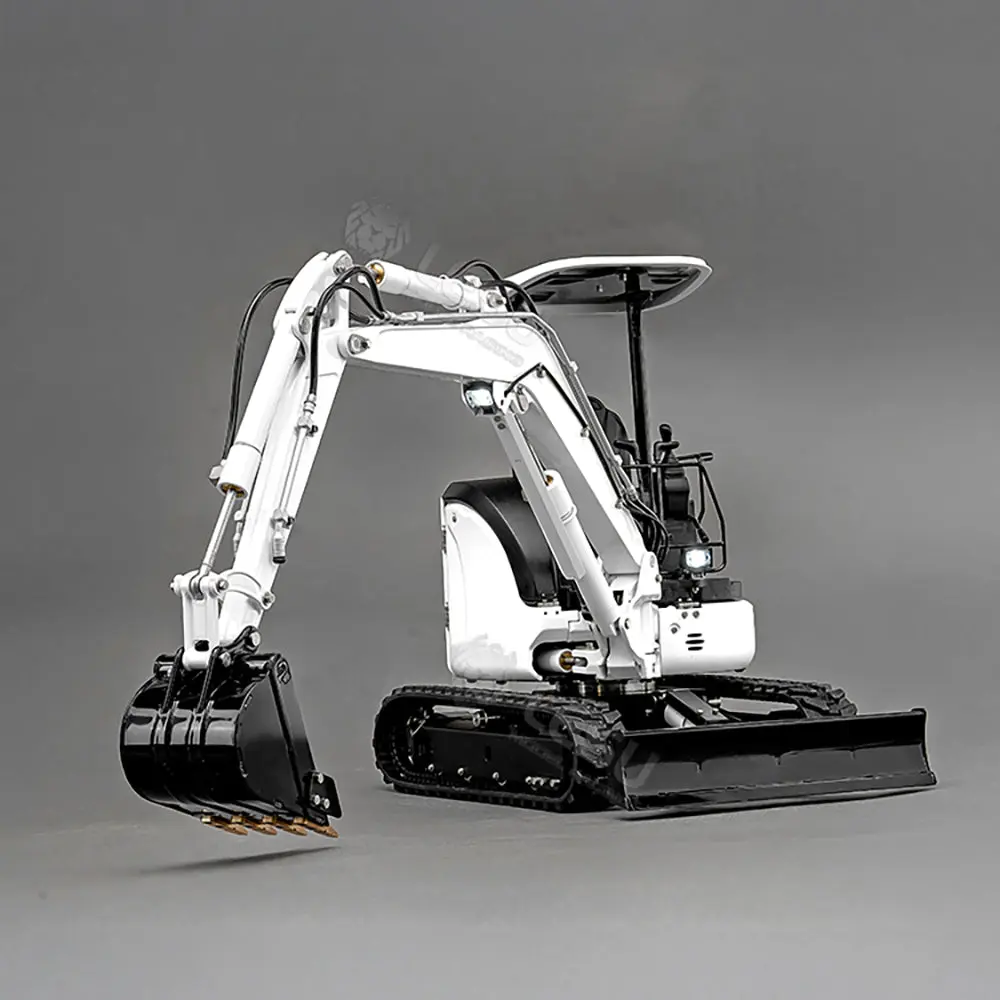

Mini LESU 1/14 RC Hydraulic Excavator PC30 Metal Radio Controlled Digger Model Frsky X14 Radio Upgrade Sound System Battery

#Mini LESU 1/14 RC Hydraulic Excavator PC30 Metal Radio Controlled Digger Model Frsky X14 Radio Upgrade Sound System Battery

#Specification:
Brand: LESU
Item condition: New, Assembled and Painted.
Scale: 1/14
Material: Stainless Steel, Aluminum Alloy, Brass, Plastic

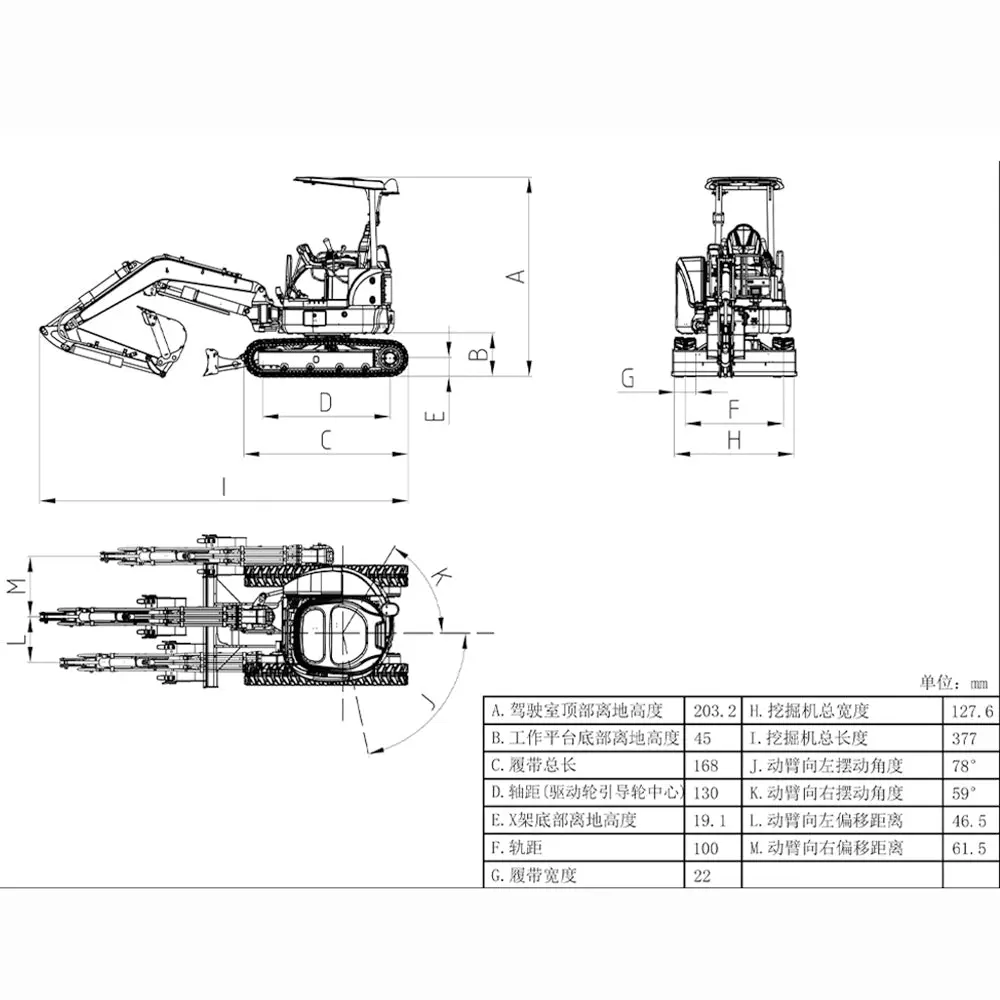

Size: 377*127.6*203.2MM
Track gauge: 100mm
Rotation speed: 11 r/mim
Boom swing angle: L78??/R59??
bucket offset: L46.5/R61.5
Track width: 22mm
Total track length: 168mm
Hydraulic pump quantity: 1

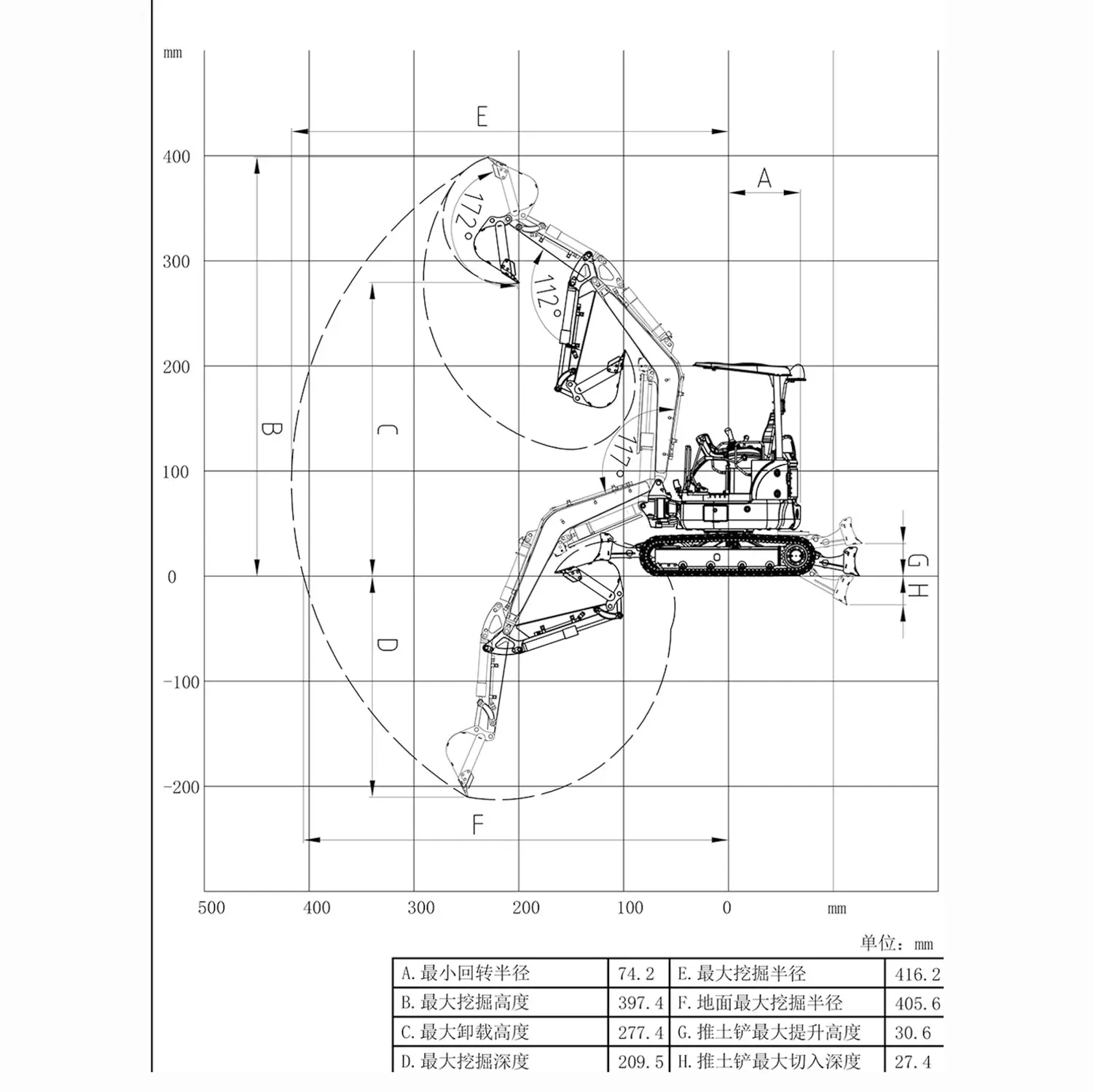

Maximum digging depth: 209.5mm
Maximum digging radius: 416.2
Maximum digging height: 397.4mm
Travel motor speed (r/min): 15000
Maximum unloading height: 277.4mm
Rotary drive reduction ratio: 603
Rotating motor speed (r/min): 31800,7.4V
Travel drive reduction ratio: 256
Minimum radius of gyration: 74.2mm
Overall width of excavator: 127.6mm
Travel drive wheel speed (r/mim): 58
Cab top height from the ground: 203.2mm
Maximum depth of cut for dozer: 27.4mm
Reversing Valve: 6CH
Maximum digging radius on the ground: 405.6mm
X frame bottom height from the ground: 19.1mm
Maximum lifting height of dozer blade: 30.6mm
Hydraulic workstation rated pressure: 1.5mpa
Maximum pressure of hydraulic workstation: 2mpa
Ground clearance of the bottom of the work platform: 45mm
Wheelbase (center distance of drive wheel and guide wheel): 130mm
ID:LS-BA-B0003-RTR-UP1-W

#We have different color to choose, the package option is selected by yourself.

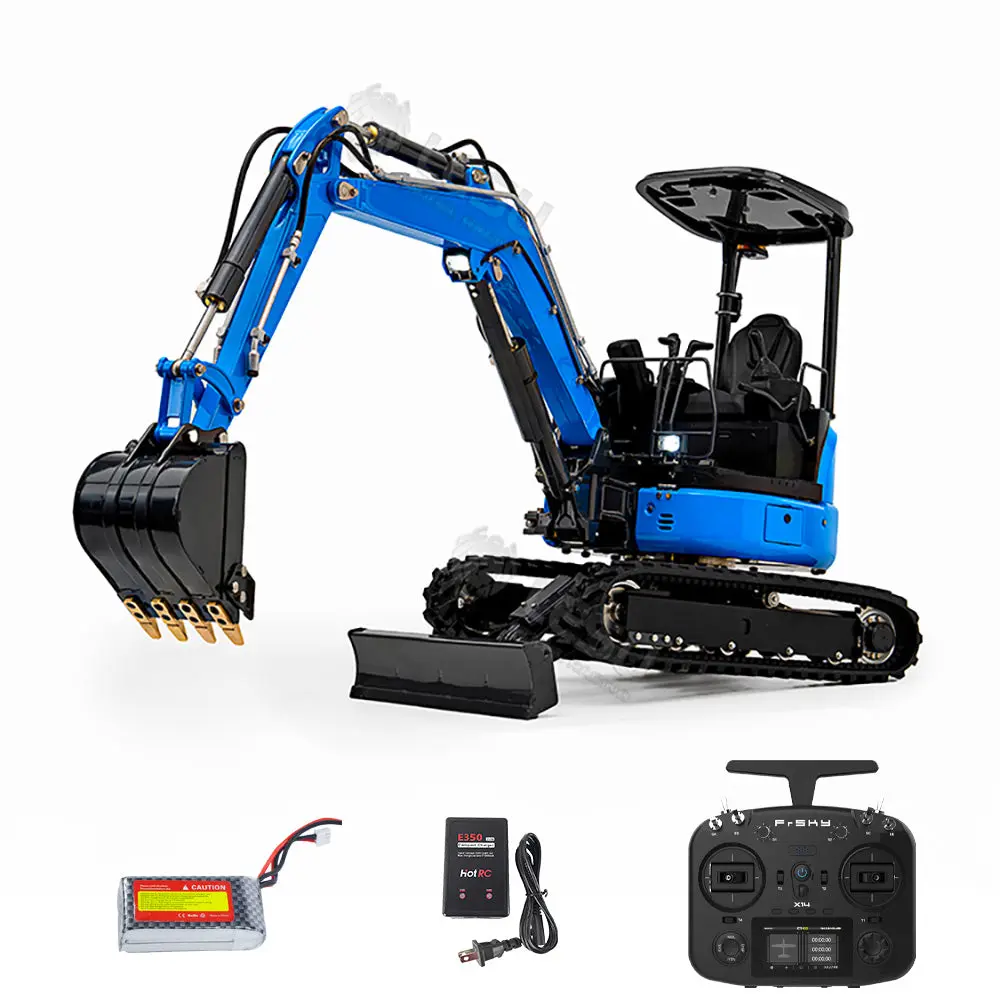

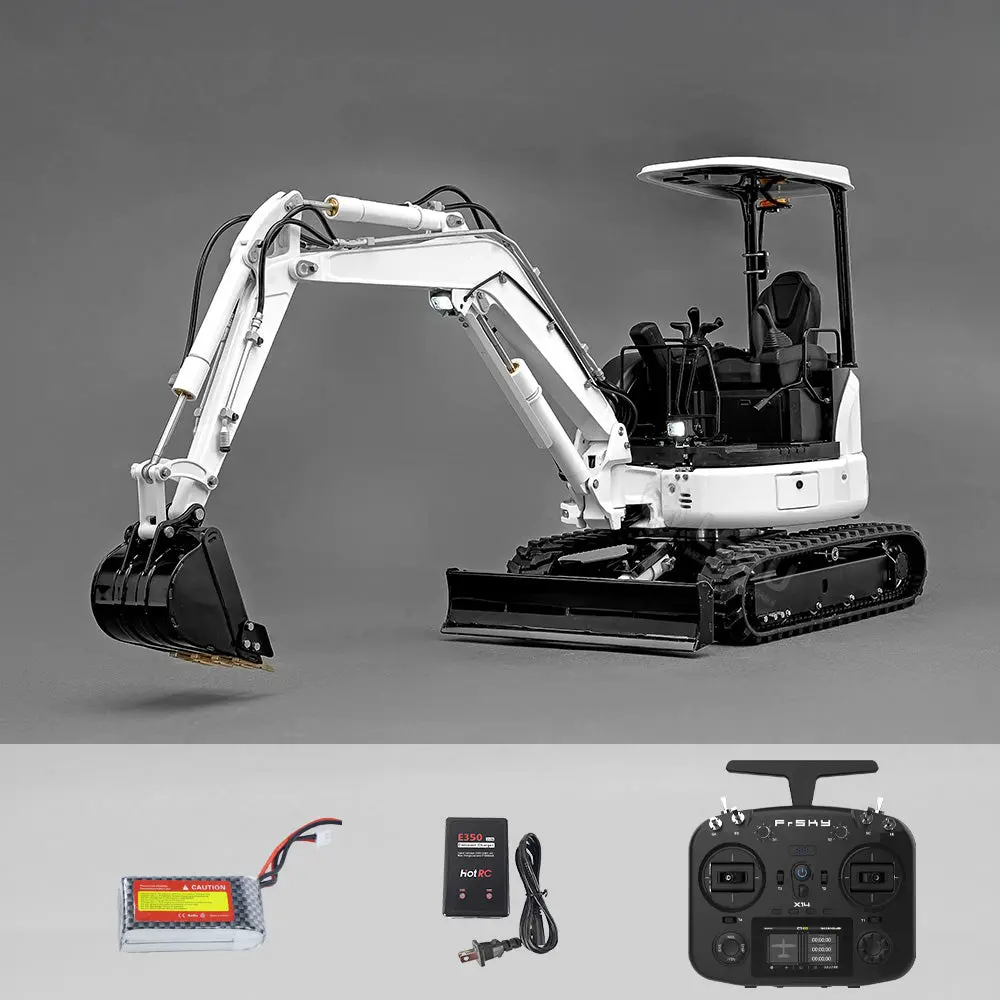

#The package includes:
1/14 Mini RC Hydraulic Excavator PC30
ESC
Motor
Servo
Hydraulic System
Light System
Battery
Upgraded Sound System and Mini Speaker
Upgraded Frsky X14 Radio System
Charger

#The package does not include (Please contact me to get them!):
Hydraulic Oil

#Feature
1. The vehicle is equipped with 2 LED lights and 1 warning light.
2. Simulate the swing angle of the hydraulic boom, making the working range more flexible.
3. 80% of the fixed oil circuit system is fully welded copper, and 90% of the whole machine is made of metal.
4. The oil circuit of the hydraulic workstation adopts an integrated design to reduce the use of oil pipes.
5. It is equipped with 6-channel reversing valves, 5 sets of hydraulic cylinders, and 1 oil path is reserved for the boom to expand the function.
6. A newly designed internal gear hydraulic pump is used, featuring compact size, high efficiency, and quiet operation.
7. Precision hydraulic system, hydraulic digging arm, hydraulic swing arm and hydraulic dozer blade make the movements more coordinated, smooth and linear.
8. This model uses a plunger-type reversing valve for the first time, offering compact size, high fluid speed, and low servo load during operation.
9. Equipped with a high-torque brushless motor rotary drive and a current overload protection system, which can effectively protect the circuit and prevent the motor from overload operation.
10. The slewing system uses a simulated slewing support turntable, which integrates 1-way oil slip ring and 4-way electric slip ring and can rotate 360?? infinitely. It has advantages of high precision, high sealing, and effectively avoids leakage.
11, upgraded sound system and speaker.
12, Upgraded remote control toFrsky X14 remote control, with better linearity and smoother operation.

#If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
