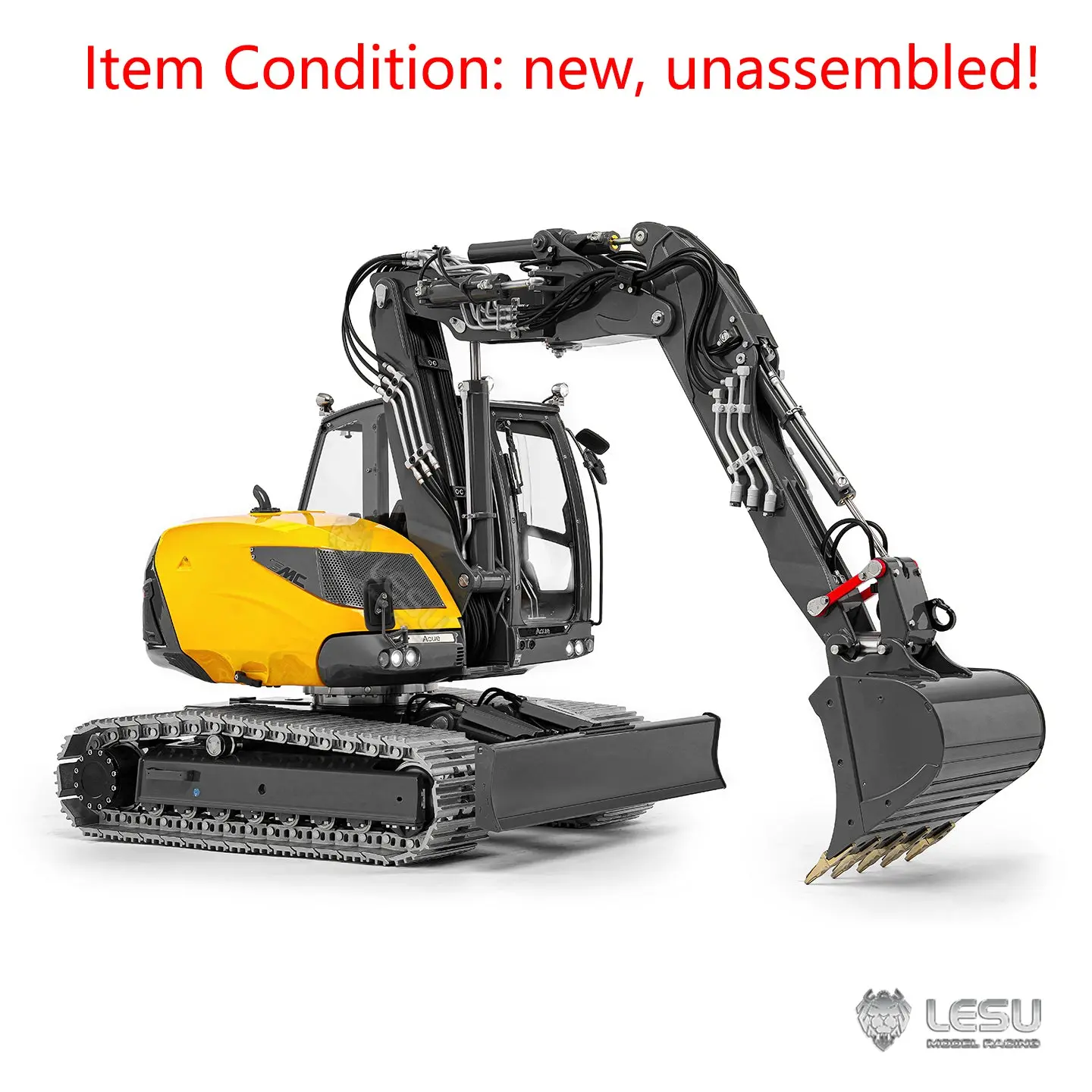

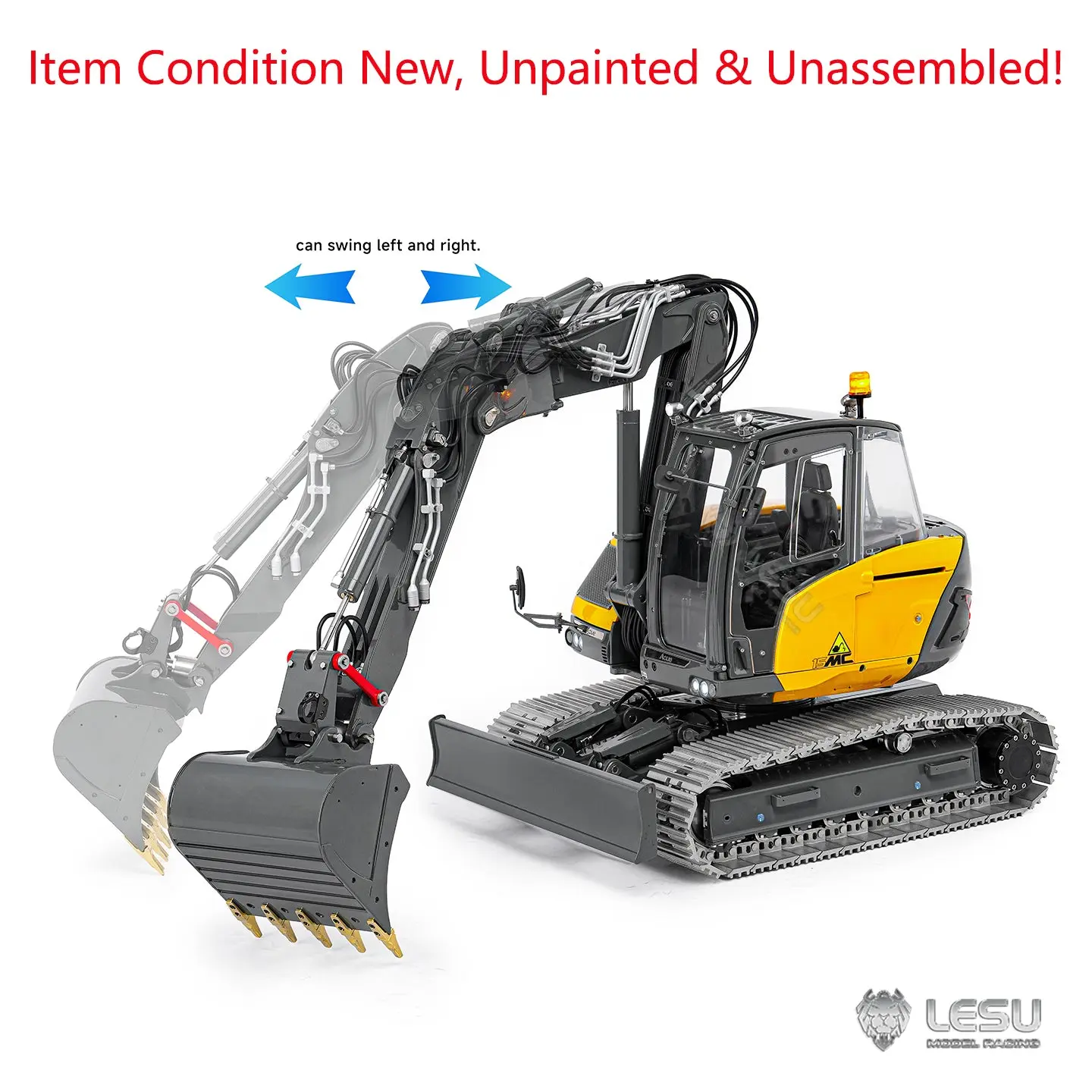

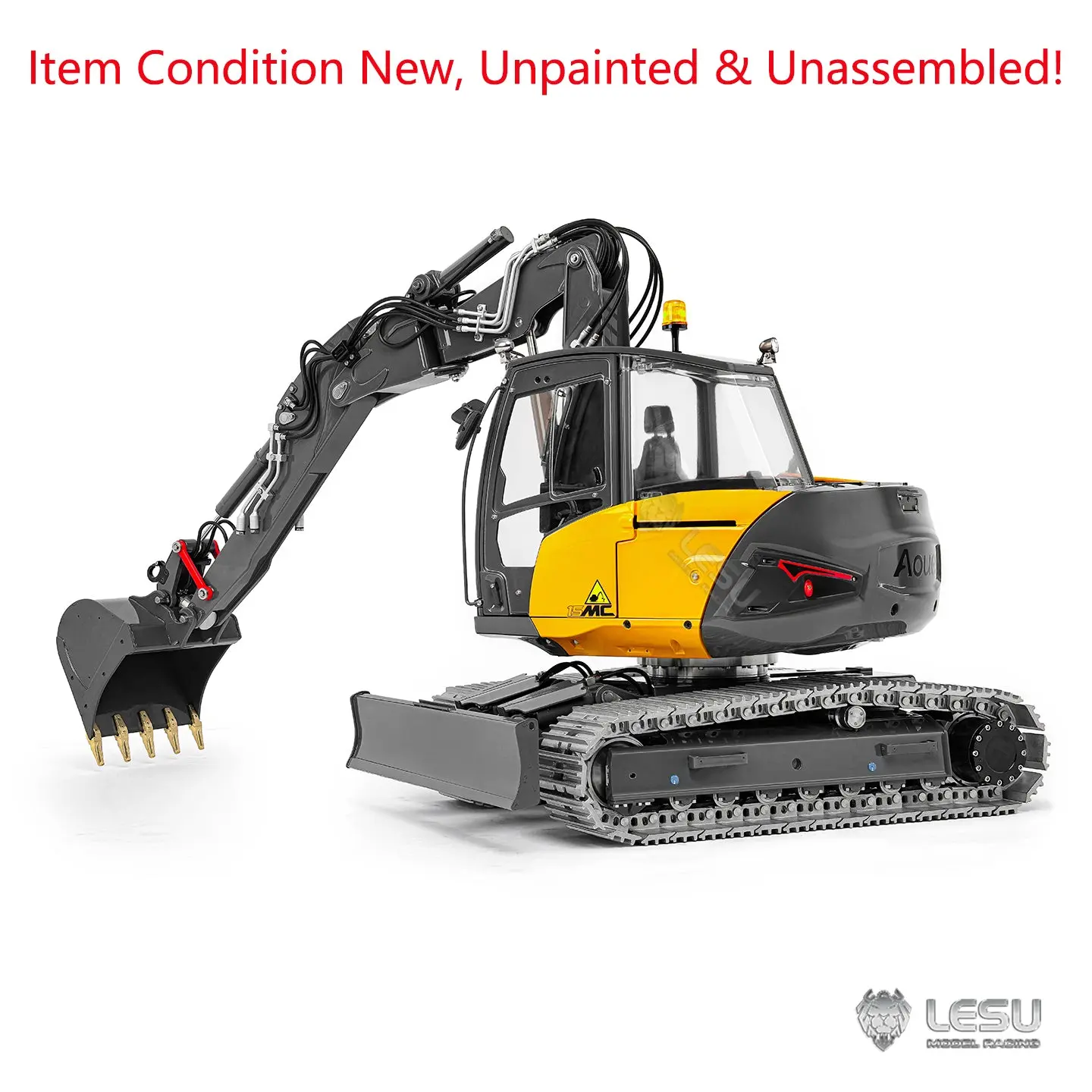

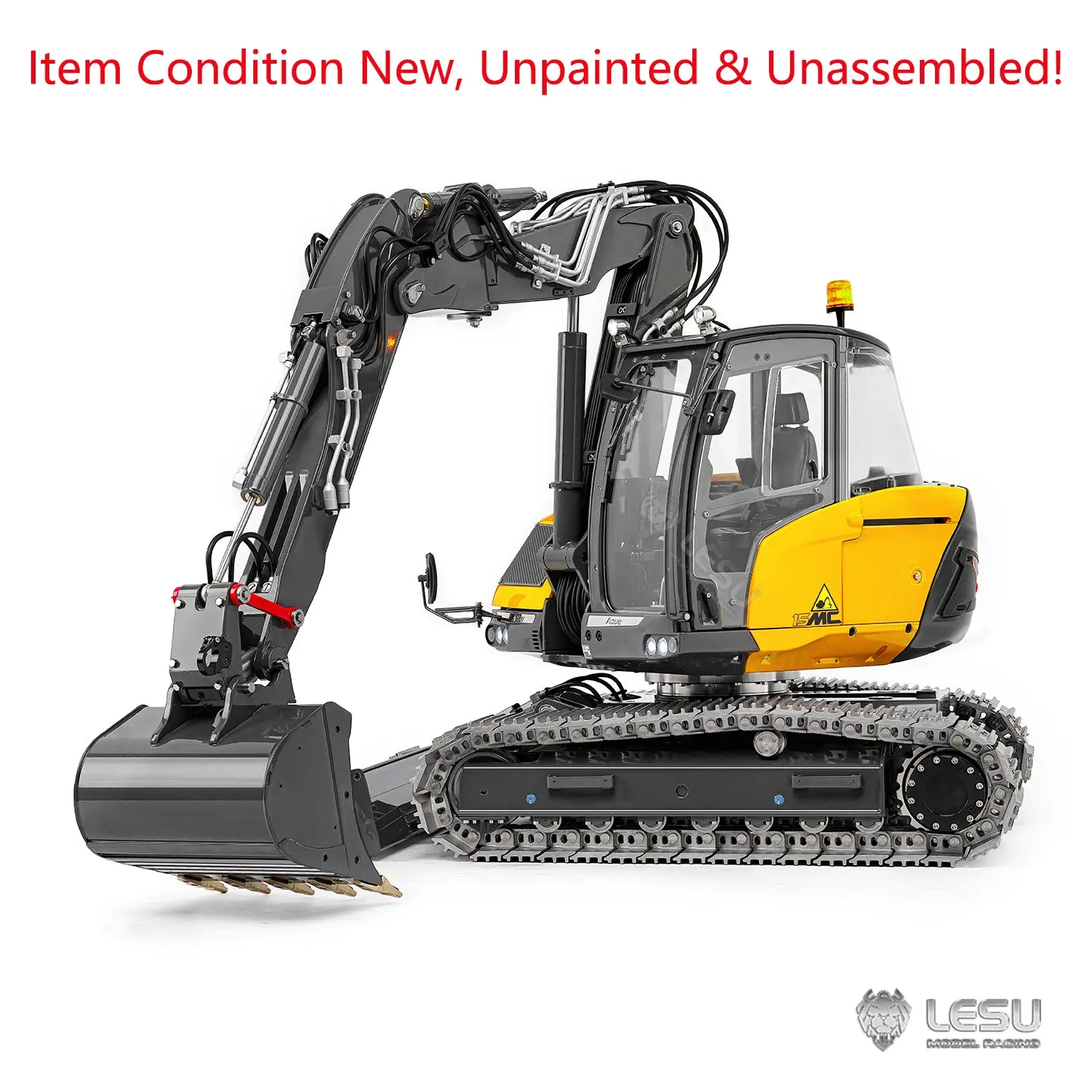

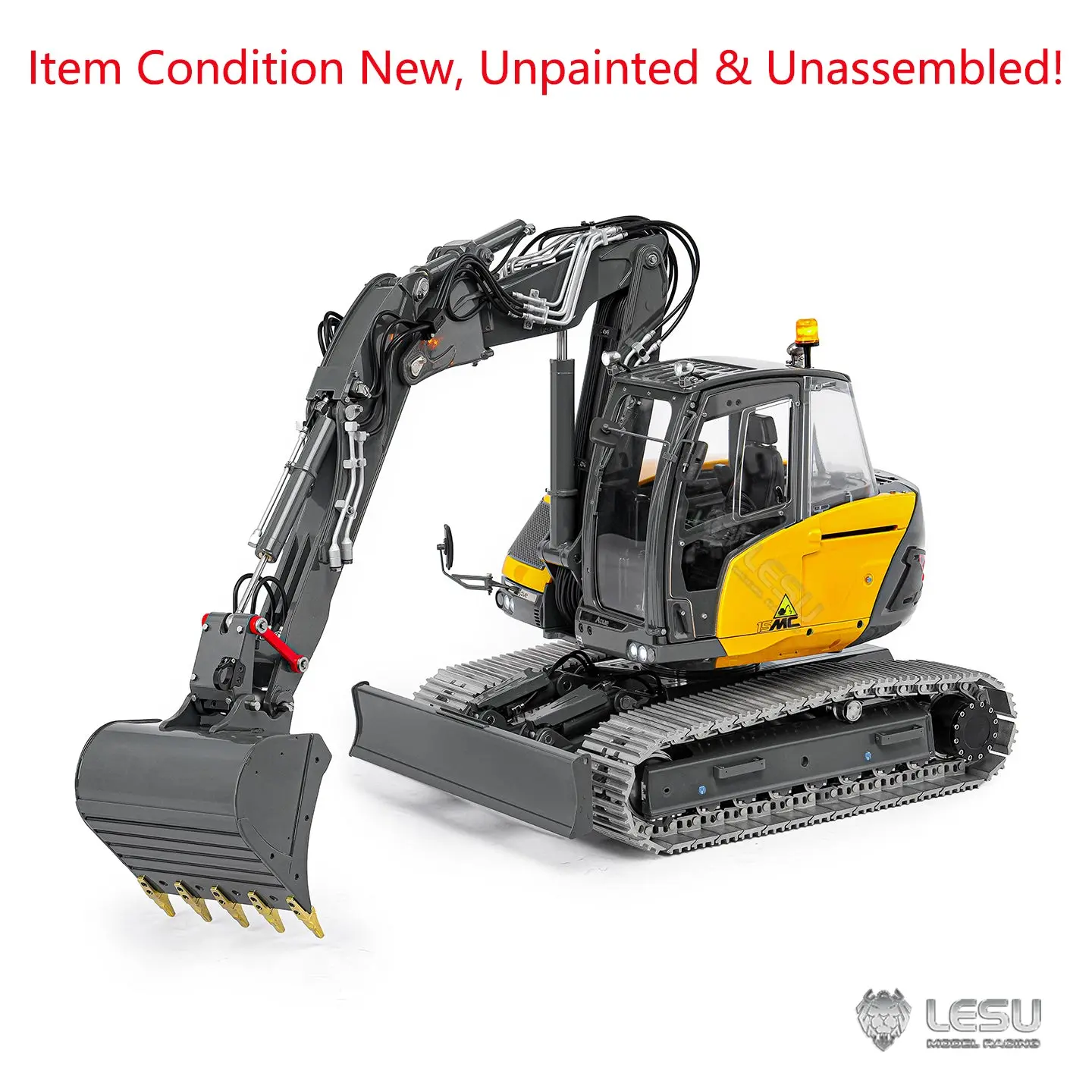

LESU MC15 4 Arms Metal 1/14 Hydraulic Remote Control Excavator KIT Model RC Digger Dual Pumps 9 Ways Valve Light Sound Motor

#LESU MC15 4 Arms Metal 1/14 Hydraulic Remote Control Excavator KIT Model RC Digger Dual Pumps 9 Ways Valve Light Sound Motor

#Specification:
Manufacturer: LESU
Item Condition: New, Unassembled
Scale: 1/14
Material: Metal, Plastic
Weight: 7.5KG
Color:Spray Paint Yellow and Deep Gray/Unpainted
Total Length of Excavator: 501MM
Total Width of Excavator: 207MM
Track Width: 43MM
Total Track Length: 246MM
Track Gauge: 141MM
Wheelbase: 189MM
Minimum Swing Radius: 79MM
Maximum Digging Height: 651MM
Maximum Dumping Height: 464MM
Maximum Digging Depth: 443MM
Maximum Digging Radius: 613MM
Maximum Ground Digging Radius: 603MM
Height from Ground to Cab Top: 237MM
Height from Ground to Working Platform Bottom: 75MM
Height from Ground to X-Frame Bottom: 37MM
Valve: 9-Way Valve
Pump: 2 Units
ID: LS-BA-B0042-MTrack-KIT-YDGY

#The Package Includes:
1/14 Painted and Unassembled Metal Hydraulic Excavator MC15
Motor
Servo
ESC
Dual Pumps Hydraulic System
Light System
Sound System

#The Package Does Not Include:
Flysky PL18EV LITE Radio System
Battery
Charger
Hydraulic Oil

#Features:
1.The drive system adopts a brushless motor paired with a large-reduction planetary gear module, featuring high efficiency, low heat generation, strong low-speed torque, and smooth operation.
2.The slewing system uses a brushed motor with a high-reduction-ratio reducer, providing reliable reliable output torque for the slewing system.
3.The hydraulic workstation is equipped with dual pumps: dual power sources, and two independent hydraulic systems. Balanced power distribution ensures overall movements are more coordinated, smooth, and linear.
4.The hydraulic system is fitted with a 9-way directional valve, offering rich and powerful functions. The excavator has 6 hydraulic circuits, 2 auxiliary hydraulic circuits, and 1 dedicated circuit for the slewing push blade?aproviding flexible arm operation while leaving room for compatible with more attachments.
5.The body shell is made of aluminum alloy via CNC machining, boasting a metallic texture while highly restoring real vehicle details. With 95% of parts made of metal (including full-metal tracks, walking frames, and counterweights), it ensures a stable and sturdy body.
6.Equipped with slidable aluminum alloy cab doors, whose pulley supports are CNC-machined for both realistic appearance and durability. The sliding door opening/closing method adds a novel touch.
7.The cab glass is made of colorless transparent acrylic sheets, ensuring overall transparency and sturdiness. Interior parts feature full-coverage design, made of ABS via mold opening with a sandblasted surface. The seat angle is adjustable to fit different realistic or simulated figure models.
8.A large flip-up hatch is installed on the right side of the working platform for easy replacement of batteries and remote control receivers. The front windshield wiper of the cab is embedded with rubber strips, enhancing playability.
9.The entire machine features a modular design with full-body lighting: 1 warning light, 3 top spotlights, and a total of 13 LED beads. Front and rear lights adopt an integrated lamp panel design for neater wiring.
10.A hidden high-decibel speaker is installed, with engine roar sounds combined with lighting to enhance the vehicle??£¤s playability and ornamental value.
11.The excavator??£¤s slewing assembly features an all-new design, integrating the electrical slip ring, oil slip ring, and platform slewing system into one.
12.The newly designed quick-attach structure for accessories is highly realistic in both appearance and function, supporting diverse ways to load and unload attachments.
13.Each vehicle is installed with an exclusive nameplate, and every nameplate has a unique serial number.
