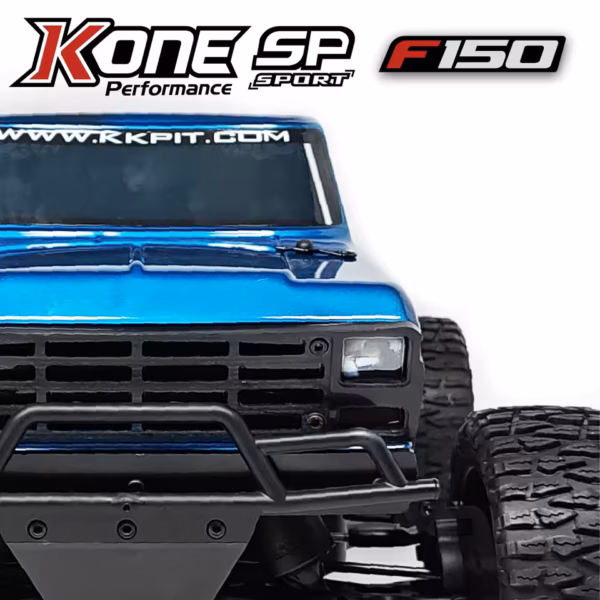

KKPIT 1/10 Scale Electric Remote Control Short Course Truck – F150 Edition
Overview
Meet the KKPIT KBT SP, a robust and sophisticated 1/8 scale desert truck that brings together cutting-edge engineering and bold, refined styling. Built on a modified KONE platform, its signature Deep Blue Remastered Edition finish demands attention wherever it drives. Designed for serious off-road performance, this truck embodies precision, strength, and dynamic control.
Dimensions & Build
-
Scale / Model Type: 1/8 Desert Truck
-
Chassis Type: KBT SP (distinct from KONE, with tailored engineering enhancements)
-
Physical Specs:
-
Length × Width × Height: 590 × 280 × 210 mm
-
Adjustable Wheelbase: 356–360 mm
-
Ground Clearance: 40 mm
-
-
Battery Fitment: Compatible with packs sized 144–165 mm (L) × 51 mm (W) × 65 mm (H)
Drivetrain & Mechanical Precision
-
Drive System: Full-time 4WD with three differentials ensures balanced power distribution.
-
Transmission Elements:
-
Dog bone intermediate shaft (Ø 4.5 mm)
-
CVD four-wheel drive shafts (Ø 4 mm)
-
-
Motor Set-Up: Adjustable 6061-T6 aluminum motor mount accommodating 36×42 up to 78-sized motors
-
Gear Components: Hardened KKPIT14T steel pinions for reliability
Suspension & Handling
-
Suspension: Four-wheel independent layout
-
Shocks: Durable metal shock absorber buckets on both front and rear
-
Geometry: Precision Ackermann steering configuration
Material Excellence
Every structural part—from chassis base to arms, steering column, and connectors—is machined from premium 7075-T6 aluminum, ensuring rigidity and responsiveness under harsh conditions.
Why It Stands Out
-
Built Tough: CNC-machined aerospace-grade aluminum offers uncompromised durability and precision.
-
Optimized for Desert Running: With a wide stance, balanced wheelbase, and high ground clearance, performance across dunes and rough terrain is outstanding.
-
Engineered Performance: The 4WD system, robust drivetrain, and hardened gears offer both reliability and power delivery.
-
Visual Impact: The Deep Blue Remastered Edition gives it a head-turning aesthetic, while the transparent shell option is available for custom painting or decals.
Whats included:
- The KBT Kit
- Wheels and tyres
- ESC & motor Combo
- 2x 2S Batteries
Required to complete
Transmitter and reciever set.
Full Specification Table
| Specification | Details |
|---|---|
| Scale / Type | 1/8 Desert Truck – KBT SP Chassis |
| Dimensions (L × W × H) | 590 × 280 × 210 mm |
| Wheelbase | Adjustable 356–360 mm |
| Ground Clearance | 40 mm |
| Battery Space | 144–165 × 51 × 65 mm |
| Drive System | Full-time 4WD with 3 differentials |
| Transmission | 4.5 mm dog bone shaft; 4 mm CVD shafts |
| Motor Mount | 6061-T6 aluminum, fits 36–78-sized motors |
| Gear Material | KKPIT14T hardened steel |
| Suspension | Independent 4-wheel with metal shocks |
| Steering | Ackermann geometry |
| Materials | 7075-T6 CNC aluminum throughout |
| Body Options | Deep Blue Remastered; Transparent |
Closing Thoughts
The KKPIT KBT SP Desert Truck is a performance powerhouse designed for off-road enthusiasts who demand strength, precision, and style. Its premium build quality and dynamic geometry make it ideal for dune running and desert racing—or customizing into a competitive rig. The dramatic Deep Blue finish delivers both flair and function.
Frequently Asked Questions
This is a kit for experienced and expert builders—it requires assembly and technical knowledge of RC mechanics. If you're new to RC, consider starting with a ready-to-run model or a simpler kit before tackling this one.
The truck is compatible with battery packs measuring 144–165 mm (length) × 51 mm (width) × 65 mm (height). For exact charging times and voltage requirements, consult the manual that comes with your specific battery pack.
This is supplied as a kit, meaning the chassis, drivetrain, and structural components require assembly. You will need to source a compatible motor, battery, and radio control system separately unless specified otherwise in your purchase.
The truck measures 590 mm long × 280 mm wide × 210 mm high (approximately 59 cm long), making it a substantial 1/8 scale model suited for outdoor terrain, gardens, or open spaces rather than indoor use.
The truck features full-time 4WD with three differentials for balanced power, four-wheel independent suspension with metal shock absorbers, Ackermann steering geometry, and 40 mm ground clearance—all engineered for serious desert and rough terrain driving.
