JXModel 1/14 E20 Mini RC Hydraulic Excavator Upgraded Remote Control Digger Simulation Construction Vehicle Models Sounds Light

This product is a desktop-level excavator model, with a net weight of only about 1.1KG. It is not suitable for digging soil.

?

Specification:

Manufacturer: JXModel

Item Condition: New, Assembled and Painted

Scale: 1/14

Material: Metal, Plastic

Vehicle Size: About 204*192*73mm

Net Weight: About 1.1KG

ID: JXM-E20-Excavator-RTR-WBK

?

The Package Includes:

1/14 RC Excavator Model

Motor

Servo

ESC

Hydraulic System with a 4-way Reversing Valve

Lights

Sound System

FlySky I6S Remote Controller and Receiver

Battery

?

The Package Does Not Include:

Light System

Charger

Hydraulic Oil

?

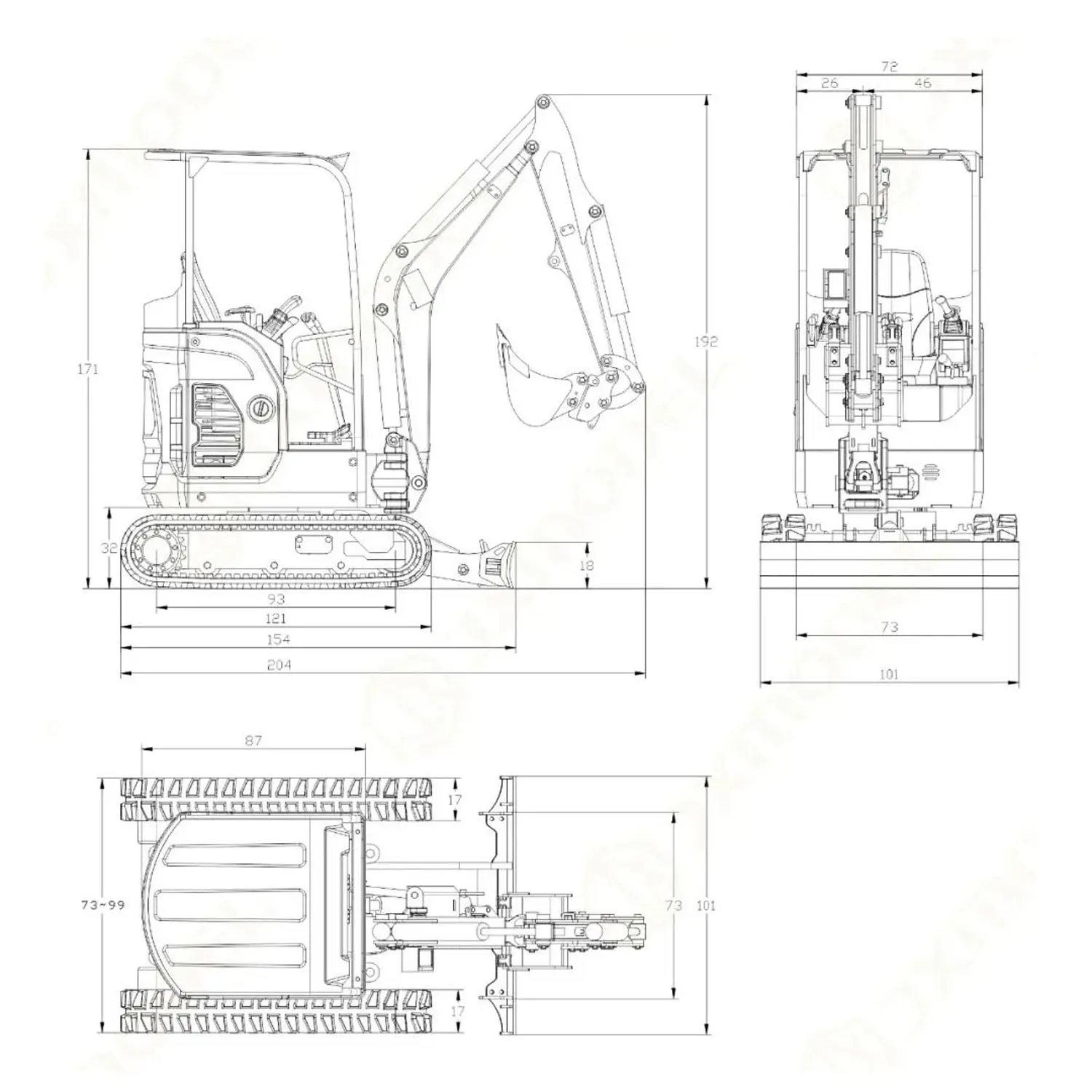

Static Technical Parameters:

– Cab top height above ground/mm: 171

– Platform bottom height above ground/mm: 32

– Total track length/mm: 121

– Wheelbase (center distance between drive wheel and guide wheel)/mm: 93

– Single track width/mm: 17

– Total width with front/rear two tracks extended/mm: 73-99

– Maximum extension length of the entire machine/mm: 429

– Total width of the entire machine with extended push shovel front/rear/mm: 73-101

– Chassis length (from track to front shovel)/mm: 154

– Shovel working face height/mm: 18

?

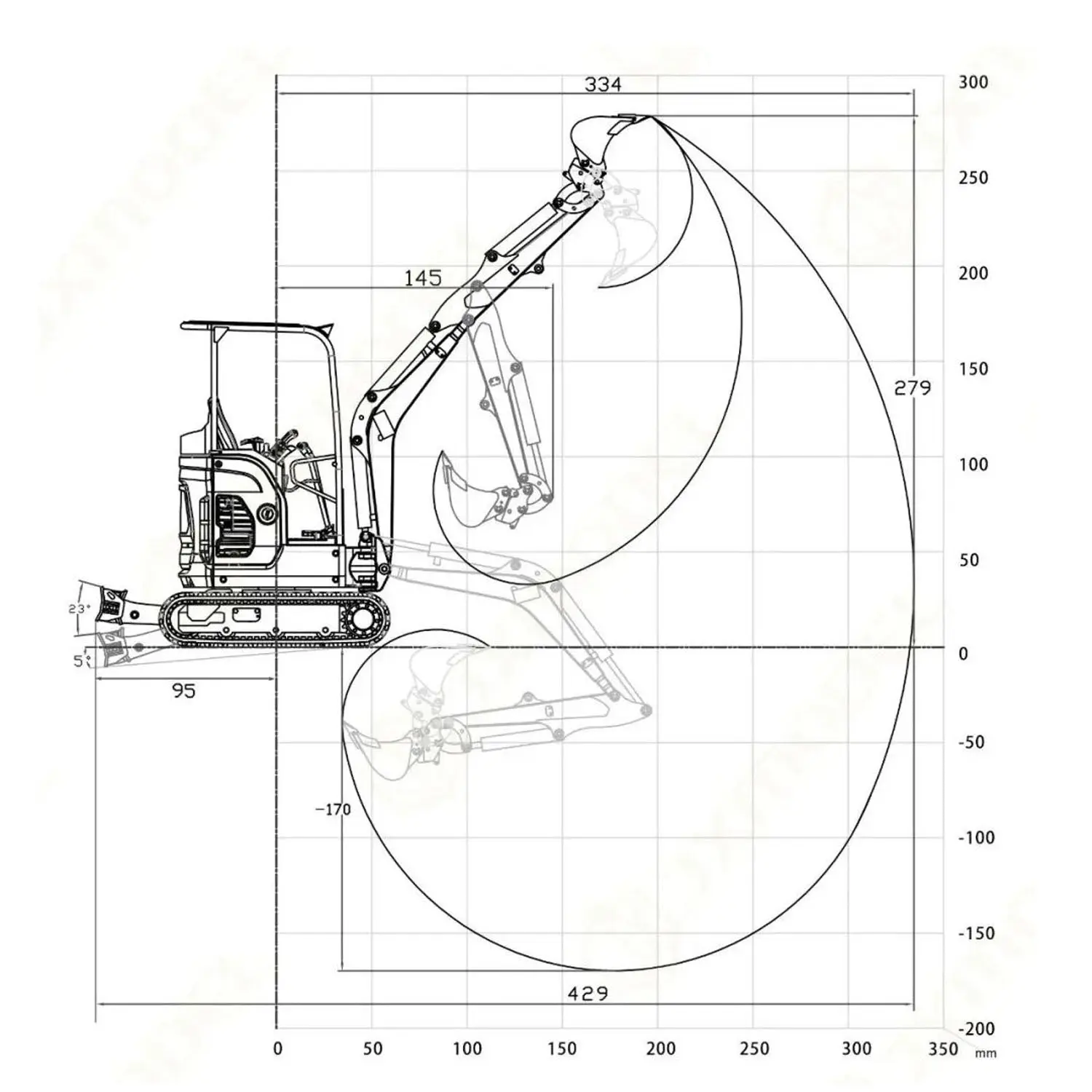

Dynamic Technical Parameters:

– Maximum rotation angle of the shovel/??: 23

– Maximum track lift angle when the shovel is raised/??: 5

– Minimum turning radius during operation/mm: 145

– Maximum turning radius during operation/mm: 334

– Maximum digging height/mm: 279

– Maximum digging depth/mm: -170

– Maximum rotation angle/??: 360+ (infinite rotation)

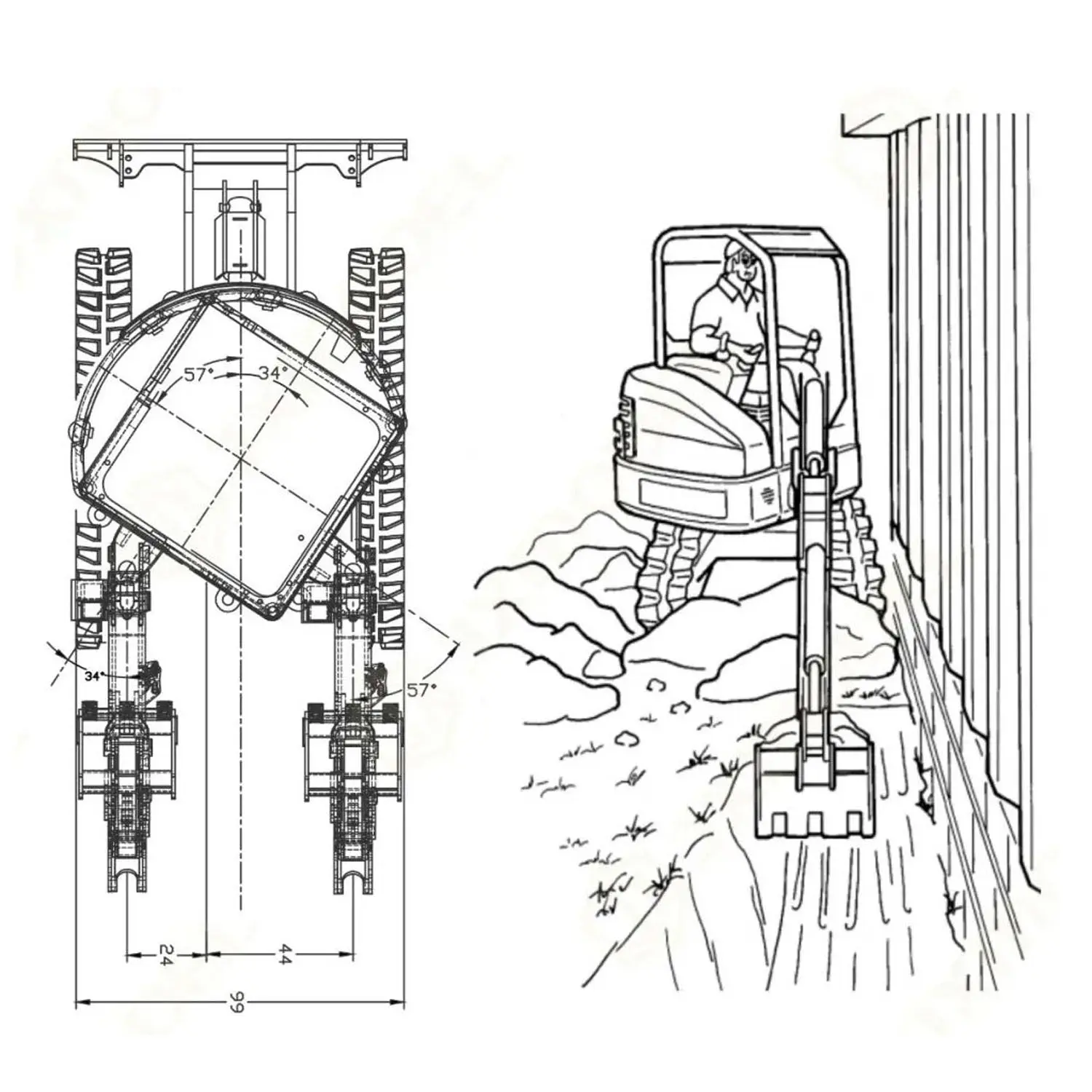

– Main arm horizontal rotation angle/??: Left 34 – Right 57

– Platform rotation speed (r/min): 36

– Platform rotation motor reduction ratio: 1:546

– Walking drive wheel track (r/min): 30

– Walking drive motor reduction ratio: 1:603

– Maximum pressure of hydraulic workstation/mpa: 2

– Rated pressure of hydraulic workstation/mpa: 1.5

?

Features:

1. Premium Alloy Construction:

?? – The entire main body is crafted from high-quality alloy using CNC machining or stainless steel sheet metal.

?? – Other components utilize engineering plastics and rubber for durability.

?

2. Compact and Powerful Design:

?? – Remarkably miniaturized, the excavator features an integrated setup with 4-channel valves comes with upgraded 8.4V servos, an oil pump, , radiator cooling fan, hydraulic tank, battery, integrated motherboard, and a sound system with speakers.

?

3. Portable and Fully Functional:

?? – With its miniature dimensions, the excavator offers a complete range of functionalities.

?? – Convenient to carry around, it provides desktop-level enjoyment wherever you go.

?

4. Expandable Features:

?? – Designed with reserved interfaces for quick attachment of additional tools and electric accessories.

?? – Ongoing releases of compatible attachments for continuous customization.

?

5. Customized Integrated Motherboard:

?? – Highly integrated custom motherboard equipped with illuminating searchlights for enhanced visual appeal.

?

6. Quick Manual Detachment:

?? – Features a manual quick-detach mechanism for efficient and user-friendly operation.

?
