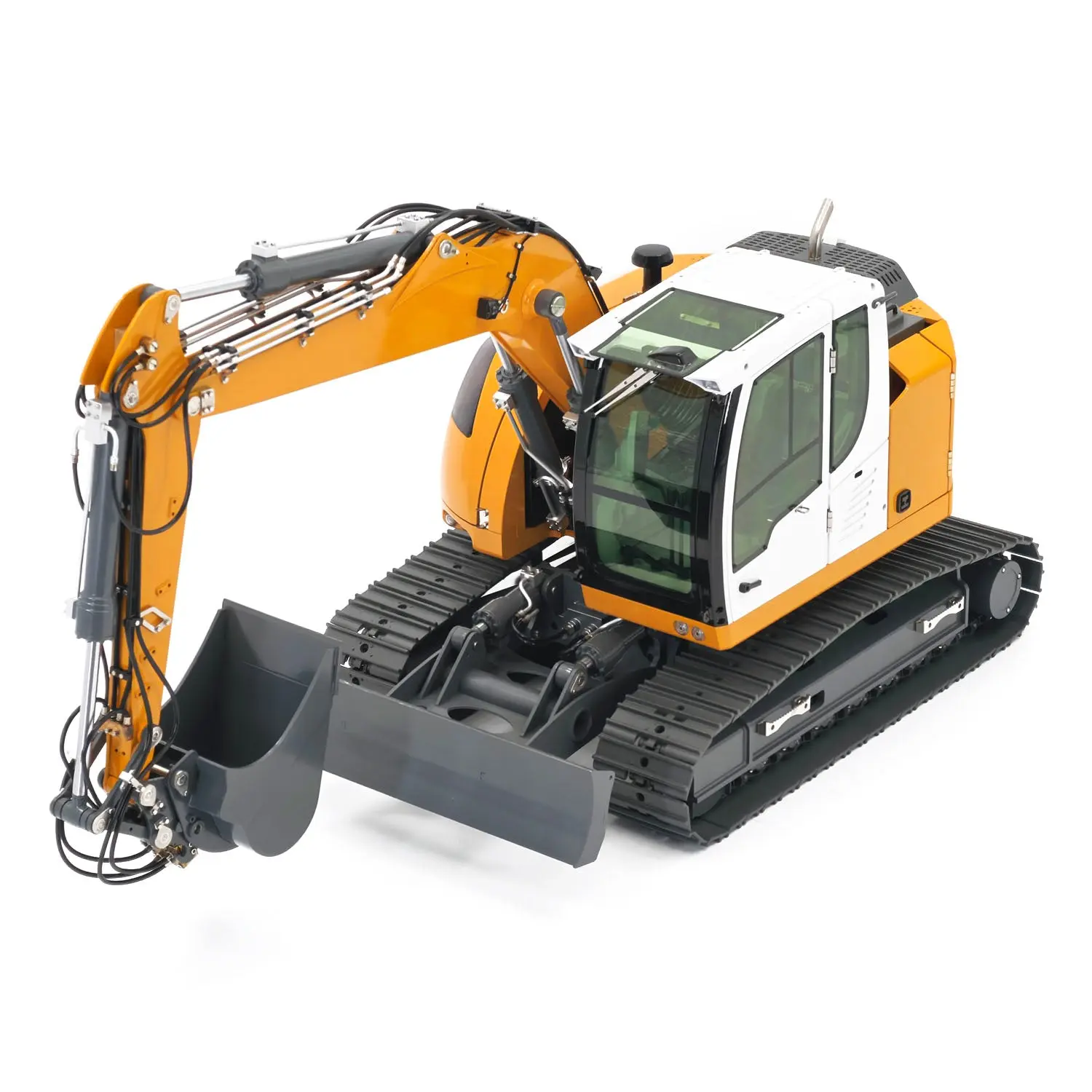

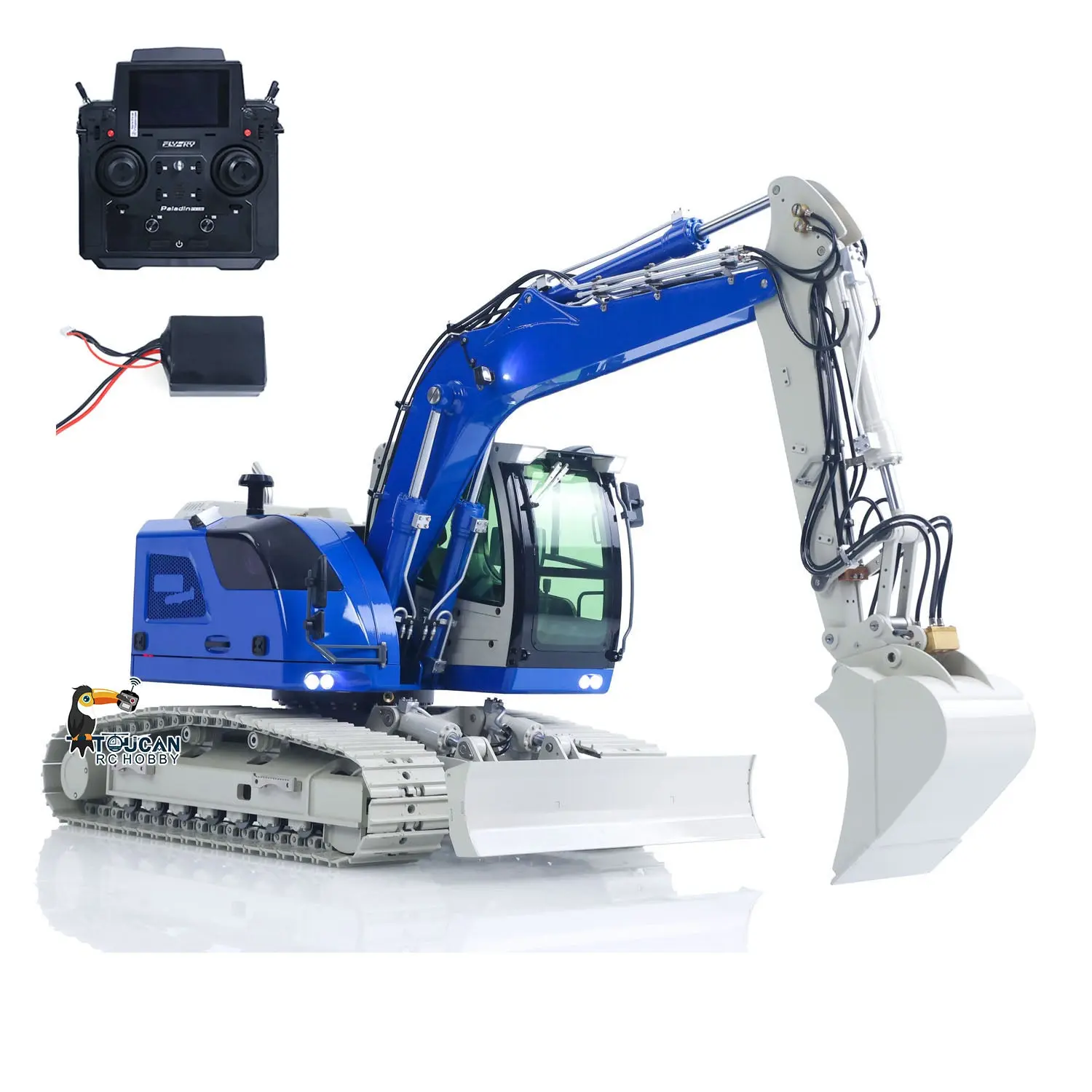

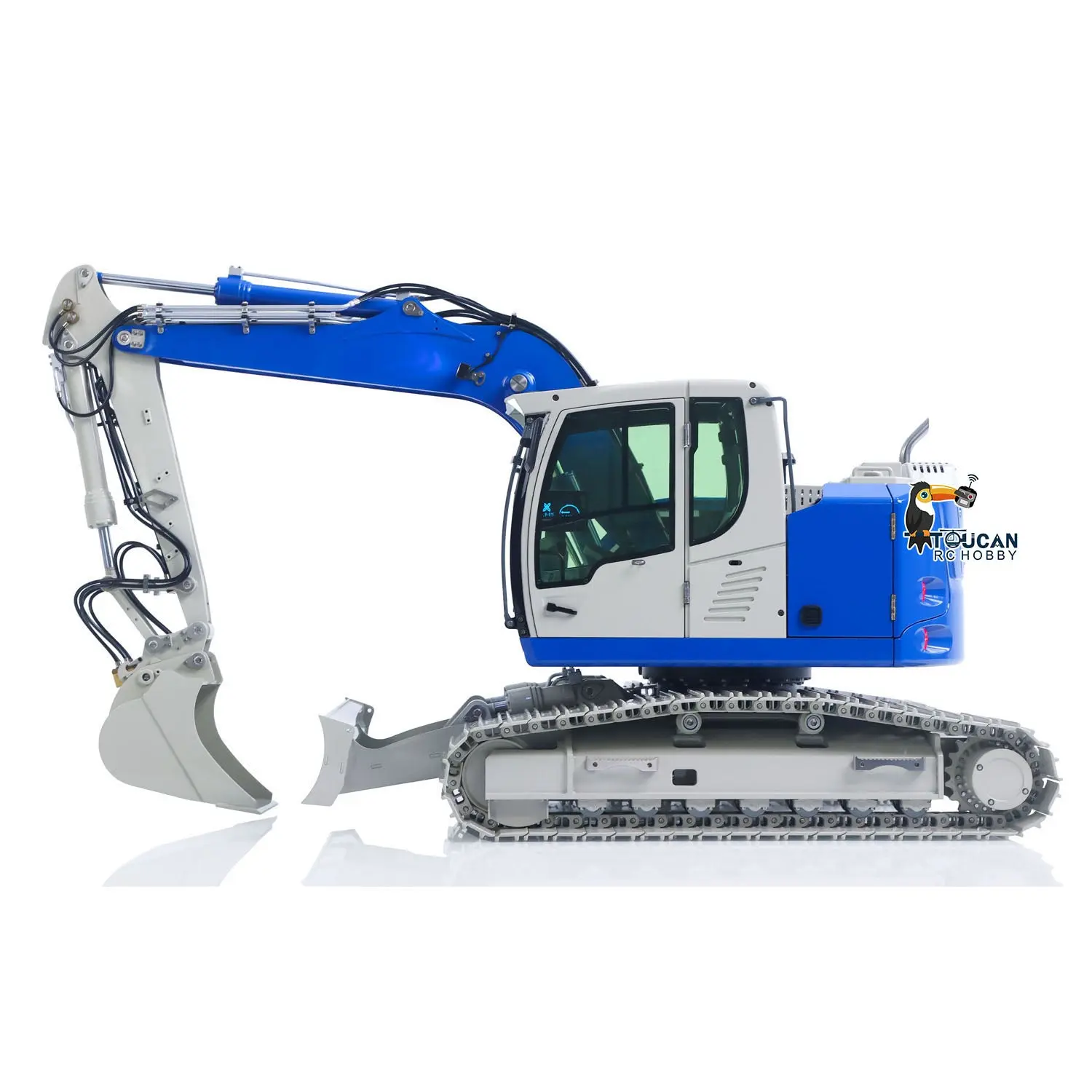

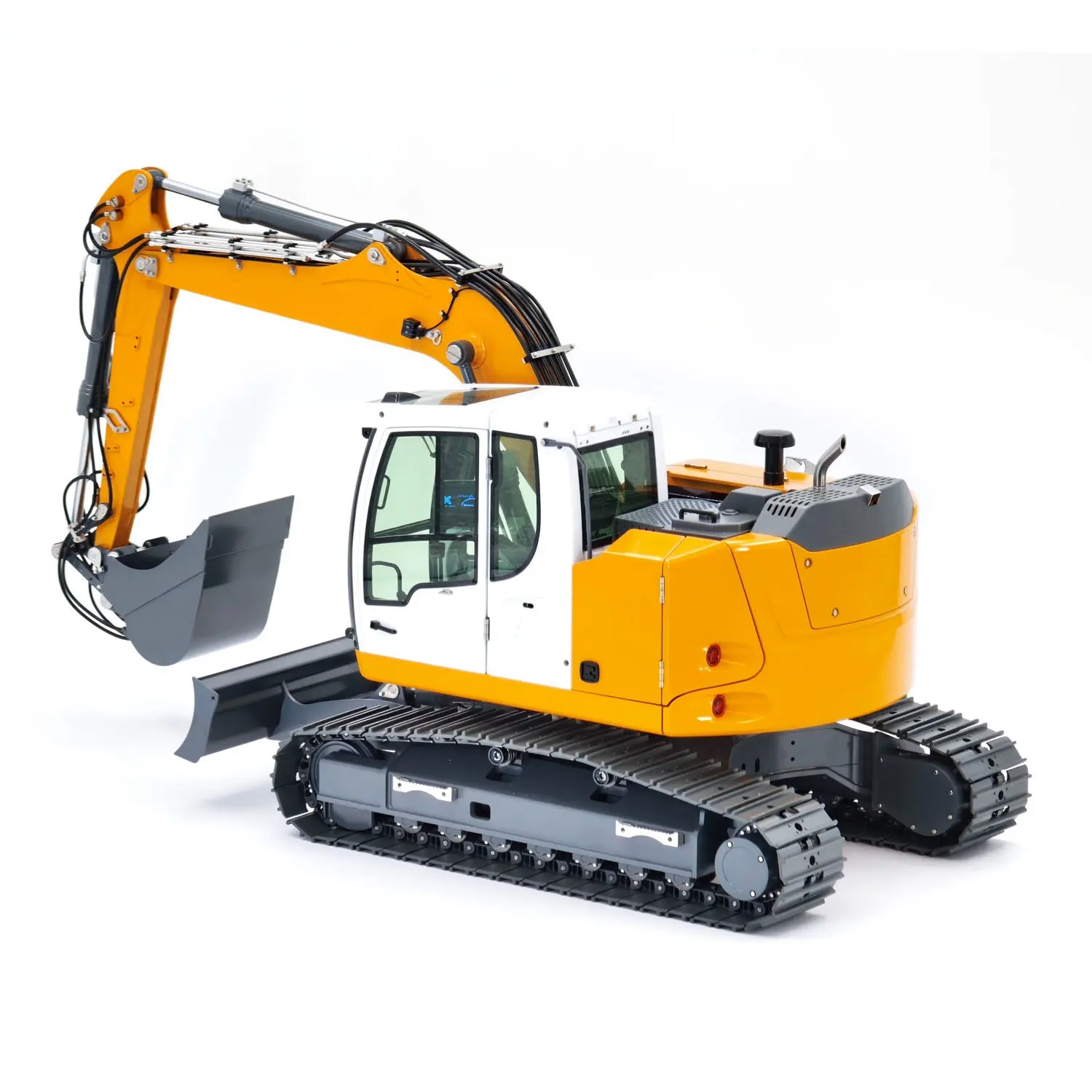

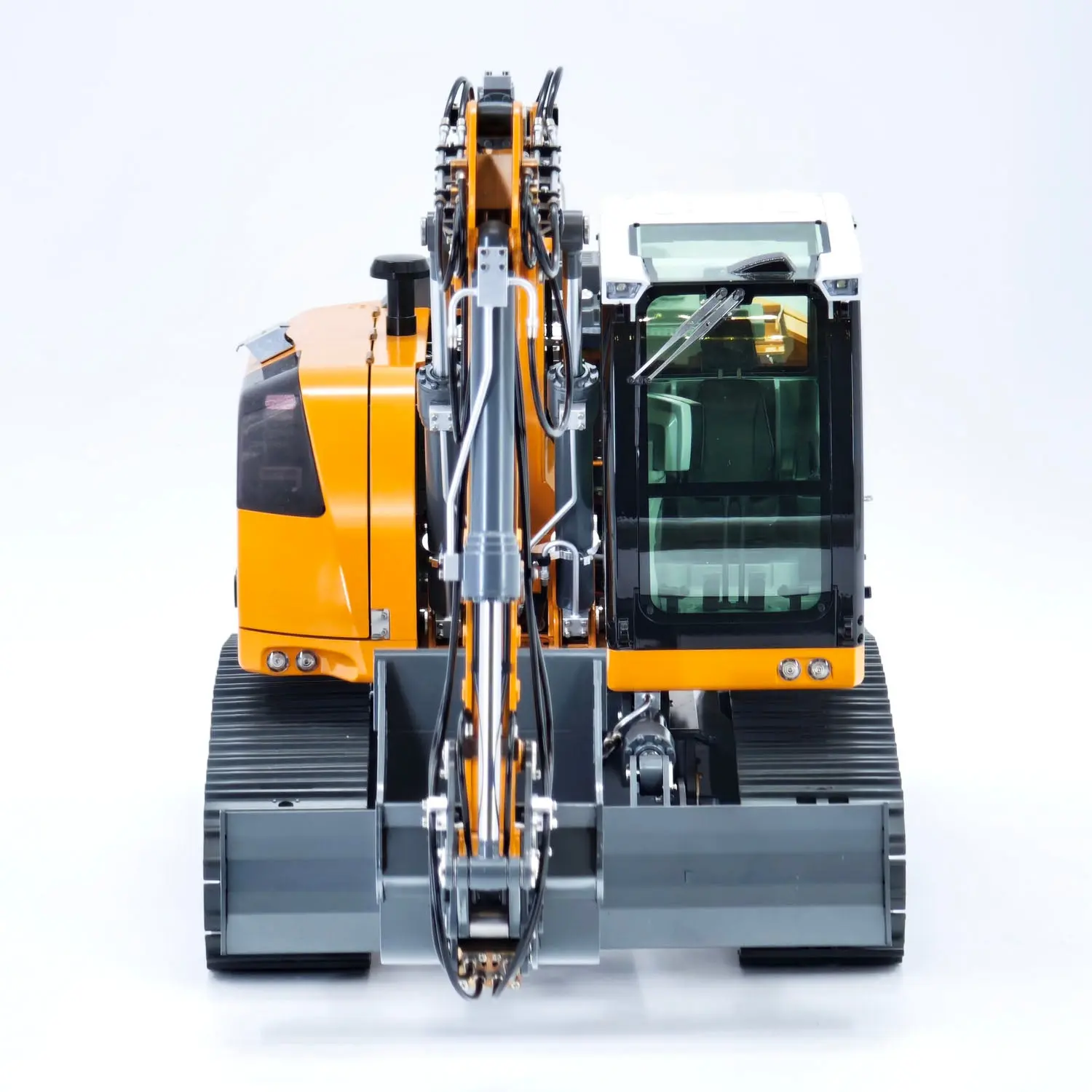

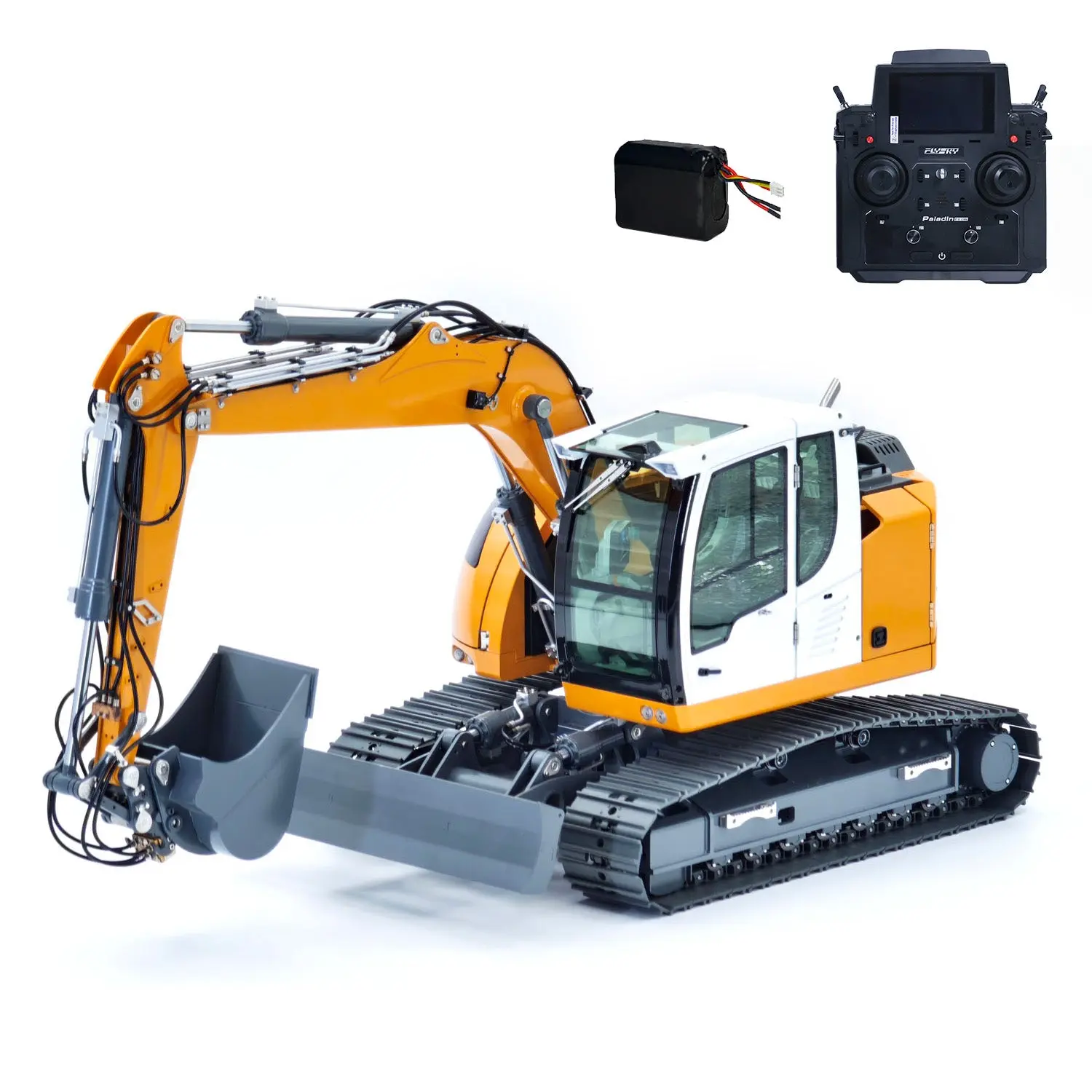

JDM-208 1/14 7CH Remote Control Hydraulic Excavator R920 2Arms Metal RC Digger Flysky PL18 EV Lite Sound System Quick Coupler

#Specification:
Manufacturer: JDM
Scale: 1/14
Item Condition: New, Painted and Assembled
Material: Metal, Plastic (Most of the parts are made of metal, with the exception of the cabin glass and some decorative parts made of plastic)
Size: 504.4*213*221MM/19.9*8.4*8.7Inches
Net Weight: About 8.3KG
ID: JDM-208W-R920-HExcavator-7CH-RTR-YW

#The Package Includes:
1/14 RC Hydraulic Excavator Model
ESC
Motor
Servo
Light System
Sound System
Hydraulic Quick Release Coupler
Hydraulic System with 7-ways Reversing Valve
Integrated Pump and Oil Tank

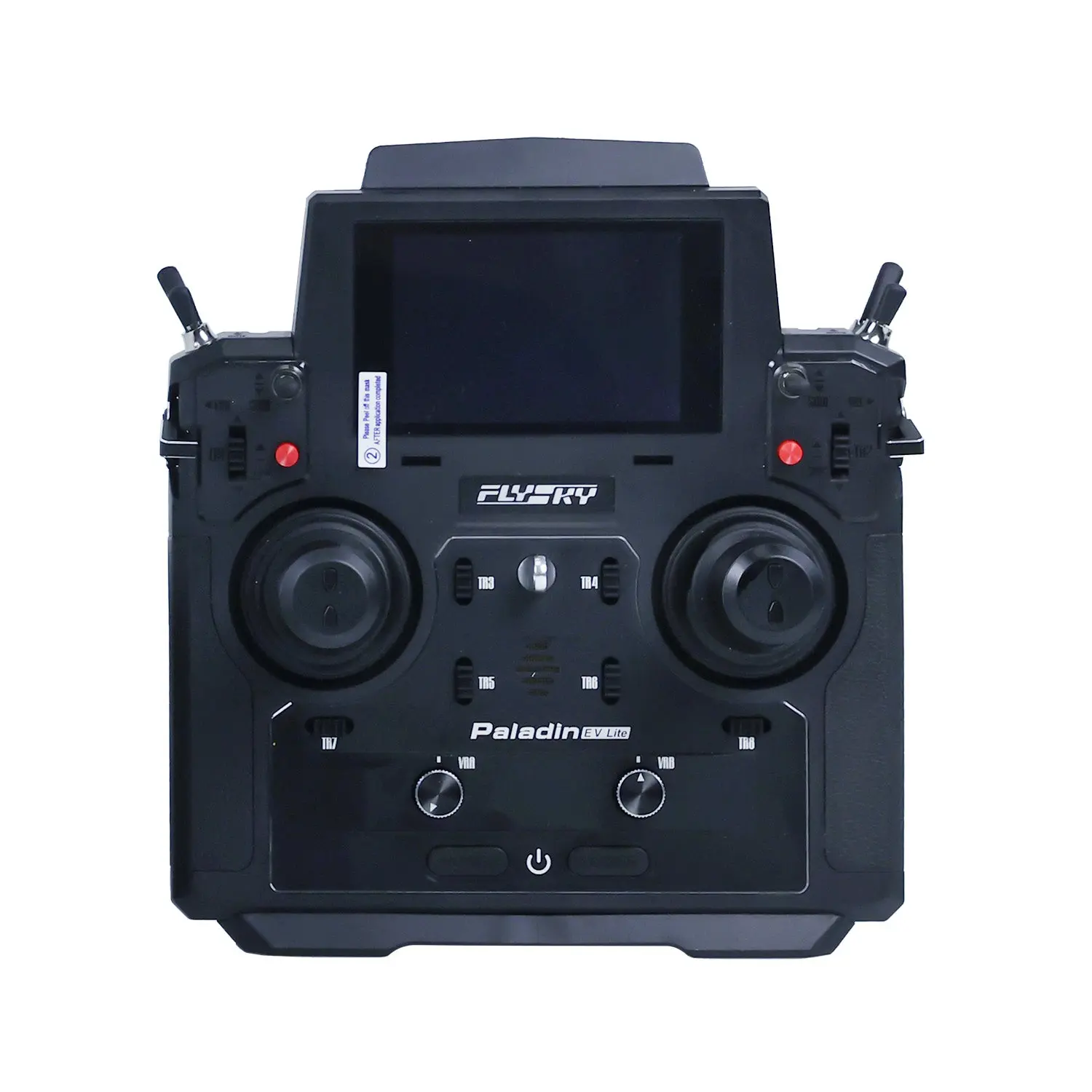

FlySky PL18 EV Lite Remote Controller and Receiver
Vehicle Battery
Cooling Fan

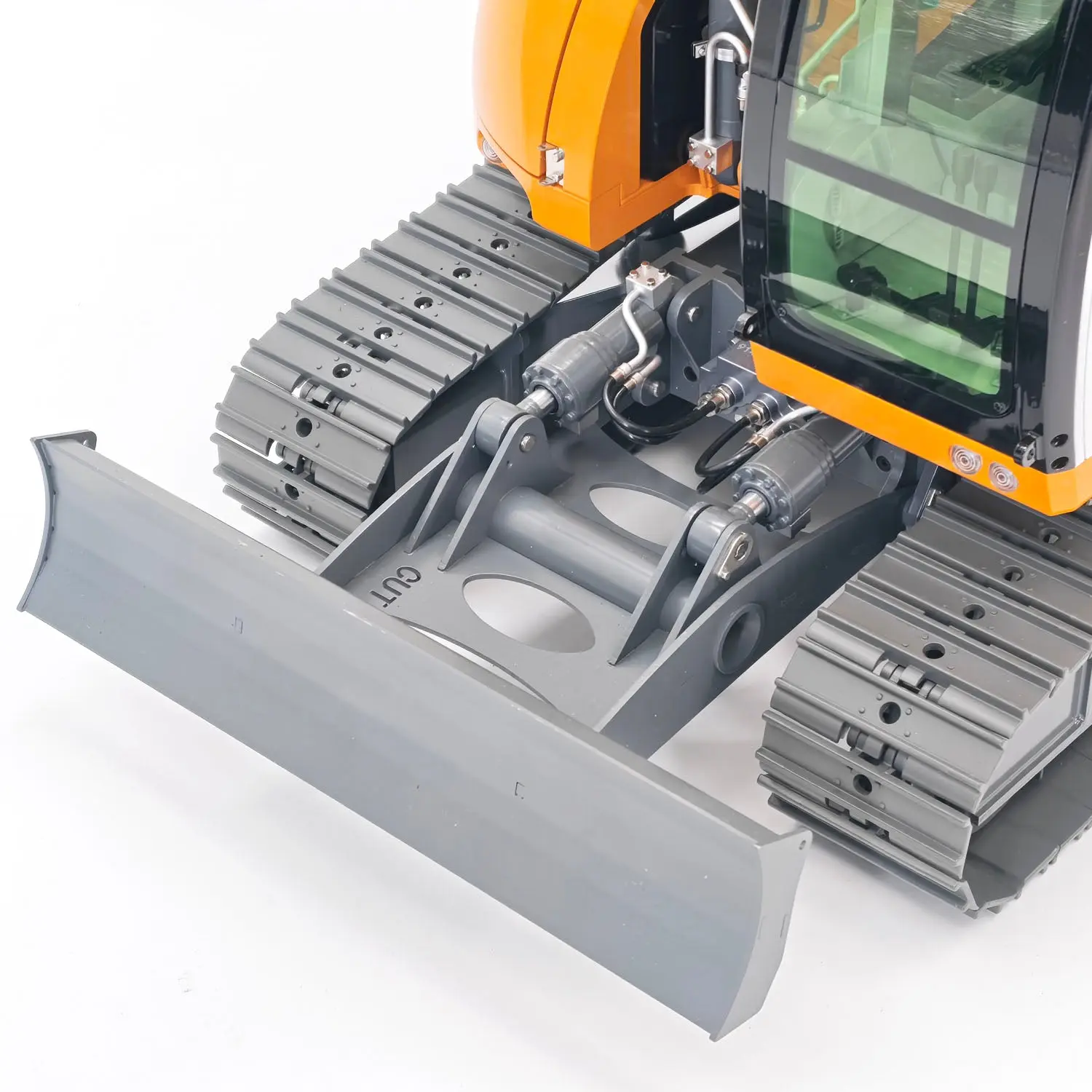

Hydraulic Blade

#The Package Does Not Include:
Charger
Hydraulic Oil

#Static Parameters
– Body width (mm): 194
– Ground clearance at upper edge of tracks (mm): 69.3
– Ground clearance at top of body (excluding exhaust pipe) (mm): 184.6
– Ground clearance at top of cab (excluding protective net) (mm): 221.3
– Ground clearance of counterweight (mm): 80.9
– Wheelbase (mm): 239.1
– Standard track width (mm): 50
– Distance between tracks (mm): 163
– Maximum width of the chassis (mm): 213

#Dynamic Parameters
– Rotation angle (degree): 360 (infinite rotation)
– Torque of worktable rotation motor (kg): 25
– Rotation speed of the worktable (r/min): 9.5
– Single cylinder thrust (kg): 15
– Maximum speed of drive wheels (r/min): 30
– Drive wheel reduction ratio: 1/256
– Maximum pressure of hydraulic system (MPa): 4
– Rated pressure of hydraulic system (MPa): 2.5

#Features:
1. CNC stainless steel body with ABS decorative parts for premium durability.
2. Upgrade options: rubber track pads, grippers, rippers, etc. for enhanced play.
3. Innovative proportional hydraulic valve ensures smooth, realistic excavator movements.

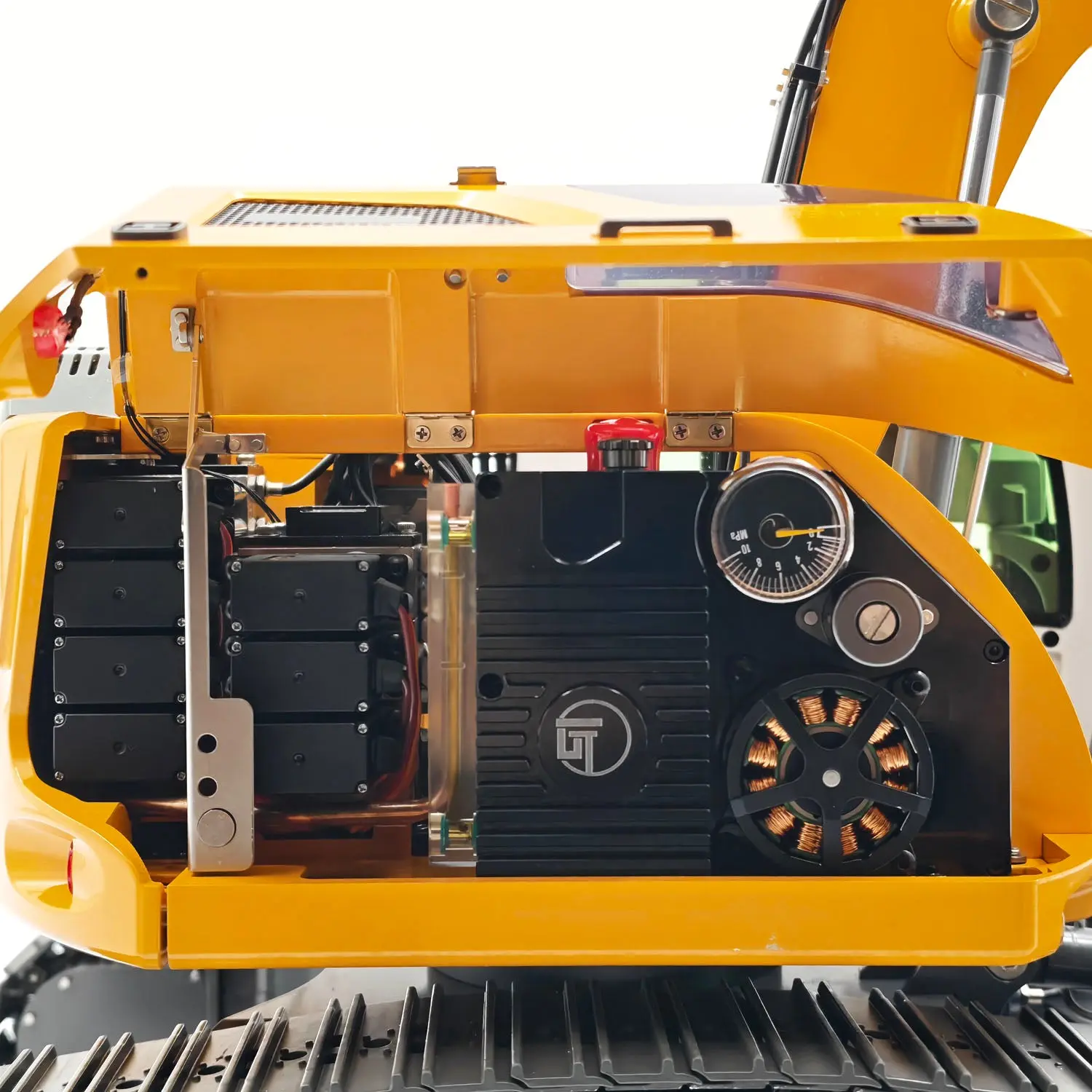

4. Integrated hydraulic pump station prevents leaks and simplifies maintenance.
5. One-piece CNC chassis with brushless motor delivers strong, stable drive.
6. Pre-drilled track links accept rubber pads for better grip and floor protection.

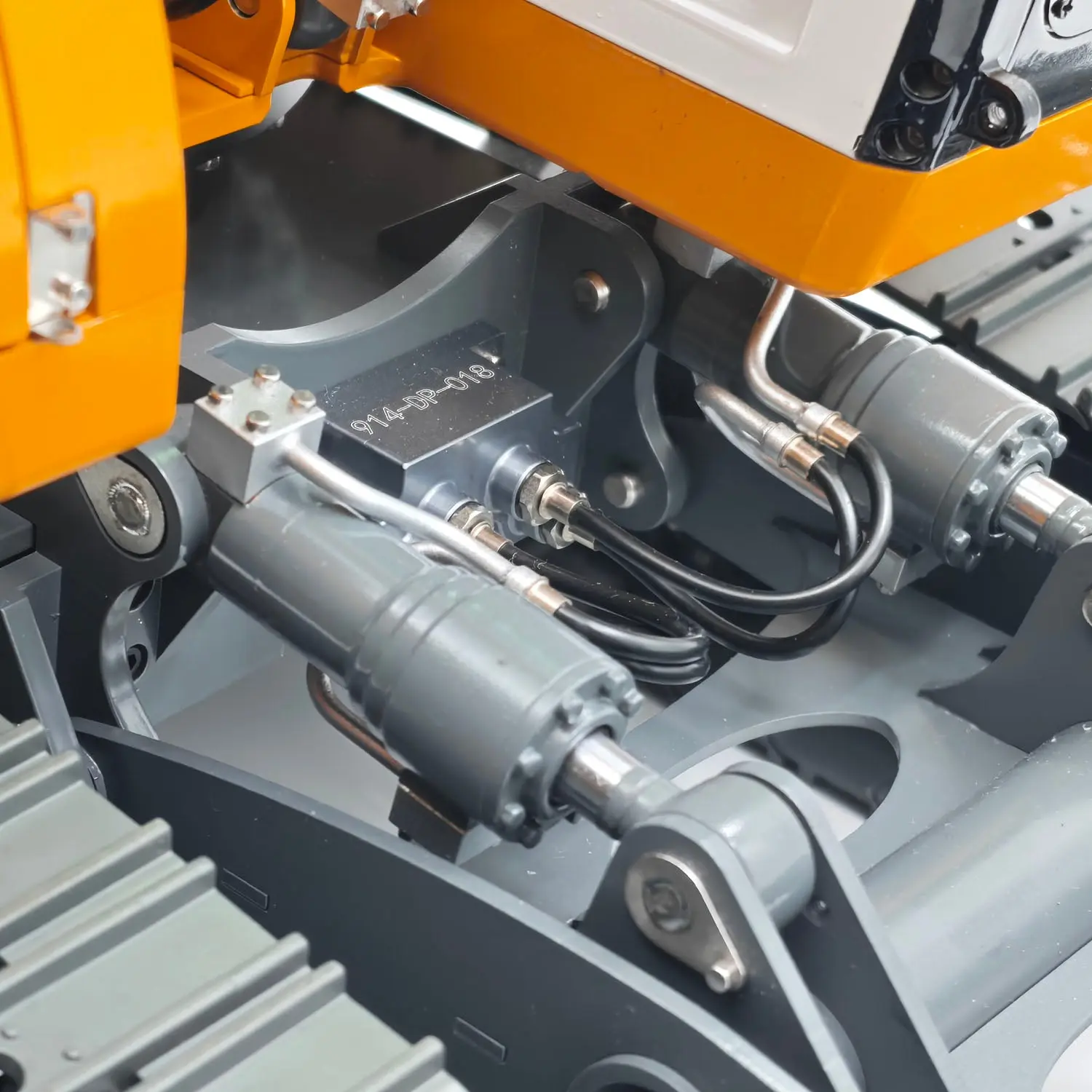

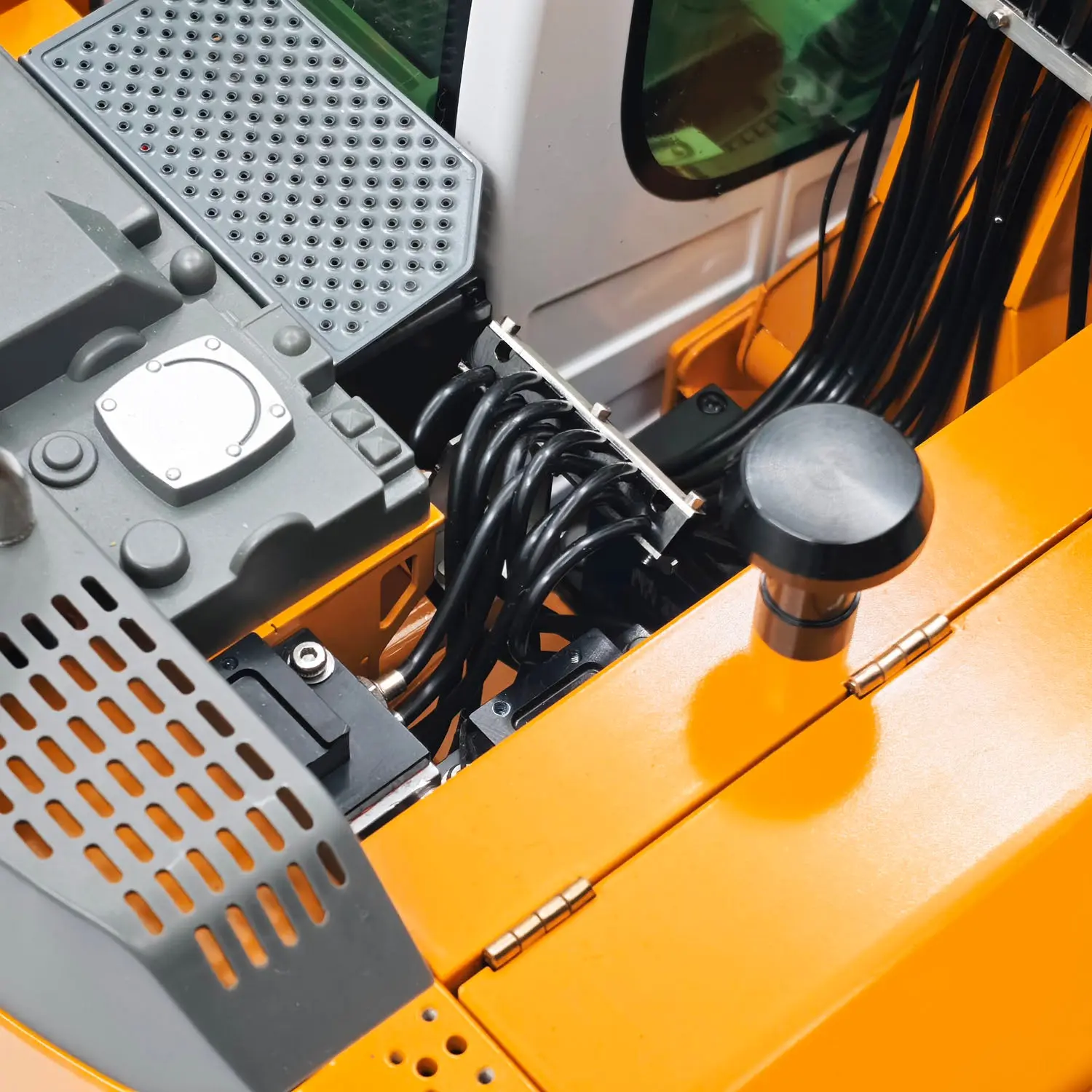

7. Star-sealed swivel joint and optimized cylinder design prevent oil leaks.
8. CNC stainless arms with pre-drilled holes allow easy customization and upgrades.

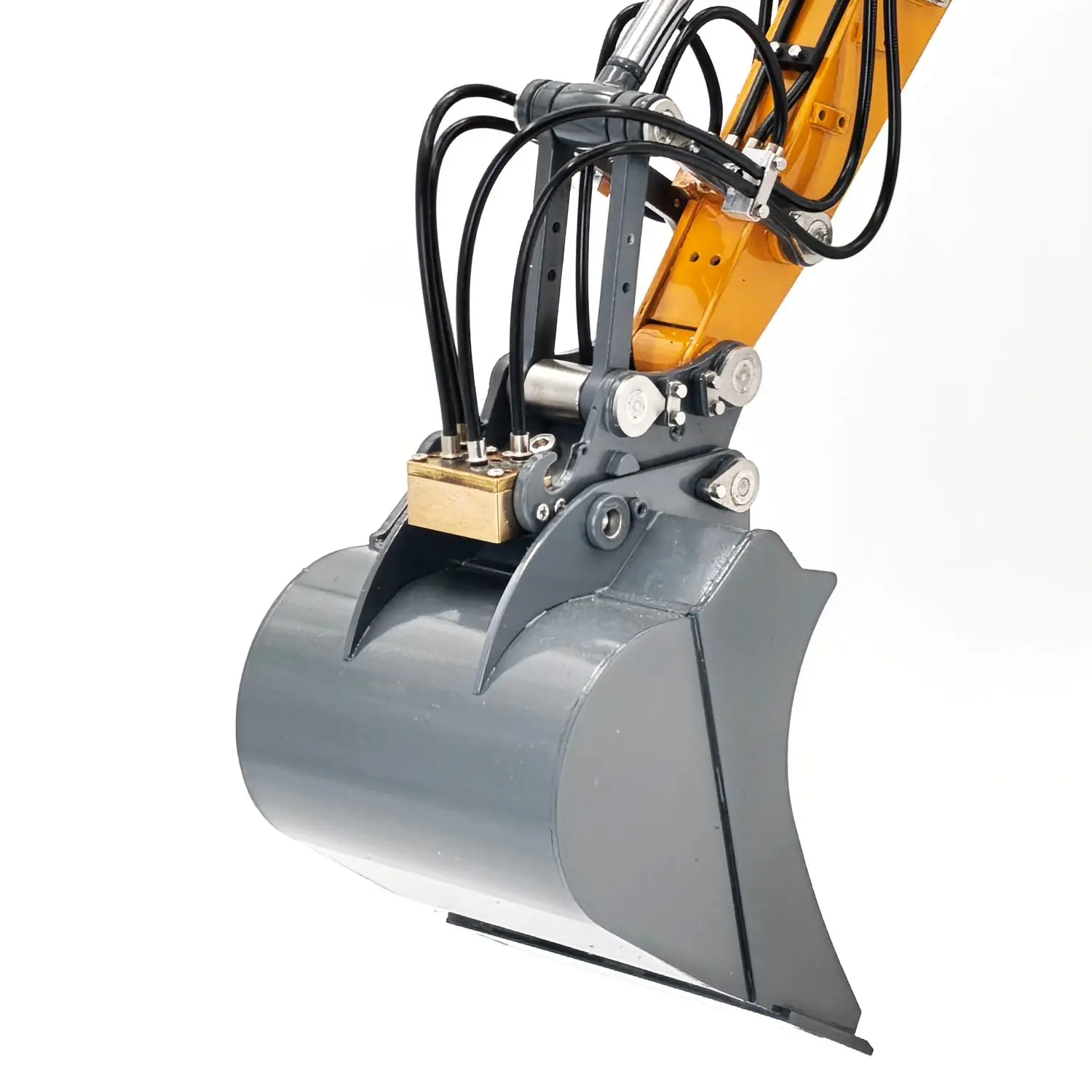

9. Hydraulic quick-couplers enable fast tool changes.
10. Dual cooling system maintains optimal temperature during heavy use.
11. Realistic sound system and hydraulic blade enhance functionality for a true heavy machinery experience.

#If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
