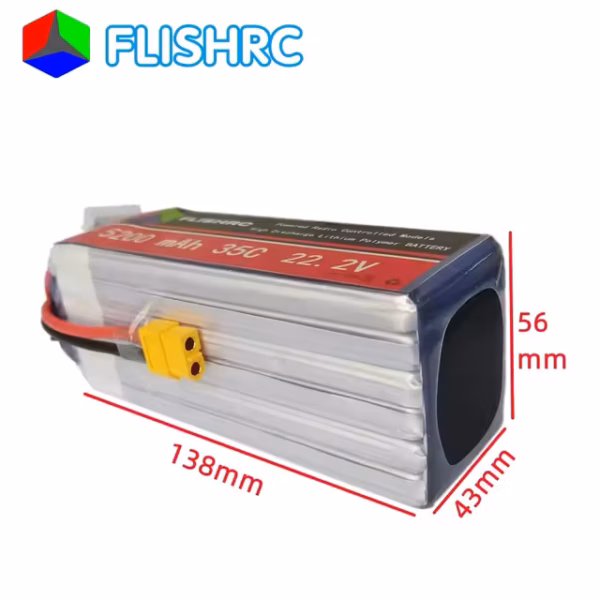

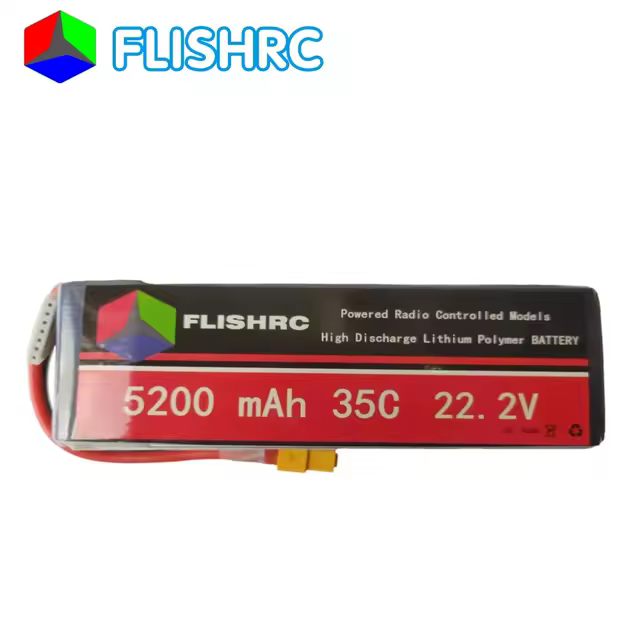

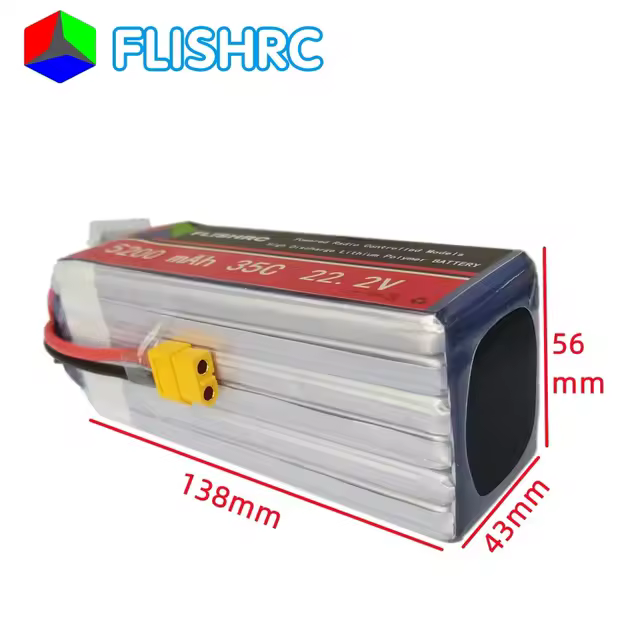

FLISHRC Lipo Battery 5200mAh 6S 22.2V 35C for FL500

FLISHRC 5200 mAh 35C 6S 22.2 V LiPo helicopter battery — a high-discharge lithium polymer flight pack engineered for FLISHRC scale RC helicopters. Fitted with the factory FLISHRC connector layout (XT60 power lead with JST-XH balance lead) so it drops straight into compatible airframes with no rewiring.

This is a helicopter battery — the high C-rating (35C continuous) is sized for the inrush current peaks a collective-pitch rotor head produces at full-positive. It is not intended as an RC car or buggy pack; the form factor and discharge curve are tuned for rotor-driven aircraft.

Specification

• Capacity: 5200 mAh
• Cell count: 6S (22.2 V nominal, 25.2 V fully charged)
• Discharge rate: 35C continuous
• Power connector: XT60
• Balance connector: JST-XH (7-pin)
• Chemistry: LiPo (lithium polymer)
• Manufacturer: FLISHRC (the OEM pack used in the factory RTF kits)

Compatible aircraft

Fits all FLISHRC 500-class V2 RTF kits and parts assemblies — AH-1 Cobra, AH-6 Little Bird, AH-64 Apache, A109, Airwolf, AS350 Squirrel, BO105, EC135, MD500D, MD500E, UH-1 Huey, UH-1N Bell 212, UH-60 BlackHawk, HH-60 JayHawk and SH-60 SeaHawk. Also the supplied flight pack with the AH-64 Apache RTR. The 5200mAh capacity gives the longest flight times of the FLISHRC 6S range, at the cost of slightly higher airframe weight than the 4300/4500 packs.

Charging and storage

• Use a balance charger set to LiPo, 6S, charge rate capped at 1C (5.20 A) for longest cycle life.
• Storage charge to 3.80 V/cell if leaving the pack longer than a week.
• Never charge unattended; never charge a swollen or damaged pack.
• Store and charge inside a LiPo-safe bag or fireproof container.

Shipping

Lithium polymer batteries are dangerous-goods classified — they ship by UK courier only and cannot travel by Royal Mail or international air post. We discharge to storage voltage before despatch in line with UN3480 carriage rules.
