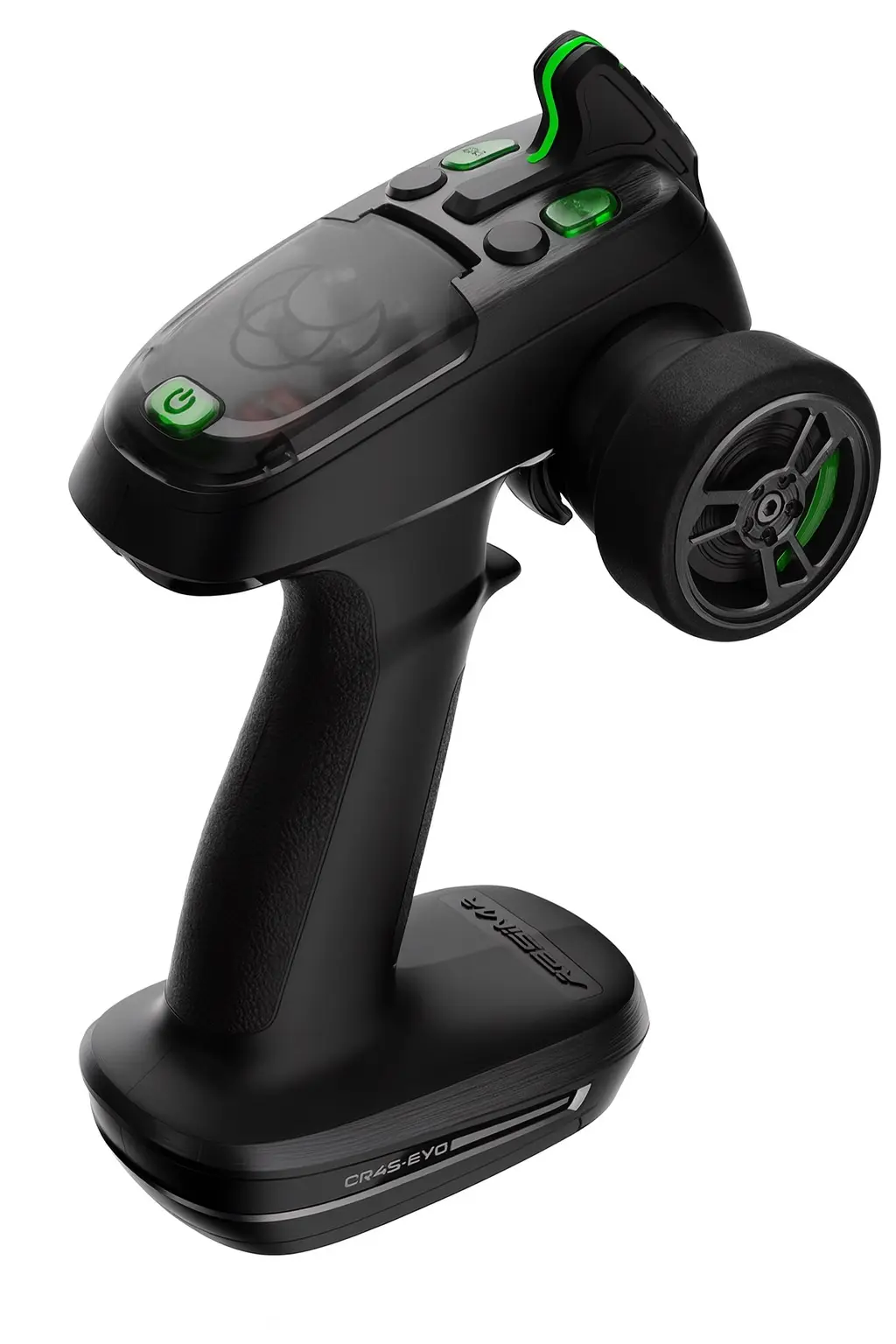

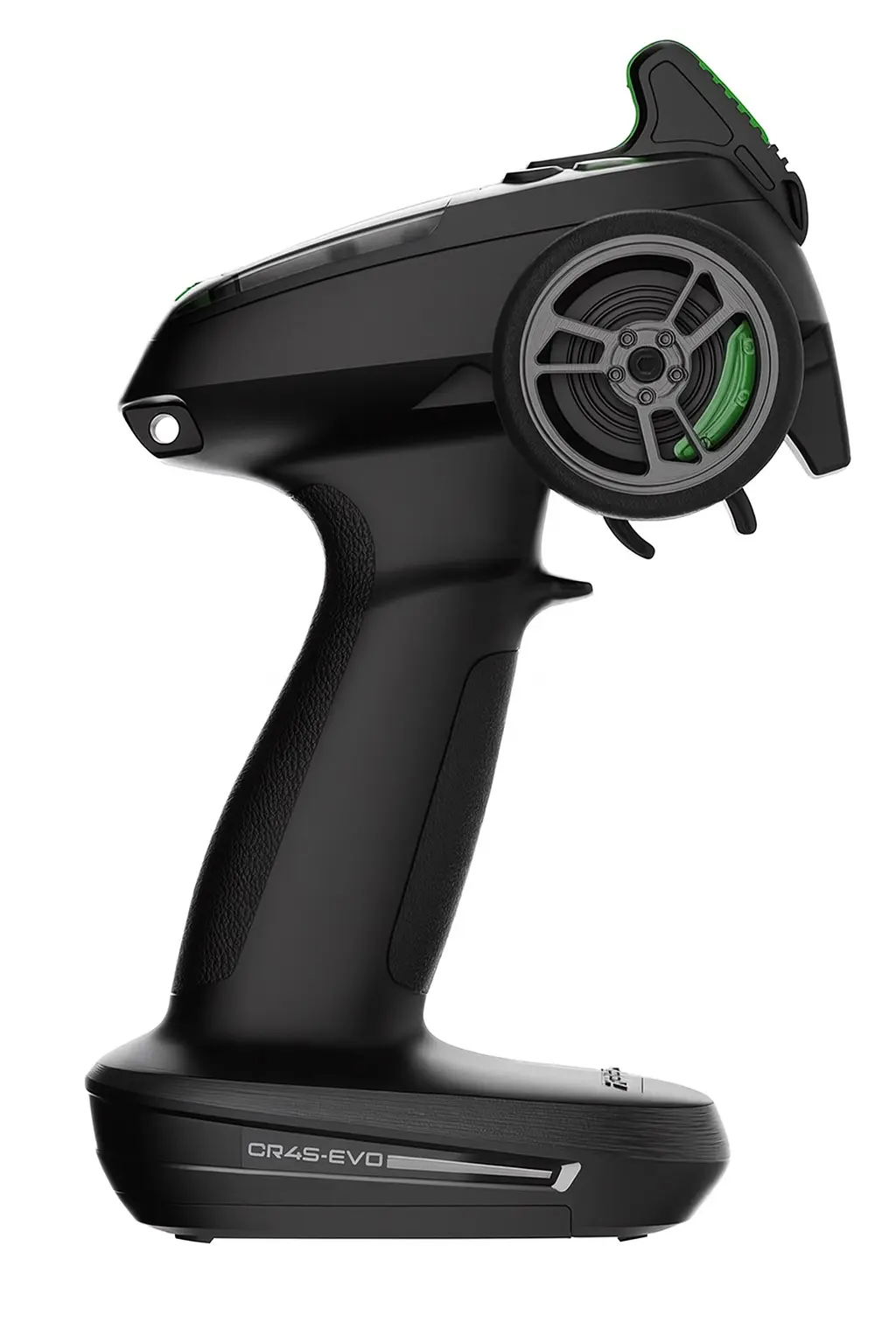

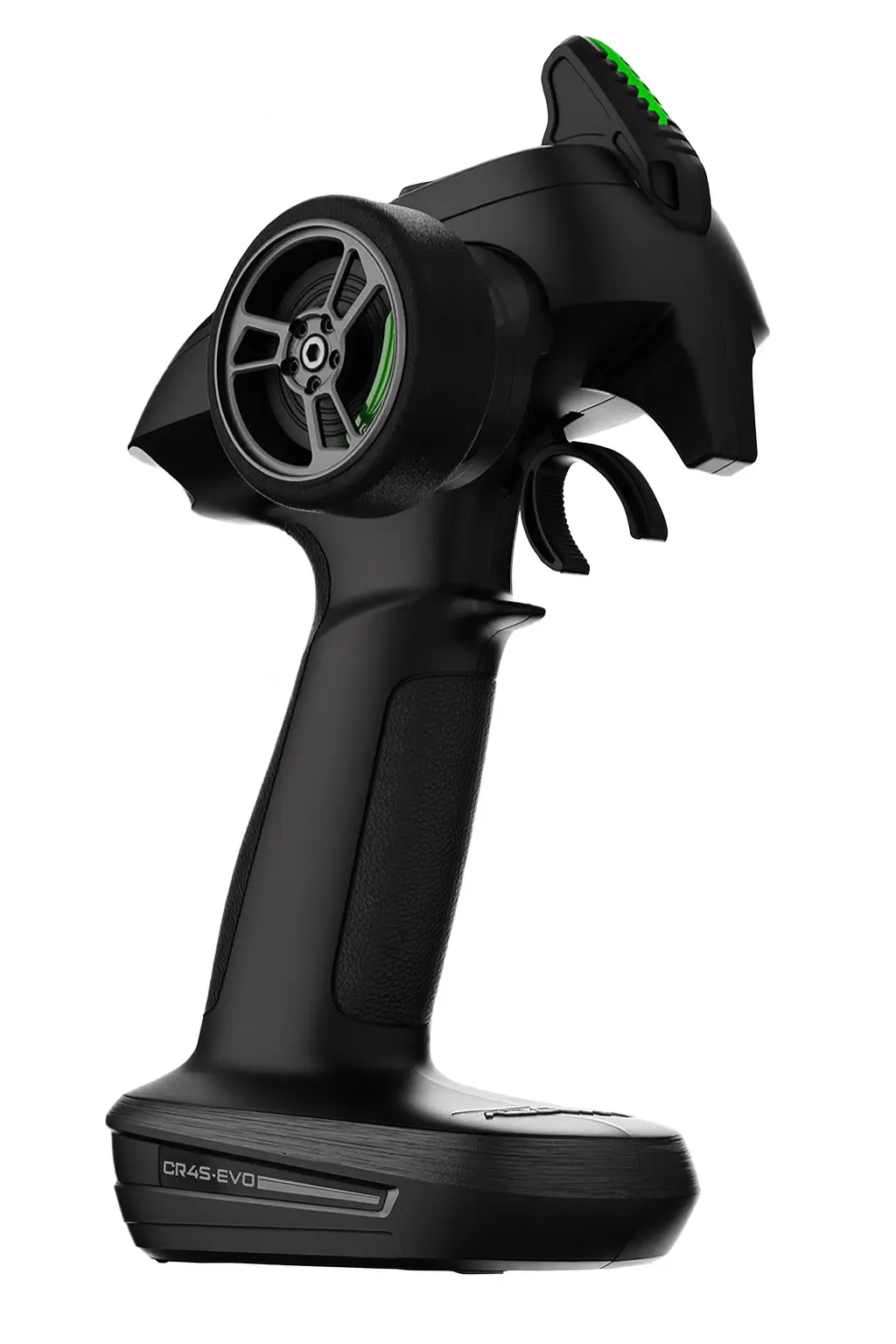

Absima 5-Channel Wheel Radio Set "CR4S-EVO-GYRO" 2.4GHz (2000015)

With the CR4S-EVO 4-channel remote control and the waterproof R6WP receiver, price-conscious drivers can enjoy superior range, optimal responsiveness, and above-average interference resistance at an affordable price.

GYRO FUNCTION:

Thanks to the additional GYRO function (5-channel electronic stability control) , you always maintain absolute control, even at top speed. The gyro sends a signal to the steering servo in a fraction of a second and automatically steers against the direction of skid. As soon as you actively steer yourself, your command overrides the gyro signal, ensuring you retain full control.

You can adjust the sensitivity (known as gain ) from 0% to 100% using the transmitter:

• Too low: The car will still skid out.
• Too high: The steering starts to ‘flutter’ (the wheels shake) because the system overreacts.

In short: The gyro acts like an invisible co-pilot who countersteers at lightning speed before you even notice the skid.

The buttons for power, channels 3 & 4, and the antenna are illuminated green during operation. All controls and buttons for gyro function, fine adjustment and reverse switching are located under the large protective cover, protected from dust and moisture. In addition, the maximum speed can be limited to make it easier for beginners to take their first steps in driving.

But there is no shortage of comfort either. The ergonomic grip of the pistol transmitter feels pleasant to the touch, and the steering wheel has a foam rubber cover, which feels comfortable and provides a good grip.

FEATURES:

• 4-channel transmitter CR4S-EVO
• 6-channel receiver R6WP (waterproof)
• GYRO function
• TRIM function
• D/R function
• Reverse function
• High-Voltage servo compatible
• Transmitter is LiPo compatible (JST/BEC and XH connector)
• Speed-Limiter function for beginners
• Failsafe function

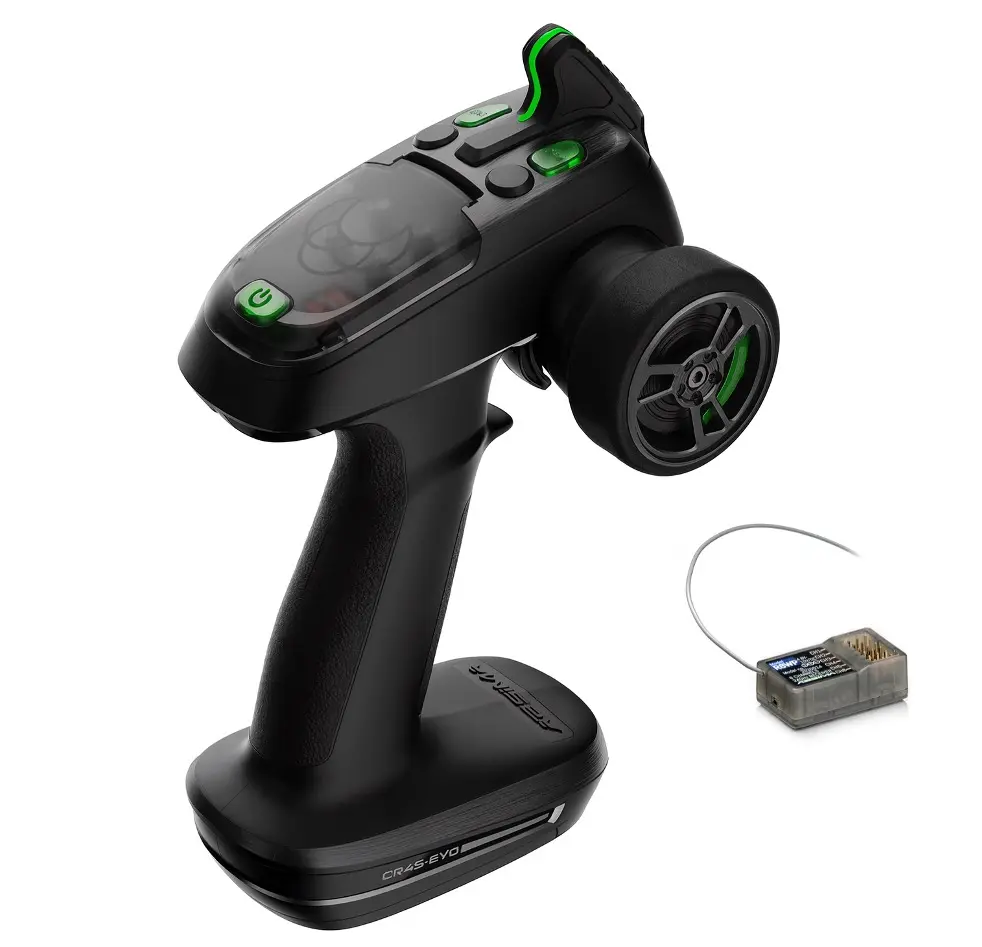

SCOPE OF DELIVERY:

• CR4S-EVO-GYRO 4-channel transmitter
• R6WP 6-channel receiver (waterproof)
• Manual (DE/EN/FR)

RECOMMENDED ACCESSORIES

• 4* AA batteries for transmitter or
• LiPo battery for transmitter
• Additional receiver R6WP

TECHNICAL DATA TRANSMITTER:

• 2.4GHz FHSS-Technology
• Response time: 5MS
• Battery: 4* AA batteries or LiPo pack
• V-Range transmitter: 4.8V – 12V (2-3S LiPo compatible)
• Operating current TX: 80-120mA@5V
• Radio distance: up to 250m
• Frequency range: 2402.0-2480.0MHz
• Output Power (Watt): 0.096W
• Temperature range: -10° – +60°
• Channel 3 and 4 as switch channel for servos or continuous current

TECHNICAL DATA RECEIVER (2020028):

• V-Range RX: 4.8V – 10V
• Operating current RX: 30mA (HV-Servos compatible; JR/FUT)
• Temperature range: -10° – +60°
• Receiver port 5 and 6 usable for continuous current
• RX dimmensions: 35x20x13 mm
• Weight: 7g

<div

Absima part number 2000015, EAN 4250650968632.
