About this product
Description

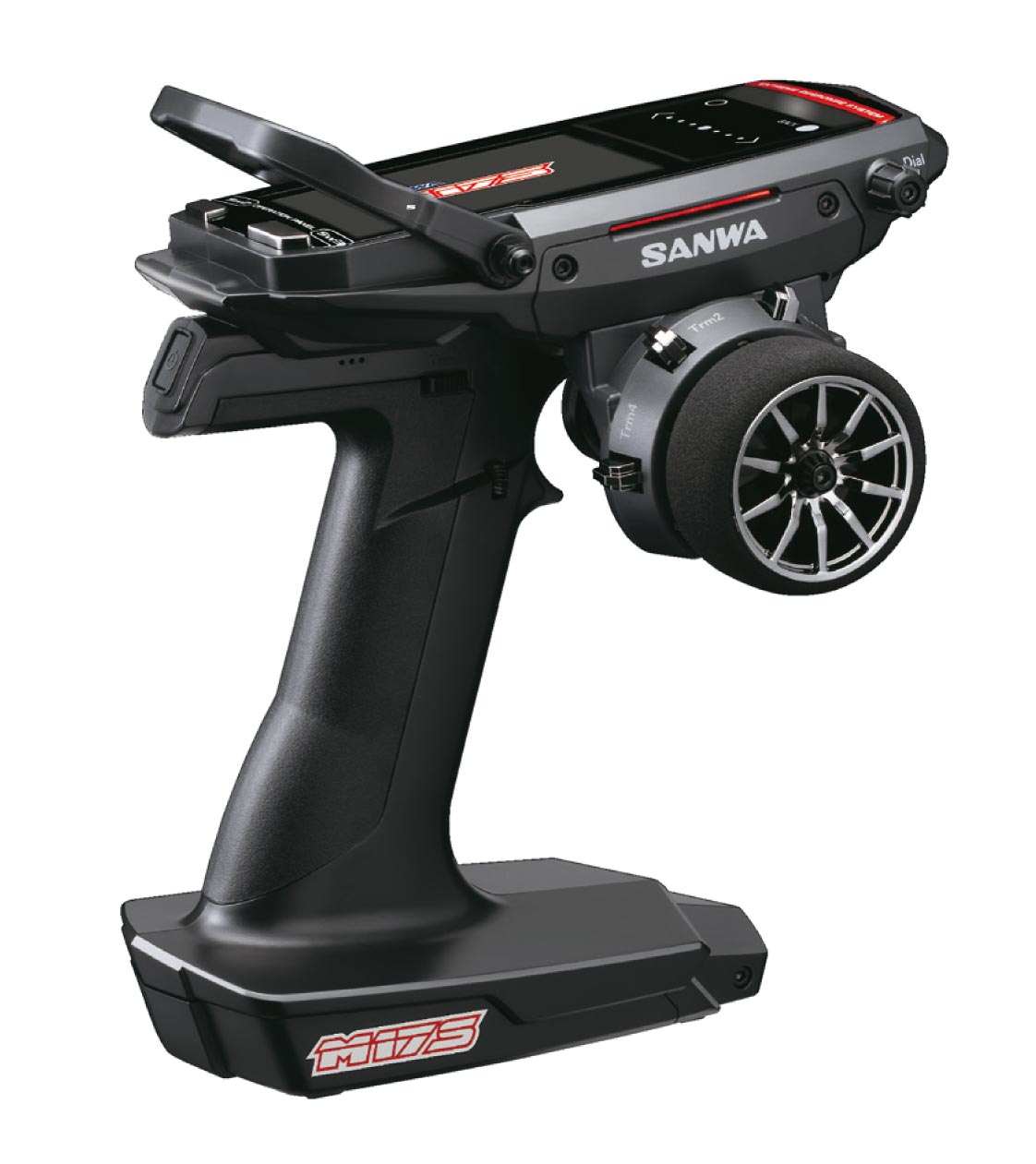

The new Sanwa M17S features the new ‘FH5U’ protocol system, which can process twice as much information as the FH5. This means more natural operation and faster response, in perfect harmony with the servos’ SXR mode!
The Sanwa M17S is by far the fastest radio in the world!
- FH5U protocol with unrivalled response
- World-first MOTION STEERING function lets you steer your model by tilting the remote control!
- Reception quality indicator
- Improved display speed for smoother navigation
- Improved interface
- Direct access to models
- Quick menu wizard
- Customizable interface colors
- Numerous simplified functions
- LP1-2500mAh battery, rechargeable via USB Type-C
- Compatible only with FH5/FH5U receivers (RX-49…)
- Feeling function can be set to 25 segmentations (M17 can be set from 7 segmentations)
Features:
- Color LCD display
- Right- or left-handed positioningΒ
- Touch screen
- Integrated antenna
- Separate steering/gas functions
- Fully customizable throttle triggerΒ
- Feeling function
- Safety Link function (one model can work with only one receiver, ideal for dual-category racing)
- Racing mode
- Dual Rate
- Limit switch adjustment
- ABS
- Servo speed adjustment
- Offset function
- Trim/Sub Trim quickly accessible on the steering wheel
- Servo direction reversal
- Exponential function
- Fail Safe function
- Lap counter and stopwatch
- Model memory with customization and quick access
- Response mode (SUR/SSR/SHR/NOR)
- Servo position monitor
- Button customization
- Vibration function
- Calibration
- Large steering wheel includedΒ
- 2 large/small control sticks included
- Compatible receivers: telemetry compatible (RX-493i, RX-492i , RX-49T, RX-493, RX-492,RX-491).
Accessories:
- Large steering wheel includedΒ
- 2 large/small handles included
- Attachment loop for lanyard
- Accessories for right- or left-handed positioning
- Thicker or thinner brake trigger (+1/+2)
- Steering and throttle springs (Hard, Medium, Soft, Super Soft)
Firmware: 1.00.03 (fixed minor bug)
How to Update to Firmware 1.00.03
1. Download the firmware Ver. 1.00.03
M17S.zip βclick here to download
2. Please make “M17S” folder in root directory. Then, make “update” folder in M17S folder
3. Save unzipped “M17S_firm_1.00.03.prg” and “M17S_lamg_ENG.res” in the “update” folder
(Attached file is already made a folder and you can put it into micro SDHC)
*SDHC card format should be FAT32
*1-2 process by using computer or smartphone
4. Insert the micro SD card to M17S(Please take care of Micro SD direction)
5. Go to SYSTEM menu and choose SD-CARD
6. Click to FIRMWARE and enter [UPDATE]
7. Display “UPDATE OK?” and choose “YES”
8. Start Update and wait until finish
9. When finished update, will display “COMPLETE !”
10. M17S firmware update is completed
In case of updated from 1.01.00, please do more steps.
1. After M17 was restarted, it require update firmware
2. Go to System and choose SD-CARD
3. Select LAUNGUAGE and UPDATE
4. Display “UPDATE OK?” and choose “YES”
5. After finished, will display “COMPLETE!”
6. And choose “YES”
7. After finished Factory reset, M17S update is completed
Do βFactory Resetβ in SYSTEM menu
*Error 3 (touch pad calibration error) occupy until finished Factory Reset
*Please save your model data before Factory Reset.
γOnce did factory reset, all model data will be deleted.
* When inserting Micro SDHC card, please make sure direction of the Micro SD card.
γPlease insert the Micro SD card slowly and push until making sound of insert.
γThen please check surely inserted the Micro SD card in the SD card slot of the transmitter.
γTaking off the Micro SD card while updating the Micro SD card is possible not to turn on the transmitter.
*When updated firmware and language files, please charge the transmitter fully before starting update.
*In case of the dropping voltage while updating, firmware update and language file update
γcannot be completed and it is possible not to turn on the transmitter.
*If the transmitter cannot be turned on while updating,
γplease make contact with our distributor in your country.
βDull-dot Color LCD(480ο½320) βSwitchable drivin
