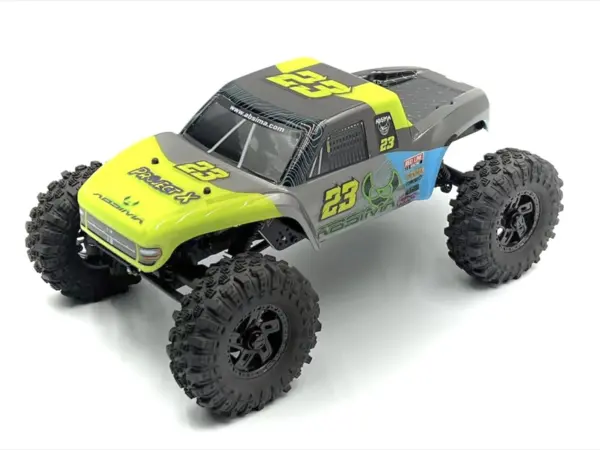

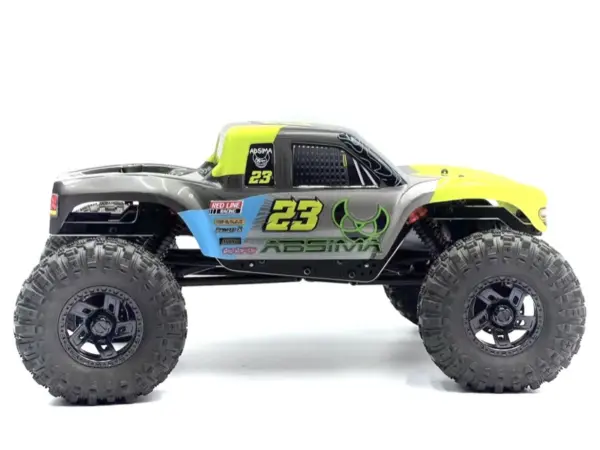

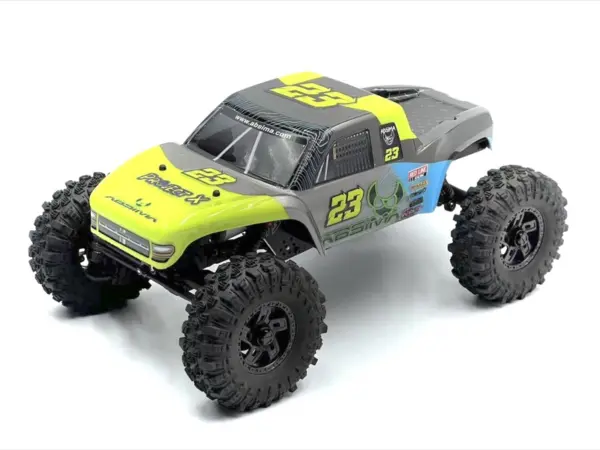

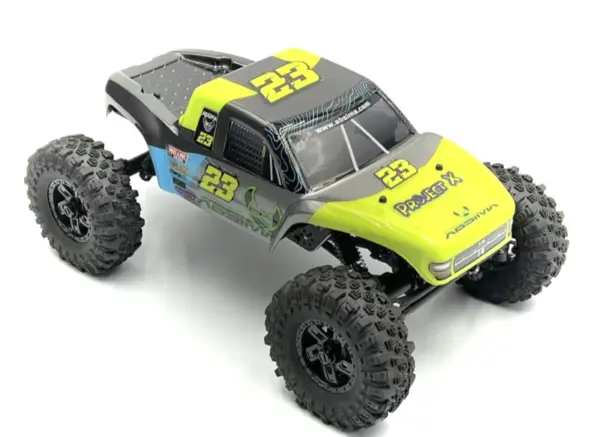

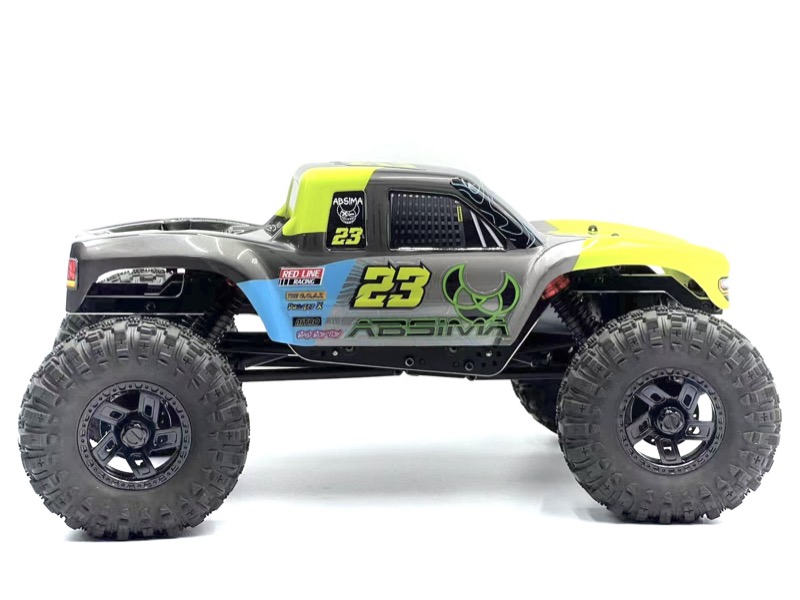

Absima CR18P 1:18 Brushless Rock Racer "The GOAT" (Design 2) RTR

It doesn’t need much space and the “playground” is made quickly. Simply throw a few cushions on the floor or build a course at your desk at lunchtime and the fun can begin! Thanks to the proportional radio remote control, the finest driving maneuvers are possible to overcome even the most complicated-looking obstacles.

1 18 EVO CrawlerYouTube

The “V2 Evolution Upgrade” raises this little powerhouse to a level never seen before in its class!

HIGHLIGHTS:
New EVO Features and Functions
New* oversized 130 “Crawler Spec” brushed motor (100T)
New* developed 2-speed steel gear shift (switchable on radio CH3)
New extreme portal axles with steel gears for even more ground clearance
New* motor mount (even for bigger motors like 180 & 240 size)

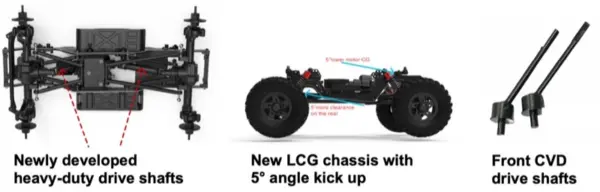

New* reinforced drive shafts front & rear
New* LCG-optimized chassis layout (Low Center of Gravity)
and also…
2.4GHz radio system
Vehicle lighting operated from the transmitter (CH4)
Oversize 1.2″ AT wheels with internal beadlock system
1kg steering servo with panhard bar
PPX4 water-resistant electronics
Metal chassis frame
Painted 1.2mm Lexan body
Tight turning circle of 80cm
Driving time of up to 45 minutes
Steering angle of up to 45°
Maximum ground clearance thanks to portal axels and 1.2″ wheels
FEATURES:
Portal axles front and rear for increased ground clearance

LED lighting front and rear. Operated via channel 4 on the transmitter

Newly developed and reinforced front and rear drive shafts

Specially developed portal axle with new drive ratio. This ensures a butter-soft response at low speeds and even more torque. The new axle also achieves a steering angle of up to 45°. The gearbox in the axles is made of tool steel.

Newly developed 2-speed high-performance gearbox – 1st gear ratio: 98:1 / 2nd gear ratio: 24.5:1 switchable via CH3 on the remote control. Gears made of tool steel is also used here.

The motor mount is compatible with brushed and brushless motors up to a size of 240

Super-soft 1.2″ “All Terrain” wheels with internal bead lock design

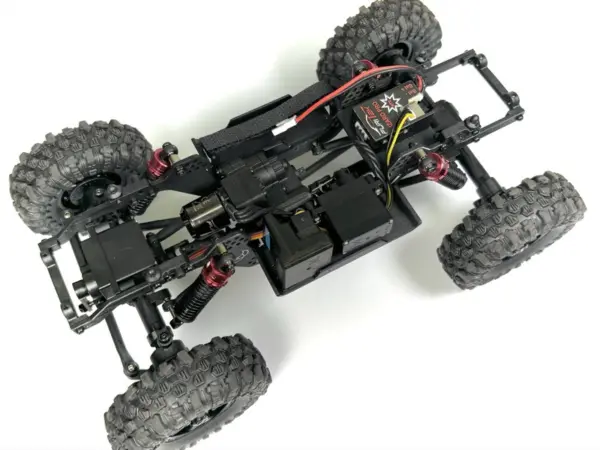

Simple, balanced and easily accessible “LCG” chassis layout with high-performance drivetrain

TEC SPECS:
– Scale: 1:18
– 4WD all-wheel drive
– 2.4GHz radio system
– “High Torque” 2-speed steel gears, 1st gear ratio: 98:1 / 2nd gear ratio: 24.5:1(CH4)
– 100T / 130size brushed motor
– Differentials fully locked (front & rear)
– Telescopic UJ cardan shafts
– Metal chassis frame
– Drag/Mountain brake (prevents rolling on hills)
– Digital proportional control for sensitive driving maneuvers
– LED lighting (CH4)
– Scale body with many attachment parts
– 1.2″ bead lock wheels with super soft AT tires
– Waterproof 1kg mini steering servo
– 2-in-1 speed controller/receiver unit
– Driving time: approx. 45 minutes

Speed controller: 2-in-1 ESC/RX unit, PPX4, 10A/50A
Remote control: 2.4GHz, 4-channel
Steering servo: 1kg actuating force, waterproof
Motor: 100T – 130 oversize
Newly developed 2-speed gears
Steel drive and portal axle gears
Gear ratio: 1st gear: 98:1 / 2nd gear: 24.5:1
Battery: LiPo 7.4V/2S 600mAh
Battery connector system: Molex 2-pin
Wheelbase: 158,5mm
Ground clearance: 43,7mm
Track width: 110mm
Length: 241mm
Width: 125mm
Height: 130,8mm
Weight: 430g (incl. drive battery)
Wheels: 19.5x58mm

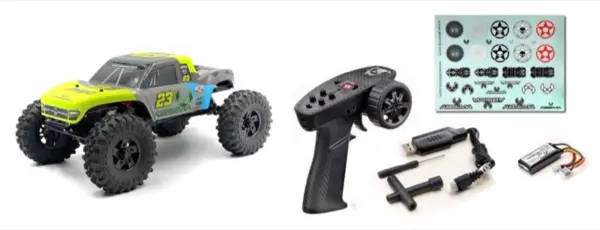

SCOPE OF DELIVERY:
1* Mini EVO Crawler
1* 2.4GHz radio system
1* LiPo battery 7.4V 600mAh
1* USB charging cable
1* Sticker sheet
1* Manual DE/EN/FR
1* Mini tool set
