Key Specs
About this product

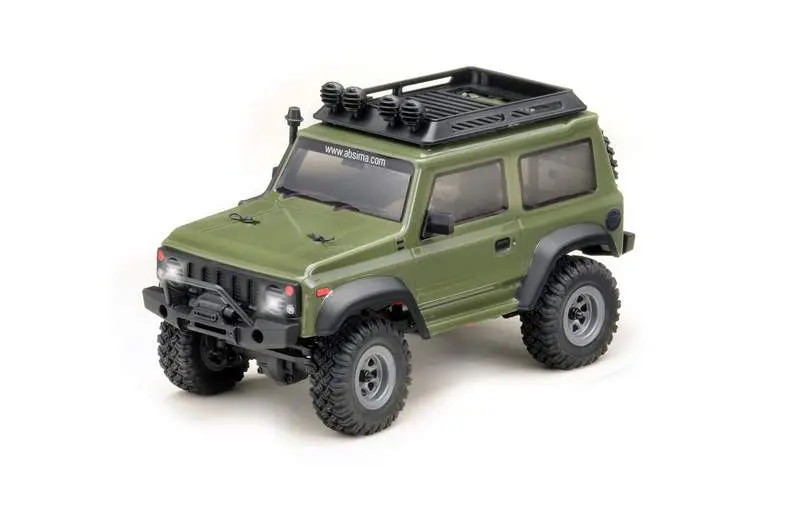

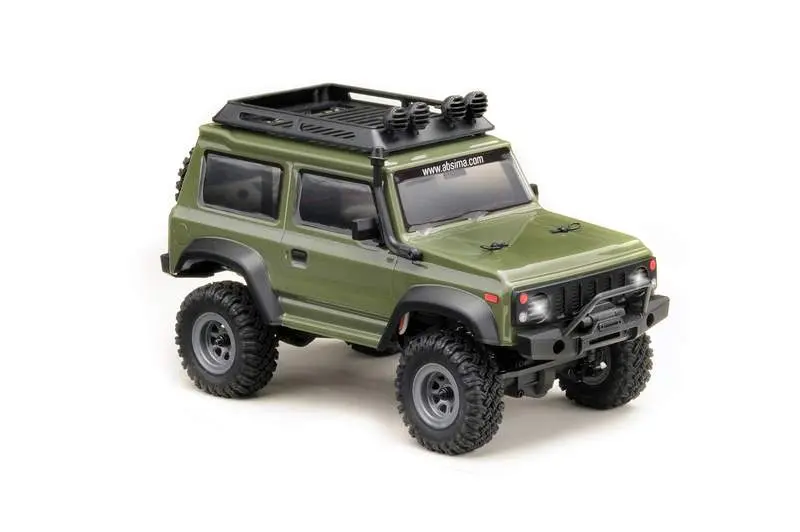

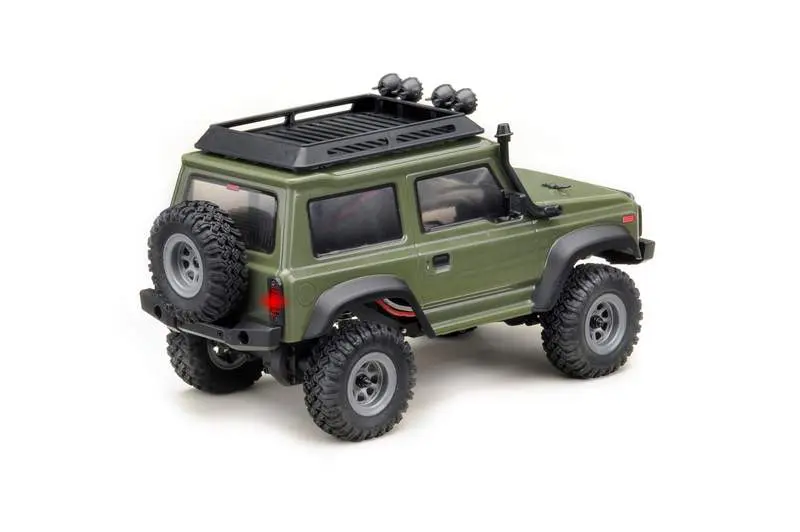

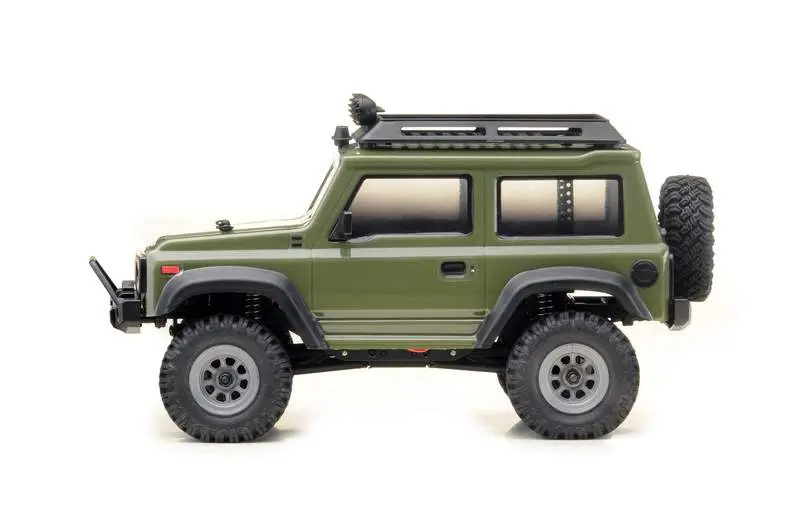

The ABSIMA 1/24 Scale RTR Mini Crawler brings unmatched performance to the Micro Scale world with a host of details including a chassis mounted servo, waterproof electronics, lithium battery and a 2.4GHz remote control. The vehicle features a unique transmission designed to produce incredible torque at low speeds to deliver a controlled crawling experience.
.

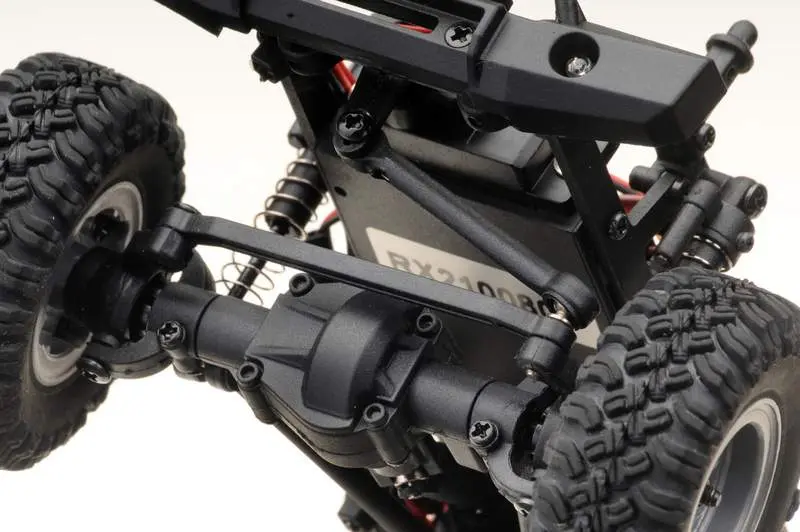

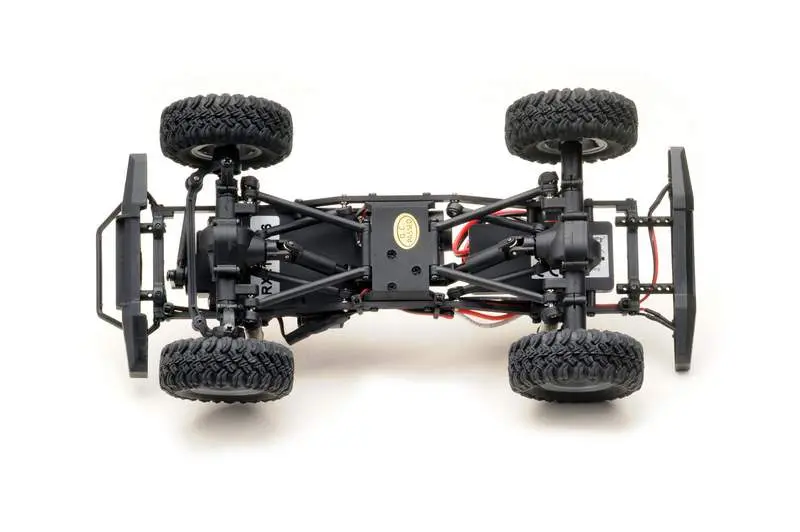

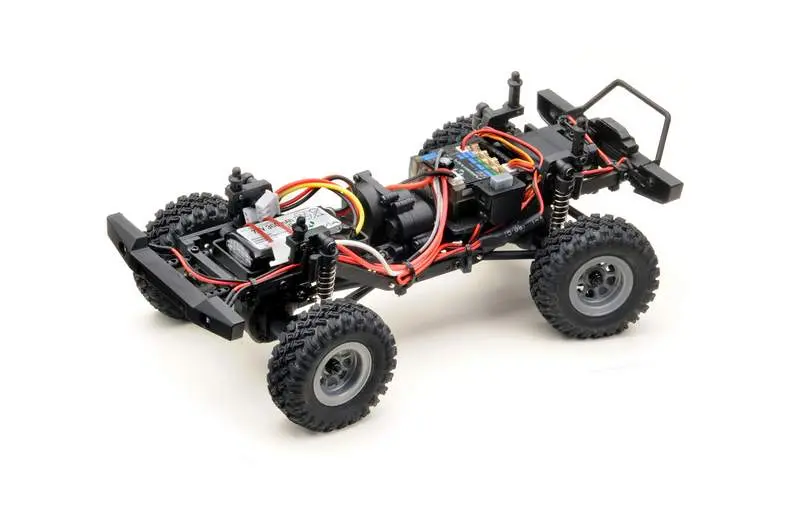

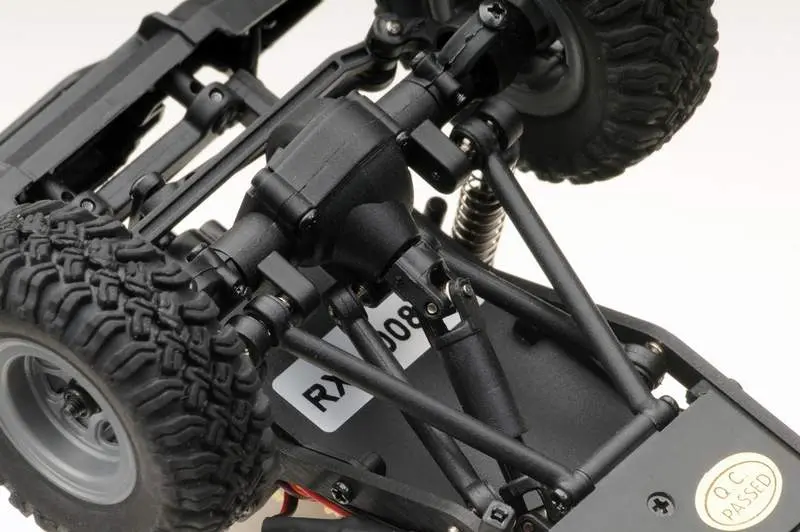

Despite its compact size, this is a rugged off-road vehicle with features normally only found on much larger vehicles. A multilink chassis, fully locked differentials, telescopic driveshafts, a 3-stage high-performance transmission and, of course, 4WD all-wheel drive ensure top performance.
The wheels have an internal beadlock design with tires made of a super-soft rubber compound for excellent grip. Spring shocks allow for ultra-articulated performance, while the anodized aluminum chassis frame maintains chassis rigidity. Add to this a “Drag/Mountain Brake” to easily stop even on the steepest slopes.

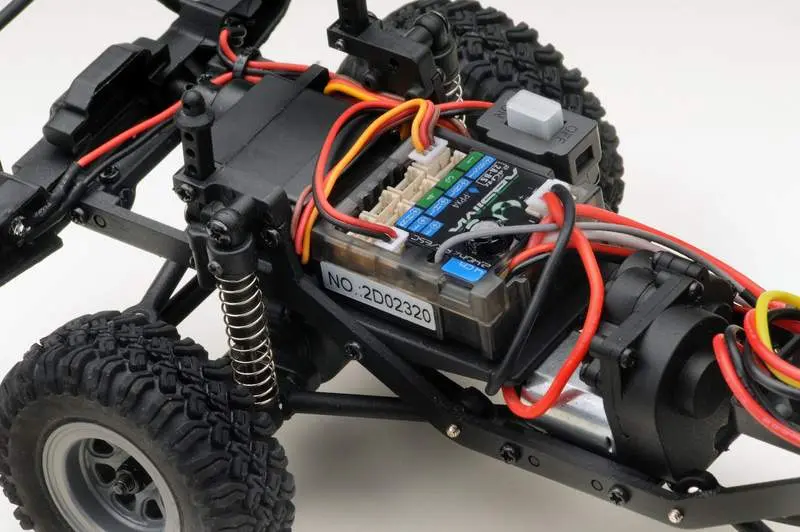

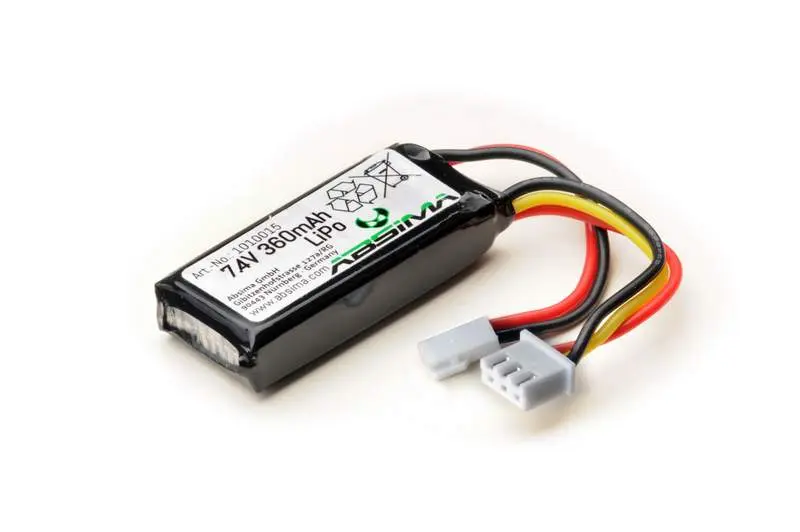

The waterproof (PPX4) 2-in-1 speed controller/receiver unit is powered by a 360mAh LiPo battery that provides up to 45 minutes of runtime on a single charge. The battery is charged by a special USB charging cable. The charging time is about 30 minutes. But this little one offers more than just power. This mini crawler offers a great scale appearance while being an ideal base to make personalized adjustments. Whether you want to crawl indoors, outdoors, or just want to own a scale micro-size RC car, this vehicle offers it all on a powerful, affordable, and upgradeable platform with the power needed to tackle the track. There are several tuning parts available for customization – for example, HD steel driveshafts with chrome finish which are very heavy and sturdy for better traction due to their low center of gravity. Also available are aluminum shock absorbers, special weights for the wheels and also unpainted bodies for your own design ideas.
FEATURES:
– Scale 1:24 - 4WD (all-wheel drive) - 2.4GHz remote control system (digital, proportional) - Aluminum anodized ladder frame chassis - “High Torque” gearbox, reduction 104:1 - 88T / 030 brushed motor - 2-in-1 speed controller/receiver unit - Chassis-mounted servo (waterproof) - Fully locked differentials (front & rear) - Telescopic UJ driveshafts - Detailed Lexan body with add-on parts and spare wheel - LED lighting (front & rear) - Independent suspension with shock absorbers - Tires made of super soft rubber compound with aggressive tread pattern - Wheels with internal beadlock design - Waterproof electronics - Driving time: approx. 45 minutes
TECHNICHAL DATA:
– Speed controller 2-in-1 ESC/RX unit, PPX4, 10A/50A - Remote control: 2.4GHz, 4-channel - Steering servo: 1kg actuating force, waterproof - Motor: 030 / 88T - Gear ratio: 104:1 - Battery: LiPo 7.4V/2S 360mAh - Battery connector system: Molex 2-pin - Charger: USB fast charger (7.4V; 1000mAh) - Wheelbase: 121mm - Ground clearance: 25mm - Track width v/h: 100mm - Length: 215mm - Height: 120mm - Width: 104mm - Weight: approx. 250g - Wheels: 18x45mm

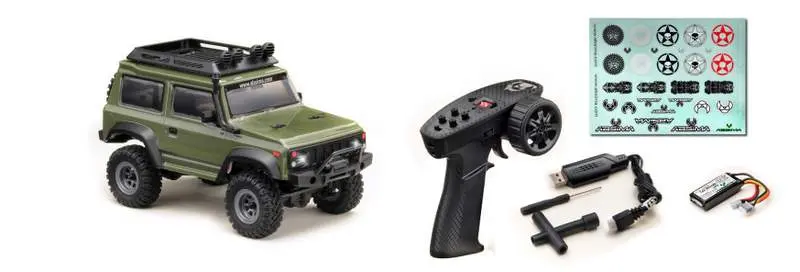

SCOPE OF DELIVERY:
1* 1/24 RTR Mini Crawler

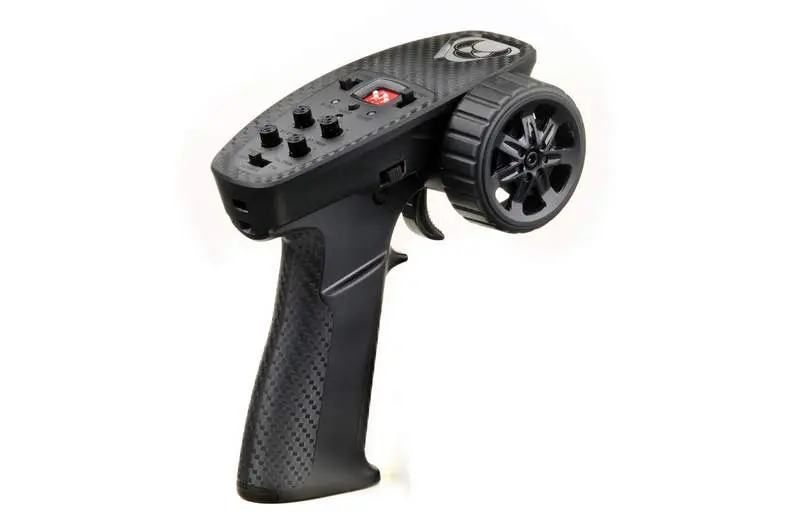

1* 2.4GHz Transmitter Unit
1* LiPo Battery 7.4V/360mAh
1* USB Charging Cable
1* Sticker Sheet
1* Manual (DE/EN/FR)
1* Mini Tool Sset
REQUIRED ACCESSORIES:
4* AAA Batteries for Transmitter Unit
Frequently Asked Questions
Yes, this is ideal for beginners. It's an RTR (Ready-to-Run) model that arrives fully assembled and ready to use—no building or technical knowledge required. The 2.4GHz radio and straightforward controls make it accessible to new users.
The kit includes a 360mAh LiPo battery that provides up to 45 minutes of runtime per charge. It charges via a USB cable supplied with the model, taking approximately 30 minutes to fully charge.
The RTR package includes the fully assembled crawler, a 2.4GHz remote control, a 360mAh LiPo battery, and a USB charging cable. Everything needed to start crawling is included.
At 1:24 scale, this is a micro crawler significantly smaller than standard RC vehicles, making it ideal for indoor crawling, tight outdoor spaces, and confined terrain. The compact size doesn't compromise its climbing and articulation capabilities.
Yes. The electronics are waterproof (PPX4 rating), and the vehicle features locked differentials, telescopic driveshafts, spring shocks, and a specialised high-torque transmission designed for genuine crawling performance on rocky, steep, and wet terrain.
