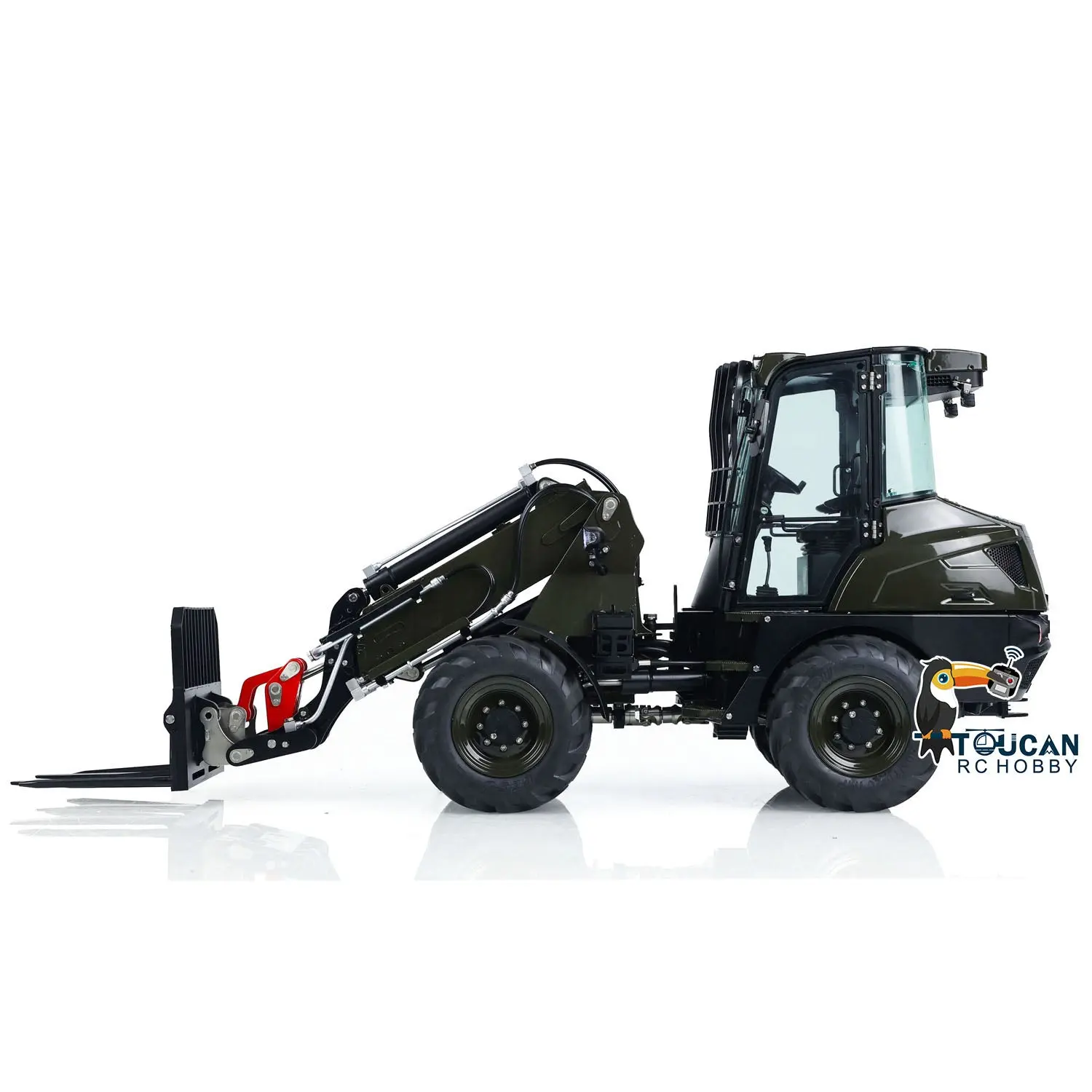

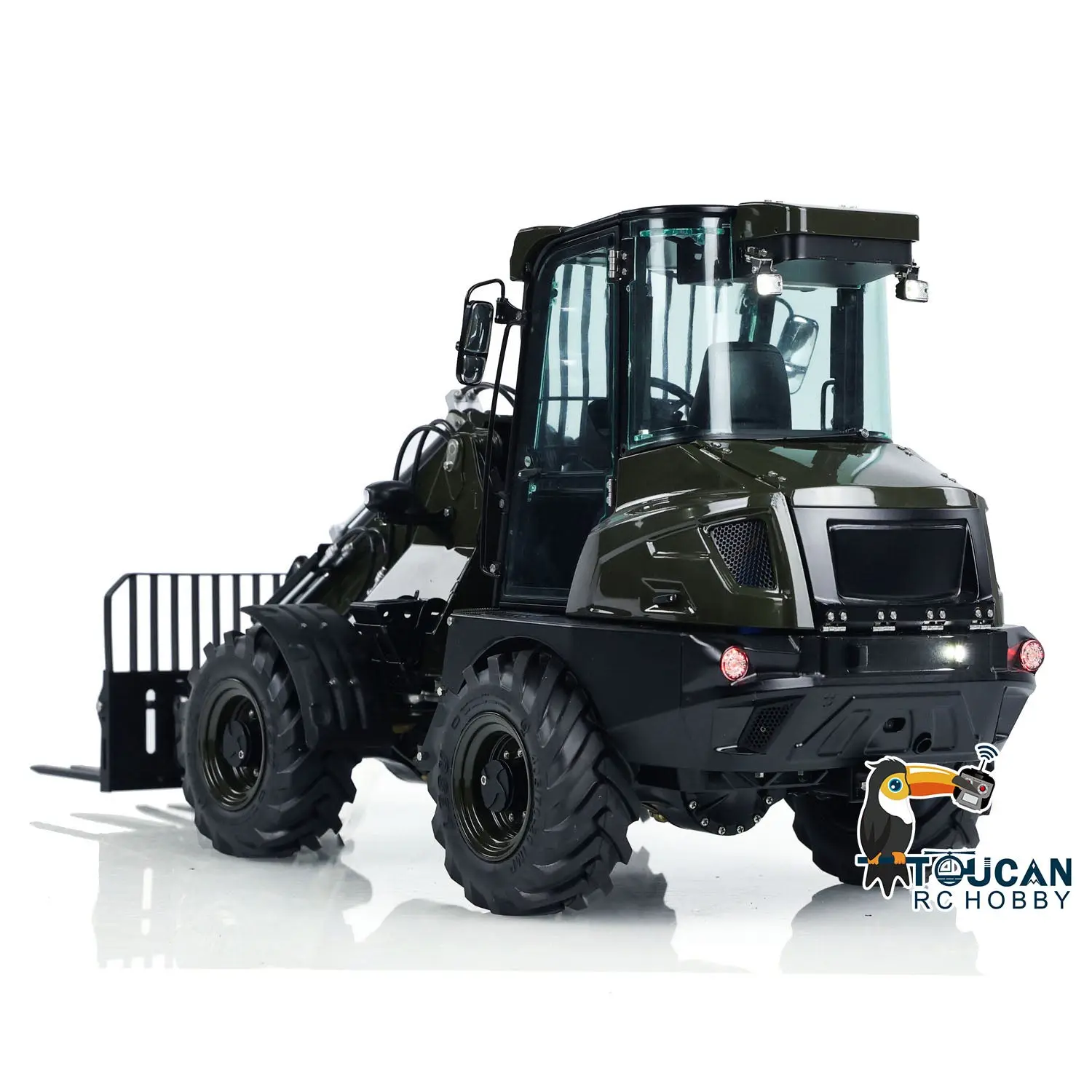

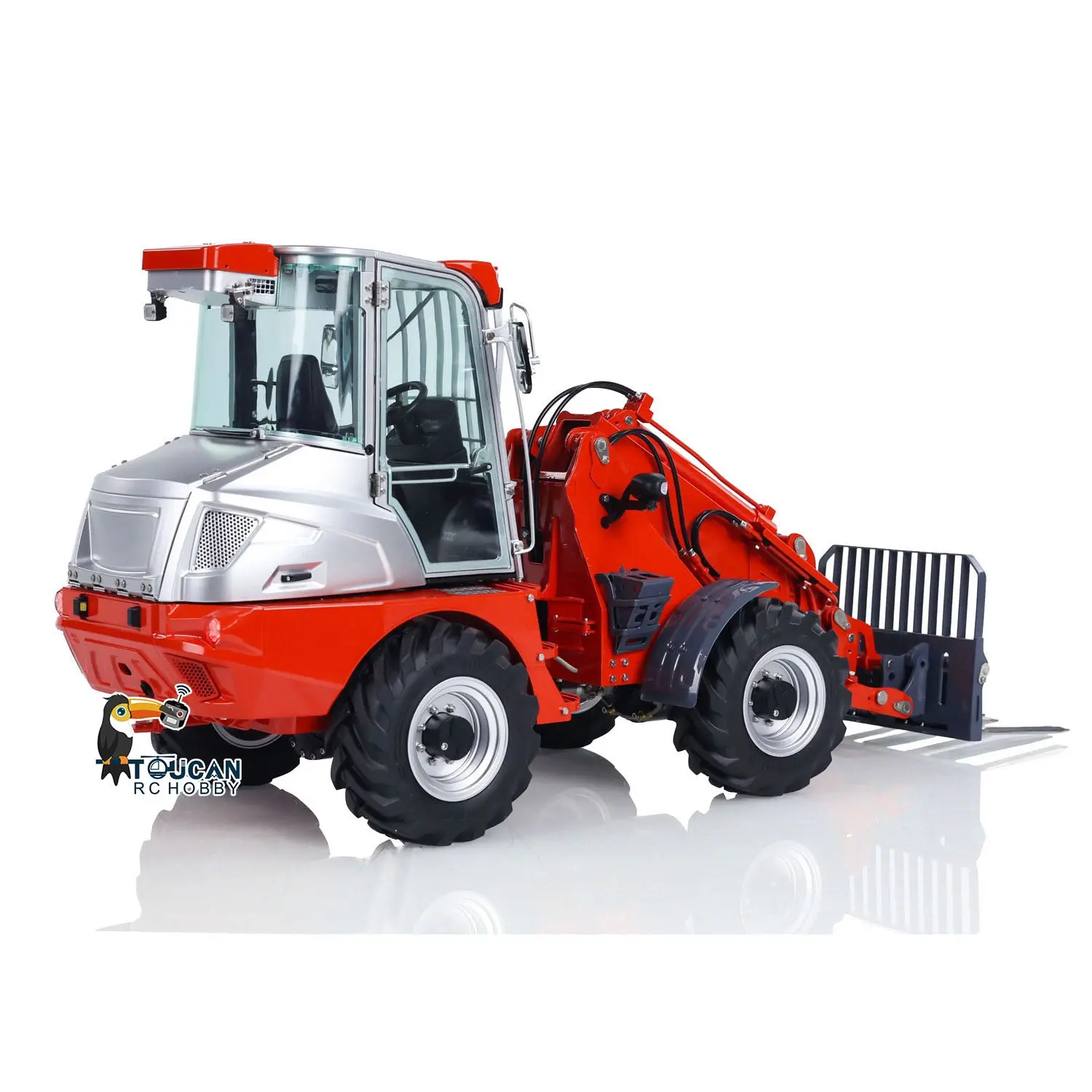

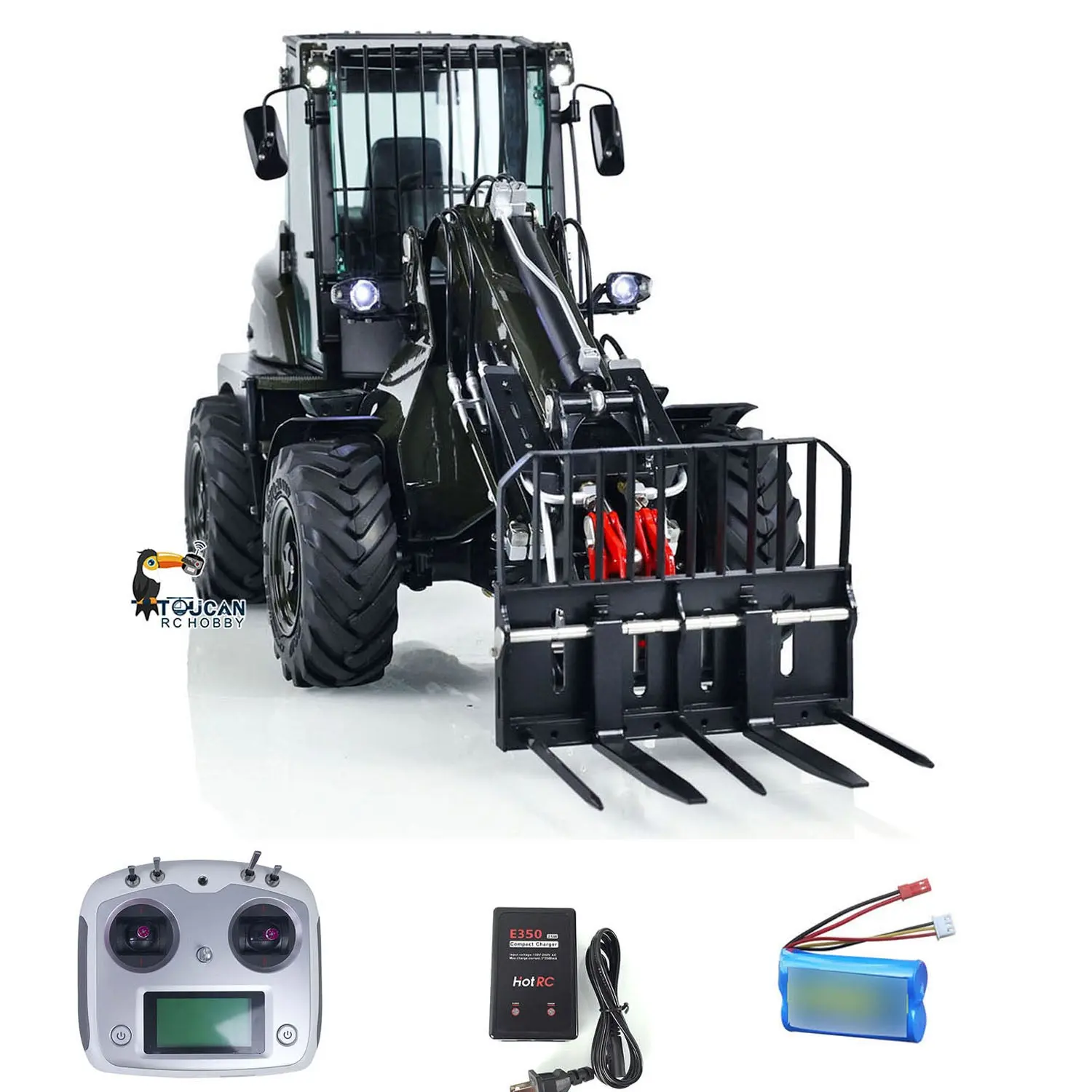

1:14 LESU RTR RC Hydraulic Telescopic Arm Loader AT1050 Fork Lift Truck Model Assembled and Painted 478*165*221

Specification:
Manufacturer: LESU
Item Condition: New, Assembled and Painted.
Scale: 1/14
Size: 478*165*221
Net Weight: About 4KG
ID: LS-RD-A0016-RTR-PAINTING-DOGNBK

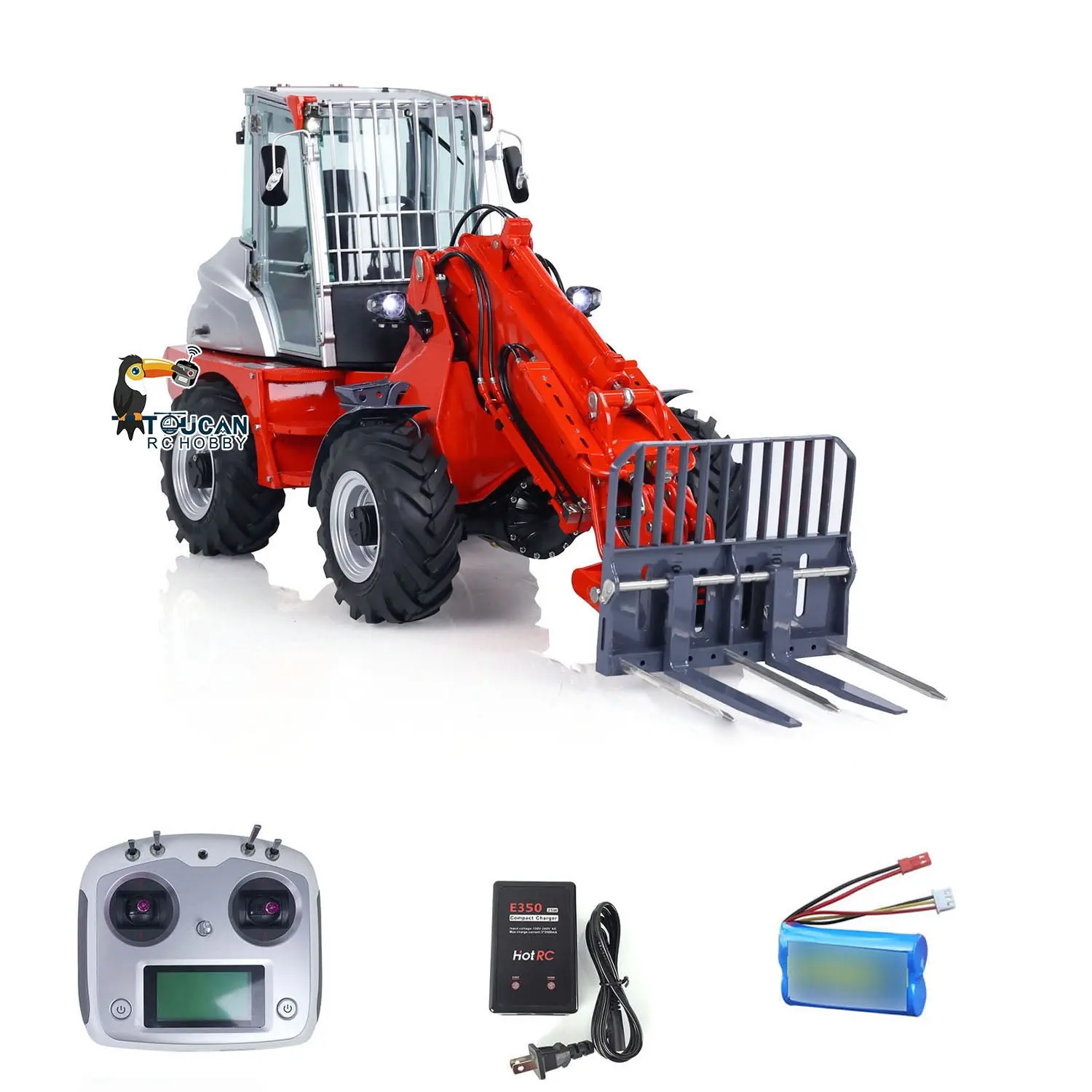

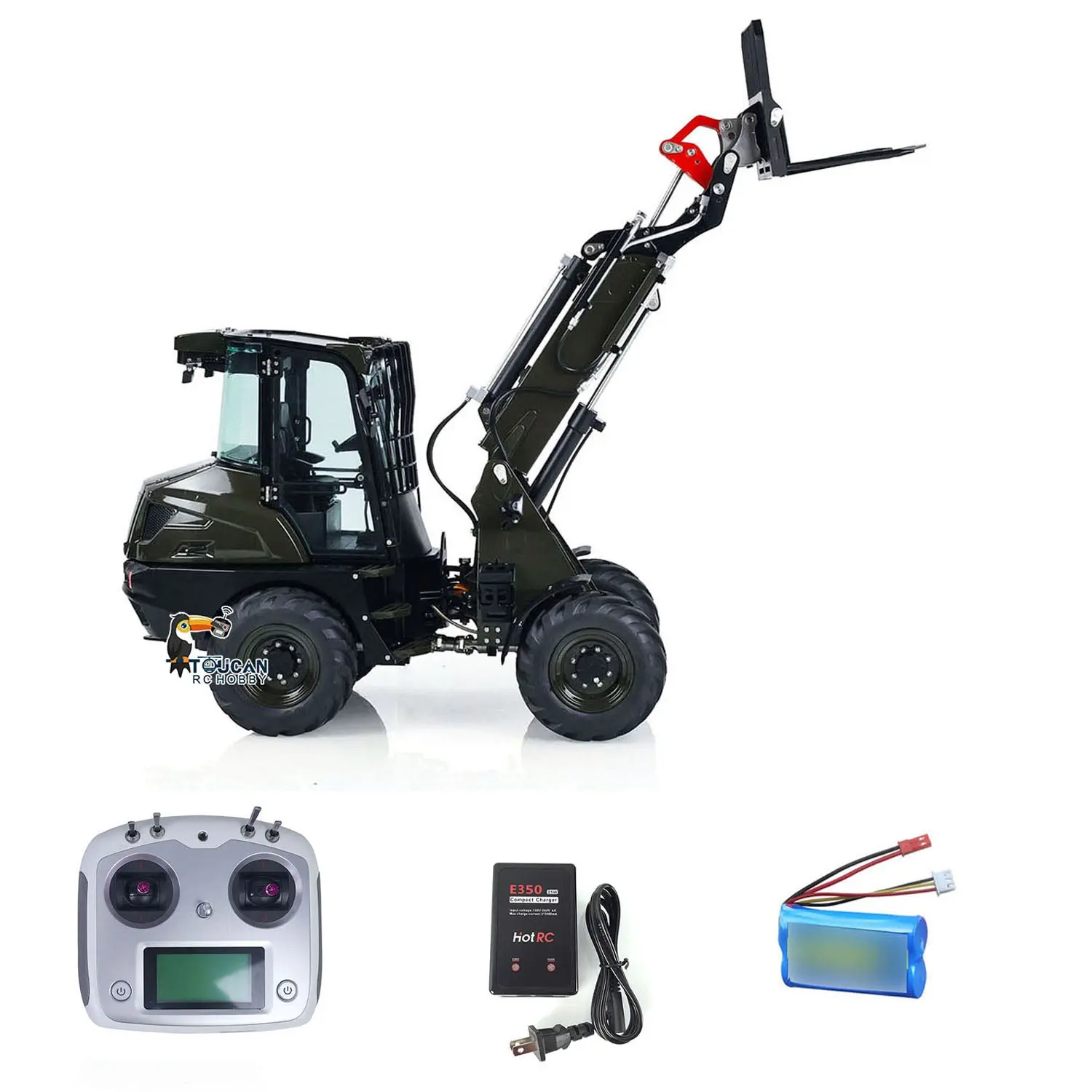

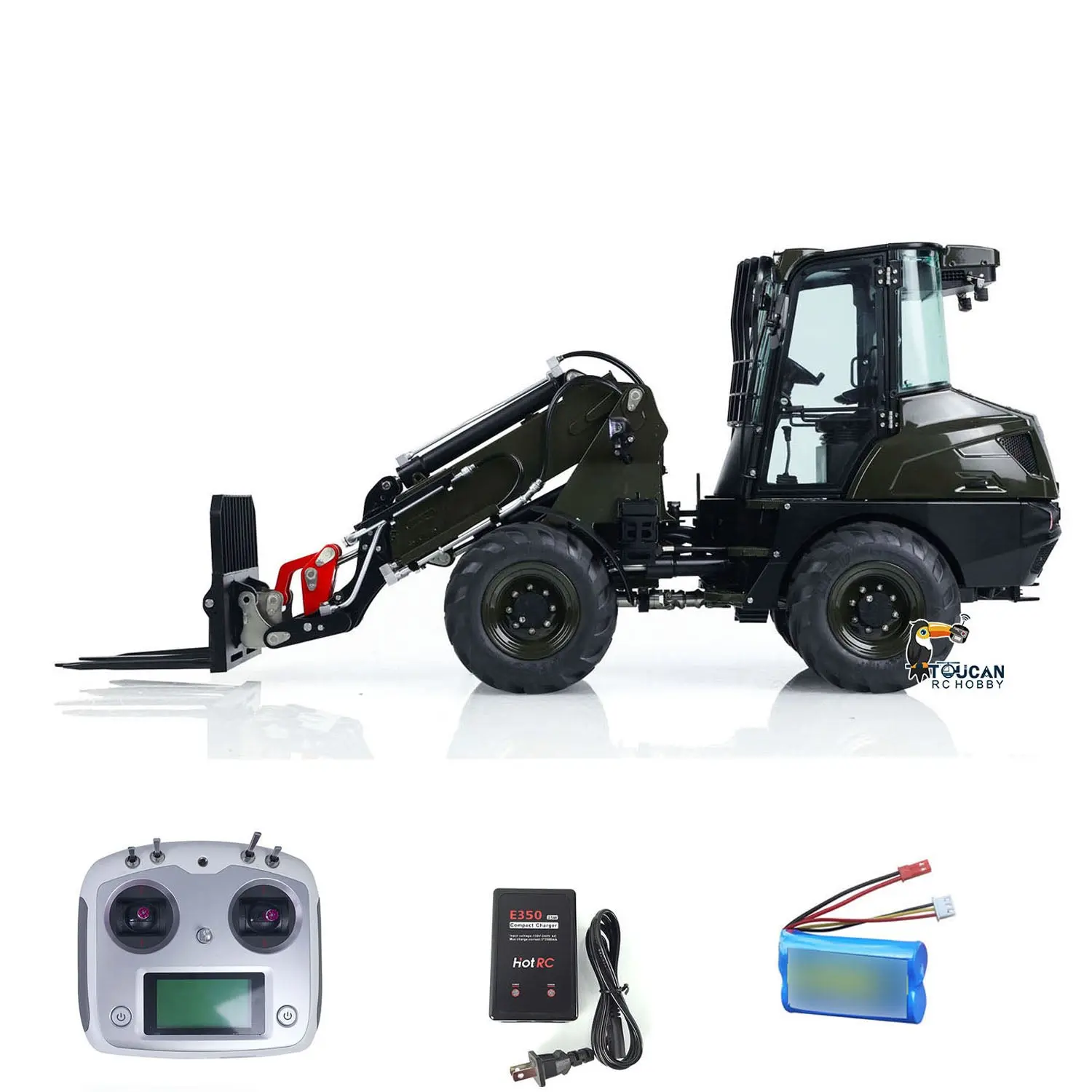

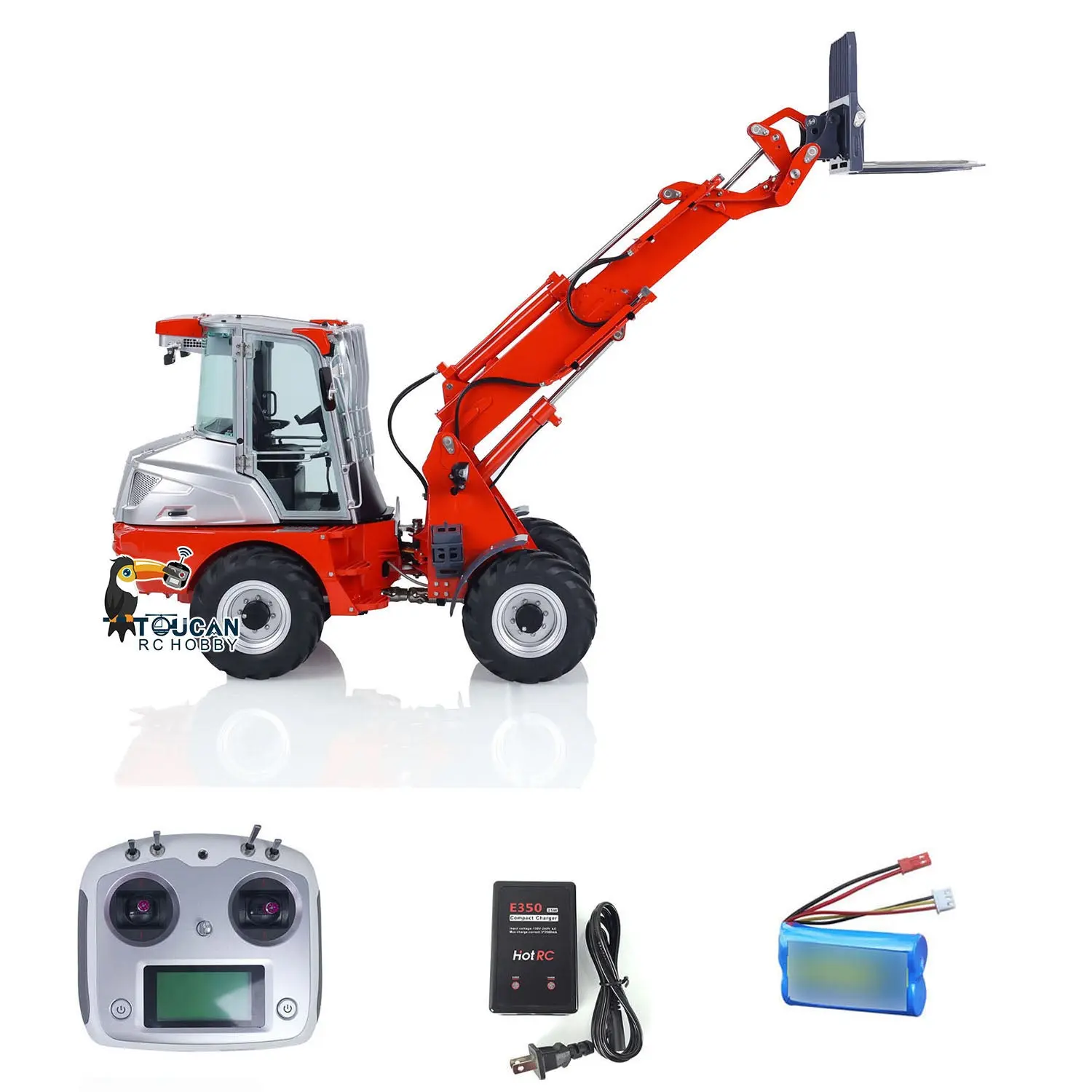

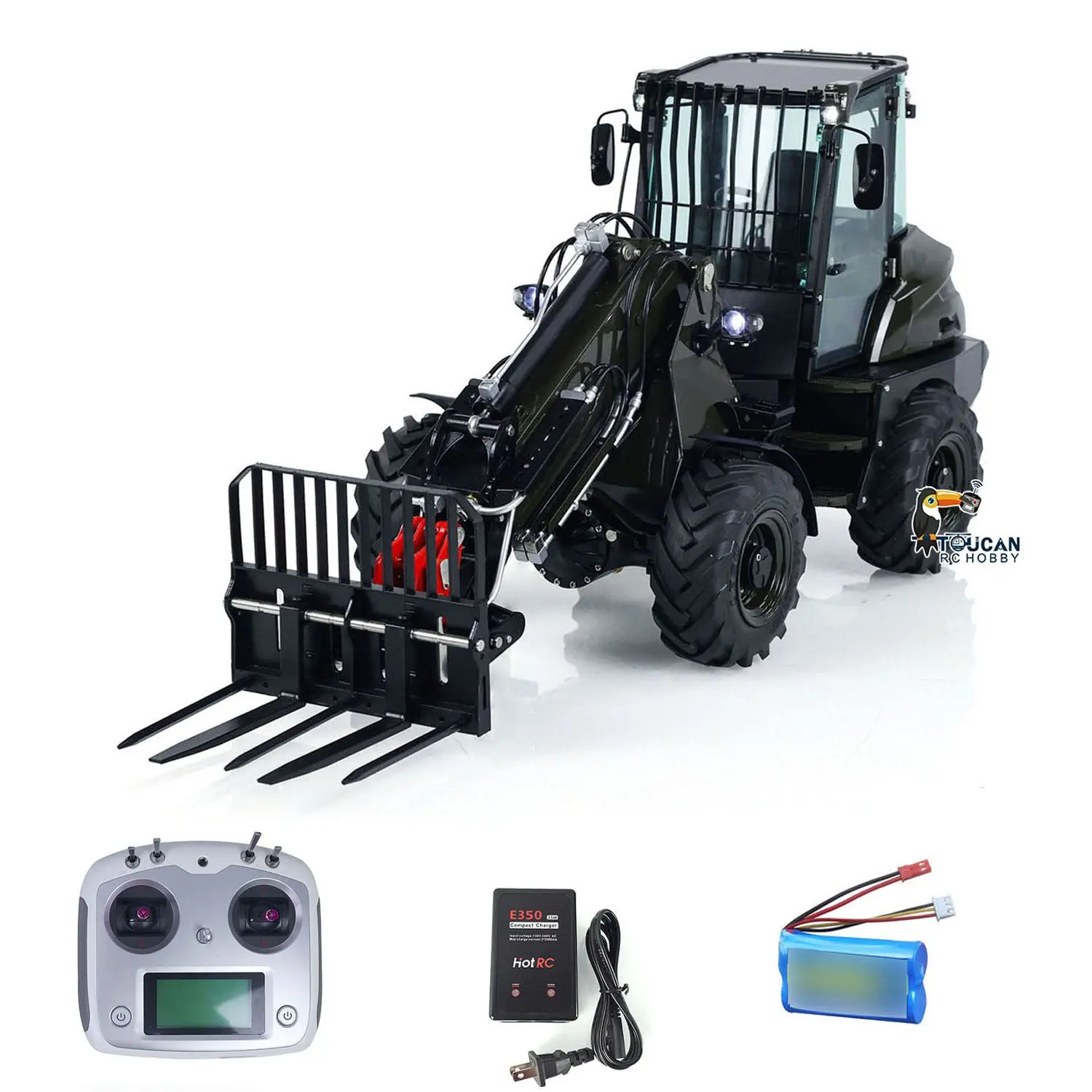

The Package Includes:
1/14 RC Telescopic Arm Fork Loader Model
ESC
Motor
Servo
Hydraulic System
Light System
Sound System
FlySky I6S Remote Controller and Receiver
Battery
Charger

The Package Does Not Include:
Hydraulic Oil

Features:
1. Precision Hydraulic System: More coordinated, smooth, and linear movements.
2. Hydraulic Steering: Precise steering, more stable operation.

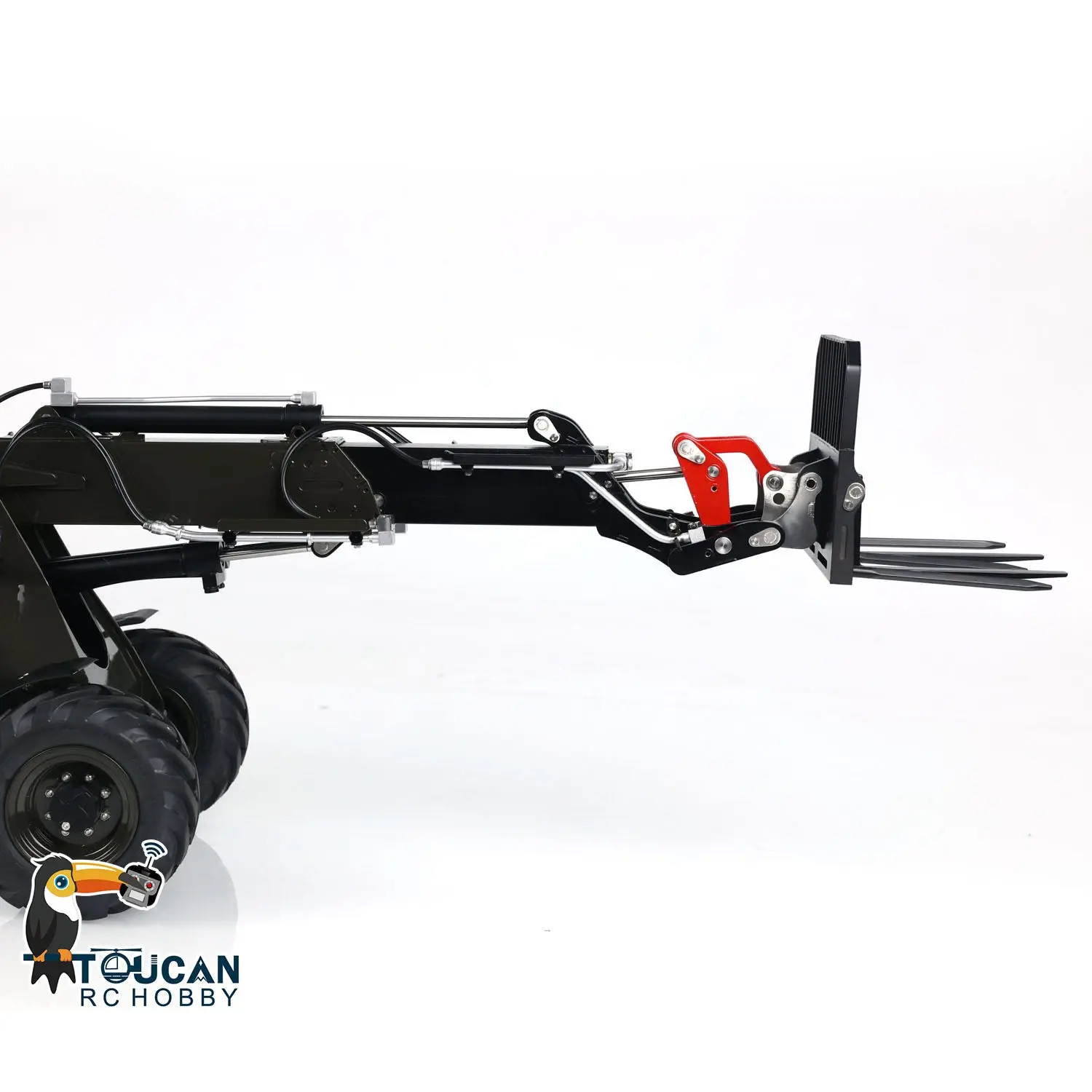

3. Hydraulic Fork Bucket: More flexible and convenient operation.

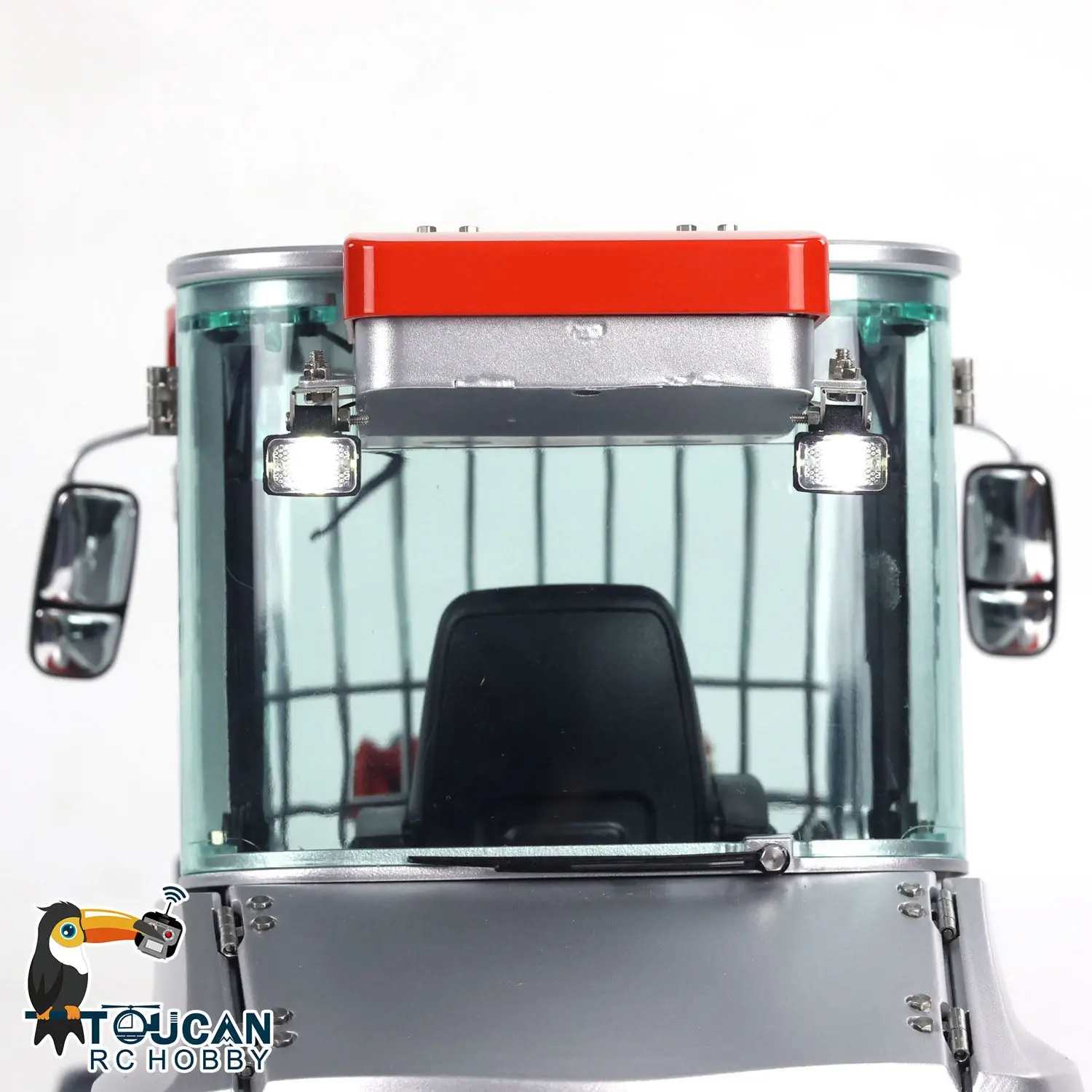

4. Equipped with a Flip-open Cab: The entire machine has 5 openable doors.

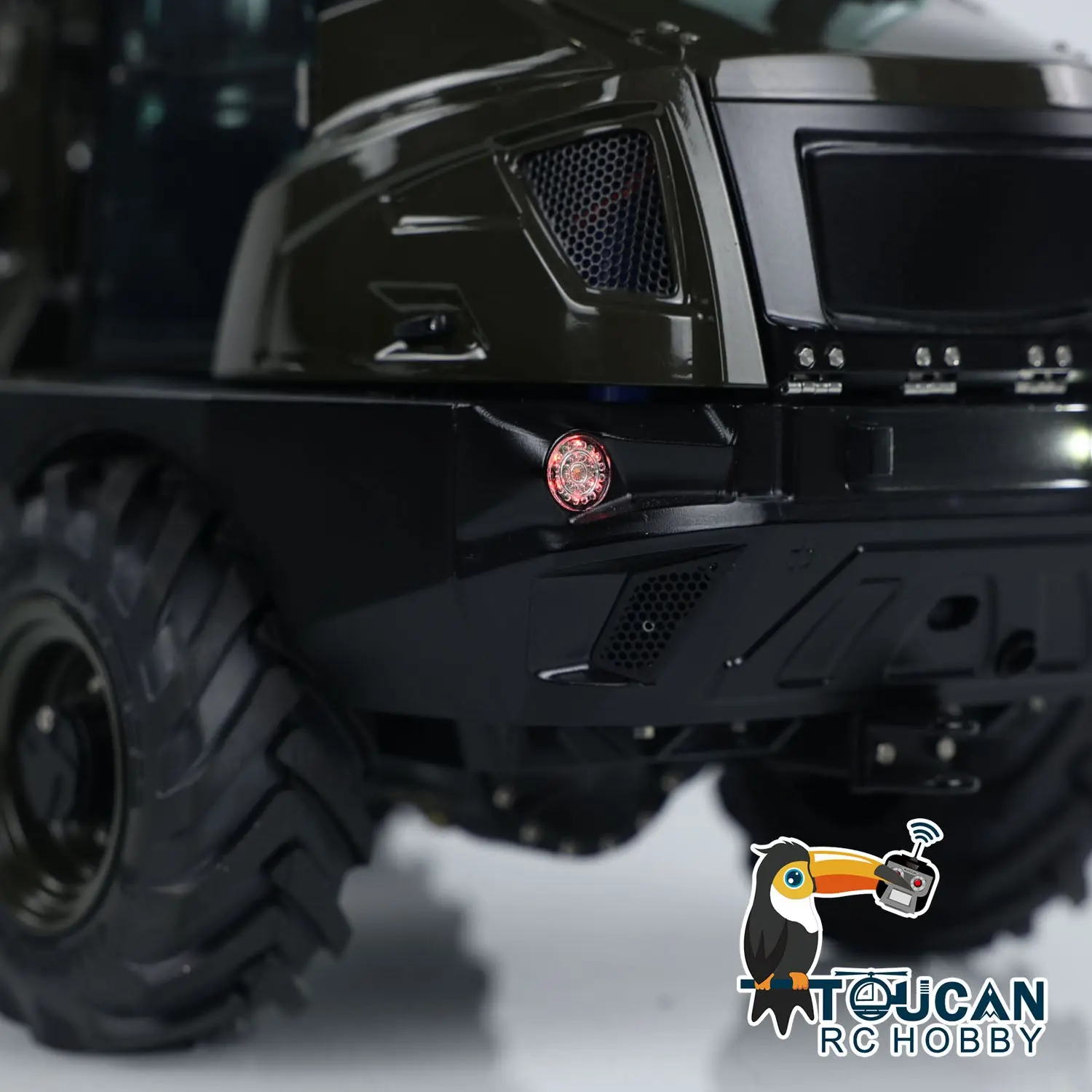

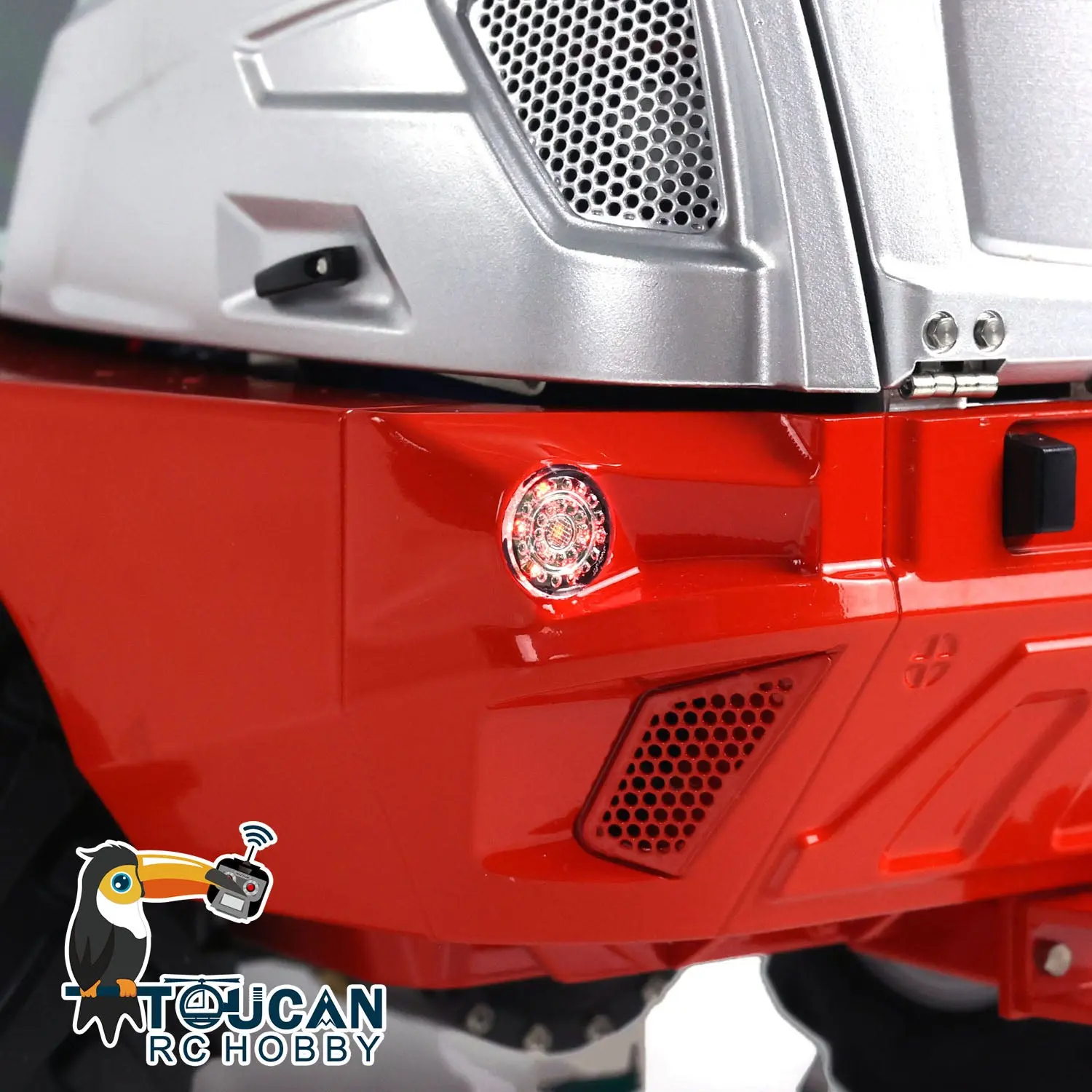

5. Full Vehicle Lighting and Simulated Sound: Equipped with a light and sound group for easier control.
6. Equipped with Simulated Stainless Steel Cab Guard: The machine is made of 90% metal materials.

Technical Parameters:
– Total Length of Loader (mm): 478
– Ground Clearance at Bottom of Fork Bucket (mm): 361.8
– Total Length to Chain Pin of Fork Bucket (m): 374.8
– Maximum Ground Clearance at Hinge Pin (mm): 373.4
– Length from Front Wheel to Fork Bucket Mounting Hole (mm): 118.4
– Maximum Operating Height (mm): 461.2
– Wheelbase (mm): 161
– Track Width (mm): 135.1
– Length from Rear Wheel to Rear of Body (m): 95.4
– Tire Outer Width (mm): 164.7
– Cab Ground Clearance (mm): 221.4
– Ground Clearance of Drive Shaft (mm): 33
– Work Station Ground Clearance (mm): 129.6
– Distance from Fork Teeth to Bucket Linkage Rod (mm): 52.5
– Maximum Unloading Height (mm): 287
– Number of Control Valve Ports: 2+3
– Maximum Pressure of Hydraulic Work Station (MPa): 3
– Number of Hydraulic Pumps: 1
– Rated Pressure of Hydraulic Work Station (MPa): 2
– Number of Hydraulic Cylinders: 5
– Hydraulic Hose Specifications (Outer Diameter x Inner Diameter) (mm): 2.5×1.5, 2×1
– Body Material: Aluminum Alloy + Stainless Steel

If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
