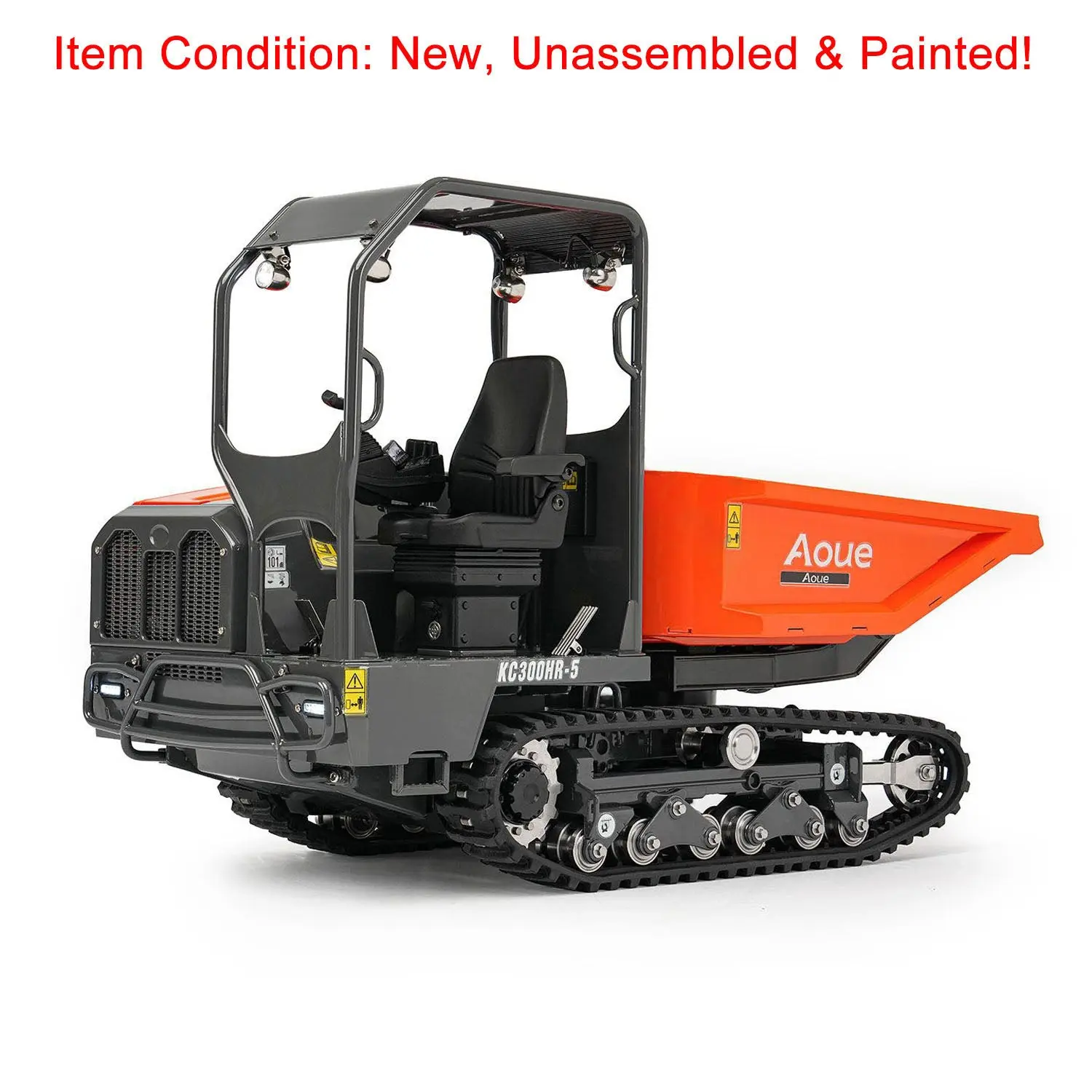

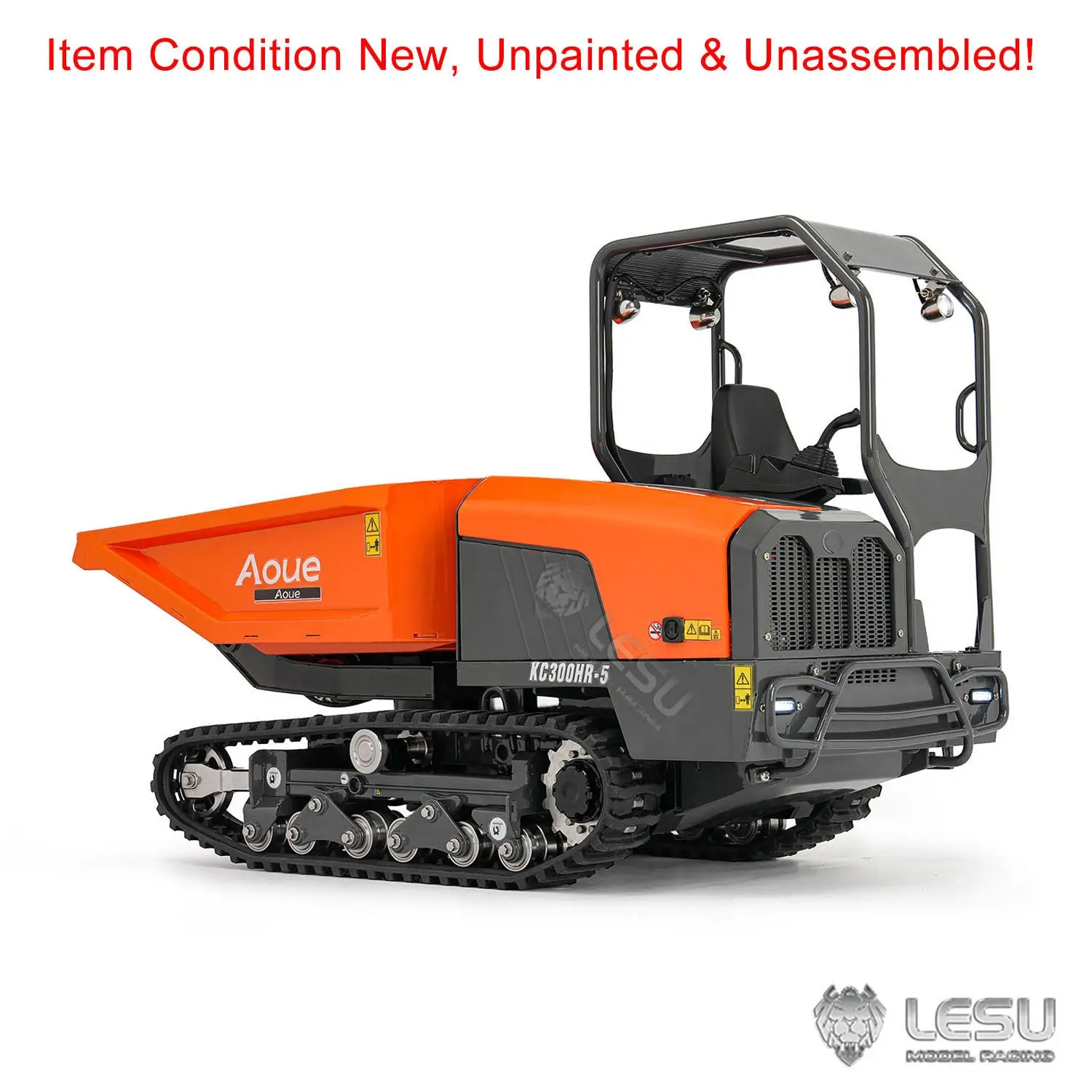

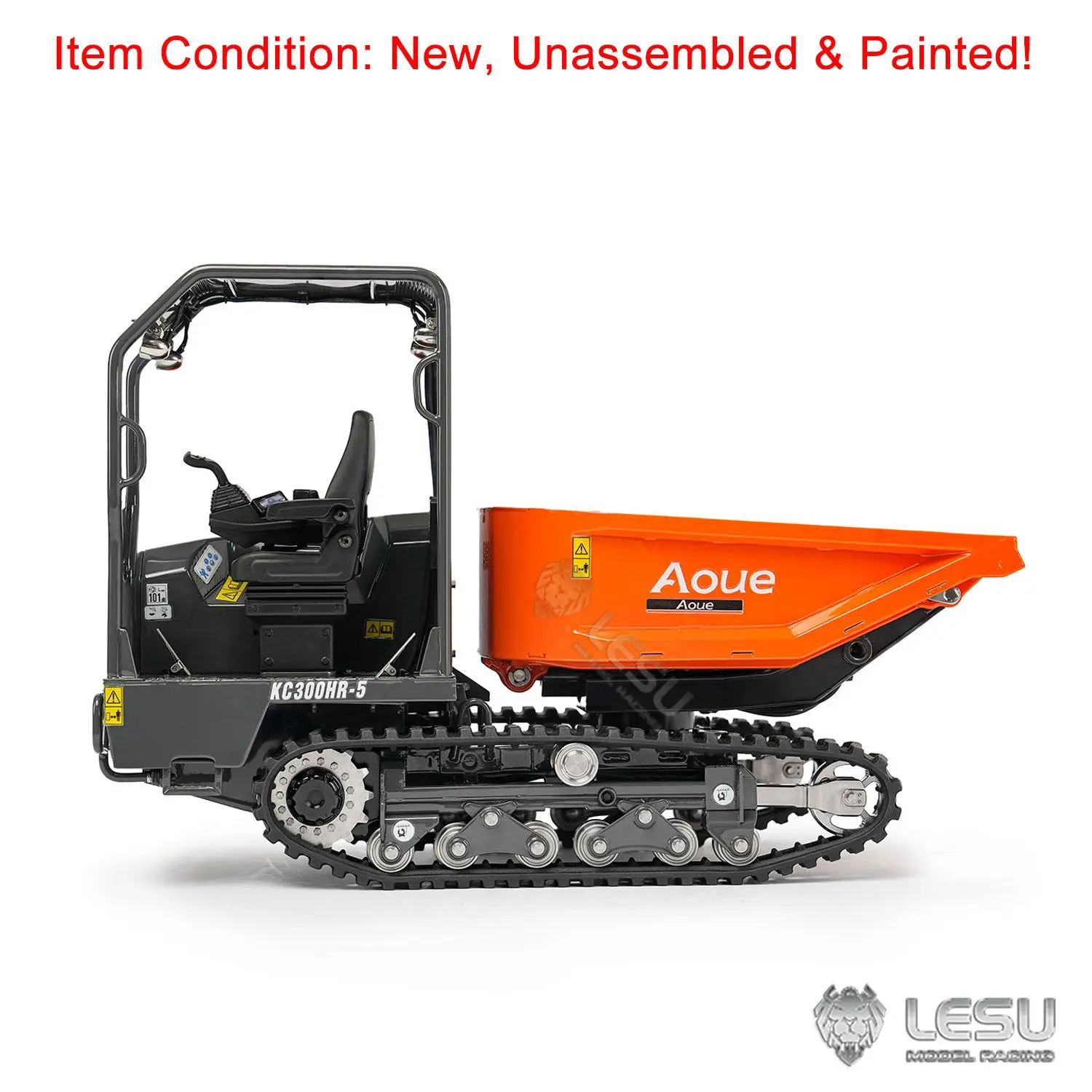

1/14 Hydraulic Remote Control Tracked Dumper KC300HR-5 Unpainted KIT LESU Metal RC Tipper Model Light Sound System No Battery

#1/14 Hydraulic Remote Control Tracked Dumper KC300HR-5 Unpainted KIT LESU Metal RC Tipper Model Light Sound System No Battery

The images are for reference only.

#Specification:
Manufacturer: LESU
Item Condition: New, Unassembled, Painted/Unpainted(Option)
Scale: 1/14
Material: Metal, Rubber

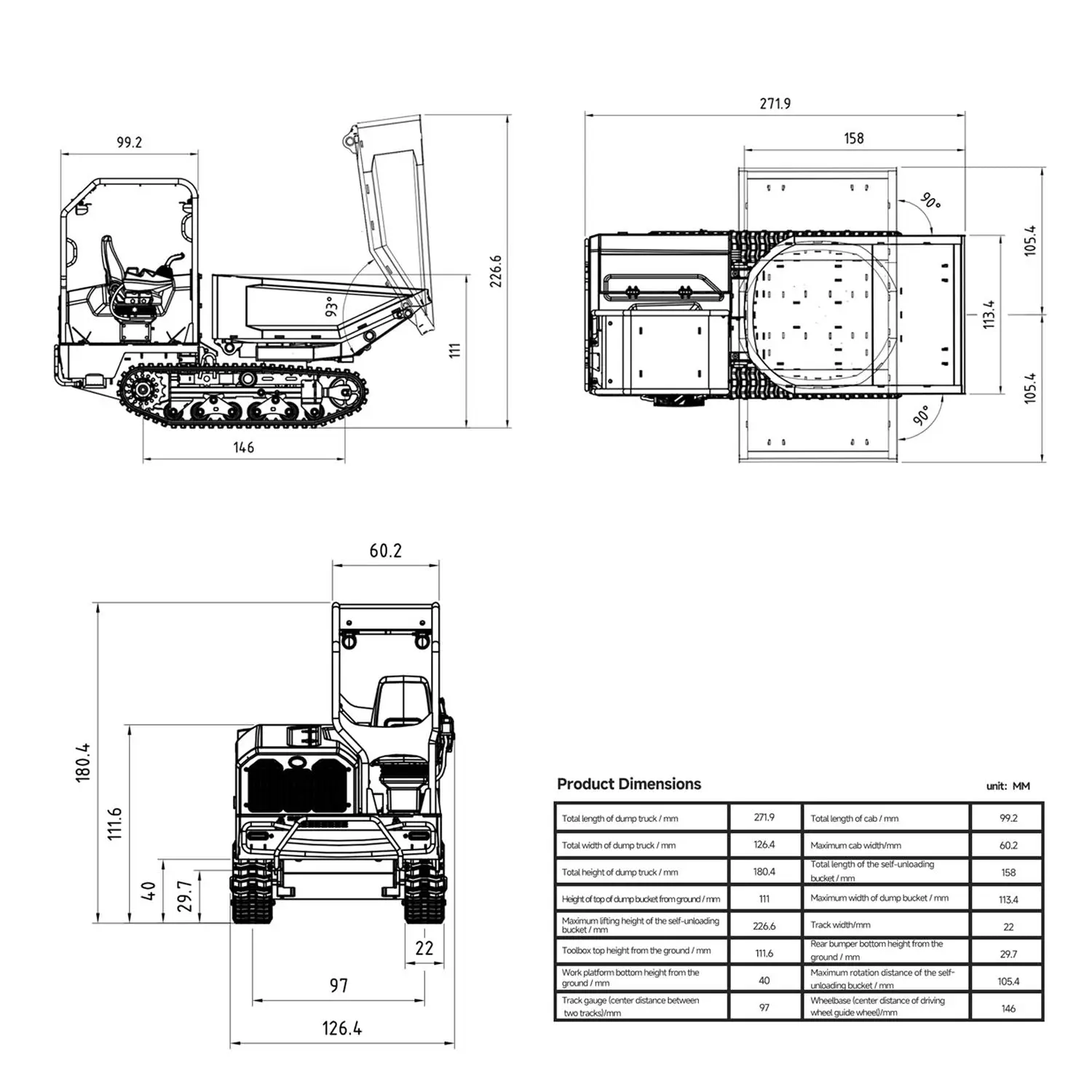

Vehicle Size: 272*180*126MM/10.7*7.1*5.0Inches
Weight: 2.1KG
Track Width: 22MM
Total Track Length: 390MM
Track Gauge: 97MM
Wheelbase: 146MM
Top Height of the Bucket from the Ground/MM: 111
Top Height of the Toolbox from the Ground/MM: 112
Total Length of the Cabin/MM: 99
Total Length of the Bucket/MM: 158
Bottom Beight of the Working Platform from the Ground/MM: 36
Bottom Height of the Rear Bumper from the Ground/MM: 30
Maximum Lifting Height of the Bucket/MM: 227
MaximumLoading Weight of the Bucket/kg: 1
Maximum Width of the Cabin/MM: 60
Maximum Width of the Bucket/MM: 113
Maximum Rotation Distance of the Bucket/MM: 210
Rated Pressure/mpa: 1.5
Valve: 1-Way Valve
Pump: 1 Unit
ID: LS-BA-B0035-PTrack-KIT-S-RDGY

#The Package Includes:
1/14 Unassembled Metal Hydraulic Tracked Dumper KC300HR-5 KIT
Motor
Servo
ESC
Hydraulic System
Light System
Sound System

#The Package Does Not Include:
Flysky ST8 Radio System
Battery
Charger
Hydraulic Oil

#Features:
1. The hydraulic system is equipped with a compact high-efficiency hydraulic power unit adopting one-pump one-circuit design. It integrates core components including oil pump, motor, relief valve and directional valve. The hydraulic pipeline layout is streamlined, compact, aesthetic and leak-proof. A multi-functional relief valve with pressure adjustment knob is fitted as standard. The 304 stainless steel welded fuel tank features corrosion resistance, superior sealing and larger capacity. High-precision stainless steel hydraulic cylinders come standard, delivering more coordinated, sensitive and linear overall movements.
2. Driven by brushless motor and matched with multi-stage planetary gear reducer, it features compact structure, strong power and sensitive response.

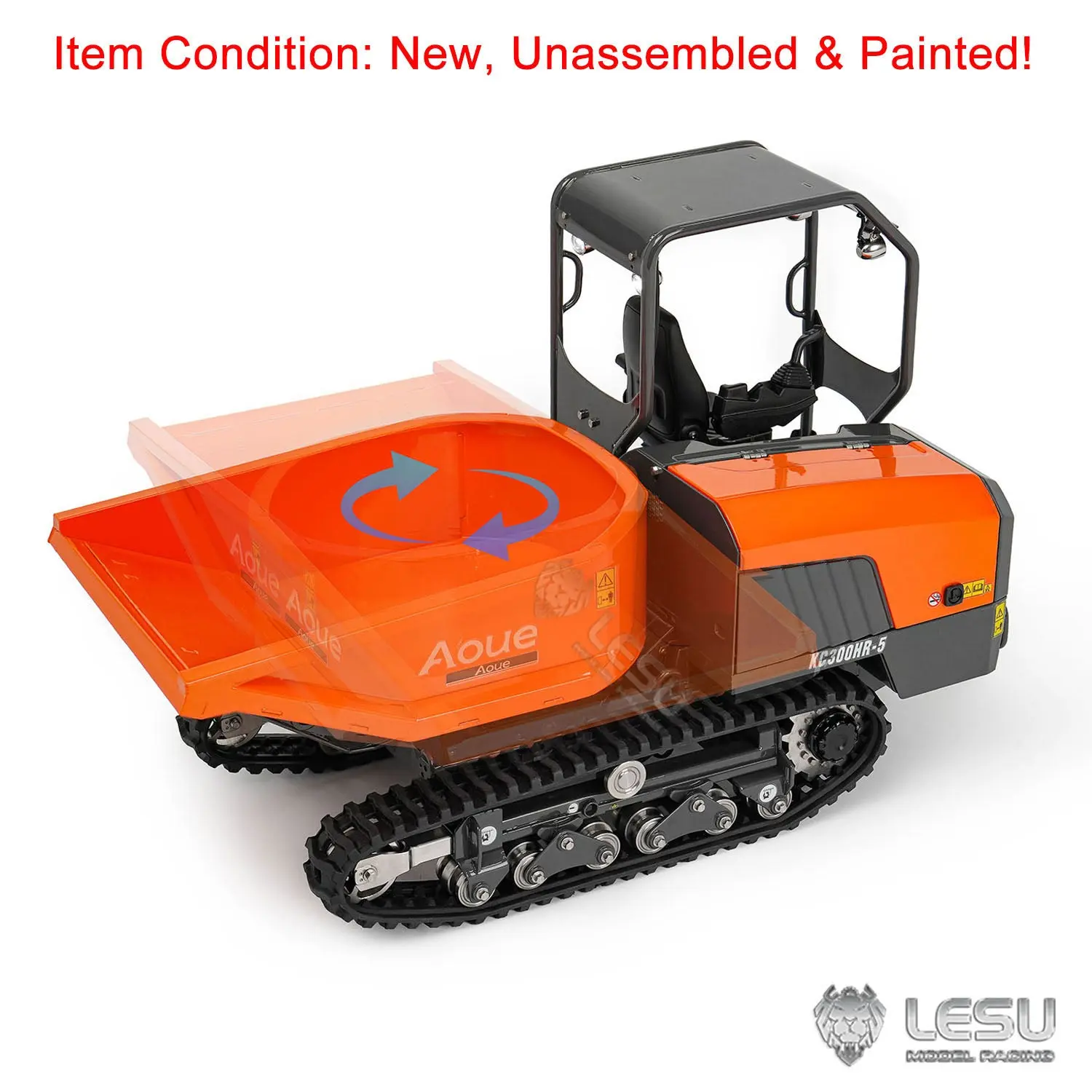

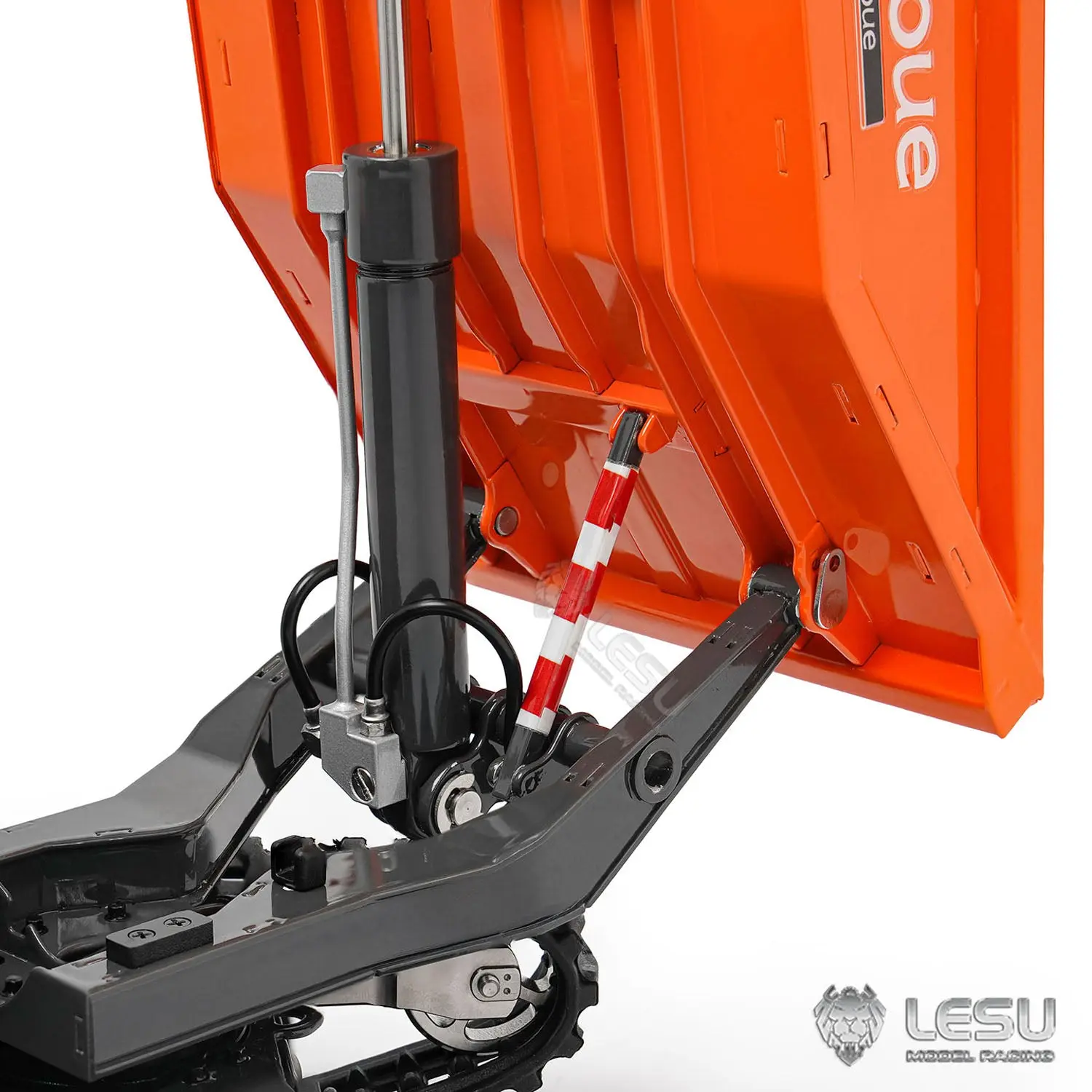

3. The loading bucket is welded of stainless steel sheet metal and etched parts, supporting rotation up to 180?? for more working postures. The slewing assembly adopts an upgraded limit structure to effectively control the rotation angle of the bucket, avoid motor stalling and extend service life. Anti-tilt support rods are installed at the bottom of the bucket bracket to prevent the vehicle forward tilting during rotation and improve operational safety.

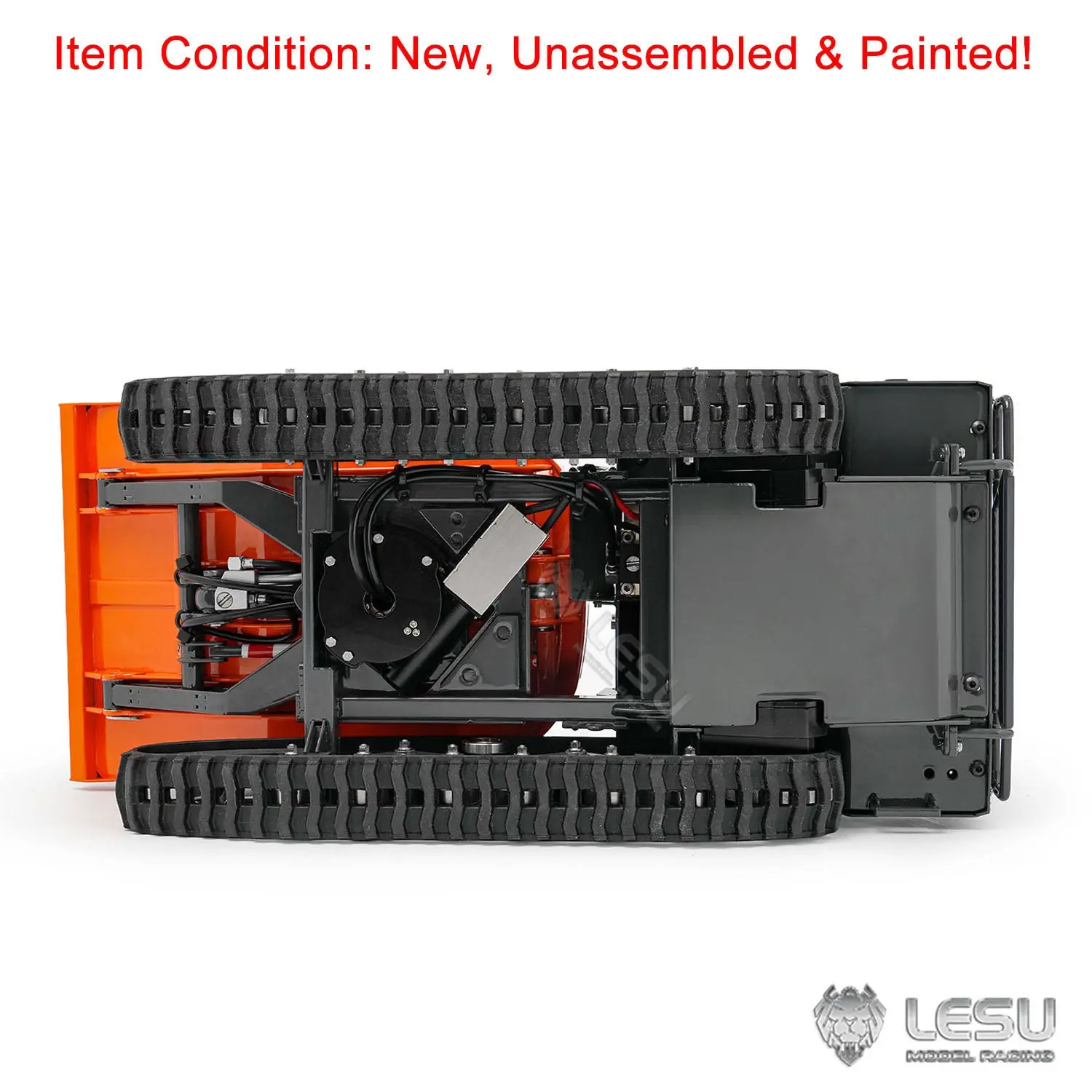

4. It adopts an all-metal chassis frame and cage-style cab structure. The cab main body is made of stainless steel to enhance structural strength and restore the metal frame texture of real vehicles.
5. The layout of road wheels replicates real machinery design. Two sets of independently swinging road wheels are arranged on each side, swinging back and forth adaptively with terrain changes to greatly improve trafficability on complex ground.

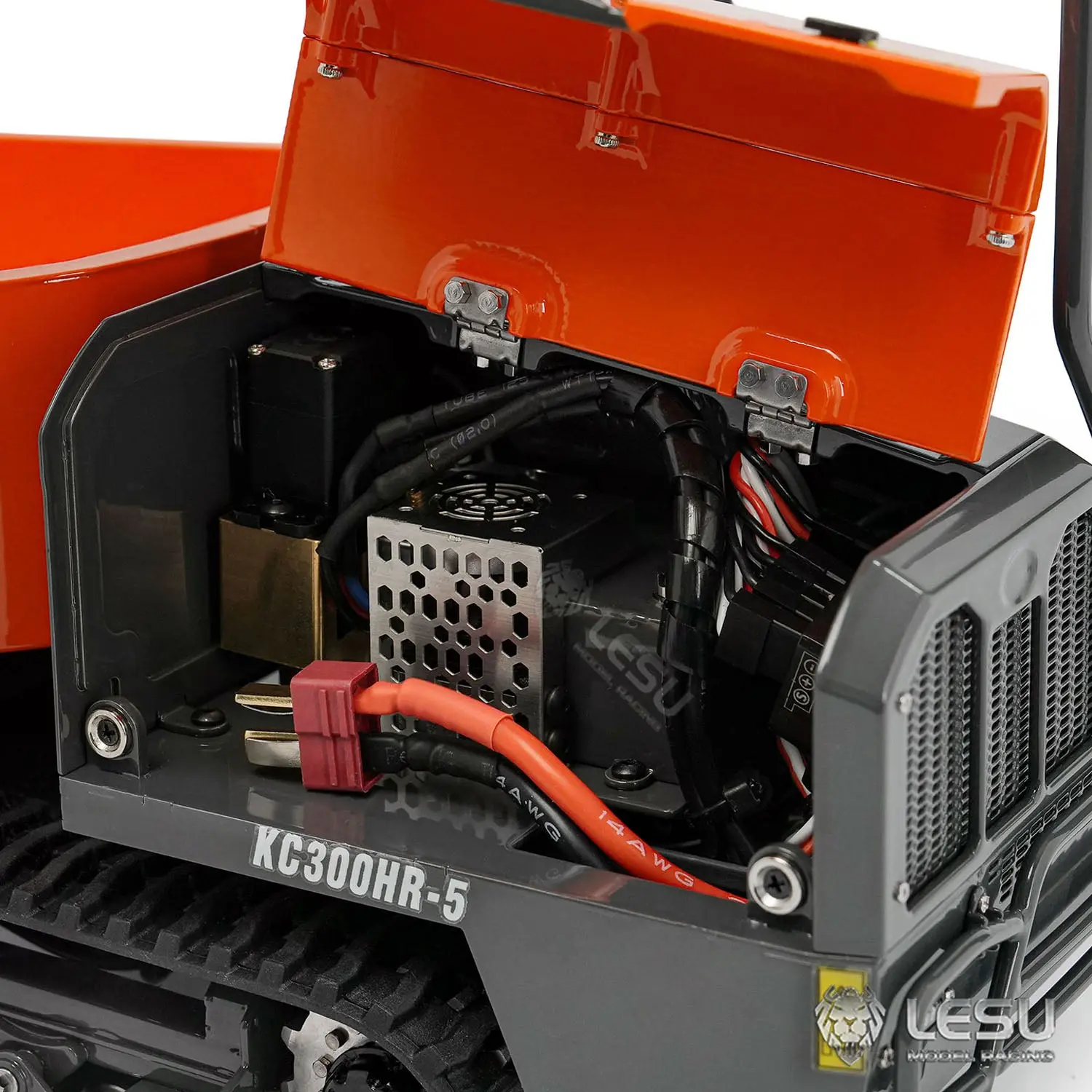

6. The toolbox door is openable. The aluminum alloy toolbox is processed by CNC machining. With an integral modular design, it can be detached from the working platform.
7. The vehicle is fitted with four spotlights plus 10 lamp beads at the rear. Matched with the upgraded circuit board module, it provides circuit protection, maintaining stable lighting without voltage drop or stroboscopic flicker.

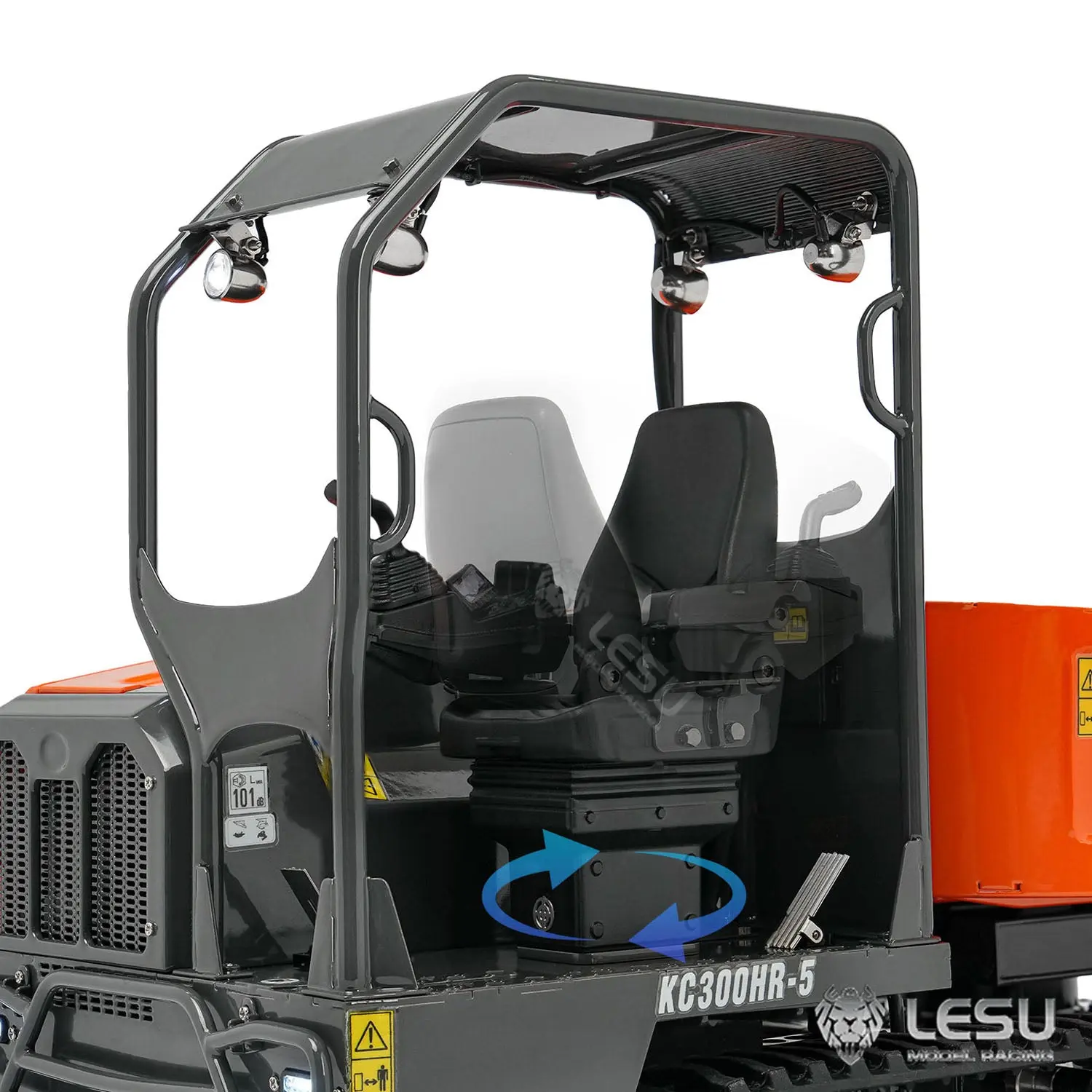

8. The interior is made of injection-molded ABS with matte surface finish. The seat backrest angle is adjustable, and a newly added bottom rotating shaft enables 180?? seat rotation, offering intuitive operating vision and immersive experience.
9. Newly molded high-performance rubber track features low noise, tear resistance and high flexibility. It effectively reduces energy consumption with clear anti-slip treads, adapting to a wider range of terrains.

#If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
