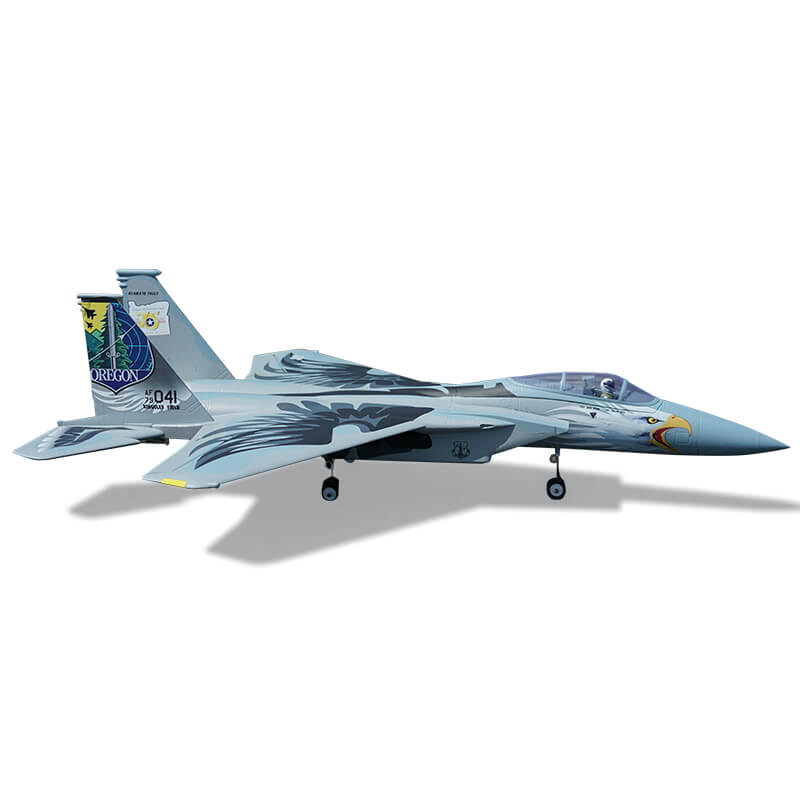

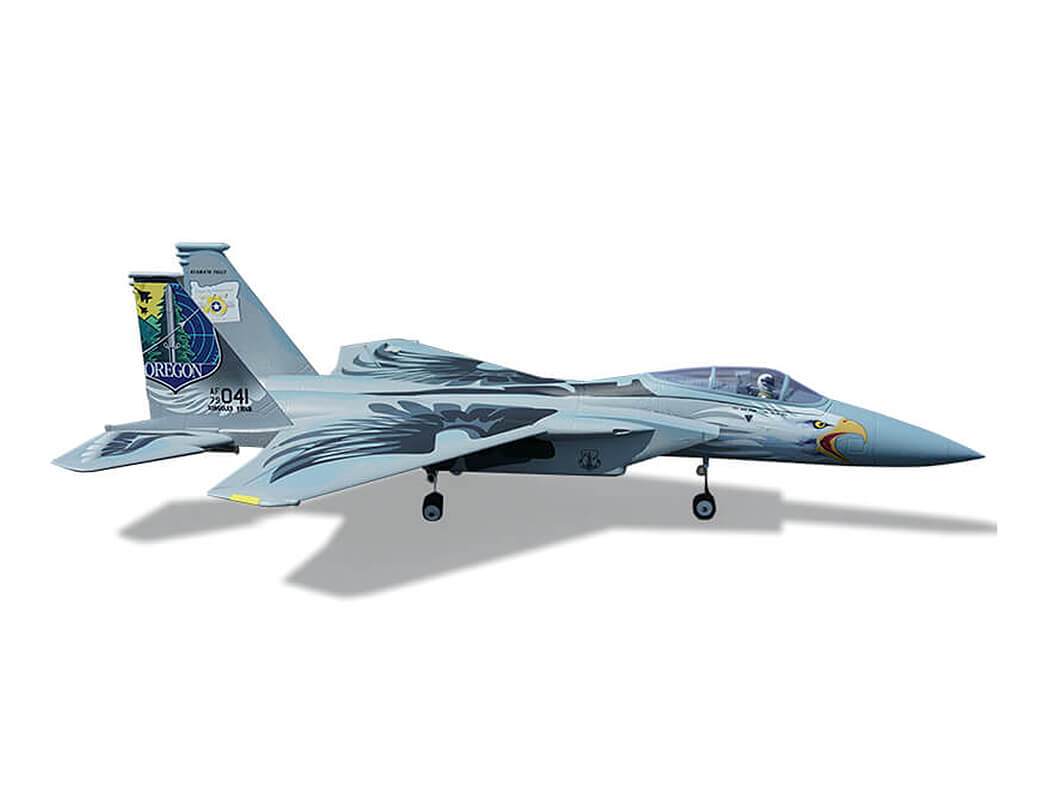

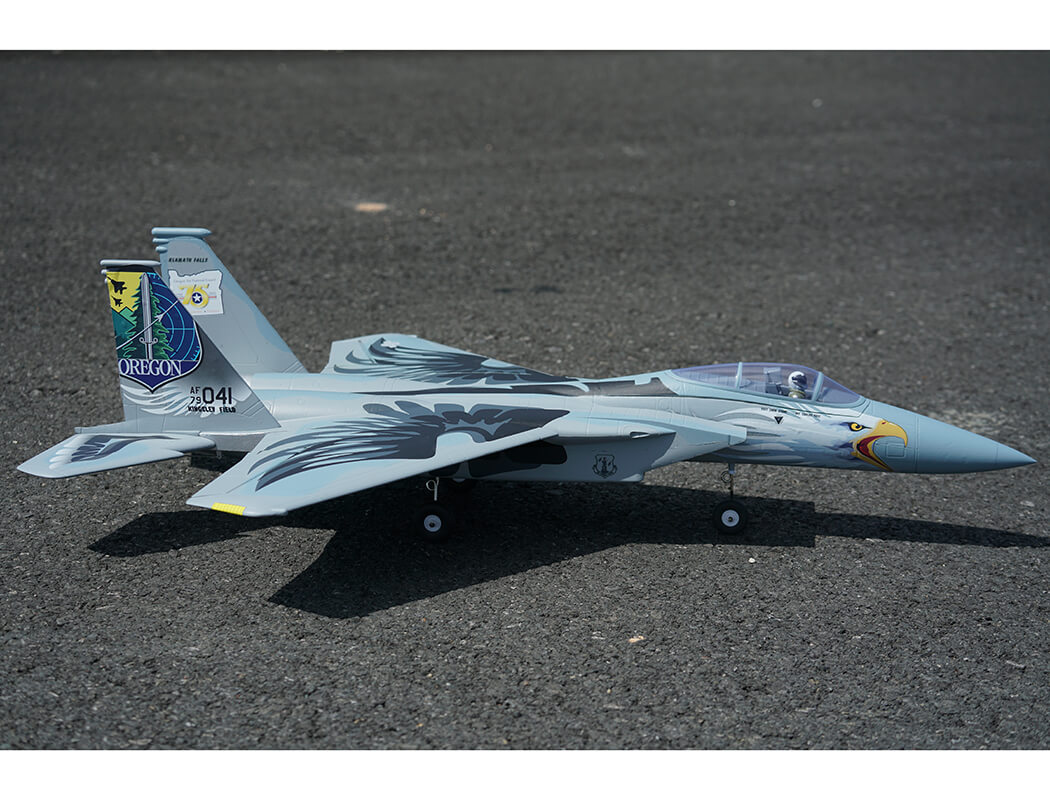

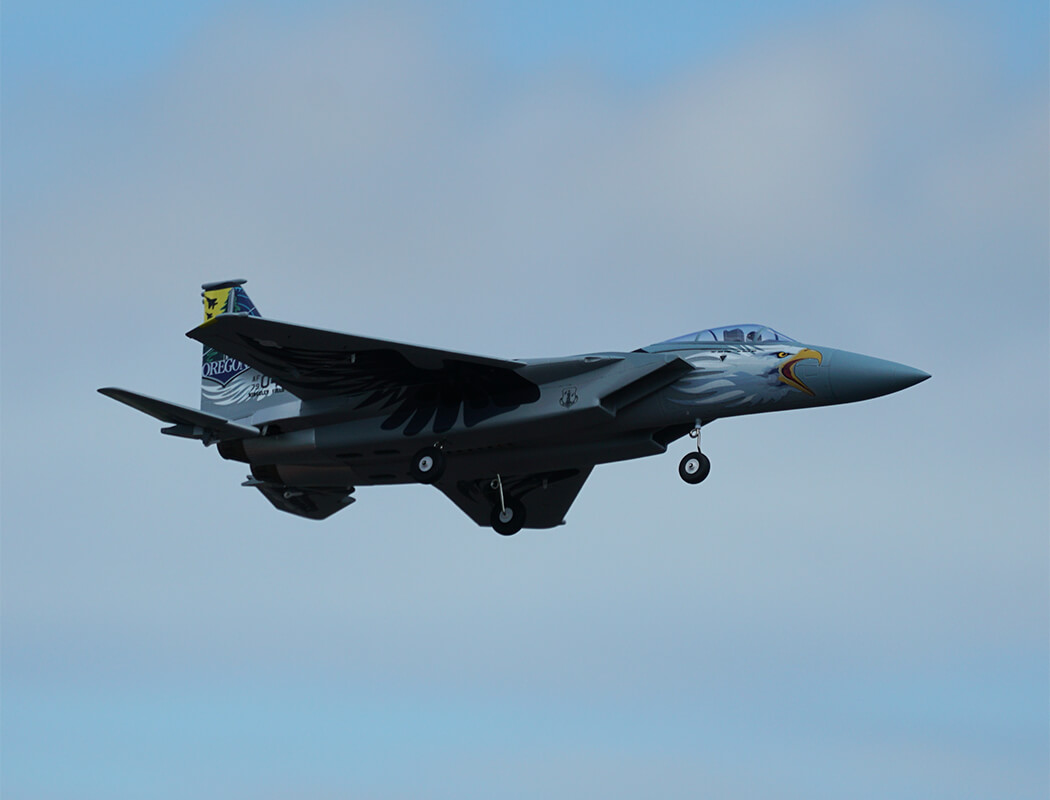

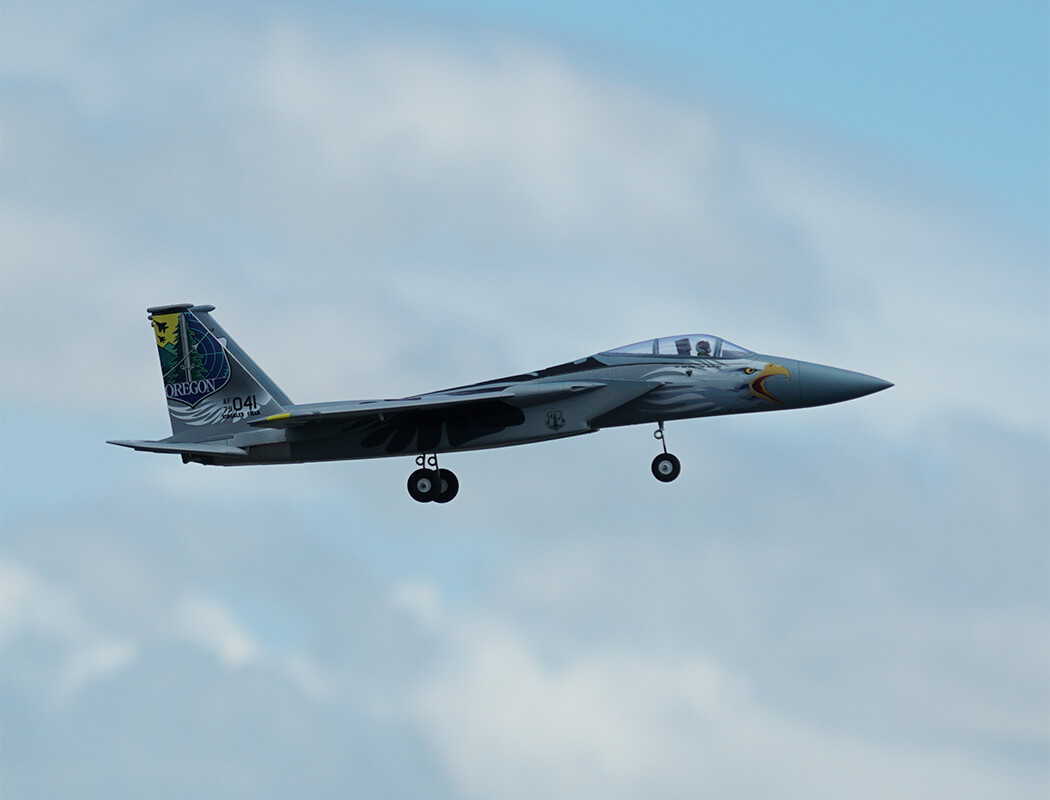

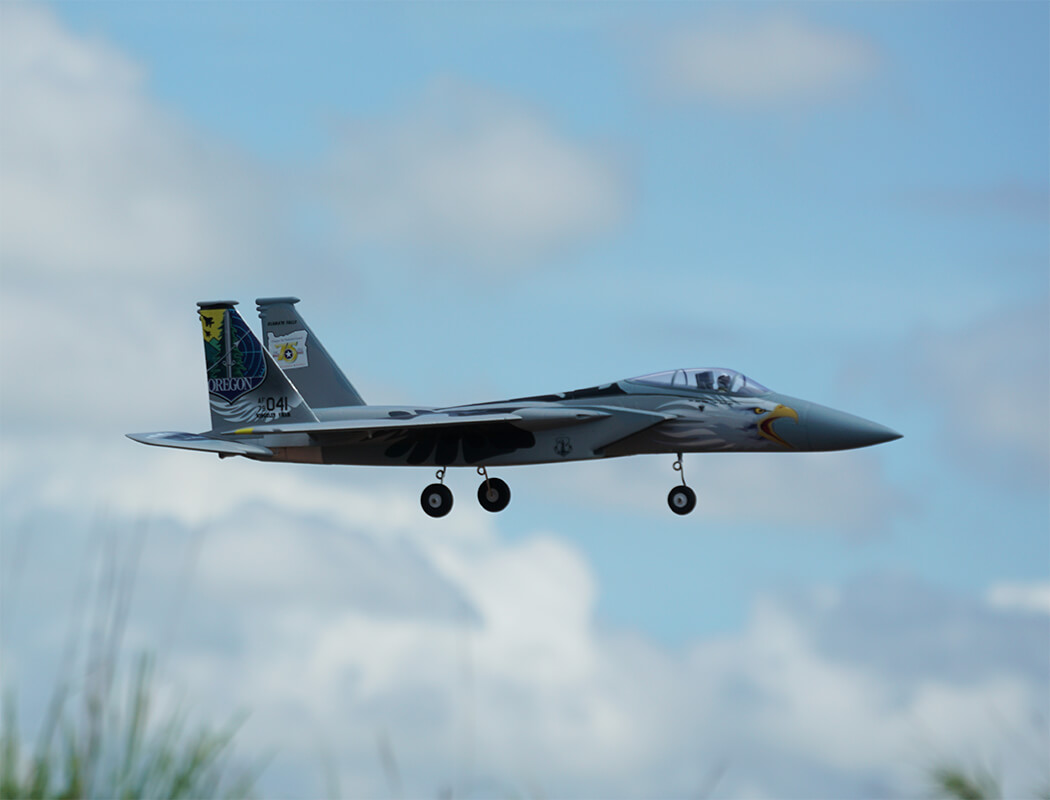

XFLY TWIN 40MM F-15 EDF 710MM JET WITHOUT TX/RX/BATTERY – GREY

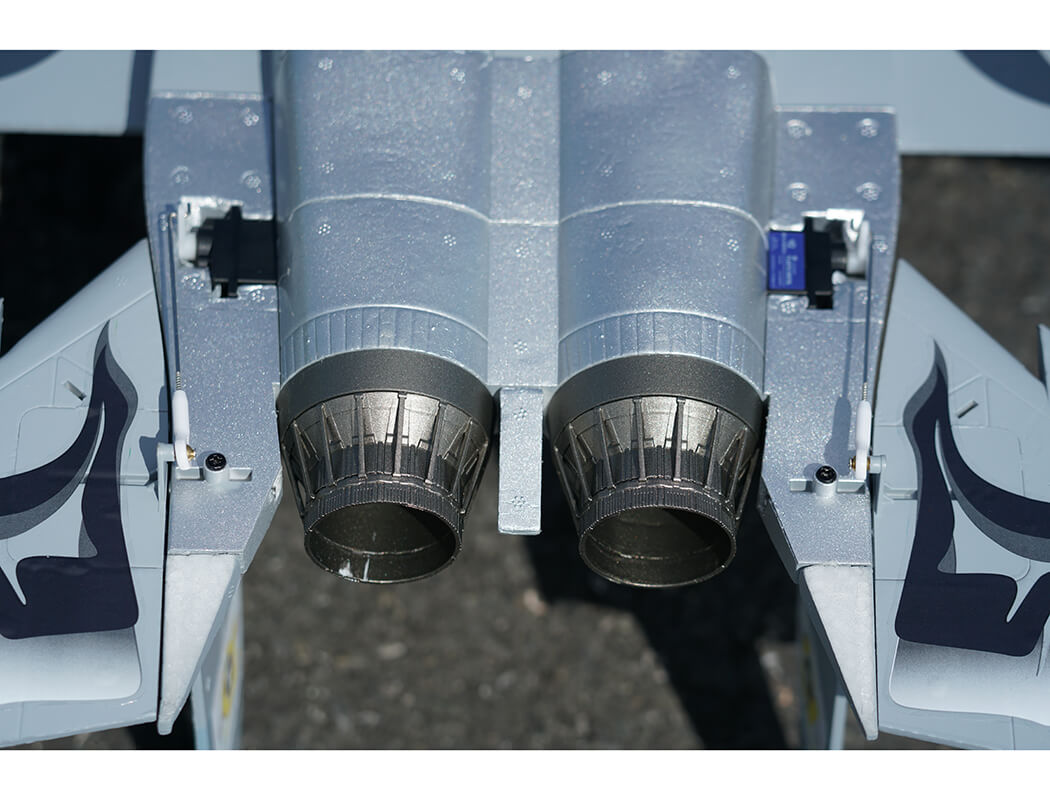

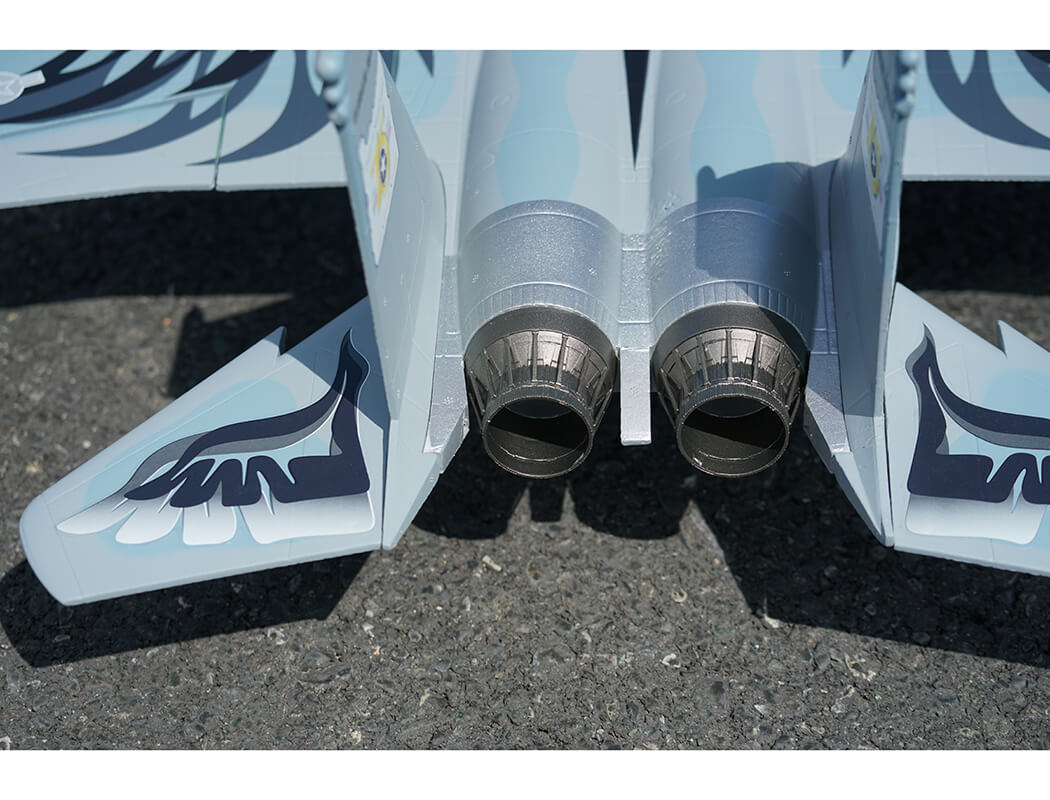

XFly Model is proud to announce its third scale fighter jet F-15 in the twin 40mm EDF lineup. For the purpose of making it as streamlined and true-to-scale as possible, the XFly team equips the F-15 with twin power system setup and keeps the scale details including air inlet, cockpit, nozzle and full-flying horizontal stabs.

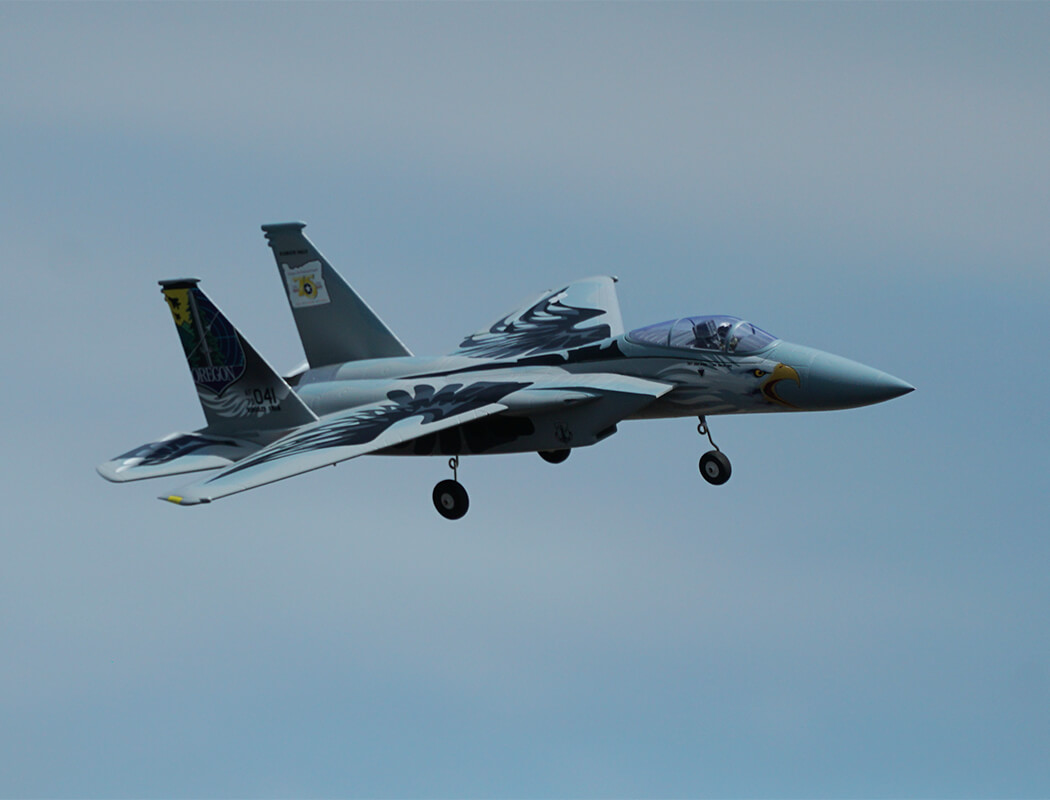

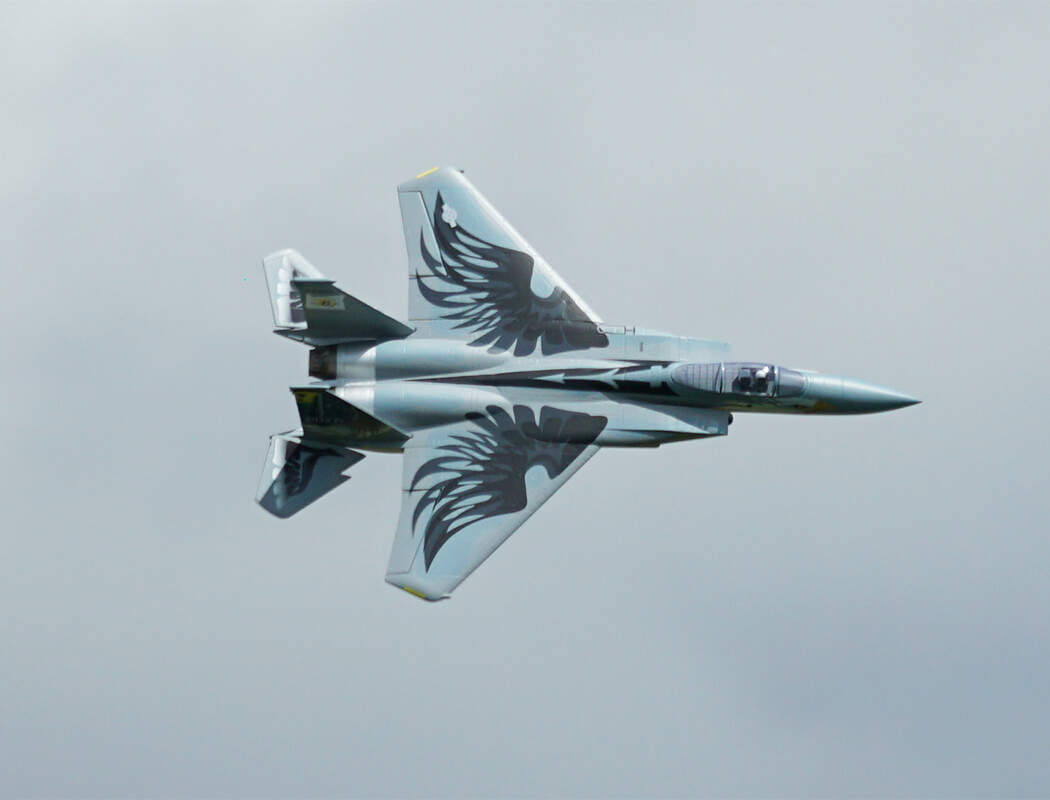

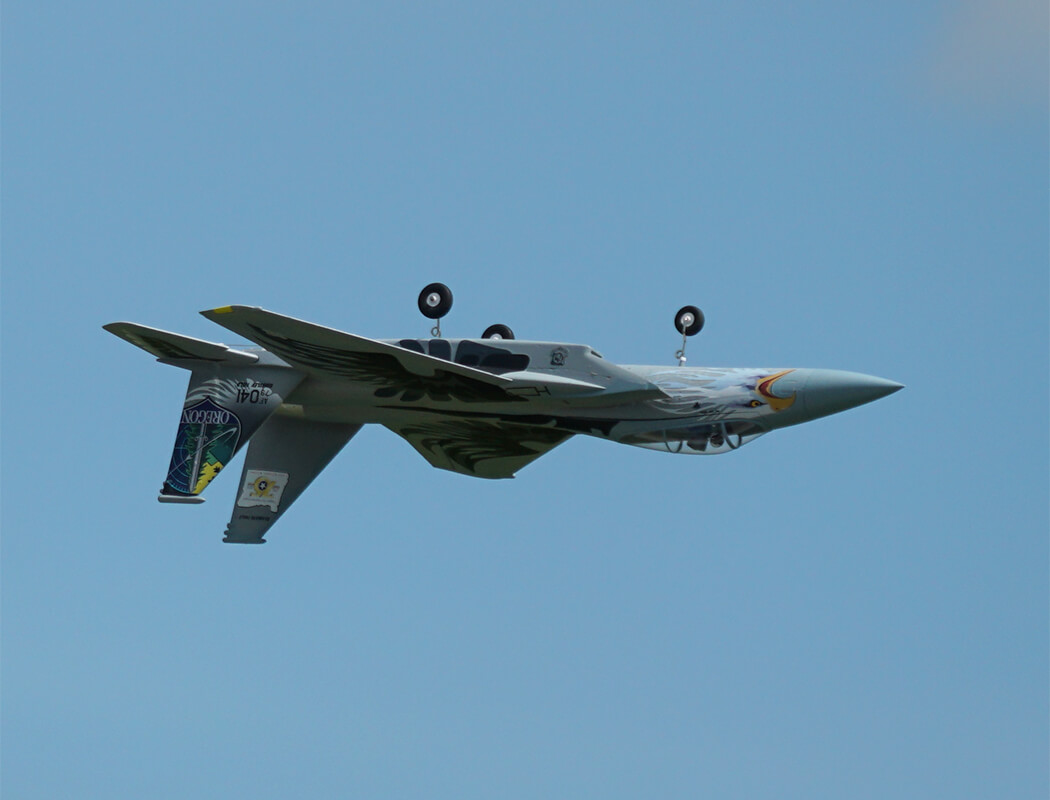

The factory-installed power system, including twin efficient 1413-KV5500 brushless motors and twin 20A brushless ESCs, paired with a 4S LiPo battery, delivers an abundance of thrust for fast climbs, rolls, loops and endless fun for high alpha flying due to the F-15’s low wing load and full flying stabs. A flight time of around 3-8 mins can be achieved with proper throttle management.

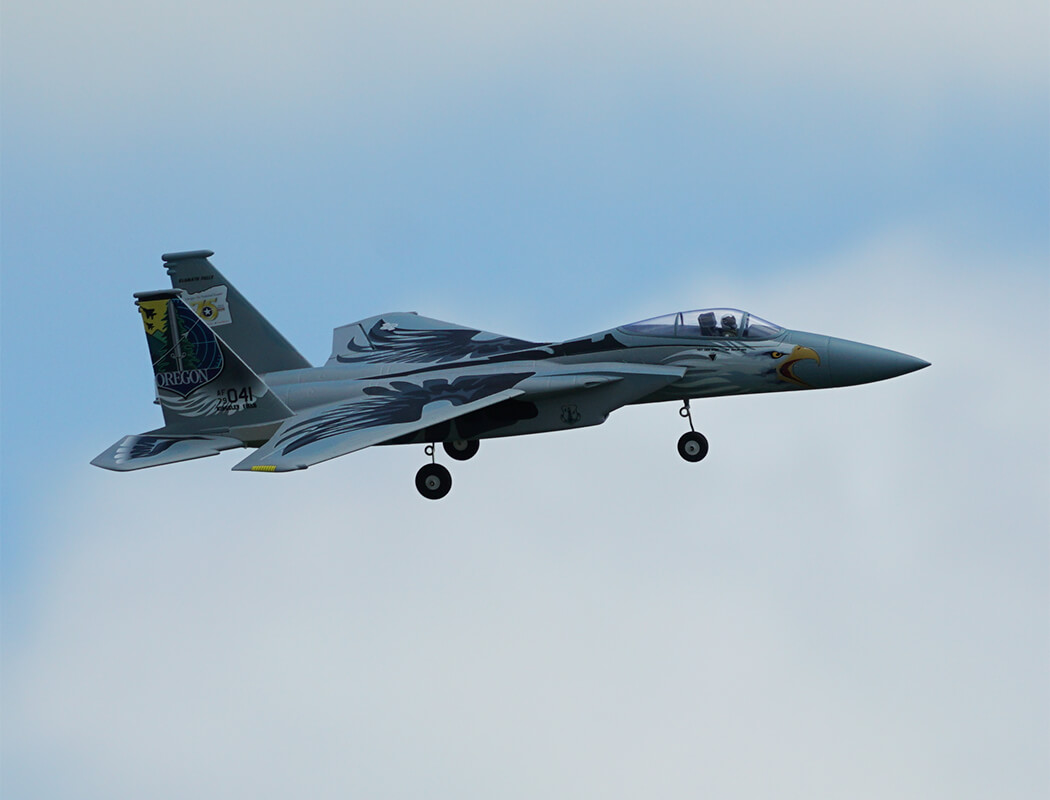

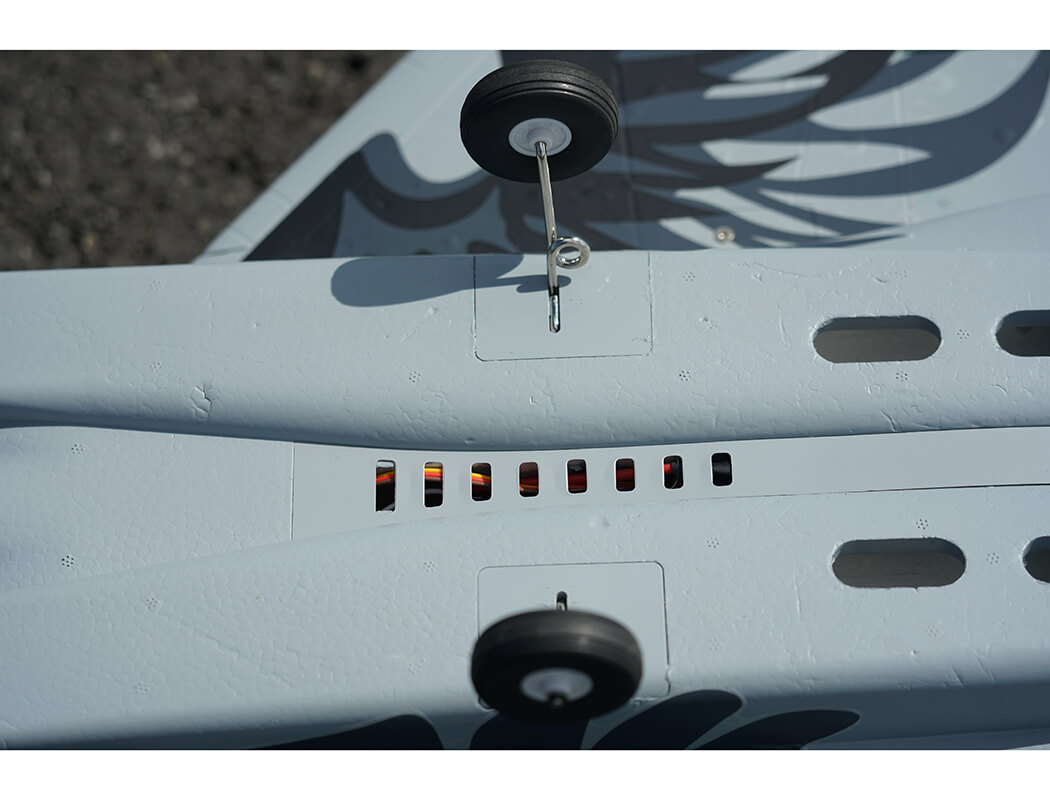

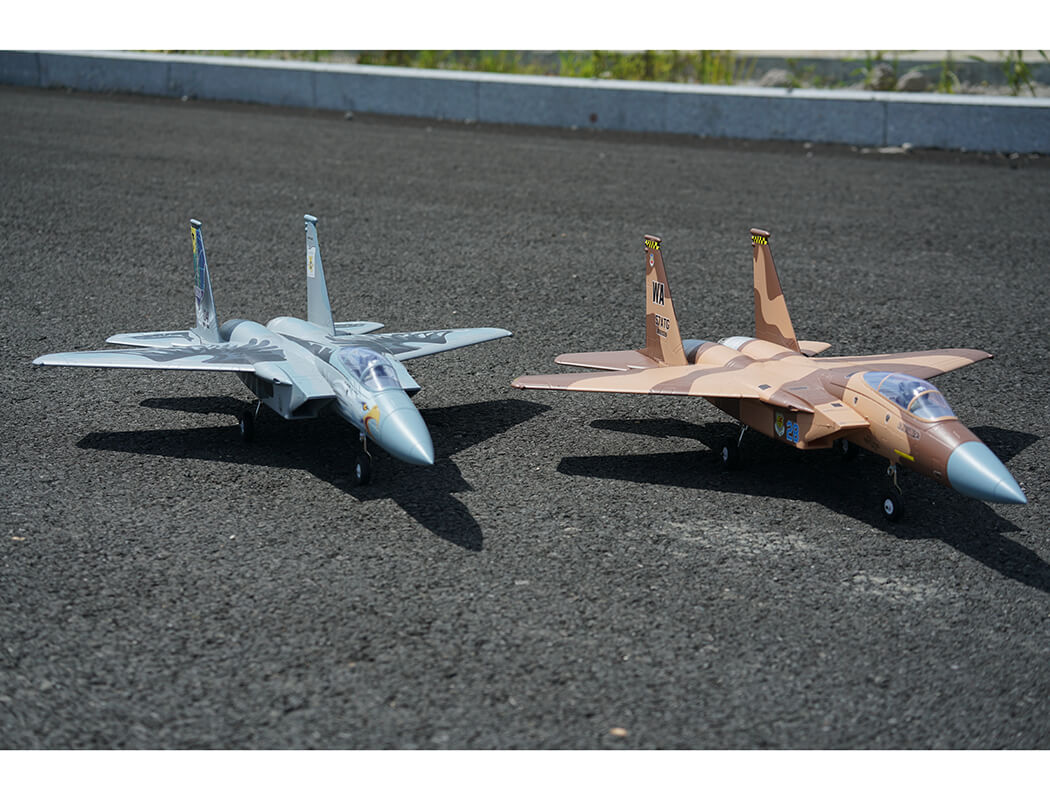

Perfectly fitted landing gear helps keep the plane lightweight and makes take off and landing smooth. Landing gears can be easily removed for more speed and vertical performance. Choose between two liveries, Oregon National Guard or Desert Camo, the XFly F-15 is a must-have addition to your collection.
Features
- Streamlined and true-to-scale design.
- Efficient twin power system setup delivering an abundance of thrust for fast climbs, rolls, loops.
- Perfectly fitted landing gear design for smooth takeoff and landing.
- Extended flight time of 3-8 mins when using recommended 4S 1300-2600mAh LiPo battery.
- All components can be assembled quickly without glue needed.

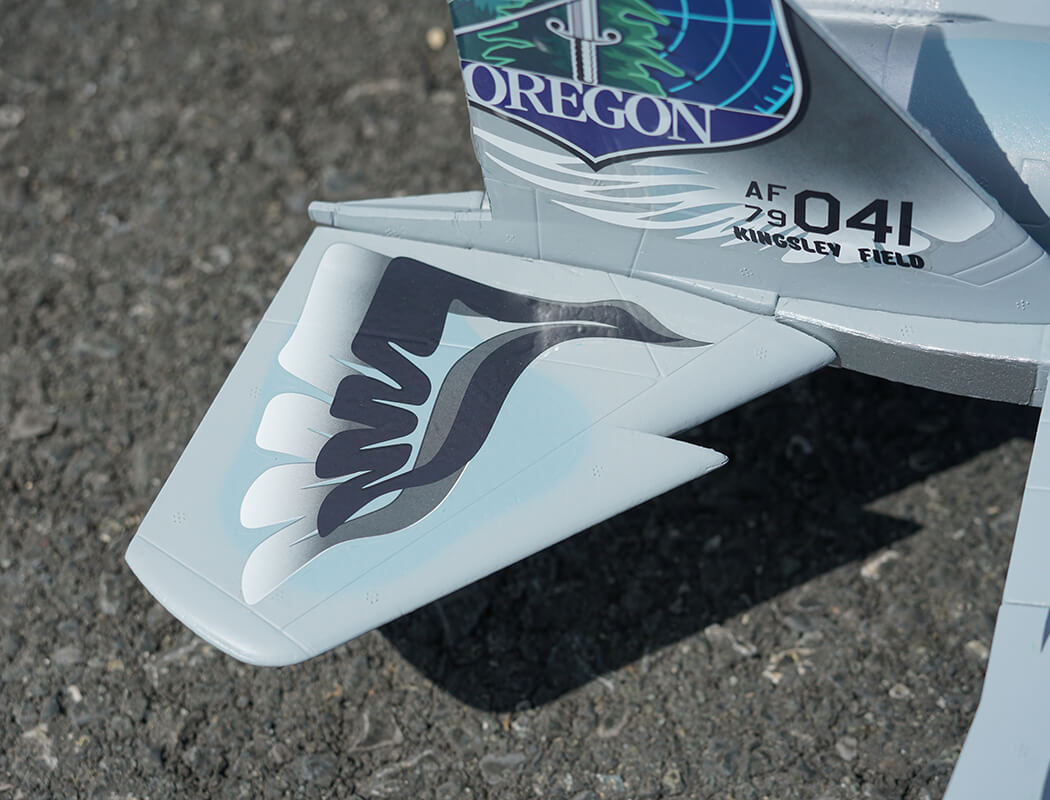

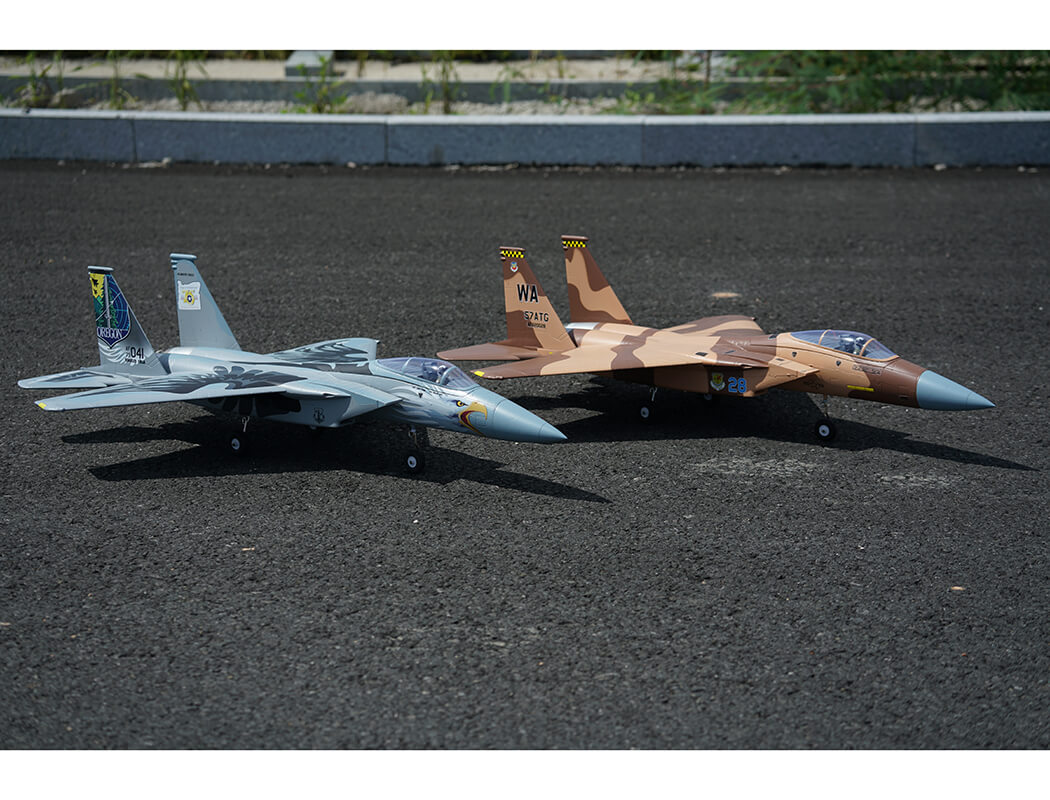

- Available in two liveries, Oregon National Guard or Desert Camo.
Specifications
Wingspan: 710mm/28in
Overall Length: 980mm/38.6in
Flying Weight: 950g
Motor Size: 1413-KV5500 *2
ESC: 20A *2

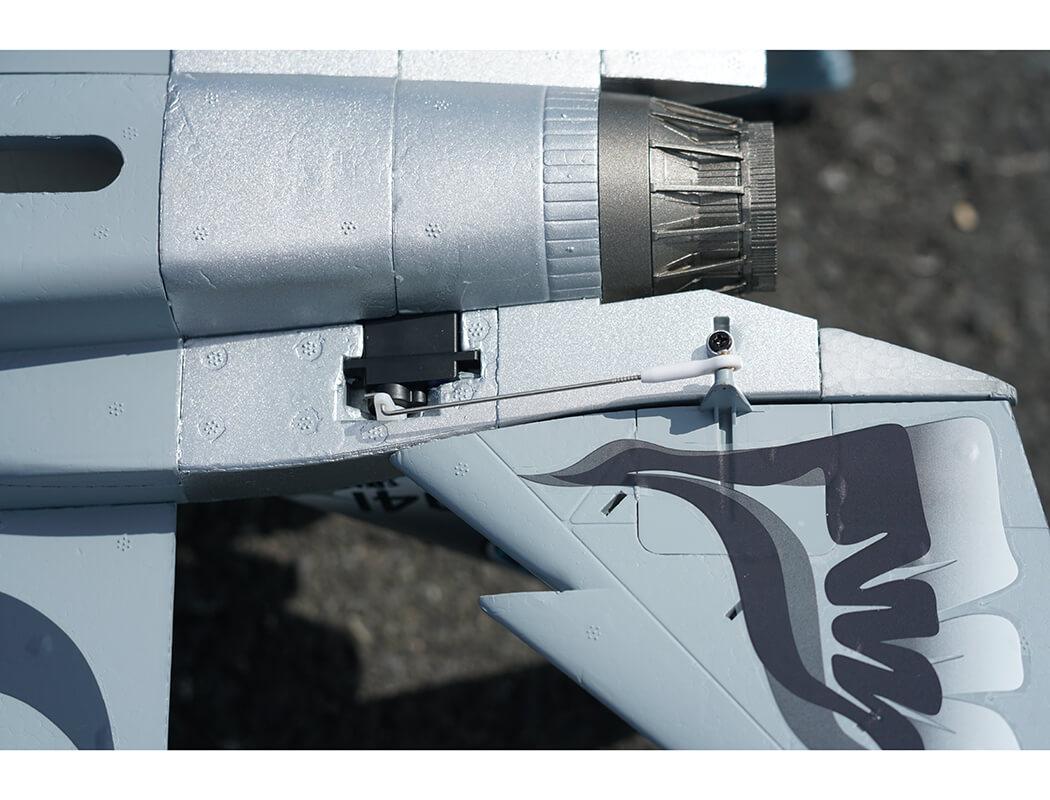

Servo: 9g servos *5
Channels: 4CH- aileron, elevator, throttle, rudder/steering
CG: 78mm from the leading edge
Wing Load: 95g/dm²
Wing Area: 10dm²
Recommended Battery: 4S 1300-2600mAh
Battery Connector: XT60
Approx Flying Duration: 3-8 mins
Assembly Time: 15 mins
Skill Level: Intermediate
Age Level: 14 years +
Flap: No
Retract: No

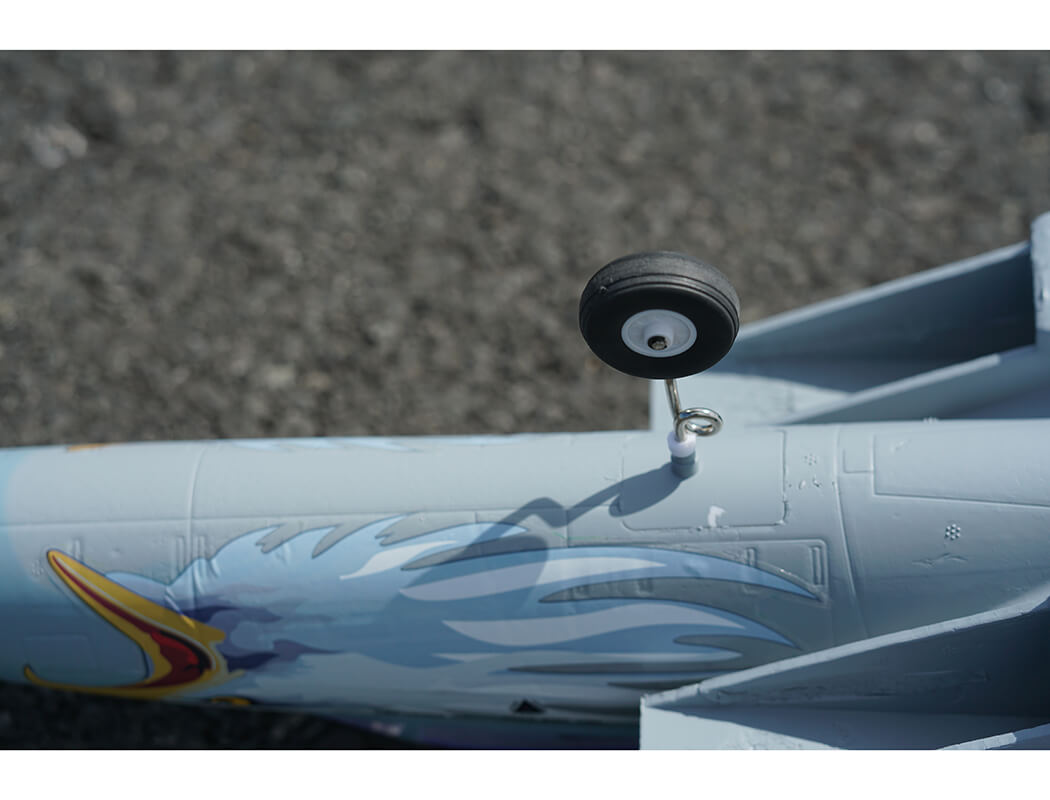

Landing Gear: Fixed main landing gear, steerable nose gear
EDF Size: 40MM EDF 12-Blade *2
Frequently Asked Questions
This model is rated for intermediate skill level pilots aged 14 and above. The full-flying stabilisers and low wing load make it capable of aggressive aerobatics, but experience with RC planes is recommended before attempting advanced manoeuvres.
You'll need a 4S LiPo battery in the 1300–2600mAh range with an XT60 connector. Flight time is approximately 3–8 minutes depending on throttle management and flying style.
No, this is an ARR (Almost Ready to Run) model. You will need to separately purchase a transmitter, receiver, and 4S LiPo battery—the plane itself includes the motors, ESCs, servos and landing gear.
The F-15 has a wingspan of 710mm (28 inches) and overall length of 980mm (38.6 inches), with a flying weight of 950 grams. It's a substantial desktop or field model suitable for open flying spaces.

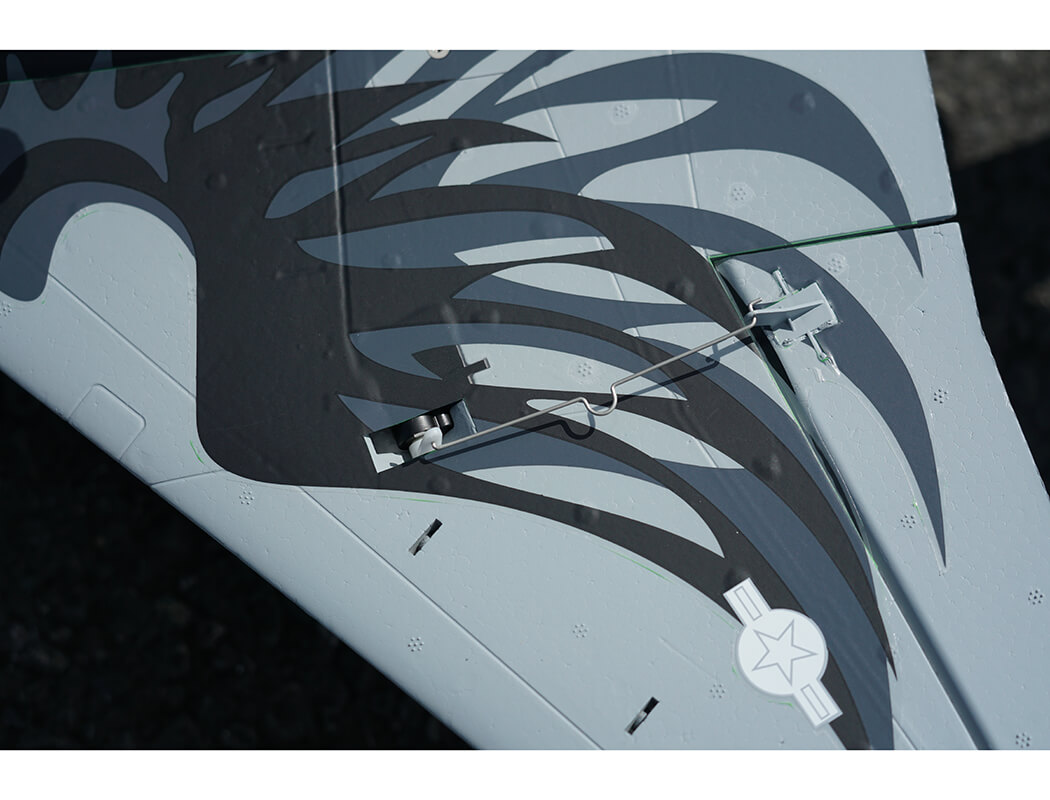

Twin 40mm EDFs with 1413-KV5500 brushless motors deliver strong thrust for fast climbs and rolls, whilst full-flying horizontal stabilisers and a low wing load of 95g/dm² enable aggressive high-alpha flying. The removable landing gear also allows you to reduce weight for increased speed and vertical performance.
