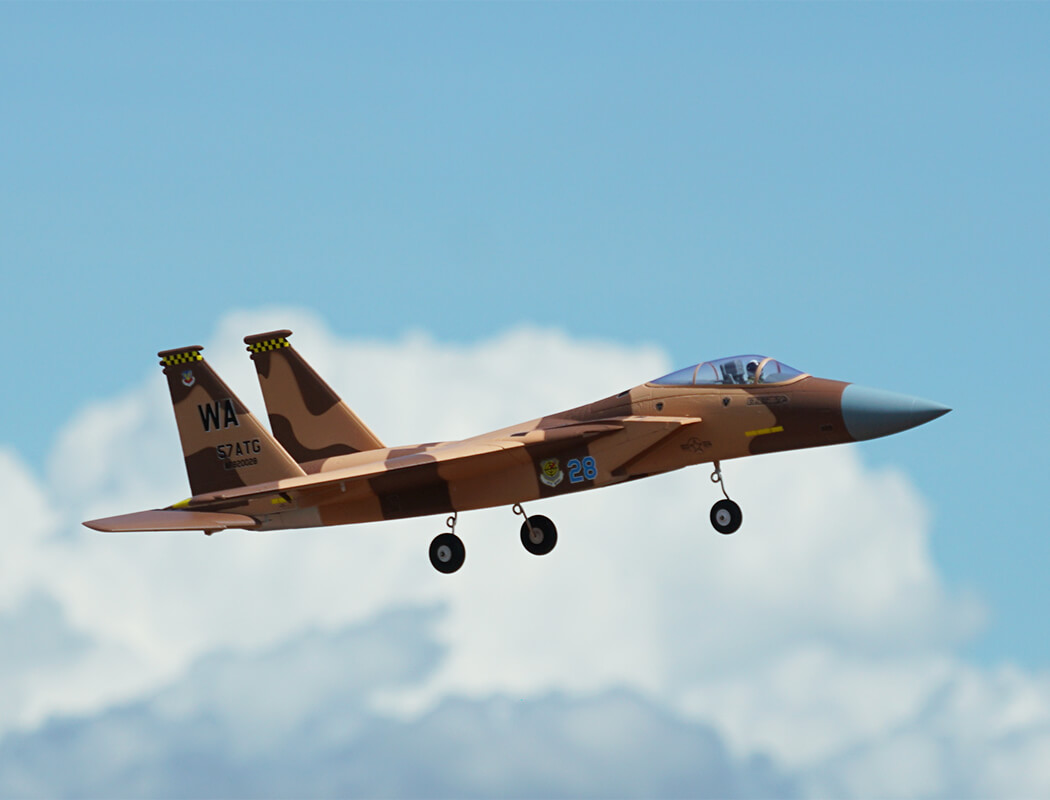

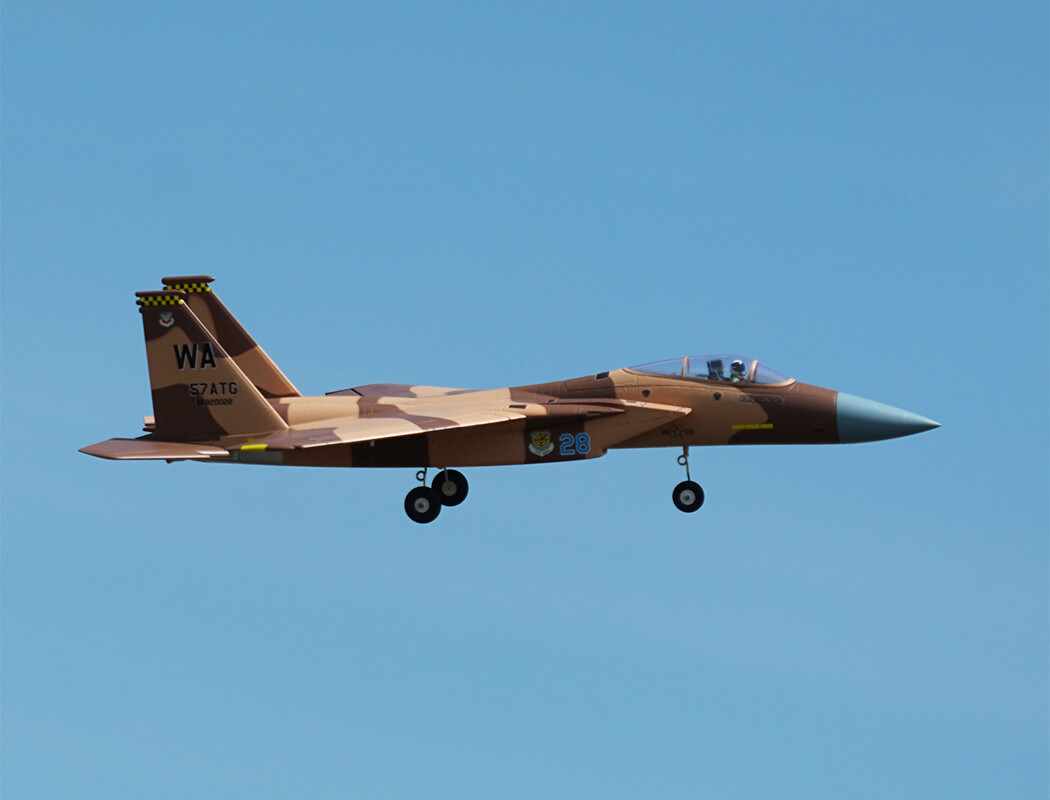

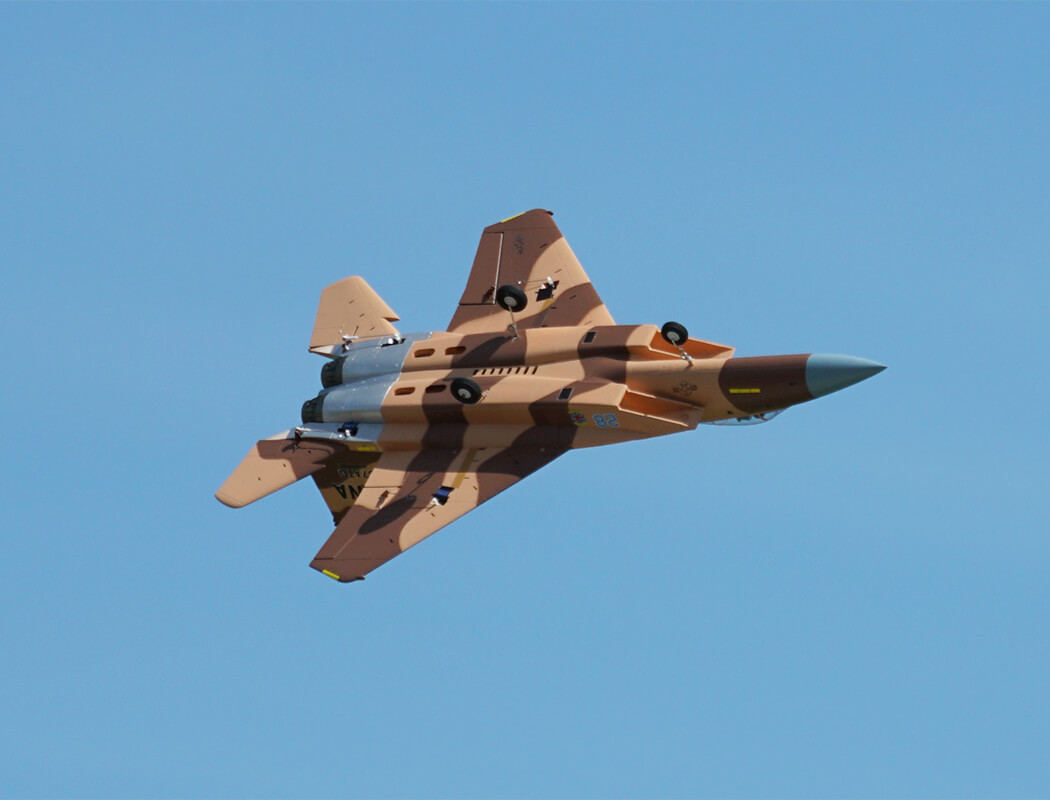

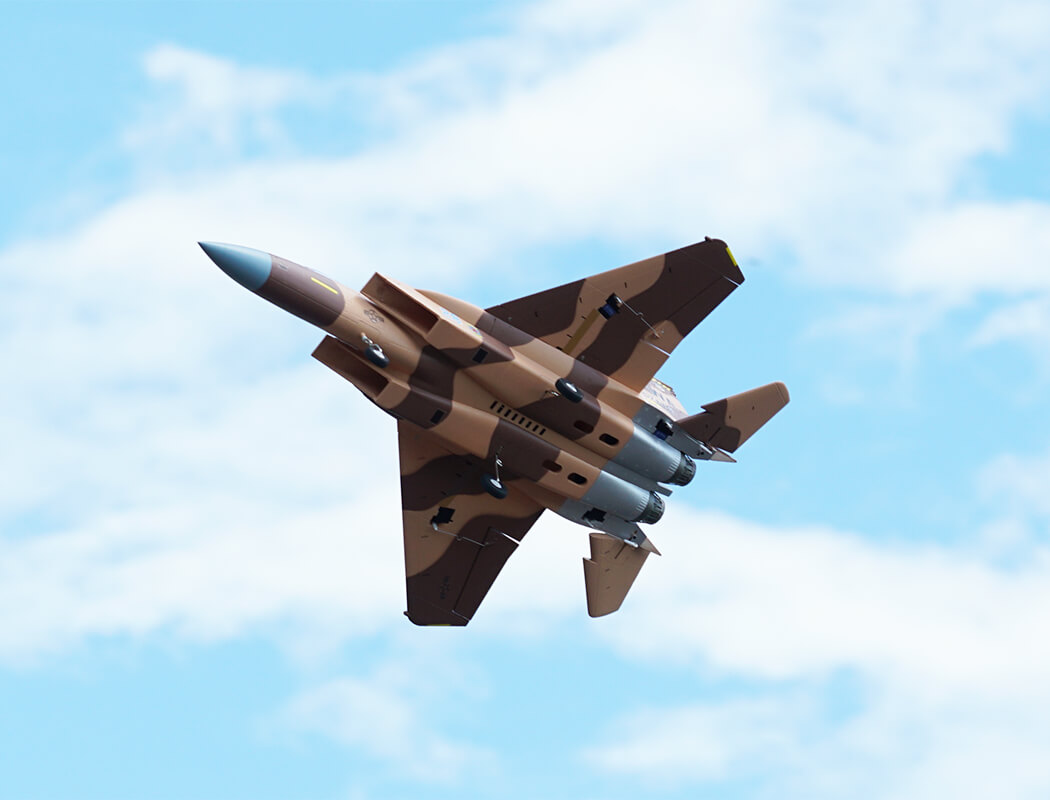

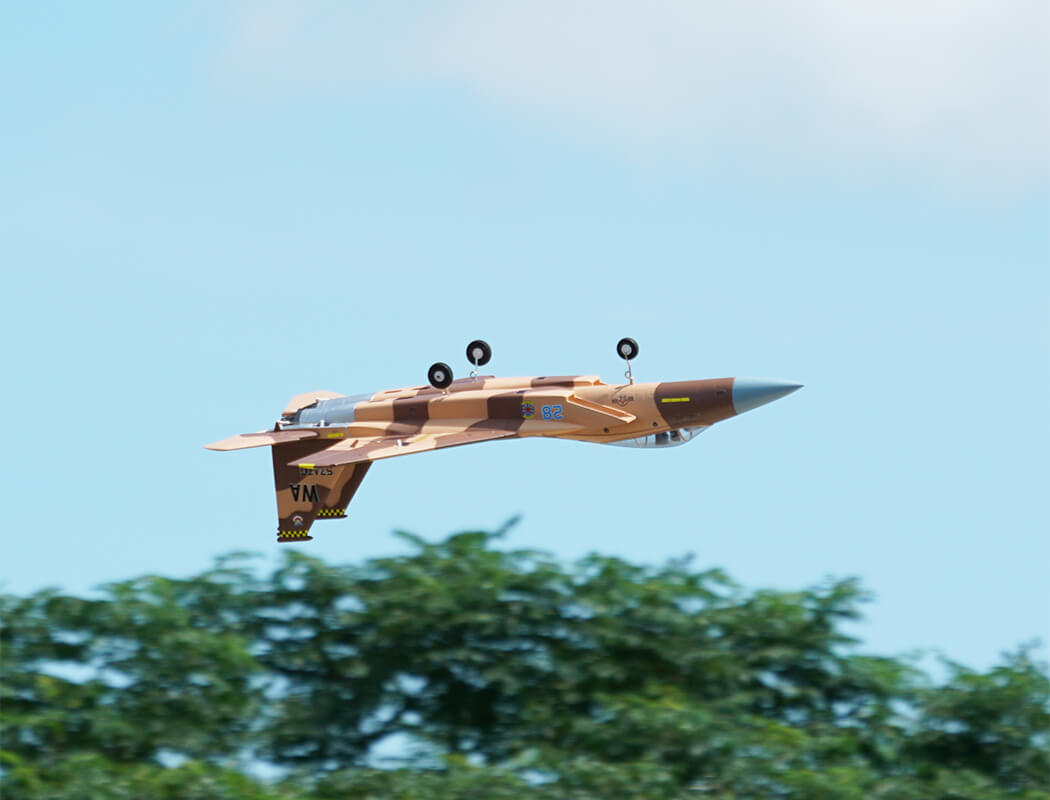

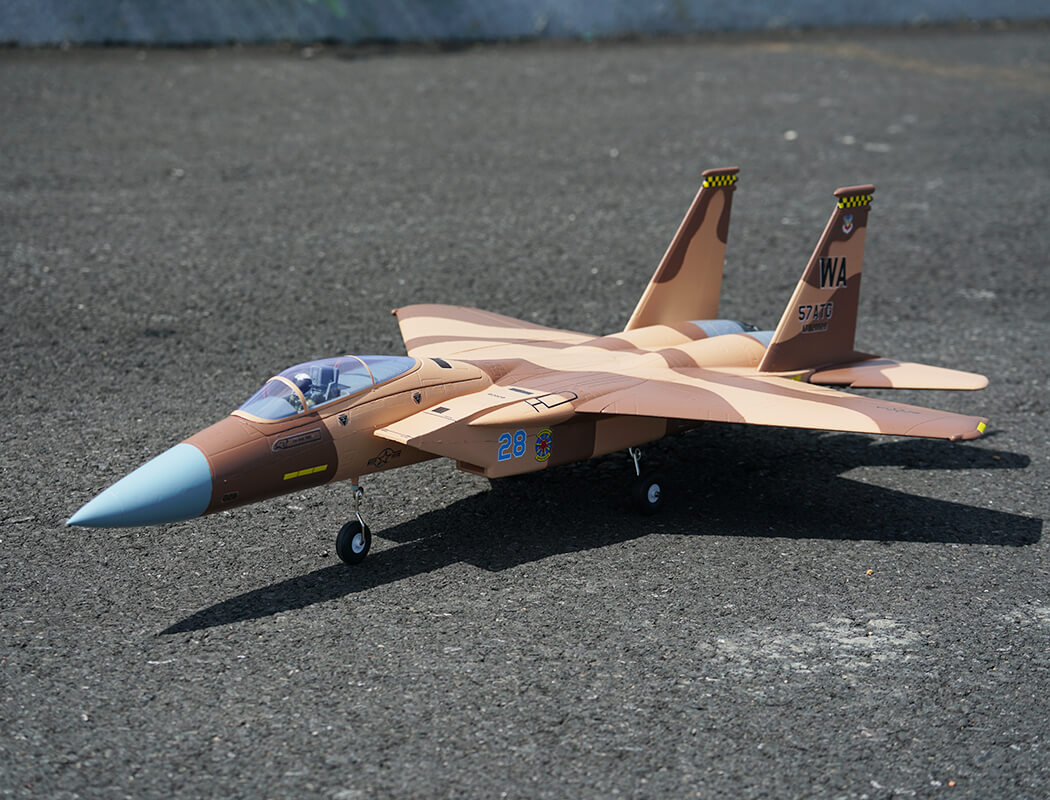

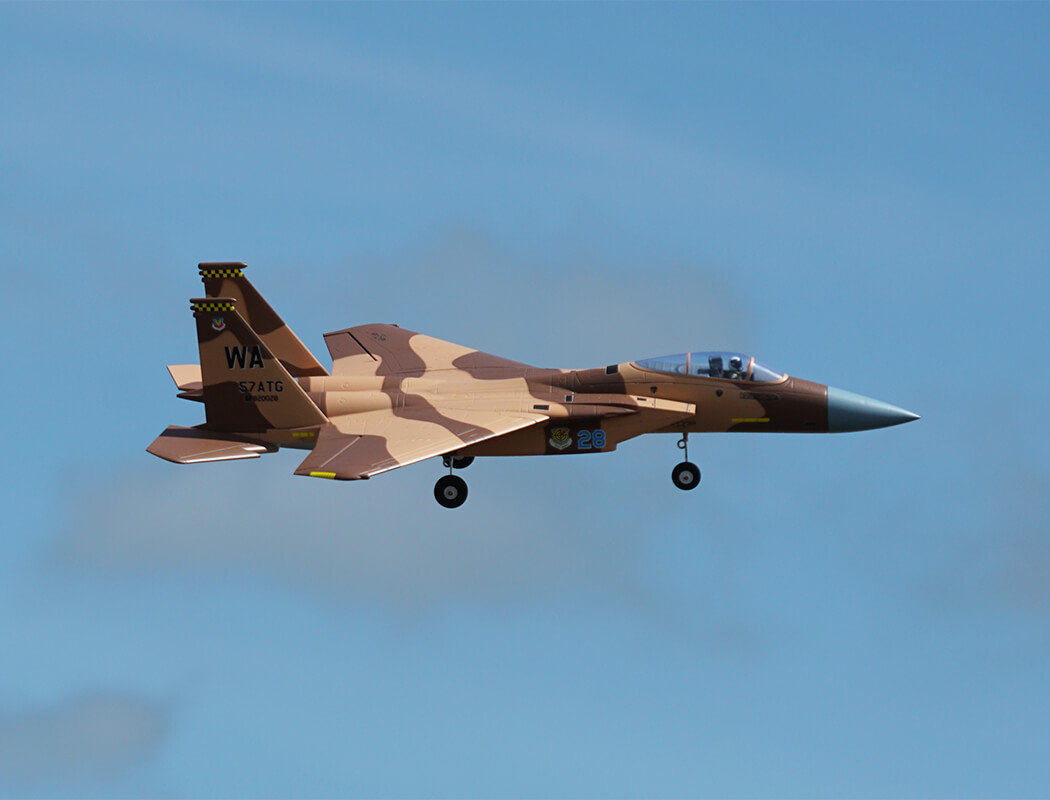

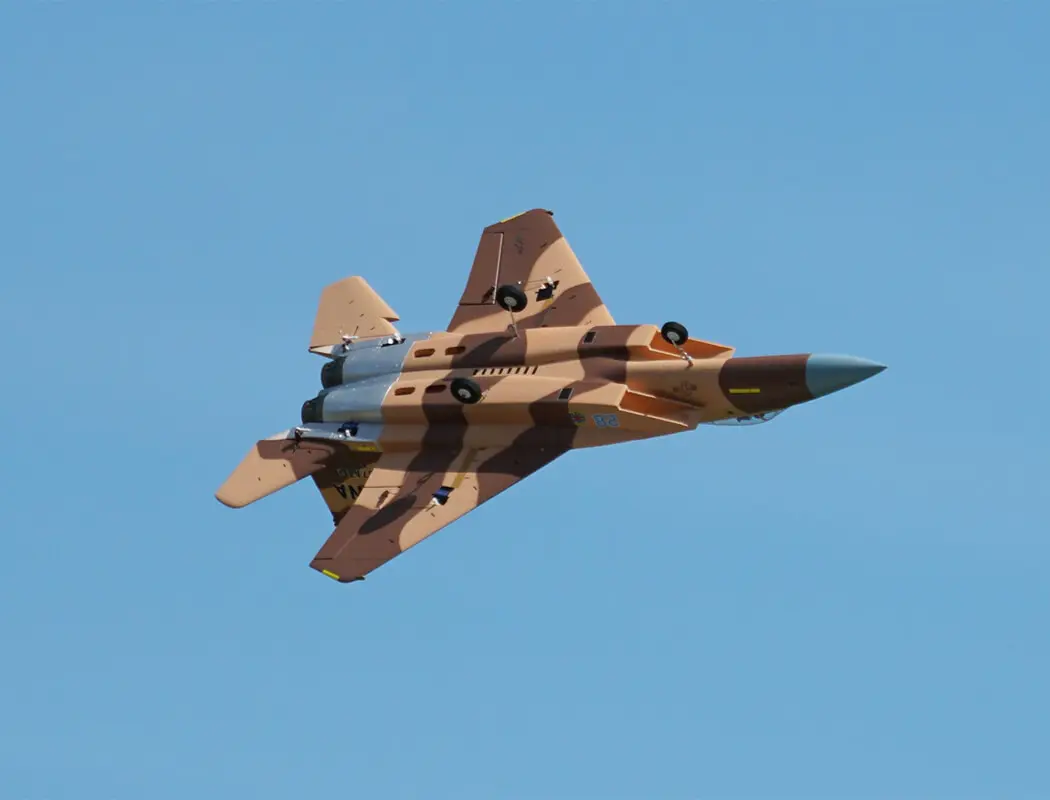

XFLY TWIN 40MM F-15 EDF 710MM JET WITHOUT TX/RX/BATTERY – DESERT CAMO

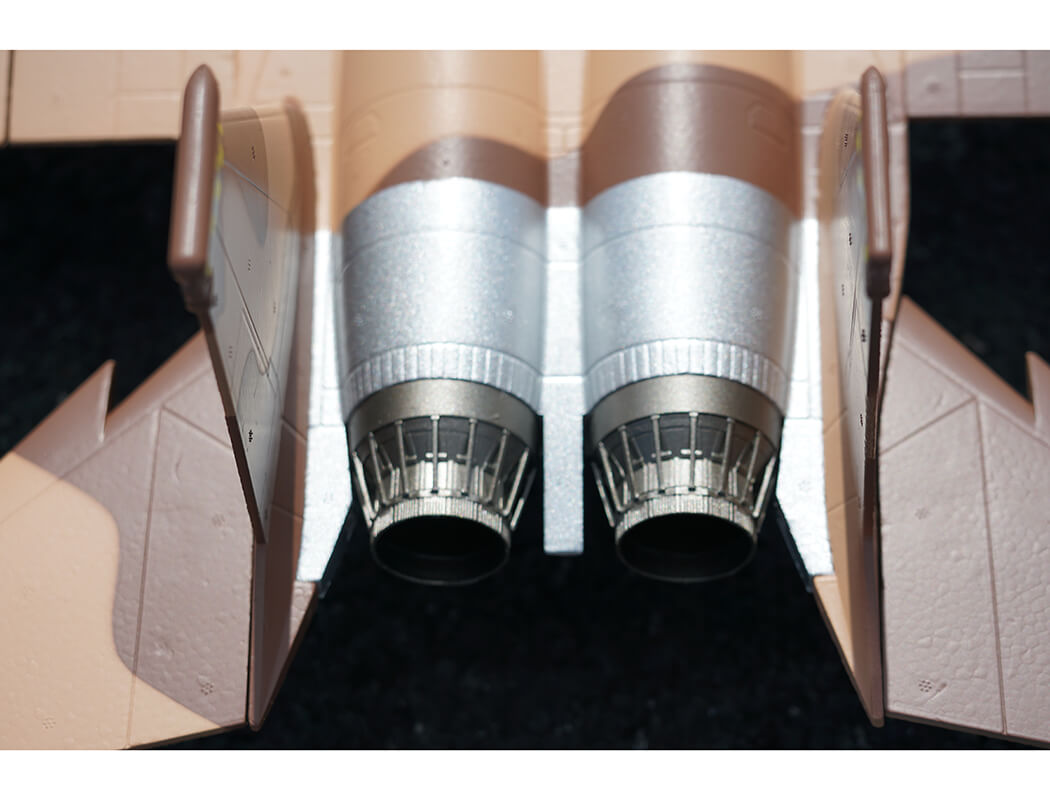

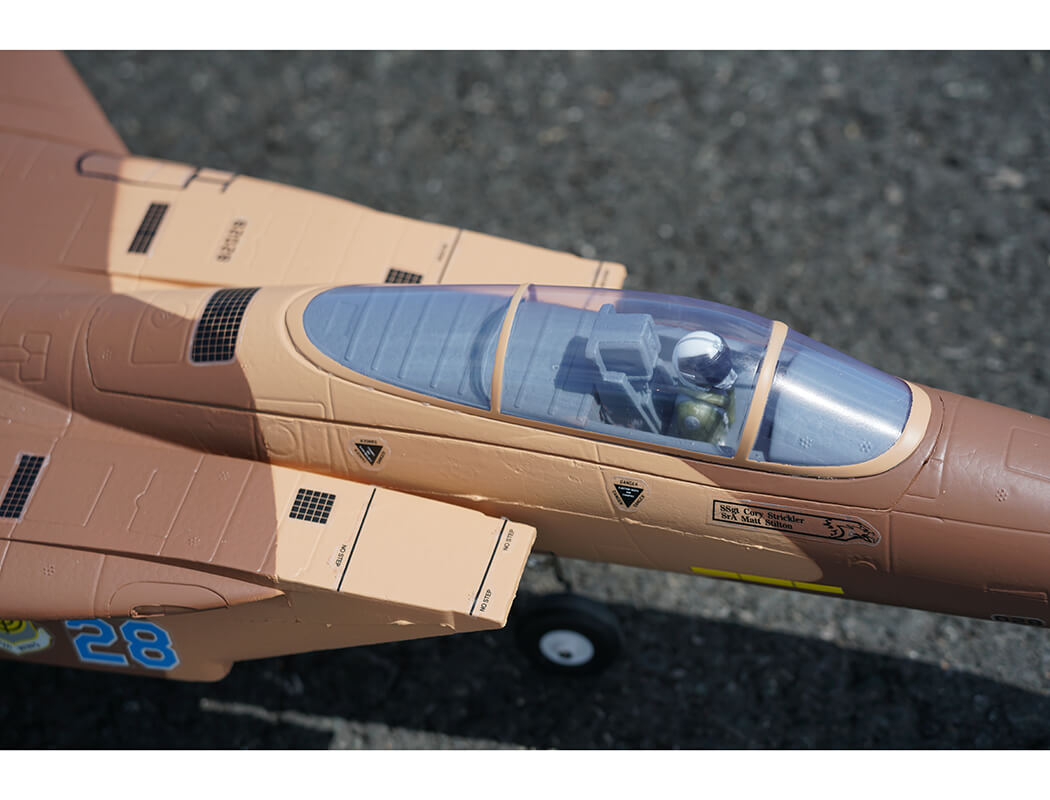

XFly Model is proud to announce its third scale fighter jet F-15 in the twin 40mm EDF lineup. For the purpose of making it as streamlined and true-to-scale as possible, the XFly team equips the F-15 with twin power system setup and keeps the scale details including air inlet, cockpit, nozzle and full-flying horizontal stabs.
The factory-installed power system, including twin efficient 1413-KV5500 brushless motors and twin 20A brushless ESCs, paired with a 4S LiPo battery, delivers an abundance of thrust for fast climbs, rolls, loops and endless fun for high alpha flying due to the F-15’s low wing load and full flying stabs. A flight time of around 3-8 mins can be achieved with proper throttle management.

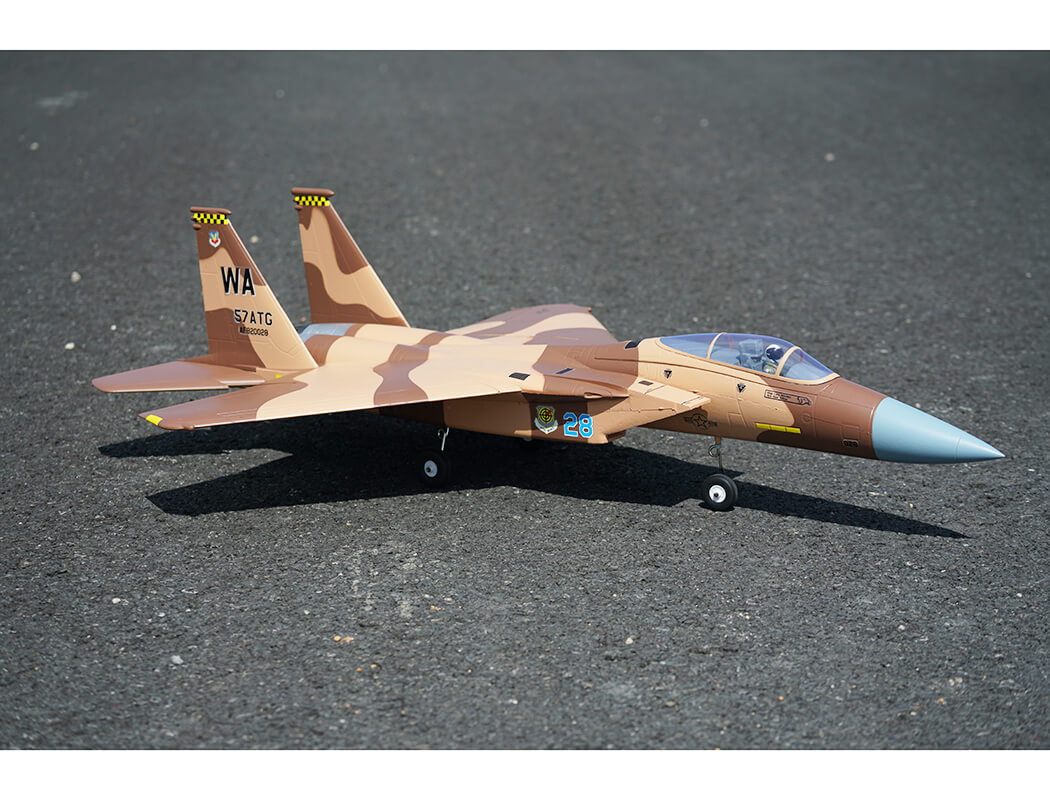

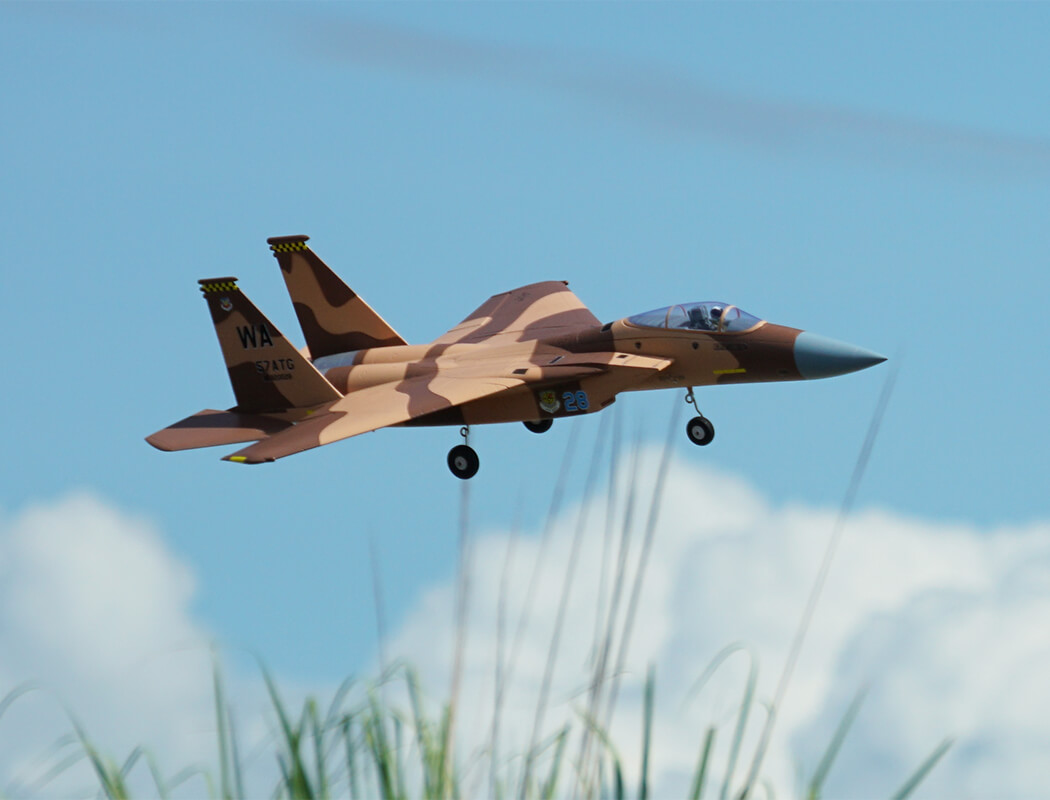

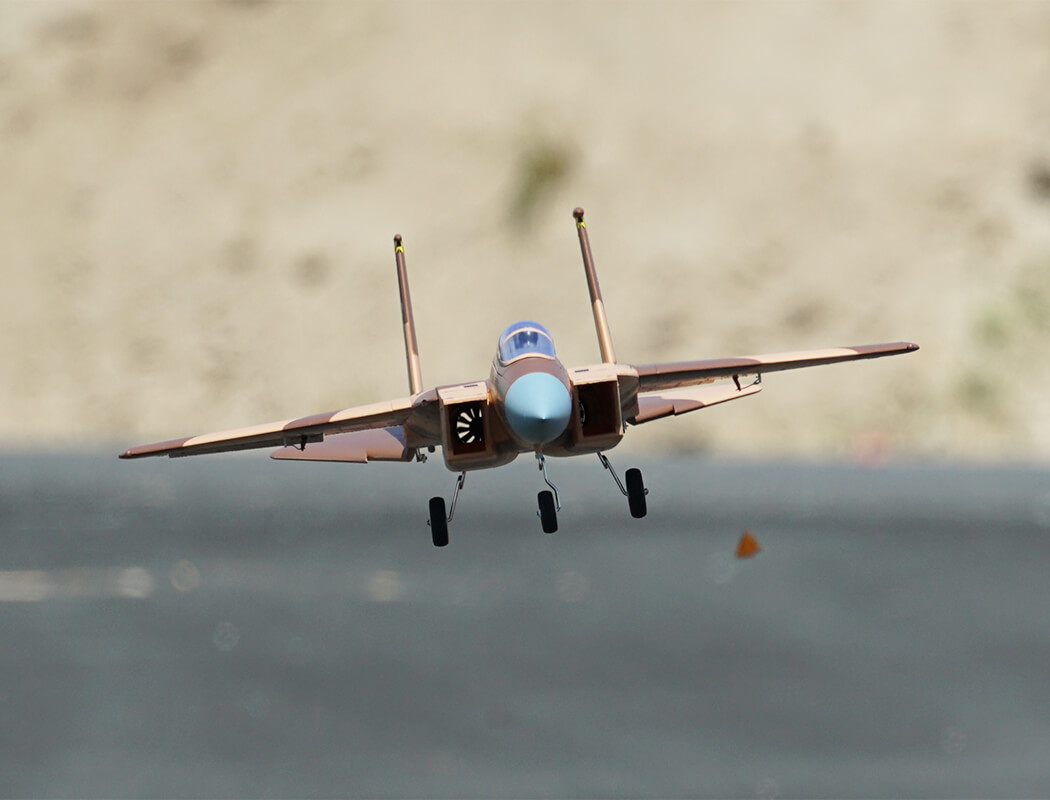

Perfectly fitted landing gear helps keep the plane lightweight and makes take off and landing smooth. Landing gears can be easily removed for more speed and vertical performance. Choose between two liveries, Oregon National Guard or Desert Camo, the XFly F-15 is a must-have addition to your collection.
Features
- Streamlined and true-to-scale design.
- Efficient twin power system setup delivering an abundance of thrust for fast climbs, rolls, loops.
- Perfectly fitted landing gear design for smooth takeoff and landing.
- Extended flight time of 3-8 mins when using recommended 4S 1300-2600mAh LiPo battery.
- All components can be assembled quickly without glue needed.

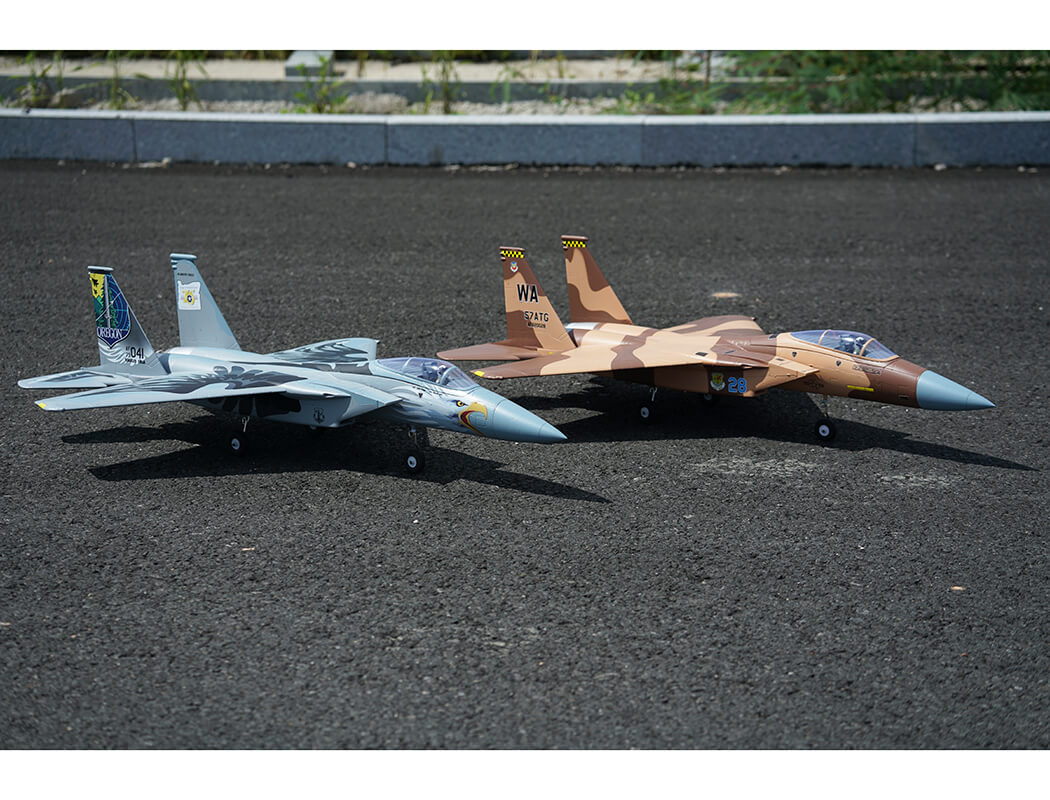

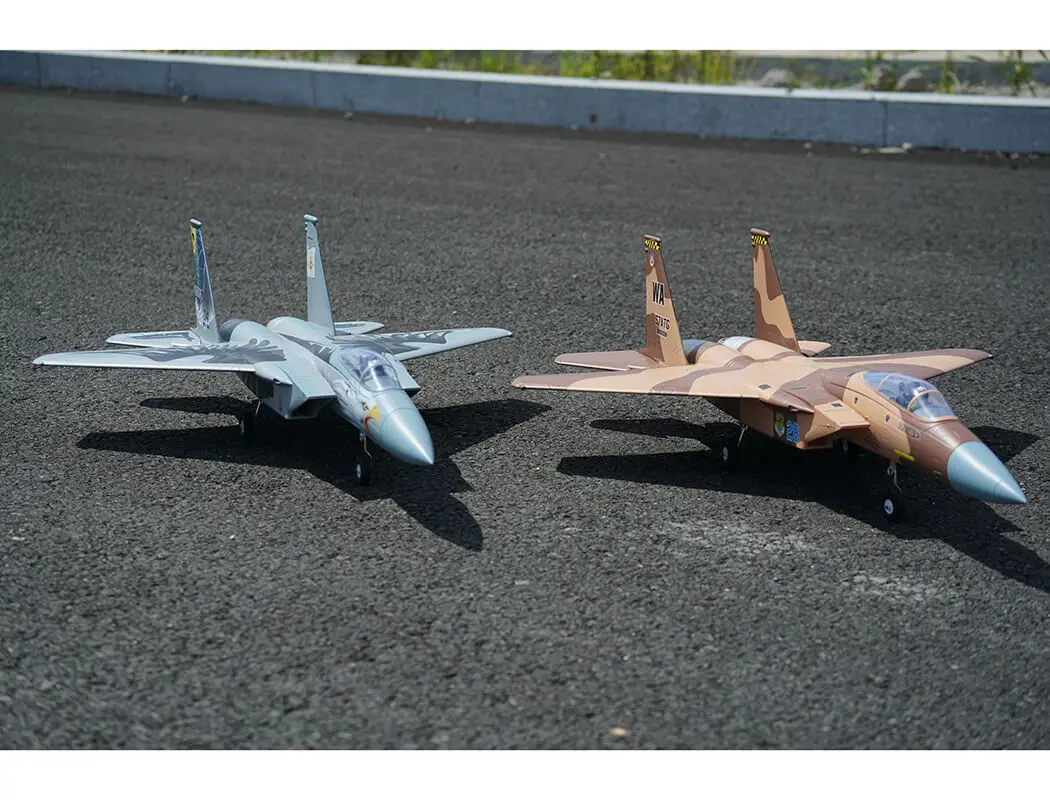

- Available in two liveries, Oregon National Guard or Desert Camo.
Specifications
Wingspan: 710mm/28in
Overall Length: 980mm/38.6in
Flying Weight: 950g
Motor Size: 1413-KV5500 *2
ESC: 20A *2
Servo: 9g servos *5
Channels: 4CH- aileron, elevator, throttle, rudder/steering
CG: 78mm from the leading edge
Wing Load: 95g/dm²
Wing Area: 10dm²
Recommended Battery: 4S 1300-2600mAh
Battery Connector: XT60
Approx Flying Duration: 3-8 mins
Assembly Time: 15 mins
Skill Level: Intermediate
Age Level: 14 years +
Flap: No
Retract: No
Landing Gear: Fixed main landing gear, steerable nose gear
EDF Size: 40MM EDF 12-Blade *2
Frequently Asked Questions
This model is rated for intermediate skill level and pilots aged 14+. It's designed for experienced RC flyers due to its high-performance twin-motor setup and aerobatic capabilities, so prior RC experience is recommended before attempting to fly it.
You'll need a 4S LiPo battery in the 1300–2600mAh range with an XT60 connector. With proper throttle management, you can expect 3–8 minutes of flight time per charge.
The model is supplied almost ready-to-fly (ARR) with twin brushless motors, ESCs, and servos already installed. You'll need to purchase a 4S LiPo battery, a compatible radio transmitter/receiver (TX/RX), and a charger—these are not included.
The F-15 has a 710mm wingspan and 980mm overall length, making it roughly 28 inches wide and 38.6 inches long. It should fit in most car boots, though you may want to remove the landing gear for transport to save space.
Twin 40mm EDFs with 1413-KV5500 brushless motors deliver abundant thrust for fast climbs, aerobatics, and high-alpha flying. The low wing load and full-flying horizontal stabilisers make it highly manoeuvrable, though the landing gear can be removed for even greater speed and vertical performance.
