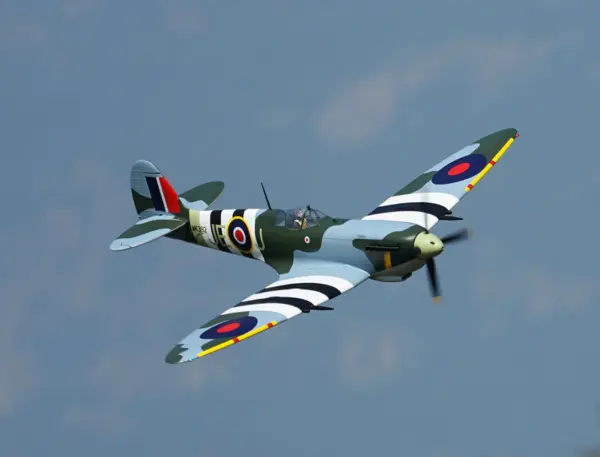

Xfly Supermarine Spitfire Mkix Green 1200mm No Landing Gear Without Tx/Rx/Bat
Key Specs
About this product

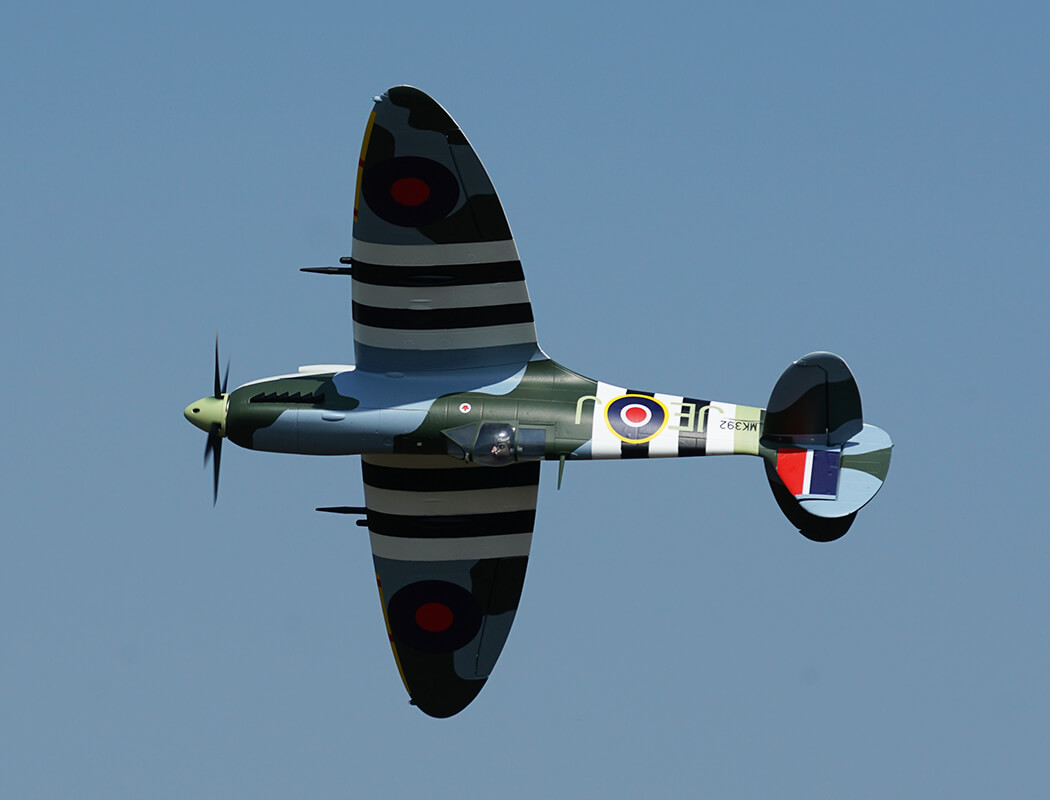

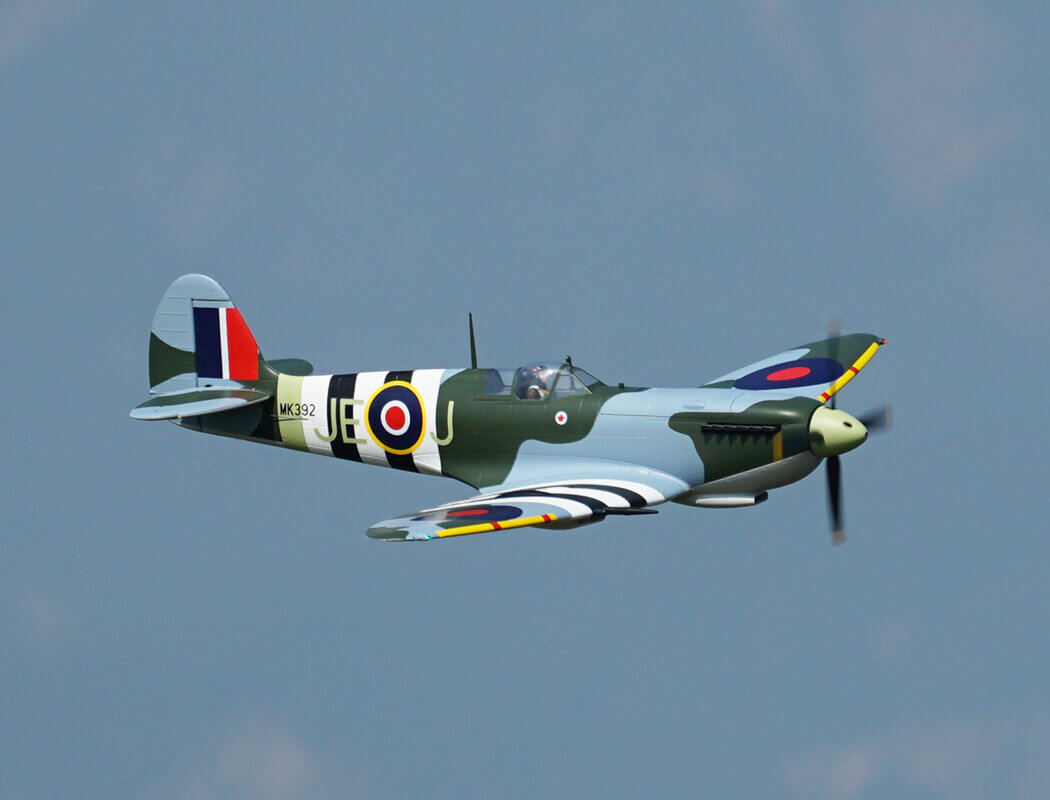

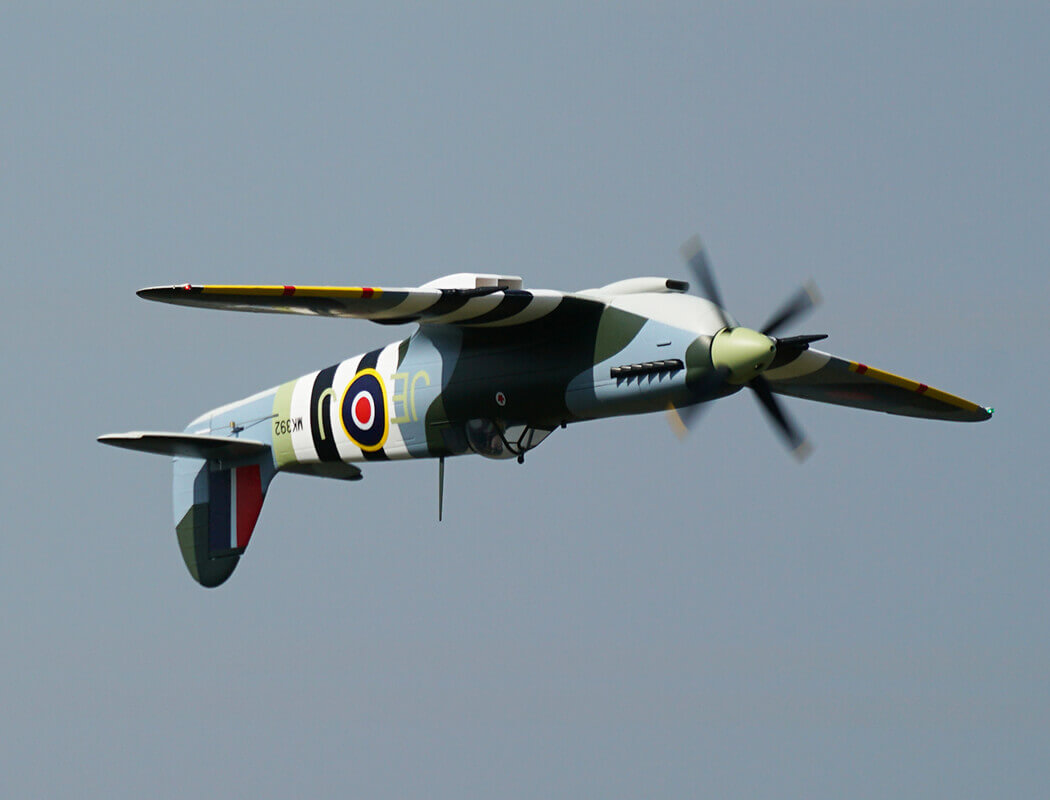

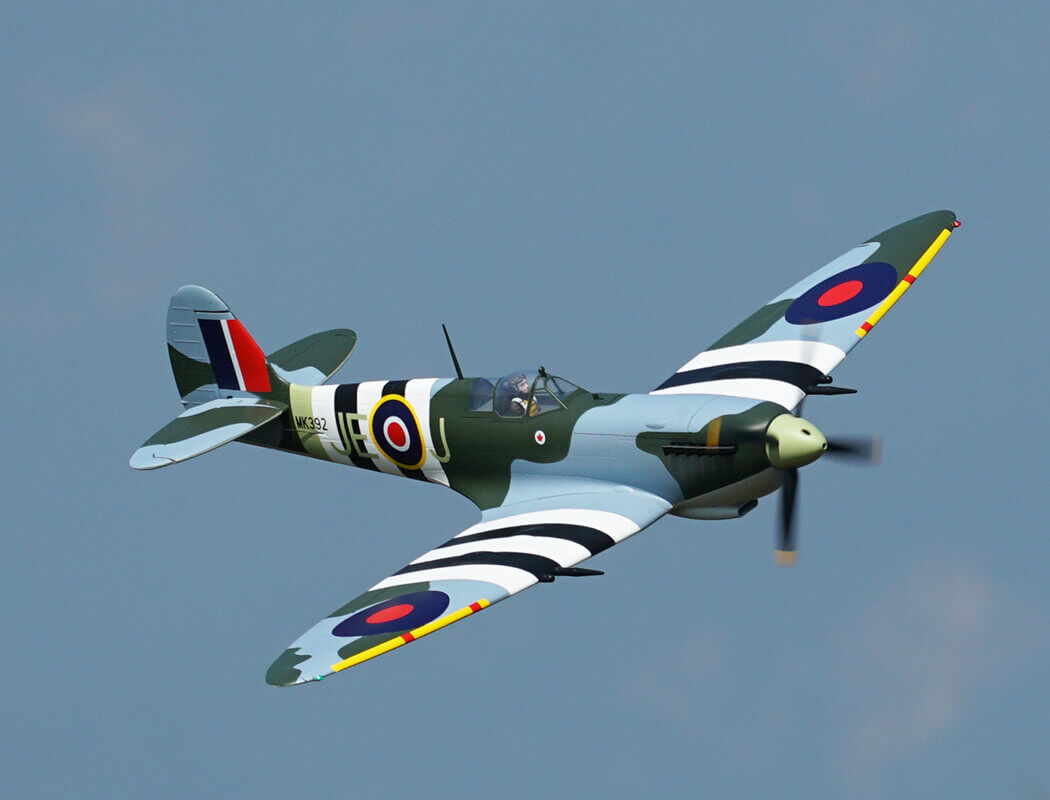

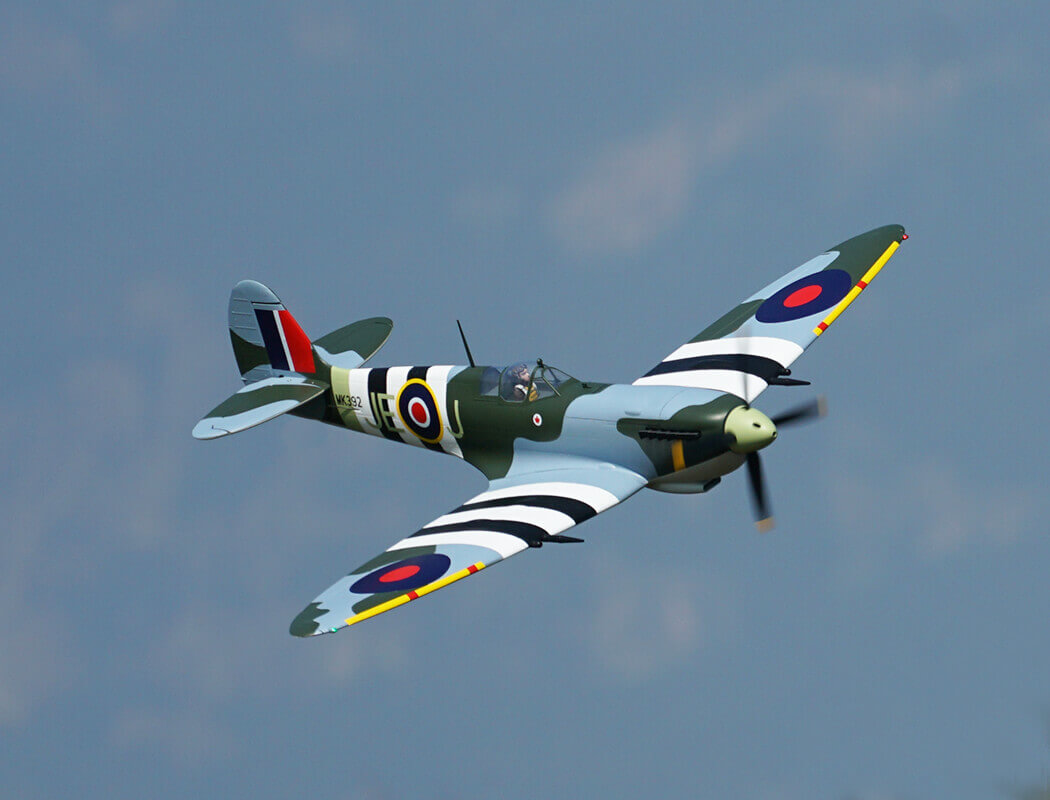

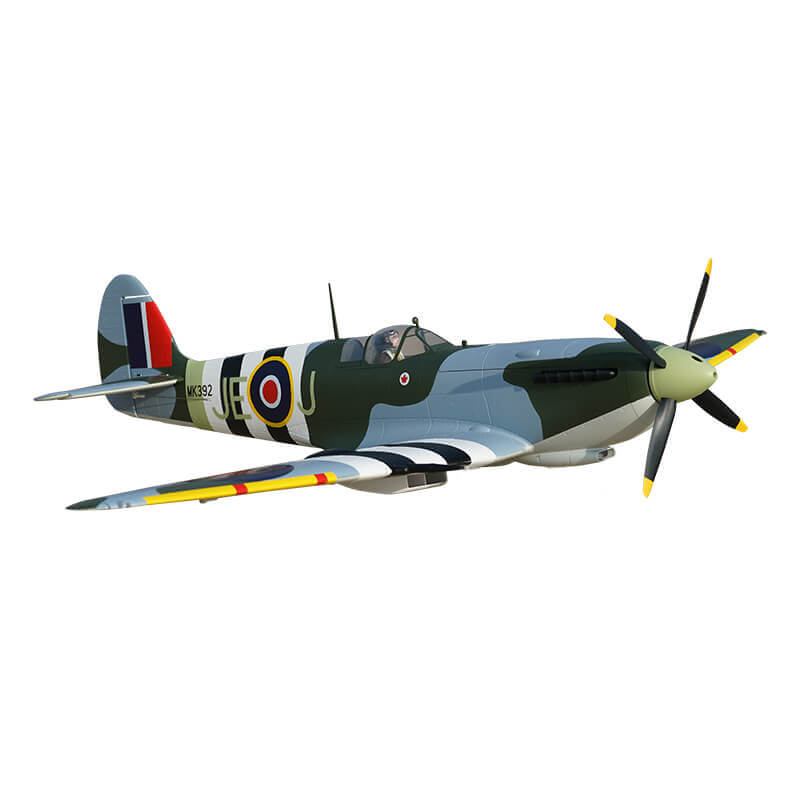

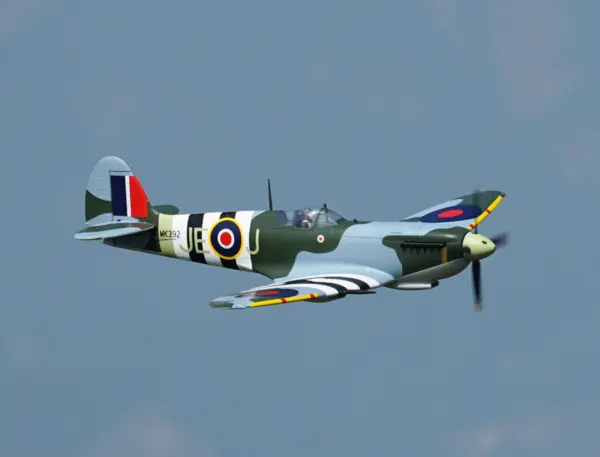

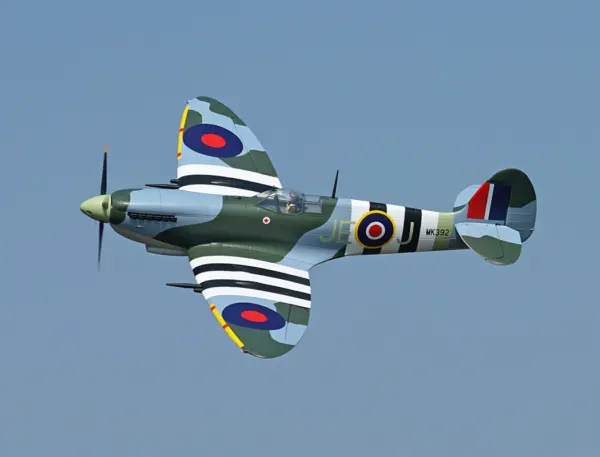

XFLY SUPERMARINE SPITFIRE MKIX GREEN 1200MM NO LANDING GEAR WITHOUT TX/RX/BAT

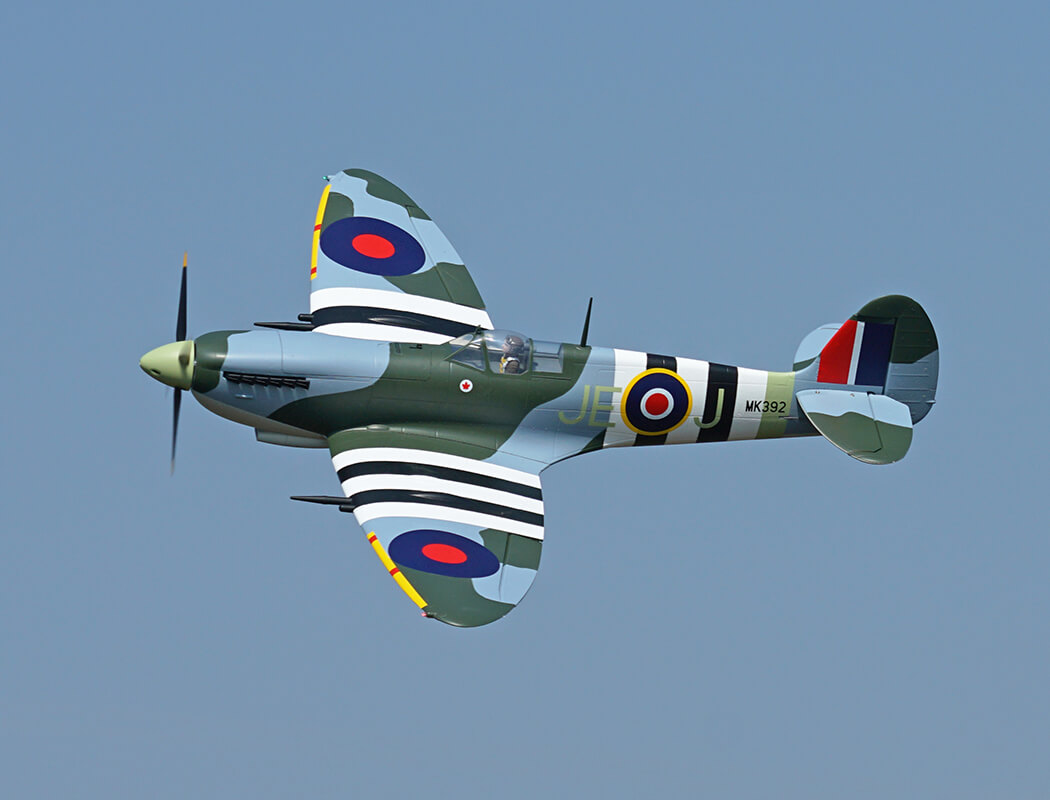

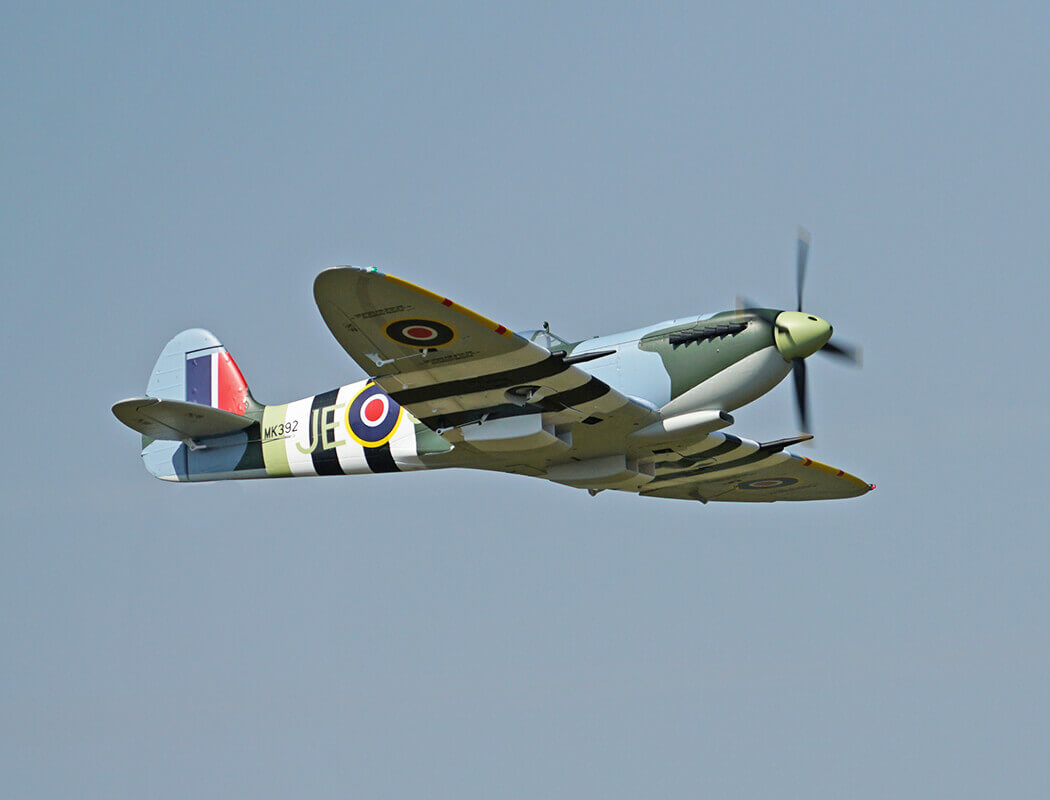

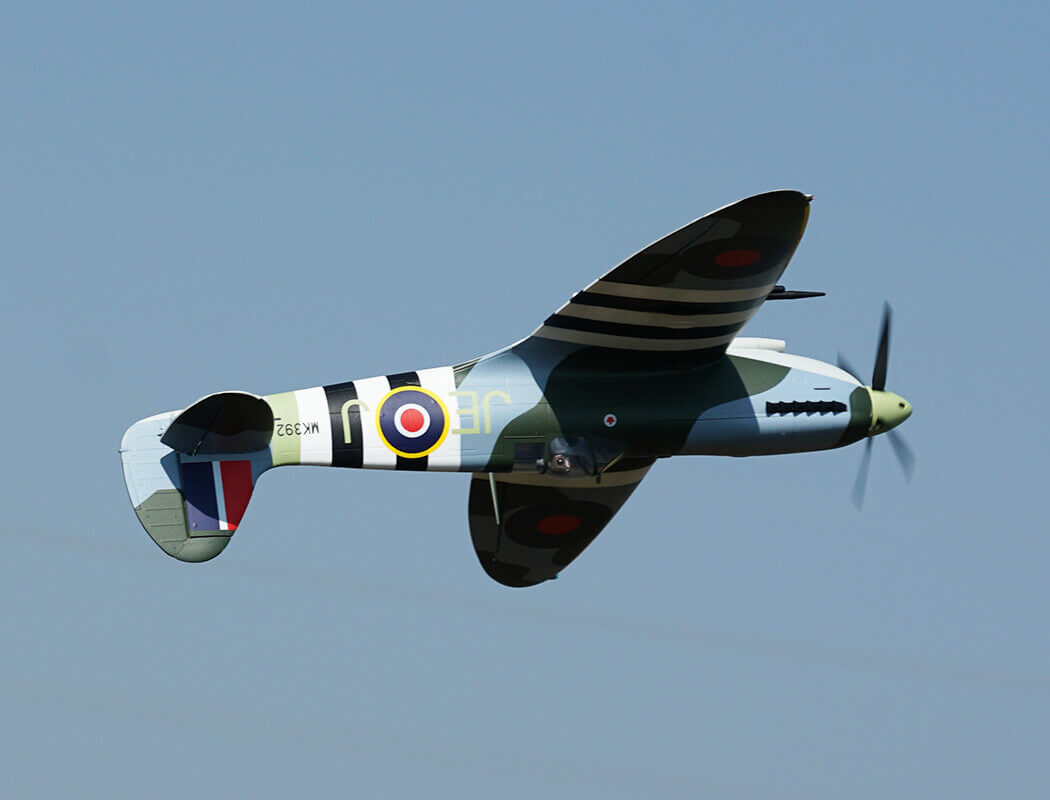

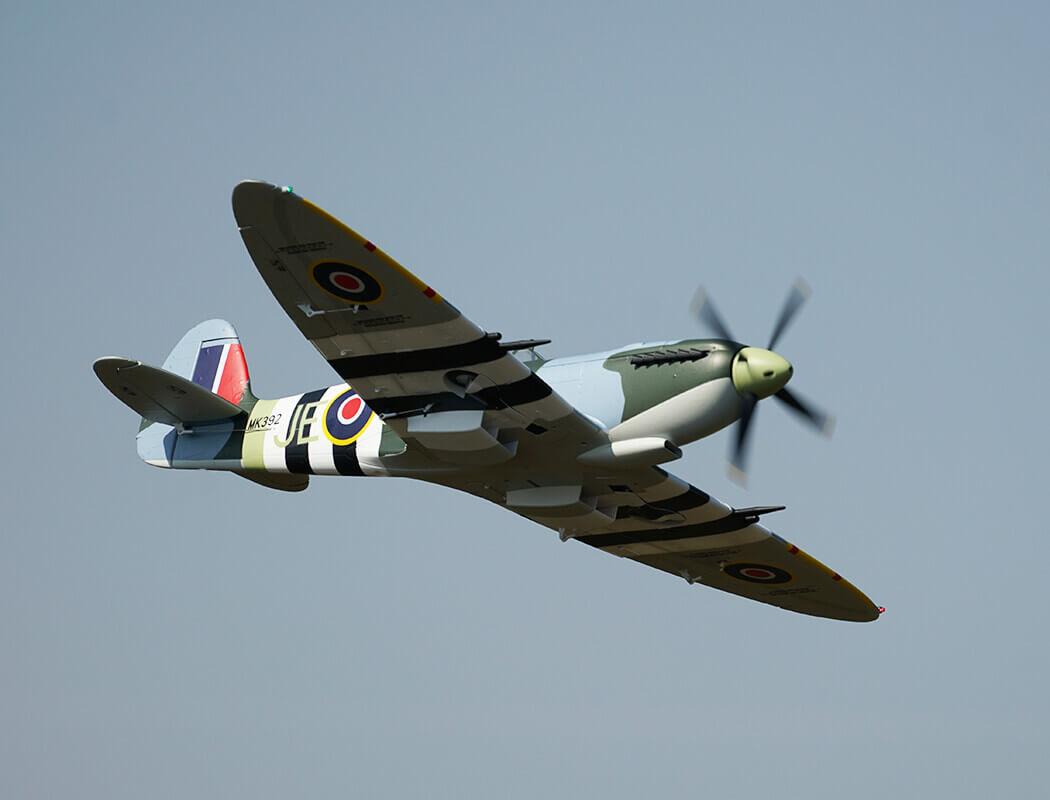

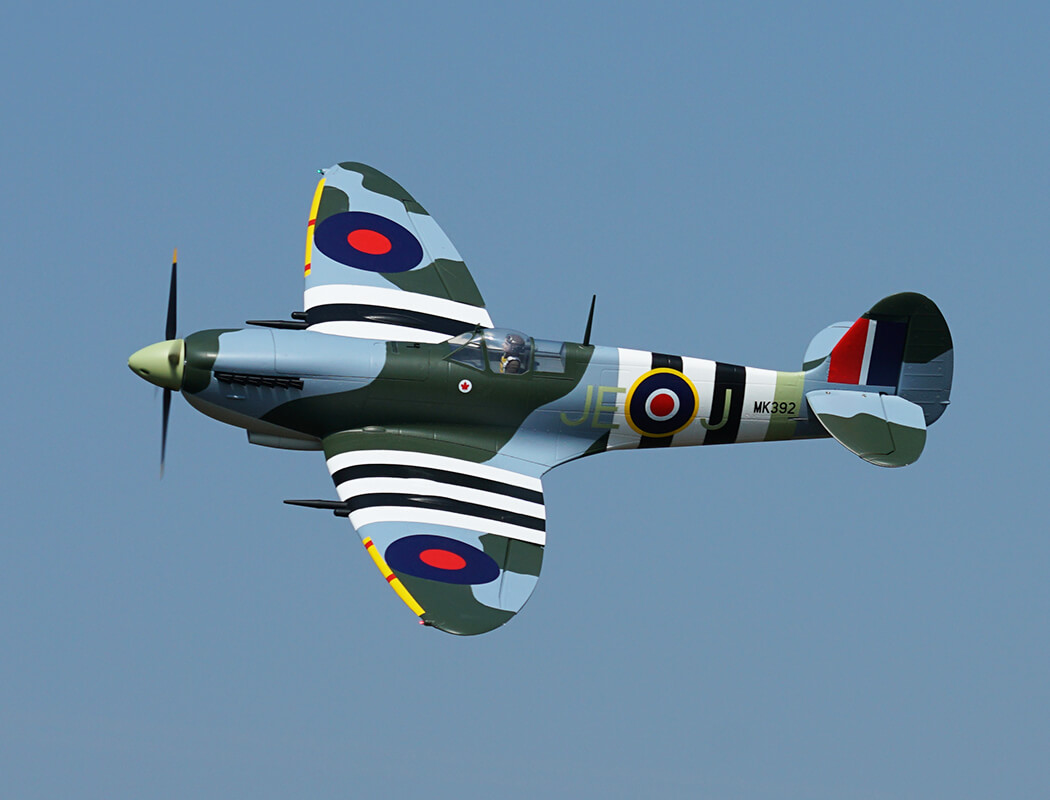

The Supermarine Spitfire, a British single-seat fighter aircraft was used by the Royal Air Force and other Allied countries before, during, and after World War II. It is one of the most iconic warbirds in history, renowned both for its beauty and its warfighting utility. The XFly Spitfire is a scale replica of this iconic fighter based on the famous Mk.IX variant, with a 1200mm wingspan and constructed using EPO foam and painted in two distinctive matte finish scale colours and livery. XFly captures the beautiful classic lines of the Spitfire Mk.IX with scale details including a 4-blade propeller, accurate canopy outline, pilot figure, exhaust stacks and cannons.
The large battery hatch can accommodate a 4S 2600-4000mAh LiPo battery for a wider range of flight times. The combination of a 3541-KV745 motor and a 40A brushless ESC offers plenty of power and achieves excellent thrust-to-weight ratio for a satisfying scale performance. The flap design on this model uses four panel split flaps for easier take-offs and landings, akin to its full-size counterpart. Day-bright LED wingtip lights aid in visibility and add realism.
Choose between the desert brown edition that featured in combat in North Africa and the Mediterranean circa 1943 or the green D-Day Invasion of Europe from 1944, piloted by Canadian Ace Johnnie Johnson. Whatever you choose, this iconic stunner is ready to impress at your flying field!
Features
- High power 3541-KV745 motor and 40A brushless ESC offering outstanding thrust.
- Scale four panel split flaps for easier takeoffs and landings.
- LED wingtip lights for added visibility and realism.
- Scale 4-blade propeller.
- Large battery hatch for easy placement of the battery and radio equipment.
- Available in Green D-Day invasion version and Brown desert version.
Specifications
Wingspan: 1200mm/47”
Overall Length: 1010mm/39.8”
Flying Weight: 1350g
Motor Size: 3541-KV745
ESC: 40A
Servo: 9g servo*6
Channels: 6CH- aileron, elevator, throttle, rudder, retract, flap
CG: 65mm from the leading edge
Wing Load: 60g/dm²
Wing Area: 22dm²
Recommended Battery: 4S 2600-4000mAh
Approx Flying Duration: 5-10 mins
Assembly Time: 15 mins
Skill Level: Intermediate
Age Level: 14 years +
Flap: Yes
Retract: No
Properller Size: 11×7” 4-blade
Frequently Asked Questions
This is an ARR (Almost Ready to Run) model suitable for intermediate to advanced pilots. You'll need experience with RC planes, as assembly of major components and radio setup are required, and the model has no landing gear, demanding confident landing technique.
Use a 4S LiPo battery between 2600–4000mAh. The exact flight time depends on battery capacity and flying style, but the large battery hatch accommodates the full range for flexibility in your choice.
This is sold without transmitter, receiver, or battery. The kit includes the airframe, motor, 40A ESC, servos, and other components needed for assembly, but you must supply your own radio equipment and power.
The Spitfire has a 1200mm wingspan (47 inches) and 1010mm length (39.8 inches), making it a large-scale model that will require a spacious transport bag or box. Check your vehicle space before purchasing.
The 3541-KV745 brushless motor paired with a 40A ESC delivers excellent thrust-to-weight ratio, whilst the four-panel split flaps assist with take-offs and landings, providing responsive, scale-like handling.
