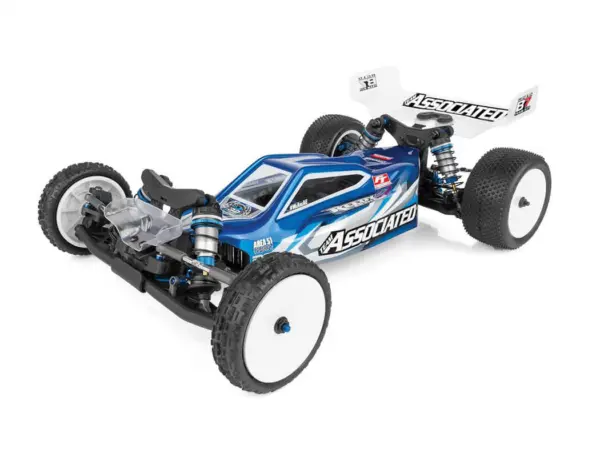

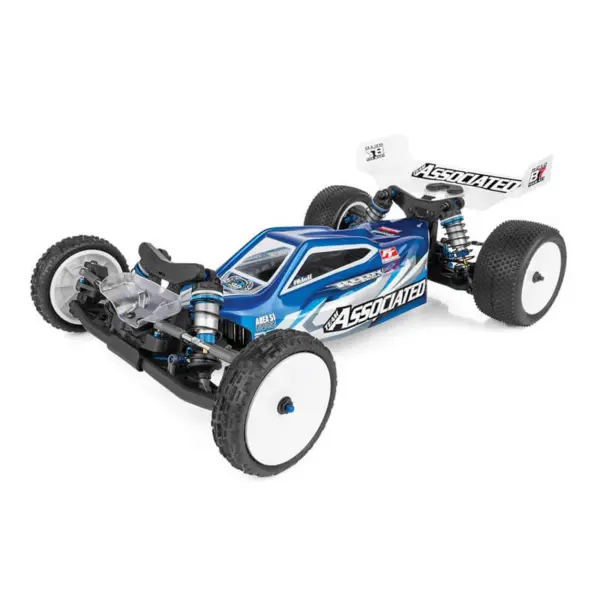

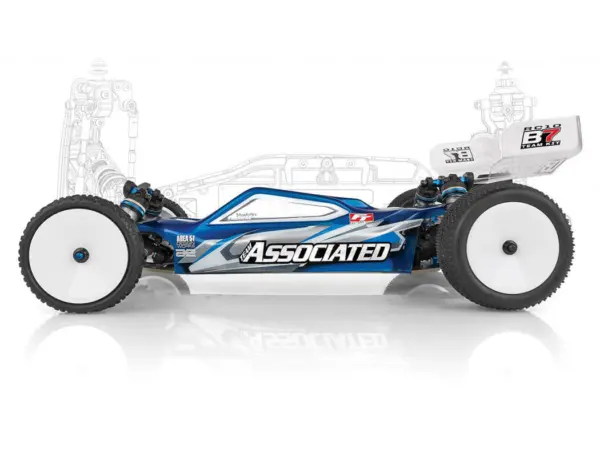

TEAM ASSOCIATED RC10B7 TEAM KIT

Champions By Design

Team Associated has been at the leading edge of 1:10 scale 2WD off road for the last 40 years starting with the original RC10 and are proud to introduce this next generation RC10 to the world–the RC10B7. 40 years has seen a lot of development and changes, with each generation being a step forward from the last. The RC10B7 is no exception, boasting new long-arm suspension geometry, weight-centralized electronics layout, KPI adjustable steering blocks, and increased tunability throughout the whole chassis. These innovations have increased the potential for grip and corner speed, which leads to faster lap times and an overall easier-to-drive feel than the previous generation.

The RC10B7 is the recommended starting kit for those who plan to race on carpet, AstroTurf ®, and some high-grip sealed clay tracks. This kit comes equipped with an all-new gear differential, front and rear anti-roll bars, and an optimized high-grip setup which includes stiffer springs and higher pack shock pistons. As with previous generations, the RC10B7 and RC10B7D feature fully interchangeable parts between the two kits, which allows the user to pick and choose what configuration they want to use depending on track conditions. Both versions come with the same durability, speed, and lineage of a champion that is found in any Team Associated race platform.

Please Note: This vehicle needs extra parts to make it operational, please view the ‘Required To Complete’ section below.

FEATURES

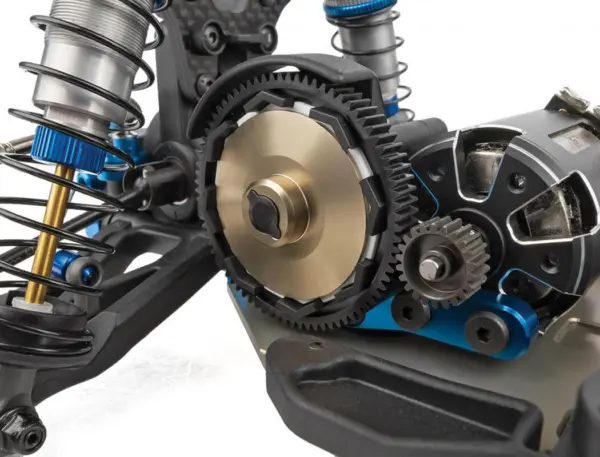

• 5-gear laydown transmission with low profile motor mount moves weight of motor closer to the center of the car
• Long-arm suspension geometry improves grip and predictability in all conditions
• KPI adjustable steering and caster blocks allows for fine tuning steering feel. Three options are included in kit.
• Vertical front outer ballstud allows fine tuning of roll center, camber gain, and link length

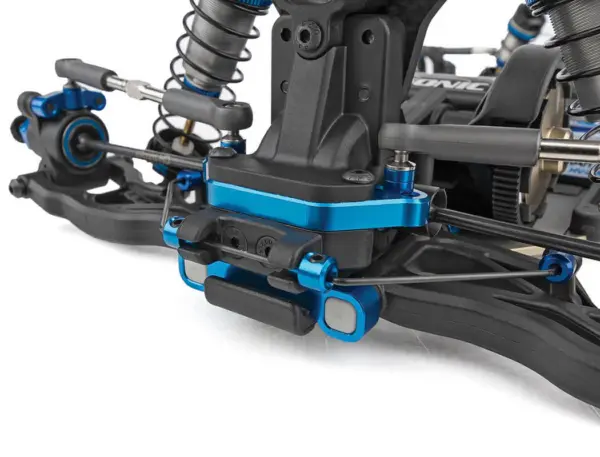

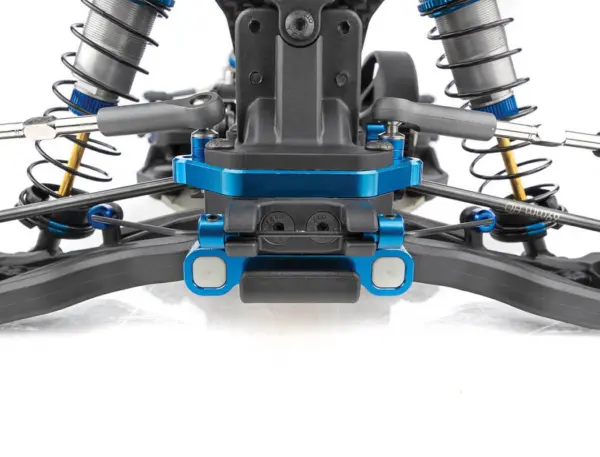

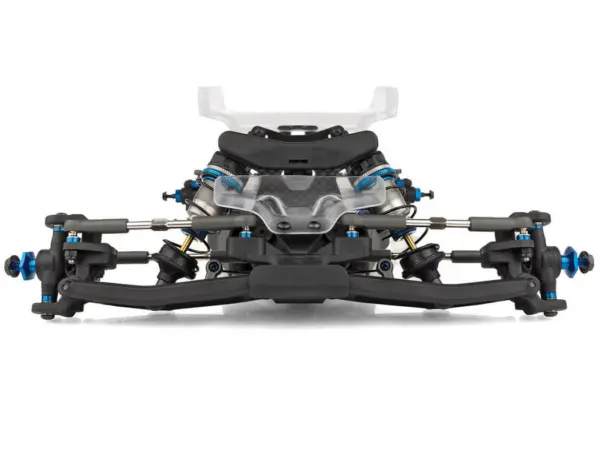

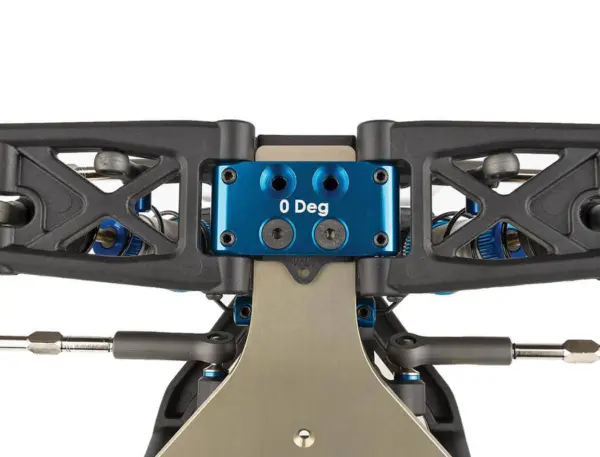

• Height adjustable aluminum front bulkhead allows for further tuning of front roll center

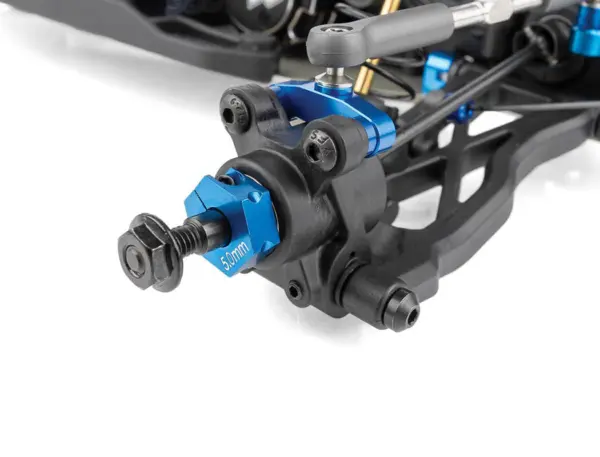

• Standard and HRC (High Roll Center) rear hubs included
• Easy access anti-roll bars front and rear

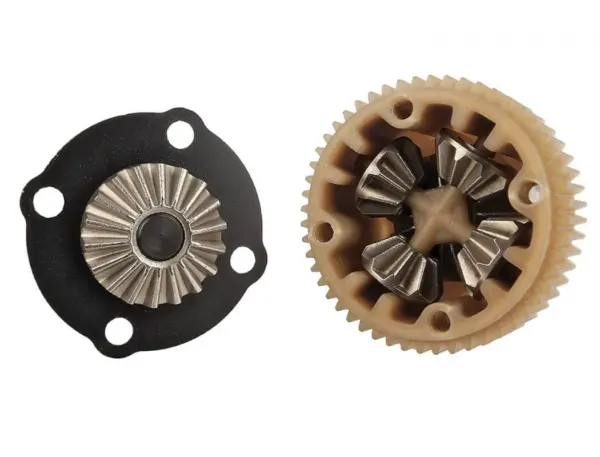

• High volume gear differential improves consistency of differential action over a longer runs. Fits LTC internal diff gears from the RC10B74.2.

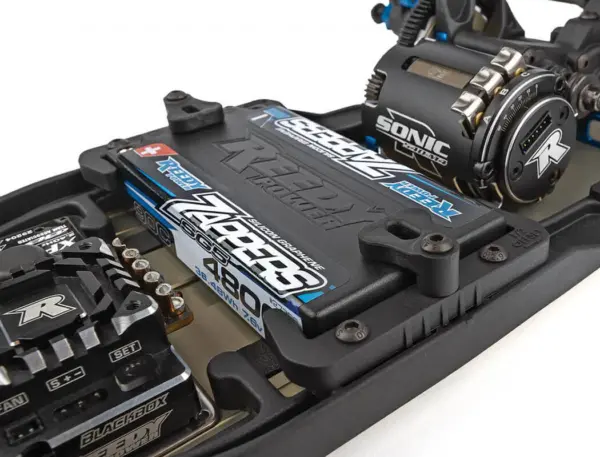

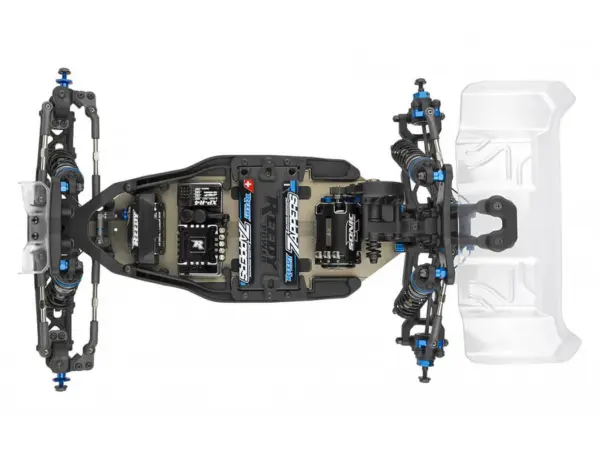

• Highly adjustable battery holder with thumb tabs allows for easy battery removal and fine tuning of weight bias
• 7075-T6 aluminum chassis with increased departure angle and optional weight plate pockets

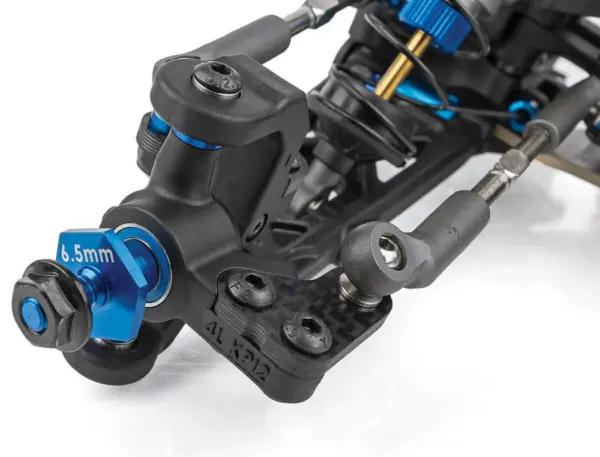

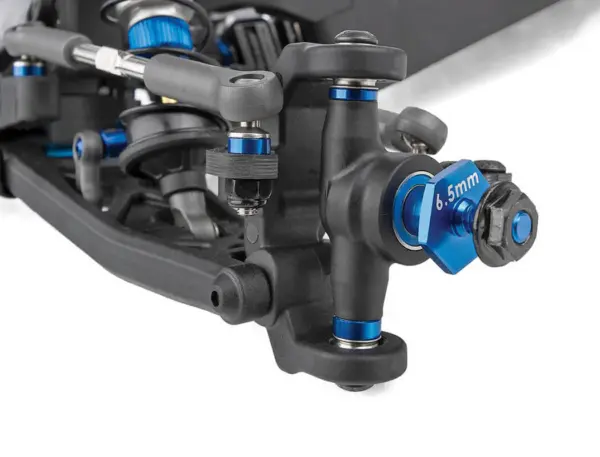

• 6.5mm aluminum front axle increases stability and grip when using slim front wheels and low-profile tires
• HD 69mm CVA bones and differential outdrives for improved durability

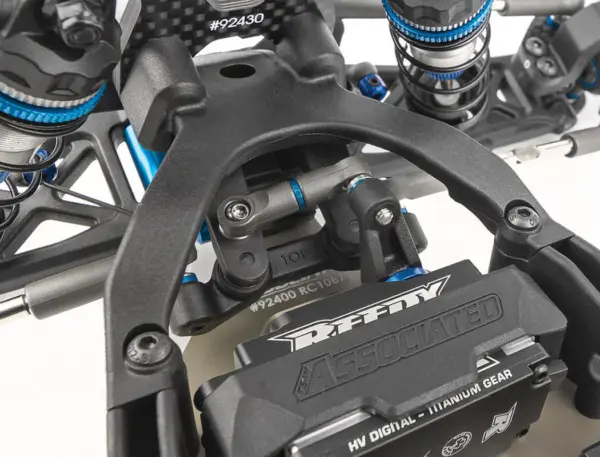

• Lightweight molded servo mount
• One-piece rear wing mount improves durability
• New 7-inch rear wing and 2.5-inch front wing
• Low-profile body
• Shock tower covers front and rear
• 3.5mm turnbuckles and ballcups

SPECIFICATIONS

Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 390mm (15.35in)
Width: Varies
Wheelbase: Varies
Weight: Varies
Internal Gear Ratio: 2.60:1
Drive: 2WD

* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

REQUIRED TO COMPLETE

• 1:10 scale 540-size electric RC car motor
• 1:10 scale radio control electronic speed control
• 7.4V-7.6V 2S LiPo with “shorty” battery dimensions (standard or low-profile height)
• Battery charger (for one of the batteries mentioned above)
• 2 channel surface transmitter, 2 channel receiver, and steering servo
• Lexan specific spray paint for body
• 1:10 scale off-road wheels and tyres
• 4 AA batteries for radio-controlled car radio
• Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors, Reamer (AS1499) or Hole Punch, FT Wrench Set (AS1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or a Precision Ruler.
