Tamiya TRF104 Chassis Kit

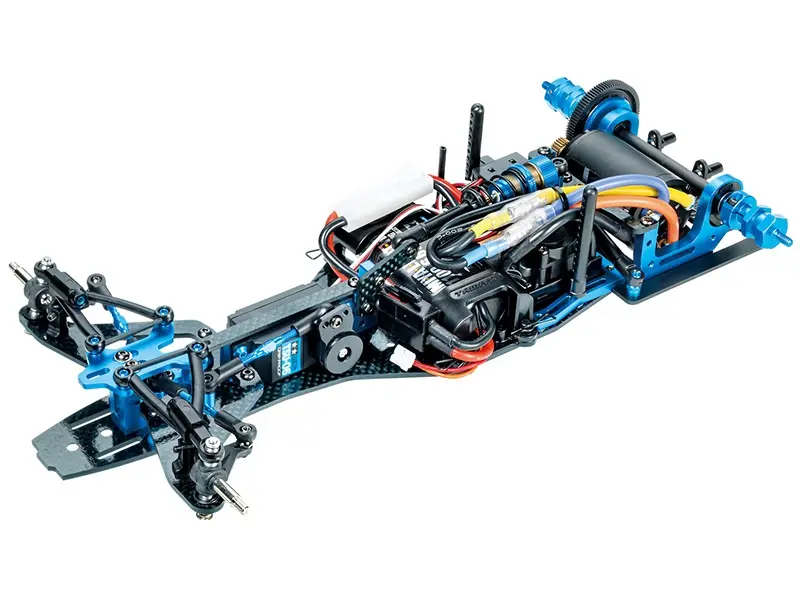

The Tamiya TRF104 Chassis Kit is a 1/10 scale 2WD RC car kit. It arrives as a box of parts rather than a finished car, so you assemble the chassis, fit the electronics and paint or trim the body before the first run.

Finished, it measures 325mm long.

Tamiya supply an electronic speed controller in the box.

Key specifications

• Updated front suspension:
• Features plastic upper A-arms
• Camber angle is adjustable freely from +1 to -3 degrees (approximate) using a 2mm hex wrench
• Caster angle is also adjustable at 6, 9 and 12 degrees. (approximate)
• Suspension link and T-bar setup are not used. Instead, ball connectors are equipped at motor mount front and rear, and suspension roll is placed at the centre of the chassis
• The model centering is controlled by roll springs under the rear shaft, and friction grease on roll dampers at motor mount allow adjustment of roll speed
• The pitching is controlled by FRP suspension plate flex and a TRF damper
• Formula chassis can lose rear grip because of unbalanced weight. To prevent this problem, battery pack, receiver and servo are positioned at the centre of chassis to ensure better rear grip
• A square-shaped battery holder is included, for Li-Po battery packs to comply with U.S. open-class regulations
• Motor mount has parts for adjustment of ground clearance and wheelbase: 5 types of ground clearances are adjustable in 0.8mm steps and two wheelbases can be chosen with a difference of 2.5mm

You will also need

• Required to complete: 2-channel radio, steering servo, ESC, 540-size motor, 7.2-7.4volt battery with compatible charger, F-1 body parts set, F1 wheels & tyres, and Tamiya PS paint

Tamiya kits are designed to be built with hand tools and a clear manual, which is what makes them a common first build as well as a shelf favourite.
