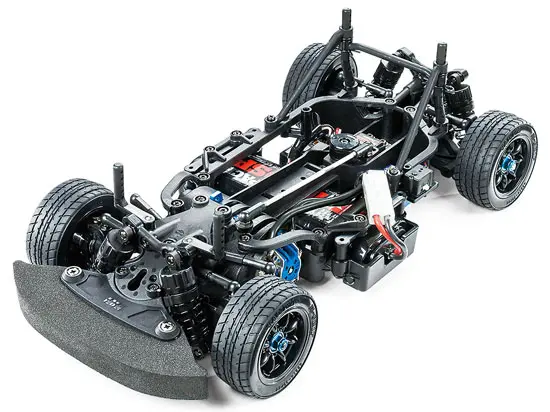

Tamiya M-07 Concept Chassis Kit

The Tamiya M-07 Concept Chassis Kit is a 1/10 scale RC car kit, built on Tamiya’s M-07 chassis. It arrives as a box of parts rather than a finished car, so you assemble the chassis, fit the electronics and paint or trim the body before the first run.

Finished, it measures 332mm long.

Tamiya supply an electronic speed controller in the box.

Key specifications

• This is a 1/10 scale RC chassis assembly kit. Length: 332mm, width: 164mm
• The core of the chassis is a 1-piece monocoquewith integrated upper frame elements. It is designed to offer excellent rigidity with easy maintenance
• Choose between 2 different wheelbases (M: 225mm, L: 239mm), simply by changing rear arm attachment direction

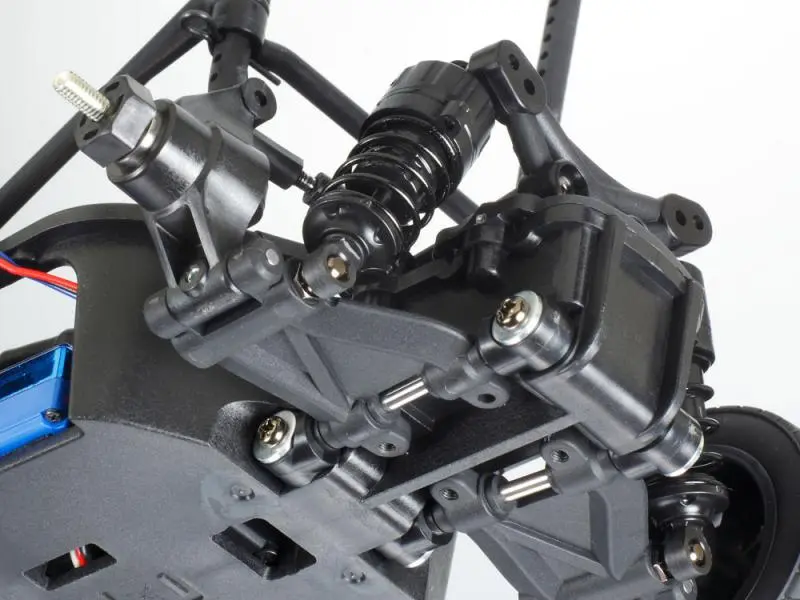

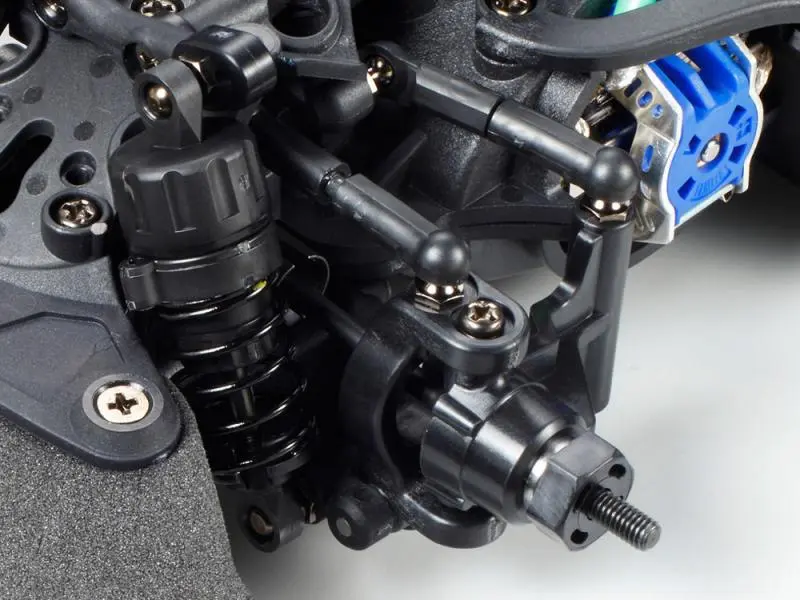

• Newly designed front and rear suspension use long arms for ideal leverage ratio, in tandem with long steering
• linkage components. Rear toe can be adjusted simply using spacers
• 4-wheel double wishbone suspension is fitted with CVA oil shocks

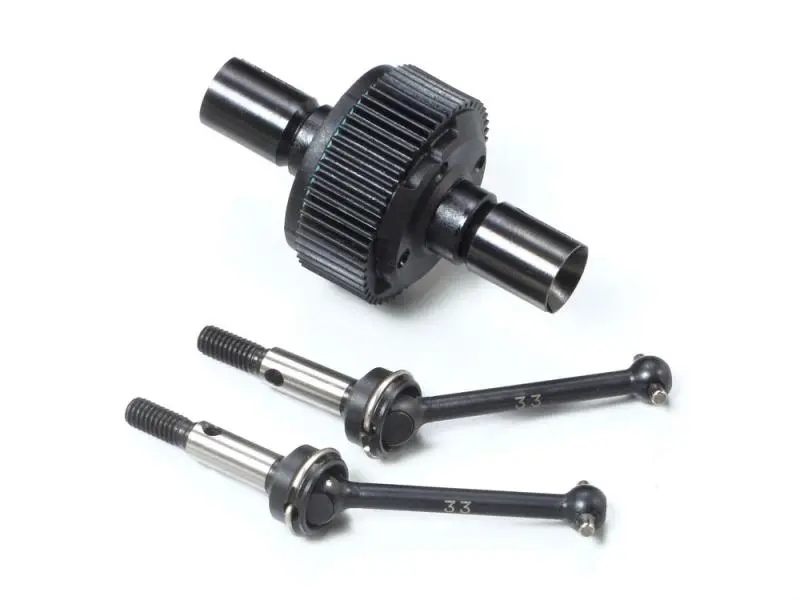

• The TA06-design gear differential is paired with universal drive shafts and full ball bearings
• A host of Hop-Up Options are being released simultaneously. See later pages
• The chassis was designed with easy access to the stabilizers (sold separately) for quick, precise adjustments–vital at the racetrack
• Body mounts have a new reinforced design for more secure body attachment

Tamiya kits are designed to be built with hand tools and a clear manual, which is what makes them a common first build as well as a shelf favourite.
