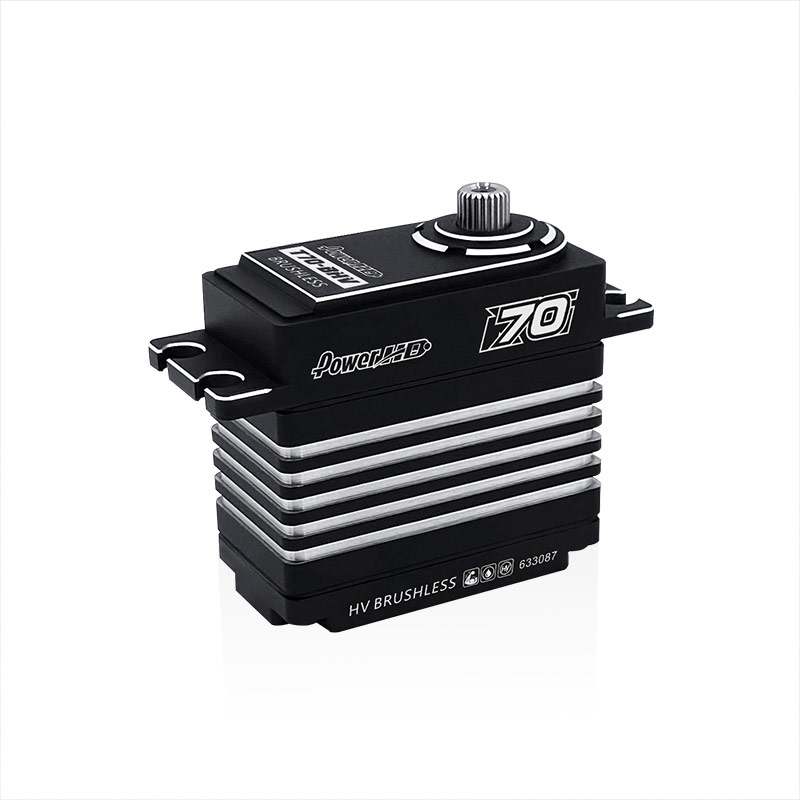

Power Hd T70 Hv Mg Brushless Alu Case (70kg/0.12s)

Description

Torque(6.0V): 55.0 kg-cm / (763.8 oz/in)
Torque(7.4V): 60.0 kg-cm / (833.2 oz/in)
Torque(8.4V): 70.0 kg-cm / (972.1 oz/in)
Speed: 0.160 sec (6.0V) │ 0.140 sec (7.4V)
Speed: 0.120 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 83 g (2.93 oz)
Motor Type: Brushless Motor

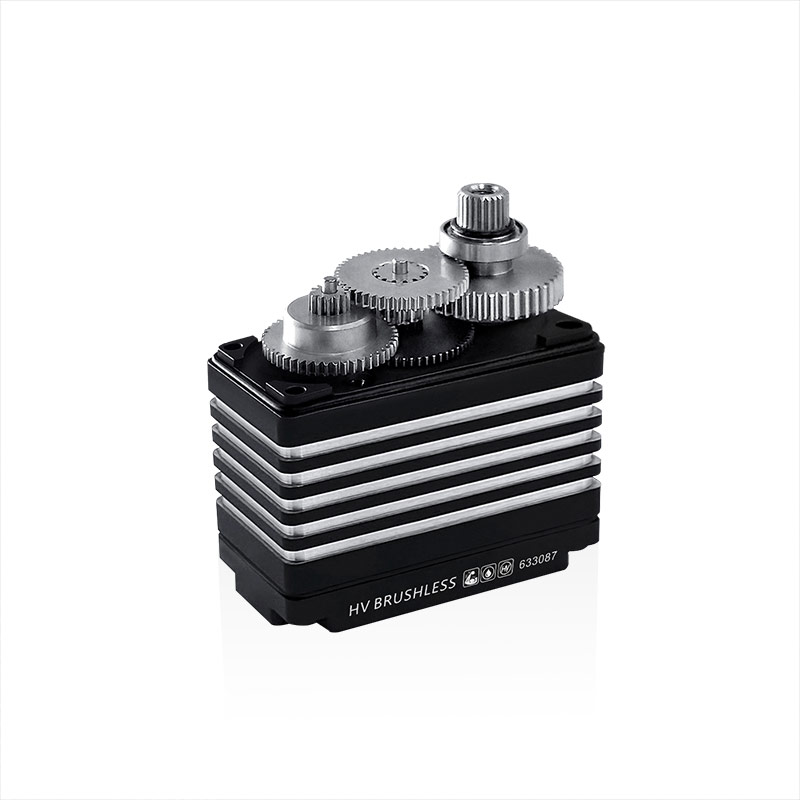

Gear Type: Steel
Operating Temperature: -10℃~60℃
Working frequency: 1520μs / 50 ~1500hz
Stall current (at locked): 6.0-9.0A
Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
Compatible with ibus2
