About this product
Description
Torque(4.8V): 3.10 kg-cm (43.05 oz/in)
Torque(6.0V): 3.90 kg-cm (54.16 oz/in)
Speed: 0.16 sec (4.8V) ¦ 0.13 sec (6.0V)
Operating Voltage: 4.8 ~ 6.0 DC Volts
Weight: 15.8 g (0.56 oz)
Bearing Type: Ball Bearing x 1
Motor Type: DC Motor
Gear Type: Copper
Connector wire length: JR 365mm
Operating Temperature: -20~60°C
Working frequency: 1520µs / 250hz
Size: 22.8 x 12.0 x 29.4 mm ( 0.90 x 0.47 x 1.16 in)

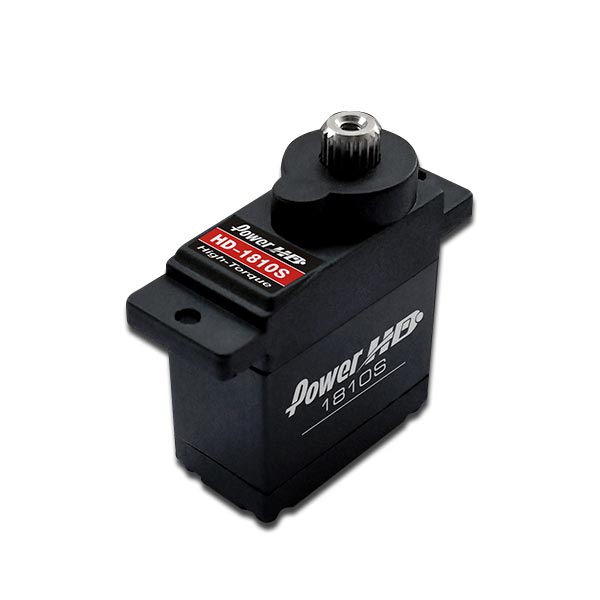

1810S is an upgraded new servo from 1810MG, it’s customized for CAPO CD1582X car. Because there is signal interference between the old 1810MG output gear and the CAPO car’s metal parts, we develop the new 1810s, using non-conducting potentiometer to avoid this problem, and also extend the signal wire to 365mm, which could fit the CD1582X perfectly.
