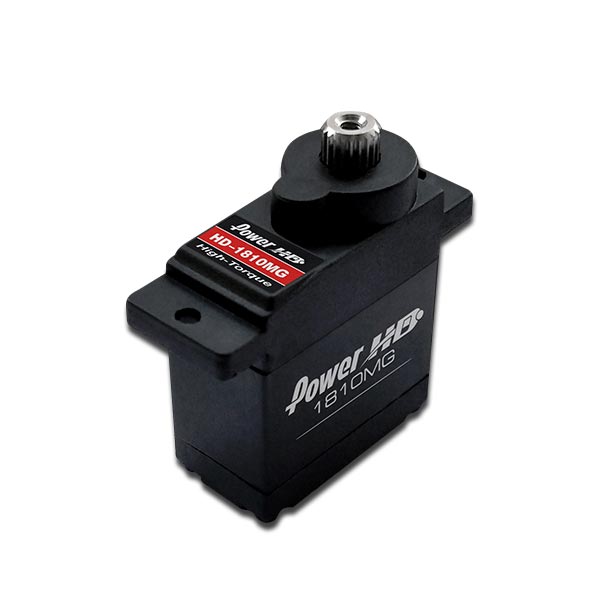

Servo Hd1810mg Mg Digital (3.9kg/0.13s)

Description

Torque(4.8V): 3.10 kg-cm (43.05 oz/in)
Torque(6.0V): 3.90 kg-cm (54.16 oz/in)
Speed: 0.16 sec (4.8V) │ 0.13 sec (6.0V)
Operating Voltage：4.8 ~ 6.0 DC Volts
Weight: 15.8 g (0.56 oz)
Bearing Type：Ball Bearing x 1
Motor Type：DC Motor

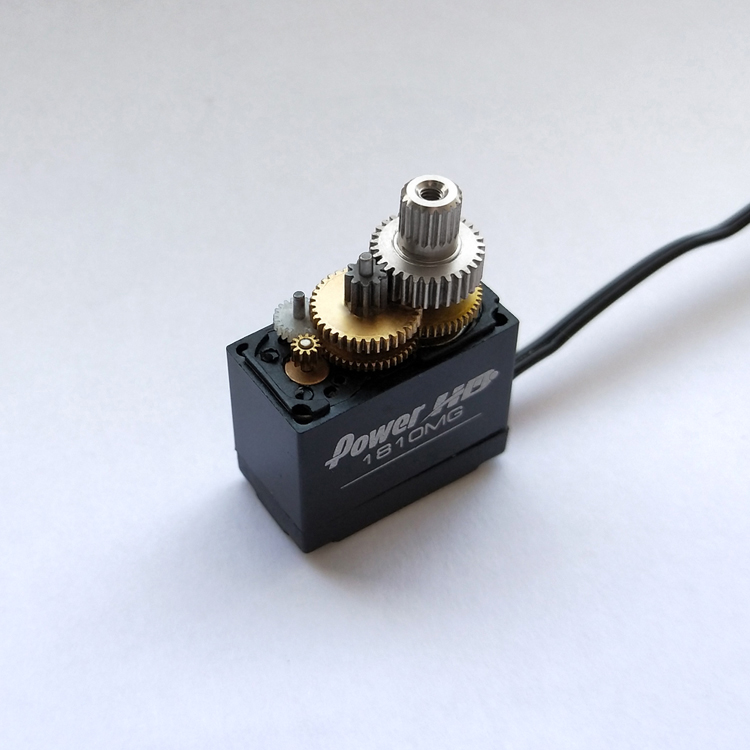

Gear Type：Copper
Connector wire length:JR 250 mm
Operating Temperature：-10℃~50℃
Working frequency：1520μs / 250hz
Size：22.8 x 12.0 x 29.4 mm ( 0.90 x 0.47 x 1.16 in)
