About this product
SAVOX WATERPROOF HV DIGITAL SERVO 8KG/[email protected] – PLUS
The SW0230MG+ is a budget friendly waterproof digital servo capable of operating at 6.0V and 7.4V and has super quick speed of .13 and 111.1 oz-in (8kg-cm) of torque at 7.4V. It combines leading edge technology with super high 12-bit (4096) resolution and metal gears for your greater precision when dodging puddles.
This is a great upgrade if your looking to drive your RC vehicle in any condition…rain, sleet, or snow.
Features
- Combines leading edge technology with super high 12 bit (4096) resolution and metal gears.
- Waterproof.
- Brushed motor

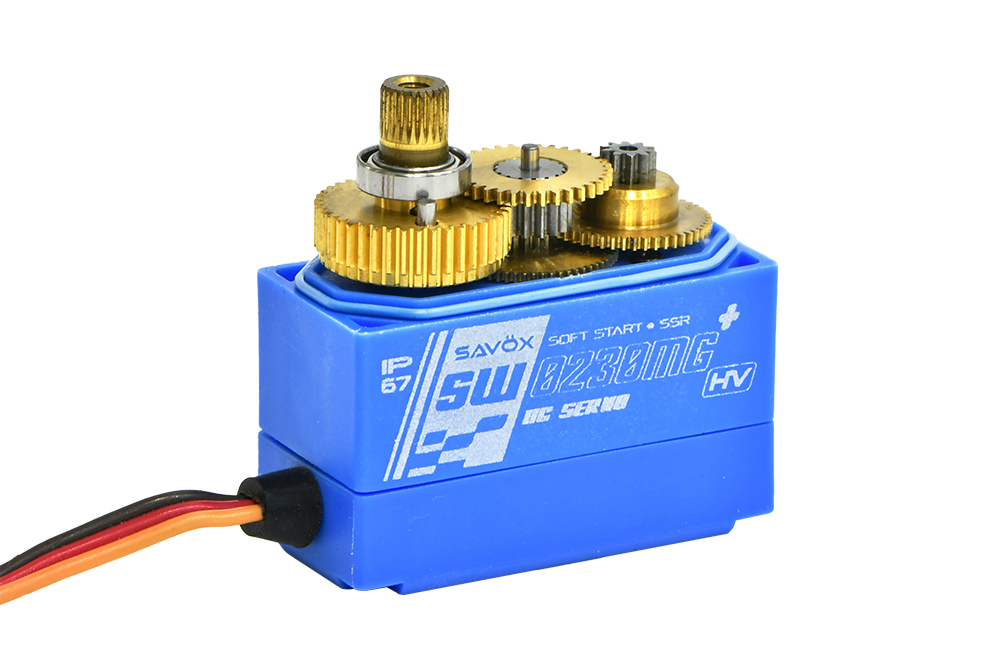

- Extremely strong metal gears ensure long-life and durability.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for RC cars, trucks, buggies, and boats.
Specifications
- Dimensions(mm): 41.8 x 20.2 x 38.0
- Weight(g): 62
- Speed @6.0V (sec/60): .16
- Torque @6.0V (kg-cm): 6.5
- Speed @7.4V (sec/60): .13
- Torque @7.4V (kg-cm): 8
- Gear: Metal
- Bearing: 2BB
- Case: Plastic
- Servo Horn: 25 Tooth Spline

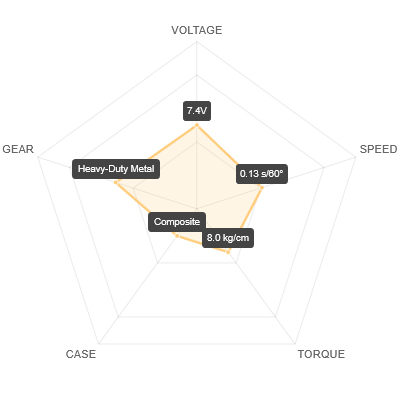

Performance Radar
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

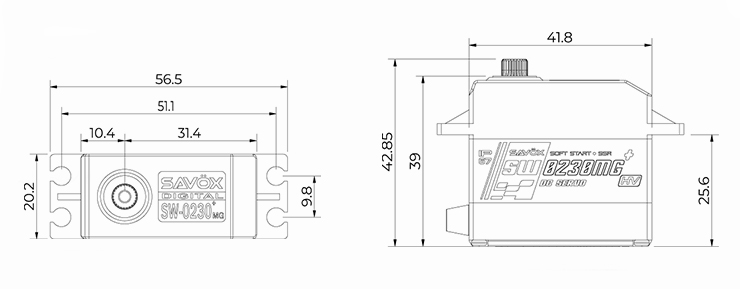

Dimensions
New Savox and Plus / “+” Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
