Savox Micro Size Digital Servo 2.2KG@6V (Heli & Parkfly) +

SAVOX MICRO SIZE DIGITAL SERVO 2.2KG@6V (HELI & PARKFLY) +

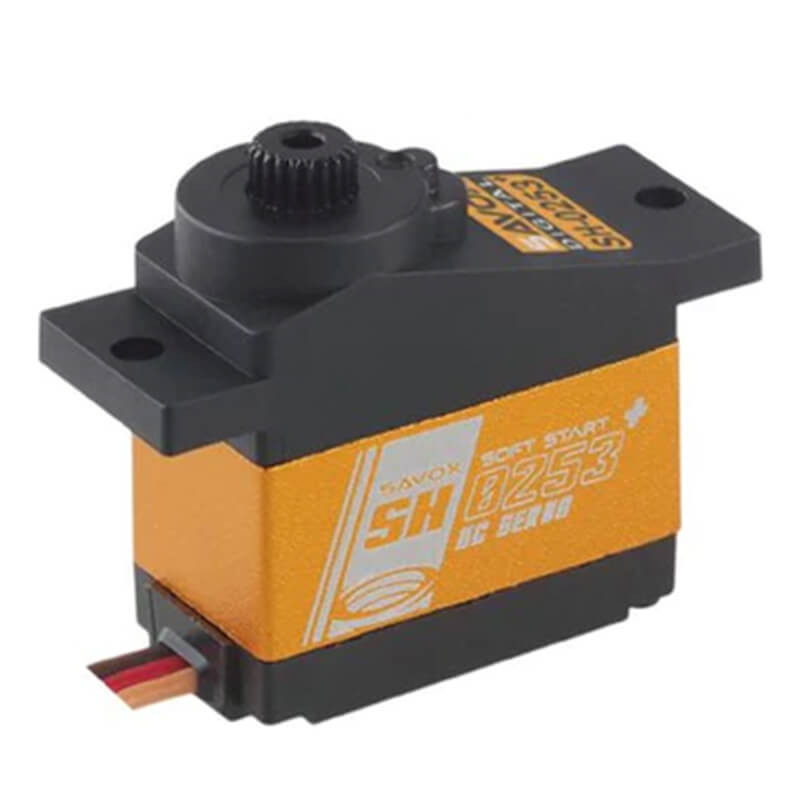

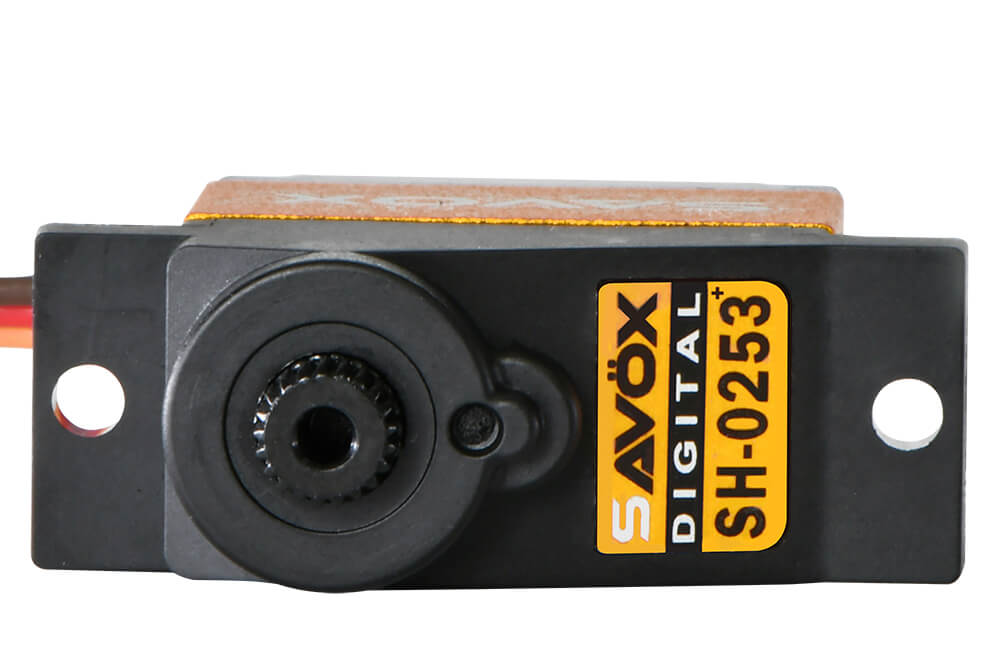

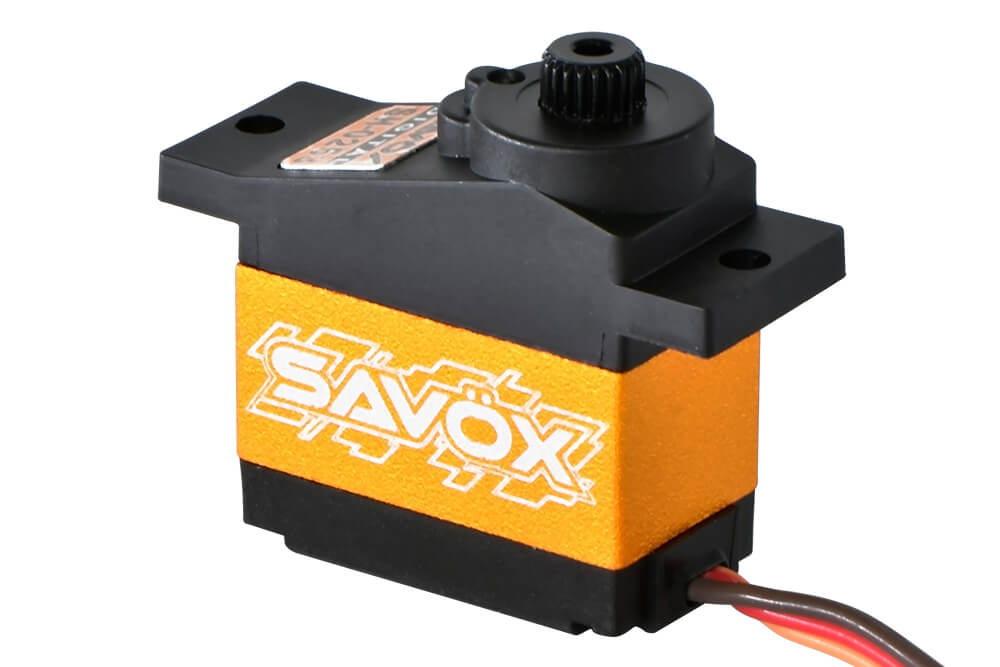

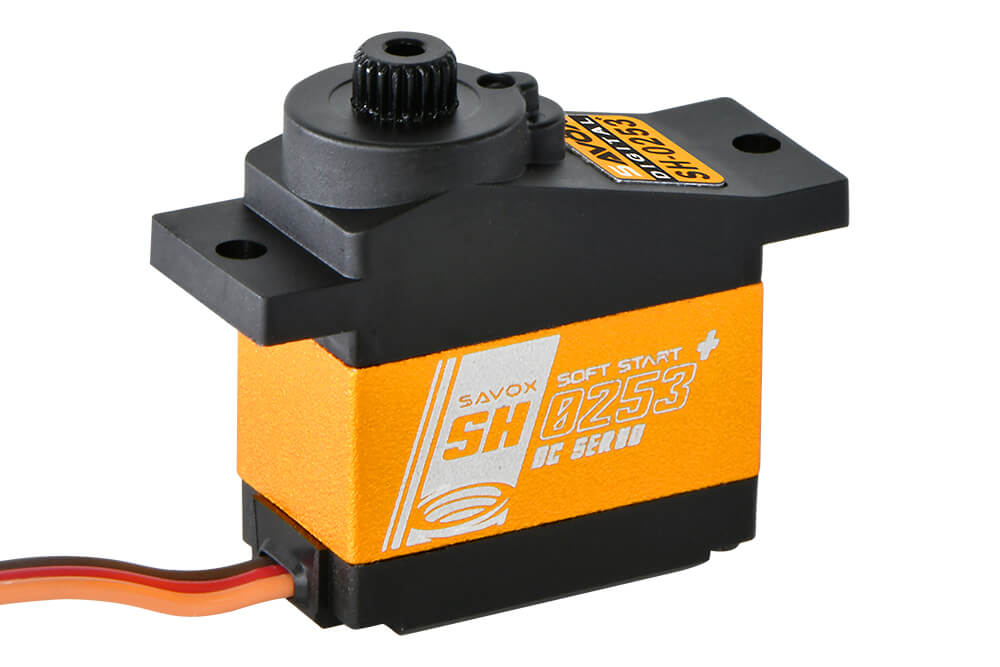

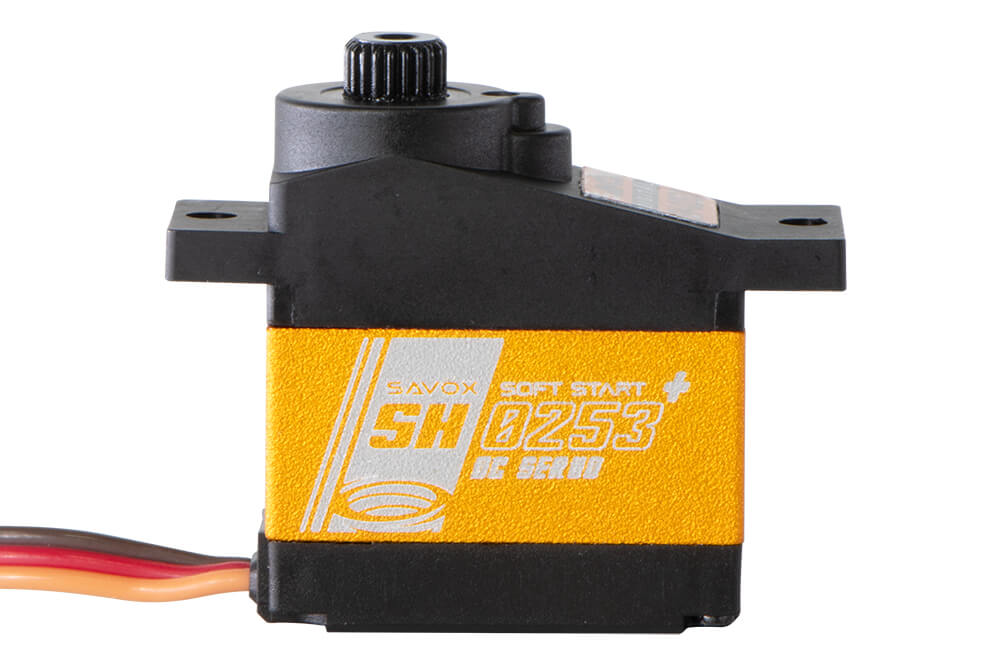

The Savox SH0253+ is a Super Speed Micro Digital Servo.

Features

• Over-spec refined design out performs ordinary micro size servos.
• The metal case design looks good and allows for cooler and smoother operating temps.

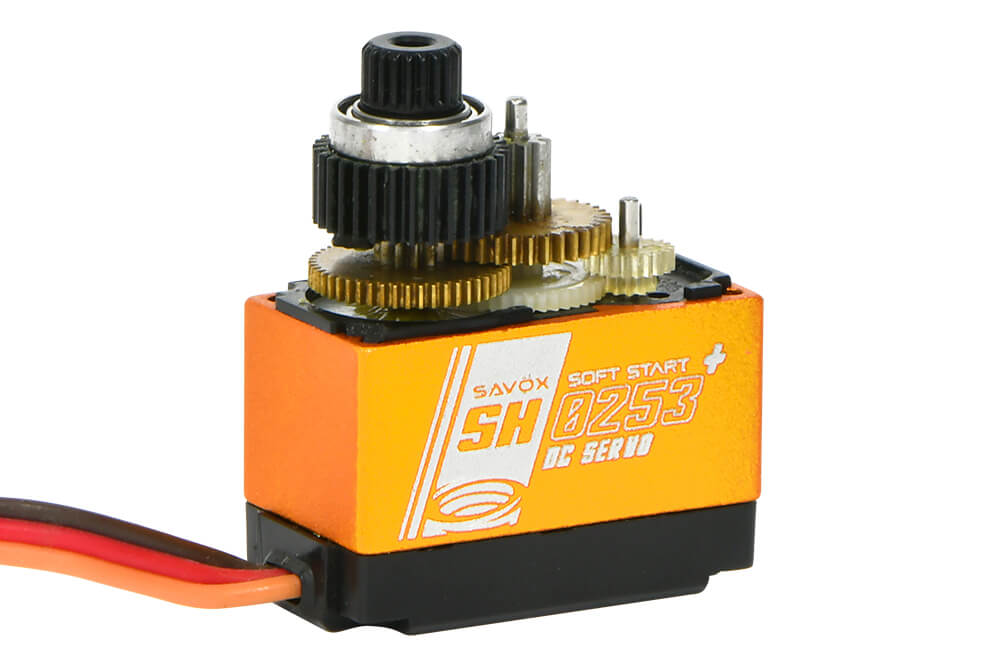

• Metal gears forms a solid framework for precise control and operation.
• Strict production and quality control of plastic components ensure quality construction.
• Our servos are totally green – from materials to production, these servos are environmentally friendly.
• Ideal for CCPM and Rudder on 450 class heli’s and Park Flyer Airplanes.

Specifications

• Dimensions: 22.8×12.0x25.4mm
• Weight: 13.6g
• Speed (@4.8V sec/60): .13
• Torque (@4.8V oz-in): 25.0
• Speed (@6.0V sec/60): .09
• Torque (@6.0V oz-in): 30.6
• Gear: Metal & Plastic
• Bearing: 2BB
• Case: Part Aluminium
• Servo Horn: 21 Tooth Spline

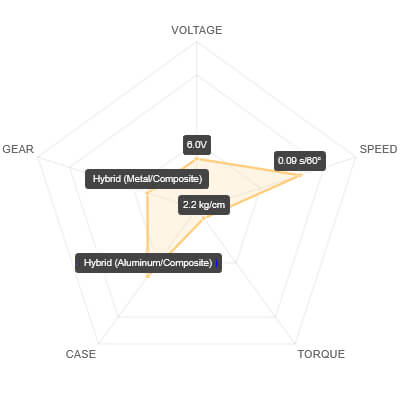

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

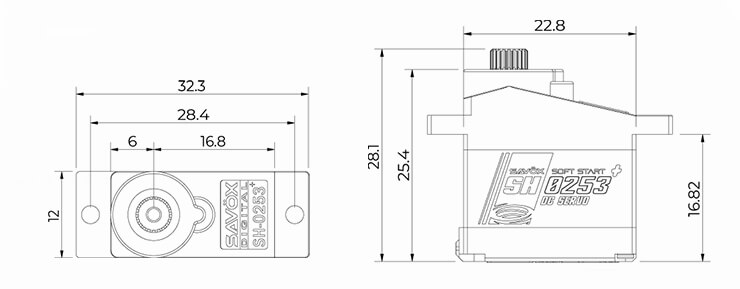

Dimensions

Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
