Savox Hv Low Profile Digital Servo 22kg/[email protected]

SAVOX HV LOW PROFILE DIGITAL SERVO 22KG/[email protected]

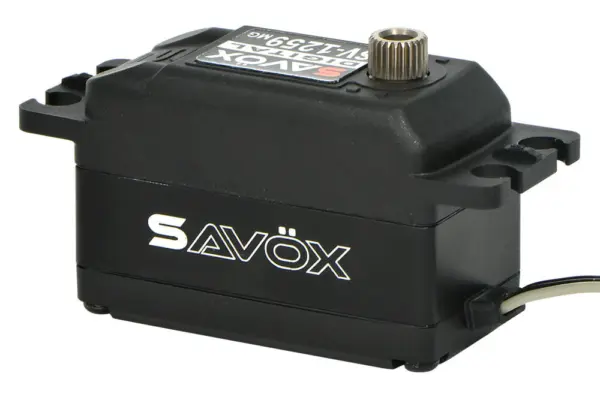

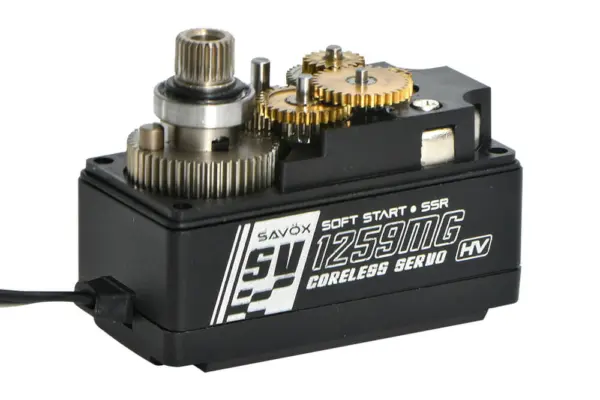

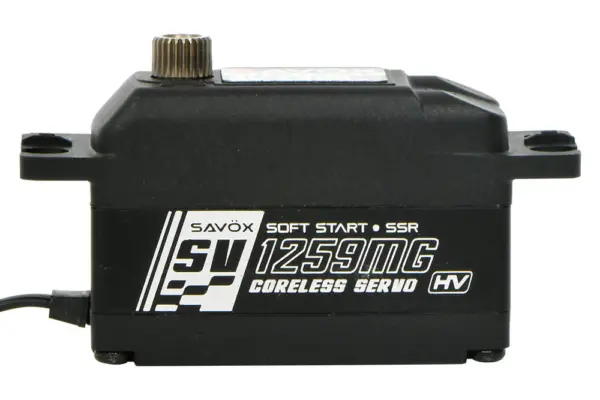

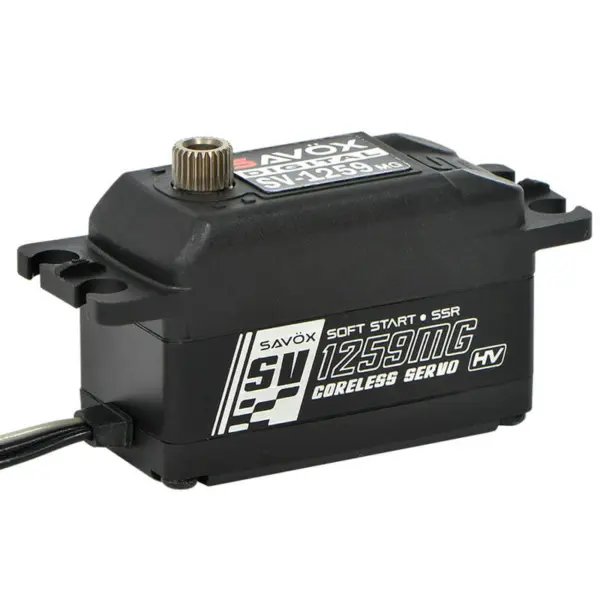

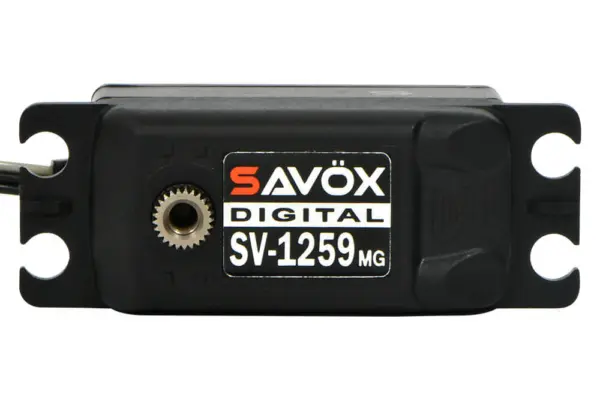

The SV1259MG is a high-voltage, low-profile digital servo engineered for performance in tight spaces. With a robust coreless motor and hardened metal gearing, it delivers crisp, responsive control which is ideal for cars or other applications demanding both torque and speed.

Specifications

• Dimension(mm): 40.8 x 20.2 x 27.4
• Weight(g): 49
• Speed @6.0V (sec/60): 0.10
• Torque @6.0V (kg-cm): 15
• Speed @7.4V (sec/60): 0.085
• Torque @7.4V (kg-cm): 19
• Speed @8.4V (sec/60): 0.075
• Torque @8.4V (kg-cm): 22
• Gears: Metal
• Bearing: 2BB
• Case: Part Aluminium
• Servo Horn: 25 Tooth Spline

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

Dimensions

Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
