Savox Hv Low Profile Digital Servo 15kg/[email protected] - Plus

SAVOX HV LOW PROFILE DIGITAL SERVO 15KG/[email protected] – PLUS

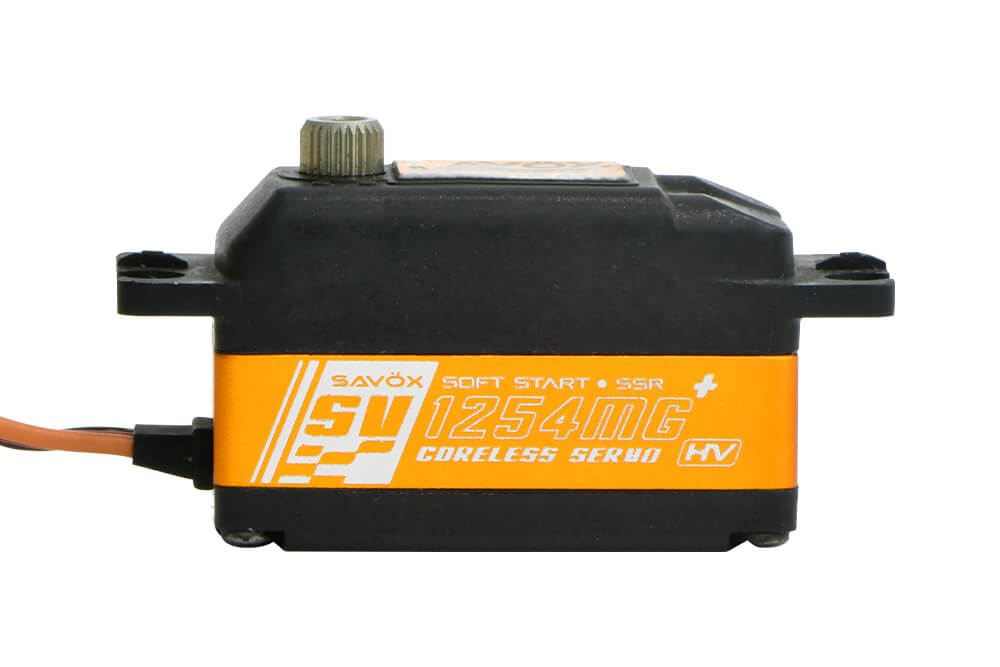

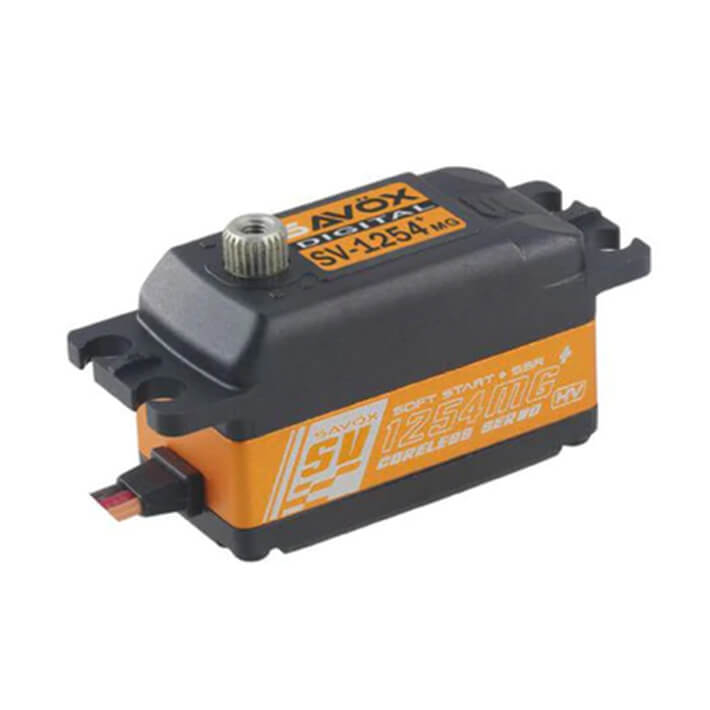

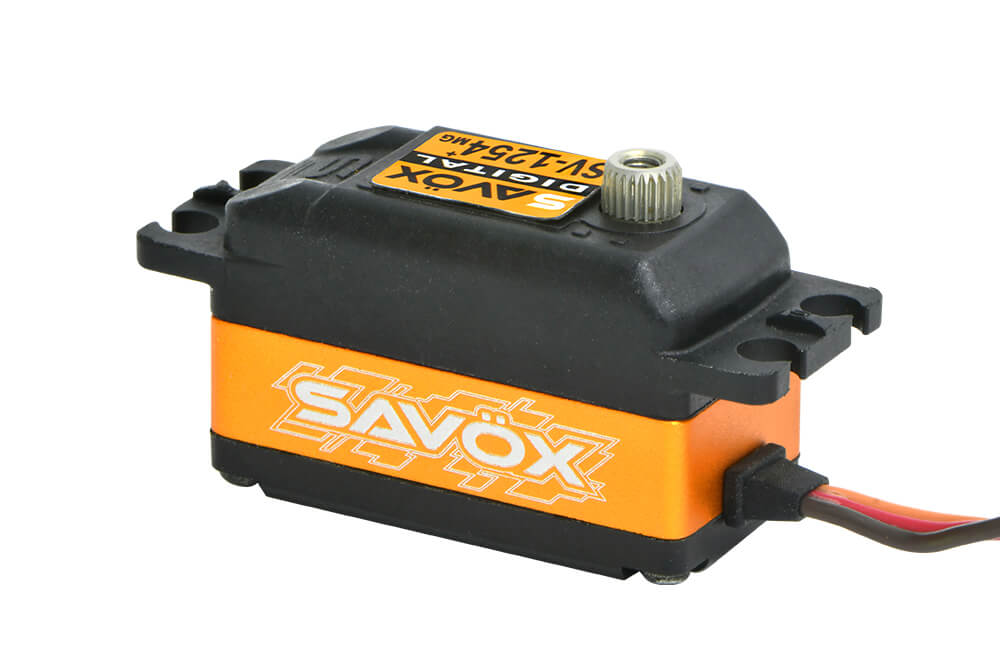

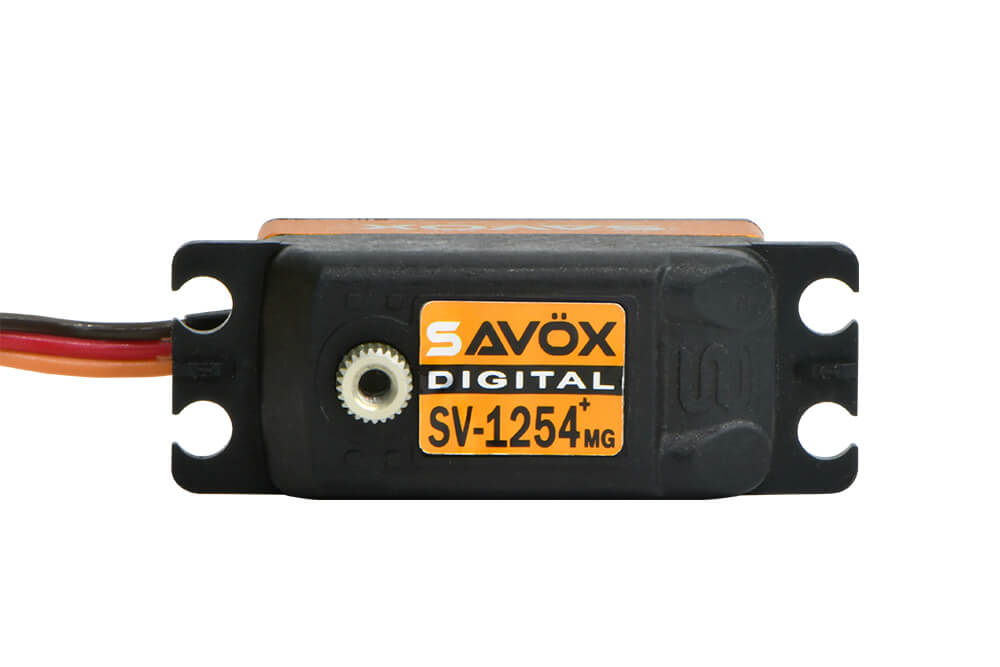

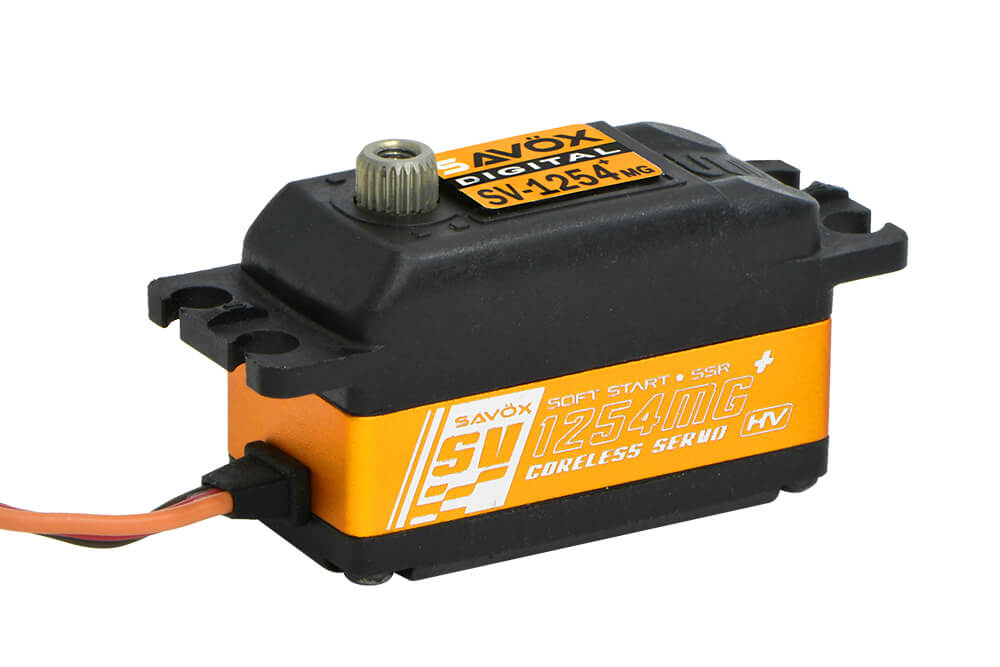

The Savox SV1254MG+ servo is a high performance coreless servo with good torque and fast transit time in a low profile package.

Features

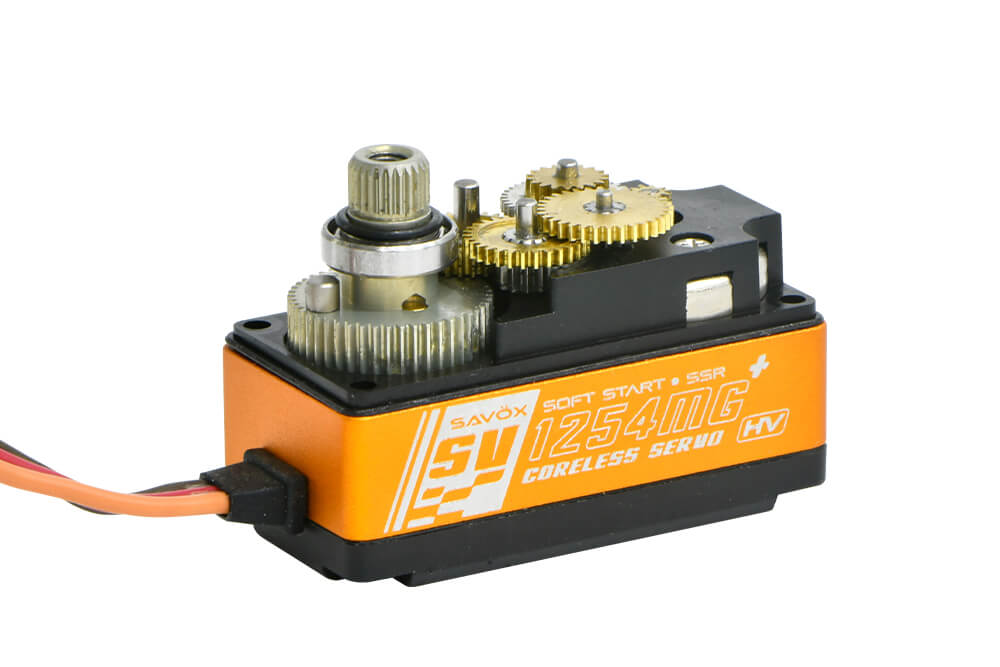

• Steel gear train provide durability against heavy use.
• Capable of HV operation.
• Standard size performance in a low profile package.
• Ideal for 1/10 on road and other applications where space is tight.

Specifications

• Dimensions: 40.8 x 20.2 x 25.4mm
• Weight: 46.0g
• Speed @6.0V (sec/60°): 0.10
• Speed @7.4V (sec/60°): 0.085
• Speed @8.4V (sec/60°): 0.075
• Torque @6.0V (kg-cm): @7.4v 12.00
• Torque @7.4V (kg-cm): @7.4v 15.00
• Torque @8.4V (kg-cm): @7.4v 18.00
• Bearing: 2BB
• Case: Part Aluminium
• Servo Horn: 25 Tooth Spline

Performance Radar

Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.

Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

Dimensions
