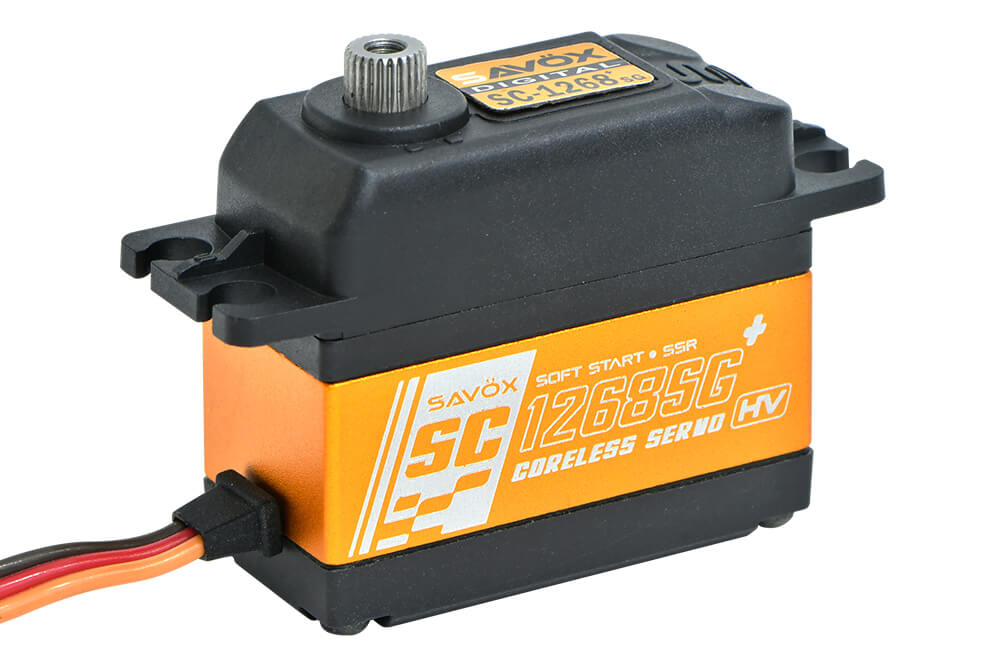

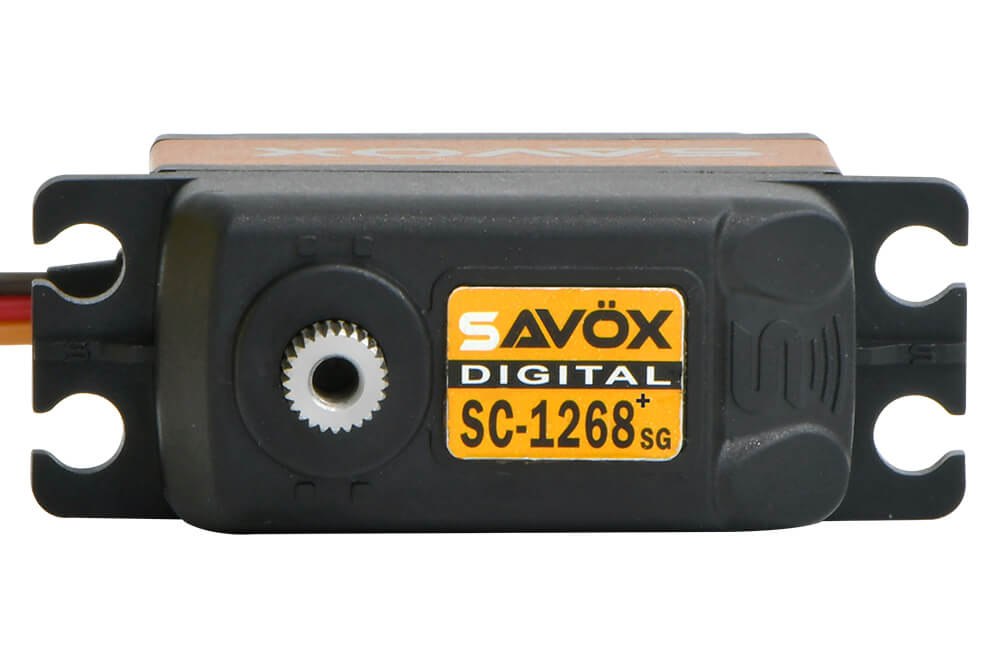

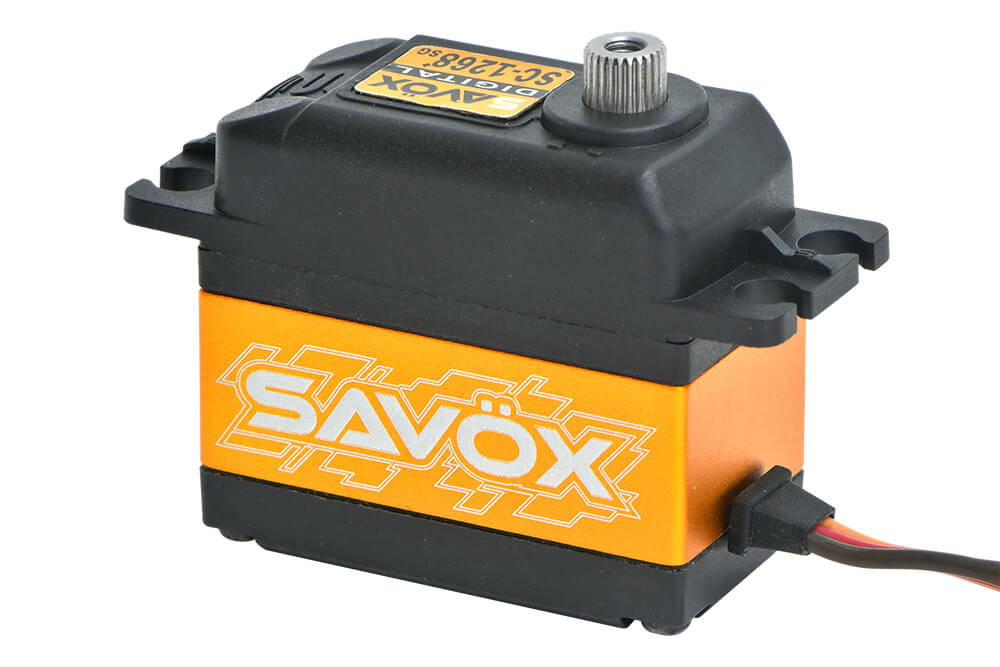

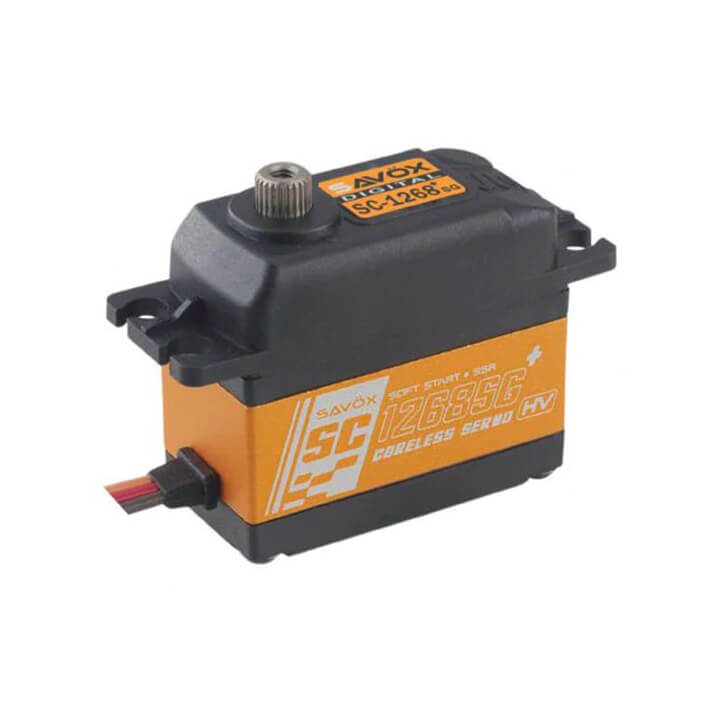

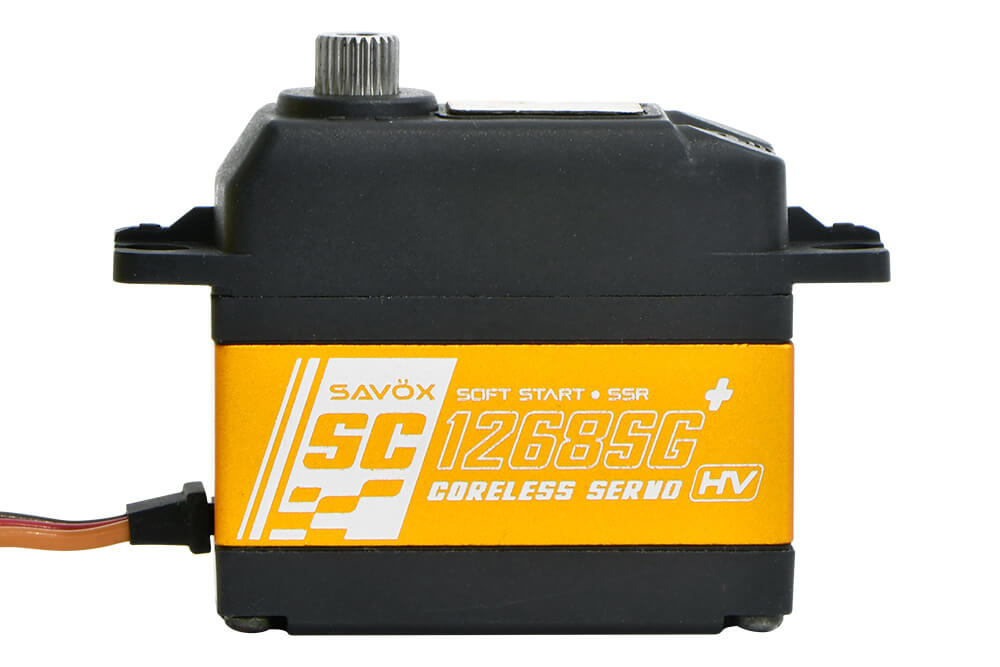

Savox 'High Voltage' STD Size Digital Servo [email protected] Plus
About this product
SAVOX ‘HIGH VOLTAGE’ STD SIZE DIGITAL SERVO [email protected] PLUS
Savox ‘High Voltage’ servos that can be powered straight off the battery, eliminating the need for a voltage regulator!

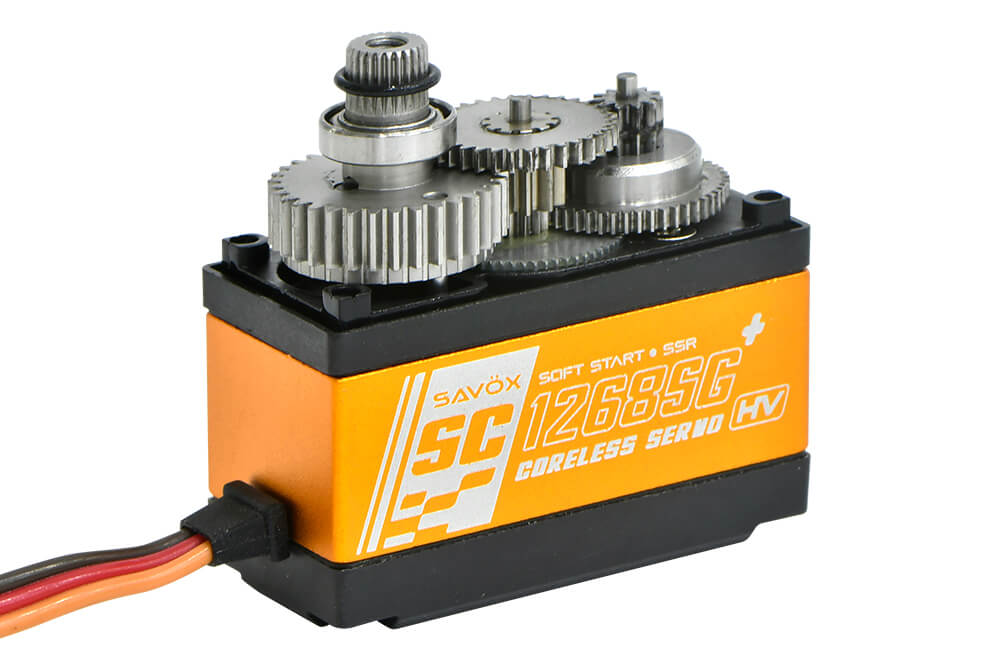

These servos feature an all new motor and controller, they use ‘bullet proof’ all steel gear set.
Suitable for 1/8th nitro racing and large scale aircraft.
Features
- No Regulator needed in your airframe
- Higher performance due to voltage and motor improvements
- Faster response
- More torque
- Greater transit speed
- Greater efficiency
- Improved water protection with 4 silicon seals
- Strong and precise-made steel gears
Specifications
- Dimensions: 48.0 x 20.0 x 37.2mm
- Weight: 62g**
- Speed (sec/60°): @4.8v 0.16, @6.0v 0.13, @7.4v 0.11
- Torque (kg/cm): @4.8v 13, @6.0v 15, @7.4v 25
- Gear: Unique Steel
- Case: Aluminium Heat Sink
- Servo Horn: 25 Tooth Spline
**Weight listed does not include wires or horns.

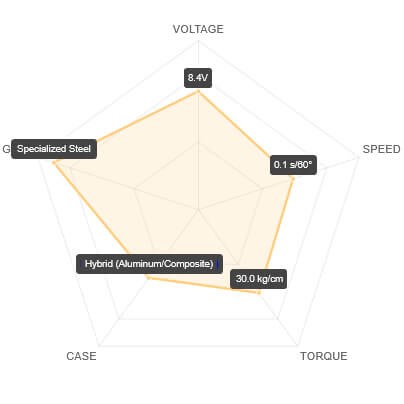

Performance Radar
Easily compare RC servo models with our intuitive radar chart. This tool visualizes critical performance metrics, allowing you to assess and select the ideal servo for your needs. Whether you’re prioritizing speed, durability, or precision, the Performance Radar helps you make informed decisions with confidence.
Savox servos are renowned for their versatility, catering to a wide range of applications, from high-speed racing to heavy-duty off-road tasks. Engineered for reliability and performance, they deliver the perfect balance of power, precision, and durability, making them a trusted choice for RC enthusiasts worldwide.

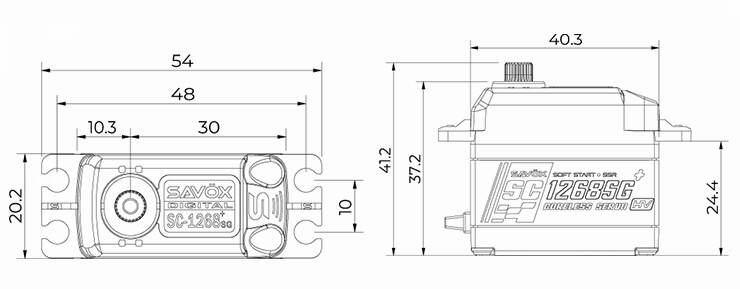

Dimensions
New Savox and Plus / “+” Models: feature a new Soft Start Mode and Sanwa SSR compatibility.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
