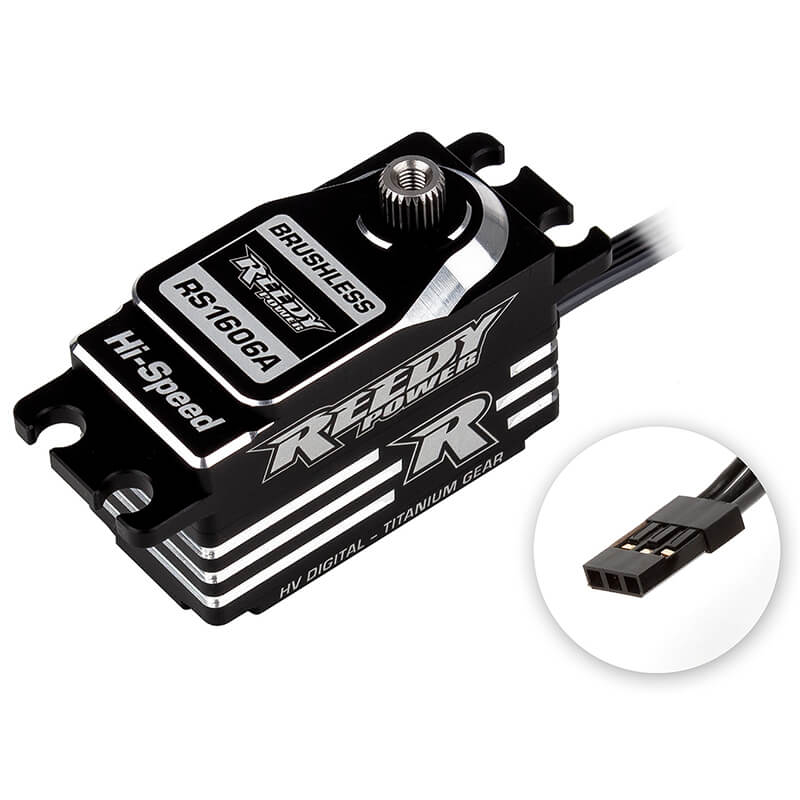

Reedy Rs1606a Low Profile Brushless Hi-Speed Hv Servo

REEDY RS1606A LOW PROFILE BRUSHLESS HI-SPEED HV SERVO

Reedy’s all-new Low-Profile Titanium Gear Brushless HV Servos are now available and include a variety of performance features intended for competition! Precision titanium gears add strength, reduce weight, and provide silky smooth operation. A powerful brushless motor produces a combination of lightning quick speeds and maximum torque while an advanced microprocessor improves vehicle control and enhances driver feel. State-of-the-art CNC-machined aluminum case with integrated fins increases rigidity to ensure consistent driving feel while lowering operating temperatures for fade-free operation. Two options, high speed or high torque, are available to suit a variety of on- and off-road applications and driver preferences.

Features

• Full aluminum low-profile case
• Powerful brushless motor
• Waterproof construction
• Ultra-precise metal gears
• Dual ball bearings
• High-voltage compatible

Specifications

Input (V): 4.8 – 8.4
Motor: Brushless
Speed (sec/60 deg.), 6.0V: .070
Speed (sec/60 deg.), 7.4V: .065
Speed (sec/60 deg.), 8.4V: .058
Torque (kg-cm/in-oz), 6.0V: 13/180
Torque (kg-cm/in-oz), 7.4V: 14.5/201
Torque (kg-cm/in-oz), 8.4V: 16/222
Dimensions (mm): 40.8 x 20.2 x 26.5
Weight (g): 57.2
Spline: 25
