About this product

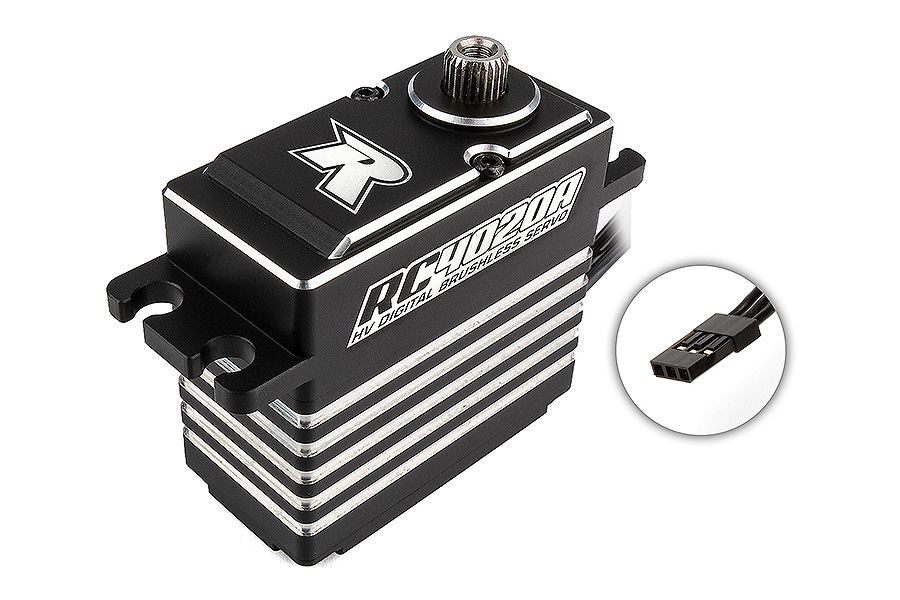

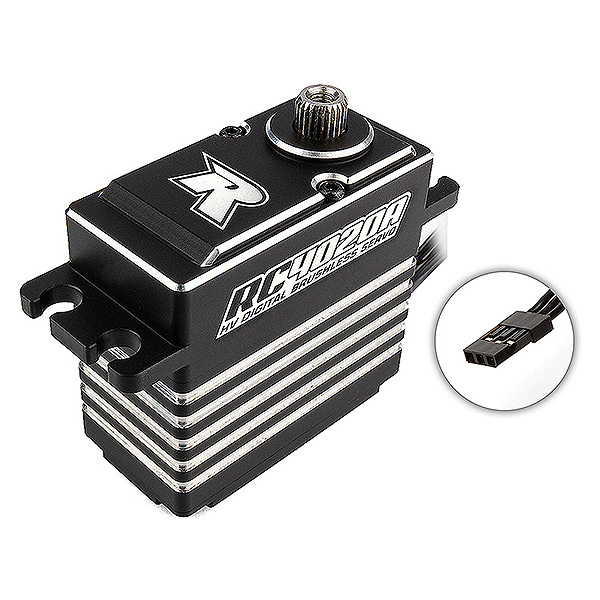

Experience competition-grade steering precision with the Reedy RC4020A Digital HV Aluminium Brushless Servo, engineered by Team Associated for serious crawlers and trail trucks. This trail-tested performer combines a powerful brushless motor with advanced microprocessor control to deliver exceptional torque without compromising response speed. Whether you’re tackling challenging terrain or competing at the highest level, this servo keeps your radio controlled car perfectly dialed in.
Built for durability where it counts, the RC4020A features an all-metal gear set and a CNC-machined full-aluminium case that dissipates heat effectively, ensuring fade-free operation during extended sessions. HV 8.4V compatibility unlocks an impressive 50 kg-cm of torque when paired with an external BEC unit—ideal for demanding crawling applications. As part of Team Associated’s premium servo lineup, this component represents the quality you’d expect from associated electrics specialists across the UK RC hobby community.
- Brushless motor with digital microprocessor control
- Full-aluminium CNC-machined case for heat dissipation
- All-metal gear construction for maximum durability
- HV compatible: 4.8–8.4V input
- Peak torque: 50 kg-cm (695 oz-in) at 8.4V
- Speed: 0.12 seconds per 60° at 8.4V
- Weight: 82g | 25-spline output
