About this product

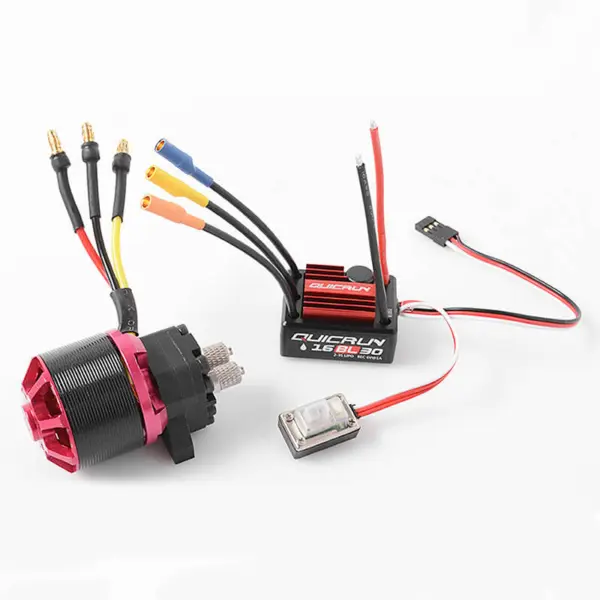

RC4WD MINI HYDRAULIC OIL PUMP WITH BRUSHLESS 40A MOTOR/ESC
Features
- 45Amp motor ESC combo
- Hydraulic pump Pre-installed
Specifications
Weight: 8.74oz / 248g
Motor
Rotational Speed: 280(kv) RPM/volt
Input Voltage: 7.4-12.6V
Max Efficiency: >85%
Continous Current: 10-12A
Motor OD: 1.37in / 35mm
Motor The Total Length: 1.7in / 43mm
Oil Pump
Length: 1.38in / 35mm
Width: 1.14in / 29mm
Height: 0.63in / 16mm
SKD11 Japanese Steel 50HRC
Heat Treated For Strength
Booster Tank
Hydraulic M5 to M4 Straight Nozzle
Rated Pressure: 3.5-4.5MPA
Maximum Oil Pressure: 8MPA
ESC
Length: 1.35in / 34.5mm
Height: 1.13in / 28.6mm
Width: 1.34in / 34mm
What’s Included
- 1 x Brushless Motor + 1x Oil Pump + 2x Hydraulic M5 to M4 Straight Nozzle
Works With
- 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader (Yellow and White) (VV-JD00031 Discontinued)
