Protoform Chevrolet Corvette C8 Clear Body for Felony/Infra

PROTOFORM CHEVROLET CORVETTE C8 CLEAR BODY FOR FELONY/INFRA

PROTOform is now proud to bring one of the most anticipated cars Chevrolet® has ever built to the 1:7 scale ARRMA® Street Bash line of vehicles with the release of the Corvette™ C8 body for Felony™ & Infraction™.

The officially licensed body is the ultimate aerodynamic upgrade to the popular Felony™ platform, whether you are making speed runs in the back roads or drifting in the parking lot. All the exceptional details of its 1:1 counterpart including aggressive cab-forward design, sculpted side doors, and vents are captured using the latest in 3D CAD and 5-axis milling technology. The extensive decal sheet lets you deck out your C8 with Corvette™ badges, windshield headers, “Jake” skulls, and USA flags. Also included are a custom add-on front splitter and rear wing to complete the super-scale look.

The C8 is formed from durable 1.5mm thick high-quality polycarbonate with paint-then-peel overspray film. This body was designed with wider rear fenders as a direct fit for the Felony™ to clear the 53/107 tires. It will work with Infraction™ rear tires, but to get the optimal look and fit, you can optionally choose to either widen the rear of your Infraction™ chassis with stock rear tires or use Felony™ rear tires with modifications to the rear gear ratio. See the fits tab for the list of parts needed for these modifications.

General Motors trademarks used under license to Pro-Line.

Please note: All bodies are sold in crystal clear polycarbonate and are painted for advertising purposes only.

Features

• Incredible Scale Details
• Officially Licensed by General Motors
• Custom Front Splitter & Wing Designs

What’s Included

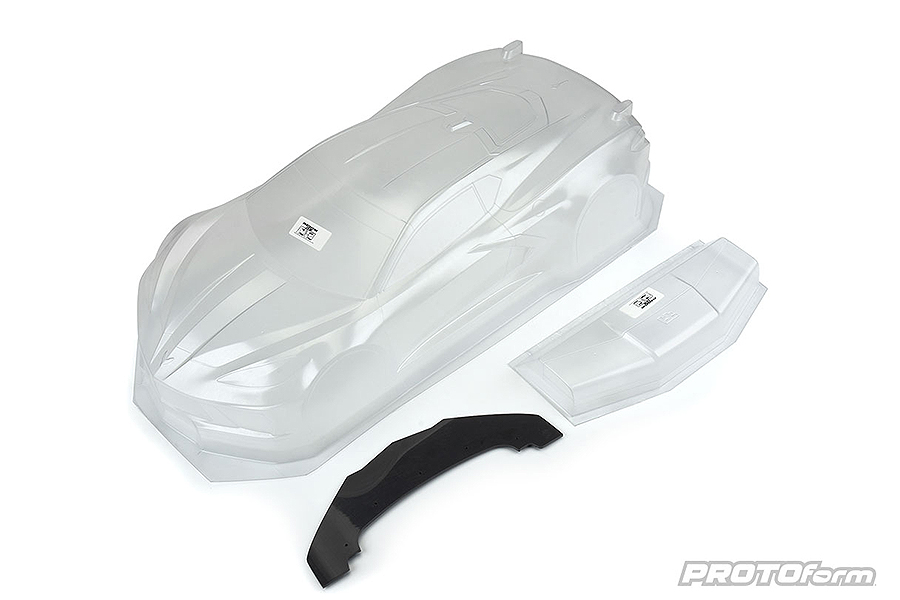

• Clear Corvette™ C8 Body
• Front Splitter
• Rear Wing
• Wing Mounting Hardware
• Extensive Decal Sheet
• Instruction Sheet
• Paint-then-peel Over Spray Film and Window Masks

Specifications

Length: 27.25″ (892mm)
Width Front: 12.3″ (312mm)
Width Rear: 13.2″ (335mm)
Height: 10.1″ (257mm)
Wheelbase:

Fits

• ARRMA® Felony™
• ARRMA® Infraction™ with:
  STOCK REAR TIRES – PARTS LIST
  – Rear Hubs (2pcs): AR330404
  – Axles (8x45mm) (2pcs): AR310591
  – Hexes (16.5mm) (2pcs): AR310484
  FELONY™ REAR TIRES – PARTS LIST (V1 INFRACTION™)
  – 53/107 2.9 Tires (Pair): ARA550073
  – Front Input Shaft Cup (Safe-D): ARA310977
  – Front Input Shaft Cup Sleeve (4pcs): ARA310976
  – Front Main Input Gear 15T GP5: ARA311016
  – Front Main Diff Gear 42T GP5: ARA311017
  – Rear Input Shaft Cup (SAFE-D): ARA310977
  – Rear Input Shaft Cup Sleeve (4pcs): ARA310976
  – Rear Main Input Gear 14T GP6: ARA311018
  – Rear Main Diff Gear 45T GP6: ARA311019
  FELONY™ REAR TIRES – PARTS LIST (V2 INFRACTION™)
  – 53/107 2.9 Tires (Pair): ARA550073
  – Rear Main Input Gear 14T GP6: ARA311018
  – Rear Main Diff Gear 45T GP6: ARA311019
