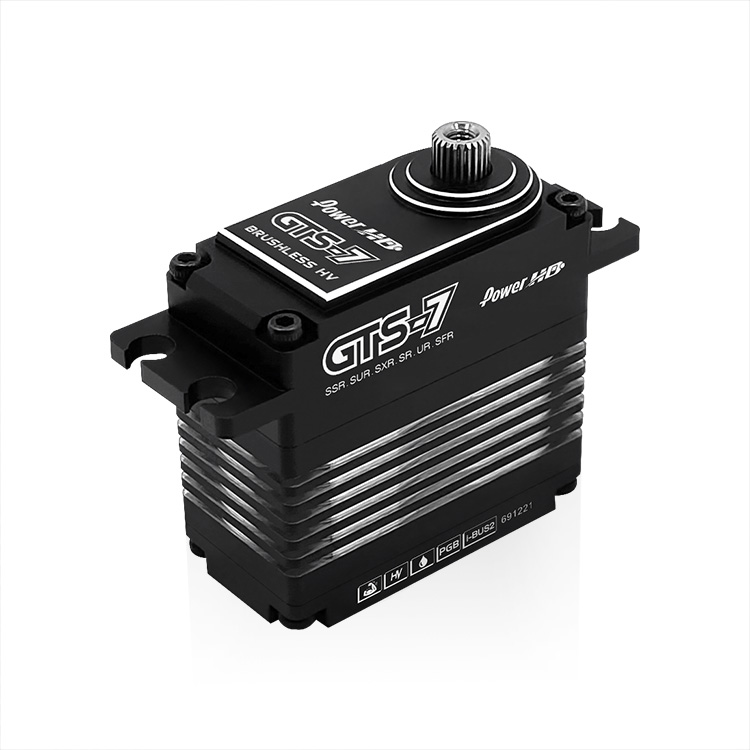

Servo Power Hd GTS 7 Hv Mg Brushless Alu Case (70kg/0.10s)

Description

PowerHD GTS-7 HV CNC Brushless Digital Servo 70.0KG/[email protected]
*Support FLYSKY radio’s i-BUS2 protocol
servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of brands’ radio
Noble NB4 Pro modes: NOR / SR / SFR
Futaba modes: NOR / SR / UR
SANWA modes: NOR / SHR /SSR / SUR / SXR
*Support the Power HD program box PG-CB63
*four-pole brushless motor
high performance/ long Life-span/ heat-resistant/ faster response

Torque(6.0V): 52.0 kg-cm / (722.1 oz/in)
Torque(7.4V): 66.0 kg-cm / (916.6 oz/in)
Torque(8.4V): 70.0 kg-cm / (972.1 oz/in)
Speed: 0.15 sec (6.0V) ©¦ 0.12 sec (7.4V)
Speed: 0.10 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 78 g (2.75 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: 7075+Steel
Operating Temperature: -20~60°C
Working frequence: 1520 / 1666hz
Size: 40.0 x 20.0 x 38.3 mm ( 1.57 x 0.79 x 1.51 in)
Max current: 7.5A

Technical Data

■ Torque(6.0V): 52.0 kg-cm / (722.1 oz/in)
■ Torque(7.4V): 66.0 kg-cm / (916.6 oz/in)
■ Torque(8.4V): 70.0 kg-cm / (972.1 oz/in)
■ Speed: 0.15 sec (6.0V) │ 0.12 sec (7.4V)
■ Speed: 0.10 sec (8.4V)
■ Operating Voltage: 6.0 ~ 8.4 DC Volts
■ Weight: 78 g (2.75 oz)
■ Bearing Type: Ball Bearing x 2
■ Motor Type: Brushless Motor
■ Gear Type: 7075+Steel
■ Max current: 7.5A
■ Size: 40.0 x 20.0 x 38.3 mm ( 1.57 x 0.79 x 1.51 in)

■ Torque(6.0V): 52.0 kg-cm / (722.1 oz/in)
■ Torque(7.4V): 66.0 kg-cm / (916.6 oz/in)
■ Torque(8.4V): 70.0 kg-cm / (972.1 oz/in)
■ Speed: 0.15 sec (6.0V) │ 0.12 sec (7.4V)
■ Speed: 0.10 sec (8.4V)
■ Operating Voltage: 6.0 ~ 8.4 DC Volts
■ Weight: 78 g (2.75 oz)
■ Bearing Type: Ball Bearing x 2
■ Motor Type: Brushless Motor
■ Gear Type: 7075+Steel
■ Max current: 7.5A
■ Size: 40.0 x 20.0 x 38.3 mm ( 1.57 x 0.79 x 1.51 in)
