METHOD TERRAFORM BELTED 1/10MT TYRES ON ARRAY BEADLOCK RIMS

Fifteen years ago, a journey began to develop RC products for the masses. During this time, our customers continued to grow their trust in us and the desire to establish our own brand in the RC Community started to take shape – our capabilities grew in manufacturing and the style of depth of products we wanted to produce. Several months into 2020, the name Method RC was born. The method of our madness punches performance, quality, durability and a customer focused mindset to bring products that strike joy into the RC journey. Today, we’re happy to announce the expansion of our product line with complete Belt-Equipped tyres super-tough injection molded wheels for large-scale vehicles.

Features

Hand Laid Belt-Equipped (BE)

• Nearly eliminates tyre expansion creating a stable/consistent platform at high speeds.
• Minimal tyre expansion greatly reduces the “gyro” effect reducing the overall load on the servo, axles, plastics and hub bearings.

Tread Design

• Unique tread detail throughout provides a neutral/all-around performance on an array of surfaces. Aggressive enough for dirt yet poised to tackle the harsh bite of concrete and asphalt a like, the Terraform BE packs a powerful passion for your bashing needs.
• Generous tread depth for long wear and the ability to easily clear debris.

Rubber Compound

• Relentlessly tested through a variety of platforms, the Terraform’s BE rubber compound lends itself well to a middle ground of performance and a long wearing compound. We think it’s tuned just right for the basher in mind.

Array Wheel Features

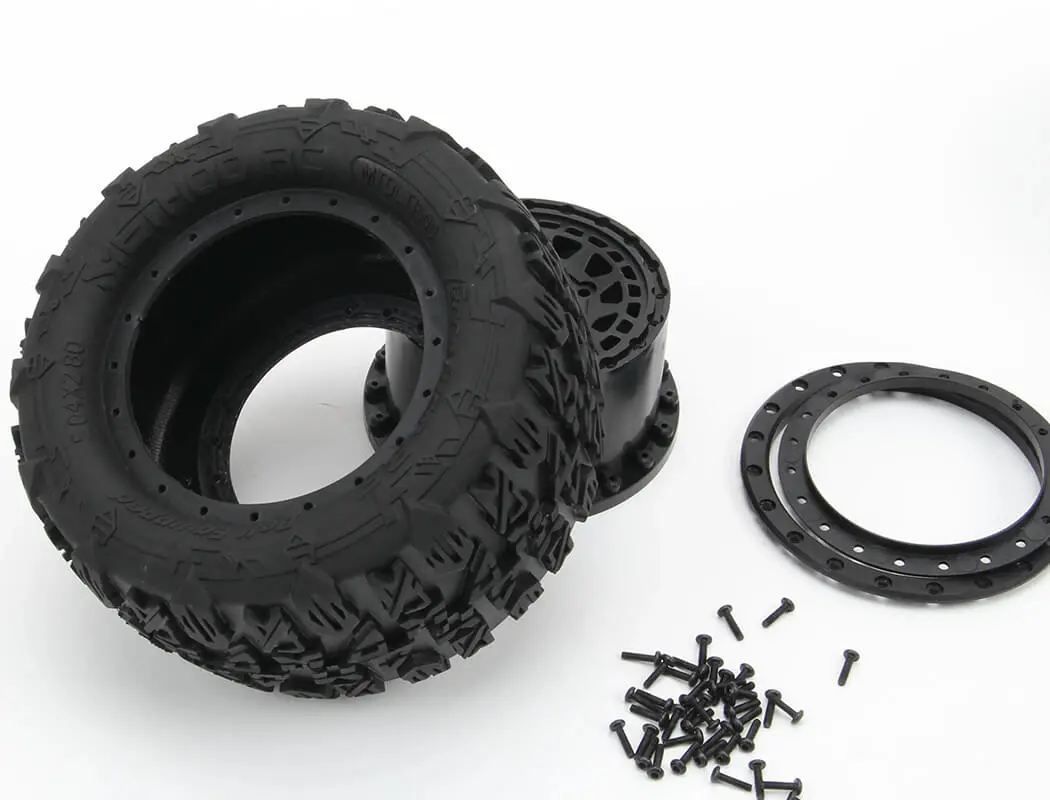

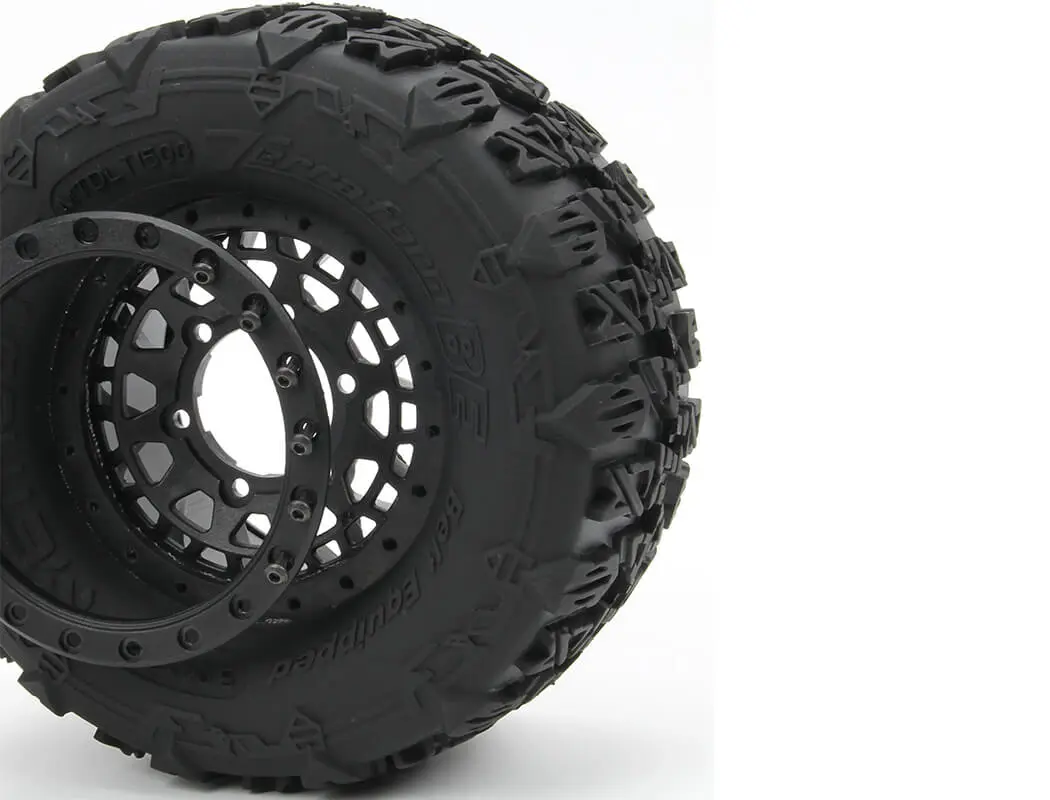

• Injection Molded 3 piece Beadlock design
• 12mm/14mm Interchangeable Hexes x 8 pcs
• 6 x 30mm (6 screws at 30mm width Hex Adaptor Pattern)

Fits

With Included 12mm/14mm Adaptors:

• Arrma Big Rock, All Granite 2wd/4wd
• Redcat Volcano, Blackout, Dukono, RC-MT10E
• Traxxas Stampede 2wd, Stampede 4×4, Hoss 4×4

Tyre Specifications

Tyre Diameter: 5.04″ (128mm)
Tyre Width: 2.69″ (68.3mm)

Wheel Specifications

Hex Size: 12mm and 14mm included
Bead Diameter: 2.8″ (71mm)
Width: 1.97″ (50mm)
Center Bore: 12mm and 14mm hex: .211″ (5.4mm)
Total weight of wheel and tyre (1 piece) 455 grams

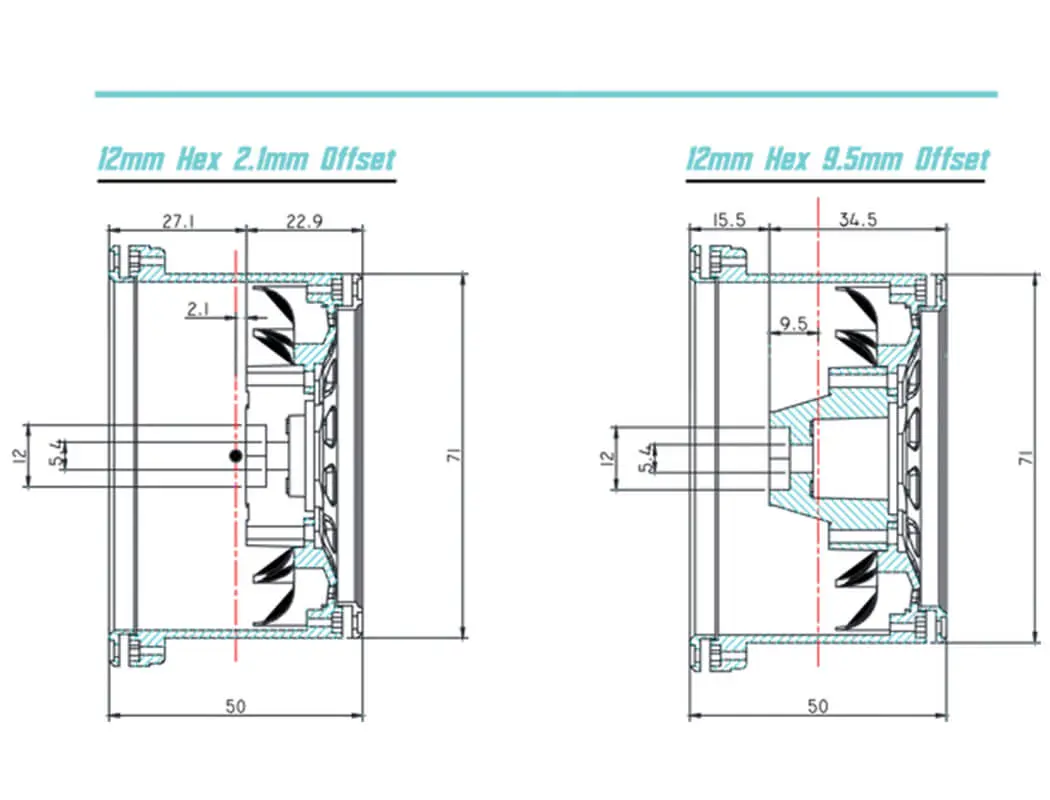

Wheel with 12mm Hex #1 Specifications :-
Offset: 0.08″ (2.1mm)
Backspacing: 1.07″ (27.1mm)

Wheel with 12mm Hex #2 Specifications :-
Offset: 0.37″ (9.5mm)
Backspacing: 0.61″ (15.5mm)

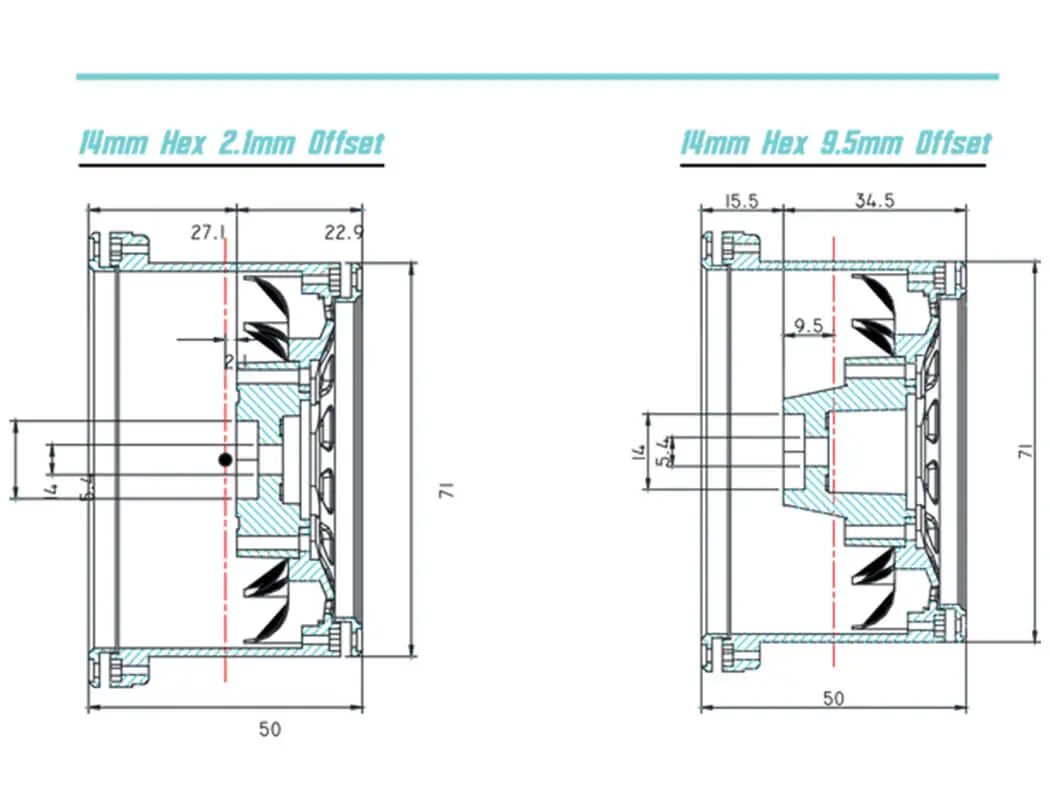

Wheel with 14mm Hex #1 Specifications :-
Offset: 0.08″ (2.1mm)
Backspacing: 1.07″ (27.1mm)

Wheel with 14mm Hex #2 Specifications :-
Offset: 0.37″ (9.5mm)
Backspacing: 0.61″ (15.5mm)

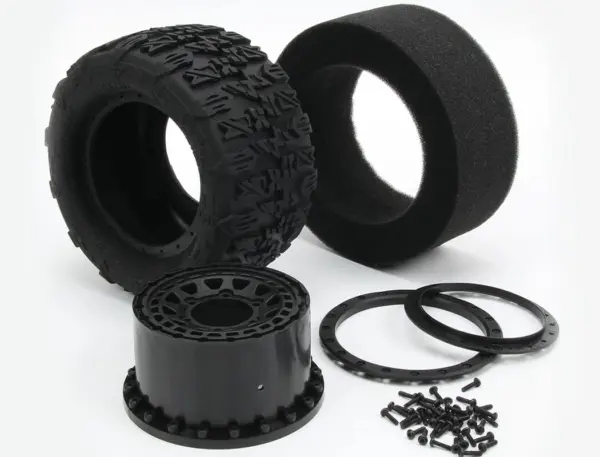

What’s Included

• 2 x Terraform Belted Tires
• 2 x Array Wheel
• 1 x Beadlock Ring
• Beadlock Hardware
• 2 x Foam Insert
• 2 x 12mm 2.1mm Offset
• 2 x 12mm 9.5mm Offset
• 2 x 14mm 2.1mm Offset
• 2 x 14mm 9.5mm Offset
