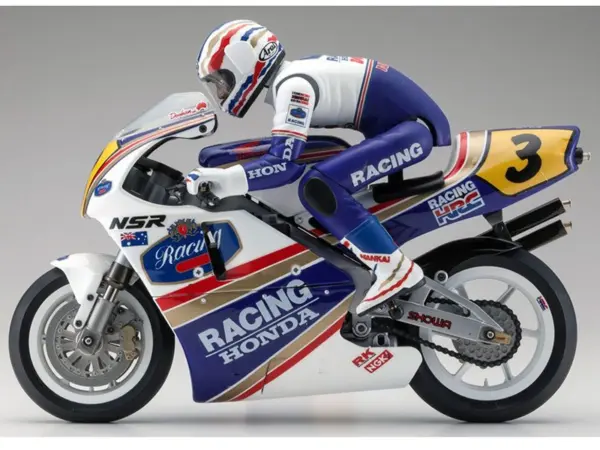

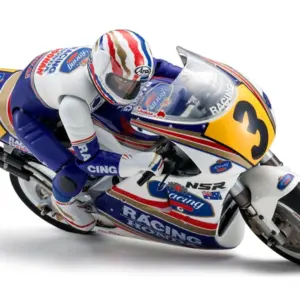

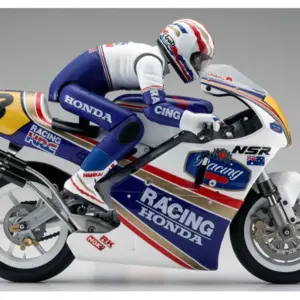

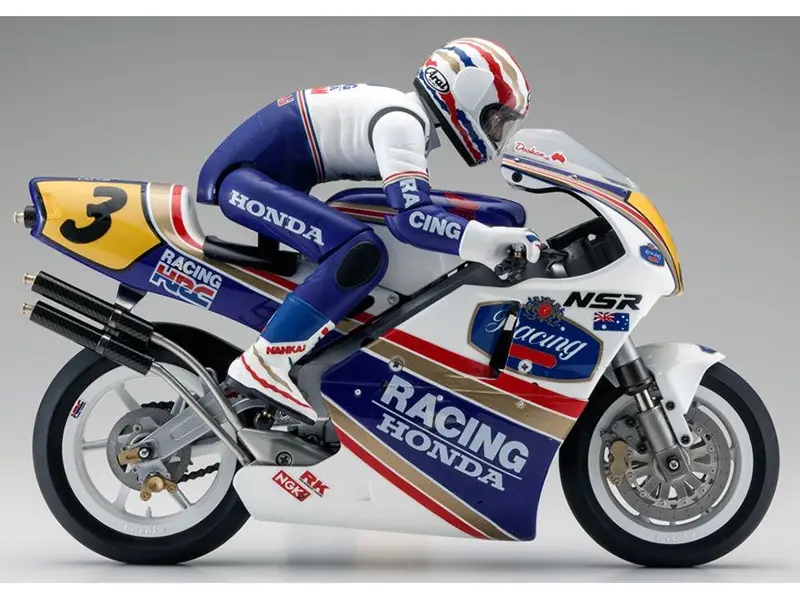

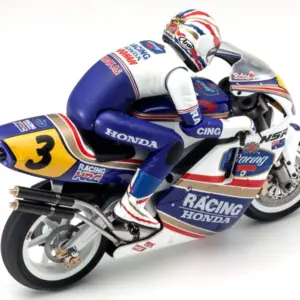

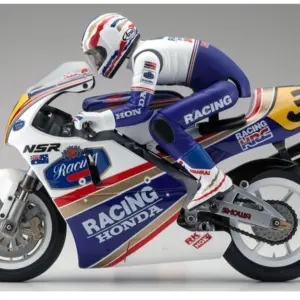

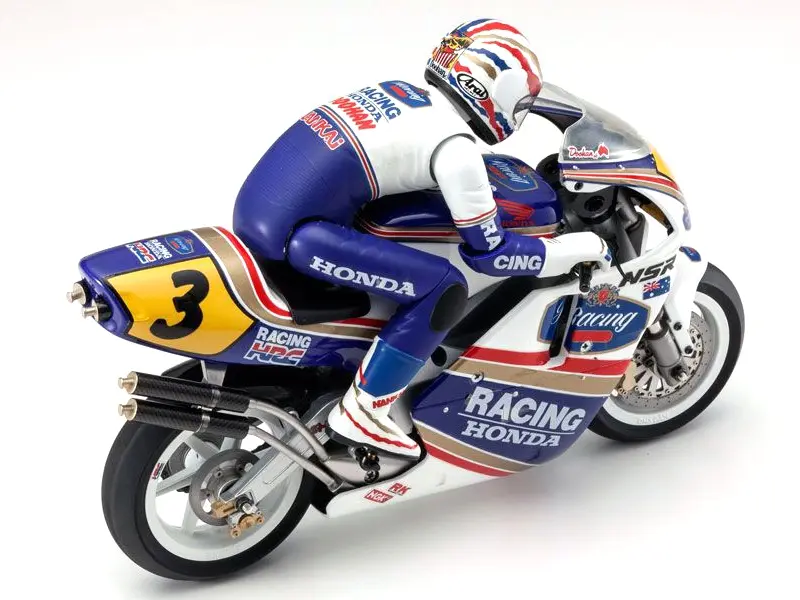

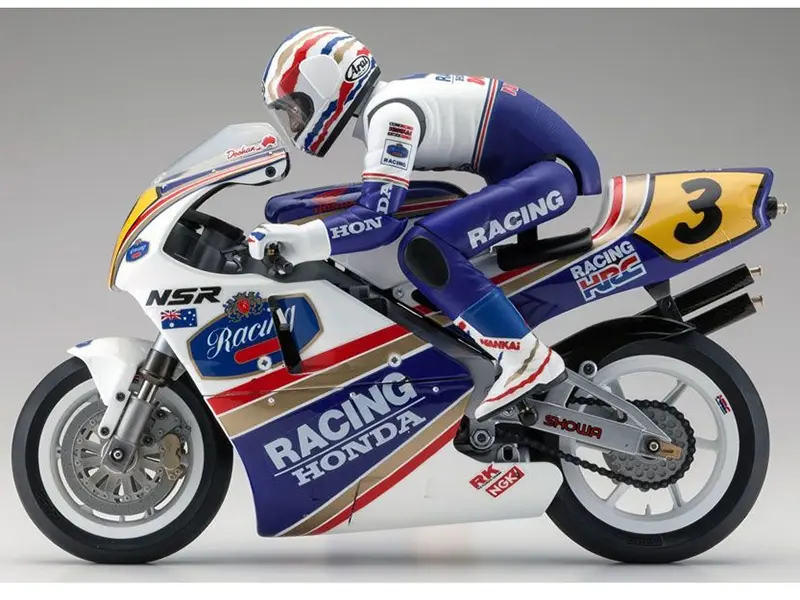

Kyosho Moto Hanging on Racer Honda NSR 1991 1:8 Kit
Key Specs
About this product
Description

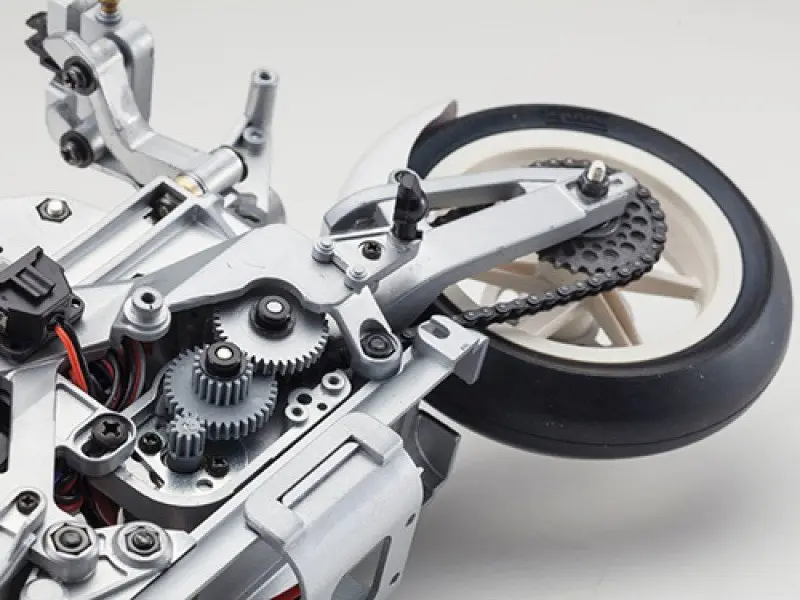

Amazing level of scale detail is recreated with each component including inverted front fork suspension, brake disk & calipers etc.Power of the Le Mans DM20 motor is transferred to the chain drive system through the drive chain and sprocket. Optional reinforced sprocket is also available.Rider figure incorporating 13 joints is used to control steering. As the rider’s waist drops into the corner, the knee protrudes as the head moves in the direction of the corner exit while the rider hangs on!3rd gear changed from resin to metal to increase strength of drive train and improve durability.

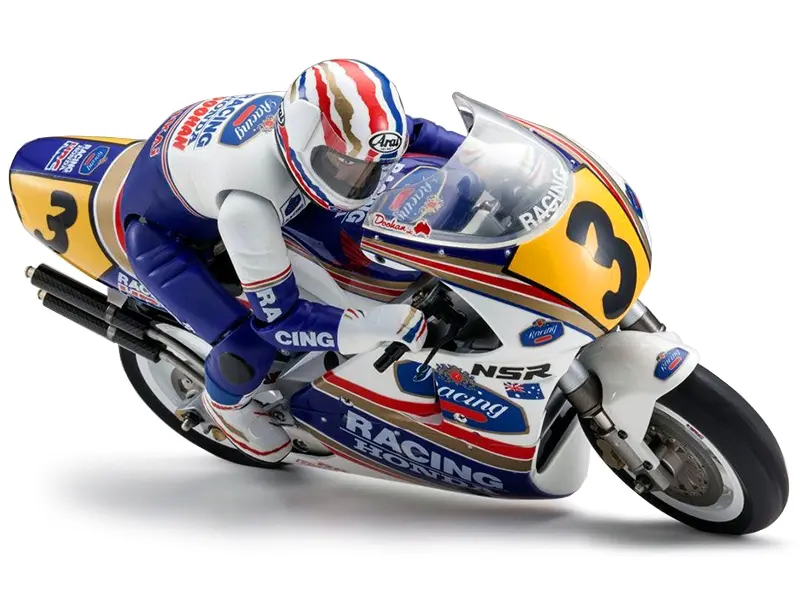

Unique S.D.S.S steering system leans the front forks from side to side while the link mechanism in the driver figure drops its waist into corners for steering control.

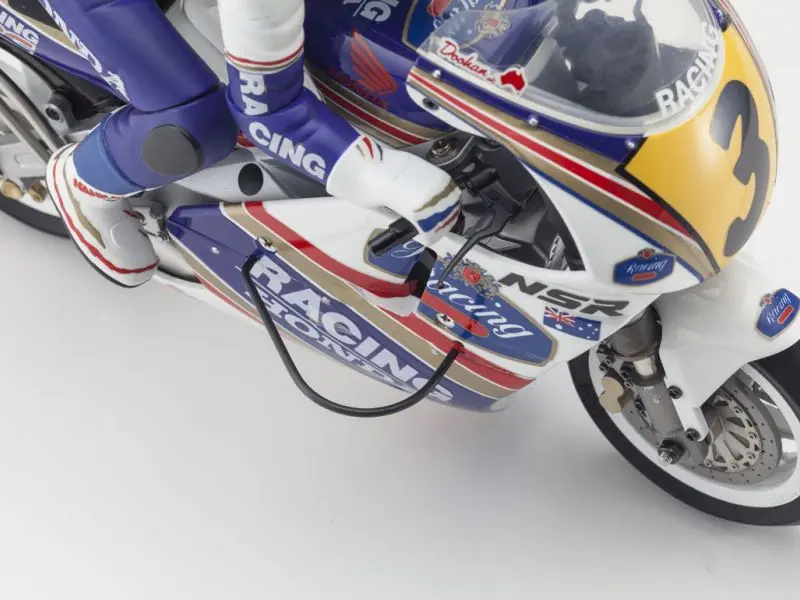

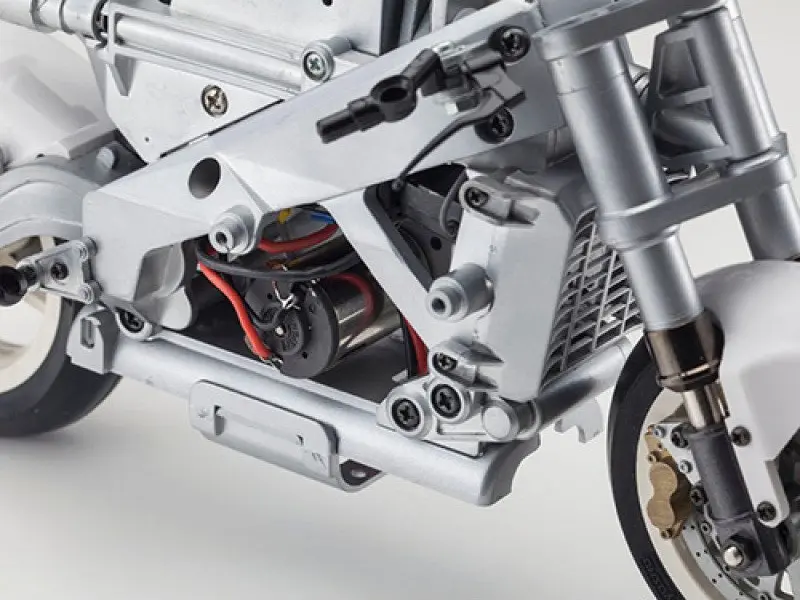

Slits in the dummy radiator replicate scale appearance and channel airflow for cooling the motor and ESC.Fall prevention guards are effective for when standing starts are difficult and for when the bike leans too far while cornering.

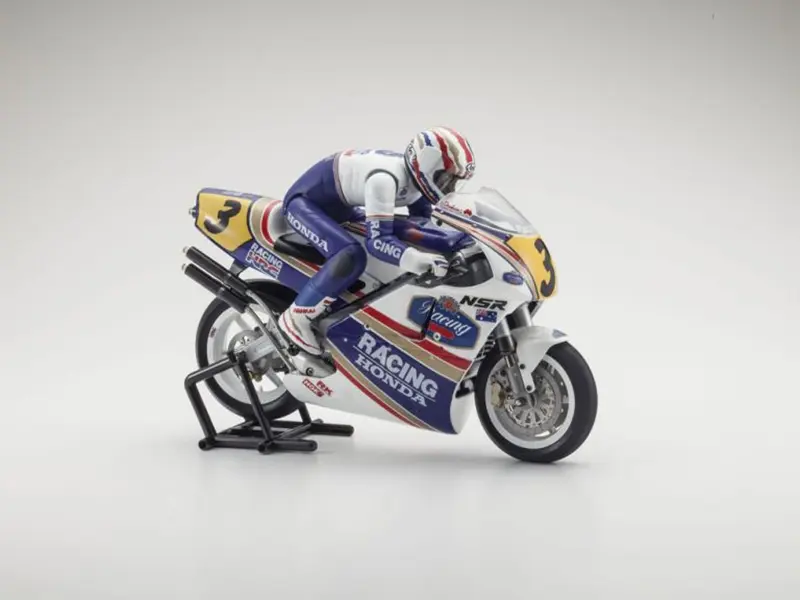

Includes unique bike stand that can be used to display the stunning scale appearance of the Hanging On Racer when it is not in use.
Optional parts for the Hanging On Racer include special steering servo, speed controller and battery (Super Charge 1600 7.2V stick pack).
Technical Data
■全長 270mm
■全幅 98mm
■Length 270mm
■Width 98mm
■Height 190mm
■Wheelbase 185mm
■Tire(F/R) Φ78×18mm/Φ86×23mm
■Gear Ratio 13.80：1～19.30：1
■Weight 750g (approx.)
■Motor Le Mans DM20
Kit Contents
＜ Kit Contents ＞
●Chassis kit
●Pinion gear (10T, 12T, 14T)
●Grease
●Cross wrench
●Pinion gear tool
Required For Operation
＜ Required for Operation ＞
●2ch R/C system
●Battery for model (7.2V-1600mAh Ni-MH recommended)
●1 x servo (L32 x W16 x H31.5 max.)
●1 x ESC (L34×W24×H14mm max.)
●Batteries for transmitter
●Battery charger for model battery
●Charger Adapter
●Paint and paintbrush
Frequently Asked Questions
No, this kit is designed for experienced builders. It requires assembly of the chassis kit, installation of a separate 2-channel R/C system, servo, and ESC, plus painting. We'd recommend prior RC building experience before tackling this model.
The kit requires a 7.2V 1600mAh Ni-MH battery, which is not included. You'll also need a separate battery charger and charger adapter. Kyosho offers an optional Super Charge 1600 7.2V stick pack battery if you need to purchase one.
The kit includes a chassis kit, three pinion gears (10T, 12T, 14T), grease, and a cross wrench. You'll need to separately source a 2-channel R/C system, servo, ESC, batteries, charger, paint, and paintbrush to complete it.
At 1/8 scale, it measures 270mm long, 98mm wide, and 190mm tall with a 185mm wheelbase. It's a detailed scale replica that comes with its own display stand.
The unique S.D.S.S steering system combines a 13-jointed articulated rider figure that hangs into corners—the rider's waist drops, the knee protrudes, and the head moves toward the corner exit—with inverted forks that lean side to side for authentic motorcycle handling.
