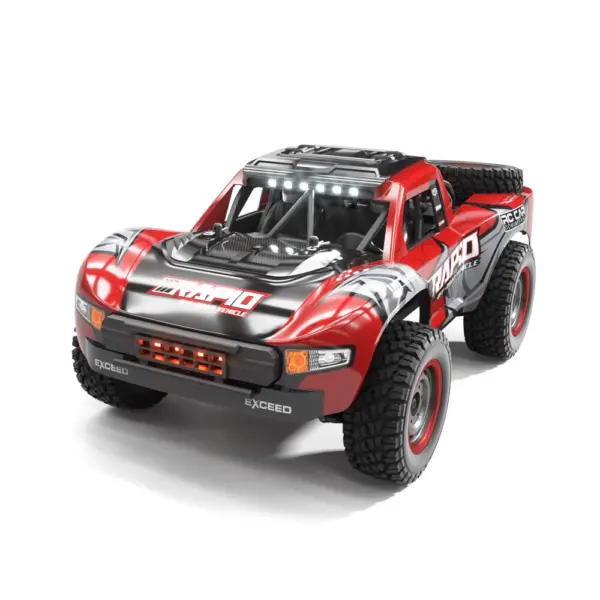

jjrc q130 brushless RC stadium truck

Description:

Basic information	Brand:JJRC Models:Q130 B brushless Model:1/14 Speed:70km/h	Power system	35A ESC and receiver are 2 in 1 Motor:2840 4000kv brushless Servo:3 Line LED headlights, LED roof lights, LED tail lights
Transmitter	Frequency:2.4 GHZ Battery: 3XAA battery(not included)	Battery:	7.4V 1500mAH 15C Li battert (T plug)
others	Charge time:180-210min Using time:15-18 min Control distance:120m Function:forward,backward,left,right Proportional control:proportional control It adopts plant differential.	Dimension	Size:34.5*20.5*14.8 CM Transmitter size:13*7.5*21 CM Wheelbase:18.8 cm Axle base:18.5cm Tire:8.5cm Package size:57.5*36.5*53.5 CM Car weight:1160g Package weight::1900g

Function:

1. Using the simulation structure design, it has the control feeling of a real car, and realizes full-scale continuously variable transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn;
2. Applicable venues: flat ground, sandy ground, muddy ground, grassland.
3. Four-wheel drive: front and rear upright spring shock absorption, double wishbone independent suspension system;
4. 2.4G full-scale synchronous remote control system. Full-scale throttle/steering;
5. Metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear;
6. Metal CVD front drive shaft, metal rear dog bone, metal wheel cup;
7. Three-line 17G digital steering gear;
8. 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C;
9. New remote control panel function: rudder size adjustment;
10. The whole car adopts 16 ball bearings;
11. Metal second floor, metal front and rear arm yards, metal middle drive shaft;
12. The car shell is made of high toughness explosion-proof PVC car shell;
13. The car shell is equipped with LED headlights, LED roof lights, and LED tail lights; (three modes: constant light, slow flash, fast flash);
14. Simulated off-road tires with strong grip;

Package included:

1*Remote Control Car
1*Controller
1*Rechargeable battery(built-in)
1*Charger

Attention:

1: Charging protection: constant current and constant voltage balanced charging, protection function for battery overcharge and overcurrent.

2: Motor anti-jamming protection: When overloaded, the motor stops working.

3: High temperature protection: When the working temperature is higher than the setting, the drive control circuit stops working, and resumes working after the temperature drops to a safe value.

4: ESC low-voltage power-off function, when the battery is lower than 6.3-6.4V, it will automatically power off to prevent the battery from being damaged due to over-discharge.
