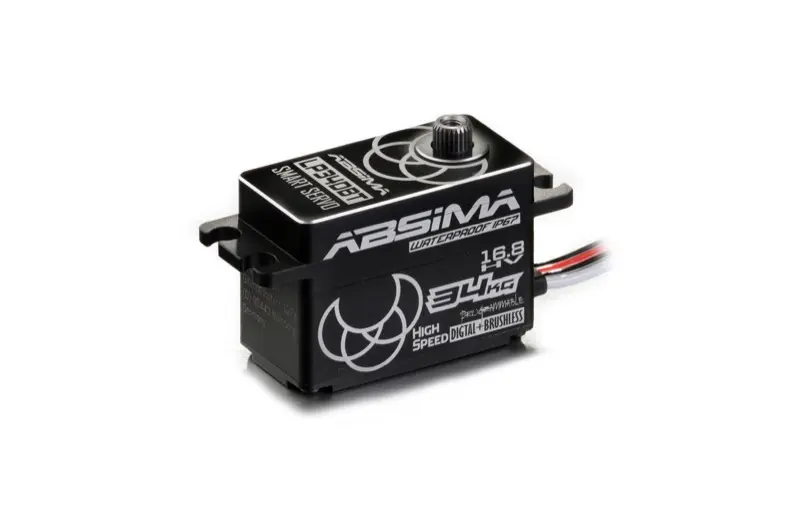

Hv 3s/4s Digital Alu Servo Lp34dbt Crawler-Spec. Waterproof
About this product
Technical Data Highlights:
Servo Category:
Crawler Torque & Speed
Operating Voltage:
7.4V – 17.0V HV
Torque
@ 12.0V: 26.0kg
Torque
@ 14.4V: 30.0kg
Torque
@ 16.0V: 33.0kg
Torque
@ 16.8V: 34.0kg
Speed:
0.085sec/60° @ 16.0V / 0.080sec/60° @ 16.8V
Technology:
Digital
Motor Type:
Brushless
Gear Material:
Reinforced steel
Housing material:
CNC AL6061 T6
Waterproof Rating:
IP67 waterproof
Bearing:
Metal ball bearings
Size:
40.8*20.2*30.1 mm
Weight:
66,5 g
Programmable:
Yes with USB interface adapter # 2030110 (sold separately)
ATTENTION: Separate power supply required! (2S, 3S, or 4S LiPo – BEC/JST)
Servos – the heart of every RC system
Servos
are a central component of the
RC system
and form the basis of every
remote-controlled model
. They are responsible for transmitting the control commands from the transmitter to the model precisely and reliably.
Connected via the
steering linkage
, RC servos convert stick or rotary movements on the transmitter directly into
steering movements on the vehicle
. In
RC combustion engine vehicles
, servos are also used as
throttle servos
: they control both the
throttle valve of the carburetor
and the
brake
.
This version has enormous positioning force, which can reach up to 34 kg when connected directly to a 3S or 4S LiPo battery, all at a speed of 0.080 seconds! In addition, the servo is dustproof and waterproof (IP67) and can therefore be used in all weather conditions.
Our “Crawler Spec. Servos” are mainly used in 1:8 and 1:10 crawlers or other heavy vehicles that require a lot of power on the steering axle.
Servo sizes for RC cars
In
RC cars with scales of 1:8 and 1:10
, only
standard-size servos
or
low-profile servos
are used. These designs offer the optimal combination of performance, stability, and accuracy of fit for modern RC vehicles.
Race & Team Spec. Servos – developed for competition
Our
“Race & Team Spec.” servos
are mainly used in
competition vehicles
and impress with a variety of outstanding features:
High positioning force and fast response time
Precise control even under high loads
Durable, high-quality components
Ideal for demanding RC racers
Here is an overview with more information about all TEAM SPEC. SERVOS:
Item number: 2030108
EAN: 4250650956769
