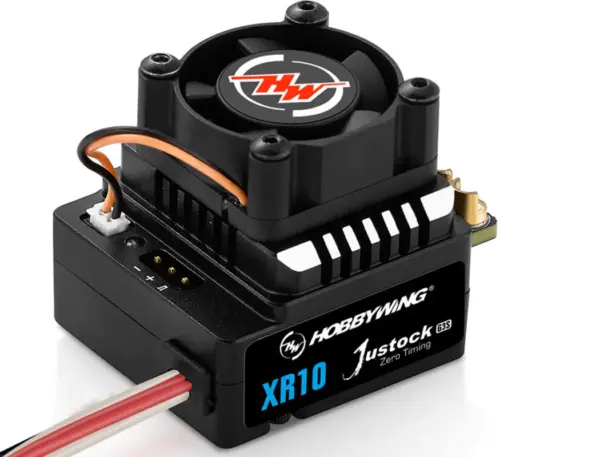

Hobbywing Xerun Xr10 Justock G3s Brushless Speed Control

HOBBYWING XERUN XR10 JUSTOCK G3S SPEED CONTROL

The XERUN XR10 JUSTOCK G3S ESC is specifically designed for Zero-timing racing class. Its timing system has been permanently set to ZERO degree. Using the same branded motor and winding will ensure that every racer will have the same power system for 100% fair and competitive racing.

Reliable hardware combined with advanced software technology allows the XERUN XR10 JUSTOCK G3S to not only provide high power output, but also overload protection of the ESC circuit.

This ESC is designed for 1/10th scale touring cars & 1/12th scale pan cars as well as the ever popular F1 series cars for all Zero-timing spec racing. The ESC features an RPM speed limit function and is able to support up to 79 different RPM speed selections to meet the needs and demands of various competitions in the world.

Features

• The built-in capacitor avoids the trouble of finding installation position for the external capacitor module, saves space and is convenient for layout
• The built-in reverse connection protection circuit prevents damaging ESC due to reverse connection of battery
• Multiple protection circuits, battery low-voltage cut-off protection, over temperature protection, fail safe (throttle signal loss protection) and motor lock-up protection
• Supports firmware upgrade of ESC (Multi-function LCD program box Pro or OTA Programmer need to be purchased)
• Supports various RPM limit values to meet the needs of different races. It can be set directly by the program box pro or OTA programmer

Specifications

Scale: 1/10 & 1/12
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless/Sensored
Waterproof: No
Motor Limit: >10.5
Cont./Peak Current: 60A/380A
Input Voltage: 2S Lipo Only
BEC Output: Switch Mode: 6.0v/7.4V @4A
Input Wires: Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires: Black-14AWG-200mm*3
Input Connectors: No
Output Connectors: No
Fan Size: 25 x 25 x 10mm
Voltage Range: 5-7.4V
LCD Program Box: G2/PRO Supported
OTA Module: WiFi Supported
Size: 40.9 x 33.9 x 32.1mm
Weight: 75.4g (inc Wires)
