About this product

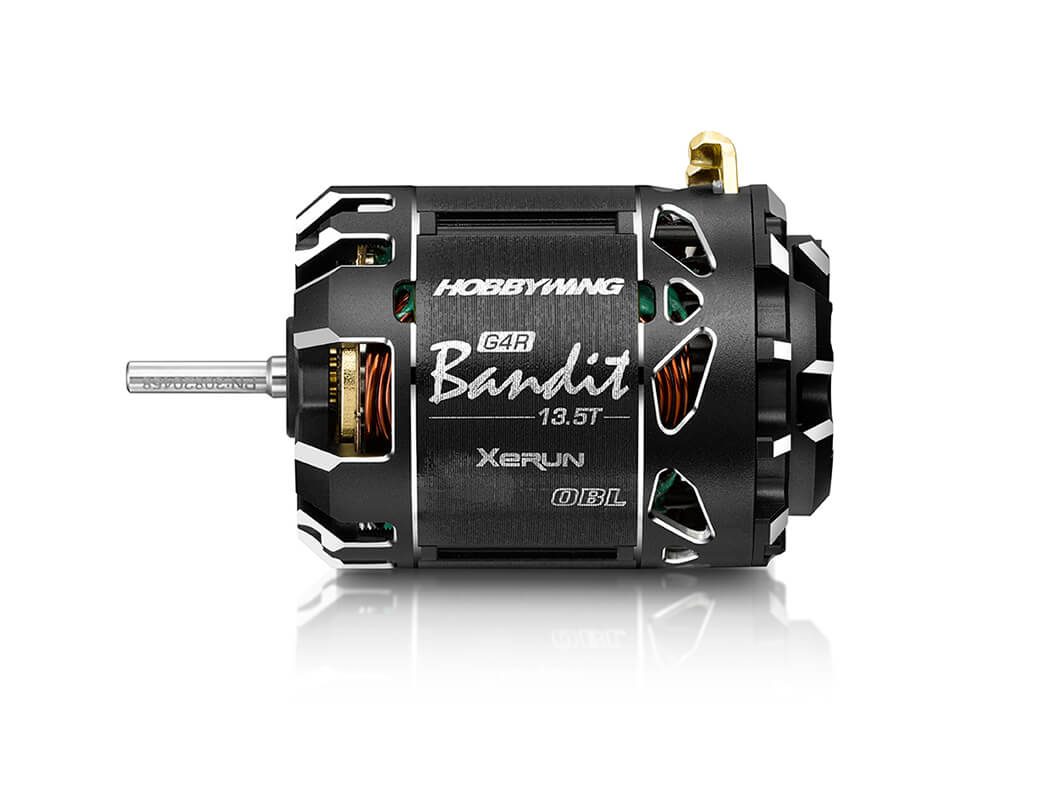

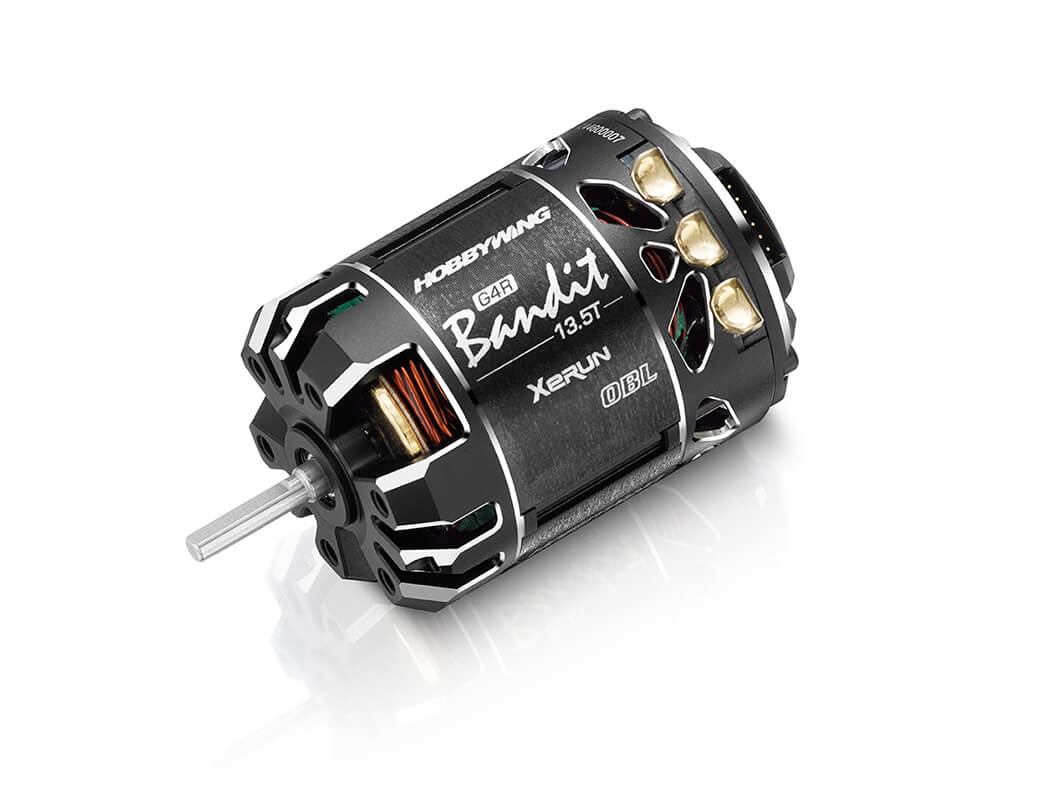

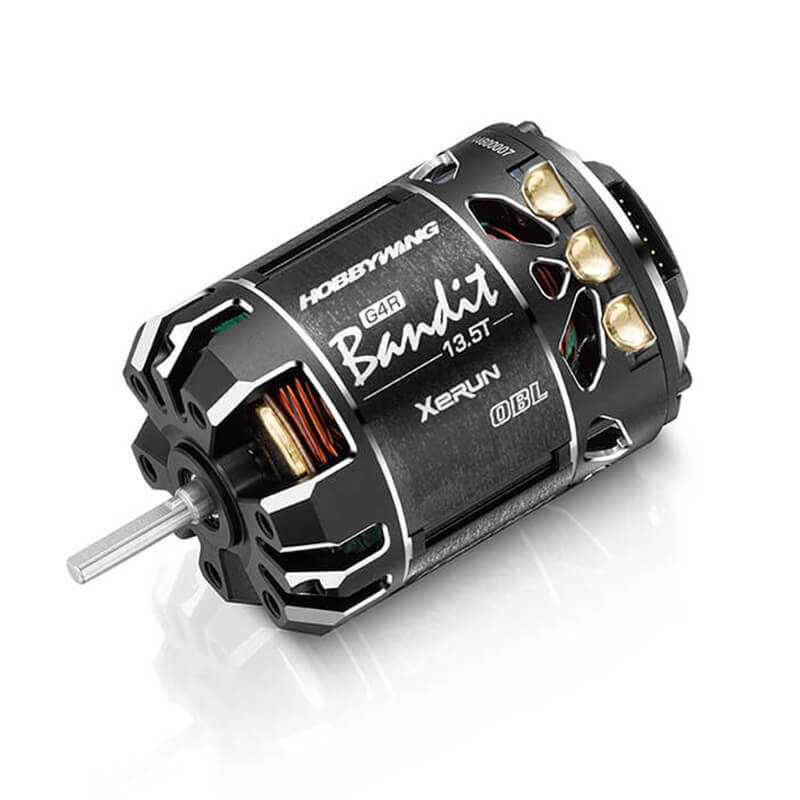

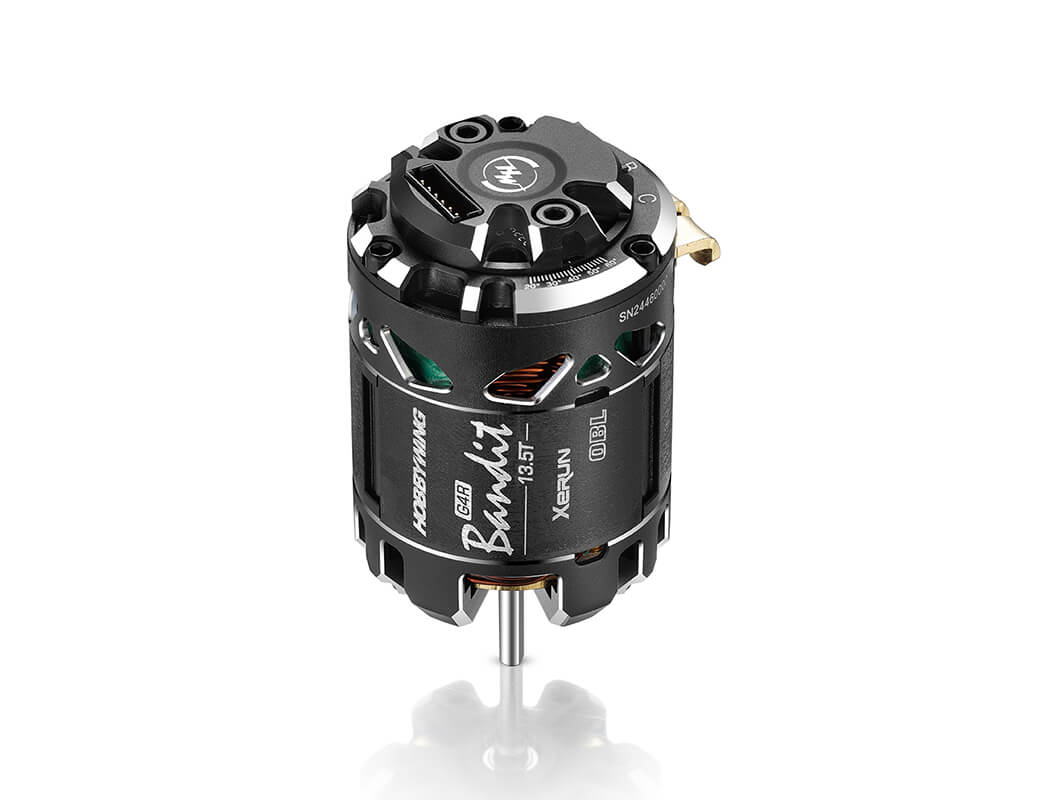

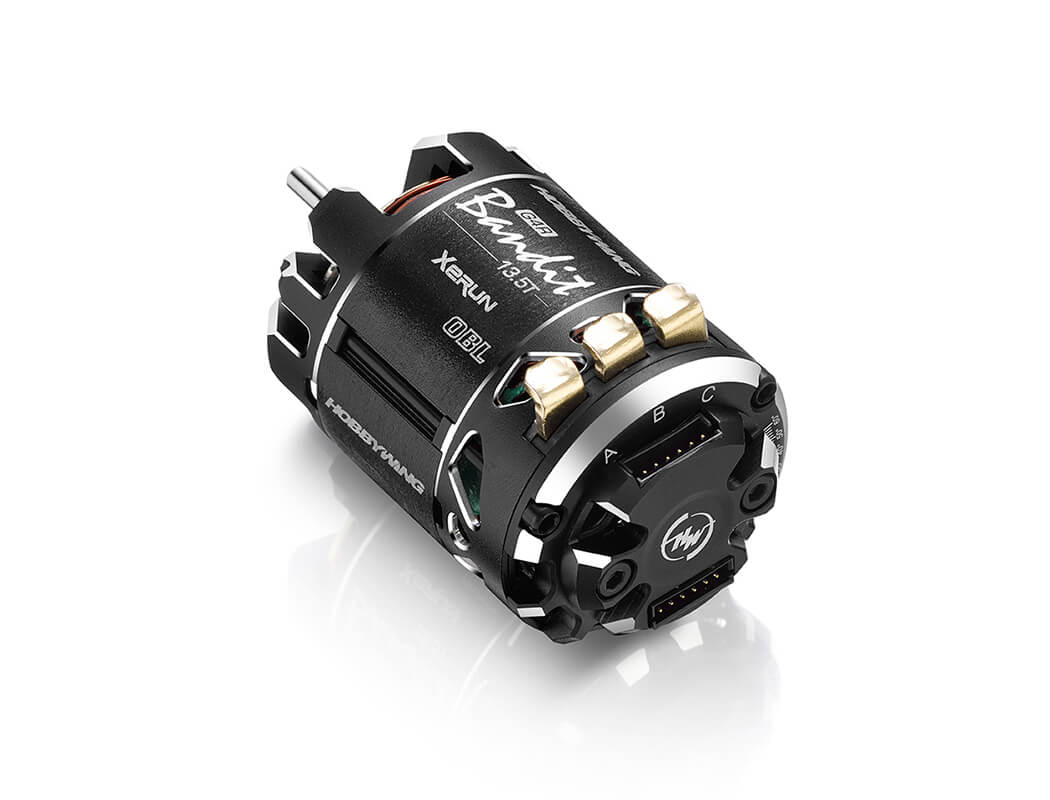

HOBBYWING XERUN BANDIT 13.5T BLACK G4R OBL MOTOR
Features
- Excellent performance, specially designed for 1/10 outlaw stock racing.
- Compared to the previous generation, the KV value of the 13.5T-OBL version has been increased by 11.7%, the motor length has been shortened by 2mm, and the weight has been reduced by 15g.
- The OBL version is lighter, shorter, and provides more RPM.
- The innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation area and the end of the motor is a big opening structure to further improve the heat dissipation effect.
- Dual sensor interface design to meet various wiring/layout requirements.
- The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.
- The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
- The use of high-performance stator core, 220? high-temperature-resistant enameled wire high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
Specifications
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
KV Rating: 3800KV
LiPo Cells: 1-3S
No-load Current(A): 4.4A

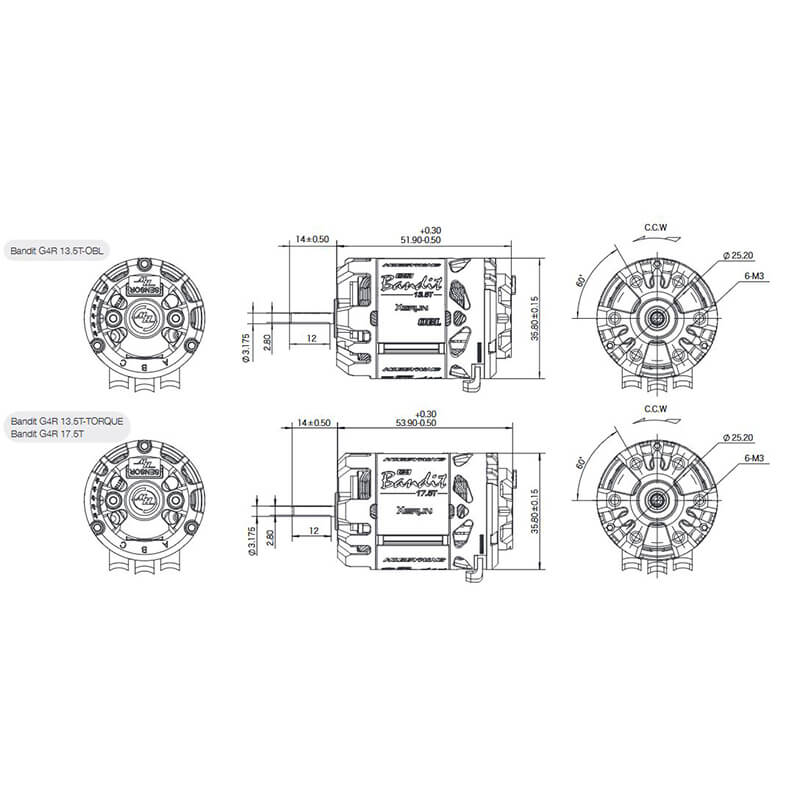

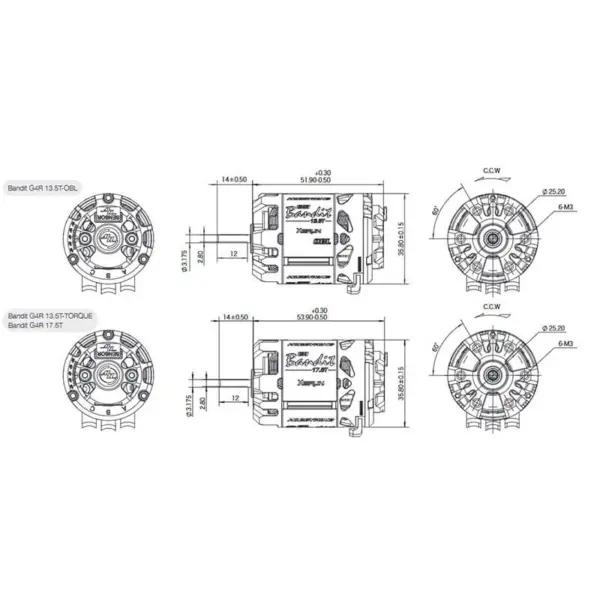

O.D.(mm): 35.8
Length (mm): 51.9
Shaft Diameter (mm): 3.175
Weight (g): 172g
Front Bearing: D9*D4*T4
Rear Bearing: D8*D3*T4
ESC: XERUN XR10 PRO G3
Vehicles: 1/10th Outlaw Stock Racing
