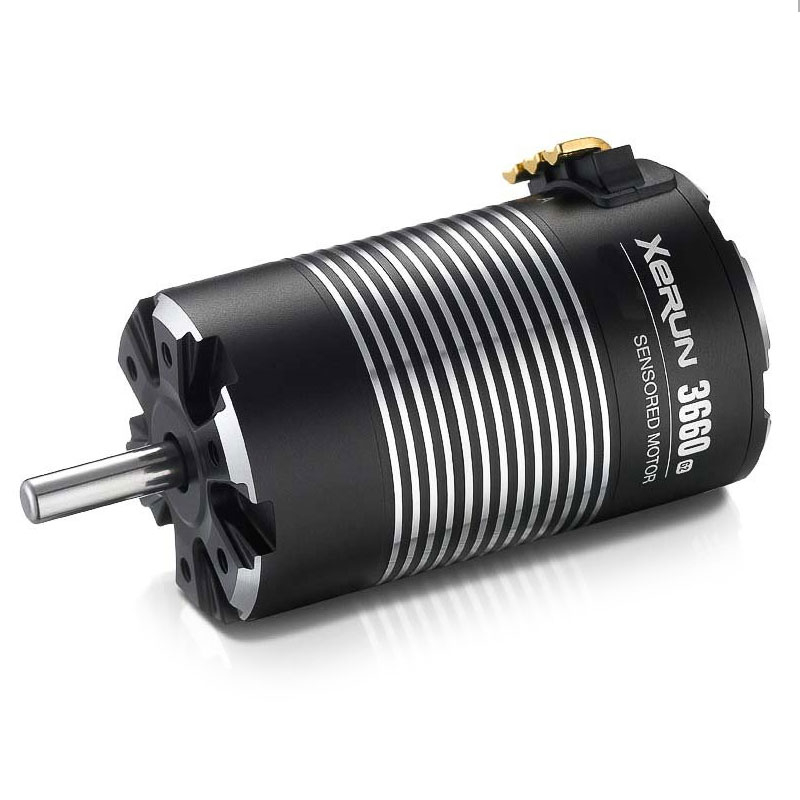

Hobbywing Xerun 3660sd D5.00 3200kv G2 Motor (Black)

HOBBYWING XERUN 3660SD D5.00 3200KV G2 MOTOR (BLACK)

The first 4-pole motor with a built-in chip which helps ESC identify it’s a HOBBYWING motor (only when pairing it with the XeRun XR8 series of ESCs) and the XR8 ESC create a power system which is able to work in the “sensored” mode (at all times) and provide users with the better performance and smoother control. Note: this motor is compatible with other ESCs but unable to work in the “sensored” mode at all times.

The Turbo Timing which is widely used (by 2-pole motors) in 1/10 scale on-road racing can be enabled to unleash the utmost power of the motor when pairing the XeRun 3652/3660 G2 with the XeRun XR8 series of ESCs.

The HOBBYWING-patented “error-free” Hall sensing system adopted by the motor guarantees users the steady operation in the “sensored” mode. A separate high-speed high precision encoder always outputs the clean signals (indicate the position of the rotor) and protects the Hall sensing system from other signal interference.

The HOBBYWING-patented 4-pole-8-magnet “staggered pole” rotor with the extremely low cogging effect and torque pulsation greatly improves the driving feel around corners.

The use of double insulated windings (200? R-leveled), Japanese NMB bearings, super thin silicon steel sheets and the high-intensity adhesive (300?) guarantees users the outstanding performance and great durability. (With the strength of the motor is guaranteed,) the wheel hub design adopted by front & rear end bells effectively reduces the motor weight.

HobbyWing XeRun 3660 SD G2 Features:

• Full-sensored Mode
• Turbo Timing Technology
• Bi-directional Adjustable Timing
• Advanced Hall Sensing System
• Low Cogging Torque
• Quality Materials & Excellent Design
• Turbine Design
• Compatible with the XeRun XR8 SCT ESC

Spec Check:

• Scale: 1/10th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensored
• Pole Count: 4
• KV Rating: 3200
• LiPo Cells: 2-3S
• No-load Current(A): 3.7
• Resistance(mΩ): 6.5
• O.D.(mm): 36mm (1.417in)
• Length(mm): 62 (2.44in)
• Shaft Diameter(mm): 5 (0.197in)
• Weight(g): 218
• Shaft Length(mm): 17 (0.669in)
• Timing: 20-40 Degrees (Adjustable)
